TT1001 ANDROID TABLET User Manual Please read this manual before operating your device and keep it for future reference. Before you begin using your new tablet Included in the box with your tablet are separate information leaflets. These leaflets provide you with important information regarding your new device. Please read all of the information provided. This information will help you to get the most out of your tablet, reduce the risk of injury, avoid damage to your device, and make you aware of legal regulations regarding the use of this device. It’s important to review the Product Safety and Warranty Information guide before you begin using your new tablet. Please follow all of the product safety and operating instructions and retain them for future reference. Observe all warnings to reduce the risk of injury, damage, and legal liabilities. Please read and observe the following information for safe and proper use of your tablet and to prevent damage.  Do not disassemble or open, crush, bend or deform, puncture or shred.  Repairs under warranty, may include replacement parts or boards that are either new or reconditioned, provided that they have functionality equal to that of the parts being replaced.  Do not modify or re-manufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion, or other hazard.  Only use the battery for the system for which it is specified.  Only use the battery with a charging system that has been qualified with the system per CTIA Certification Requirements for Battery System Compliance to IEEE1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.  Do not short circuit a battery or allow metallic conductive objects to contact the battery terminals.  Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. Only authorized service providers shall replace battery (If the battery is non-user replaceable).  Battery usage by children should be supervised.  Avoid dropping the tablet or battery. If the tablet or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.  Improper battery use may result in a fire, explosion, or other hazard.  For those host devices that utilize a USB port as a charging source, the host device’s user manual shall include a statements that the device shall only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Always unplug the charger from the wall socket after the tablet is fully charged to save unnecessary power consumption of the charger.  Do not place any heavy items on the power cord. Do not damage the power cord by bending, twisting, or heating and do not allow the power cord to be crimped because it may cause an electric shock or fire. Using a power cord with a loose plug may also cause an electric shock or fire.  If you put your tablet in a bag or briefcase without covering the power port (Charger/USB port), metallic articles (such as a coin, paperclip, pen, etc.) that come into contact with the power plug pin may short-circuit your tablet’s battery terminals. This may damage the battery and could cause an explosion. Always cover the power port when not in use.  Keep the tablet away from babies and small children. If children are allowed to use the tablet, their parents or legal guardians are responsible for supervising and teaching them how to use it safely according to the manual’s safety precautions.  If liquid from the battery in the tablet comes in contact with skin or clothing, wash the area with fresh water. The battery fluid may cause skin inflammation. If the tablet shows any indication of battery leakage, do not use it. Take it to the nearest service center or dealer for assistance. Be careful that children do not swallow any parts (such as earphone, connection parts of the device, etc.). This could cause asphyxiation or suffocation resulting in serious injury or death.  Do not handle the tablet with wet hands while it is being charged. It may cause an electric shock or seriously damage your tablet.  Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your tablet. This could cause a fire. Tablet Overview 1. Volume Keys: Volume Keys + allow you to adjust the media volumes. Press it to decrease the volume. Volume Keys - allow you to adjust the media volumes. Press it to increase the volume. 2. Power/Lock Key: Press to lock/unlock the screen. Press and hold to turn the tablet on/off, restart it, and activate/ deactivate airplane mode. 3. Headset jack: Allow you to plug in an optional listening accessory, such as headphones to listen to music. 4. Micro SD card slot: Allow you to insert your micro SD card to store your personal data files (music, videos, photos, etc.). 5. USB port: Allow you to connect the tablet and the USB cable for use with your compatible accessories. 6. SIM slot: Unlock the cover, and insert the SIM card,then lock the cover. 7. MIC: 8. Flash Light : Allow you to connect the tablet and the USB cable for use with the charger adapter, your PC, or other compatible accessories. 9. Rear camera: Use to take photos and record videos. Keep it clean for optimal performance. 10. Speakers: Use to listen to the audio from the selected function (e.g., music, videos, sound clips, etc.). 11. Data connector: Allow you connect tablet and vehicle dock. Charging your tablet A rechargeable battery is used to power your tablet. Charge the battery using the USB cable (power cord) and the charger (power outlet adapter) included with your tablet. Make sure to fully charge the battery before using your tablet for the first time. WARNING! If the touchscreen won't function wh…

Text truncated - open the document above for the full version.

DATE :2021.06.17 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: _2AGCDJACSTT1001V1_ Product Name: _ TT1001 10.1 inch Tablet Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name : Candy Zhang Title: Treasurer Company: JACS Solutions, Inc.

Date: 2021.06.17 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). <Signature> Name : Candy Zhang Title: Treasurer Company: JACS Solutions, Inc.

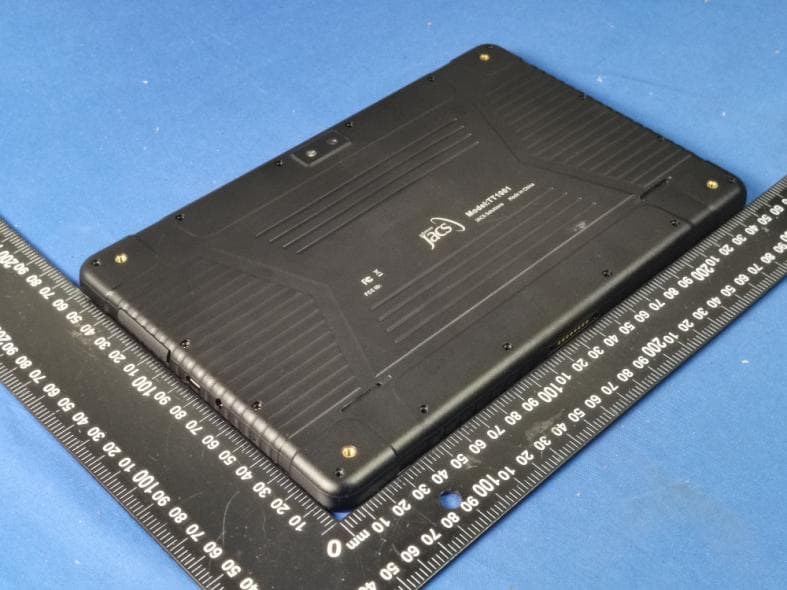

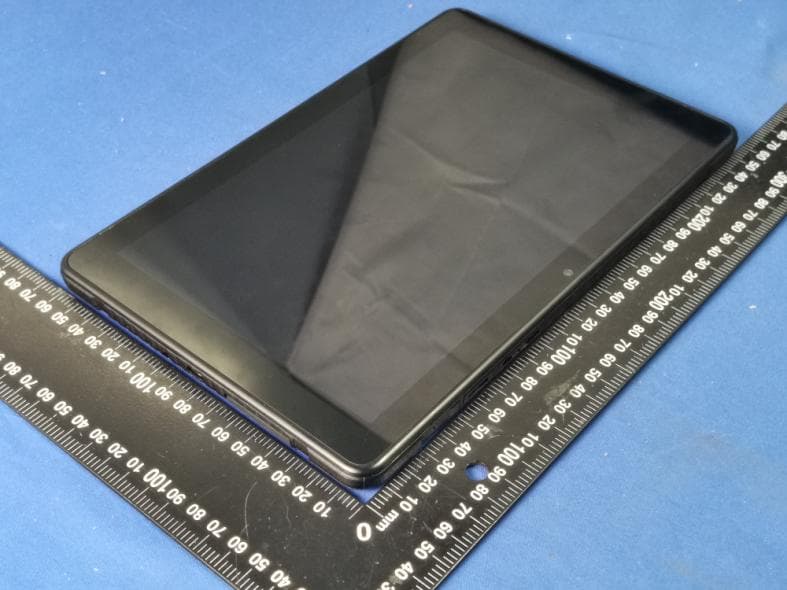

FCC-ID: 2AGCDJACSTT1001V1 Page 1 of 2 Report No.: CTL2103122021-WF External Photos of EUT FCC-ID: 2AGCDJACSTT1001V1 Page 2 of 2 Report No.: CTL2103122021-WF

FCC-ID: 2AGCDJACSTT1001V1 Page 1 of 1 Report No.: CTL2103122021-WF FCC-ID Label Information 1. Label location: TT1001 10.1 inch Tablet Model: TT1001V1 FCC: 2AGCDJACSTT1001V1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC-ID: 2AGCDJACSTT1001V1 Page 1 of 4 Report No.: CTL2103122021-WF Internal Photos of EUT Antenna1 Antenna2 FCC-ID: 2AGCDJACSTT1001V1 Page 2 of 4 Report No.: CTL2103122021-WF FCC-ID: 2AGCDJACSTT1001V1 Page 3 of 4 Report No.: CTL2103122021-WF FCC-ID: 2AGCDJACSTT1001V1 Page 4 of 4 Report No.: CTL2103122021-WF

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS2104156H01 Issued for JACS Solutions, Inc. 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Product Name: TT1001 10.1 inch Tablet Brand Name: N/A Model Name: TT1001V1 Series Model: N/A FCC ID: 2AGCDJACSTT1001V1 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. Report SAR (1g): Body: 1.364 W/kg S T L A B S Page 2 of 53 Report No.: STS2104156H01 Test Report Certification Applicant’s name ................. : JACS Solutions, Inc. Address .................................. : 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Manufacture's Name ............ : JACS Solutions, Inc. Address .................................. : 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Product description Product name ......................... : TT1001 10.1 inch Tablet Brand name .......................... : N/A Model name ......................... : TT1001V1 Series Model .......................... : N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test Date (s) of performance of tests .............. : 28 Apr. 2021 ~ 14 May 2021 Date of Issue ........................................... : 18 May 2021 Test Result ............................................... : Pass Testing Engineer : (Luffy He) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 53 Report No.: STS2104156H01 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 6 1.3 Test Factory 6 2. Test Standards and Limits 7 3. SAR Measurement System 8 3.1 Definition of Specific Absorption Rate (SAR) 8 3.2 SAR System 8 4. Tissue Simulating Liquids 11 4.1 Simulating Liquids Parameter Check 11 5. SAR System Validation 13 5.1 Validation System 13 5.2 Validation Result 13 6. SAR Evaluation Procedures 14 7. EUT Antenna Location Sketch 15 7.1 SAR test exclusion consider table 16 8. EUT Test Position 20 8.1 Body-worn Position Conditions 20 8.2 Hotspot mode exposure position condition 20 9. Uncertainty 21 9.1 Measurement Uncertainty 21 9.2 System validation Uncertainty 22 10. Conducted Power Measurement 23 10.1 Test Result 23 11. EUT And Test Setup Photo 25 11.1 EUT Photo 25 11.2 Setup Photo 28 12. SAR Result Summary 31 12.1 Body-worn SAR 31 12.2 repeated SAR measurement 33 13. Equipment List 34 Appendix A. System Validation Plots 35 Appendix B. SAR Test Plots 41 Appendix C. Probe Calibration And Dipole Calibration Report 53 Page 4 of 53 Report No.: STS2104156H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 18 May 2021 STS2104156H01 ALL Initial Issue Page 5 of 53 Report No.: STS2104156H01 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name TT1001 10.1 inch Tablet Brand Name N/A Model Name TT1001V1 Series Model N/A Model Difference N/A Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled Hardware Version N/A Software Version N/A Frequency Range 2.4G WLAN 802.11b/g/n20/n40: 2412 to 2462 MHz 5.2G WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5150 to 5250 MHz 5.8G WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5725 to 5875 MHz Bluetooth: 2402 to 2480 MHz Max. Reported SAR(1g): (Limit:1.6W/kg) Band Mode Body worn and hotspot (W/kg) DTS 2.4GHz WLAN ANT 1 0.693 DTS 2.4GHz WLAN ANT 2 0.521 DTS 2.4GHz WLAN ANT 1+2 0.596 NII 5.2GHz WLAN ANT 1 0.645 NII 5.2GHz WLAN ANT 2 0.986 NII 5.2GHz WLAN ANT 1+2 1.364 NII 5.8GHz WLAN ANT 1 0.395 NII 5.8GHz WLAN ANT 2 0.529 NII 5.8GHz WLAN ANT 1+2 0.801 DSS Bluetooth Note 0.186 FCC Equipment Class Part 15 Spread Spectrum Transmitter (DSS) Unlicensed National Information Infrastructure TX (NII) Digital Transmission System (DTS) Battery Rated Voltage:3.8V Charge Limit Voltage:4.35V Capacity: 6500mAh Operating Mode WLAN: 802.11 a/b/g/n20/n40/ac20/ac40/ac80 Bluetooth: 4.2EDR (GFSK +π/4DQPSK+8DPSK) Antenna Specification PIFA Antenna Hotspot Mode Support DTM Mode Not Support Note: 1. Bluetooth SAR was estimated Page 6 of 53 Report No.: STS2104156H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration No.: 625569 IC Registration No.: 12108A A2LA Certificate No.: 4338.01 Page 7 of 53 Report No.: STS2104156H01 2. Test Standards and Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Deter…

Text truncated - open the document above for the full version.

Ref : ACR.262.10.20.MVGB.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING B, ZHUOKE SCIENCE PARK,No.190, CHONGQING ROAD,FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONG,CHINA MVG COMOSAR REFERENCE DIPOLE FREQUENCY: 2450 MHZ SERIAL NO.: SN 30/14 DIP2G450-335 SAR Reference Dipole Calibration Report 07/14/2020 Summary: This document presents the method and results from an accredited SAR reference dipole calibration performed in MVG. using the CALIPROBE test bench. for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units(SI). Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise - 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibretion date: 07/14/2020 Page: 1/11 SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.8.20.MVGB.A Name Function Date Signature Prepared by : Jérôme LUC Technical Manager 7/28/2020 Checked by : Jérôme LUC Technical Manager 7/28/2020 Approved by : Yann Toutain Laboratory Director 7/28/2020 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 7/28/2020Initial release Name Jérôme LUC Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.8.20.MVGB.A TABLE OF CONTENTS 1 Introduction ................................................................................................................ 4 2 Device Under Test ..................................................................................................... 4 3 Product Description ................................................................................................... 4 3.1 General Information _______________________________________________________ 4 4 Measurement Method ................................................................................................ 5 4.1 Return Loss Requirements __________________________________________________ 5 4.2 Mechanical Requirements ___________________________________________________ 5 5 Measurement Uncertainty .......................................................................................... 5 5.1 Return Loss ______________________________________________________________ 5 5.2 Dimension Measurement ___________________________________________________ 5 5.3 Validation Measurement ____________________________________________________ 5 6 Calibration Measurement Results .............................................................................. 6 6.1 Return Loss and Impedance In Head Liquid ____________________________________ 6 6.2 Return Loss and Impedance In Body Liquid ____________________________________ 6 6.3 Mechanical Dimensions ____________________________________________________ 6 7 Validation measurement ............................................................................................ 7 7.1 Head Liquid Measurement __________________________________________________ 7 7.2 SAR Measurement Result With Head Liquid ____________________________________ 8 7.3 Body Liquid Measurement __________________________________________________ 9 7.4 SAR Measurement Result With Body Liquid __________________________________ 10 8 List of Equipment .................................................................................................... 11 Page: 3/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.8.20.MVGB.A 1 INTRODUCTION This document contains a summary of the requirements set forth by the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards for reference dipoles used for SAR measurement system validations and the measurements that were performed to verify that the product complies with the fore mentioned standards. 2 DEVICE UNDER TEST Device Under Test Device Type COMOSAR 2450 MHz REFERENCE DIPOLE Manufacturer MVG Model SID2450 Serial Number SN 30/14 DIP2G450-335 Product Condition (new / used) New A yearly calibration interval is recommended. 3 PRODUCT DESCRIPTION 3.1 GENERAL INFORMATION MVG’s COMOSAR Validation Dipoles are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. The product is designed for use with the COMOSAR test bench only. Figure 1 – MVG COMOSAR Validation Dipole Page: 4/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.8.20.MVGB.A 4 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards provide requirements for reference dipoles used for system validation measurements. The following measurements were performed to verify that the product complies with the fore mentioned standards. 4.1 RETURN LOSS REQUIREMENTS The dipole used for SAR system validation measurements and checks must have a return loss of -20 dB or better. The return loss measurement shall be performed against a liquid filled flat phantom, with the phantom constucted as outlined in the fore mentioned standards. 4.2 MECHANICAL REQUIREMENTS The IEEE Std. 1528 and CEI/IEC 62209 standards specify the mechanical components and dimensions of the validation dipoles, with the dimensions fre…

Text truncated - open the document above for the full version.

2AGCDJACSTT1001V1_SAR Setup photos Body Back side(separation distance is 0mm) Body Right side(separation distance is 0mm) Body Top side(separation distance is 0mm)

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ................ : CTL2103122021-WF04 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gray Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : TT1001 10.1 inch Tablet Model/Type reference ................ : TT1001V1 List Model(s) ............................... : N/A Trade Mark .................................. : N/A FCC ID ......................................... : 2AGCDJACSTT1001V1 Applicant’s name ....................... : JACS Solutions, Inc. Address of applicant ................. : 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : 47 CFR FCC Part 15 Subpart E 15.407 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Mar. 19, 2021 Date of sampling ........................ : Mar. 19, 2021 Date of Test Date ........................ : Mar. 19, 2021-Apr. 19, 2021 Date of Issue .............................. : Apr. 20, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 29 Report No.: CTL2103122021-WF04 TEST REPORT Test Report No. : CTL2103122021-WF04 Apr. 20, 2021 Date of issue Equipment under Test : TT1001 10.1 inch Tablet Sample No : CTL210312202-1-S001 Model /Type : TT1001V1 Listed Models : N/A Applicant : JACS Solutions, Inc. Address : 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Manufacturer : JACS Solutions, Inc. Address : 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 29 Report No.: CTL2103122021-WF04 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-04-20 CTL2103122021-WF04 Tracy Qi V1.0 Page 4 of 29 Report No.: CTL2103122021-WF04 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY ........................................................................................................ 10 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 11 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 11 2.6. MODIFICATIONS ......................................................................................................................................................... 11 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 12 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 12 3.2. RADIATED EMISSIONS .................................................................................................................................................. 16 3.3. MAXIMUM CONDUCTED AVERAGE OUTPUT POWER ......................................................................................................... 22 3.4. POWER SPECTRAL DENSITY ..........................................................................................................…

Text truncated - open the document above for the full version.

V1.0 Page 1 of 99 Report No.: CTL2103122021-WF04 Appendix for 15.407 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Emission Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11a 5180 SISO 1 21.133 Only for Report Use PASS 5200 SISO 1 21.182 Only for Report Use PASS 5240 SISO 1 21.767 Only for Report Use PASS 802.11n(HT20) 5180 MIMO 1 26.122 Only for Report Use PASS 5200 MIMO 1 22.779 Only for Report Use PASS 5240 MIMO 1 26.526 Only for Report Use PASS 802.11n(HT40) 5190 MIMO 1 45.388 Only for Report Use PASS 5230 MIMO 1 43.458 Only for Report Use PASS 802.11ac(VHT20) 5180 MIMO 1 26.133 Only for Report Use PASS 5200 MIMO 1 21.855 Only for Report Use PASS 5240 MIMO 1 23.336 Only for Report Use PASS 802.11ac(VHT40) 5190 MIMO 1 56.548 Only for Report Use PASS 5230 MIMO 1 44.703 Only for Report Use PASS 802.11ac(VHT80) 5210 MIMO 1 80.990 Only for Report Use PASS Test Mode Frequency (MHz) TX Type ANT No. Emission Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11a 5745 SISO 1 16.346 ≥0.5 PASS 5785 SISO 1 16.335 ≥0.5 PASS 5825 SISO 1 15.871 ≥0.5 PASS 802.11n(HT20) 5745 MIMO 1 17.200 ≥0.5 PASS 5785 MIMO 1 17.545 ≥0.5 PASS 5825 MIMO 1 17.590 ≥0.5 PASS 802.11n(HT40) 5755 MIMO 1 35.777 ≥0.5 PASS 5795 MIMO 1 35.749 ≥0.5 PASS 802.11ac(VHT20) 5745 MIMO 1 17.119 ≥0.5 PASS 5785 MIMO 1 17.572 ≥0.5 PASS 5825 MIMO 1 17.088 ≥0.5 PASS 802.11ac(VHT40) 5755 MIMO 1 35.722 ≥0.5 PASS 5795 MIMO 1 35.726 ≥0.5 PASS 802.11ac(VHT80) 5775 MIMO 1 75.261 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11a 5180 SISO 1 16.929 Only for Report Use 5200 SISO 1 16.873 Only for Report Use 5240 SISO 1 16.977 Only for Report Use 5745 SISO 1 16.977 Only for Report Use 5785 SISO 1 16.981 Only for Report Use 5825 SISO 1 17.011 Only for Report Use 802.11n(HT20) 5180 MIMO 1 18.315 Only for Report Use 5200 MIMO 1 18.197 Only for Report Use 5240 MIMO 1 18.417 Only for Report Use 5745 MIMO 1 18.176 Only for Report Use 5785 MIMO 1 18.230 Only for Report Use 5825 MIMO 1 18.301 Only for Report Use V1.0 Page 2 of 99 Report No.: CTL2103122021-WF04 802.11n(HT40) 5190 MIMO 1 36.627 Only for Report Use 5230 MIMO 1 36.636 Only for Report Use 5755 MIMO 1 36.550 Only for Report Use 5795 MIMO 1 36.454 Only for Report Use 802.11ac(VHT20) 5180 MIMO 1 18.314 Only for Report Use 5200 MIMO 1 18.153 Only for Report Use 5240 MIMO 1 18.108 Only for Report Use 5745 MIMO 1 18.189 Only for Report Use 5785 MIMO 1 18.246 Only for Report Use 5825 MIMO 1 18.510 Only for Report Use 802.11ac(VHT40) 5190 MIMO 1 36.936 Only for Report Use 5230 MIMO 1 36.772 Only for Report Use 5755 MIMO 1 36.678 Only for Report Use 5795 MIMO 1 36.469 Only for Report Use 802.11ac(VHT80) 5210 MIMO 1 75.416 Only for Report Use 5775 MIMO 1 75.953 Only for Report Use 1.2 Test Graph - Emission Bandwidth V1.0 Page 3 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 4 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 5 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 6 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 7 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 8 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 9 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 10 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 11 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 12 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 13 of 99 Report No.: CTL2103122021-WF04 V1.0 Page 14 of 99 Report No.: CT…
