2AGCDJACSTT1001V3TT1001 10.1 inch Tablet

TT1001V3 ANDROID TABLET User Manual Please read this manual before operating your device and keep it for future reference. Before you begin using your new tablet Included in the box with your tablet are separate information leaflets. These leaflets provide you with important information regarding your new device. Please read all of the information provided. This information will help you to get the most out of your tablet, reduce the risk of injury, avoid damage to your device, and make you aware of legal regulations regarding the use of this device. It’s important to review the Product Safety and Warranty Information guide before you begin using your new tablet. Please follow all of the product safety and operating instructions and retain them for future reference. Observe all warnings to reduce the risk of injury, damage, and legal liabilities. Please read and observe the following information for safe and proper use of your tablet and to prevent damage.  Do not disassemble or open, crush, bend or deform, puncture or shred.  Repairs under warranty, may include replacement parts or boards that are either new or reconditioned, provided that they have functionality equal to that of the parts being replaced.  Do not modify or re-manufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion, or other hazard.  Only use the battery for the system for which it is specified.  Only use the battery with a charging system that has been qualified with the system per CTIA Certification Requirements for Battery System Compliance to IEEE1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.  Do not short circuit a battery or allow metallic conductive objects to contact the battery terminals.  Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. Only authorized service providers shall replace battery (If the battery is non-user replaceable).  Battery usage by children should be supervised.  Avoid dropping the tablet or battery. If the tablet or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.  Improper battery use may result in a fire, explosion, or other hazard.  For those host devices that utilize a USB port as a charging source, the host device’s user manual shall include a statements that the device shall only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Always unplug the charger from the wall socket after the tablet is fully charged to save unnecessary power consumption of the charger.  Do not place any heavy items on the power cord. Do not damage the power cord by bending, twisting, or heating and do not allow the power cord to be crimped because it may cause an electric shock or fire. Using a power cord with a loose plug may also cause an electric shock or fire.  If you put your tablet in a bag or briefcase without covering the power port (Charger/USB port), metallic articles (such as a coin, paperclip, pen, etc.) that come into contact with the power plug pin may short-circuit your tablet’s battery terminals. This may damage the battery and could cause an explosion. Always cover the power port when not in use.  Keep the tablet away from babies and small children. If children are allowed to use the tablet, their parents or legal guardians are responsible for supervising and teaching them how to use it safely according to the manual’s safety precautions.  If liquid from the battery in the tablet comes in contact with skin or clothing, wash the area with fresh water. The battery fluid may cause skin inflammation. If the tablet shows any indication of battery leakage, do not use it. Take it to the nearest service center or dealer for assistance. Be careful that children do not swallow any parts (such as earphone, connection parts of the device, etc.). This could cause asphyxiation or suffocation resulting in serious injury or death.  Do not handle the tablet with wet hands while it is being charged. It may cause an electric shock or seriously damage your tablet.  Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your tablet. This could cause a fire. Tablet Overview 1. Volume Keys: Volume Keys + allow you to adjust the media volumes. Press it to decrease the volume. Volume Keys - allow you to adjust the media volumes. Press it to increase the volume. 2. Power/Lock Key: Press to lock/unlock the screen. Press and hold to turn the tablet on/off, restart it, and activate/ deactivate airplane mode. 3. Headset jack: Allow you to plug in an optional listening accessory, such as headphones to listen to music. 4. Micro SD card slot: Allow you to insert your micro SD card to store your personal data files (music, videos, photos, etc.). 5. USB port: Allow you to connect the tablet and the USB cable for use with your compatible accessories. 6. SIM slot: Unlock the cover, and insert the SIM card,then lock the cover. 7. MIC: 8. Flash Light : Allow you to connect the tablet and the USB cable for use with the charger adapter, your PC, or other compatible accessories. 9. Rear camera: Use to take photos and record videos. Keep it clean for optimal performance. 10. Speakers: Use to listen to the audio from the selected function (e.g., music, videos, sound clips, etc.). 11. Data connector: Allow you connect tablet and vehicle dock. Charging your tablet A rechargeable battery is used to power your tablet. Charge the battery using the USB cable (power cord) and the charger (power outlet adapter) included with your tablet. Make sure to fully charge the battery before using your tablet for the first time. WARNING! If the touchscreen won't function …

Text truncated - open the document above for the full version.

JACS Solutions, Inc. 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Agent Authorization Company: JACS Solutions, Inc. Address: 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Product Name: TT1001 10.1 inch Tablet Model Number(s): TT1001V3 Product Description: TT1001 10.1 inch Tablet We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: July. 29,2022 Name: Candy Zhang Title: Treasurer Company: JACS Solutions, Inc.

JACS Solutions, Inc. 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/07/29 Subject; Request for Confidentiality FCC ID: 2AGCDJACSTT1001V3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC_Software Security Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Candy Zhang Title: Treasurer

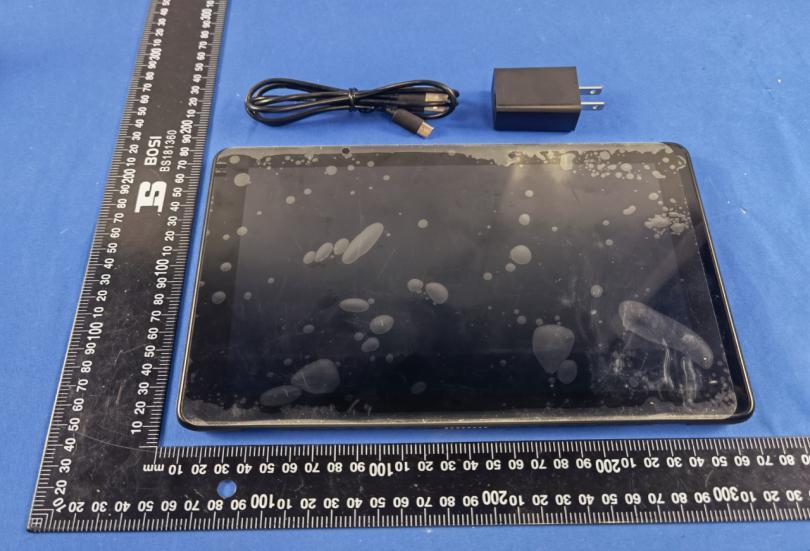

FCC ID: 2AGCDJACSTT1001V3 Page 1 of 3 Report No.: CTL2204152091-WF External Photos of EUT FCC ID: 2AGCDJACSTT1001V3 Page 2 of 3 Report No.: CTL2204152091-WF FCC ID: 2AGCDJACSTT1001V3 Page 3 of 3 Report No.: CTL2204152091-WF

FCC ID: 2AGCDJACSTT1001V3 Page 1 of 1 Report No.: CTL2204152091-WF FCC-ID Label Information 1. Label location: TT1001 10.1 inch Tablet Model: TT1001V3 FCC ID: 2AGCDJACSTT1001V3

FCC ID: 2AGCDJACSTT1001V3 Page 1 of 7 Report No.: CTL2204152091-WF Internal Photos of EUT FCC ID: 2AGCDJACSTT1001V3 Page 2 of 7 Report No.: CTL2204152091-WF LTE Diversity Antenna LTE Antenna FCC ID: 2AGCDJACSTT1001V3 Page 3 of 7 Report No.: CTL2204152091-WF FCC ID: 2AGCDJACSTT1001V3 Page 4 of 7 Report No.: CTL2204152091-WF Bluetooth & 2.4G-WIFI Antenna GPS RX-Antenna 5G-WIFI Antenna FCC ID: 2AGCDJACSTT1001V3 Page 5 of 7 Report No.: CTL2204152091-WF FCC ID: 2AGCDJACSTT1001V3 Page 6 of 7 Report No.: CTL2204152091-WF FCC ID: 2AGCDJACSTT1001V3 Page 7 of 7 Report No.: CTL2204152091-WF

2AGCDJACSTT1001V3 Setup photos Body Back side(separation distance is 0mm) Body Bottom Edge (separation distance is 0mm) Body Top Side (separation distance is 0mm) Body Right Side (separation distance is 0mm)

FCC ID: 2AGCDJACSTT1001V3 Page 1 of 1 Report No.: CTL2204152091-WF Test Setup Photos of the EUT

V1.0 Page 1 of 52 Report No.: CTL2204152091-WF Appendix for 15.247 Product Name: TT1001 10.1 inch Tablet Test Model: TT1001V3 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result GFSK SISO 2402 DH5 1 0.895 Pass 2441 DH5 1 0.891 Pass 2480 DH5 1 0.894 Pass Pi/4DQPSK SISO 2402 2DH5 1 1.190 Pass 2441 2DH5 1 1.191 Pass 2480 2DH5 1 1.193 Pass 8DPSK SISO 2402 3DH5 1 1.193 Pass 2441 3DH5 1 1.192 Pass 2480 3DH5 1 1.191 Pass V1.0 Page 2 of 52 Report No.: CTL2204152091-WF 1.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 3 of 52 Report No.: CTL2204152091-WF GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV V1.0 Page 4 of 52 Report No.: CTL2204152091-WF Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 5 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 6 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 7 of 52 Report No.: CTL2204152091-WF 1.2 20dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result GFSK SISO 2402 DH5 1 0.980 Pass 2441 DH5 1 0.966 Pass 2480 DH5 1 0.973 Pass Pi/4DQPSK SISO 2402 2DH5 1 1.351 Pass 2441 2DH5 1 1.349 Pass 2480 2DH5 1 1.346 Pass 8DPSK SISO 2402 3DH5 1 1.313 Pass 2441 3DH5 1 1.313 Pass 2480 3DH5 1 1.314 Pass V1.0 Page 8 of 52 Report No.: CTL2204152091-WF 1.2.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 9 of 52 Report No.: CTL2204152091-WF GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV V1.0 Page 10 of 52 Report No.: CTL2204152091-WF Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 11 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 12 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 13 of 52 Report No.: CTL2204152091-WF 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 0.54 <=20.97 Pass 2441 DH5 1.16 <=20.97 Pass 2480 DH5 2.53 <=20.97 Pass Pi/4DQPSK SISO 2402 2DH5 6.64 <=20.97 Pass 2441 2DH5 6.12 <=20.97 Pass 2480 2DH5 5.55 <=20.97 Pass 8DPSK SISO 2402 3DH5 7.13 <=20.97 Pass 2441 3DH5 6.57 <=20.97 Pass 2480 3DH5 6.08 <=20.97 Pass V1.0 Page 14 of 52 Report No.: CTL2204152091-WF 2.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 15 of 52 Report No.: CTL2204152091-WF GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV V1.0 Page 16 of 52 Report No.: CTL2204152091-WF Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 17 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 18 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 19 of 52 Report No.: CTL2204152091-WF 3. Carrier Frequency Separation 3.1 Ant1 3.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 0.956 0.980 >=0.653 Pass Pi/4DQPSK SISO HOPP 2DH5 1.001 1.351 >=0.901 Pass 8DPSK SISO HOPP 3DH5 1.015 1.314 >=0.876 Pass V1.0 Page 20 of 52 Report No.: CTL2204152091-WF 3.1.2 Test Graph GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV V1.0 Page 21 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH5_HOPP_Ant1_NTNV V1.0 Page 22 of 52 Report No.: CTL2204152091-WF 4. Number of Hopping Frequencies 4.1 HoppNum 4.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass V1.0 Page 23 of 52 Report No.: CTL2204152091-WF 4.1.2 Test Graph GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV V1.0 Page 24 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH5_HOPP_Ant1_NTNV V1.0 Page 25 of 52 Report No.: CTL2204152091-WF 5. Time of Occupancy (Dwell Time) 5.1 Ant1 5.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.392 31.600 321 125.832 <=400 Pass DH3 1.642 31.600 160 262.720 <=400 Pass DH5 2.894 31.600 107 309.658 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.396 31.600 321 127.116 <=400 Pass 2DH3 1.648 31.600 152 250.496 <=400 Pass 2DH5 2.896 31.600 128 370.688 <=400 Pass 8DPSK SISO HOPP 3DH1 0.392 31.600 320 125.440 <=400 Pass 3DH3 1.646 31.600 170 279.820 <=400 Pass 3DH5 2.898 31.600 112 324.576 <=400 Pass V1.0 Page 26 of 52 Report No.: CTL2204152091-WF 5.1.2 Test Graph GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV V1.0 Page 27 of 52 Report No.: CTL2204152091-WF GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV V1.0 Page 28 of 52 Report No.: CTL2204152091-WF GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV V1.0 Page 29 of 52 Report No.: CTL2204152091-WF Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV V1.0 Page 30 of 52 Report No.: CTL2204152091-WF Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV V1.0 Page 31 of 52 Report No.: CTL2204152091-WF Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV V1.0 Page 32 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV V1.0 Page 33 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV V1.0 Page 34 of 52 Report No.: CTL2204152091-WF 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV V1.0 Page 35 of 52 Report No.: CTL2204152091-WF 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Ref 6.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 0.11 2441 DH5 1 0.73 2480 DH5 1 2.09 Pi/4DQPSK…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No.: CTL2204152091-WF01 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gray Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : TT1001 10.1 inch Tablet Model/Type reference ................ : TT1001V3 List Model(s) ............................... : N/A Trade Mark .................................. : Jacs FCC ID ......................................... : 2AGCDJACSTT1001V3 Applicant’s name ....................... : JACS Solutions, Inc. Address of applicant ................. : 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : May.06, 2022 Date of Test Date ........................ : May.06, 2022- May.26, 2022 Date of Issue .............................. : May.27, 2022 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 40 Report No.: CTL2204152091-WF01 TEST REPORT Test Report No. : CTL2204152091-WF01 May.27, 2022 Date of issue Equipment under Test : TT1001 10.1 inch Tablet Sample No : CTL220415209-1-S001 Model /Type : TT1001V3 Listed Models : N/A Applicant : JACS Solutions, Inc. Address : 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Manufacturer : JACS Solutions, Inc. Address : 809 Pinnacle Drive, Suite R, Linthicum Heights, MD 21090 Test result Pass * *In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 40 Report No.: CTL2204152091-WF01 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2022-05-27 CTL2204152091-WF01 Tracy Qi V1.0 Page 4 of 40 Report No.: CTL2204152091-WF01 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK OUTPUT POWER ................................................................................................................................ 22 3.4. 20DB BANDWIDTH ..................................................................................................................................................... …

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] S T L A B S Testing Engineer : ((Shifan. Long) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) SAR Dipole Performance Measurement Report EUT Type： SAR Validation Dipole and Waveguide Model Name： DIP2G450, WGA32 Brand Name: SATIMO Test Conclusion： Pass Test Date： 11 July 2021 Date of Issue： 12 July 2021 ISSUED BY Shenzhen STS Test Services Co., Ltd. 1. Equipment List Kind of Equipment Manufacturer Type No. Serial No. Last Calibration Calibrated Until PC Acer N/A N/A N/A N/A E-Field Probe MVG SSE2 SN 07/21 EPGO352 2021.03.01 2022.02.28 Dielectric Probe Kit MVG SCLMP SN 32/14 OCPG67 2020.11.24 2021.11.23 Phantom1 MVG SAM SN 32/14 SAM115 N/A N/A Phantom2 MVG SAM SN 32/14 SAM116 N/A N/A Attenuator Agilent 99899 DC-18GHz N/A N/A Directional coupler Narda 4226-20 3305 N/A N/A Network Analyzer Agilent 8753ES US38432810 2020.10.12 2021.10.11 Multi Meter Keithley Multi Meter 2000 4050073 2020.10.10 2021.10.09 Signal Generator Agilent N5182A MY50140530 2020.10.10 2021.10.09 Power Amplifier DESAY ZHL-42W 9638 2020.10.12 2021.10.11 Power Meter R&S NRP 100510 2020.10.10 2021.10.09 Power Sensor R&S NRP-Z11 101919 2020.10.10 2021.10.09 Power Sensor Agilent E9301A MY41497725 2020.10.10 2021.10.09 Temperature hygrometer SuWei SW-108 N/A 2020.10.12 2021.10.11 Thermograph Elitech RC-4 S/N EF7176501537 2020.10.12 2021.10.11 ISSUED BY Shenzhen STS Test Services Co., Ltd. 2. <Justification of the extended calibration> Referring to KDB 865664 D01, if dipoles are verified in return loss<-20dB, (within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 2450 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -26.03 - 46.3 - 2021.07.11 -26.42 1.50 47.25 0.95 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 2450 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 2450 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -32.76 - 48.7 - 2021.07.11 -32.55 -0.64 47.25 -1.45 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 2450 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 5000 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 < -8.23 - - - 2021.07.11 -13.17 - - - The return loss is <-8dB, within 20% of prior calibration; Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 5000MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 5000 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 < -13.96 - - - 2021.07.11 -14.37 - - - The return loss is <-8dB, within 20% of prior calibration; Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 5000MHz

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] S T L A B S Testing Engineer : ((Shifan. Long) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) SAR Dipole Performance Measurement Report EUT Type： SAR Validation Dipole and Waveguide Model Name： DIP3G500-553 Brand Name: SATIMO Test Conclusion： Pass Test Date： 25 Feb. 2022 Date of Issue： 25 Feb. 2022 ISSUED BY Shenzhen STS Test Services Co., Ltd. 1. Equipment List Kind of Equipment Manufacturer Type No. Serial No. Last Calibration Calibrated Until PC Acer N/A N/A N/A N/A E-Field Probe MVG SSE2 SN 07/21 EPGO352 2021.03.01 2022.02.28 Dielectric Probe Kit MVG SCLMP SN 32/14 OCPG67 2021.11.23 2022.11.22 Phantom1 MVG SAM SN 32/14 SAM115 N/A N/A Phantom2 MVG SAM SN 32/14 SAM116 N/A N/A Attenuator Agilent 99899 DC-18GHz N/A N/A Directional coupler Narda 4226-20 3305 N/A N/A Network Analyzer Agilent 8753ES US38432810 2021.09.29 2022.09.28 Multi Meter Keithley Multi Meter 2000 4050073 2021.10.08 2022.10.07 Signal Generator Agilent N5182A MY50140530 2021.09.30 2022.09.29 Power Amplifier DESAY ZHL-42W 9638 2021.10.09 2022.10.08 Power Meter R&S NRP 100510 2021.09.29 2022.09.28 Power Sensor R&S NRP-Z11 101919 2021.09.29 2022.09.28 Temperature hygrometer SuWei SW-108 N/A 2021.10.09 2022.10.08 Thermograph Elitech RC-4 S/N EF7176501537 2021.10.09 2022.10.08 ISSUED BY Shenzhen STS Test Services Co., Ltd. 2. <Justification of the extended calibration> Referring to KDB 865664 D01, if dipoles are verified in return loss<-20dB, (within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 3500 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2021.03.01 -24.69 - 52.1 - 2022.02.25 -24.15 -0.02 52.26 0.16 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 3500 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 3500 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2021.03.01 -23.37 - 54.3 - 2022.02.25 -23.61 0.01 55.29 0.99 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 3500 MHz

2AGCDJACSTT1001V3 Setup photos Body Back side(separation distance is 0mm) Body Bottom Edge (separation distance is 0mm) Body Top Side (separation distance is 0mm) Body Right Side (separation distance is 0mm)

FCC ID: 2AGCDJACSTT1001V3 Page 1 of 1 Report No.: CTL2204152091-WF Test Setup Photos of the EUT
