2AHCR-R29CLDoor Phone

R29 Series Door Phone Admin Guide About This Manual Thank you for choosing Akuvox‟s R29 series door phone. This manual is intended for end users who need to properly configure the door phone. This manual is applicable to 29.30.2.13 version, and it provides all functions‟ configurations of R29 series door phone. Please visit Akuvox forum or consult technical support for any new information or latest firmware. Note: Please refer to universal abbreviation form in the end of manual when meet any abbreviation letter. Content 1. Product Overview ............................................................................................................................................................................................................... 1 1.1. Instruction ................................................................................................................................................................................................................ 1 1.2. Connector Introduction ............................................................................................................................................................................................ 2 2. Daily use ............................................................................................................................................................................................................................ 3 2.1. Starting ..................................................................................................................................................................................................................... 3 2.2. Make a Call .............................................................................................................................................................................................................. 4 2.2.1. Call From Digital Keypad ............................................................................................................................................................................... 4 2.2.2. Call From Phonebook .................................................................................................................................................................................... 5 2.2.3. Call From Speed Dial .................................................................................................................................................................................... 6 2.2.3.1. Building theme .................................................................................................................................................................................... 6 2.2.3.2. Villa theme or Office theme ................................................................................................................................................................. 6 2.3. Receive a Call .......................................................................................................................................................................................................... 6 2.4. Unlock ...................................................................................................................................................................................................................... 7 2.4.1. Unlock by PIN Codes .................................................................................................................................................................................... 7 2.4.2. Unlock by Face .............................................................................................................................................................................................. 8 2.4.3. Unlock by RFID cards ................................................................................................................................................................................... 8 2.4.4. Unlock by DTMF codes ................................................................................................................................................................................. 9 3. Basic Features ................................................................................................................................................................................................................... 9 3.1. Access the system setting ....................................................................................................................................................................................... 9 3.2. Access the website setting .................................................................................................................................................................................... 10 3.2.1. Obtain IP Address........................................................................................................................................................................................ 10 3.2.2. Access the Device Website ......................................................................................................................................................................... 10 3.3. Password Modification ........................................................................................................................................................................................... 11 3.3.1. Modify the Phone System Password .......................................................................................................................................................... 11 3.3.2. Modify the Web Password........................................................................................................................................................................... 12 3.4. Phone configuration ........................................…

Text truncated - open the document above for the full version.

QA-FR-170-B 7/29/2014 Company: AKUVOX (XIAMEN) NETWORKS CO., LTD. Add: 10/F, No.56, Software Park II, Xiamen, China Tel: 086-0591-83057798 Fax: 086-0591-83057798 E-mail: [email protected] FCC Authorization ( Date:2020-07-03) FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, AKUVOX (XIAMEN) NETWORKS CO., LTD., hereby authorizes Bay Area Compliance Laboratories Corp. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Print name: Bo Yang Title: Manager

QA-FR-171-A Company: AKUVOX (XIAMEN) NETWORKS CO., LTD. Add: 10/F, No.56, Software Park II, Xiamen, China Tel: 086-0591-83057798 Fax: 086-0591-83057798 Mail: [email protected] FCC Confidential Authorization Date: 2020-07-03 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AHCR-R29CL In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, AKUVOX (XIAMEN) NETWORKS CO., LTD. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Print name: Bo Yang Title: Manager

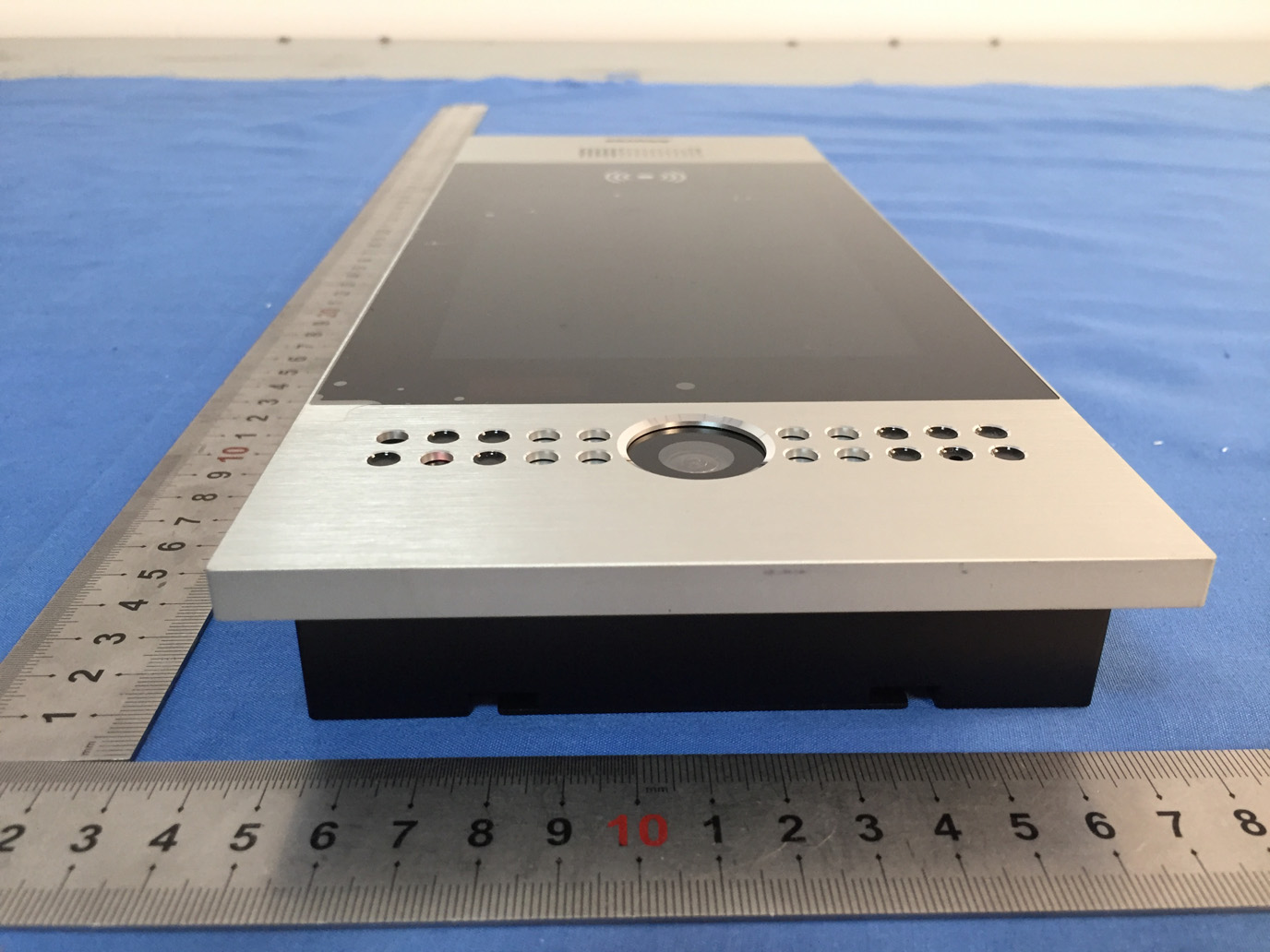

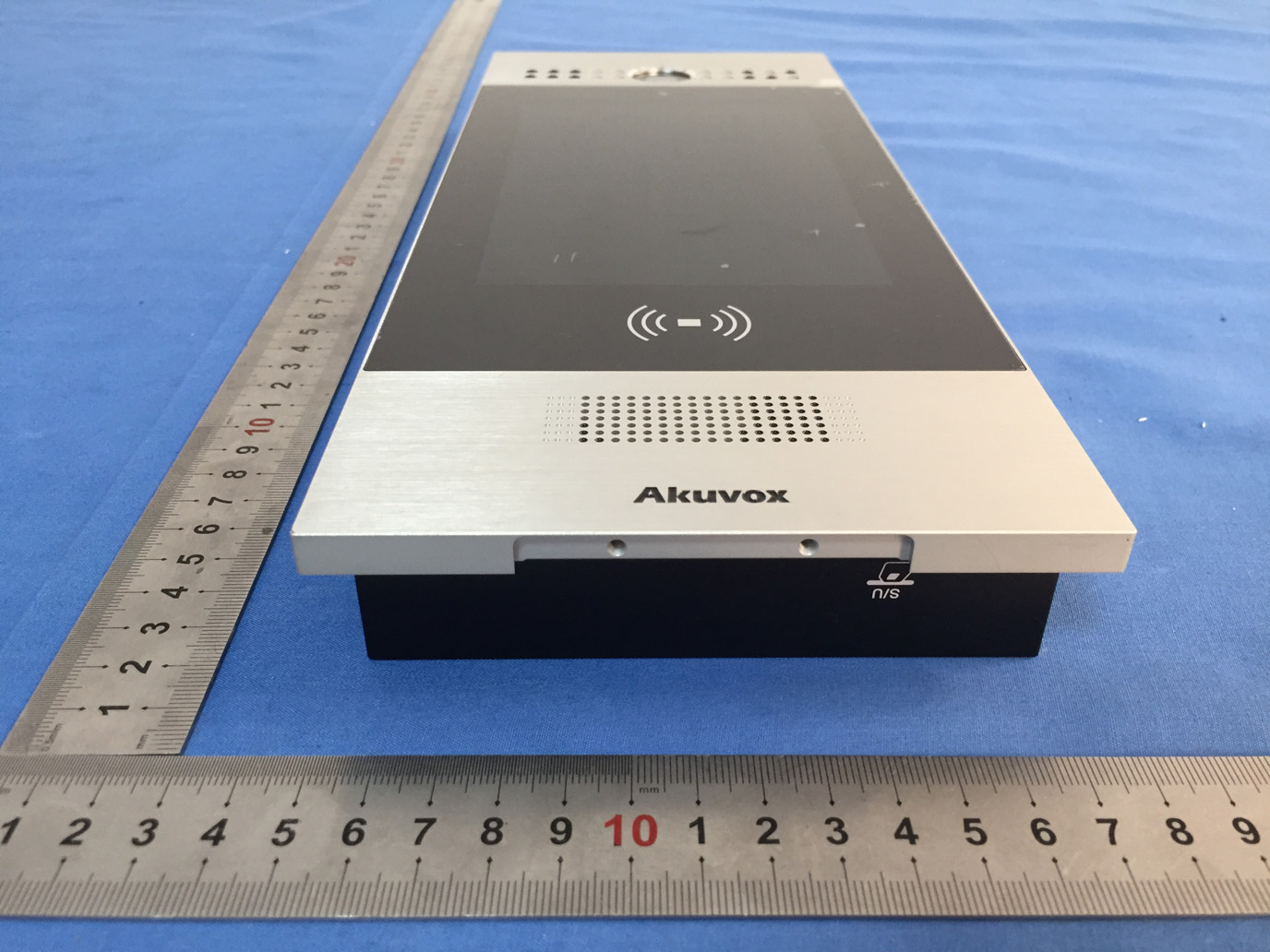

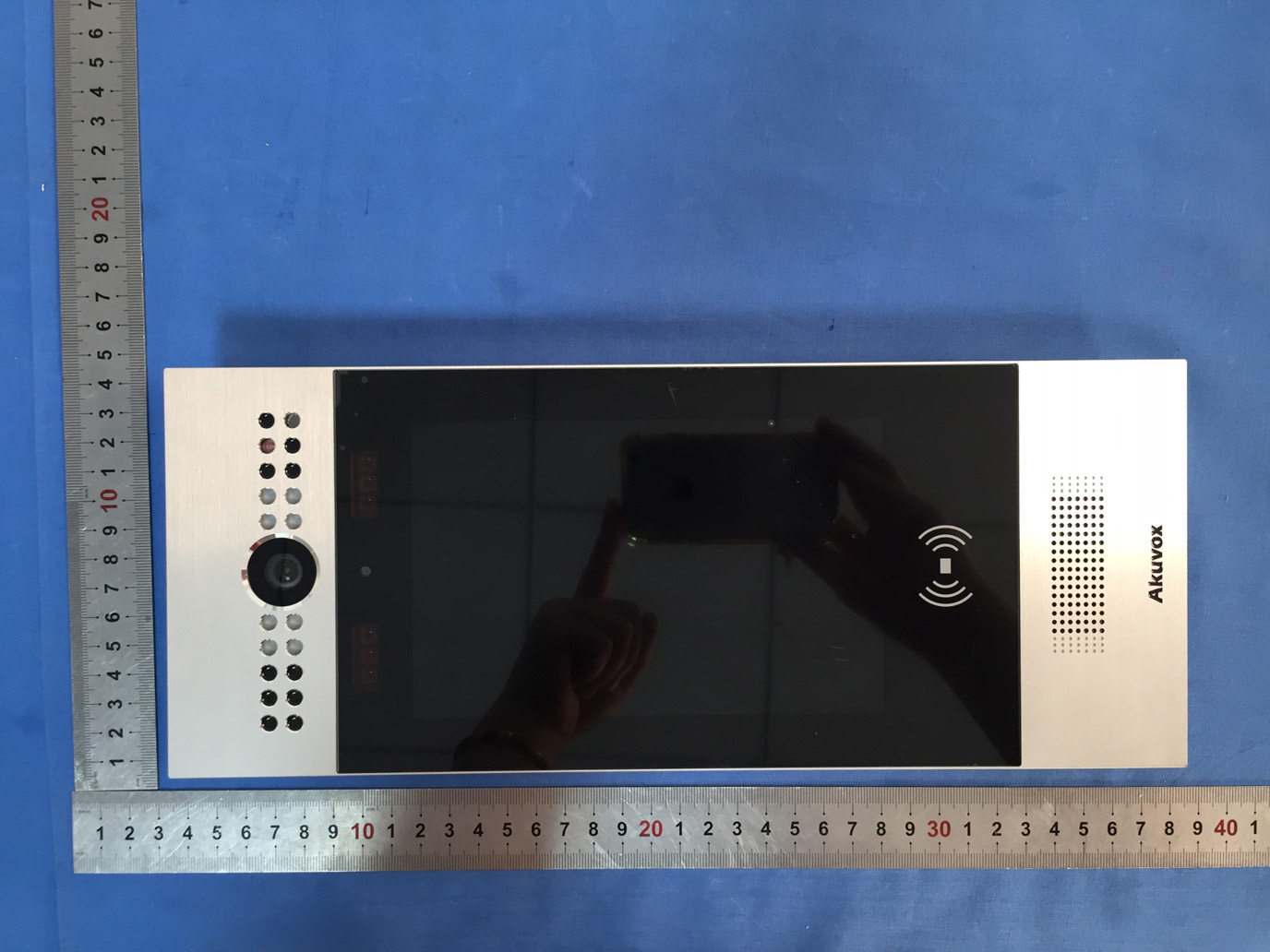

EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT B - EUT INTERNAL PHOTOGRAPHS GPRS/EGPRS/WCDMA /LTE External Main Antenna port GPRS/EGPRS/WCDMA /LTE External Dipole Antenna port 2G/3G/4G Antenna Wi-Fi/BT Antenna 125kHz Antenna NFC Antenna

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RXM200703051-00B FCC Part 15.247 Page 16 of 80 FCC §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 1.1310, 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / f/1500 30 1500-100,000 / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RXM200703051-00B FCC Part 15.247 Page 17 of 80 Calculated Data (worst case): Mode Frequency Range (MHz) Maximum Antenna Gain Tune-up Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) Wi-Fi 802.11b 2412-2462 -2.3 0.59 19.50 89.13 20 0.0105 1.00 Wi-Fi 802.11g -2.3 0.59 23.00 199.53 20 0.0234 1.00 Wi-Fi 802.11n- HT20 -2.3 0.59 22.00 158.49 20 0.0186 1.00 BLE 2402-2480 -2.3 0.59 7.00 5.01 20 0.0006 1.00 BT 3.0 2402-2480 -2.3 0.59 7.00 5.01 20 0.0006 1.00 GSM850 824-849 2.0 1.58 26.00 398.1120 0.1255 0.55 GSM1900 1850-1910 2.0 1.58 23.00 199.5320 0.0629 1.00 WCDMA Band II 1850-1910 2.0 1.58 25.00 316.2320 0.0997 1.00 WCDMA Band IV 1710-1755 2.0 1.58 25.00 316.2320 0.0997 1.00 WCDMA Band V 824-849 2.0 1.58 25.00 316.2320 0.0997 0.55 LTE Band2 1850-1910 2.0 1.58 25.00 316.2320 0.0997 1.00 LTE Band4 1710-1755 2.0 1.58 25.00 316.2320 0.0997 1.00 LTE Band5 824-849 2.0 1.58 25.00 316.2320 0.0997 0.55 LTE Band7 2500-2570 2.0 1.58 25.00 316.2320 0.0997 1.00 LTE Band12 699-716 2.0 1.58 25.00 316.2320 0.0997 0.47 LTE Band13 777-787 2.0 1.58 25.00 316.2320 0.0997 0.52 LTE Band25 1850-1915 2.0 1.58 25.00 316.2320 0.0997 1.00 LTE Band26 (814-824) 814-824 2.0 1.58 25.00 316.2320 0.0997 0.54 LTE Band26 (824-849) 824-849 2.0 1.58 25.00 316.2320 0.0997 0.55 LTE Band38 2570-2620 2.0 1.58 25.00 316.2320 0.0997 1.00 LTE Band41 2496-2690 2.0 1.58 25.00 316.2320 0.0997 1.00 Mode Frequency Range (MHz) Maximum Antenna Gain Tune-up EIRP Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) NFC 13.56 0 1.00 -8.50 0.14 20 0.000028 0.98 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RXM200703051-00B FCC Part 15.247 Page 18 of 80 Note: (1) Tune-up conducted power was declared by the Manufacturer. (2) The LTE module FCC ID: XMR201903EG25G (Grant: 2019-03-29). (3) For NFC ERP=84.27 dBμV/m -95.2=-10.93dBm EIRP=ERP+2.15=-8.78 dBm Tune up EIRP=-8.5dBm (4) 2.4G Wi-Fi/BT/BLE and GSM/WCDMA/LTE and NFC can transmit simultaneously; the worst condition as below: =0.0234/1.00+0.1255/0.55+0.000028/0.98=0.2516 < 1.0 Conclusion: The device meets MPE at distance 20cm.

FCC PART 15.247 TEST REPORT For AKUVOX (XIAMEN) NETWORKS CO., LTD. 10/F, No.56, Software Park II, Xiamen, China FCC ID: 2AHCR-R29CL Report Type: Original Report Product Type: Door phone Test Engineer: Stone Zhang Report Number: RXM200703051-00B Report Date: 2020-08-27 Reviewed By: Oscar Ye EMC Mana ger Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu province, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RXM200703051-00B FCC Part 15.247 Page 2 of 80 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 EXTERNAL I/O CABLE ................................................................................................................................................ 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 11 SUMMARY OF TEST RESULTS ............................................................................................................................. 13 TEST EQUIPMENT LIST ......................................................................................................................................... 14 FCC §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................ 16 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 19 APPLICABLE STANDARD ............................................................................................................................................ 19 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 19 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 20 APPLICABLE STANDARD ............................................................................................................................................ 20 EUT SETUP ................................................................................................................................................................ 20 EMI TEST RECEIVER SETUP ....................................................................................................................................... 20 TEST PROCEDURE ...................................................................................................................................................... 21 FACTOR & OVER LIMIT CALCULATION ...................................................................................................................... 21 TEST RESULTS SUMMARY .......................................................................................................................................... 21 TEST DATA ................................................................................................................................................................ 21 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 26 APPLICABLE STANDARD ............................................................................................................................................ 26 EUT SETUP ................................................................................................................................................................ 26 EMI TEST RECEIVER SETUP ....................................................................................................................................... 27 TEST PROCEDURE ...................................................................................................................................................... 27 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 27 TEST RESUL…

Text truncated - open the document above for the full version.

EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions (Front View) Conducted Emissions (Side View) Radiated Emissions (Below 1GHz) Radiated Emissions (Above 1GHz)
