2AHJMDMREJJWalkie Talkie Two-way Radio

DXDMR500 User guide Printed in China Part No. AL-ML100600 English DIGITAL DMR/ANALOG UHF TWO-WAY RADIO MODEL DXDMR500 IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US. 1-866-208-1654 User guide Fig. A A-1A-2 14 15 1 9 8 6 5 2 3 10 4 11 1312 7 Before operating the radio, please read all safety and operating instructions. Save all instructions in a safe place for future reference. 1. Antenna 2. Top Function Key – TK (Emergency Call Button as default) 3. Side Function Key 1 – SK1 (Battery Level Indication / Zone Selection Button as default) 4. PTT Button (Push-to-Talk) 5. Side Function Key 2 – SK2 (High/Low Power / Squelch On/Off Button as default) 6. Speaker 7. Microphone 8. Speaker/Microphone Jack / Comm Port 9. LED Indicator 10. Power on-off / Volume Knob 11. Channel Selector Knob 12. Charging Contacts 13. Battery Latch 14. Belt Clip 15. Wrist Strap Connnection Denitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. (Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage. WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. WARNING: Never modify the product or any part of it. Damage or personal injury could result. WARNING: To reduce the risk of injury, read the user guide. If you have any questions or comments about this or any product, call D EWALT toll free at: (866) 208-1654. ENGLISH WARNING: 1. Exposure to high volume sound levels may cause temporary or permanent damage to your hearing. Although there is no single volume setting that is appropriate for everyone, you should always use your radio with the volume set at low level and avoid prolonged exposure to high volume sound levels. • Set the volume control in a low position and use as low a volume as possible. • Avoid turning up the volume to block out noisy surroundings. Whenever possible, use your radio in a quiet environment with low background noise. A-3A-4 WARNING: Important Safety Instructions for Battery Read All Instructions • Do not incinerate the battery even if it is severely damaged or is completely worn out. • Do not discard battery in a re. The battery pack can explode in a re. • Do not replace battery in any area labeled “Hazardous Atmosphere”. Any sparks created in a potentially explosive atmosphere can cause an explosion or re. • Do not disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery. • Do not allow conductive materials such as jewelry, keys, or beaded chains to touch exposed battery terminals. • Do not dry a wet or damp battery with an appliance or heat source, such as a hair dryer or microwave oven. • A small leakage of liquid from the battery cells may occur under extreme usage or temperature conditions. This does not indicate a failure. Do not open, deform or mutilate the battery as there may be corrosive materials which can cause damage to eyes or skin and may be toxic if swallowed. However, if the outer seal is broken and this leakage gets on your skin: a. Wash quickly with soap and water. 1. Only accessories included in this package or specied by the manufacturer should be used with the radio. 2. Do not use cleaners or solvents to clean the exterior of the radio. Use only a damp or dry cloth. 3. Do not attempt to service the radio yourself. Removing the cover will void the warranty. Changes or modications not expressly approved by D EWALT may void the user’s authority granted by the FCC to operate this device and should not be made. 4. Do not plug the wall adaptor into the power outlet if the outlet is wet. 5. Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result. 6. Do not place your radio in the area over an air bag or in the air bag deployment area. If a radio is placed in the air bag deployment area and the air bag inates, the radio may be propelled with great force and cause serious injury to the occupants of the vehicle. WARNING: Important Safety Instructions ENGLISH • Limit the amount of time you use headsets or earpiece at high volume levels. • When using the radio without a headset or earpiece, do not place the radio’s speaker directly against your ear. 2. Observe all signs and instructions that require an electrical device or RF radio product to be switched off in designated areas, such as gas/refueling stations, hospitals, blasting areas, potentially explosive atmospheres, or aircraft. 3. If you experience a skin irritation after using this product, discontinue use and seek medical attention. 4. If the product or charger: overheats; has a damaged cord or plug; has been dropped or damaged; has been dropped into water, disconnect any charger from its power supply, discontinue use of the product. 5. Never use your radio outdoors during a thunderstorm. Keep the radio out of reach of babies and young children. 6. NEVER hold the radio so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. The radio will perform best if the microphone is around 2 inches (5 cm) away from the lips and the radio is vertical. Electromagnetic Interference Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise congured for electromagnetic comp…

Text truncated - open the document above for the full version.

Altis Technology (Hong Kong) Ltd. Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China Tel.: 0852-2868 5570 Fax: - Attestation letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Altis Technology (Hong Kong) Ltd. hereby declare that our product: Walkie Talkie Two-way Radio, FCC ID: 2AHJMDMREJJ is capable of supporting a voice channel and a minimum data rate of 4800 bits per second per 6.25 kHz of channel bandwidth. DMR interphone’s bandwidth is 12.5 kHz, and it has a double time slot, one is the speech time slot, one is the data time slot, just language sequence is satisfied with 4800 bps/6.25 kHz BW. For Part 90 frequency user, the radio is disabled 25kHz channel bandwidth mode by radio firmware at factory in order to comply with FCC mandate for part 90 frequencies. Sincerely, Esther Ho Signature: 2020-01-14

Differences Declaration To whom concern, We company Altis Technology (Hong Kong) Ltd. Here by declares: The product model(s) DXDMR510 is the same electronic schematic and Antenna with DXDMR500, which tested in Shenzhen Huatongwei International Inspection Co., Ltd., the only difference is different model names for commercial purpose. Sincerely yours, Name (in print): Esther Ho Company name: Altis Technology (Hong Kong) Ltd. Company address: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China Tel: 0852-2868 5570 E-Mail: [email protected]

2020-01-14 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Altis Technology (Hong Kong) Ltd. / Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China. Dated this Jan.14, 2020 Agency agreement expiration date: Jan.14, 2021 By: Esther Ho Signature Printed Title: Product Manager On behalf of : Altis Technology (Hong Kong) Ltd. Telephone: 0852-2868 5570

2020-01-14 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AHJMDMREJJ Product Name: Walkie Talkie Two-way Radio Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description  PCB Layout  PCB Placement  BOM  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Jan.14, 2020 By: Esther Ho Signature Printed Title: Product Manager On behalf of : Altis Technology (Hong Kong) Ltd. Telephone: 0852-2868 5570

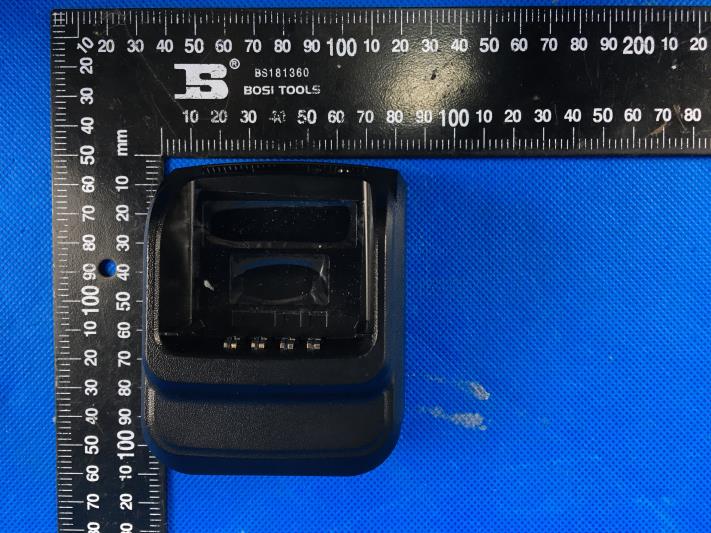

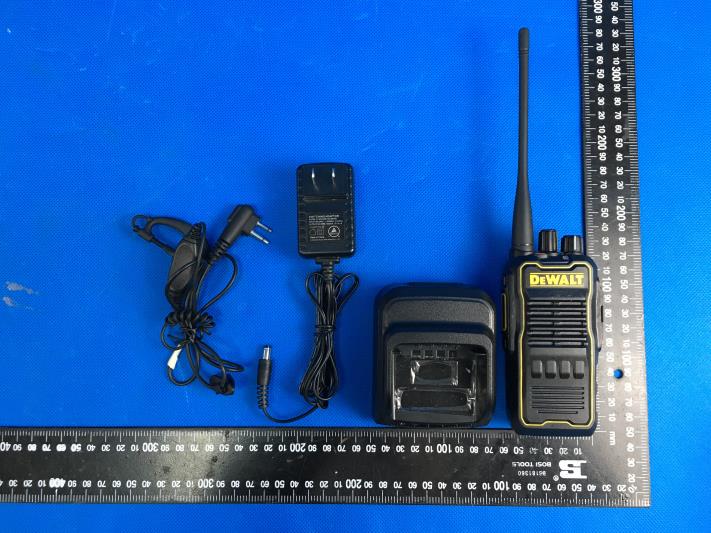

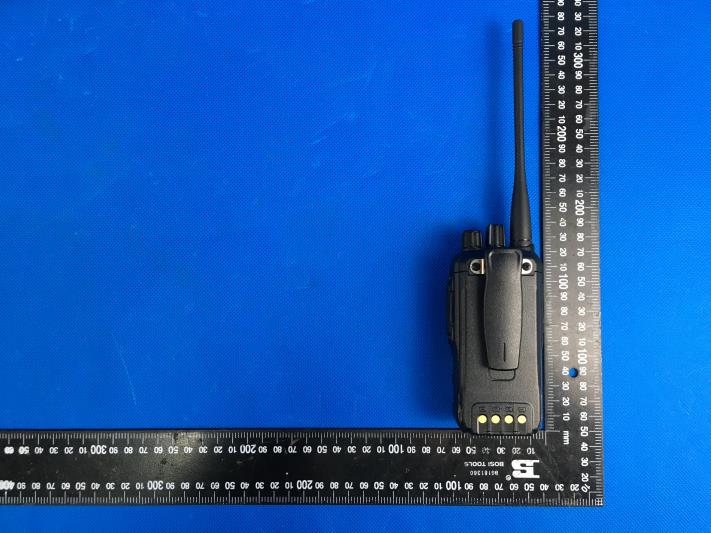

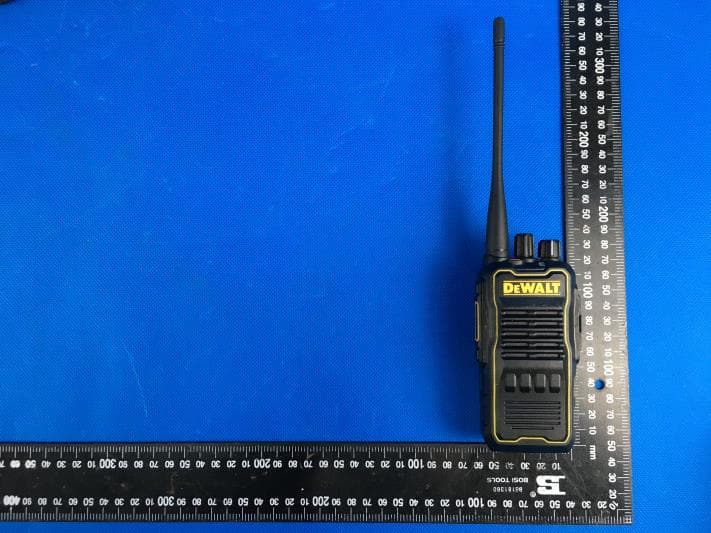

External Photos of the EUT

Label &Label Location

Label &Label Location

Internal Photos of the EUT

Page: 1 of 27 TEST REPORT Report No. ....................................... : CHTEW19120178 Report verificaiton: Project No. ...................................... : SHT1912030902EW FCC ID ............................................. : 2AHJMDMREJJ Applicant’s name ........................... : Altis Technology (Hong Kong) Ltd. Address ............................................ : Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China Manufacturer.....................................: Altis Technology (Hong Kong) Ltd. Address.............................................: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China Test item description ..................... : Walkie Talkie Two-way Radio Trade Mark ....................................... : DEWALT Model/Type reference ...................... : DXDMR500 Listed Model(s) ................................ : DXDMR510 Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample.........: Dec.12, 2019 Date of testing.............................: Dec.12, 2019- Dec.24, 2019 Date of issue...............................: Dec.25, 2019 Result .................. ........................: PASS Compiled by ( position+printed name+signature) . : File administrators: Fanghui Zhu Supervised by ( position+printed name+signature) . : Test Engineer: Xiaodong Zhao Approved by ( position+printed name+signature) . : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................ : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No: CHTEW19120178 Page: 2 of 27 Issued: 2019-12-25 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-08) Contents 1. Test Standards and Report version 3 1.1. Test Standards 3 1.2. Report version 3 2. Summary 4 2.1. Client Information 4 2.2. Product Description 4 2.3. Test frequency list 5 3. Test Environment 6 3.1. Test laboratory 6 3.2. Test Facility 6 3.3. Environmental conditions 6 4. Equipments Used during the Test 7 5. Measurement Uncertainty 8 6. SAR Measurements System Configuration 9 6.1. SAR Measurement Set-up 9 6.2. DASY5 E-field Probe System 10 6.3. Phantoms 11 6.4. Device Holder 11 7. SAR Test Procedure 12 7.1. Scanning Procedure 12 7.2. Data Storage and Evaluation 14 8. Position of the wireless device in relation to the phantom 16 8.1. Front-of-face 16 8.2. Body Position 16 9. Dielectric Property Measurements & System Check 17 9.1. Tissue Dielectric Parameters 17 9.2. SAR System Validation 18 9.3. SAR System Check 19 10. SAR Exposure Limits 22 11. Conducted Power Measurement Results 23 12. Maximum Tune-up Limit 24 13. SAR Measurement Results 25 14. Test Setup Photos 27 15. External and Internal Photos of the EUT 27 Report No: CHTEW19120178 Page: 3 of 27 Issued: 2019-12-25 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-08) 1. Test Standards and Report version 1.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency Radiation Exposure Evaluation:Portable Devices IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 643646 D01:SAR Test for PTT Radios v01r03: SAR Test Reduction Considerations for Occupational PTT Radios TCB workshop April, 2019; Page 19, Tissue Simulating Liquids (TSL) 1.2. Report version Revision No. Date of issue Description N/A 2019-12-25 Original Report No: CHTEW19120178 Page: 4 of 27 Issued: 2019-12-25 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-08) 2. Summary 2.1. Client Information Applicant: Altis Technology (Hong Kong) Ltd. Address: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China Manufacturer: Altis Technology (Hong Kong) Ltd. Address: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China 2.2. Product Description Name of EUT: Walkie Talkie Two-way Radio Trade mark: DEWALT Model/Type reference: DXDMR500 Listed model(s): DXDMR510 Accessories Belt Clip Device Category: Portable RF Exposure Environment: Occupational/Controlled Power supply: DC 7.4V Hardware version: V2.0 Software version: V1.2.3.6 Device Dimension: Overall (Length x Width x Thickness): 117x62x34mm Antenna(Length): 150mm Maximum SAR Value Separation Distance: Front-of-face: 25mm Body-worn: 0mm Maximun SAR Value(1g): Front-of-face: 2.007 W/kg Body-worn: 5.843 W/kg RF Specification Operation Frequency Range: 400-470MHz Rated Output Power: High Power: 4W Low Power: 1W Modulation Type: Analog: FM Digital: 4FSK Ch…

Text truncated - open the document above for the full version.

Page: 1 of 48 TEST REPORT Report No. ....................................... : CHTEW19120199 Report verification : Project No. ................................. : SHT1912030901EW FCC ID ............................................. : 2AHJMDMREJJ Applicant’s name ........................... : Altis Technology (Hong Kong) Ltd. Address ............................................ : Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China Manufacturer.....................................: Altis Technology (Hong Kong) Ltd. Address.............................................: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China Test item description ..................... : Walkie Talkie Two-way Radio Trade Mark ....................................... : DXDMR500 Model/Type reference ...................... : DXDMR510 Listed Model(s) ................................. : DEWALT Standard .......................................... : FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 90 Date of receipt of test sample.........: Dec.12, 2019 Date of testing.............................: Dec.12, 2019- Dec,25, 2019 Date of issue...............................: Dec,26, 2019 Result ................. ........................: PASS Compiled by ( position+printed name+signature) . : File administrators Echo Wei Supervised by ( position+printed name+signature) . : Project Engineer Gaosheng Pan Approved by ( position+printed name+signature) . : RF Manager Hans Hu Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................ : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW19120199 Page: 2 of 48 Issued: 2019-12-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) Contents 1 T E S T S T A N D A R D S A N D RE P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report revised information 3 2 T E S T D E S C R I P T I O N 4 3 S U M M A R Y 5 3.1 Client Information 5 3.2 Product Description 5 3.3 Test frequency list 6 3.4 Operation mode 7 3.5 EUT configuration 8 4 T E S T E N V I R O N M E N T 9 4.1 Address of the test laboratory 9 4.2 Test Facility 9 4.3 Environmental conditions 10 4.4 Statement of the measurement uncertainty 10 4.5 Equipments Used during the Test 11 5 T E S T C O N D I T I O N S A N D R E S U L T S 13 5.1 Conducted Carrier Output Power 13 5.2 99% Occupied Bandwidth & 26dB Bandwidth 14 5.3 Emission Mask 16 5.4 Modulation Limit 18 5.5 Audio Frequency Response 19 5.6 Frequency stability VS Temperature 21 5.7 Frequency stability VS Voltage 22 5.8 Transmitter Frequency Behavior 23 5.9 Transmit Conducted Spurious Emission 25 5.10 Transmitter Radiated Spurious Emission 26 6 T E S T S E T U P P H O T O S O F T H E E U T 39 7 E X T E R N A L A N D I N T E R N AL P H O T O S O F T H E E U T 41 8 A P P E N D I X R E P O R T 48 Report No.: CHTEW19120199 Page: 3 of 48 Issued: 2019-12-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 1 TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 2: Frequency allocations and radio treaty matters; General rules and regulations FCC Rules Part 90: Private land mobile radio services. ANSI C63.26-2015: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services ANSI/TIA-603-E(2016): Land Mobile FM or PM Communications Equipment and Performance Standards FCC Part 15 Subpart B: Unintentional Radiators. ANSI C63.4-2014: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 1.2. Report revised information Revised No. Date of issued Description N/A 2019-12-26 Original Report No.: CHTEW19120199 Page: 4 of 48 Issued: 2019-12-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 2 TEST DESCRIPTION Test Item Section in CFR 47 Result Test Engineer Conducted Carrier Output Power Part 90.205 Part 2.1046(a) Pass Linshuang Chen 99% Occupied Bandwidth & 26dB bandwidth Part 90.209 & 210 Part 2.1049 Pass Linshuang Chen Emission Mask Part 90.209 & 210 Part 2.1049 Pass Linshuang Chen Modulation Limit Part 2.1047(b) Pass Linshuang Chen Audio Frequency Response Part 2.1047(a) Pass Linshuang Chen Frequency Stability VS Temperature Part 90.213 Part 2.1055 Pass Linshuang Chen Frequency Stability VS Voltage Part 90.213 Part 2.1055 Pass Linshuang Chen Transient Frequency Behavior Part 90.214 Pass Linshuang Chen Transmit Conducted Spurious Emission Part 90.210 Part 2.1051 Pass Linshuang Chen Transmit Radiated Spurious Emission Part 90.210 Part 2.1053 Pass Linshuang Chen Report No.: CHTEW19120199 Page: 5 of 48 Issued: 2019-12-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 3 SUMMARY 3.1 Client Information Applicant: Altis Technology (Hong Kong) Ltd. Address: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China Manufacturer: Altis Technology (Hong Kong) Ltd. Address: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong, China 3.2 Product Description Name of EUT: Walkie Talkie Two-way Radio Trade mark: DEWALT Model/Type reference: DXDMR500 Listed model(…

Text truncated - open the document above for the full version.

Shenzhen Huatongwei International Inspection Co.,Ltd. FCC PART 90 Test Form QRE315 V 3.1 Appendix clause Test Result (PASS/FAIL) APASS BPASS CPASS DPASS EPASS FPASS GPASS HPASS IPASS 56 Test Item Test date （M/D) Maximum Transmitter Power Temperature 22.2 Humidity Test EngineerLinshuang.ChenAuditor 2019/12/16 2019/12/17 2019/12/16 2019/12/16 2019/12/17 2019/12/18 SHT1912030901EWProject No. Test sample No. Start test date Note Emission Mask Modulation Limit Aduio Frequency Response Occupied Bandwidth Frequency Stability Test & Temperature Frequency Stability Test & Voltage Transmitter Frequency Behavior Spurious Emission On Antenna Port 2019/12/18 2019/12/18 2019/12/17 YPHT19120309004 Model No. DXDMR500 2019/12/16 Finish date 2019/12/18 Appendix Page:1 / 39 The Fifth Revision Effective Data：2019-11-11 Project No.:SHT1912030901EW Appendix A:Maximum Transmitter Power Operation Mode Modulation Type Test Channel Measured Power(dBm) Measured Power(W) Rated Power(W) Percentage (%) Limit (%)Result TX-DNH4FSK CH L 36.44.374.009.1±20PASS TX-DNH4FSK CH M1 36.34.274.006.6±20PASS TX-DNH4FSK CH M2 36.24.174.004.2±20PASS TX-DNH4FSK CH M3 36.03.984.00-0.5±20PASS TX-DNH4FSK CH H 36.14.074.001.8±20PASS TX-DNL4FSK CH L 30.71.171.0017.5±20PASS TX-DNL4FSK CH M1 30.51.121.0012.2±20PASS TX-DNL4FSK CH M2 30.71.171.0017.5±20PASS TX-DNL4FSK CH M3 29.70.931.00-6.7±20PASS TX-DNL4FSK CH H 30.51.121.0012.2±20PASS TX-ANHFM CH L 35.93.884.00-3.0±20PASS TX-ANHFM CH M1 35.73.724.00-6.9±20PASS TX-ANHFM CH M2 35.73.694.00-7.8±20PASS TX-ANHFM CH M3 35.53.524.00-12.1±20PASS TX-ANHFM CH H 36.14.094.002.3±20PASS TX-ANLFM CH L 30.41.091.008.6±20PASS TX-ANLFM CH M1 30.71.171.0017.2±20PASS TX-ANLFM CH M2 30.61.151.0014.8±20PASS TX-ANLFM CH M3 29.10.811.00-18.7±20PASS TX-ANLFM CH H 30.61.141.0014.3±20PASS Appendix Page:2 / 39 Project No.:SHT1912030901EW Appendix B:Occupied Bandwidth 99%(kHz)26dB(kHz) TX-DNH4FSK CH L 7.7349.877 ≤11.25 PASS TX-DNH4FSK CH M1 7.7799.808 ≤11.25 PASS TX-DNH4FSK CH M2 7.77110.07 ≤11.25 PASS TX-DNH4FSK CH M3 7.5469.651 ≤11.25 PASS TX-DNH4FSK CH H 7.7769.905 ≤11.25 PASS TX-DNL4FSK CH L 7.7559.716 ≤11.25 PASS TX-DNL4FSK CH M1 7.5729.841 ≤11.25 PASS TX-DNL4FSK CH M2 7.6619.802 ≤11.25 PASS TX-DNL4FSK CH M3 7.8179.843 ≤11.25 PASS TX-DNL4FSK CH H 7.7199.802 ≤11.25 PASS TX-ANHFM CH L 5.23910.13 ≤11.25 PASS TX-ANHFM CH M1 5.24210.12 ≤11.25 PASS TX-ANHFM CH M2 5.24010.12 ≤11.25 PASS TX-ANHFM CH M3 5.21410.12 ≤11.25 PASS TX-ANHFM CH H 5.27110.12 ≤11.25 PASS TX-ANLFM CH L 5.27710.13 ≤11.25 PASS TX-ANLFM CH M1 5.21910.12 ≤11.25 PASS TX-ANLFM CH M2 5.25610.12 ≤11.25 PASS TX-ANLFM CH M3 5.22110.12 ≤11.25 PASS TX-ANLFM CH H 5.25610.12 ≤11.25 PASS Operation Mode Test Channel Occupied Bandwidth 99% Limit(kHz) Result Modulation Type Appendix Page:3 / 39 Project No.:SHT1912030901EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TX-DNH4FSK CH L TX-DNH4FSK CH M1 TX-DNH4FSK CH M2 TEST PLOT RESULT Appendix Page:4 / 39 Project No.:SHT1912030901EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSK CH M3 TX-DNH4FSK CH H TX-DNL4FSK CH L Appendix Page:5 / 39 Project No.:SHT1912030901EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH M1 TX-DNL4FSK CH M2 TX-DNL4FSK CH M3 Appendix Page:6 / 39 Project No.:SHT1912030901EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH H TX-ANHFM CH L TX-ANHFM CH M1 Appendix Page:7 / 39 Project No.:SHT1912030901EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH M2 TX-ANHFM CH M3 TX-ANHFM CH H Appendix Page:8 / 39 Project No.:SHT1912030901EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH L TX-ANLFM CH M1 TX-ANLFM CH M2 Appendix Page:9 / 39 Project No.:SHT1912030901EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH M3 TX-ANLFM CH H Appendix Page:10 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSK CH L TX-DNH4FSK CH L TX-DNH4FSK CH M1 Appendix Page:11 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSK CH M1 TX-DNH4FSK CH M2 TX-DNH4FSK CH M2 Appendix Page:12 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSK CH M3 TX-DNH4FSK CH M3 TX-DNH4FSK CH H Appendix Page:13 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSK CH H TX-DNL4FSK CH L TX-DNL4FSK CH L Appendix Page:14 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH M1 TX-DNL4FSK CH M1 TX-DNL4FSK CH M2 Appendix Page:15 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH M2 TX-DNL4FSK CH M3 TX-DNL4FSK CH M3 Appendix Page:16 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH H TX-DNL4FSK CH H TX-ANHFM CH L Appendix Page:17 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH L TX-ANHFM CH M1 TX-ANHFM CH M1 Appendix Page:18 / 39

Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH M2 TX-ANHFM CH M2 TX-ANHFM CH M3 Appendix Page:19 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH M3 TX-ANHFM CH H TX-ANHFM CH H Appendix Page:20 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH L TX-ANLFM CH L TX-ANLFM CH M1 Appendix Page:21 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH M1 TX-ANLFM CH M2 TX-ANLFM CH M2 Appendix Page:22 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH M3 TX-ANLFM CH M3 TX-ANLFM CH H Appendix Page:23 / 39 Project No.:SHT1912030901EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH H Appendix Page:24 / 39 Project No.:SHT1912030901EW Appendix D:Modulation Limit 300Hz1004Hz1500Hz2500 Hz TX-ANHFM CH M2 -200.050.1990.3010.4892.5PASS TX-ANHFM CH M2 -150.0470.3250.5080.8392.5PASS TX-ANHFM CH M2 -100.0620.550.8841.4732.5PASS TX-ANHFM CH M2 -50.0670.9471.5482.0872.5PASS TX-ANHFM CH M2 00.0891.5112.0632.2152.5PASS TX-ANHFM CH M2 50.1211.8981.9671.9592.5PASS TX-ANHFM CH M2 100.1712.0042.0182.0182.5PASS TX-ANHFM CH M2 150.2542.0162.0212.042.5PASS TX-ANHFM CH M2 200.4072.012.0182.0562.5PASS Limit (kHz) Result Operation Mode Modulation Type Test Channel Modulation Level (dB) Peak frequency deviation (kHz) Appendix Page:25 / 39 Project No.:SHT1912030901EW Appendix D:Modulation Limit TEST PLOT RESULT 0 0.5 1 1.5 2 2.5 3 -20-15-10-505101520 Modulation Limit for 12.5KHz Limit (kHz) 300Hz 1004Hz 1500Hz 2500 Hz Modulation Level (dB) Peak Deviation Appendix Page:26 / 39 Project No.:SHT1912030901EW Appendix E:Aduio Frequency Response Operation Mode Modulation Type Test Channel Frequency (Hz) Audio Frequency Response (dB) Lower LimitUpper LimitResult TX-ANHFM CH M2 100-20.46PASS TX-ANHFM CH M2 200-18.35PASS TX-ANHFM CH M2 300-15.78-17.84-9.42PASS TX-ANHFM CH M2 400-11.99-12.86-6.93PASS TX-ANHFM CH M2 500-8.12-9.00-5.00PASS TX-ANHFM CH M2 600-6.52-7.42-3.42PASS TX-ANHFM CH M2 700-4.54-6.09-2.09PASS TX-ANHFM CH M2 800-2.45-4.93-0.93PASS TX-ANHFM CH M2 900-0.96-3.910.09PASS TX-ANHFM CH M2 10000.00-3.001.00PASS TX-ANHFM CH M2 12002.21-1.422.58PASS TX-ANHFM CH M2 14003.83-0.093.91PASS TX-ANHFM CH M2 16005.051.075.07PASS TX-ANHFM CH M2 18005.882.096.09PASS TX-ANHFM CH M2 20006.763.007.00PASS TX-ANHFM CH M2 …
