2AHJMDXFBFJWalkie Talkie Two-way Radio

Printed in China Part No. AL-ML English DXFRS265 Owner’s Manual TWO-WAY RADIO MODEL DXFRS265 IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US. 1-866-208-1654 Owner’s Manual A-1A-2 19 20 17 1516 1 10 9 8 7 6 5 2 3 12 13 11 4 14 18 1. Antenna 2. Up Button 3. Down Button 4. Call/Lock Button 5. Microphone 6. Speaker 7. Charging Contacts 8. USB Charge Jack 9. Channel/Code/Roger Beep Button 10. Vibra Alert Button 11. LED Indicator 12. VOX Indicator (Blue LED) 13. VOX Button 14. Talk Button 15. Power On/Off / Volume Knob 16. External Speaker / Microphone Jack 17. Battery Compartment 18. Battery Door Screws 19. Belt Clip 20. Wrist Strap Connection Before operating the radio, please read all safety and operating instructions. Save all instructions in a safe place for future reference. Denitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. (Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage. WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. WARNING: Never modify the product or any part of it. Damage or personal injury could result. WARNING: To reduce the risk of injury, read the user guide. If you have any questions or comments about this or any product, call D EWALT toll free at: (866) 208-1654. ENGLISH Fig. 1 A-3A-4 ENGLISH WARNING: 1. Exposure to high volume sound levels may cause temporary or permanent damage to your hearing. Although there is no single volume setting that is appropriate for everyone, you should always use your radio with the volume set at low level and avoid prolonged exposure to high volume sound levels. • Set the volume control in a low position and use as low a volume as possible. • Avoid turning up the volume to block out noisy surroundings. Whenever possible, use your radio in a quiet environment with low background noise. WARNING: Important Safety Instructions for Battery Read All Instructions • Do not incinerate the battery even if it is severely damaged or is completely worn out. • Do not discard battery in a re. The battery pack can explode in a re. • Do not replace battery in any area labeled “Hazardous Atmosphere”. Any sparks created in a potentially explosive atmosphere can cause an explosion or re. • Do not disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery. • Do not allow conductive materials such as jewelry, keys, or beaded chains to touch exposed battery terminals. • Do not dry a wet or damp battery with an appliance or heat source, such as a hair dryer or microwave oven. • A small leakage of liquid from the battery cells may occur under extreme usage or temperature conditions. This does not indicate a failure. Do not open, deform or mutilate the battery as there may be corrosive materials which can cause damage to eyes or skin and may be toxic if swallowed. However, if the outer seal is broken and this leakage gets on your skin: a. Wash quickly with soap and water. b. Neutralize with a mild acid such as lemon juice or vinegar. 1. Only accessories included in this package or specied by the manufacturer should be used with the radio. The 5V micro-USB charging input is compatible with most high quality micro-USB chargers that fully conform to the USB standards. 2. Do not use cleaners or solvents to clean the exterior of the radio. Use only a damp or dry cloth. 3. Do not attempt to service the radio yourself. Removing the cover will void the warranty. Changes or modications not expressly approved by D EWALT may void the user’s authority granted by the FCC to operate this device and should not be made. 4. Do not plug the wall adaptor into the power outlet if the outlet is wet. 5. Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result. 6. Do not place your radio in the area over an air bag or in the air bag deployment area. If a radio is placed in the air bag deployment area and the air bag inates, the radio may be propelled with great force and cause serious injury to the occupants of the vehicle. WARNING: Important Safety Instructions c. If battery liquid gets into your eyes, ush them with clean water for a minimum of 10 minutes and seek immediate medical attention. This product uses Lithium Polymer Battery. Do not transport package if damaged, a re hazard could exist. For more information, please call our customer support line at (866) 208-1654. Recycle Battery Local, state or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options. Product Service & Support For any questions about operating this new DEWALT branded product, PLEASE CONTACT US FIRST... do not return this product to the retail store. The contact information for support will vary depending on the country in which you purchased and utilize the product. To obtain warranty service or other information for products purchased from D EWALT itself or through its authorized reseller or agent and utilized in the U.S.A., please call our consumer support line at (866) 208-1654. You will receive instructions on how to ship the products at your expense to an our Authorized Service Center. To obtain service, you must include: (a) a copy of your receipt, bill…

Text truncated - open the document above for the full version.

Altis Technology (Hong Kong) Ltd. ADD: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong Tel: 0852-2868 5570 E-mail: [email protected] FCC Authorization 2020-05-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Altis Technology (Hong Kong) Ltd., Hereby authorizes Bay Area Compliance Laboratories Corp to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Print Name: Esther Ho Title: Manager QA-FR-170-B

Altis Technology (Hong Kong) Ltd. ADD: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong Tel: 0852-2868 5570 E-mail: [email protected] FCC Confidential Authorization Date: 2020-05-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AHJMDXFBFJ In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Altis Technology (Hong Kong) Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Print Name: Esther Ho Title:Manager

Altis Technology (Hong Kong) Ltd. Address: Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong Tel: 852-2868 5570 Fax: 852-2868 5570 E-Mail: [email protected] DECLARATION OF SIMILARITY Date: 2020-5-20 We, Altis Technology (Hong Kong) Ltd. declare that for our products: Walkie Talkie Two-way Radio, model: DXFRS265, FCC ID: 2AHJMDXFBFJ, will have below series model number: DXFRS260, DXFRS260-3, DXFRS260-3 HD, DXFRS260-6, DXFRS260-BCH6, DXFRS265-3, DXFRS265-6, DXFRS265-BCH6, DXFRS261, DXFRS262, DXFRS268. The difference of each models are appearance, sales country, all the other characteristic like PCB Layout, circuits, enclosure(dimensions and material), battery are exactly same, and all the battery have same thickness and cabinet material. Yours sincerely, Signature: Printed Name: Esther Ho Title: Manager

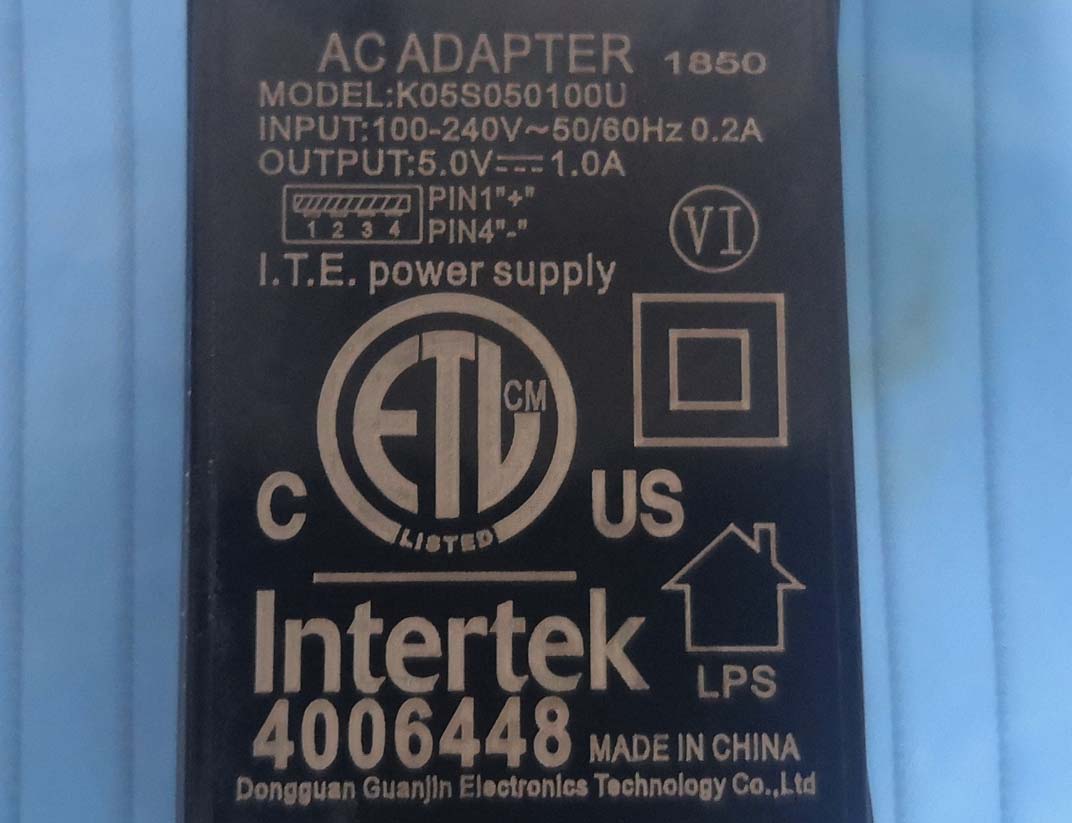

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Adapter 1 Adapter 2 Charger

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Chip Charger Chip

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For Altis Technology (Hong Kong) Ltd. 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Kowloon, Hong Kong FCC ID: 2AHJMDXFBFJ Report Type: Original Report Product Type: Walkie Talkie Two-way Radio Report Number: RSZ200505812-20A Report Date: 2020-06-16 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ200505812-20A SAR Evaluation Report 2 of 35 Attestation of Test Results EUT Information EUT Description Walkie Talkie Two-way Radio Tested Models DXFRS265 Tested Models DXFRS265, DXFRS260, DXFRS260-3, DXFRS260-3 HD, DXFRS260-6, DXFRS260-BCH6, DXFRS265-3, DXFRS265-6, DXFRS265-BCH6, DXFRS261, DXFRS262, DXFRS268 FCC ID 2AHJMDXFBFJ Serial Number RSZ200505812-SA-S1 Test Date 2020-05-07 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) PTT 1g Head SAR (Face Up) 0.44 1.6 1g Body SAR (Bod y Back) 0.66 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ200505812-20A SAR Evaluation Report 3 of 35 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 14 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 14 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 15 LIQUID VERIFICATION ............................................................................................................................................... 15 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 16 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 17 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 18 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 18 CHEEK/TOUCH POSITION ........................................................................................................................................... 19 EAR/TILT POSITION ................................................................................................................................................... 19 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 20 TEST DISTANCE FOR SAR EVALUATION .................................................................................................................... 20 SAR EVALUATION PROCEDURE ................................................................................................................................. 21 OUTPUT POWER MEASUREMENT.............…

Text truncated - open the document above for the full version.

PROBE CALIBRATION CERTIFICATES

Report No.: RSZ200505812-20A Page 1 of 2 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Report No.: RSZ200505812-20A Page 2 of 2 Face Up Setup Photo(25mm) BodyBack Setup Photo(0mm) 31mm 20mm 25mm

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 95 MEASUREMENT AND TEST REPORT For Altis Technology (Hong Kong) Ltd. Suite 711, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Hong Kong FCC ID: 2AHJMDXFBFJ Report Type: Original Report Product Type: Walkie Talkie Two-way Radio Report Number: RSZ200505812-00 Report Date: 2020-05-22 Reviewed By: Jacob Kong RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200505812-00 FCC Part 95 Page 2 of 25 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 DESCRIPTION OF CHANNEL LIST .................................................................................................................................. 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC §1.1307(b) & §2.1093 - RF EXPOSURE INFORMATION .............................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST RESULT ............................................................................................................................................................... 9 FCC §95.587(b)(1) – ANTENNA REQUIREMENT ................................................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §2.1046 & §95.567 - RF OUTPUT POWER ..................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1047 & §95.575 - MODULATION CHARACTERISTIC .......................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST D…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
