2AHKM-ARIA2210WiFi Extender

6HIVE2210.01G FCC STATENEBTS Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 26cm between the radiator & your body. Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only Industry Canada statement : This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence. L’exploita- tion est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Caution : (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit; (detachable antenna only) (iii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits as appropriate; (detachable antenna only) (iv) where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated. Avertissement : Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment : (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne permis pour les dispositifs utilisant les bandes de 5 250 à 5 350 MHz et de 5 470 à 5 725 MHz doit être conforme à la limite de la p.i.r.e; (detachable antenna only) (iii) pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée, selon le cas; (detachable antenna only) (iv) lorsqu’il y a lieu, les types d’antennes (s’il y en a plusieurs), les numéros de modèle de l’antenne et les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, énoncée à la section 6.2.2.3, doivent être clairement indiqués Radiation Exposure Statement : This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with greater than 26cm between the radiator & your body. Déclaration d'exposition aux radiations : Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé à plus de 26cm entre le radiateur et votre corps. * Class III product, require manual with the following statement : " This unit to be used with the power supply provided by manufacturer " or equivalent * Need add the following instruction in safety label for Class III product apply TUV GS mark " Use only power supplies listed in the user instructions " or " For applicable power supplies see user instructions " 97A0000000HIG

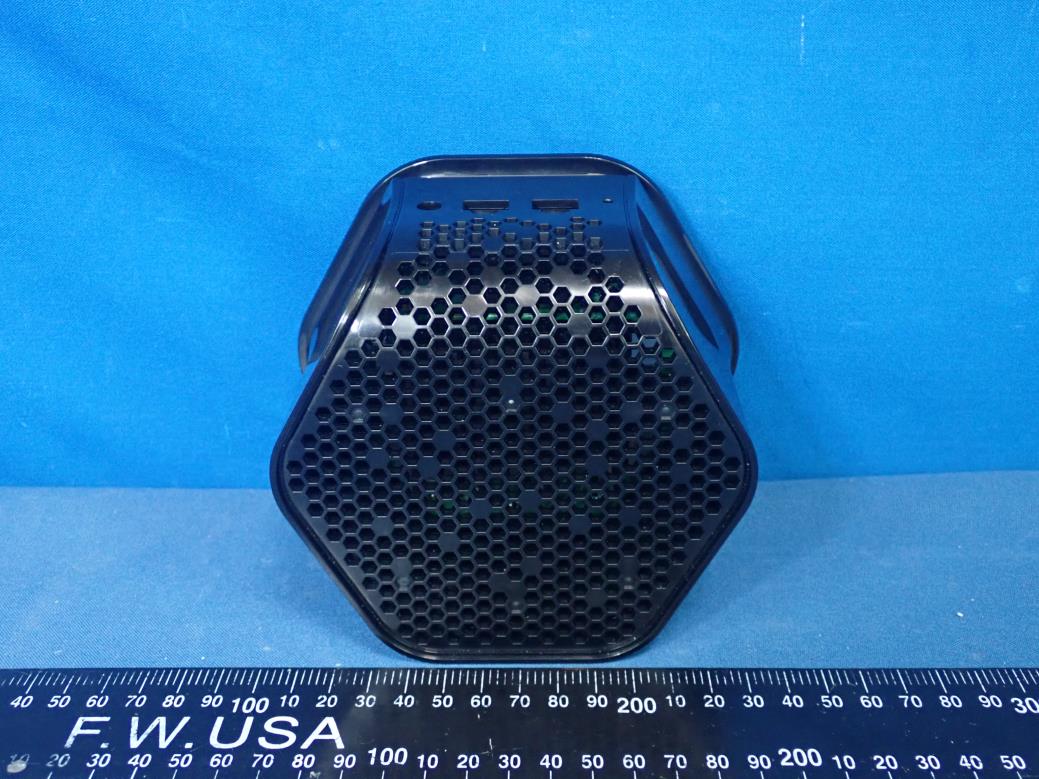

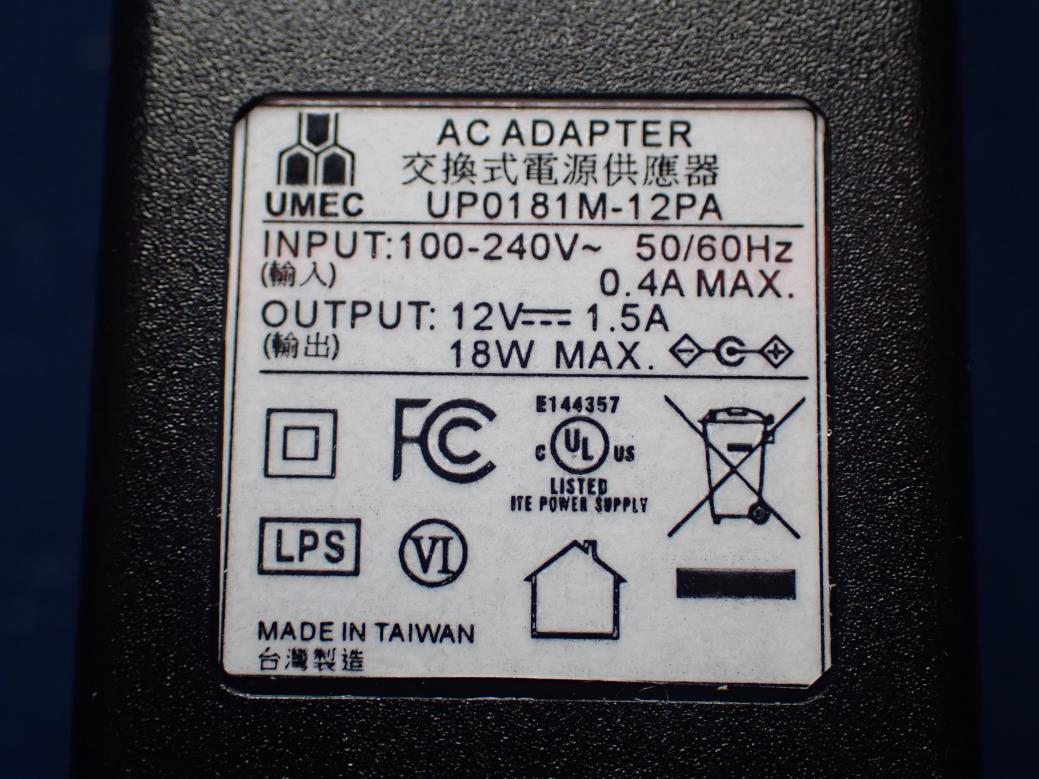

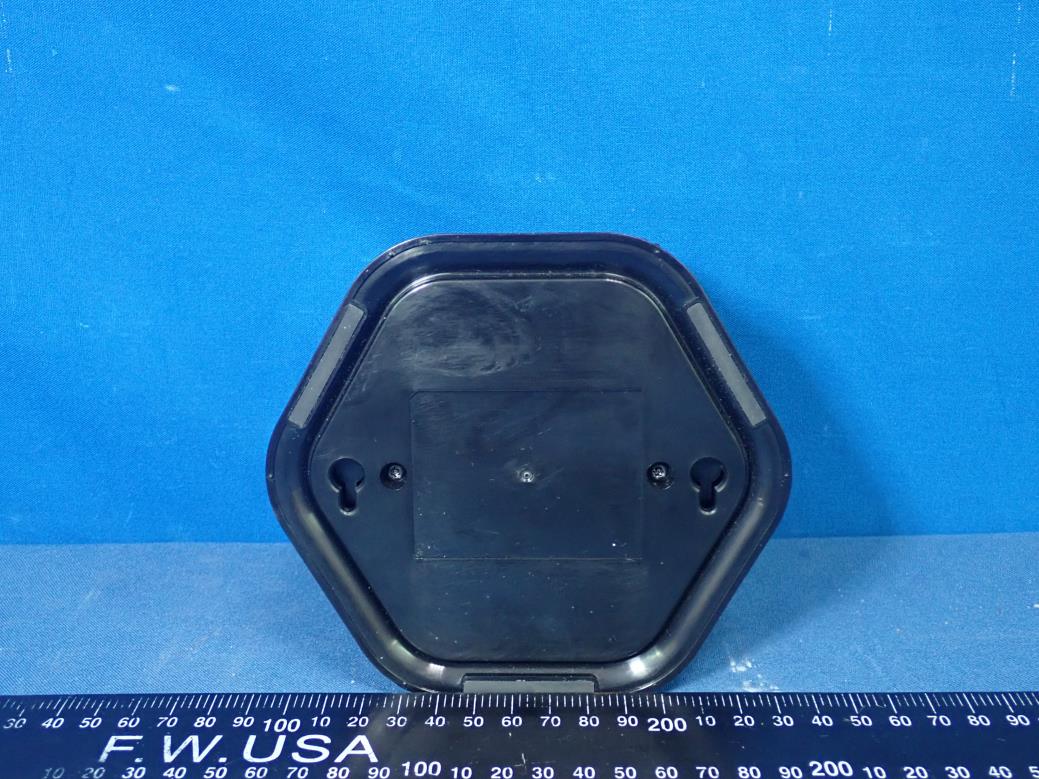

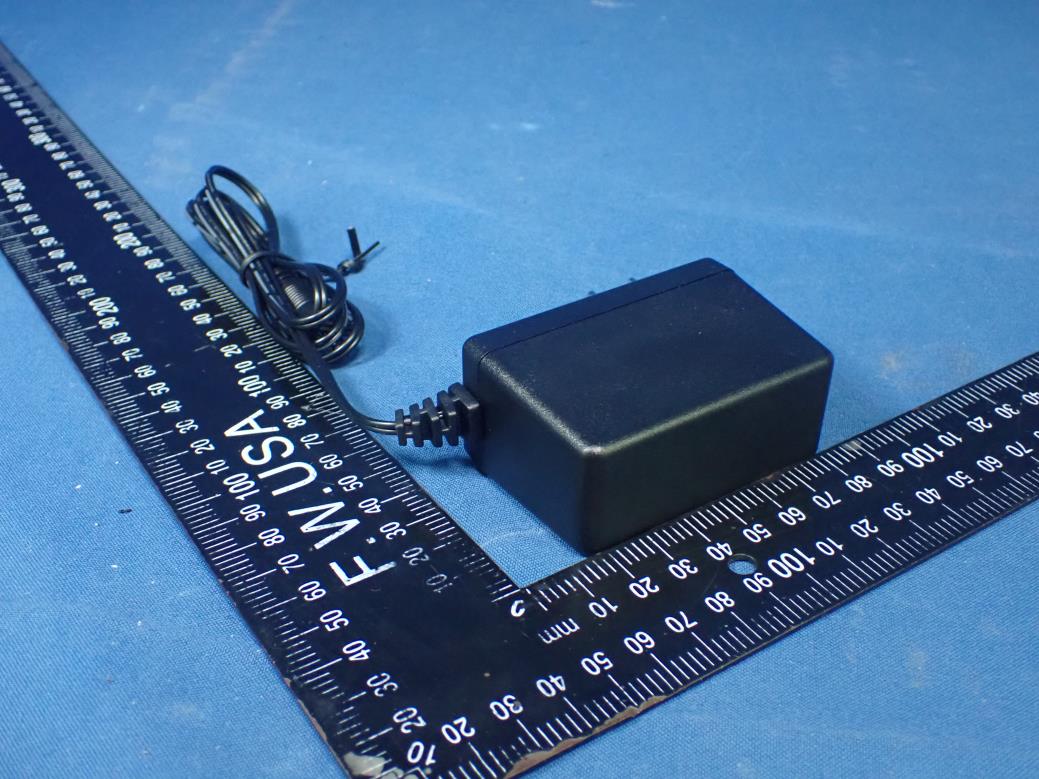

Reference No.: BAOZ-WTW-P20090121-1 Page 1/5 CONSTRUCTION PHOTOS OF EUT Reference No.: BAOZ-WTW-P20090121-1 Page 2/5 Reference No.: BAOZ-WTW-P20090121-1 Page 3/5 Reference No.: BAOZ-WTW-P20090121-1 Page 4/5 Adapter Reference No.: BAOZ-WTW-P20090121-1 Page 5/5

13-May-2020 Alex Chou Hitron HIVE-2210 Label size 60.20 mm 4 5 . 2 0 m m 2.1 mm 2 . 1 m m

Reference No.: BAOZ-WTW-P20090121-2 Page 1/13 CONSTRUCTION PHOTOS OF EUT Reference No.: BAOZ-WTW-P20090121-2 Page 2/13 Reference No.: BAOZ-WTW-P20090121-2 Page 3/13 Reference No.: BAOZ-WTW-P20090121-2 Page 4/13 Reference No.: BAOZ-WTW-P20090121-2 Page 5/13 Reference No.: BAOZ-WTW-P20090121-2 Page 6/13 Reference No.: BAOZ-WTW-P20090121-2 Page 7/13 Reference No.: BAOZ-WTW-P20090121-2 Page 8/13 Reference No.: BAOZ-WTW-P20090121-2 Page 9/13 Ant: 2.4GHz (Model: RFPCA252007IMAB301) Reference No.: BAOZ-WTW-P20090121-2 Page 10/13 Ant: 2.4GHz (Model: RFPCA252023IMAB301) Reference No.: BAOZ-WTW-P20090121-2 Page 11/13 Ant: 5GHz (Model: RFPCA251812IM5B302) Reference No.: BAOZ-WTW-P20090121-2 Page 12/13 Ant: 5 GHz (Model: RFPCA251817IM5B301) Reference No.: BAOZ-WTW-P20090121-2 Page 13/13 Ant: BT (Model: RFPCA252019IMAB302)

Report No.: SABAOZ-WTW-P20090121E Page No. 1 / 7 Report Format Version: 6.1.1 Reference No.: BAOZ-WTW-P20120009 RF Exposure Report Report No.: SABAOZ-WTW-P20090121E FCC ID: 2AHKM-ARIA2210 Test Model: ARIA2210 Series Model: OS2210 Received Date: Sep. 04, 2020 Test Date: Sep. 30, 2020 Issued Date: Dec. 31, 2020 Applicant: Hitron Technologies Inc. Address: No. 1-8, Li-Hsin 1st Rd., Hsinchu Science Park, Hsinchu 30078, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SABAOZ-WTW-P20090121E Page No. 2 / 7 Report Format Version: 6.1.1 Reference No.: BAOZ-WTW-P20120009 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 6 2.5 Calculation Result ............................................................................................................................... 7 Report No.: SABAOZ-WTW-P20090121E Page No. 3 / 7 Report Format Version: 6.1.1 Reference No.: BAOZ-WTW-P20120009 Release Control Record Issue No. Description Date Issued SABAOZ-WTW-P20090121E Original release. Dec. 31, 2020 Report No.: SABAOZ-WTW-P20090121E Page No. 4 / 7 Report Format Version: 6.1.1 Reference No.: BAOZ-WTW-P20120009 1 Certificate of Conformity Product: WiFi Extender Brand: hitron Test Model: ARIA2210 Series Model: OS2210 Sample Status: ENGINEERING SAMPLE Applicant: Hitron Technologies Inc. Test Date: Sep. 30, 2020 Standards: FCC Part 2 (Section 2.1091) IEEE C95.3 -2002 References Test Guidance: KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date: Dec. 31, 2020 Vivian Huang / Specialist Approved by : , Date: Dec. 31, 2020 Clark Lin / Technical Manager Report No.: SABAOZ-WTW-P20090121E Page No. 5 / 7 Report Format Version: 6.1.1 Reference No.: BAOZ-WTW-P20120009 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 26 cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SABAOZ-WTW-P20090121E Page No. 6 / 7 Report Format Version: 6.1.1 Reference No.: BAOZ-WTW-P20120009 2.4 Antenna Gain Antenna NO. Chain No. Brand Model Antenna Net Gain(dBi) Frequency range Antenna Type Connector Type Cable Length (mm) WiFi 2.4G 1 ALPHA RFPCA252007IMAB301 3.5 2.4~2.4835GHz PIFA i-pex(MHF) 7 2 RFPCA252023IMAB301 2.7 2.4~2.4835GHz 23.5 WiFi 5G 1 RFPCA251812IM5B302 4 5.15~5.85GHz 12 2 RFPCA251817IM5B301 3.5 5.15~5.85GHz 18 …

Text truncated - open the document above for the full version.

Report No.: RFBAOZ-WTW-P20090121E-2 Page No. 1 / 42 Report Format Version: 6.1.1 Reference No.: BAOZ-WTW-P20120009 FCC Test Report (BT-LE) Report No.: RFBAOZ-WTW-P20090121E-2 FCC ID: 2AHKM-ARIA2210 Test Model: ARIA2210 Series Model: OS2210 Received Date: Sep. 04, 2020 Test Date: Sep. 19 to Oct. 07, 2020 Issued Date: Dec. 31, 2020 Applicant: Hitron Technologies Inc. Address: No. 1-8, Li-Hsin 1st Rd., Hsinchu Science Park, Hsinchu 30078, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RFBAOZ-WTW-P20090121E-2 Page No. 2 / 42 Report Format Version: 6.1.1 Reference No.: BAOZ-WTW-P20120009 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT (BT-LE) ................................................................................................... 7 3.2 Description of Test Modes ................................................................................................................... 9 3.2.1 Test Mode Applicability and Tested Channel Detail ........................................................................... 10 3.3 Duty Cycle of Test Signal .................................................................................................................. 12 3.4 Description of Support Units ............................................................................................................. 13 3.4.1 Configuration of System under Test .................................................................................................. 14 3.5 General Description of Applied Standards and References ............................................................. 15 4 Test Types and Results ...................................................................................................................... 16 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 16 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 16 4.1.2 Test Instruments ................................................................................................................................ 17 4.1.3 Test Procedures ................................................................................................................................. 20 4.1.4 Deviation from Test Standard ............................................................................................................ 20 4.1.5 Test Setup .......................................................................................................................................... 21 4.1.6 EUT Operating Conditions ................................................................................................................. 22 4.1.7 Test Results ....................................................................................................................................... 23 4.2 Conducted Emission Measurement .................................................................................................. 28 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 28 4.2.2 Test Instruments ................................................................................................................................ 28 4.2.3 Test Procedures ................................................................................................................................. 29 4.2.4 Deviation from Test St…

Text truncated - open the document above for the full version.

Report No.: RFBAOZ-WTW-P20090121E Page No. 1 / 67 Report Format Version: 6.1.2 Reference No.: BAOZ-WTW-P20120009 FCC Test Report Report No.: RFBAOZ-WTW-P20090121E FCC ID: 2AHKM-ARIA2210 Test Model: ARIA2210 Series Model: OS2210 Received Date: Sep. 04, 2020 Test Date: Sep. 23 to Oct. 07, 2020 Issued Date: Dec. 31, 2020 Applicant: Hitron Technologies Inc. Address: No. 1-8, Li-Hsin 1st Rd., Hsinchu Science Park, Hsinchu 30078, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RFBAOZ-WTW-P20090121E Page No. 2 / 67 Report Format Version: 6.1.2 Reference No.: BAOZ-WTW-P20120009 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 13 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 15 3.5 General Description of Applied Standards and References ............................................................. 16 4 Test Types and Results ...................................................................................................................... 17 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 17 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 17 4.1.2 Test Instruments ................................................................................................................................ 18 4.1.3 Test Procedures ................................................................................................................................. 21 4.1.4 Deviation from Test Standard ............................................................................................................ 22 4.1.5 Test Setup .......................................................................................................................................... 22 4.1.6 EUT Operating Conditions ................................................................................................................. 23 4.1.7 Test Results ....................................................................................................................................... 24 4.2 Conducted Emission Measurement .................................................................................................. 38 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 38 4.2.2 Test Instruments ................................................................................................................................ 38 4.2.3 Test Procedures ................................................................................................................................. 39 4.2.4 Deviation from Test Standard ..…

Text truncated - open the document above for the full version.

Report No.: BAOZ-WTW-P20090121 Page 1 Reference No.: PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: BAOZ-WTW-P20090121 Page 2 Reference No.: RADIATED EMISSION TEST (Below 1GHz) Report No.: BAOZ-WTW-P20090121 Page 3 Reference No.: RADIATED EMISSION TEST (Above 1GHz) Report No.: BAOZ-WTW-P20090121 Page 4 Reference No.:
