2AHKM-CODA5370Cable AP Gateway(WiFi)

Hitron Technologies Inc.
Cable AP Gateway(WiFi) - FCC ID 2AHKM-CODA5370 - Hitron Technologies Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 02, 2024
Application Purpose
Original Equipment
Date of Application
Aug 29, 2024
Equipment Note
Cable AP Gateway(WiFi)
Frequency Range
2412.00000000 - 2462.00000000
Company
Hitron Technologies Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 STEP Check the box contents Look in the box and make sure you have the following: QUICK START GUIDE CODA5370 Read me first! Connect to the network Set up your wireless network 2 STEP Connect the cable port Connect the device’s coax CABLE connector to a cable outl et in your home. 3 STEP Connect the power adapter Connect the included power adapter from the POWER port to a wall outl et. You can access it using a laptop connected by a Ethernet cable. 5 STEP How to join the Internet manually 4 Connect your computer to a wireless network. Please find the SSID and PassPhrase information on the label at the bottom of the device. Connection (optional) STEP CODA5370 POWER ADAPTER 2 Connect your computer to a wire network QUICK STAR T GUIDEETHERNET CABLE Press the WPS button for 3 seconds to trigger the pairing process (Push Button Configuration). And then start Push Button Configuration on wireless client that you want to connect to. During WPS pairing process, LED light in orange. Light in green after successfully connect. Light in red after fail ed connect or 2 minutes timeout. Enable wireless interface ex.win10 as example. Find the SSID the same as label info. And type PassPhrase in upcoming step. Then click yes to complete the connection adding process. Remind: If the corresponding SSID is not found, update the SSID table. Wireless device PC Cable Adapter Congratulations! Your router is now configured. If you have any questions, please check the options below to help you identify the problem point. IP address If your CM is successfully connected to the network (see LED display) but you cannot access the Internet from a connected device, your device's IP address may be set up incorrectly. Router mode : ensure that the device is configured to DHCP (recommended). The IP address in the following range 192.168.0.2~192.168.0~254, CM IP 192.168.0.1 Bridge mode : device will get a static/float IP from MSO. For more information, consult your operating system's assistance. If CM cannot connect to Internet , LAN network will assign following IP range to connected device. Router mode : 192.168.0.2~192.168.0.253. CM IP 192.168.0.1 Bridge mode : 192.168.100.2~192.168.100.253. CM IP 192.168.100.1 Configuration interface: There is GUI design let user can easy to change network setting. Just access url on web browser. Ro ute mode : 192.168.0.1 Bridge mode : 192.168.100.1 Login account : admin / password. LED display Setup Complete Gr een-Blinking: The modem is searching for the DOWNSTREAM Frequency. Gr een-Steady: Downstream SC-QAM frequency is locked Blue-Steady : is successfully engaged in SC-QAM channel bonding on the downstream connection. Cyan-blue (Blue+ Green) steady: OFDM locked. Dark: Not scanning Power Gr een: power received and normal Dark: no power DS US Gr een-Blinking: The traffic pass through LAN Gr een-Steady: LAN is activated Dark: LAN is disabled 5G Gr een-Steady: 2.4G WiFi is activated Dark: 2.4G WiFi is disabled Gr een-Steady: 5G WiFi is activated Dark: 5G WiFi is disabled Ethernet 2.4G Status Gr een-Blinking: Registering Gr een-Steady: Register success Dark: Not registered Troubleshooting If the device is not working properly, please troubleshoot in the following order: 1. Check whether the power is o n and whether the wiring is s ecure. 2. Check LED status. If P ower off: Disposal method -Make sure both ends of the power supply are securely inserted into the power holes and on the device. -Check whether there is electricity in the power hole -Choose another working power outlet -R eplace another power adapter No te: Please do not use power supplies not provided by our company to av oid damage to the equipment. If there is a problem with the power supply, please seek help from the cable operator to r eplace it. If E thernet LED off: Disposal method -Check device power on and both ethernet cable are connected between CM and PC properly. -R eplace another ethernet cable. If DS/US LED off: Disposal method -Check coax cable is connected to CM properly. -pl ease seek help from the cable operator to solve it. If S tatus LED on but no Internet: Disposal method -Check PC get a right IP address. -If status LED on or blinking , means registration has problem. please seek help from the cable operator. Gr een-Blinking: The modem is ranging on the UPSTREAM Frequency. Gr een-Steady: Upstream SC-QAM ranging done Blue-Steady: is successfully engaged in SC-QAM channel bonding on the upstream connection. Cyan-blue (Blue+ Green) steady: OFDMA locked. Dark: no upstream activity 2024 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) t…

Text truncated - open the document above for the full version.

External Photos

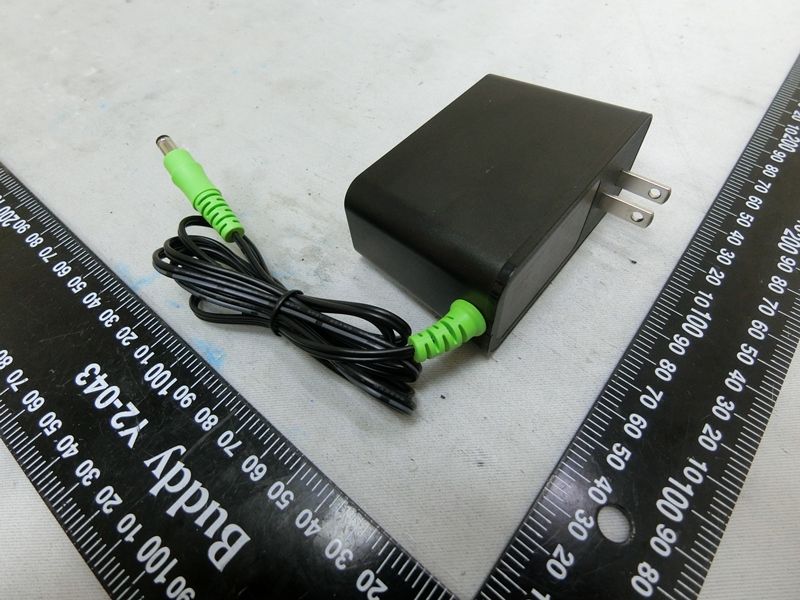

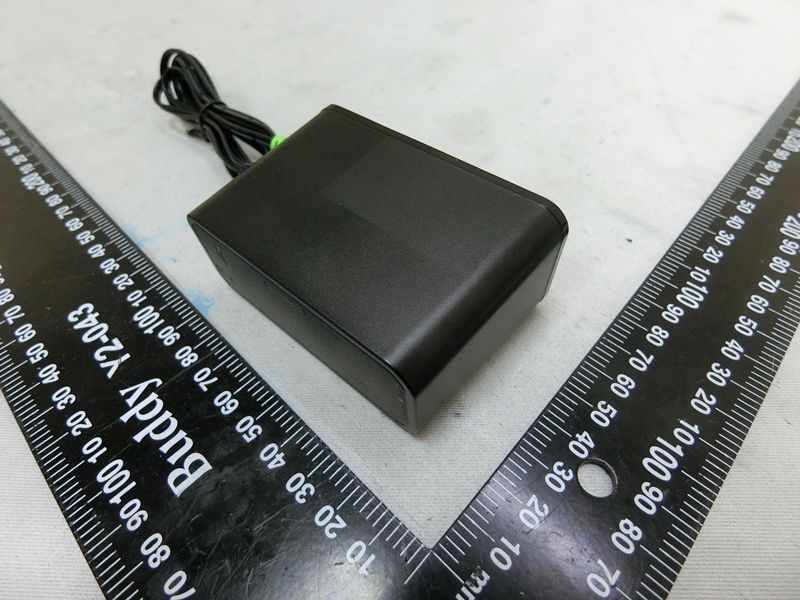

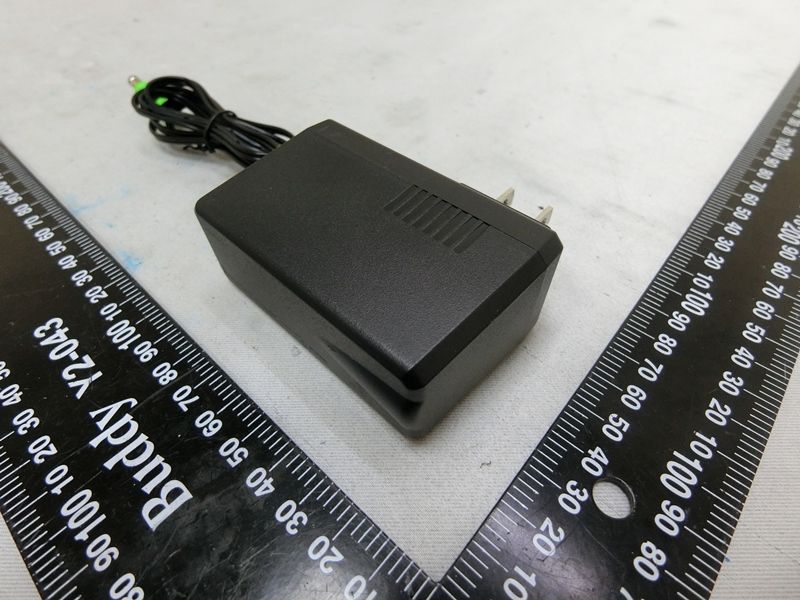

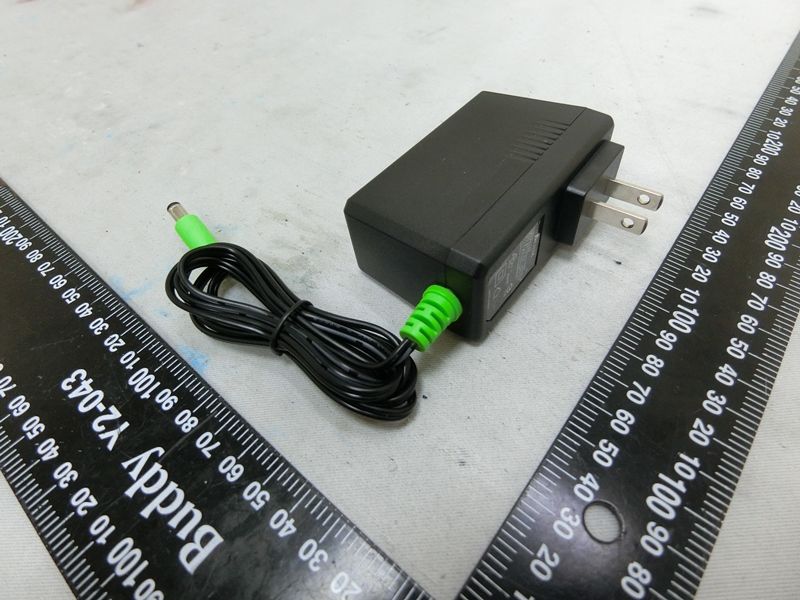

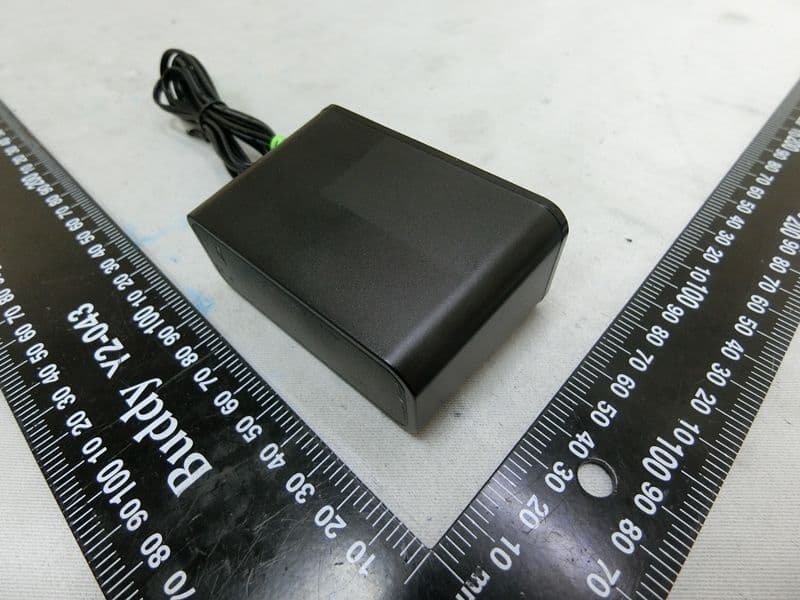

PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 1 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 Brand Name: HITRON Model Name: CODA5370 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 2 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 3 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 4 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 5 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 Adapter 1 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 6 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 Adapter 2 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 7 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 8 of 8 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 RJ-45 cable

ID Label/Location Info

Location: <Bottom of the device>

Internal Photos

PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 1 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 Brand Name: HITRON Model Name: CODA5370 Ant. 1 Ant. 3 Ant. 4 Ant. 2 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 2 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 3 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 4 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 5 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 6 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 7 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 8 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 9 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 10 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 11 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 12 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 13 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 14 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 15 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 16 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 17 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 18 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 19 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 20 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 21 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 22 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 23 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 24 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 25 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 26 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP470124-01 Sporton International Inc. Page No. : 27 of 27 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 07, 2024 Report Version : 01

RF Exposure Info

RADIO EXPOSURE TEST REPORT Report No. : FA470124-01 TEL : 886-3-656-9065 Page Number : 2 of 10 FAX : 886-3-656-9085 Issued Date : Aug. 23, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 6 1.3 Accessories ............................................................................................................................................ 7 1.4 Applicable Standards ............................................................................................................................. 7 1.5 Testing Location ..................................................................................................................................... 7 2 Maximum Permissible Exposure ........................................................................................................ 8 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 8 2.2 MPE Calculation Method ........................................................................................................................ 8 2.3 MPE Exemption ...................................................................................................................................... 9 2.4 Calculated Result and Limit .................................................................................................................. 10 Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA470124-01 TEL : 886-3-656-9065 Page Number : 3 of 10 FAX : 886-3-656-9085 Issued Date : Aug. 23, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FA470124-01 01 Initial issue of report Aug. 23, 2024 RADIO EXPOSURE TEST REPORT Report No. : FA470124-01 TEL : 886-3-656-9065 Page Number : 4 of 10 FAX : 886-3-656-9085 Issued Date : Aug. 23, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PA SS - Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Sam Chen Report Producer: Sophia Shiung RADIO EXPOSURE TEST REPORT Report No. : FA470124-01 TEL : 886-3-656-9065 Page Number : 5 of 10 FAX : 886-3-656-9085 Issued Date : Aug. 23, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5250 5250-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) RADIO EXPOSURE TEST REPORT Report No. : FA470124-01 TEL : 886-3-656-9065 Page Number : 6 of 10 FAX : 886-3-656-9085 Issued Date : Aug. 23, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1.2 Antenna Information Ant. Port Brand Model Name Antenna Type Connector Gain (dBi) 1 1 SPEED F-0Q-YF-6001-001-00 PCB I-Pex Note 1 2 2 SPEED F-0Q-YF-6001-002-00 PCB I-Pex 3 1 SPEED F-0Q-YF-6001-003-00 PCB I-Pex 4 2 SPEED F-0Q-YF-6001-004-00 PCB I-Pex Note 1: Ant. Antenna Gain (dBi) 2.4GHz 2.45GHz 2.4835GHz 5.2GHz 5.3GHz 5.6GHz 5.785GHz 1 2.69 2.86 2.85 - - - - 2 5.84 5.16 4.64 - - - - 3 - - - 5.14 5.1 5.64 5.76 4 - - - 3.9 4.14 3.81 4.14 Item Directional Gain (dBi) 2.4GHz 2.45GHz 2.4835GHz 5.2GHz 5.3GHz 5.6GHz 5.785GHz 2T1S 5.84 5.16 4.64 5.14 5.1 5.64 5.76 2T2S 5.84 5.16 4.64 5.14 5.1 5.64 5.76 Note 2: The above information (except antenna gain and directional gain) was declared by manufacturer. Note 3: The antenna gain and directional gain are measured which follow the procedure of KDB 662911 D03. Note 4: For 2.4GHz function: For IEEE 802.11 b (1TX/1RX): Only Port 1 can be used as transmitting/receiving antenna. For IEEE 802.11 g/n/VHT/ax (2TX/2RX): Port 1 and Port 2 can be used as transmitting/receiving antenna. Port 1 and Port 2 could transmit/receive simultaneously. For 5GHz function: For IEEE 802.11a/n/ac/ax (2TX/2RX): Port 1 and Port 2 can be used as transmitting/receiving antenna. Port 1 and Port 2 could transmit/receive simultaneously. RADIO EXPOSURE TEST REPORT Report No. : FA470124-01 TEL : 886-3-656-9065 Page Number : 7 of 10 FAX : 886-3-656-9085 Issued Date : Aug. 23, 2024…

Text truncated - open the document above for the full version.

Test Report

Report No. : AP470124 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 2 o f 14 TEL : 886-3-656-9065 Issued Date : Aug. 23, 2024 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 Table of Contents History of this test report ................................................................................................................................. 3 1. Operation Mode and Antenna Information ........................................................................................ 4 2. Test Frequency ..................................................................................................................................... 4 3. Testing Location ................................................................................................................................... 5 4. Test Facility and Configuration ........................................................................................................... 6 5. Reference Calibration .......................................................................................................................... 7 6. Test Method .......................................................................................................................................... 8 7. Measured Values and Calculation of Maximum Gain Positions ...................................................... 9 8. Summary of Test Result .................................................................................................................... 11 9. Test Setup ........................................................................................................................................... 12 10. Test Equipment and Calibration Data .............................................................................................. 13 11. Test Results ........................................................................................................................................ 14 Report No. : AP470124 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 3 o f 14 TEL : 886-3-656-9065 Issued Date : Aug. 23, 2024 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 History of this test report Report No. Version Description Issued Date AP470124 01 Initial issue of report Aug. 23, 2024 Report No. : AP470124 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 4 o f 14 TEL : 886-3-656-9065 Issued Date : Aug. 23, 2024 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 1. Operation Mode and Antenna Information Antenna Position RF Port Brand Name Model Name Ant. Type Connector Modes of Operation 2G Ant1 1 SPEED F-0Q-YF-6001-001- 00 PCB I-Pex 2.4GHz 2G Ant2 2 SPEED F-0Q-YF-6001-002- 00 PCB I-Pex 2.4GHz 5G Ant1 1 SPEED F-0Q-YF-6001-003- 00 PCB I-Pex 5GHZ 5G Ant2 2 SPEED F-0Q-YF-6001-004- 00 PCB I-Pex 5GHz Note: 2.4GHz Operation Mode For IEEE 802.11 b (1TX/1RX) 2G Ant1 can be used as transmitting/receiving antenna. 2G Ant1 could transmit/receive simultaneously. For IEEE 802.11 g/n/VHT/ax (2TX/2RX) 2G Ant1~2 can be used as transmitting/receiving antenna. 2G Ant1~2 could transmit/receive simultaneously. 5GHz Operation Mode (2TX/2RX) 5G Ant1~2 can be used as transmitting/receiving antenna. 5G Ant1~2 could transmit/receive simultaneously. 2. Test Frequency The listed frequency of each bands are selected to represent each frequency bands Band [MHz] Test Frequency [MHz] 2400-2483.5 2400 2450 2483.5 5150-5250 5200 5250-5350 5300 5470-5725 5600 5725-5850 5785 Report No. : AP470124 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 5 o f 14 TEL : 886-3-656-9065 Issued Date : Aug. 23, 2024 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 3. Testing Location Testing Location Sporton International Inc. Hsinhua Laboratory HWA YA ADD : No.13-1 & 14-1, Ln. 19, Wen 33rd St., Guishan Dist., Taoyuan City 333, Taiwan R.O.C. Test Condition Test Site No. Test Engineer Test Environment (°C / %) Test Date Radiated 05CH03-HY Vivi Jiang 23.5~24.5 / 45~55 Jul. 13, 2024 Note: Testing Site Information Brand Name: TDK Dimension: 11m*6m*6m Characteristic: Fully Anechoic Chamber Report No. : AP470124 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 6 o f 14 TEL : 886-3-656-9065 Issued Date : Aug. 23, 2024 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 4. Test Facility and Configuration Test configuration: Reference to CITA OTA distributed-axes system configuration. Chamber: Fully Anechoic Chamber. Measurement antenna: Dual Polarization Horn antenna Turntable: Multi-axis positioner (Theta and Phi angle). #Reference to CTIA “ctia- test- plan- for -wireless-device-over -the- air -performance-ver -3-7- 1” Report No. : AP470124 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 7 o f 14 TEL : 886-3-656-9065 Issued Date : Aug. 23, 2024 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 5. Reference Calibration Connected cables to VNA calibration kit and use network analyzer internal function to do calibration. Do short, open and load to each side. Then connect through to both side and calibrate G values. The cable loss is calibrated and set inside the network analyzer. Measurement Antenna is connected to port1 of Network analyzer and reference antenna connected to port 2 of Network Analyzer. Record G values and used with reference antenna gain to calculate gain factor. Frequency (MHz) 2400 2450 2500 5150 5200 5300 5600 5750 5800 5900 6000 6500 7000 7200 G(theta) reading (dB) -33.55 -33.38 -32.91 -32.29 -32.48 -32.25 -32.33 -32.85 -32.67 -33.37 -32.53 -33.75 -34.72 -35.33 G(phi) reading (dB) -33.11 -32.68 -32.48 -32.45 -32.85 -31.35 -32.76 -32.68 -32.57 -32.81 -32.85 -33.62 -34.33 -35.2…

Text truncated - open the document above for the full version.

Test Report

Radiated Composite Gain Data of 5GHz UNII 1~UNII 3 Appendix B Sporton International Inc. Page No. : 4 of 7 Report No. : AP470124 Gain Result Freq(Hz) 5.2G/Pol. Phi/Ant. 1 -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- Gain Φ(0°)/Φ(7.5°) Φ(15°)/Φ(22.5°) Φ(30°)/Φ(37.5°) Φ(45°)/Φ(52.5°) Φ(60°)/Φ(67.5°) Φ(75°)/Φ(82.5°) Φ(90°)/Φ(97.5°) Φ(105°)/Φ(112.5°) Φ(120°)/Φ(127.5°) Φ(135°)/Φ(142.5°) Φ(150°)/Φ(157.5°) Φ(165°)/Φ(172.5°) Φ(180°)/Φ(187.5°) Φ(195°)/Φ(202.5°) Φ(210°)/Φ(217.5°) Φ(225°)/Φ(232.5°) Φ(240°)/Φ(247.5°) Φ(255°)/Φ(262.5°) Φ(270°)/Φ(277.5°) Φ(285°)/Φ(292.5°) Φ(300°)/Φ(307.5°) Φ(315°)/Φ(322.5°) Φ(330°)/Φ(337.5°) Φ(345°)/Φ(352.5°) Θ(0°) -8.67/-6.81 -4.96/-3.38 -2.23/-1.6 -1.12/-0.71 -0.67/-0.84 -0.92/-1.04 -1.09/-1.2 -1.55/-2.25 -3.18/-4.5 -6.62/-9.48 -13.4/-18.09 -17.94/-12.86 -8.79/-6.24 -4.18/-2.74 -1.64/-0.73 0.01/0.28 0.27/0.05 -0.39/-0.91 -1.53/-2.14 -2.71/-3.65 -5.07/-6.89 -9.29/-11.39 -13.07/-13.1 -10.65/-9.81 Θ(7.5°) -8.99/-6.29 -4.29/-2.72 -1.8/-1.11 -0.57/-0.2 -0.19/-0.44 -0.57/-0.87 -1.1/-1.53 -1.93/-2.66 -3.84/-5.57 -8.02/-11.2 -16.58/-17.65 -14.32/-9.62 -7.36/-5.71 -4.15/-2.72 -1.59/-0.74 -0.17/0.15 0.39/0.44 0.41/0.19 -0.23/-0.79 -1.32/-2.24 -3.39/-4.55 -6.39/-8.96 -13.82/-18.2 -18.61/-13.23 Θ(15°) -14.46/-8.89 -5.76/-3.55 -1.97/-0.84 -0.28/0.02 0.22/0.53 0.56/0.62 0.23/-0.08 -0.49/-1.12 -2.52/-4.26 -6.27/-9.24 -14.96/-17.77 -15.69/-10.35 -7.49/-6.11 -5.27/-4.17 -2.94/-1.85 -1.26/-1 -0.73/-0.59 -0.55/-0.68 -0.95/-1.43 -1.9/-2.65 -3.16/-3.61 -4.51/-5.69 -8.01/-11.45 -18.99/-18.63 Θ(22.5°) -18.23/-12.72 -9.31/-7.3 -5.16/-3.01 -1.54/-0.57 0.01/0.21 0.07/-0.31 -0.69/-0.97 -1.06/-1.19 -1.76/-2.97 -4.29/-6.64 -11/-18.72 -18.34/-12.64 -8.55/-6.38 -5.25/-4.61 -3.75/-2.62 -1.61/-1.11 -0.72/-0.62 -0.67/-0.92 -1.52/-2.13 -2.75/-3.28 -3.31/-3.61 -4.48/-5.95 -8.21/-10.93 -14.77/-17.81 Θ(30°) -14.65/-9.95 -6.35/-4.05 -2.75/-1.97 -1.33/-0.83 -0.59/-0.59 -1.48/-2.91 -4.05/-4.54 -4.6/-4.29 -4.14/-4.82 -6.73/-10.45 -14.76/-17.12 -13.28/-9.67 -7.84/-6.27 -5.32/-4.74 -4.16/-2.84 -1.44/-0.77 -0.52/-0.38 -0.82/-1.69 -2.64/-2.81 -2.68/-2.06 -2.1/-2.9 -4.17/-6.07 -8.52/-11.54 -15.17/-16.8 Θ(37.5°) -9.99/-7.49 -6.05/-4.2 -2.7/-1.34 -0.23/0.41 0.9/0.77 0.11/-1.37 -3.08/-5.2 -6.17/-5.85 -5.47/-5.1 -6.38/-8 -9.96/-10.83 -9.08/-7.63 -6.56/-5.12 -3.36/-2.77 -2.78/-2.45 -2.24/-1.93 -0.92/-0.78 -1.51/-2.15 -2.34/-2.39 -2.19/-1.79 -1.45/-1.91 -3.42/-5.4 -8.43/-15.58 -18.11/-13.1 Θ(45°) -10.52/-6.47 -3.58/-1.67 -0.96/-0.84 -0.76/-0.25 0.24/-0.02 -0.99/-1.73 -2.18/-3.37 -4.54/-4.12 -3.46/-3.74 -5.46/-7.91 -10.72/-12.3 -10.69/-9.61 -9.22/-6.96 -4.4/-3.55 -2.57/-1.78 -1.68/-0.43 0.74/1.45 1.41/-0.02 -1.35/-1.52 -1.72/-3.06 -4.84/-6.4 -7.12/-7.69 -8.73/-10.77 -15.29/-14.45 Θ(52.5°) -14.05/-8.66 -5.23/-3.16 -1.86/-1.06 -0.69/-0.32 0.89/1.48 1.08/0.29 -0.24/-1.27 -3.48/-4.51 -3.52/-3.08 -4.54/-7.18 -9.7/-10.96 -10.25/-11.28 -12.44/-8.96 -6.94/-6.02 -4.65/-3.54 -2.04/-1.22 0.38/1.63 1.29/0.54 0.05/-0.33 -1.15/-2.95 -5.45/-5.61 -5.01/-5.43 -7.47/-10.88 -14.76/-18.09 Θ(60°) -14.18/-7.2 -3.73/-1.84 -0.31/0.53 0.8/1 1.54/1.27 -0.11/-1.19 -0.81/-0.96 -2.09/-2.62 -2.38/-1.86 -2.32/-3.63 -4.83/-5.86 -6.85/-9.25 -11.68/-10.84 -9.13/-6.85 -5.04/-2.82 -1.65/-0.88 0.35/1.11 1.15/0.67 1.39/1.3 -0.58/-2.51 -2.47/-2.54 -3.43/-5.7 -7.62/-9.85 -13.67/-17.83 Θ(67.5°) -10.81/-6.99 -4.06/-1.34 0.37/0.92 0.44/-0.54 0.34/1.34 0.9/-0.38 -0.99/-0.82 -1.2/-2.06 -2.25/-1.78 -1.21/-1.23 -2.52/-4.18 -6.78/-10.28 -13.34/-17.3 -16.88/-13.38 -8.07/-3.97 -1.67/-0.27 0.18/0.82 0.59/0.33 -0.31/-1.75 -3.53/-4.07 -3.25/-3.09 -3.84/-6.25 -9.5/-14.08 -17.78/-18.84 Θ(75°) -15.34/-10.23 -5.39/-2.39 -0.28/0.7 0.65/-0.08 -0.2/0 0.3/0.13 -0.48/-1.35 -2.21/-1.49 -0.76/-0.84 -2.08/-2.13 -1.84/-2.92 -5.29/-8.58 -11.52/-15.13 -17.63/-14.17 -8.49/-5.59 -3.46/-2.17 -1.85/-0.89 0.08/0.22 -0.24/-2.44 -4.94/-4.57 -3.75/-4.25 -5.85/-8.72 -12.25/-13.99 -18.91/-17.44 Θ(82.5°) -17.37/-11.39 -6.7/-1.95 1.27/2.65 2.69/1.75 1.2/0.36 -1.01/-0.84 -0.44/-1.83 -2.83/-2.22 -2.07/-1.23 -1.1/-1 -1.91/-3.8 -5.93/-8.77 -11.72/-17.83 -17.7/-11.59 -7.75/-6.75 -4.21/-2.02 -1.02/-0.14 0/0.11 -0.92/-1.97 -4.97/-6.29 -5.69/-5.83 -7.27/-9.13 -12.15/-17.93 -18.32/-18.35 Θ(90°) -16.52/-11.63 -8.03/-3.22 0.2/2.08 2.59/2.15 1.66/1.12 -0.08/-1.65 -1.29/-0.19 -0.35/-0.99 -1.91/-3.46 -3.49/-4.48 -5.16/-6.63 -8.1/-12.06 -17.34/-14.68 -12.8/-10.05 -6.93/-6.27 -3.88/-3 -1.83/-1.08 -0.82/-0.34 0.67/-1.22 -4.64/-5.32 -5.63/-8.87 -11.46/-15.72 -18.19/-18.9 -16.39/-17.21 Θ(97.5°) -19.12/-18.24 -17.91/-7.84 -1.62/0.67 1.35/1.74 2.25/1.43 -0.21/-0.75 -0.22/0.49 0.61/-0.41 -1.77/-1.91 -2.22/-2.69 -4.49/-5.85 -8.37/-12.18 -15.09/-17.19 -15.64/-10.32 -8.12/-5.99 -3.58/-2.7 -1.25/-0.85 -0.01/0.28 -0.31/-1.84 -3.27/-4.78 -5.42/-7.32 -14.51/-19.4 -16.09/-18.3 -18.86/-18.59 Θ(105°) -18/-17.95 -12.04/-5.99 -1.13/0.46 1.04/1.47 2.59/2.66 1.74/0.52 0.6/0.92 0.77/-0.29 -1.4/-2.44 -2.43/-3.18 -5.12/-7.64 -11.45/-16.47 -17.72/-15.33 -8.82/-7.26 -8.46/-9.24 -6.59/-2.38 -1.21/-0.67 0.62/0.8 -1.29/-2.44 -3.52/-4 -5.07/-8.75 -18.32/-17.9 -13.83/-13.07 -14.57/-18.93 Θ(112.5°) -12.75/-16.58 -18.61/-8.45 -2.86/-0.68 0.21/1.84 3.89/4.66 4.01/2.68 0.79/-0.91 -0.58/0.13 0.02/-1.73 -2.91/-4.14 -7.13/-11.56 -17.44/-16.07 -14.38/-14.89 -11.9/-8.02 -7.88/-13.46 -9.15/-5.55 -5.83/-6.23 -2.41/-2.25 -3.88/-4.91 -5.42/-5.24 -4.58/-9.27 -13.33/-10.02 -11.87/-16.23 -15.33/-15.54 Θ(120°) -8.01/-12.26 -17.19/-9.93 -2.19/0.49 0.67/0.66 2.85/4.47 4.52/4.32 3.87/2.74 1.38/0.58 -0.35/-0.97 -2.65/-5.14 -7.32/-8.07 -8.62/-10.65 -14.03/-16.74 -13.19/-11.77 -12.73/-14.51 -8.12/-9.17 -8.5/-6.34 -4.25/-4.3 -4.22/-3.92 -4.34/-6.96 -9.57/-9.72 -9.32/-9.41 -12.51/-16.71 -17.75/-10.61 Θ(127.5°) -16.86/-19.23 -12.68/-9.24 -4.73/-2.32 -0.56/1.24 2.63/3.84 3.9/4.03 4.1/3.5 2.19/0.63 -0.43/-1.77 -4.67/-6.39 -7.16/-9.23 -10.71/-16.04 -18.38/-14.73 -13.82/-7.61 -7.96/-9.86 -11.86/-8.26 -11.43/-10.52 -11.86/-10.04 -11.38/-13.17 -10.33/-8.47 -9.7/-11.73 -15.22/-16.86 -16.26/-19.25 -15.48/-13.28 Θ(135°) -13.63/-16.38 …

Text truncated - open the document above for the full version.

Test Report

RADIO TEST REPORT Report No. : FR470124-01AA TEL : 886-3-656-9065 Page Number : 2 of 29 FAX : 886-3-656-9085 Issued Date : Aug. 23, 2024 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 Table of Contents History…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jimmy Li(Assistant Technical Manager)
[email protected]886-3-563-6666Fax: 886-3-563-6789

Test Firm

Sporton International Inc. Hsinchu LaboratoryAlex Chen
[email protected]+886-3-327-3456Fax: +886-3-327-0978

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz245.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted output power. This device must be installed and operated so as to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures, or as evaluated in this filing. End-users must be informed of operating requirements for satisfying RF exposure compliance. This device supports 20 and 40 MHz bandwidth modes.
