2AHKM-CODA5814Q1DOCIS 3.1 Wi-Fi 6 EMTA Gateway

297 mm 420 mm 此圖為等比縮小.請參考圖面標示尺寸 灰色虛線為折線 1.折疊後成型尺寸:148(W)x105(H)mm 2.摺疊方式請參考圖1.2.3 圖1 圖2 圖3 3.材質:100P模造紙 4.印刷:黑白雙面印刷.印刷內容請參照附件 1A 2022/05/17 A3 size,CODA5x1xQ,Ver.2A,EN/FR CODA5x1xQQIG 100P模造紙 Daisy Wang P3300072VN42 1 STEP/ ÉTAPE Check the box contents/ Vérifiez le contenu de la boîte Look in the box and make sure you have the following: Regardez dans la boîte et assurez-vous d’avoir les items suivants : User configuration/ Configuration du profil d'utilisateur 7 QUICK START GUIDE GUIDE DE DÉMARRAGE ETHERNET CABLE CÂBLE ETHERNET QUICK START GUIDE GUIDE DE DÉMARRAGE CODA5x1xQ series Read me first! Lisez-moi d’abord! Connect to the network Connexion à Internet Set up your wireless network Configuration du réseau sans-fil 2 STEP/ ÉTAPE Connect the cable port/ Branchement du câble Connect the device’s coax CABLE connector to a cable outlet in your home. Branchez le câble coaxial à partir du connecteur CÂBLE du modem jusqu’à une prise coaxiale de votre maison. 3 STEP/ ÉTAPE Connect the power adapter/ Branchement de l’alimentation Connect the included power adapter from the POWER port to a wall outlet. Branchez le bloc d'alimentation à partir du port d’ALIMENTATION du modem jusqu’à une prise électrique. Note: Battery port is used for communication to a Hitron battery backup unit (Optional). Do not use for any other purpose. Le port “Battery” est utilisé pour la communication avec une unité de batterie de secours Hitron (en option). Ne pas utiliser à d'autres fins. STEP/ ÉTAPE 5 STEP/ ÉTAPE Connect any LINE port to a telephone. This is required only if you have ordered telephone service. Branchez n'importe quel port LINE à un téléphone. Ceci est requis seulement si vous avez commandé le service téléphonique. 6 STEP/ ÉTAPE For initial setup, click “LET’S GO” to test your connection and enter your preferred SSID and Passphrase. The Wi-Fi Passphrase will also act as your administrator password (log with username “cusadmin” the next time you visit 192.168.0.1). Make sure to complete the Easy Connect walk-through so it does not come back. Note: If the CODA receives a factory reset request, the Easy Connect interface will appear again. Pour la configuration initiale, cliquez sur « LET'S GO » pour tester votre connexion et entrer votre SSID et mot de passe de votre choix. Votre mot de passe Wi-Fi sera également votre mot de passe administrateur (vous pourrez vous connecter en tant qu'utilisateur « cusadmin » la prochaine fois que vous visiterez 192.168.0.1). Assurez vous de compléter le processus pour qu'il ne revienne pas. Note: Si le CODA est réinitialisé avec les valeurs d'usine par défaut, l'interface Easy Connect s'affichera de nouveau. Access LAN for initial configuration / Accédez au réseau local pour configuration initiale Ethernet Method/ Méthode EthernetWi-Fi Method/ Méthode Wi-Fi 4 Pour compléter l'installation initiale, votre CODA affichera l'interface Easy Connect sur le premier appareil connecté. Vous pouvez y accéder en branchant un ordinateur par le câble Ethernet (fourni) à l'un des ports LAN (réseau local) ou en connectant un appreil sans fil au réseau Wi-Fi. Vous trouverez le nom et le mot de passe du réseau Wi-Fi (Default Wi-Fi network/key) sur l'étiquette à l'arrière de votre CODA. To complete initial setup, your CODA will launch Easy Connect user interface on the first connected device. You can access it using a laptop connected by a Ethernet cable or any mobile device with the default Wi-Fi network name/password found on the back label of your new CODA. Wireless devices (optional) / Périphériques sans-fil (optionnel) You can now connect your wireless devices with the correct SSID and Passphrase chosen in Step 5. Vous pouvez maintenant connecter vos appareils sans-fil avec votre SSID et « Passphrase » choisis à l'étape 5. OPTIONAL: To connect a wireless device with the Wi-Fi Protected Setup button (WPS), You need to first access the GUI with the user “cusadmin” and your Wi-Fi Passphrase as password, enter the Wireless page to enable WPS and set Encrypt Mode to AES then save the changes. Press the WPS button on the CODA and on the device you wish to connect. You will have 2 minutes to complete the pairing process. OPTIONNEL : Pour connecter un appareil sans-fil avec le bouton WPS (« Wi-Fi Protected Setup »), vous devez d'abord accéder à l'interface usager avec l'utilisateur « cusadmin » et votre mot de passe Wi-Fi, entrez dans la page « Sans-Fil » pour activer WPS et définissez « Encrypt Mode to AES » puis enregistrez les modifications. Appuyez sur le bouton WPS du CODA et de l'appareil que vous souhaitez connecter. Vous aurez 2 minutes pour compléter le processus de jumelage. STEP/ ÉTAPE CODA5x1xQ POWER ADAPTER bloc d'alimentation 2 P3300072VN42 Connect a telephone device (optional)/ Branchement d’un appareil téléphonique (optionnel) P/N: 1234567890AB S/N: AB1234567890 CM MAC: AB9876543210 eMTA MAC: AB9876543210 Default Wi-Fi network: EasyConnectxxxxx Password: 1iIlL0OQDB8 Made in XXXXX Model Name: CODA5814Q FCC ID: 2AHKM-CODA5814Q IC: 10778A-CODA5814Q Input: 12V 4A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Indoor use only. Web address: 192.168.0.1 User name: cusadmin Password: (your Wi-Fi password) COPYRIGHT © 2022 HITRON TECHNOLOGIES, INC. Setup complete/ Installation terminée IP addresses/ Adresses IP If your CODA is successfully connected to the network (see LED display) but you cannot access the Internet from a connected device, your device’s IP address may be set up incorrectly. Si votre CODA est correctement connecté au réseau (voir la section Affichage DEL), mais que votre appareil n'a pas accès à Internet, il se peut que l'adresse IP de ce dernier ne soit pas configurée correctement. In your device’s control panel, ensure that the device is …

Text truncated - open the document above for the full version.

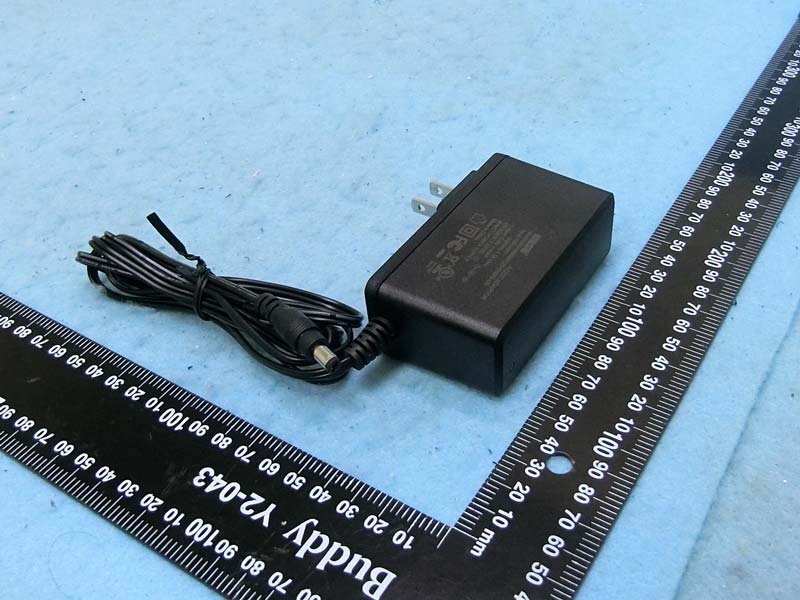

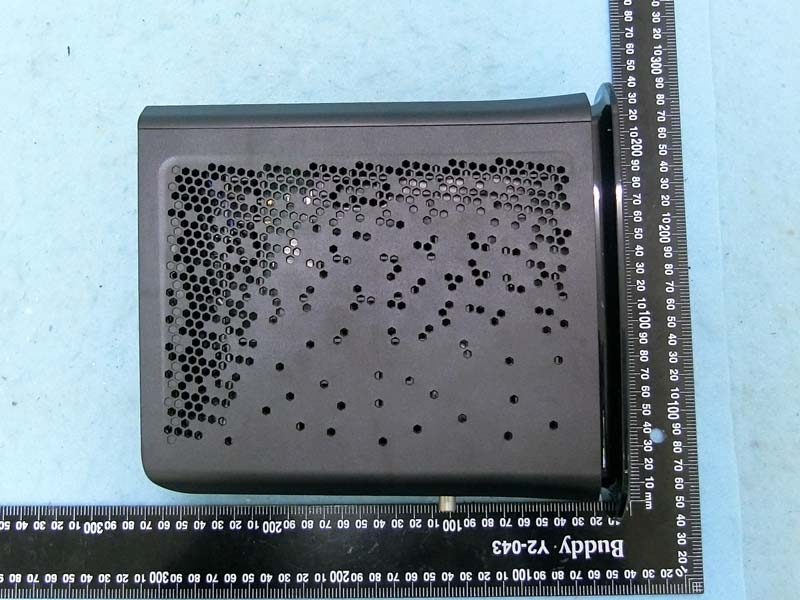

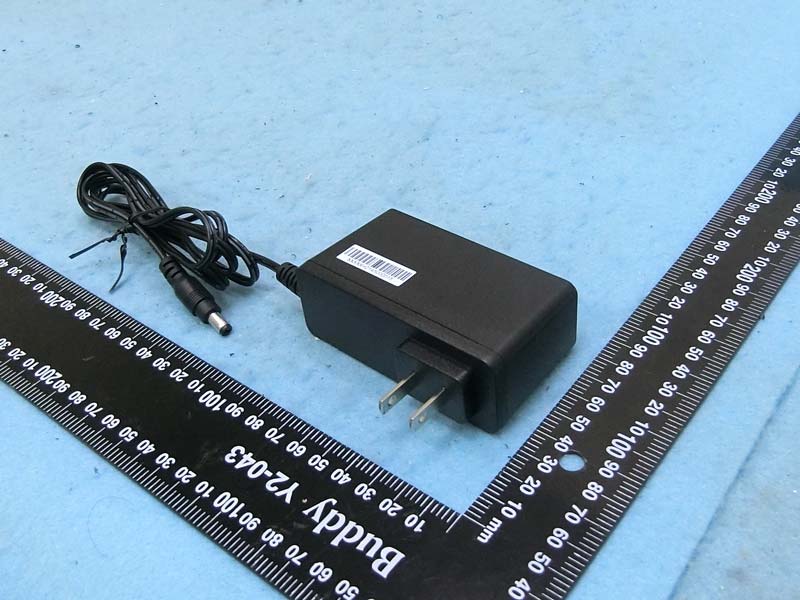

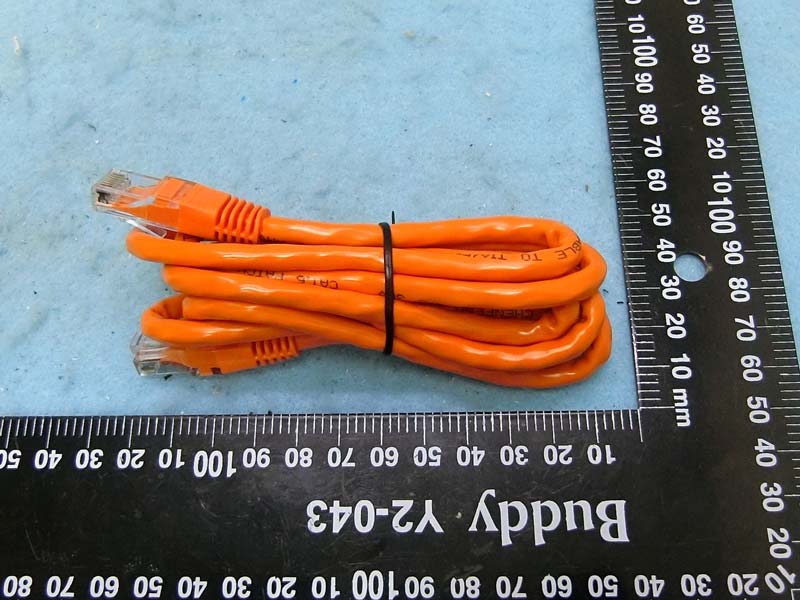

PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 1 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Brand Name: Hitron Model Name: CODA5814Q, CODA5810Q PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 2 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 3 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 4 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 5 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Adapter PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 6 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP RJ-45 cable

Label Location Label Here <Bottom>

PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 1 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Brand Name: Hitron Model Name: CODA5814Q, CODA5810Q PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 2 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 3 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Ant.1 Ant.4 Ant.2 Ant.3 PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 4 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 5 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 6 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 7 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 8 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 9 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 10 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 11 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 12 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 13 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 14 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 15 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 16 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 17 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 18 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 19 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 20 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 21 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 22 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 23 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 24 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP193028-02 Sporton International Inc. Hsinchu Laboratory Page Number : 25 of 37 TEL : 886-3-656-9065 Issued Date : Nov. 18, 2022 FAX : 886-3…

Text truncated - open the document above for the full version.

RADIO EXPOSURE TEST REPORT Report No. : FA193028-02 TEL : 886-3-656- 9065 Page Number : 2 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 18, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 6 1.3 Table for Multiple Listing ........................................................................................................................ 7 1.4 Accessories ............................................................................................................................................ 7 1.5 Applicable Standards ............................................................................................................................. 7 1.6 Testing Location ..................................................................................................................................... 7 2 Maximum Permissible Exposure ........................................................................................................ 8 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 8 2.2 MPE Calculation Method ........................................................................................................................ 8 2.3 MPE Exemption ...................................................................................................................................... 9 2.4 Calculated Result and Limit .................................................................................................................. 10 Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA193028-02 TEL : 886-3-656- 9065 Page Number : 3 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 18, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FA193028-02 01 Initial issue of report Nov. 18, 2022 RADIO EXPOSURE TEST REPORT Report No. : FA193028-02 TEL : 886-3-656- 9065 Page Number : 4 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 18, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: 1. The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. It’s means measurement values may risk exceeding the limit of regulation standards, if measurement uncertainty is include in test results. 2. The measurement uncertainty please refer to report ”Measurement Uncertainty”. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Penny Kao RADIO EXPOSURE TEST REPORT Report No. : FA193028-02 TEL : 886-3-656- 9065 Page Number : 5 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 18, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT : OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5725-5895 5180-5250 5250-5320 5500-5720 5745-5825 5815-5885 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) RADIO EXPOSURE TEST REPORT Report No. : FA193028-02 TEL : 886-3-656- 9065 Page Number : 6 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 18, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1.2 Antenna Information Ant. Port Brand Model Name Antenna Type Connector Gain (dBi) 1 1 Airgain N03HTAFE-PK1 -LA1X80BUR2 PCB Antenna I-PEX Note 1 2 2 Airgain N03HTAFF-PK1-LB1X90BU PCB Antenna I-PEX 3 3 Airgain N03HTAFG-PK1-LG1X130BUR2 PCB Antenna I-PEX 4 4 Airgain N03HTAFH-PK1 -LW1X150BU PCB Antenna I-PEX Note 1: Ant. Port Antenna Gain (dBi) 2.4GHz UNII 1 UNII 2A UNII 2C UNII 3 UNII 4 1 1 3.13 2.72 2.24 2.67 2.28 2.95 2 2 1.42 2.14 2.8 3.46 3.95 4.03 3 3 3.4 2.82 2.58 1.87 3.38 3.3 4 4 3.26 2.82 3.83 3.78 4.93 5.47 Directional Gain (dBi) 2.4GHz UNII 1 UNII 2A UNII 2C UNII 3 UNII 4 4T1S 5.92 5.44 6.34 6.46 6.27 6.54 4T2S 3.4 2.82 3.83 3.78 4.93 5.47 4T4S 3.4 2.82 3.83 3.78 4.93 5.47 Note 2: The above information (brand / model name / antenna type) was declared by the manufacturer. Note 3: WLAN 2.4GHz/5GHz(UNII 1~4): The directional gain is measured which follows the procedure of KDB 662911 D03. Note 4: The EUT has four antennas. For 2.4GHz function: For IEEE 802.11 b/g/n/VHT/ax mode (4TX/4RX) Port 1 and Port 2, Port 3 and Port 4 can be used as transmitting/receiving antenna. Port 1 and Port 2, Port 3 and Port 4 could transmit/receive simultaneously. For 5GHz function: For IEEE 802.11a/n/ac/ax mode (4TX/4RX) Port 1 and Port 2, Port 3 and Port 4 can …

Text truncated - open the document above for the full version.

RADIO TEST REPORT Report No. : FR193028-02AA TEL : 886-3-656- 9065 Page Number : 2 of 31 FAX : 886-3-656-9085 Issued Date : Nov. 18, 2022 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 8 1.3 Testing Location Information .................................................................................................................. 8 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 Test Configuration of EUT ................................................................................................................... 9 2.1 Test Channel Mode ................................................................................................................................ 9 2.2 The Wors t Case Measurement Configuration ...................................................................................... 10 2.3 EUT Operation during Test .................................................................................................................. 11 2.4 Accessories .......................................................................................................................................... 12 2.5 Support Equipment ............................................................................................................................... 12 2.6 Test Setup Diagram ............................................................................................................................. 13 3 Transmitter Test Result ..................................................................................................................... 16 3.1 AC Power-line Conducted Emissions .................................................................................................. 16 3.2 DTS Bandwidth..................................................................................................................................... 18 3.3 Maximum Conducted Output Power .................................................................................................... 19 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 24 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 25 4 Test Equipment and Calibration Data .............................................................................................. 29 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of M aximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non -restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix G. Test Results of Radiated Emission Co-location Appendix H. Test Photos Photographs of EUT v01 RADIO TEST REPORT Report No. : FR193028-02AA TEL : 886-3-656- 9065 Page Number : 3 of 31 FAX : 886-3-656-9085 Issued Date : Nov. 18, 2022 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 History of this test report Report No. Version Description Issued Date FR193028-02AA 01 Initial issue of report Nov. 18, 2022 RADIO TEST REPORT Report No. : FR193028-02AA TEL : 886-3-656- 9065 Page Number : 4 of 31 FAX : 886-3-656-9085 Issued Date : Nov. 18, 2022 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PASS - Declaration of Conformity: 1. The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. It’s means measurement values may risk exceeding the limit of regulation standards, if measurement uncertainty is include in test results. 2. The measurement uncertainty please refer to report ”Measurement Uncertainty”. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Penny Kao RADIO TEST REPORT Report No. : FR193028-02AA TEL : 886-3-656- 9065 Page Number : 5 of 31 FAX : 886-3-656-9085 Issued Date : Nov. 18, 2022 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Frequency (MHz) Channel Number 2400-2483.5 b, g, n (HT20), VHT20, ax (HEW20) 2412-2462 1- 11 [11] 2400-2483.5 n (…

Text truncated - open the document above for the full version.

Report No. : AP193028-02 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 1 of 12 TEL : 886-3-656- 9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656- 9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 Antenna Composite Gain Test Report FCC ID 2AHKM-CODA5814Q1 Equipment DOCIS 3.1 Wi-Fi 6 EMTA Gateway Brand Name Hitron Model Name CODA5814Q, CODA5810Q Applicant Hitron Technologies Inc. No. 1-8, Li -Hsin 1st Rd. Hsinchu Science Park, Hsinchu 30078, Taiwan Manufacturer Hitron Technologies Inc. No. 1-8, Li -Hsin 1st Rd. Hsinchu Science Park, Hsinchu 30078, Taiwan Sample Received Jun. 28, 2022 Start Test Date Oct. 25, 2022 Final Test Date Oct. 25, 2022 ___________________________________________ Approved by: Sam Chen Sporton International Inc. Hsinchu Laboratory No.8, Ln. 724, Bo’ai St., Zhubei City, Hsinchu County 302010, Taiwan (R.O.C.) Report No. : AP193028-02 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 2 of 12 TEL : 886-3-656- 9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656- 9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 Table of Contents History of this test report ................................................................................................................................. 3 1. Operation Mode and Antenna Information ........................................................................................ 4 2. Test Frequency ..................................................................................................................................... 4 3. Testing Location ................................................................................................................................... 4 4. Test Facility and Configuration ........................................................................................................... 5 5. Reference Calibration .......................................................................................................................... 6 6. Test Method .......................................................................................................................................... 7 7. Measured Values and Calculation of Maximum Gain Positions ...................................................... 8 8. Summary of Test Result ...................................................................................................................... 9 9. Test Setup ........................................................................................................................................... 10 10. Test Equipment and Calibration Data .............................................................................................. 11 11. Test Results ........................................................................................................................................ 12 Report No. : AP193028-02 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 3 of 12 TEL : 886-3-656- 9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656- 9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 History of this test report Report No. Version Description Issued Date AP1 93028-02 01 Initial issue of report Nov. 18, 2022 Report No. : AP193028-02 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 4 of 12 TEL : 886-3-656- 9065 Issued Date : Nov. 18, 2022 FAX : 886-3-656- 9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 1. Operation Mode and Antenna Information Antenna Position RF Port Brand Name Model Name Ant. Type Connector Modes of Operation Ant1 1 Airgain N03HTAFE-PK1 -LA1X80BUR2 PCB Antenna I-PEX 2.4GHz, 5GHz UNII 1~4 Ant2 2 Airgain N03HTAFF-PK1-LB1X90BU PCB Antenna I-PEX 2.4GHz, 5GHz UNII 1~4 Ant3 3 Airgain N03HTAFG-PK1-LG1X130BUR2 PCB Antenna I-PEX 2.4GHz, 5GHz UNII 1~4 Ant4 4 Airgain N03HTAFH-PK1 -LW1X150BU PCB Antenna I-PEX 2.4GHz, 5GHz UNII 1~4 Note: 2.4GHz and 5GHz UNII 1~4 Operation Mode (4 TX/ 4RX) Ant1~Ant4 can be used as transmitting/receiving antenna. Ant1~Ant4 could transmit/receive simultaneously. 2. Test Frequency The listed frequency of each bands are selected to represent each frequency bands Band [MHz] Test Frequency [MHz] 2400-2483.5 2450 5150-5250 5200 5250-5350 5300 5470-5725 5600 5725-5850 5785 5850-5895 5885 3. Testing Location Testing Location Sporton International Inc. Hsin…

Text truncated - open the document above for the full version.
