2AHRD-EHWD9905Co-screen Device

UHHQ  1

ROCKCELL Technology (SZ) Co. LTD Model Difference Product description: EH-WD9905 Model name: EH-WD9905,EH-WD9902,EH-WD9903,EH-WD9906,EH-WD9907 Trade Name: EDUP,EDUP HOME,EDUP LOVE,WISE TIGER EH-WD9905,EH-WD9902,EH-WD9903,EH-WD9906,EH-WD9907:Adopt Chip IC RTL8371BU as MCU, DC 5.0V power supply for the chip, and external DC power supply is 5.0V , crystal frequency is 40MHz, the difference is the appearance 。 Regards Sincerely Client’s signature: Client’s name / title : Chunping Zhou Contact information / address:6 Floor, #6 Building, No.48, Kangzheng Road Liantang IndustrialArea, Buji Town,Shenzhen,china ROCKCELLTechnology(SZ)Co.LTD D1D2 D3

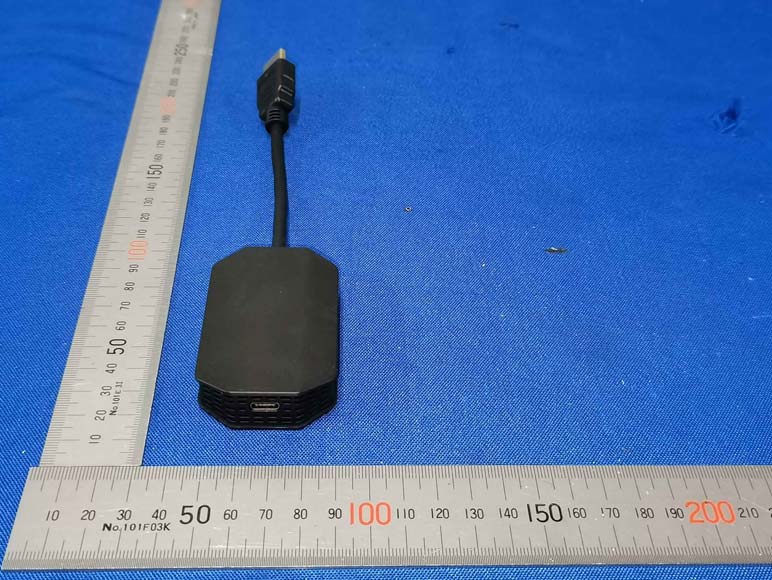

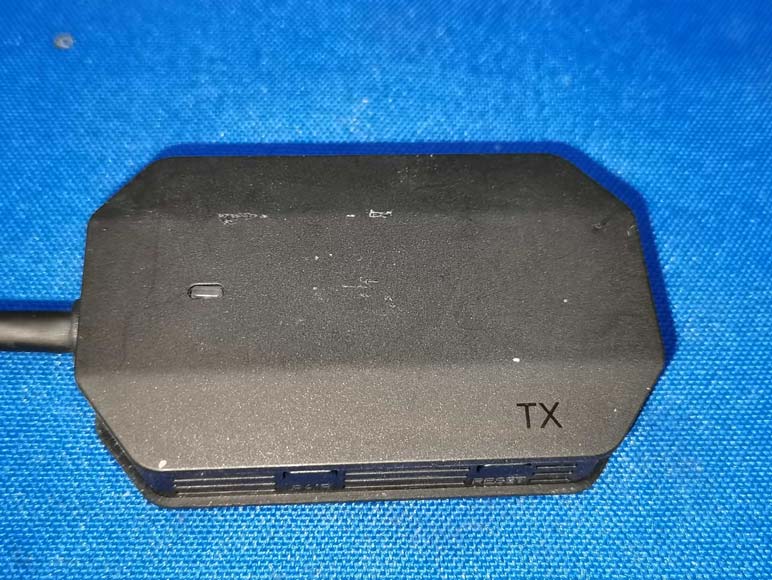

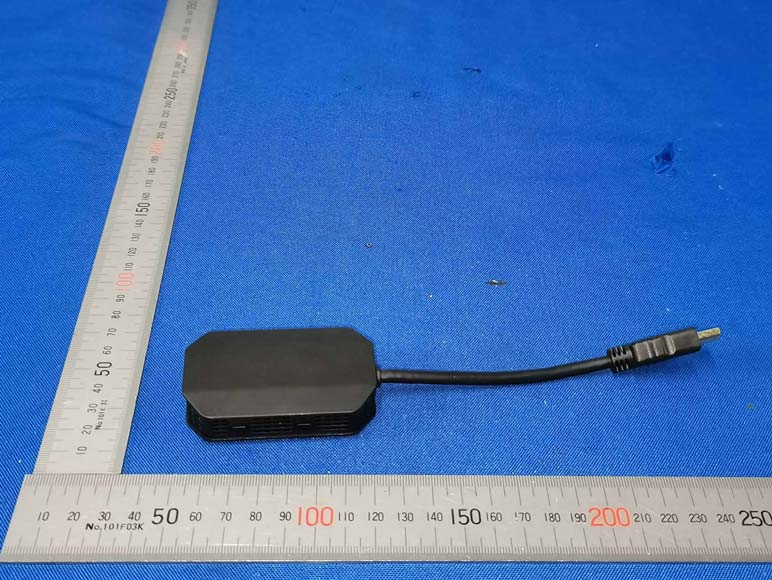

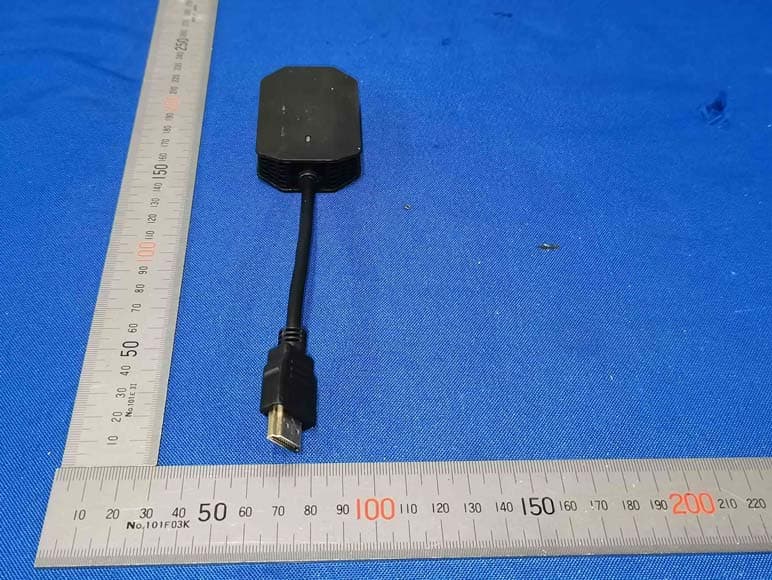

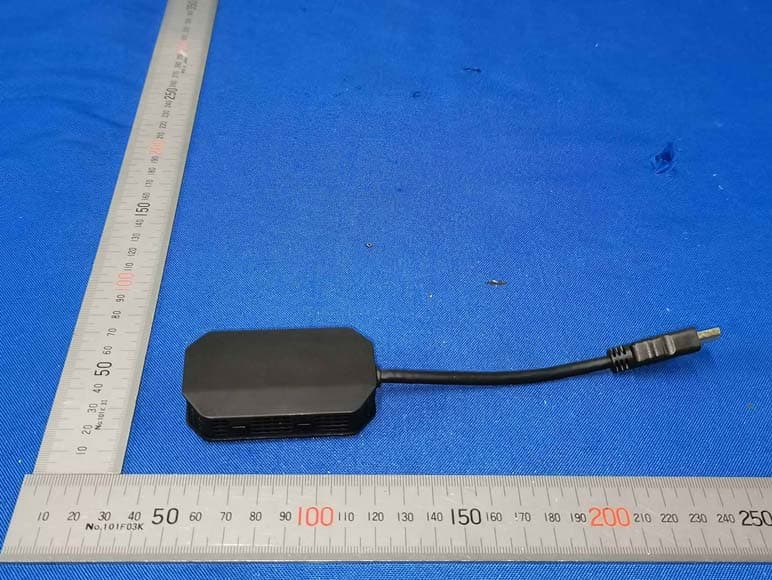

Outside V iew

Label

Inside View

FCC ID: 2AHRD--EHWD9905 RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V06 was used as the guidance. 2.4G Band Calculation Result (Worse case—802.11b，Channel 2412MHz) [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =5.559/5 * 1.55= 1.72, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 5G Band Calculation Result (Worse case—802.11a，Channel 5825MHz) [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =5.047/5 * 2.41= 2.43, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

Report No.: TW2304219-01E Applicant: Shenzhen EDUP Electronics Technology Co.,Ltd. Product: Co-screen Device Model No.: EH-WD9905, EH-WD9902, EH-WD9903, EH-WD9906, EH-WD9907 Trademark: EDUP, EDUP HOME, EDUP LOVE, WISE TIGER Test Standards: FCC Part 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10, FCC Part 15.247 for the evaluation of electromagnetic compatibility Approved By Terry Tang Manager Dated: April 21, 2023 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No.: TW2304219-01E Page 2 of 63 Date: 2023-04-21 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with “Quality Law of People’s Republic of China” Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2017 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. Industry Canada (IC) —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 Report No.: TW2304219-01E Page 3 of 63 Date: 2023-04-21 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details................................................................................................. 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details............................................................................................... 4 1.3 Description of EUT ........................................................................................... 4 1.4 Submitted Sample.............................................................................................. 5 1.5 Test Duration................................................................................................... 5 1.6 Test Uncertainty............................................................................................... 5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment.......................................................................... 6 3.0 Technical Details............................................................................................. 8 3.1 Summary of Test Results..................................................................................... 8 3.2 Test Standards.................................................................................................. 8 4.0 EUT Modification............................................................................................ 8 5.0 Power Line Conducted Emission Test................................................................... 9 5.1 Schematics of the Test........................................................................................ 9 5.2 Test Method and Test Procedure............................................................................ 9 5.3 Configuration of the EUT.................................................................…

Text truncated - open the document above for the full version.

产 品规格书 PRODUCT SPECIFICATION Customer: 深圳市翼联网络通讯有限公司 Customer’s par t n umber : RBT-WIFI-524-0 04-2P5-L Product des cription: 2.4G/5G 铁皮天线 1、产品技术指标（PRODUCT TECHNICAL SPECIFICATION） 电性能指标Electri cal Spec ifi cations 频率范围Fr eq uency Range (MHz) 2400-2500/5150-5 350/5700-5850 频带宽度Ban dwidth (MHz) 2.4 G：100 5G：350 输入阻抗Input Impenden ce (Ω) 50 电压驻波比V.S.W.R ≤2.0 增益Gain (dBi) 2.4 G：<3.0 4 5.1G：<2.2 2 5.8 G： <2.1 2 极化形式Polarization Type 垂直Vert ica l 机械指标Mechan ica l Speci fica tions 天线长度Antenna Len gth (mm) 21.5*2.5*4.5mm 辐射体Radiat or 钢片镀镍 连接器型号Connec t Type DIP 工作温度Working Temp(°C) -20~85 储藏温度Stora ge Temperature(°C) -4 0~90 外壳颜色Radome Color 银色 重量Weight (g) 0.5 产品简介 该天线是专为无线内置天线设备设计生产的，天线具有外形美观，结 构小巧，安装方便的优点。材质使用不锈钢镀镍，硬度足够。 2、产品图片（PRODUCT PICTURE） 3、产品规格图(PRODUCT SPECIFICATION CHART) 4、驻波图（STATIONARY WAVE PATTERN） 5.增益效率值： 6.场型图

Conducted Emission Test Setup: Radiated Emission Test Setup:
