2AHYK-GIECY1005True wireless earbuds

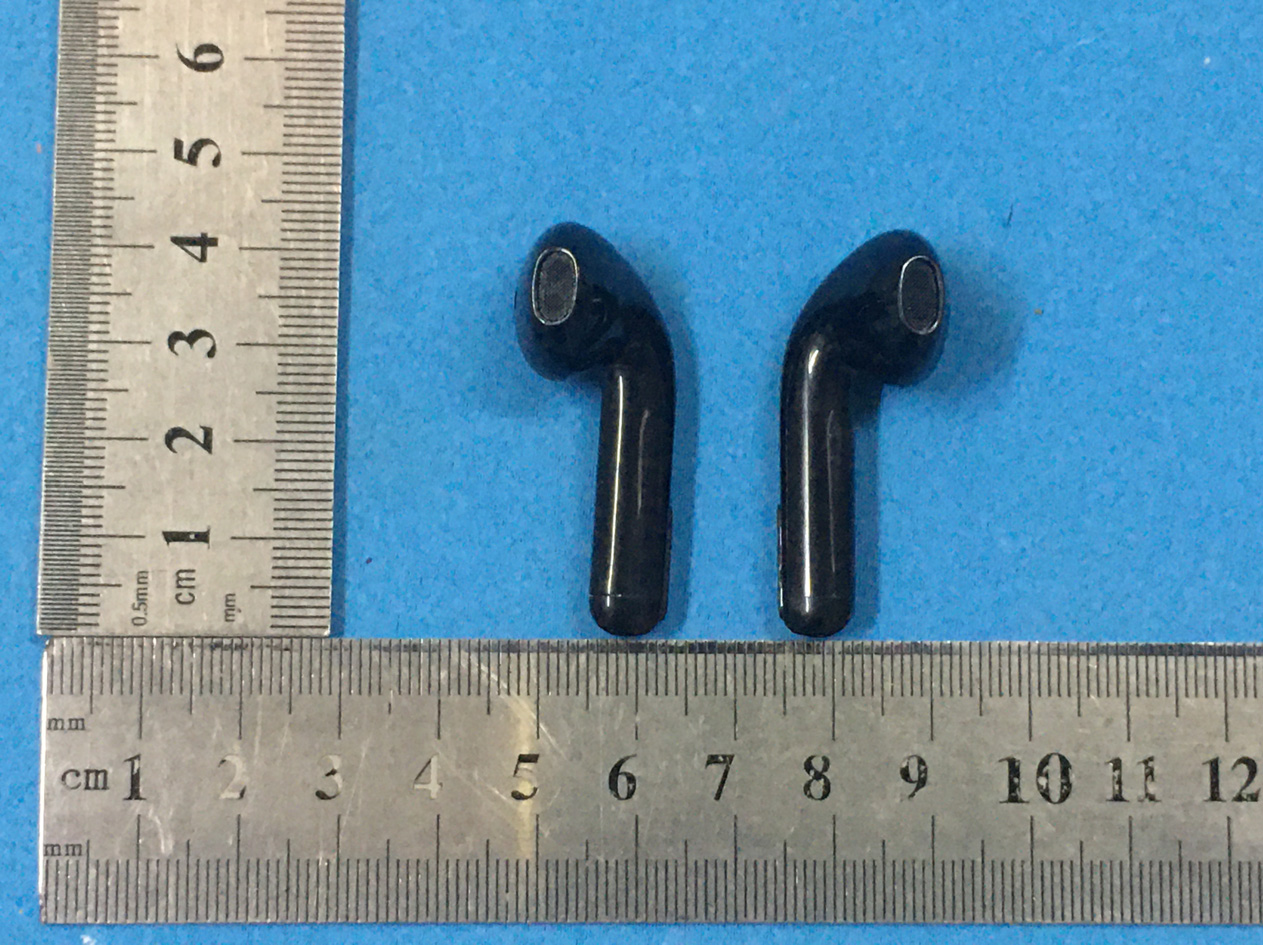

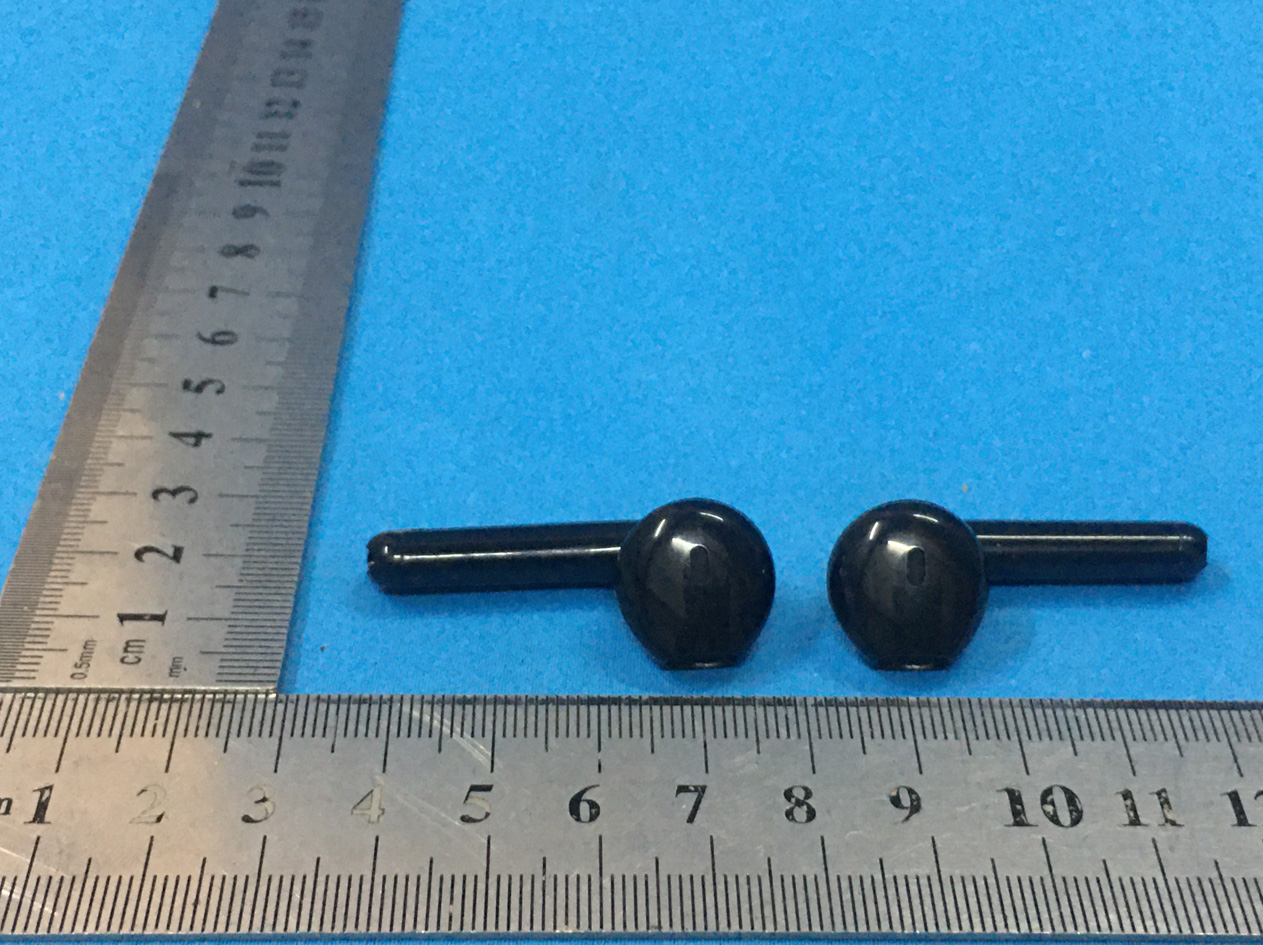

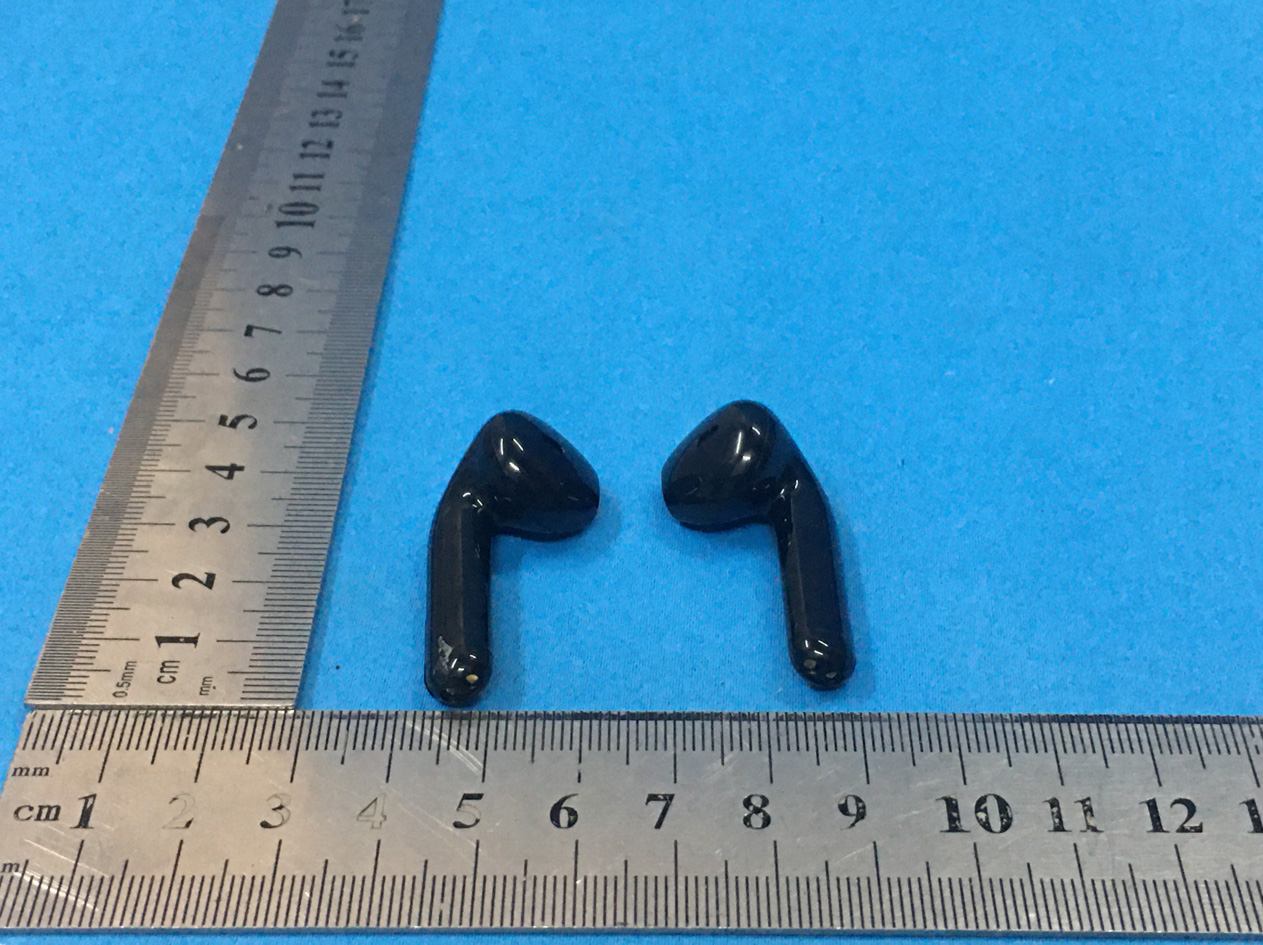

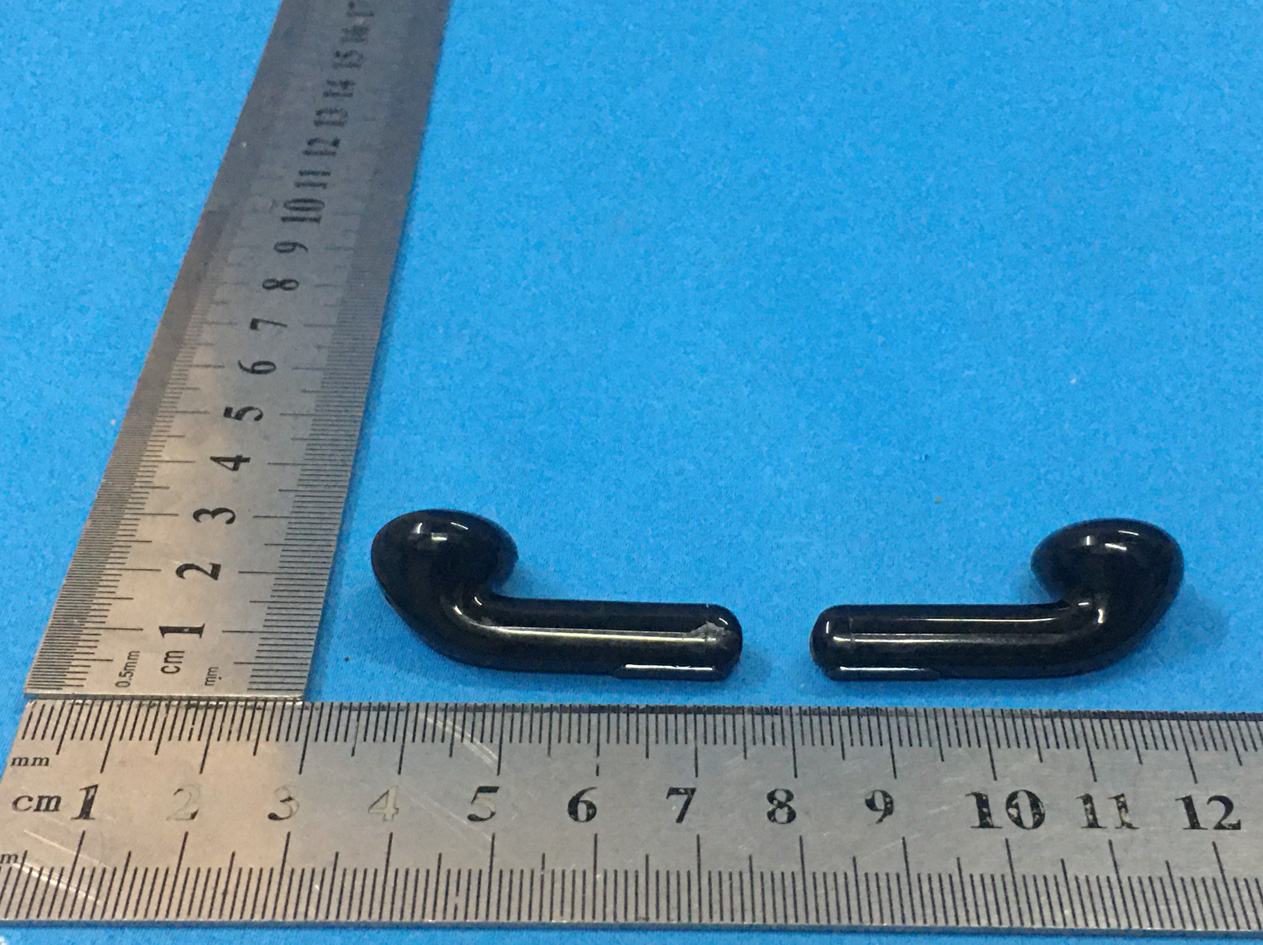

Test Model No.: GIEC Y1005 Earphone

Test Model No.: GIEC Y1005

FCC ID: 2AHYK-GIECY1005 RF Exposure Evaluation According to KDB 447498 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, For BT Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -0.078 0.98 2402 5 0.304 3.0 So a SAR test is not required

Global United Technology Services Co., Ltd. Report No.: GTS202009000212F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 47 1 Cover Page Test Report (Bluetooth) Applicant: SHENZHEN GIEC DIGITAL CO., LTD Address of Applicant: 1st&3rd Building, No.26 Puzai Road, Pingdi, Longgang District, Shenzhen, China Manufacturer: SHENZHEN GIEC DIGITAL CO., LTD Address of Manufacturer: 1st&3rd Building, No.26 Puzai Road, Pingdi, Longgang District, Shenzhen, China Factory: SHENZHEN JOWAY POWER SUPPLY CO., LTD Address of Factory: Building 11, antuoshan hi tech Industrial Park, Shaer community, Shajing street, Bao'an District, Shenzhen, China Equipment Under Test (EUT) Product Name: True wireless earbuds Model No.: GIEC Y1005 FCC ID: 2AHYK-GIECY1005 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: September 21, 2020 Date of Test: September 22-29, 2020 Date of report issued: September 30, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202009000212F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 47 2 Version Version No. Date Description 00 September 30, 2020 Original Prepared By: Date: September 30, 2020 Project Engineer Check By: Date: September 30, 2020 Reviewer Report No.: GTS202009000212F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 47 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................7 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................7 5.4 DEVIATION FROM STANDARDS ..............................................................................................................7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 5.6 TEST FACILITY.....................................................................................................................................7 5.7 TEST LOCATION...................................................................................................................................7 5.8 ADDITIONAL INSTRUCTIONS ..................................................................................................................7 6 TEST INSTRUMENTS LIST ......................................................................................................................8 7 TEST RESULTS AND MEASUREMENT DATA .....................................................................................10 7.1 ANTENNA REQUIREMENT ....................................................................................................................10 7.2 CONDUCTED EMISSIONS ....................................................................................................................11 7.3 CONDUCTED PEAK OUTPUT POWER ...................................................................................................14 7.4 20DB EMISSION BANDWIDTH ..............................................................................................................18 7.5 CARRIER FREQUENCIES SEPARATION .................................................................................................22 7.6 HOPPING CHANNEL NUMBER .............................................................................................................26 7.7 DWELL TIME ......................................................................................................................................28 7.8 BAND EDGE.......................................................................................................................................30 7.8.1 Conducted Emission Method ......................................................................................................30 7.8.2 Radiated Emission Method .........................................................................................................34 7.9 SPURIOUS EMISSION .........................................................................................................................37 7.9.1 Conducted Emission Method ......................................................................................................37 7.9.2 …

Text truncated - open the document above for the full version.

Test Model No.: GIEC Y1005 Conducted Emission
