2AIB7MGS2iSteady Mobile+ 3-AXIS HANDHELD STABILIZING GIMBAL FOR SMARTPHONE (2023) with Bluetooth

User Manual V1.0 For more tutorial videos please scan YouTube QR code 3-Axis Stabilizing Gimbal for Smartphone DISCLAIMER Thank you for purchasing the Hohem product. By using this product, you hereby signify that you have read this disclaimer and warning carefully and that you understand and agree to abide by the terms and conditions herein. You agree that you are solely responsible for your own conduct while using this product, and for any consequences thereof. You agree to use this product only for purposes that are proper and in accordance with all applicable laws, rules, and regulations, and all terms, precautions, practices, policies and guidelines Hohem has made and may make available. Hohem accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product. The user shall observe safe and lawful practices including, but not limited to, those set forth in this document. This document and all other collateral documents are subject to change at the sole discretion of Hohem. For up-to-date product information, visit www.hohem.com and click on the product page for this product. Email: [email protected] Website: www.hohem.com Manufacturer: Hohem Technology Co., Ltd Hohem Technology Co., Ltd Connect us at Facebook 01EN *Some features are disabled until Hohem Joy app is activated. Download the APP to register for free membership and one- year extended warranty. * Hohem Joy supports iOS 10.0 and Android 6.0 or later. * Search for 'Hohem Joy' in the App Store or Google Play and follow the instructions to install the app. Accessories List Tripod*1 Carry Case*1 Type C Charging Cable*1 User Manual*1 Quick Start Guide*1 Download APP—Hohem Joy For More Interesting Functions Product Overview Tilt 320° Roll 320° Pan 600° ❶ Roll Motor ❷ Pan Motor ❸ 1/4 Inch Extension Screw Hole ❹ Handle (Battery inside) ❺ 1/4 Inch Extension Screw Hole ❻ Mode Indicator ❼ Zoom/Focus Slider ❽ Bluetooth Indicator ❾ Joystick ❿ Mode Button ⓫ ON/OFF (Shutter button) ⓬ Tilt Motor ⓭ Balancing Knob ⓮ Rotatable Phone Holder ⓯ Trigger ⓰ USB DC Out/ DC In ❷ ❸ ❹ ⓬ ⓭ ⓮ ⓯ ⓰ ❶ ❻ ❾ ❼ ❿ ❽ ⓫ ❺ 02EN Gimbal Charging Charge the gimbal fully before using it for the first time. The battery takes approximately 2 hours to fully charge. * USB Port: Power bank output * Type C Port: Gimbal charging port * Tap the power button to check the battery status Flickering: Charging 4 LED lights on: 100%, fully charged 3 LED lights on: 75% 2 LED lights on: 50% 1 LED light on: 25% 03EN App "Hohem Joy" Bluetooth Connection 1.Enable the Bluetooth on the smartphone. 2.Launch the app 'Hohem Joy', click 'START' to enter the interface for photo taking and recording. (Please only enable the phone Bluetooth and connect Bluetooth in the app) Landscape Mode: Mounting and Balancing *Do not turn on the gimbal without roughly balanced and smartphone mounted on! *Highly recommended to remove the phone case before mounting your phone. *For increasing motor efficiency and stabilization, and saving gimbal battery life, you could roughly balance the gimbal before turning it on. *For smartphone with screen size bigger than 6.7 inches (e.g. iPhone 13 Pro Max), iSteady Mobile Plus can work well even without a perfect balancing before powering on. ❶ Pull the phone clamp and mount the phone. ❷ Push the phone to the rightmost to close to the motor. 04EN ❸ Loosen the knob, and slide the arm to balance the gimbal. Left Right Small phone e.g. iPhone 13 mini Big phone e.g. iPhone 13 Pro Max * Max Payload: 280g *The width of phone clamp: 58mm~89mm ❹ Tighten the knob.❺ Long press the power button to power on. 05EN *Please turn off the gimbal first, then rotate the phone clamp and mount the phone. *Do not turn on the gimbal without roughly balanced and smartphone mounted on! Portrait Mode: Mounting and Balancing ❶ Loosen the knob, slide the arm to the leftmost and tighten the knob. ❷ Rotate the phone clamp 90 degrees Leftmost ❹ Make the phone roughly balance, and long press the power button to power on. ❸ Pull the phone clamp and mount the phone. Adjust the phone up or down to roughly balance the gimbal. 06EN Quick Switch to Portrait Mode The following do not support quick switch: 1. In POV mode 2. When the handle is perpendicular 3. When the app setting of left/right joystick is roll *After you switch to the portrait mode, the joystick only control the phone to rotate left and right. Rotate the handle to automatically switch to portrait mode Operation Instruction ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❼ Trigger Button Press on: Sport mode Press once, and then press and hold：L（All locked） Double press: Recenter the gimbal ❻ Power On/Off （Long press for 3 seconds） Single press: Take photo, Start/End video Double press: Switch photo/video modes (Only available in the app) Triple press: Switch front/rear cameras (Only available in the app) ❺ Mode Button Single press: Switch mode Triple press: 600° Auto inception (press mode button to stop the rotation) Press five times: Auto calibration ❸ Slider Focus/Zoom in & out (Only available in the app) ❹ Bluetooth Indicator Soild green: Gimbal is connected with phone Bluetooth Soild red: Gimbal abnormality Flashing red: 1.Low battery (auto shutdown) 2.Overload (beep warning) Yellow light: Remote control* operation Light off: Gimbal is disconnected with phone Bluetooth ❷ Mode Indicator PF: Pan Follow PTF: Pan & Tilt Follow L: AII Locked POV: All Follow & Inception ❶ Joystick Push Up/Down Tilt Control Push Left/Right Pan Control 07EN *Remote control is non standard purchase. For remote control pairing and instructions please see the user manual of remote control. Gimbal Mode Button Tap the button to switch different working modes with light on. PF (Pan Follow) Default mode, tilt & roll axis both locked, camera is able to move to left or right smoothly. Roll axis locked, camera is able to move to left/right, and tilt up/down. PTF (Pan & Tilt Follow) The camera stays in its current orientation. L (All Locked) All F…

Text truncated - open the document above for the full version.

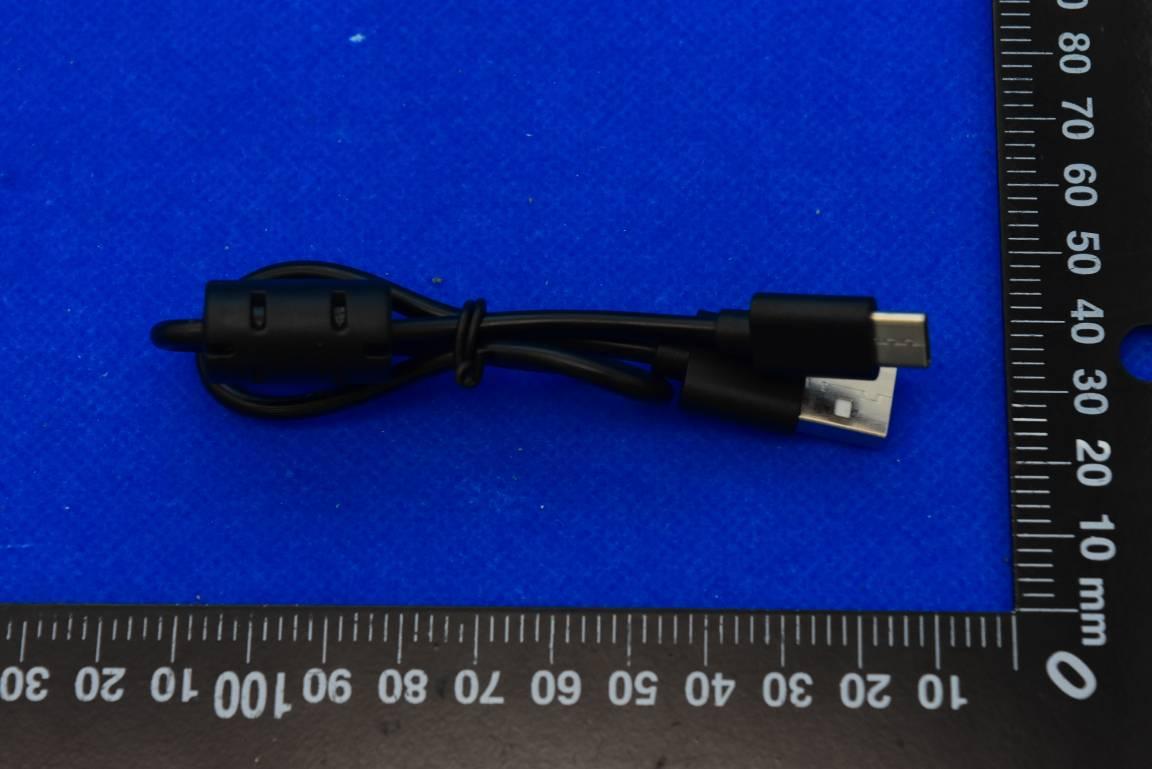

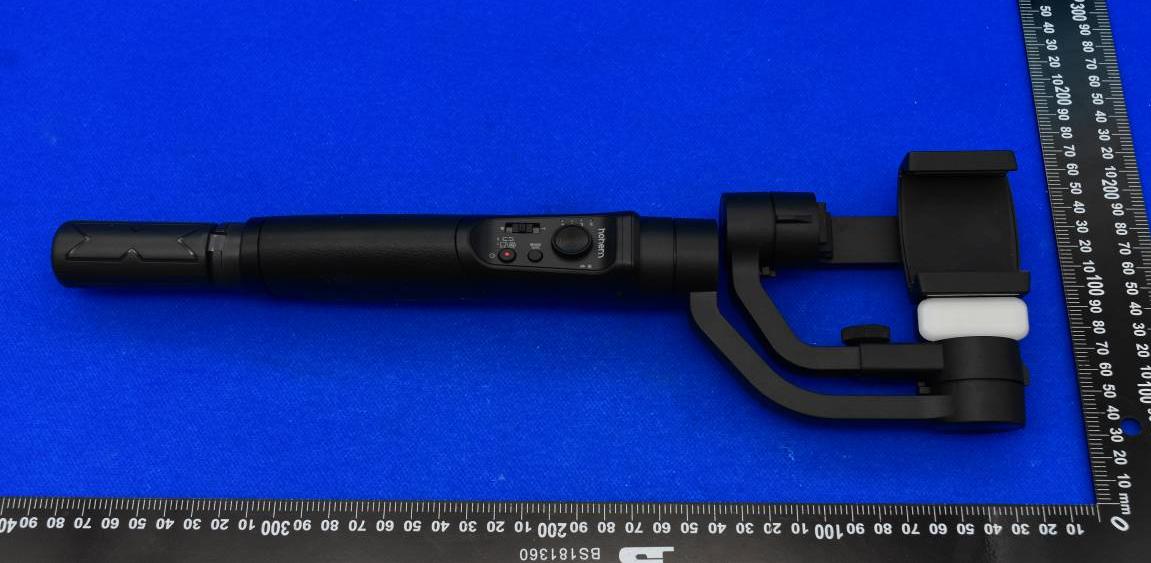

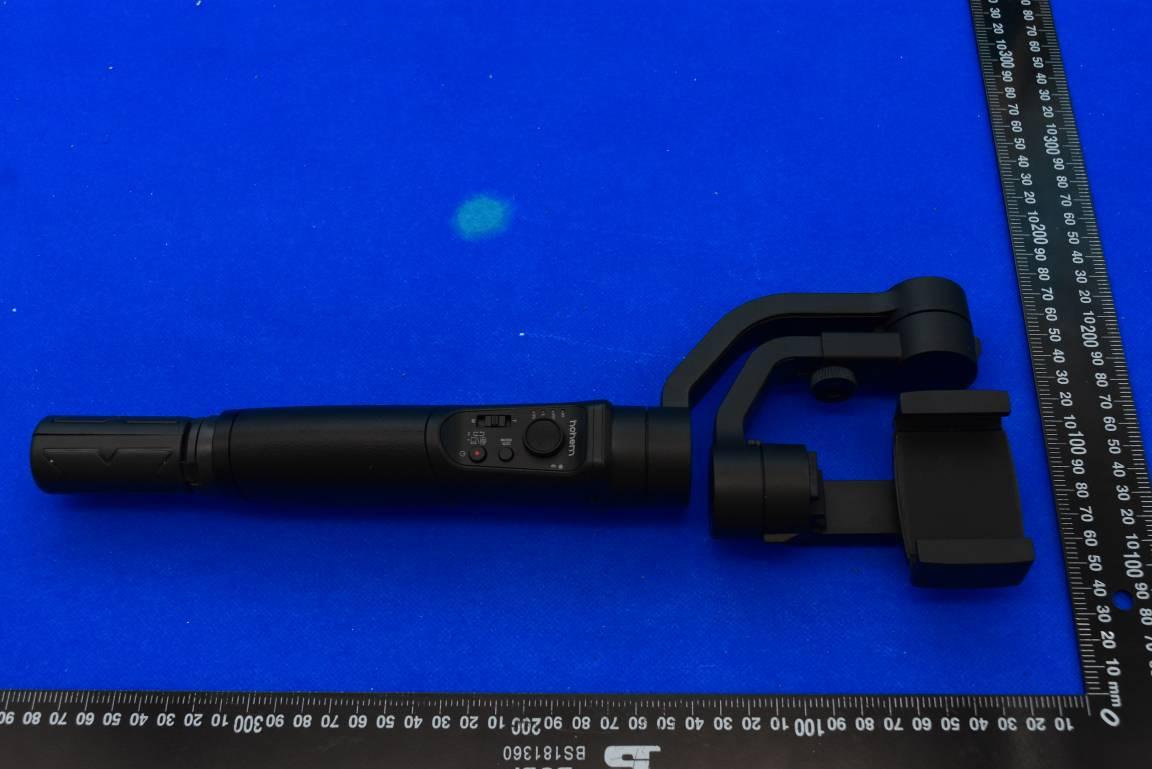

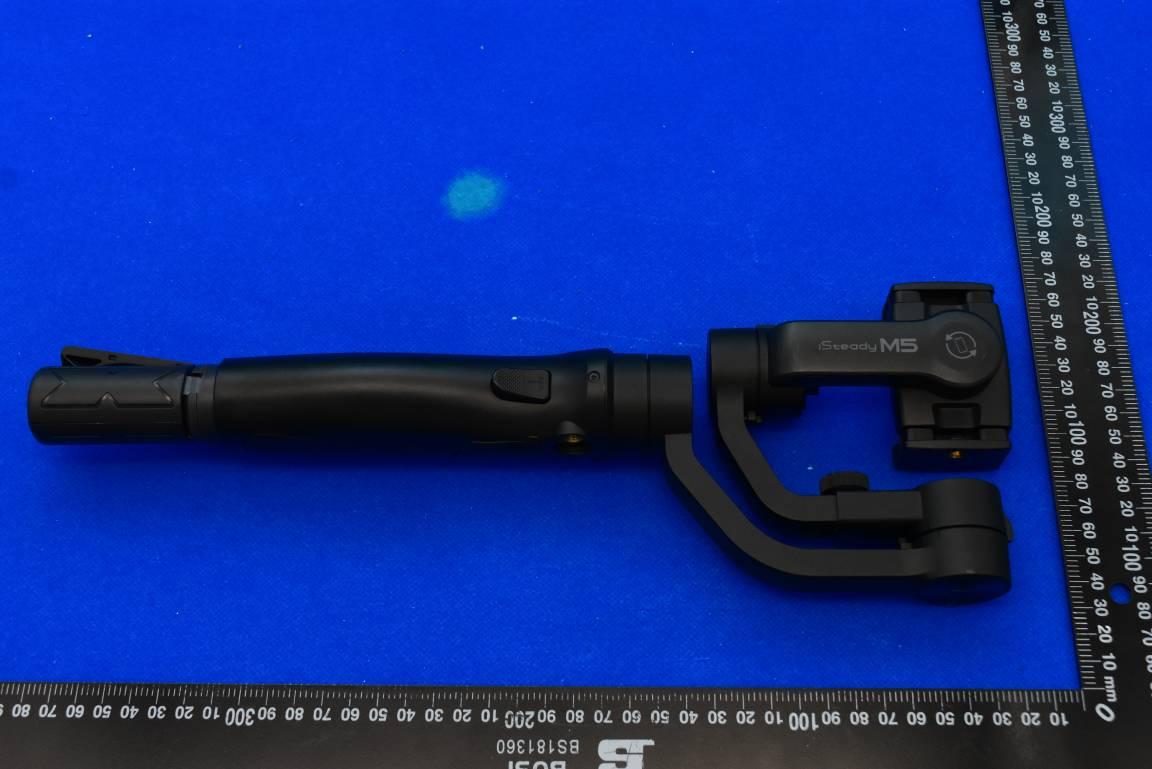

FCC ID: 2AIB7MGS2 IC: 28400-MGS2 External Photos MODEL NAME: iSM5K, iSteady Mobile+ Kit 1.EUT front view 2.EUT rear view 3.EUT left side view 4.EUT right side view 5.EUT top view 6.EUT bottom view MODEL NAME: iSM5, iSteady Mobile+ 1.EUT front view 2.EUT rear view 3.EUT left side view 4.EUT right side view 5.EUT top view 6.EUT bottom view Fill lamp 1.EUT front view 2.EUT rear view 3.EUT left side view 4.EUT right side view 5.EUT top view 6.EUT bottom view 7.Accessories

1、 Label 2、 Label location

FCC ID: 2AIB7MGS2 IC: 28400-MGS2 Internal Photos 1. EUT uncover view 2. Antenna view Bluetooth Antenna

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 9 REPORT No.：SZ22040070S01 RF EXPOSURE EXEMPT REPORT APPLICANT : Shenzhen Hohem Technology Co., Ltd. PRODUCT NAME : iSteady Mobile+ 3-AXIS HANDHELD STABILIZING GIMBAL FOR SMARTPHONE (2023) MODEL NAME : iSM5K, iSM5, iSteady Mobile+ Kit, iSteady Mobile+ BRAND NAME : hohem FCC ID : 2AIB7MGS2 STANDARD(S) : 47 CFR Part 2(2.1093) RECEIPT DATE : 2022-04-06 TEST DATE :2022-04-14 to 2022-04-18 ISSUE DATE : 2023-06-27 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 9 REPORT No.：SZ22040070S01 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment Under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Change History Version Date Reason for change 1.0 2023-06-27 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 9 REPORT No.：SZ22040070S01 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Shenzhen Hohem Technology Co., Ltd. Applicant Address: B106, University Creative Park, Xili, Nanshan, Shenzhen, China Manufacturer: Shenzhen Hohem Technology Co., Ltd. Manufacturer Address: B106, University Creative Park, Xili, Nanshan, Shenzhen, China 1.2 Equipment Under Test (EUT) Description Product Name: iSteady Mobile+ 3-AXIS HANDHELD STABILIZING GIMBAL FOR SMARTPHONE (2023) Sample No.: 1# Hardware Version: 1.0 Software Version: V1.0 Equipment Type: Bluetooth LE Bluetooth Version: 5.1 Operating Frequency Range: 2402MHz-2480MHz Modulation Type: GFSK(1Mbps, 2Mbps) Antenna Type: PCB antenna Antenna Gain: -4.95dBi Note 1: According to the certificate holder, they declared that the iSM5K, iSM5, iSteady Mobile+ Kit, iSteady Mobile+ have the same hardware and software, only different in model name and iSM5K, iSteady Mobile+ Kit have Magnetic AI Vision Sensor; iSM5, iSteady Mobile+ doesn’t have the Magnetic AI Vision Sensor, all RF parameters remain the same. The main measuring model is iSM5K, only the results for iSM5K were recorded in this report. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 9 REPORT No.：SZ22040070S01 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method Determination /Remark 47 CFR Part 2(2.1093) Radio Frequency Radiation Exposure Assessment: Portable devices No deviation KDB 447498 D04v01 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 9 REPORT No.：SZ22040070S01 2. Device Category and RF Exposure Limit Per user manual, based on 47 CFR 2.1093, this device belongs to portable device category with General Population/Uncontrolled exposure. Portable Devices: 47 CFR 2.1093(b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. General Population/Uncontrolled Exposure: 47 CFR 2.1093(d) (2) Limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and spatial peak SAR not exceeding 1.6 W/kg as averaged…

Text truncated - open the document above for the full version.

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 57 REPORT No.：SZ22040070W01 TEST REPORT APPLICANT : Shenzhen Hohem Technology Co., Ltd. PRODUCT NAME : iSteady Mobile+ 3-AXIS HANDHELD STABILIZING GIMBAL FOR SMARTPHONE (2023) MODEL NAME : iSM5K, iSM5, iSteady Mobile+ Kit, iSteady Mobile+ BRAND NAME : hohem FCC ID :2AIB7MGS2 STANDARD(S) :47 CFR Part 15 Subpart C RECEIPT DATE : 2022-04-06 TEST DATE :2022-04-14 to 2022-04-18 ISSUE DATE :2023-06-27 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 57 REPORT No.：SZ22040070W01 DIRECTORY 1. Technical Information ··················································································· 3 1.1. Applicant and Manufacturer Information ······················································· 3 1.2. Equipment Under Test (EUT) Description ······················································ 3 1.3. The Channel Number and Frequency ··························································· 4 1.4. Test Standards and Results ········································································ 5 1.5. Environmental Conditions ·········································································· 6 2. 47 CFR Part 15C Requirements ······································································ 7 2.1. Antenna Requirement ················································································ 7 2.2. Duty Cycle of Test Signal ············································································ 8 2.3. Maximum Peak Conducted Output Power ····················································· 8 2.4. Maximum Average Conducted Output Power ··············································· 14 2.5. 6 dB Bandwidth ························································································ 16 2.6. Conducted Spurious Emissions and Band Edge ··········································· 21 2.7. Power Spectral Density (PSD) ···································································· 28 2.8. Conducted Emission ················································································· 33 2.9. Restricted Frequency Bands ······································································ 37 2.10. Radiated Emission ···················································································· 44 Annex A Test Uncertainty ················································································ 54 Annex B Testing Laboratory Information ··························································· 55 Change History Version Date Reason for change 1.0 2023-06-27 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 57 REPORT No.：SZ22040070W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Shenzhen Hohem Technology Co., Ltd. Applicant Address: B106, University Creative Park, Xili, Nanshan, Shenzhen, China Manufacturer: Shenzhen Hohem Technology Co., Ltd. Manufacturer Address: B106, University Creative Park, Xili, Nanshan, Shenzhen, China 1.2. Equipment Under Test (EUT) Description Product Name: iSteady Mobile+ 3-AXIS HANDHELD STABILIZING GIMBAL FOR SMARTPHONE (2023) Sample No.: 1# Hardware Version: 1.0 Software Version: V1.0 Equipment Type: Bluetooth LE Bluetooth Version: 5.1 Modulation Type: GFSK Data Rate: 1Mbps, 2Mbps Operating Frequency Range: 2402MHz-2480MHz Antenna Type: PCB antenna Antenna Gain: -4.95dBi Accessory Information: Battery 1 (Stabilizer) Brand Name: GREAT POWER Model No.: ICR18650-1800mAh Serial No.: N/A Capacity: 1800mAh Rated Voltage: 7.4V Charge Limit: 8.4V Manufacturer: ZHU HAI UNIDEN POWER ENERGYCO,LTD MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 57 REPORT No.：SZ22040070W01 Accessory Information: Battery 2 (Magnetic AI Vision Sensor (Fill lanp)) Brand Name: N/A Model No.: GSP701429 Serial No.: N/A Capacity: 300mAh Rated Voltage: 3.7V Charge Limit: 4.2V Manufacturer: ZHU HAI UNIDEN POWER ENERGYCO,LTD Note 1: According to the certificate holder, they declared that the iSM5K, iSM5, iSteady Mobile+ Kit, iSteady Mobile+ have the same hardware and software, only different in model name and iSM5K, iSteady Mobile+ Kit have Magnetic AI Vision Sensor; iSM5, iSteady Mobile+ doesn’t have the Magnetic AI Vision Sensor, all RF parameters remain the same. The main measuring model is iSM5K, only the results for iSM5K were recorded in this report. Note 2: We use the dedicated software to control the EUT continuous transmission. Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/o…

Text truncated - open the document above for the full version.

NOTE:ThisdocumentisissuedbyShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,thetestreportshallnotbereproducedexceptin fullwithoutpriorwrittenpermissionofthecompany.Thetestresultsapplyonlytotheparticularsample(s)testedandtothespecifictestscarried outwhichisavailableonrequestforvalidationandinformationconfirmedatourwebsite. MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page1of 10 REPORTNo.：SZ22040073E10 TESTREPORT APPLICANT:ShenzhenHohemTechnologyCo.,Ltd. PRODUCTNAME:M5PANEL MODELNAME:M5 TRADENAME: hohem BRANDNAME:hohem STANDARD(S):IEEEStd149-2021 RECEIPTDATE:2022-04-06 TESTDATE:2022-04-08 ISSUEDATE:2023-07-04 Editedby: : KeZhiqing(Rapporteur) Approvedby: : ChiShide(Supervisor) Testedby MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page2of10 REPORTNo.：SZ22040073E10 DIRECTORY AnnexDEUTPhotos ..........................................................................................................2 1.TechnicalInformation ........................................................................................................3 1.1.ApplicantandManufacturerInformation....................................................................3 1.2.EquipmentUnderTest(EUT)Description...................................................................3 2.TestResults........................................................................................................................4 2.1.AppliedReferenceDocuments.....................................................................................4 2.2.TestConditions...............................................................................................................4 2.3.MeasurementUncertainty.............................................................................................4 2.4.TestResultslists.............................................................................................................5 AnnexATestSetupPhotos ..................................................................................................6 AnnexBFigures .....................................................................................................................7 1.2DRadiationPattern .........................................................................................................7 2.3DRadiationPattern .........................................................................................................8 AnnexCGeneralInformation .............................................................................................10 1.1IdentificationoftheResponsibleTestingLaboratory..............................................10 1.2IdentificationoftheResponsibleTestingLocation..................................................10 1.3TestEquipmentsUtilized..............................................................................................10 AnnexDEUTPhotos ChangeHistory VersionDateReasonforchange 1.02023-07-04Firstedition MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page3of10 REPORTNo.：SZ22040073E10 1.TechnicalInformation Note:Providebyapplicant. 1.1.ApplicantandManufacturerInformation Applicant:ShenzhenHohemTechnologyCo.,Ltd. ApplicantAddress:B106,UniversityCreativePark,Xili,Nanshan,Shenzhen,China Manufacturer:ShenzhenHohemTechnologyCo.,Ltd. ManufacturerAddress:B106,UniversityCreativePark,Xili,Nanshan,Shenzhen,China 1.2.EquipmentUnderTest(EUT)Description WirelessTypeN/A Testfrequencyband2400MHz-2500MHz BrandnameN/A HardwareVersionN/A SoftwareVersionN/A IMEIN/A Samplenumber1# MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page4of10 REPORTNo.：SZ22040073E10 2.TestResults 2.1.AppliedReferenceDocuments Leadingreferencedocumentsfortesting: No.IdentityDocumentTitle 1 IEEEStd149-2021 IEEERecommendedPracticeforAntenna Measurements 2.2.TestConditions TestEnvironmentConditions ： RelativeHumidity:25...75% Temperature:+10°Cto+30°C 2.3.MeasurementUncertainty Theuncertaintyiscalculatedusingthemethodssuggestedinthe"GuidetotheExpressionof UncertaintyinMeasurement"(GUM)publishedbyISO.Whenthetestresultisacriticalvalue,we willusethemeasurementuncertaintygivethejudgmentresultbasedonthe95%Confidence intervals. MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page5of10 REPORTNo.：SZ22040073E10 2.4.TestResultslists 2.4.1. Gain FrequencyGain(dBi) 2400MHz -5.42 2410MHz -5.70 2420MHz -4.95 2430MHz -5.50 2440MHz -5.93 2450MHz -6.01 2460MHz -6.08 2470MHz -5.82 2480MHz -5.70 2490MHz -5.59 2500MHz -5.51 MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page6of10 REPORTNo.：SZ22040073E10 AnnexATestSetupPhotos MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page…

Text truncated - open the document above for the full version.

FCC ID: 2AIB7MGS2 IC: 28400-MGS2 Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement setup (Bluetooth LE)
