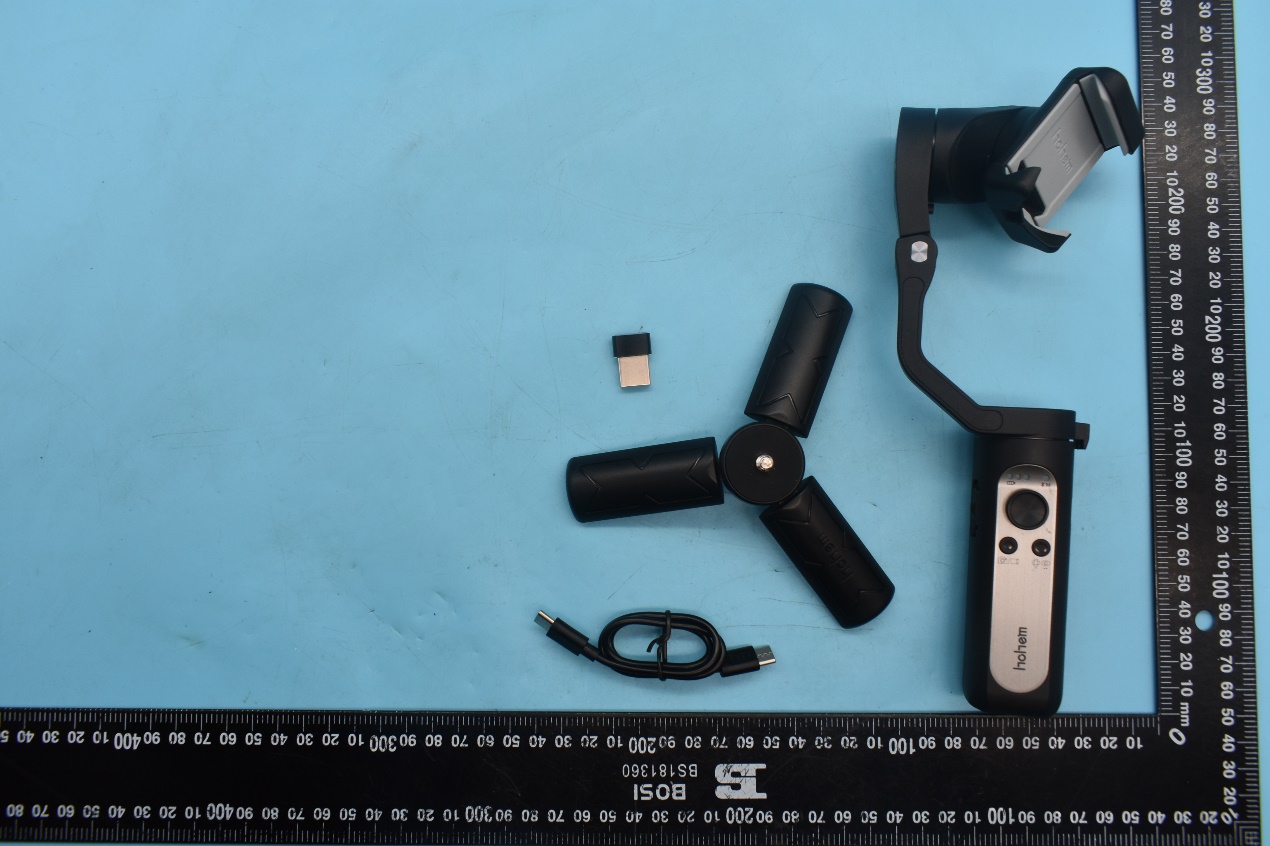

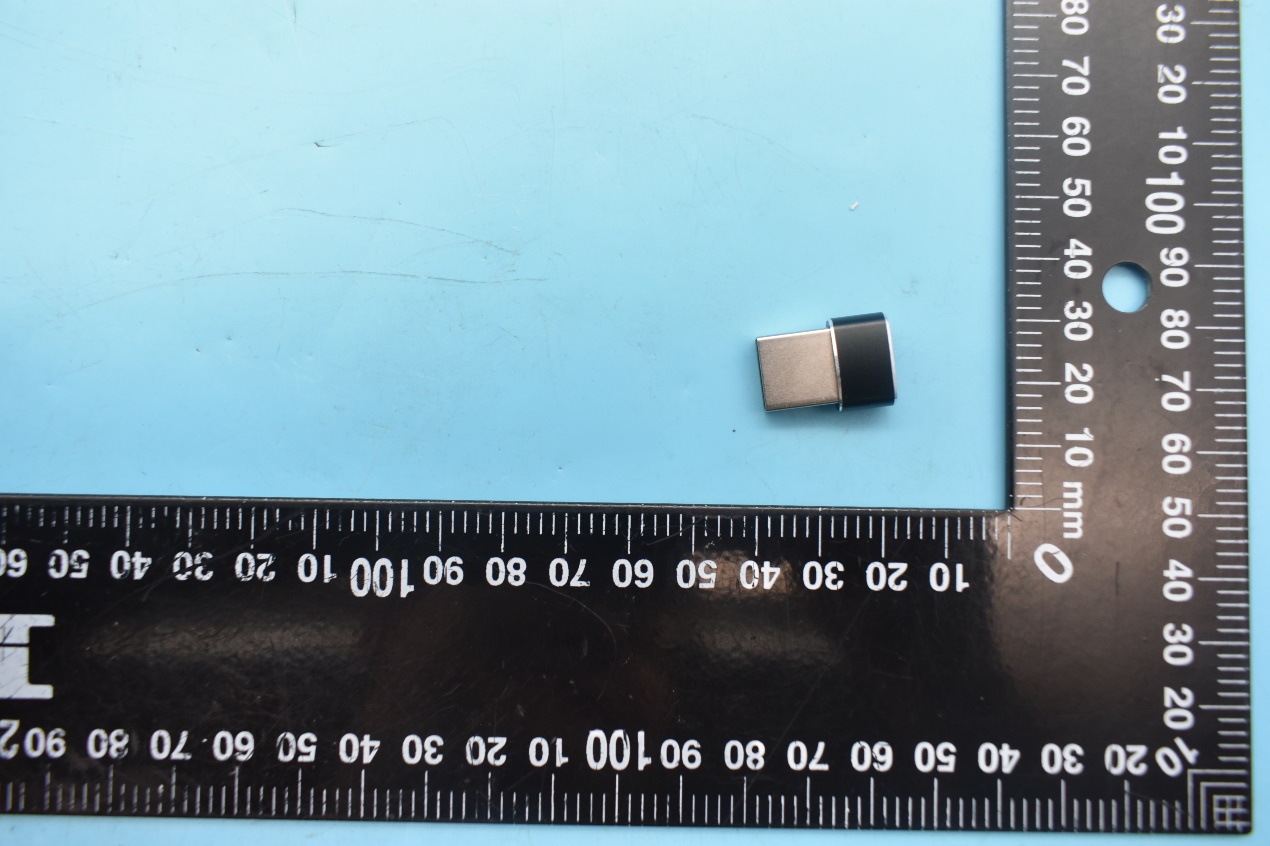

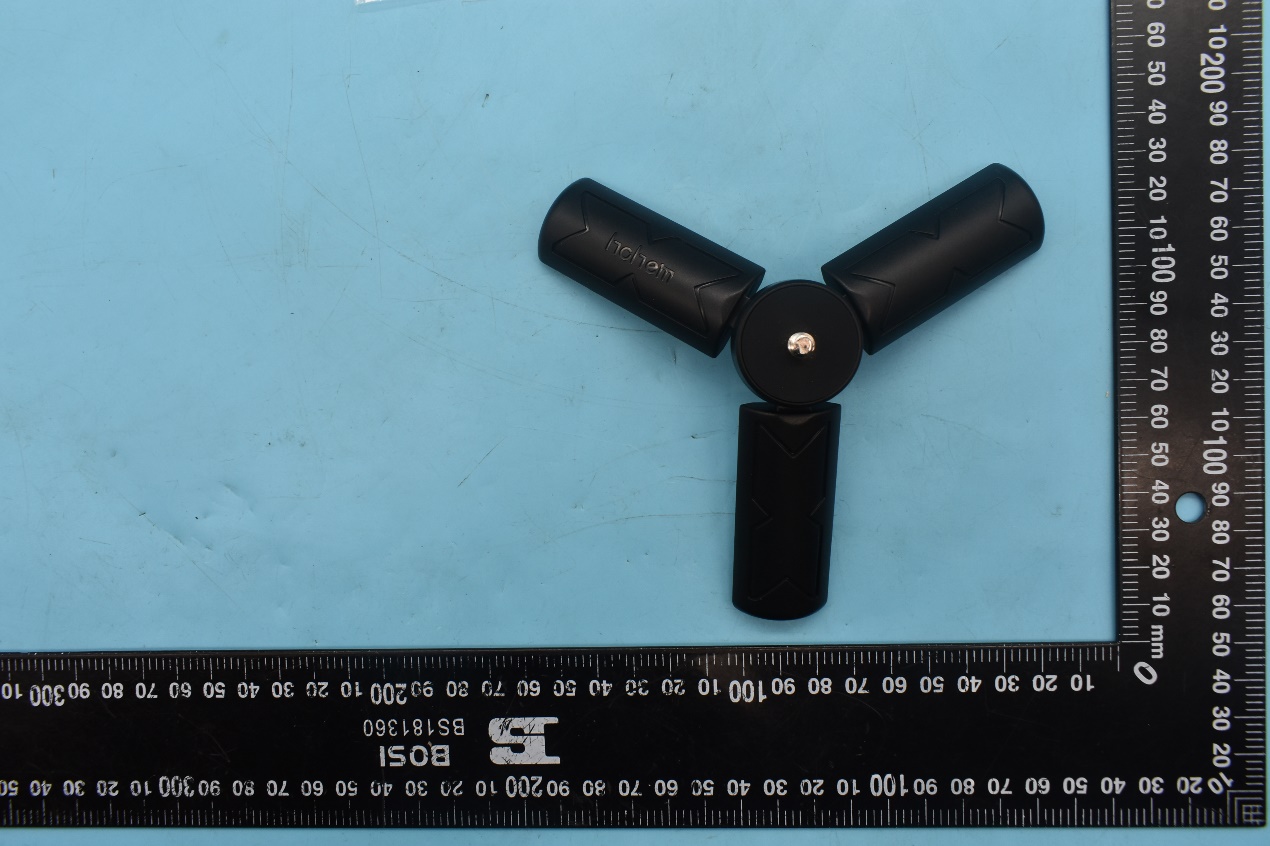

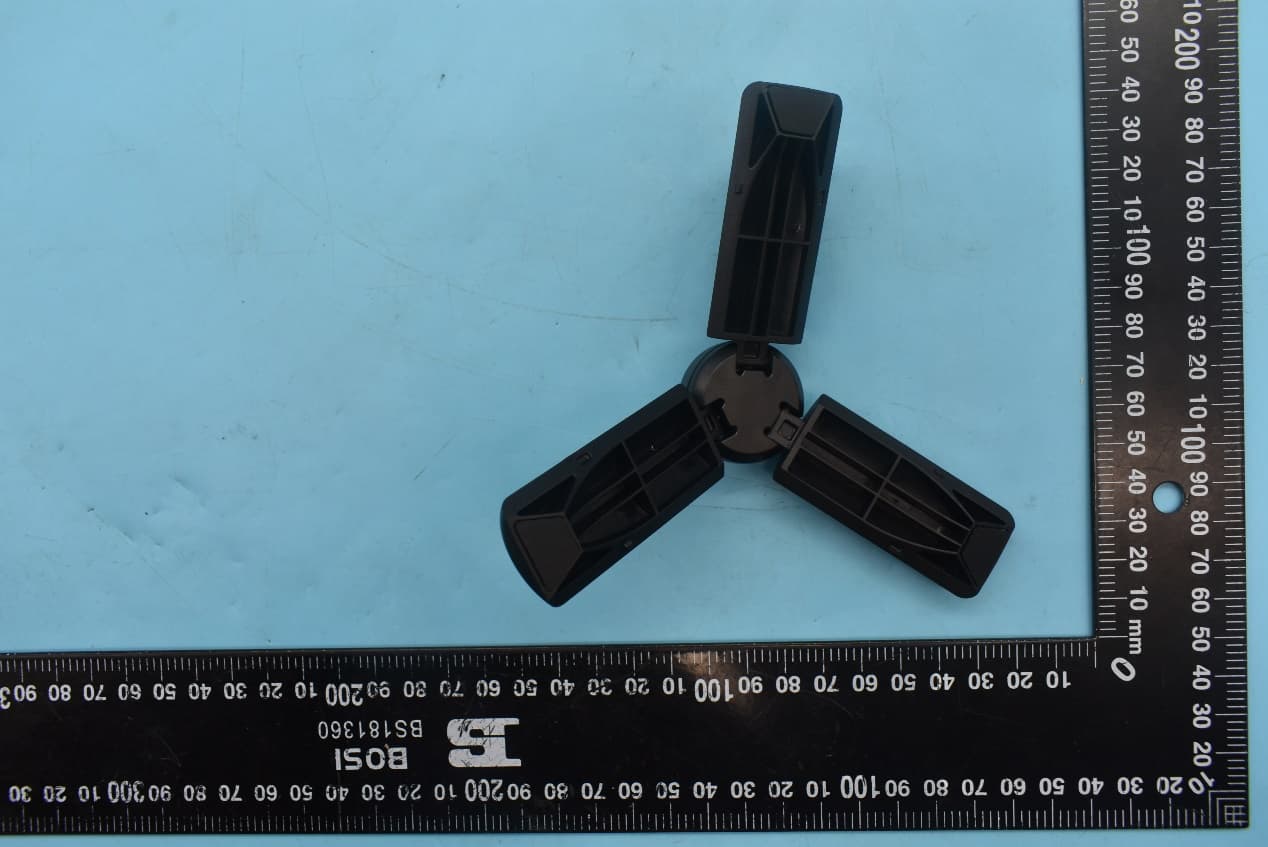

2AIB7X23-Axis Smartphone Gimbal with BT

User Manual V1.0 FCC ID:2AIB7X2 Disclaimer and Warning Thank you for purchasing the Hohem product. By using this product, you hereby signify that you have read this disclaimer and warning carefully and that you understand and agree to abide by the terms and conditions herein. You agree that you are solely responsible for your own conduct while using this product, and for any consequences thereof. You agree to use this product only for purposes that are proper and in accordance with all applicable laws, rules, and regulations, and all terms, precautions, practices, policies and guidelines Hohem has made and may make available. Hohem accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product. The user shall observe safe and lawful practices including,but not limited to, those set forth in this document. Download the Hohem Pro App iSteady X2 Overview iSteady X2 Remote Control Mounting and Balancing Activation & Bluetooth Connection Button Function Working Mode & Follow Speed How to fold the gimbal? How to do if the gimbal is not level after powering on? Use as emergency power bank Power indicator and Bluetooth indicator function Specifications Warranty Card Contact us 01 02 03 05 06 07 08 10 10 11 11 12 13 14 Contents 01 02 06 07 Scan the QR code to enter the download page Search " Hohem Pro " in the App Store or Google Play *Hohem Pro app requires iOS 10.0 or above, Android 6.0 or above *More product tutorials can be found on the app homepage Download the Hohem Pro App Register and Login 03 05 14 10 08 When powering on iSteady X2 at first use, activation is required through Hohem Pro app. iSteady X2 works after the activation. Mount your mobile phone before powering on iSteady X2. If no mobile phone is detected or the motor is overloaded due to phone is not level, the gimbal will shut down after a warning beeping. Important Notes: 11 09 12 04 13 01 1 2 4 5 6 7 8 9 10 11 12 18 13 14 15 16 17 3 Phone Clamp Folding Lock A Folding Lock B Battery Indicator Zoom Slider Shutter Button Tilt Motor Knob Pan Motor Bluetooth Light Joystick Power (ON/OFF) / Function Button Bidirectional charging port (Type C) Reset 1/4 inch Screw Port Roll Motor Handle（Battery built-in） Lanyard Hole 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 02 06 07 iSteady X2 Overview 03 05 14 10 08 11 09 12 04 13 01 02 06 07 iSteady X2 Remote Control ① Power Button ON: Power On OFF: Power Off ② Shutter Button (Make sure the app connect to the gimbal successful) Single Press: Take photo, Start/End video Double Press: Switch the photo and video modes Triple Press: Switch the front and rear cameras (Only available in the app) ③ Function Button Single Press: Switch the landscape and portrait modes Double Press: Recenter the gimbal Triple Press: Inception (Auto rotation) ④ M Button (Gimbal Working Mode) Single Press: Pan&Tilt Follow Double Press: Pan Follow Triple Press: All Lock Quartic Press: POV (All Follow) Long Press: Switch the zoom in/out mode and gimbal tilt control mode (Zoom in/out mode only available in the app) 03 05 14 10 08 11 09 12 04 13 01 02 06 07 ⑥ Indicator Light The indicator light shows green or blue in button operation. If no light shows, it means the remote control is not turned on or no battery. Green light: Gimbal controlling Blue light: Phone camera controlling ⑤ Navigation Buttons: Up/Down/Left/Right In the gimbal direction control mode: Up/Down: Tilt Control Left/Right: Pan Control In the zoom in/out mode: Up/Down: Control the image zoom in/out (Only available in the app) 03 05 14 10 08 11 09 12 04 13 01 02 06 07 ① Unfold the gimbal ② Screw up the knob ③ Turn the “hohem” logo upward Put your phone stuck in the bottom of phone clamp and pull the head of phone clamp to mount your phone Slide the phone and make sure it is clamped in the middle, power on the gimbal after balancing the phone clamp The gimbal would work improperly if not screw the knob up. Clench the phone clamp, ensuring that your phone is cling to the rubber mat, otherwise the gimbal would vibrate or turn off automatically. How to mount and balance mobile phone on the gimbal? 03 05 14 10 08 11 09 12 04 13 01 02 06 07 For the first time, please turn on the gimbal. Log into the Hohem Pro app to activate the gimbal. Gimbal will work improperly if not been activated. ① Startup Long press the function button. At the first start, it will enter a to-be-activated state and the Bluetooth indicator will flash alternatly in red and green. ② Bluetooth connection through the App Turn on the bluetooth of phone. Log into the app Hohem Pro. Following the notice at the top for connection. ③ Activate iSteady X2 After the Bluetooth is connected, an activation prompt box will pop up. Click "Confirm" to complete the activation. Three beeps for noticing you the activation has done, and you can use the gimbal now. Booting up iSteady X2 at first use Activation & Bluetooth Connection 03 05 14 10 08 11 09 12 04 13 01 02 06 07 Button Function ③ Zoom Slider (Only available in the app) Push Up: Zoom in Push Down: Zoom out ④ Shutter Button (Ensure the Bluetooth is connected) Single Press: Take photo, Start/End video Double Press: Switch photo/video modes Triple Press: Switch front/rear cameras (Only available in the app) ② Joystick Up/Down：Tilt Control Left/Right：Pan Control (It is able to control the roll motor through Left/Right Joystick Settings in Hohem Pro app) 03 05 14 10 08 11 ① Power (ON/OFF) / Function Button Long Press：Power On/Off Single Press：Switch the landscape and portrait modes Double Press: Recenter the gimbal Triple Press: Inception (Auto rotation) Press Five Times: Auto calibration Press Seven Times: Remote control pairing The bluetooth light will flash alternatly in yellow and green. a. If the remote control is not paired within 30 seconds, the pairing will be cancelled; b. Click the function button to cancel pairing; c. Double-click the function button to clear the pa…
