2AIOC-MS08Multisensor

Multisensor user manual HKZW-MS08 Multisensor is a universal Z-Wave device. Along with detecting motion the device measures the temperature, humidity and luminance . It can communicate with associated Z-Wave devices, such as Siren, Smart Switch, etc. Multisensor can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Multisensor is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade. If you want your Multisensor to be a security device that use secure/encrypted message to communicate in a Z-Wave network, then a security enabled Z-Wave controller is needed. The features list: 1) Z-Wave Plus certified for wide compatibility (500 serials product). 2) Measure temperature. 3) Measure luminance 4) Measure humidity. 5) Shock sensor. 6) The battery life is up to 2 years (default settings, motion detecting 20 times per day). 7) Low battery alarm. 8) Support firmware OTA. I. Familiarize yourself with your Multisensor 1. Multisensor Layout 2. Technical specifications Power Supply: USB DC 5V Or CR123A Batteries (2pcs CR123A,3V,1300mAh) Storage environment: -40 -70°C Operational temperature : -10°C~50°C Measured temperature range: -10°C~50°C Temperature measuring accuracy: ±2°C Measured humidity range: 20%RH-80%RH Humidity measuring accuracy: ±8%RH（25°C） Measured luminance range: 0 lux-30000 lux LUX measuring accuracy: ±20%(EV=1000lux) Radio protocol: Z-Wave Radio frequency: 868.42MHz (EU) 908.42MHz (US) Range: More than 100m outdoors About 30m indoors Dimensions: 59*59*56mm Working current: ＜100mA Standby current: ＜40uA Recommended installation height: 2m PIR detection range Within 8m （ installation height 2m）  II. Installation （1）Power on (battery or USB) （2）Install the sensor in a desired position using screws or 3M tape （3）Insert the Multisensor in it’s holder III. DETECTION AREA Multisensor’s motion detection area is shown below. Actual range of the sensor can be influenced by environment conditions. Should false motion alarms be reported, check for any moving objects within the sensor’s detection area, such as trees blowing in the wind, cars passing by, windmills. False motion alarms may be caused by moving masses of air and heat as well. If the device keeps on reporting false alarms, despite eliminating all of above mentioned factors, install the device in another place. IV. Inclusion to Z-Wave network The sensor can be added to the Z-Wave network by following steps: （1）Power on the device by USB or batteries. （2）Set z-Wave gateway/hub to learning mode (see Z-Wave gateway/hub Operation Manual) （3）Triple click the device's Z-Wave button （4）The LED indicator of the sensor will keep flashing quickly. If the inclusion is successfully connected, the LED light will be off. Otherwise, after a timeout of 30 seconds, it will be flash ing slowly (enter the SmartStart function) and please repeat the operation of step (2) to include to the network. Tips: If you want the multi- sensor to be a secure device that can communicate on a Z-Wave network using secure/encrypted messages, then enabling a secure Z-Wave controller is necessary ! V. Exclusion from Z-Wave network The sensor can be excluded from the Z-Wave network by following steps: （1）Power on the device （2）Set z-Wave gateway/hub to exclusion mode (see Z-Wave gateway/hub Operation Manual) （3）Triple click the device's Z-Wave button （4）The LED indicator of the sensor will keep flashing quickly. If the exclusion is succeeded, the LED light will be flashing slowly (enter the SmartStart function). Otherwise, after a timeout of 30 seconds, it will be off and please repeat the operation of step (2) to include to the network. VI. RESET THE DEVICE Reset procedure clears the Multisensor’s memory, including Z-Wave network controller information. To reset the Multisensor: （1）Power on the device, （2）press and hold the Z button for more than 20 seconds （3）If holding time more than 20 seconds, the LED indicator will keep on for 2 seconds, which means resetting is complete. （4）The reset feature works only when the device has been included into a Z-Wave network. Note: Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. VII. ASSOCIATIONS Association allows Multisensor to control other Z-Wave device such us Smart Switch, dimmer,etc. Multisensor supports two association groups. Multisensor can max associate 5 nodes in each group. Group 1 reports the conditions of the Multisensor, battery level, temperature, humidity, luminance and motion detection. Group 2 is assigned to the Multisensor sends BASIC SET command. ! VIII. WAKE UP COMMAND CLASS If the product is within the network, press and hold Z-Wave button for more than 3 seconds，it will broadcast Wake Up Notification when release the button, it will report that the product is waked up. Using Wake up interval set command to set the automatic wake up time. When it’s set to 0~3599，the product will keep sleeping. It will only wake up when there is a motion or vibration or to press the button；When it’s set to 3600~7199，it will wake up for 3600 seconds; When it’s set to 7200~10799 seconds, It will wake up for 7200 seconds. Wake Up Interval Capabilities Report CC Default Wake Up Interval Seconds = 21600 seconds Wake Up Interval Step Seconds = 60 seconds Minimum Wake Up Interval Seconds = 0 seconds Maximum Wake Up Interval Seconds = 3600x24 seconds，namely 24h Default Wake Up Interval Seconds = 14400 seconds Wake Up Interval Step Seconds = 3600 seconds Default setting: 0 NOTE： The Wake up command and sleep mode of the device are only valid when powered by battery, but invalid when powered by USB. IX. Advance configuration Multisensor offers a wide variety of advanced configuration settings. Parameters bel…

Text truncated - open the document above for the full version.

HANK ELECTRONICS CO., LTD. Of fice of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020.08. 21 Subject; Request for Long Term Confidentiality FCC ID: 2AIOC-MS08 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. Thes e documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Si ncerely, Signature: Name: GuangCan Yang Title: engineer

HANK ELECTRONICS CO., LTD. Floor 2nd-7th, A8, Hongye Industry City, Lezhujiao, Zhoushi Road, Baoan District, Shenzhen, China Statement Product: Multisensor Model: HKZW-MS08 Additional Model: ZSE11, HKZW-MS01 Trademark: N/A We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/08/21 Name: GuangCan Yang Company Name : HANK ELECTRONICS CO., LTD. Address: Floor 2nd-7th, A8, Hongye Industry City, Lezhujiao, Zhoushi Road, Baoan District, Shenzhen, China Tel / Fax: 0755-82024967/0755-82025852 E-Mail: [email protected]

HANK ELECTRONICS CO., LTD. Agent Authorization Company: HANK ELECTRONICS CO., LTD. Address: Floor 2nd-7th, A8, Hongye Industry City, Lezhujiao, Zhoushi Road, Baoan District, Shenzhen, China Product Name: Multisensor Model Number(s): HKZW-MS08, ZSE11, HKZW-MS01 Product Description: Multisensor We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-21 Name: GuangCan Yang Title: engineer Company: HANK ELECTRONICS CO., LTD.

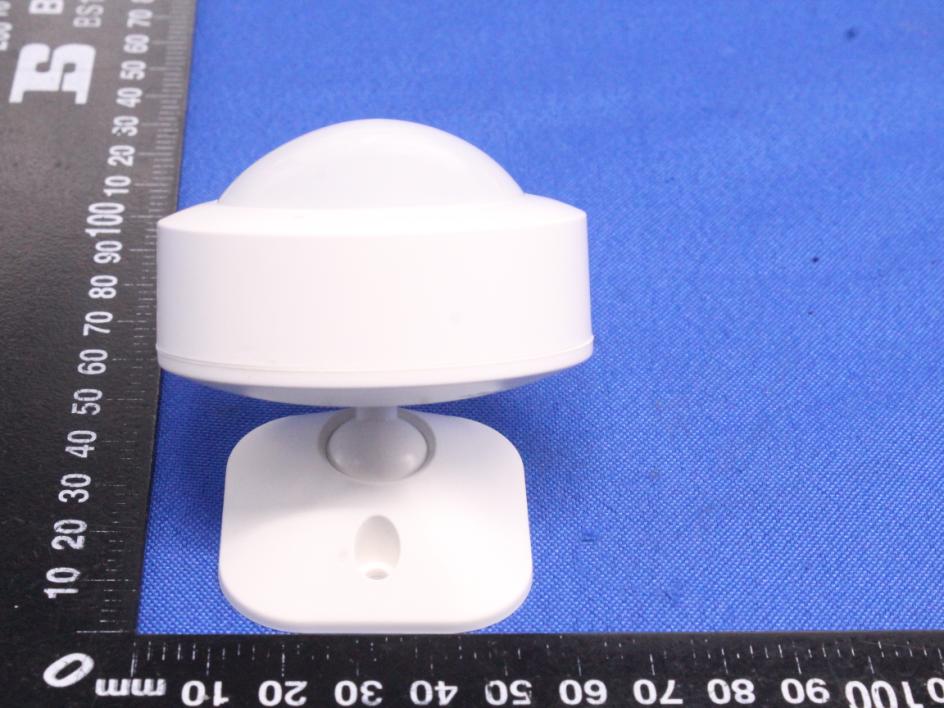

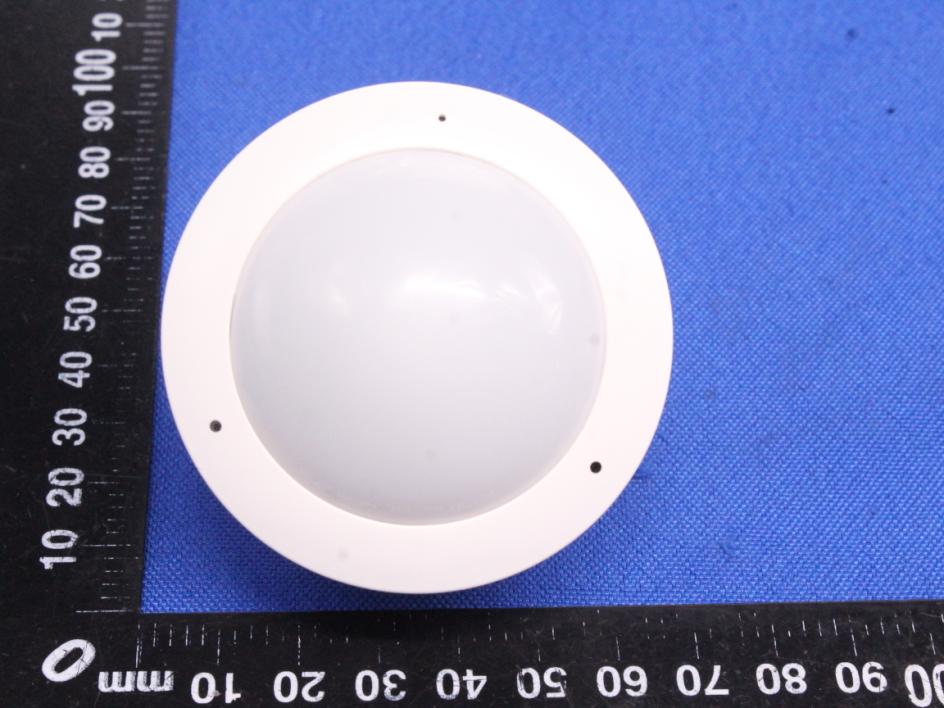

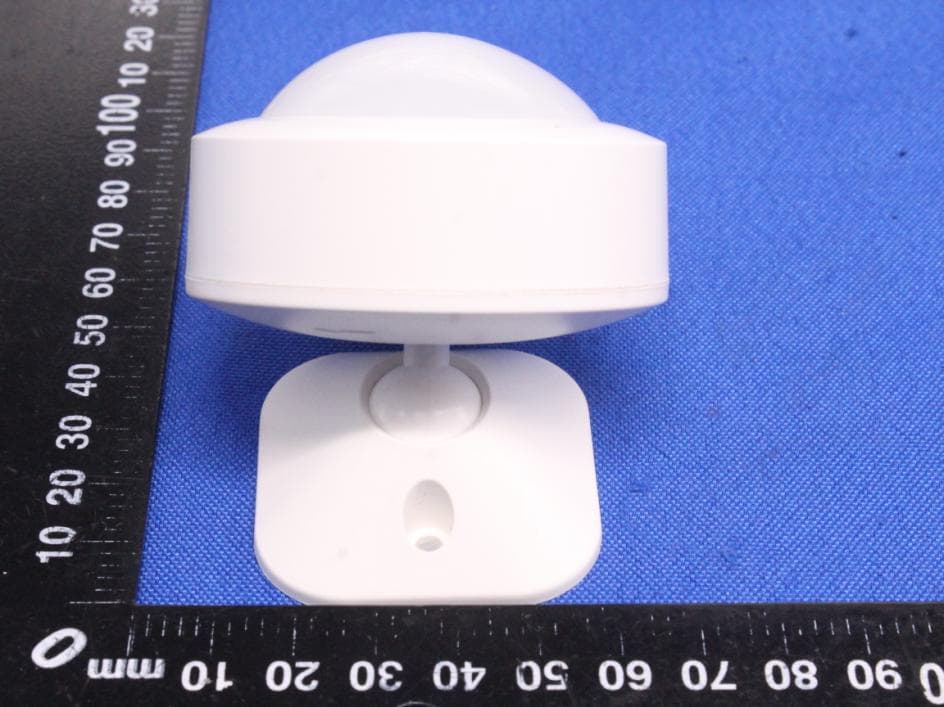

Page 1 of 2 Appendix B: Photographs of EUT Product: Multisensor Model: HKZW-MS08 External Photos Page 2 of 2

Label Artwork and Location Model: HKZW-MS08 Label: Size: L*W=30*24mm Location

Page 1 of 5 Appendix B: Photographs of EUT Product: Multisensor Model: HKZW-MS08 Internal Photos Page 2 of 5 Page 3 of 5 Antenna Page 4 of 5 Page 5 of 5

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AIOC-MS08 Product: Multisensor Model No.: HKZW-MS08 Additional Model No.: ZSE11, HKZW-MS01 Trade Mark: N/A Report No.: TCT200730E011 Issued Date: Aug. 25, 2020 Issued for: HANK ELECTRONICS CO., LTD. Floor 2nd-7th, A8, Hongye Industry City, Lezhujiao, Zhoushi Road, Baoan District, Shenzhen, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note:This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200730E011 Page 2 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ................................................................................................... 3 2. Test Result Summary ........................................................................................... 4 3. EUT Description .................................................................................................... 5 4. General Information ............................................................................................. 6 4.1. Test Environment and Mode ........................................................................................... 6 4.2. Description of Support Units .......................................................................................... 6 5. Facilities and Accreditations ............................................................................. 7 5.1. Facilities...............................................................................................................................7 5.2. Location................................................................................................................................7 5.3. Measurement Uncertainty...............................................................................................7 6. Test Results and Measurement Data .............................................................. 8 6.1. Antenna Requirement ....................................................................................................... 8 6.2. Conducted Emission ......................................................................................................... 9 6.3. Radiated Emission Measurement ............................................................................... 13 6.4. 20dB Occupied Bandwidth ........................................................................................... 21 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200730E011 Page 3 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product:Multisensor Model No.:HKZW-MS08 Additional Model No.: ZSE11, HKZW-MS01 Trade Mark: N/A Applicant:HANK ELECTRONICS CO., LTD. Address: Floor 2nd-7th, A8, Hongye IndustryCity, Lezhujiao, Zhoushi Road, Baoan District, Shenzhen, China Manufacturer:HANK ELECTRONICS CO., LTD. Address: Floor 2nd-7th, A8, Hongye IndustryCity, Lezhujiao, Zhoushi Road, Baoan District, Shenzhen, China Date of Test:Jul. 31, 2020 – Aug. 25, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By:Date:Aug. 25, 2020 Brews Xu Reviewed By: Date:Aug. 25, 2020 Beryl Zhao Approved By: Date:Aug. 25, 2020 Tomsin Report No.: TCT200730E011 Page 4 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary RequirementCFR 47 SectionResult Antenna Requirement§15.203PASS AC Power Line Conducted Emission §15.207PASS Field Strength of Fundamental §15.249 (a)PASS Spurious Emissions§15.249 (a) (d)/ §15.209PASS Band Edge§15.249 (d)/ §15.205PASS 20dB Occupied Bandwidth§15.215 (c)PASS Note: 1. Pass: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200730E011 Page 5 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product:Multisensor Model No.:HKZW-MS08 Additional Model No.:ZSE11, HKZW-MS01 Trade Mark:N/A Operation Frequency:908.42MHz Number of Channel:1 Modulation Technology: FSK Antenna Type:Internal Antenna Antenna Gain:0dBi Power Supply: DC 3.0V by battery or DC 5V by USB Remark: All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. Operation Frequency Each of Channel ChannelFrequency 1908.42MHz Report No.: TCT200730E011 Page 6 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 4. General Information 4.1. Test Environment and Mode Operating Environment: ConditionConducted EmissionRadiated Emission Temperature: 25.0  C25.0  C Humidity:55 % RH55 % RH Atmospheric Pressure: 1010 mbar1010 mbar Test Mode: Engineering mode:Keep the EUT in continuous transmitting …
