2AJGM-F12FRS Two-way radio

PREFACE Thank you for purchasing F12 Two Way Radio, It is a multitask FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, F12 is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family. This manual is applicable to the following product: BF-UV12, AR12, PR-12, 12E and VT-12 Two Way Radios. IMPORTANT NOTICE To help you ward off bodily injury or property loss that may arise from improper operation, please read all the information carefully before using our products. This contains instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulation. Safety Information for Pofung Radios Your wireless handheld portable transceiver contains a low power transmitter. When the talk button is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless devices. Table of Contents 1. GETTING STARTED 1.1 FCC RF Exposure 1.2 FCC Part 15 /IC Compliance 1.3 Precautions for Batteries 1.4 Maintenance 1.5 Content of the packaging 1.6 Main features 2. BATTERY INFORMATION 2.1 Charging the Battery Pack 2.2 Charger Supplied 2.3 Use Caution with the Li-ion Battery 2.4 How to Charge 2.5 LED Indicator 2.6 How to Store the Battery 3. INSTALLATION OF ACCESSORIES 3.1 Installing the belt clip 3.2 Installing the battery pack 3.3 Additional Speaker/Microphone (Optional) 4. RADIO OVERVIEW 4.1 Main controls and parts of the radio 4.2 LCD Display 5. BASIC OPERATIONS 5.1 Turning your Radio On and Off 5.2 Setting the Volume 5.3 Choosing a Channel 5.4 Talking and Listening 5.5 SCAN 5.6 Monitor 5.7 Keypad lock 5.8 A/B switch 5.9 Flashlight and Emergency Alert 5.10 FM Radio (FM) 5.11 NOAA Weather Radio 5.12 1000Hz, 1450Hz, 1750Hz Tone-burst 6. WORKING THE MENU SYSTEM 6.1 Basic use 6.2 Shortcut Menu operations 6.3 Menu settings 7. ON-LINE SERVICE AND SUPPORT Appendix A. - Trouble shooting guide Appendix B. - Technical Specifications Appendix C. - Shortcut Menu operations 1. GETTING STARTED Pofung F12 is a multi-task FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, F12 is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family. To help you ward off bodily injury or property loss that may arise from improper operation, please read all the information carefully before using our products. 1.1 FCC RF Exposure WARNING! It is up to the user to properly operate this radio transmitter to insure safe operation. Please adhere to the following: Do not use the radio with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for a replacement antenna. Device operation up to maximum duty cycle 50% and compliance with the public environment RF Exposure. This EUT is compliance with SAR for uncontrolled exposure limits in IC RSS-102 at operating duty factors of up to 50% and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC 62209. This equipment should be installed and operated with a minimum distance of 2.5 cm must be maintained when held-to-face, and body-worn operations are restricted to the approved original accessories (belt clip), a minimum distance of 0 cm. Cet EUT est conforme au SAR pour les limites d'exposition incontrôlées dans IC RSS-102 à des facteurs de service allant jusqu'à 50% et a été testé conformément aux méthodes et procédures de mesure spécifiées dans IEEE 1528 et IEC 62209. Cet équipement doit être installé et utilisé avec une distance minimale de 2,5 cm doit être maintenu lorsqu'il est tenu face à face, et les opérations portées sur le corps sont limitées aux accessoires d'origine approuvés (clip de ceinture), une distance minimale de 0 cm. ■ Hand-Held Operation (Held-to-Face) This device was evaluated for typical hand-held (held-to-face) operations with a 1 inch spacing from the front of the radio. For hand-held operation, the radio should be held 1 inch from the user's face in order to comply with FCC RF exposure requirements. ■ Body-Worn Operation This device was evaluated for body-worn operations with the supplied belt-clip accessory. (All necessary accessories are included in the package; any additional or optional accessories are not required for compliance with the guidelines.) Third party accessories (unless approved by the manufacturer) should be avoided as these might not comply with FCC RF exposure guidelines. For body worn operation, this device has been tested and meets the Industry Canada RF exposure guidelines when used with Pofung accessories supplied or designated for this product. Use of other accessories may not ensure compliance with Industry Canada RF exposure guidelines. Fonctionnement de l’appareil, lorsque porté sur le corps. Cet appareil a été testé et s’est avéré conforme aux normes d’Industrie Canada et approuvé pour le port sur le corps à l’aide des accessoires Pofung inclus et conçus pour cet appareil. L’utilisation d'accessoires ne respectant pas les exigences d'exposition RF d’Industrie Canada doit être évitée. 1.2 FCC Part 15 /IC Compliance ■ FCC PART 15 COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. …

Text truncated - open the document above for the full version.

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Agent Authorization Company: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Name: Two-way radio Model Number(s): F12, BF-UV12, PR-12, 12E, AR12,VT-12 Product Description: FRS Two-way radio We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 08, 2021 Name: Peter Wang Title: General Manager Company: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Jan. 08, 2021 To: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation statement regarding the Mobile Radio frequency Applicant: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong TYPE OF QEUIPMENT: Family Radio Face Held Transmitter FCC ID: 2AJGM-F12 Dear Sir or Madam I attest that the product has one antenna, one battery capacity, one body-worn and audio accessory. And that the product could program the frequency on computer through interface by manufacturer, is incapable of tuning, or readily being altered, by the end-user. Please contact the undersigned if you have any questions or need any further information. Regards Signature: Name, Job Title and Dept.: Peter Wang / General Manager

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Jan. 08, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2AJGM-F12 Models: F12, BF-UV12, PR-12, 12E, AR12, VT-12 To Whom It May Concern: We, The PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY hereby declare that the model : BF-UV12, PR-12, 12E, AR12, VT-12 is identical with the model : F12, except the model name. Except for the different above, no other modification is performed. Sincerely, PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Signature: [Peter Wang, General Manager]

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jan. 08, 2021 Subject; Request for Confidentiality FCC ID: 2AJGM-F12 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peter Wang Title: General Manager

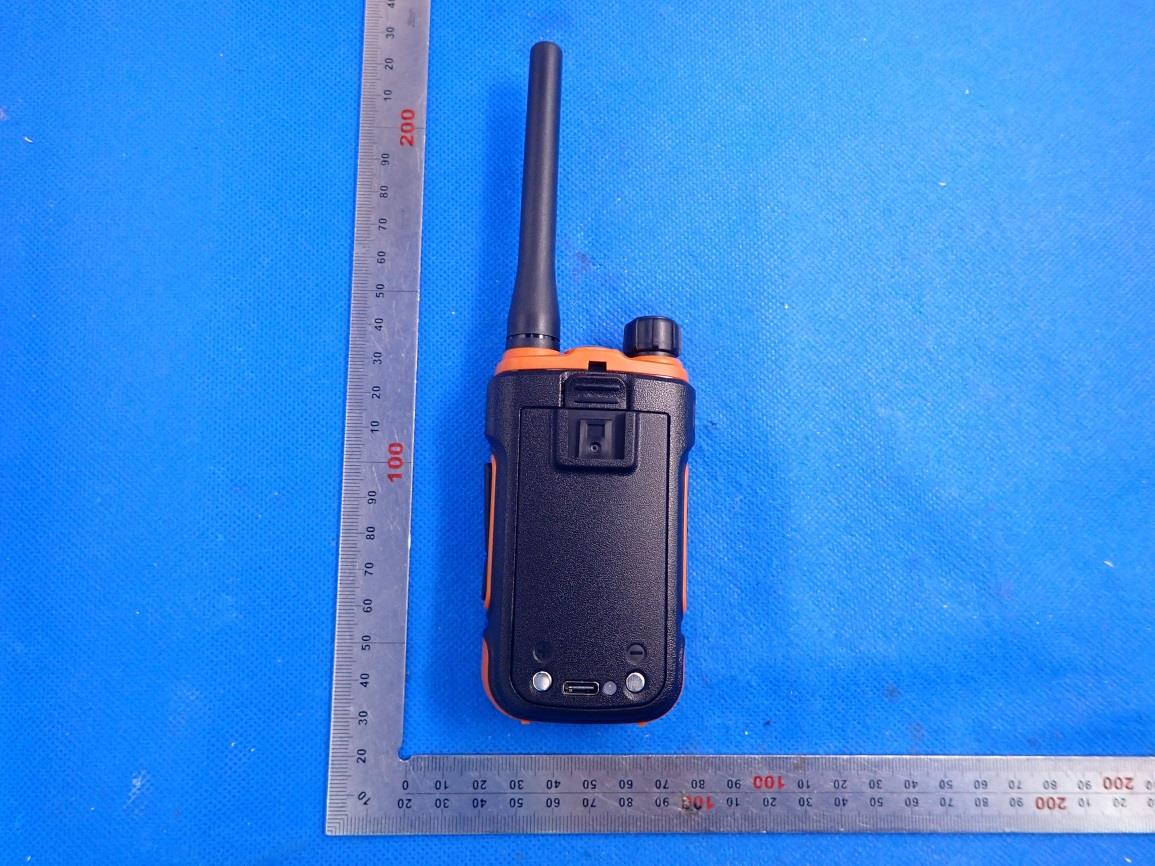

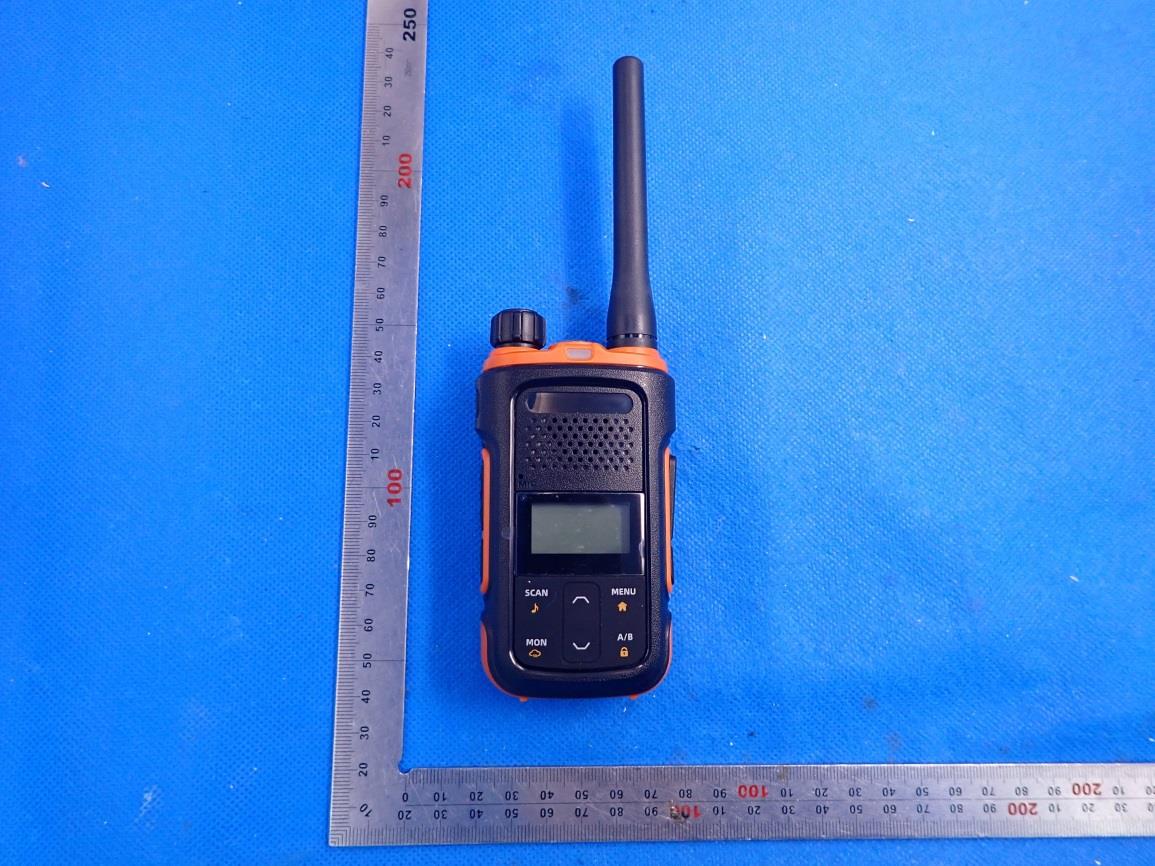

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID and IC Label Location 15mm*15mm FCC ID: 2AJGM-F12 IC: 25962-F12 F12

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT INTERNAL VIEW-1 OF EUT Antenna INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT

Ref : ACR.345.3.20.MVGB.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK, CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 41/18 EPGO334 Summary: This document presents the method and results from an accredited COMOSAR E-Field probe ca libration performed at MVG, using the CALIPROBE test bench, for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report Page: 1/10 07/14/2020 Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise - 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibretion date: 07/14/2020 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.20.MVGB.A Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Name Function Date Signature Prepared by : Jérôme LUC 7/28/2020 Checked by : Jérôme LUC 7/28/2020 Approved by : 7/28/2020 Yann Toutain Technical Manager Technical Manager Laboratory Director Issue Date Modifications A 7/28/2020Initial release Name Jérôme LUC Page: 2/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.20.MVGB.A TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment .................................................................................................... 10 Page: 3/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.20.MVGB.A 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 41/18 EPGO334 Product Condition (new / used) New Frequency Range of Probe 0.45 GHz-6GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.191 M Dipole 2: R2=0.216 M Dipole 3: R3=0.197 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEEE 1528 and CEI/IEC 62209 standards. Figure 1 – MVG COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEEE 1528 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. Page: 4/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.20.MVGB.A 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with the plastic box illuminated with the fields from a half wave dipole. The dipole is rotated about it…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS2011070H01 Issued for PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Name: Two-way radio Brand Name: POFUNG, BAOFENG Model Name: F12 Series Model: BF-UV12, PR-12, 12E, AR12, VT-12 FCC ID: 2AJGM-F12 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. Report SAR (1g): Face up : 0.463 W/kg Back side: 1.440 W/kg S T L A B S Page 2 of 30 Report No.: STS2011070H01 Test Report Certification Applicant’s name ................. : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address ................................. : 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Manufacture's Name ............ : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address ................................. : 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product description Product name ........................ : Two-way radio Brand Name ........................... : POFUNG, BAOFENG Model name ......................... : F12 Series Model .......................... : BF-UV12, PR-12, 12E, AR12, VT-12 Standards ............................. : ANSI/IEEE Std. C95.1 IEEE 1528:2013 FCC 47 CFR Part 2 ( 2.1093) The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 05 Jan. 2021 Date of Issue .......................................... : 07 Jan. 2021 Test Result .............................................. : Pass Testing Engineer : ( Lemon Li) Technical Manager : (Sean She) Authorized Signatory : (Vita Li) Page 3 of 30 Report No.: STS2011070H01 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 6 1.3 Test Factory 6 2. Test Standards and Limits 7 3. SAR Measurement System 8 3.1 Definition of Specific Absorption Rate (SAR) 8 3.2 SAR System 8 4. Tissue Simulating Liquids 11 4.1 Simulating Liquids Parameter Check 11 5. SAR System Validation 13 5.1 Validation System 13 5.2 Validation Result 13 6. SAR Evaluation Procedures 14 7. EUT Test Position 15 8. Uncertainty 16 8.1 Measurement Uncertainty 16 8.2 System validation Uncertainty 17 9. Conducted Power Measurement 18 10. EUT And Test Setup Photo 19 10.1 EUT Photo 19 10.2 Setup Photo 22 11. SAR Result Summary 24 12. Equipment List 25 Appendix A. System Validation Plots 26 Appendix B. SAR Test Plots 28 Appendix C. Probe Calibration and Dipole Calibration Report 30 Page 4 of 30 Report No.: STS2011070H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 07 Jan. 2021 STS2011070H01 ALL Initial Issue Note: Format version of the report -V01 Page 5 of 30 Report No.: STS2011070H01 1. General Information 1.1 EUT Description Equipment Two-way radio Brand Name POFUNG,BAOFENG Model name F12 Series Model BF-UV12, PR-12, 12E, AR12, VT-12 Model Difference All the same except the model name. Device Category Portable Product stage Production unit RF Exposure Environment Population/Uncontrolled Hardware Version BF_UV12_V06 Software Version V1.0.8 Frequency Range Channel 1-7: 462.5625~462.7125 MHz Channel 8-14: 467.5625~467.7125 MHz Channel 15-22: 462.5500~462.7250 MHz Channel Spacing 12.5KHz Max. Reported SAR(1g): With 50% duty cycle Frequency(MHz) Face up (W/kg) Back Side (W/kg) 462.6375 0.463 1.440 467.6375 0.314 0.936 462.6500 0.379 1.130 Modulation Type: F3E Antenna Specification: Inseparable Antenna Note: 1. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power Page 6 of 30 Report No.: STS2011070H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC Registration No.: 625569 A2LA Certificate No.: 4338.01 IC Registration No.: 12108A Page 7 of 30 Report No.: STS2011070H01 2. Test Standards and Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D01 v06 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 5 FCC KDB 865664 D01 v01r04 SAR Measurement 100 MHz to 6 GHz 6 FCC KDB 865664 D02 v01r02 RF Exposure Reporting 7 FCC KDB 643646 D001 SAR Test Reduction Considerations for Occupational PTT Radios (A). Limits for Occupational/Controlled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.4 8.0 20.0 (B). Limits for General Population/Uncontrolled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.08 1.6 4.0 NOTE: Whole-Body SAR is averaged over the entire body, partial-body SAR is averaged o…

Text truncated - open the document above for the full version.

Page 1 of 50 FCC Test Report Report No.:AGC02294201005FE10 FCC ID : 2AJGM-F12 PRODUCT DESIGNATION : Two-way radio BRAND NAME : POFUNG,BAOFENG MODEL NAME : F12, BF-UV12, PR-12, 12E, AR12,VT-12 APPLICANT : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY DATE OF ISSUE : Dec. 23, 2020 STANDARD(S) : FCC Part 95 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC02294201005FE10 Page 2 of 50 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 23, 2020 Valid Initial release Report No.: AGC02294201005FE10 Page 3 of 50 VERIFICATION OF COMPLIANCE Applicant PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong manufacturer PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Factory PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Designation: Two-way radio Brand Name: POFUNG,BAOFENG Test Model F12 Series Model BF-UV12, PR-12, 12E, AR12,VT-12 Difference Description All the same except the model name. Deviation No any deviation from the test method Condition of Test Sample Normal Date of Test: Oct. 29, 2020~Dec. 23, 2020 Test Result PASS Report Template AGCRT-US-PTT/RF WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA 603. The sample tested as described in this report is in compliance with the FCC Rules Part 95 requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Donjon Huang (Project Engineer) Dec. 23, 2020 Reviewed By Calvin Liu (Reviewer) Dec. 23, 2020 Approved By Forrest Lei Authorized Officer Dec. 23, 2020 Report No.: AGC02294201005FE10 Page 4 of 50 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................. 6 1.1 PRODUCT DESCRIPTION ......................................................................................................................... 6 1.2 RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 8 1.3 TEST METHODOLOGY .............................................................................................................................. 8 1.4 ADDRESS OF THE TEST LABORATORY .................................................................................................. 8 1.5 TEST FACILITY ........................................................................................................................................... 8 1.6 SPECIAL ACCESSORIES ........................................................................................................................... 9 1.7 EQUIPMENT MODIFICATIONS .................................................................................................................. 9 1.8 ANTENNA REQUIREMENT ........................................................................................................................ 9 2. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 2.1 EUT CONFIGURATION ........................................................................................................................... 10 2.2 EUT EXERCISE ........................................................................................................................................ 10 2.3 CONFIGURATION OF TESTED SYSTEM .............................................................................................. 10 2.4 MEASUREMENT UNCERTAINTY ............................................................................................................ 11 3. SUMMARY OF TEST RESULTS .................................................................................................................... 12 4. DESCRIPTION OF TEST MODES ................................................................................................................. 14 5. FREQUENCY TOLERANCE .......................................................................................................................... 15 5.1 PROVISIONS APPLICABLE ..................................................................................................................... 15 5.2 MEASUREMENT PROCEDURE .............................................................................................................. 15 5.3 TEST SETUP BLOCK DIAGRAM ............................................................................................................. 16 5.3 TEST RESULT ......................................................................................................................................... 17 6. EMISSION BANDWIDTH ............................................................................................................................... 18 6.1 PROVISIONS APPLICABLE ..................................................................................................................... 18 6.2 MEASUREMENT PROCEDURE .............................................................................................................. 18 6.3 TEST SETUP BLOCK DIAGRAM ............................................................................................................. 18 6.4 MEASUREMENT RESULT ........................................................................................................................ 20 7. UNWANTED RADIATION .........................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC02294201005FE10 Page 41 of 50 Frequency Response Result Note: All the modes had been tested, but only the worst data recorded in the report. Report No.: AGC02294201005FE10 Page 42 of 50 APPENDIX I: PHOTOGRAPHS OF SETUP RADIATED EMISSION BELOW 1G TEST SETUP RADIATED EMISSION ABOVE 1G TEST SETUP Report No.: AGC02294201005FE10 Page 43 of 50 APPENDIX II: EXTERNAL VIEW OF EUT WHOLE VIEW OF EUT TOP VIEW OF EUT Report No.: AGC02294201005FE10 Page 44 of 50 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC02294201005FE10 Page 45 of 50 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC02294201005FE10 Page 46 of 50 RIGHT VIEW OF EUT OPEN VIEW-1 OF EUT Report No.: AGC02294201005FE10 Page 47 of 50 OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT Report No.: AGC02294201005FE10 Page 48 of 50 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Antenna Report No.: AGC02294201005FE10 Page 49 of 50 INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT Report No.: AGC02294201005FE10 Page 50 of 50 INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT ---END OF REPORT--- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to …
