2AJGM-F17TWO WAY RADIO

UserManual(Draft) FCCModel:F17,BF-T17,F17G,F175M,F17Z ICModel:F17,BF-T17 ATTENTION PofungF17isamulti-taskFRStransceiver.Combiningthelatesttechnologyinradiocommunicationalongwithasturdy mechanicalframe,F17istheidealandeffectivesolutionfortheprofessionalswhoneedtostayintouchwiththeworking team(inconstructionsites,buildings,shows,tradefairsorhotels)orforleisureusersthatjustwanttokeepupwithfriends andfamily. Tohelpyouwardoffbodilyinjuryorpropertylossthatmayarisefromimproperoperation,pleasereadalltheinformation carefullybeforeusingourproducts. IntendedUse Ourproductsaredesignedtoprovidereliablewirelesscommunicationservicesforusersacrossmanyindustrysectors.In ordertousetheproductssafelyandtoachievethebestperformance,theymustbeusedasintended.Theoperatorofthe productisresponsiblefordamagetotheproductordamagecausedbytheproductiftheproductwasusedbeyondthe intendeduseinstructions. Intendeduseincludesthat: •TheproductisusedbyuserswhohavefullknowledgeofitsRFexposureandcanexercisecontrolovertheirRFexposure tomeettheoccupationallimitsinFCC/ICNIRPandinternationalstandards. •Allthesecurityinstructionssetforthinthisdocumentarealwaysheeded. •Thegeneral,nationalandin-housesafetyregulationsareheeded. •Theproductisexclusivelyusedwiththefrequencieslicensedbytherespectiveauthority. •Theproductisconfiguredappropriatelybythedealer. Besides,intendedusealsorequirestheproductoperatortobewell-trainedandtobefamiliarwiththeapplicablestandards, regulationsandprovisions. REGULATORYInformation ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. Important:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe user'sauthoritytooperatethisdevice.Yourradioissetuptotransmitaregulatedsignalonanassignedfrequency.Itis againstthelawtoalteroradjustthesettingsinsidetheradiotoexceedthoselimitations.Anyadjustmentstoyourradio mustbemadebyqualifiedtechnicians. Tobesafeandsure: •Neveropenyourradio’scase. •Neverchangeorreplaceanythinginyourradioexceptthebattery. YourradiomightcauseTVorradiointerferenceevenwhenitisoperatingproperly.Todeterminewhether Yourradioiscausingtheinterference,turnitoff.Iftheinterferencegoesaway,yourradioiscausingit. Trytoeliminatetheinterferencebymovingyourradioawayfromthereceiver.Ifyoucannoteliminatetheinterference,the FCCrequiresthatyoustopusingtheradio. HazardousEnvironments:Donotoperatetheradioinhazardousenvironments.Explosionorfiremayresult. Donotoperatetheradionearunshieldedelectricalblastingcaps. Undercertainconditions,radioscaninterferewithblastingoperationsandmaycauseanexplosion.TurnyourradioOFFto preventaccidentaltransmissionwheninablastingareaorinareasposted:"Turnofftwo-wayradio."Constructioncrews oftenuseremotecontrolRFdevicestosetoffexplosives. RFEXPOSUREINFORMATION WARNING!Readthisinformationbeforeusingtheradio.InAugust1996theFederalCommunicationsCommission(FCC)of theUnitedStateswithitsactioninReportandOrder FCC96-326adoptedanupdatedsafetystandardforhuman ExposuretoradiofrequencyelectromagneticenergyemittedbyFCCregulatedtransmitters. UserManual(Draft) FCCModel:F17,BF-T17,F17G,F175M,F17Z ICModel:F17,BF-T17 ThoseguidelinesareconsistentwiththesafetystandardpreviouslysetbybothU.S.and Internationalstandardsbodies.ThedesignoftheradiocomplieswiththeFCCguidelinesandtheseinternationalstandards. Neverallowchildrentooperatetheradiowithoutadultsupervisionandtheknowledgeofthefollowingguidelines. WARNING!Itisuptotheusertoproperlyoperatethisradiotransmittertoinsuresafeoperation.Pleaseadheretothe following: Useonlythesuppliedoranapprovedantenna. Unauthorizedantennas,modifications,or Attachmentscouldimpaircallquality,damagetheradio,orresultinviolationofFCCregulations. Donotusetheradiowithadamagedantenna. Ifadamagedantennacomesintocontactwiththeskin,aminorburnmayresult.Pleasecontactyourlocaldealerfora replacementantenna. WARNING!ThisEUTiscompliancewithSARforcontrolledexposurelimitsinICRSS-102andhadbeentestedinaccordance withthemeasurementmethodsandproceduresspecifiedinIEEE1528andIEC62209.Thisequipmentshouldbeinstalled andoperatedwithaminimumdistanceof2.5cmmustbemaintainedwhenheld-to-face,andbody-wornoperationsare restrictedtotheapprovedoriginalacessories. CetEUTestconformeauxnormesSARpourleslimitesd’expositioncontrôléedelanormeICRSS-102etaététesté conformémentauxméthodesetprocéduresdemesurespécifiéesdanslesnormesIEEE1528etIEC62209.Cetéquipement doitêtreinstalléetutiliséàunedistanceminimalede2,5cm.êtremaintenufaceàface,etlesopérationsportéessurle corpssontlimitéesauxaccessoiresd'origineapprouvés. Hand-heldOperation(Held-to-Face) Thisdevicewasevaluatedfortypicalhand-held(held-toface)operationswitha1inchspacingfromthefrontoftheradio. Forhand-heldoperation,theradioshouldbeheld1inchfromtheuser'sfaceinordertocomplywithFCCRFexposure requirements.FormoreinformationaboutRFexposure,pleasevisittheFCCwebsiteatwww.fcc.gov. Body-wornOperation Thisdevicewasevaluatedforbody-wornoperationswiththesuppliedbelt-clipaccessory.(Allnecessaryaccessoriesare includedinthepackage;anyadditionaloroptionalaccessoriesarenotrequiredforcompliancewiththeguidelines.)Third partyaccessories(unlessapprovedbythemanufacturer)shouldbeavoidedasthesemightnotcomplywithFCCRF exposureguidelines. FormoreinformationaboutRFexposure,pleasevisittheFCCwebsiteatwww.fcc.gov. Attention: ThisradiocomplieswithIEEEandICNIRPexposurelimitsforoccupational/controlledRFexposureemvironment atoperatingdutyfactorsofupto50%andisauthorizedbytheFCCforoccupationaluseonly.Anappropriate warninglableisaffixedtoallunits.InordertocomplywithRFexposurerequirements,aminimumdistanceof 2.5cmmustbemaintainedwhenheld-to-face,andbody-wornoperationsarerestrictedtotheapprovedoriginal acessories(beltclip),aminimumdistanceof2.5cm.Donotusethisdevicewhenantennashowsobviousdamages. Attention: Cetteradioestconformeauxlimitesd'expositionIEEEetICNIRPpourunenvironnementd'expositionRFprofessionne…

Text truncated - open the document above for the full version.

POFUNGELECTRONIC(HK)INTERNATIOANLGROUPCOMPANY 3/FFULOKBLDG131-133WINGLOKSTSHEUNGWAN,HongKong AgentAuthorization Company:POFUNGELECTRONIC(HK)INTERNATIOANLGROUPCOMPANY Address:3/FFULOKBLDG131-133WINGLOKSTSHEUNGWAN,HongKong ProductName:TWOWAYRADIO ModelNumber(s):F17,BF-T17,F17G,F175M,F17Z ProductDescription:TWOWAYRADIO WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:Jun.01,2020 Name:PeterWang Title:GeneralManager Company:POFUNGELECTRONIC(HK)INTERNATIOANLGROUPCOMPANY

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Jun. 01, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2AJGM-F17 Models: F17, BF-T17, F17G, F175M, F17Z To Whom It May Concern: We, The PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY hereby declare that the model : F17 is identical with the model : BF-T17, F17G, F175M, F17Z, except the model name. Except for the different above, no other modification is performed. Sincerely, PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Signature: [Peter Wang, General Manager]

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 01, 2020 Subject; Request for Confidentiality FCC ID: 2AJGM-F17 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peter Wang Title: General Manager

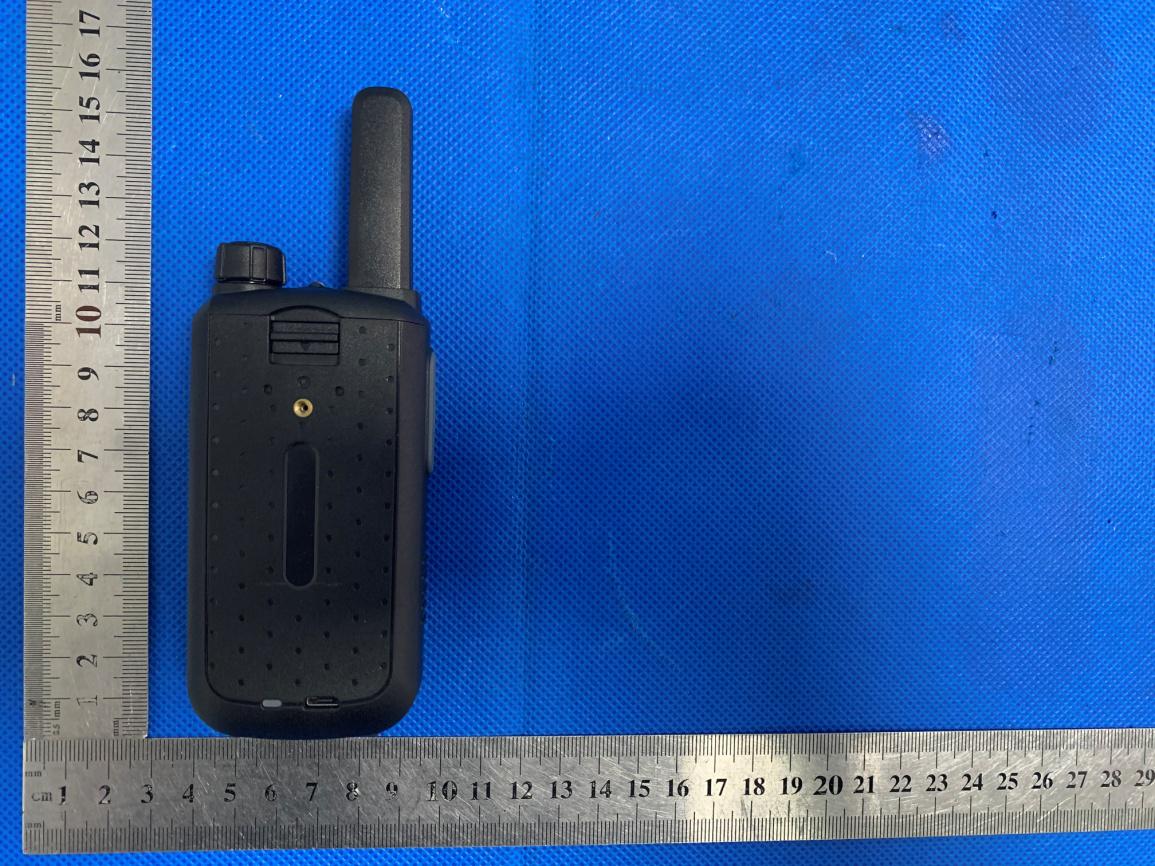

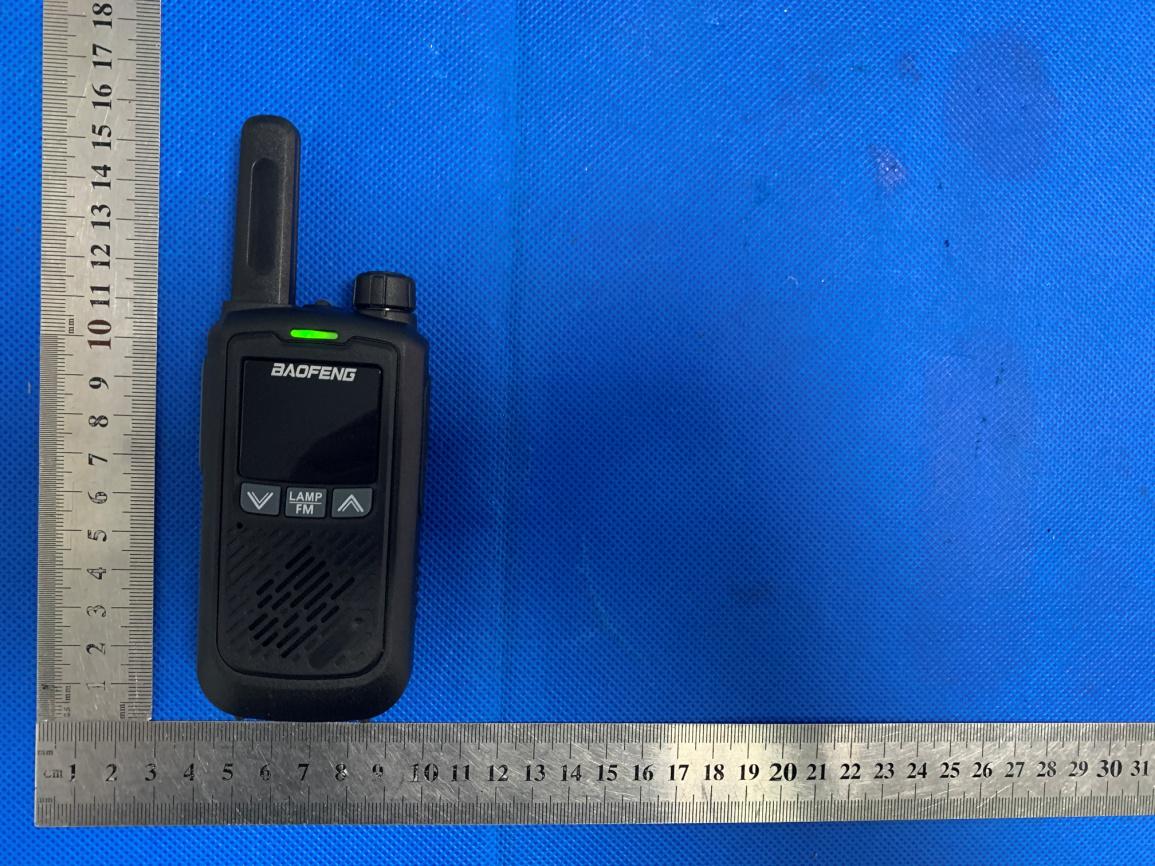

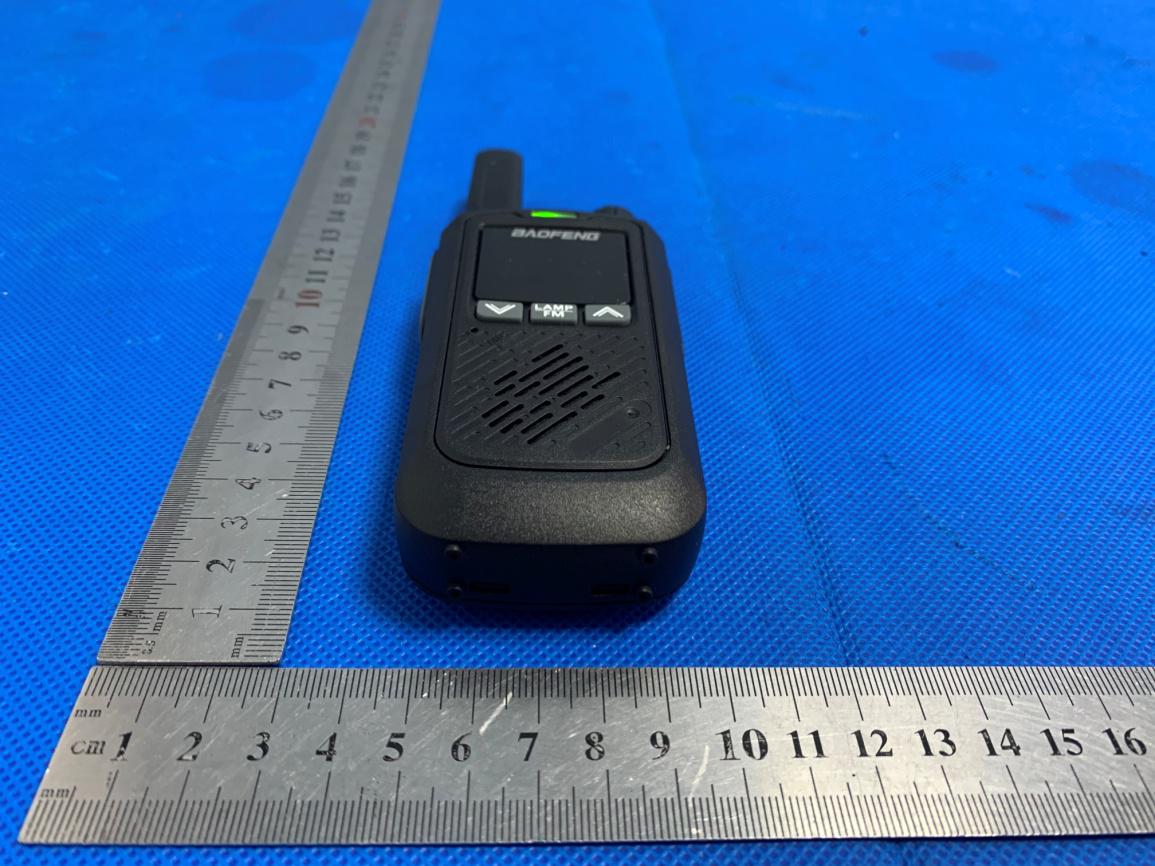

ExternalPhotos WHOLEVIEWOFEUT TOPVIEWOFEUT BOTTOMVIEWOFEUT FRONTVIEWOFEUT BACKVIEWOFEUT LEFTVIEWOFEUT RIGHTVIEWOFEUT

FCC ID and IC Label Location FCC ID: 2AJGM-F17 IC: 25962-F17 HVIN: F17 FCC ID: 2AJGM-F17 IC: 25962-F17 HVIN: BF-T17

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT INTERNAL VIEW-1 OF EUT Antenna INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT

PROBE CALIBRATION DATA DIPOLE CALIBRATION DATA

Page 1 of 53 SAR Test Report Report No.: AGC02294200304FH01 FCC ID : 2AJGM-F17 PRODUCT DESIGNATION : TWO WAY RADIO BRAND NAME : POFUNG, BAOFENG MODEL NAME : F17, BF-T17, F17G, F175M, F17Z APPLICANT : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY DATE OF ISSUE : Jun. 01,2020 STANDARD(S) : IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02294200304FH01 Page 2 of 53 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 01,2020 Valid Initial Release Report No.: AGC02294200304FH01 Page 3 of 53 Test Report Applicant Name PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Applicant Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Manufacturer Name PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Manufacturer Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Factory Name PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Factory Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Designation TWO WAY RADIO Brand Name POFUNG, BAOFENG Model Name F17, BF-T17, F17G, F175M, F17Z Different Description All the same except the model name. The test model is F17. EUT Voltage DC3.7V Applicable Standard IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 Test Date May 05,2020 Report Template AGCRT- US -PTT/SAR (2018-02-02) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Thea Huang (Project Engineer) May 05,2020 Reviewed By Angela Li (Reviewer) Jun. 01,2020 Approved By Forrest Lei (Authorized Officer) Jun. 01,2020 Report No.: AGC02294200304FH01 Page 4 of 53 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ......................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................... 6 2.1. EUT DESCRIPTION......................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ........................................................................................................................ 7 3.1. THE SATIMO SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS .................. 7 3.2. COMOSAR E-FIELD PROBE .......................................................................................................................... 8 3.3. ROBOT .......................................................................................................................................................... 8 3.4. VIDEO POSITIONING SYSTEM .......................................................................................................................... 9 3.5. DEVICE HOLDER ............................................................................................................................................ 9 3.6. SAM TWIN PHANTOM ................................................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ............................................................................................................ 11 4.1. SPECIFIC ABSORPTION RATE (SAR) .............................................................................................................. 11 4.2. SAR MEASUREMENT PROCEDURE ................................................................................................................ 12 5. TISSUE SIMULATING LIQUID ....................................................................................................................... 14 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID..................................................................................... 14 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ............................................................... 14 5.3. TISSUE CALIBRATION RESULT ....................................................................................................................... 15 6. SAR SYSTEM CHECK PROCEDURE ........................................................................................................... 16 6.1. SAR SYSTEM CHECK PROCEDURES ............................................................................................................. 16 7. EUT TEST POSITION ...................................................................................................................................... 18 7.1. BODY WORN POSITION ................................................................................................................................ 18 8. SAR EXPOSURE LIMITS ............................................................................................................................... 19 9. TEST FACILITY .............................................................................................................................................. 20 10. TEST EQUIPMENT LIST .............................................................................................................................. 21 11. MEASUREMENT UNCERTAINTY ................................................................................................................ 22 12. POWER MEASUREMENT ............................................................................................................................ 25 13. TEST RESULTS ........................................................................................................................................... 2…

Text truncated - open the document above for the full version.

Page 1 of 53 FCC Part 95 Rules Test Report Report No.:AGC02294200304FE10 FCC ID : 2AJGM-F17 PRODUCT DESIGNATION : TWO WAY RADIO BRAND NAME : POFUNG, BAOFENG MODEL NAME : F17, BF-T17, F17G, F175M, F17Z APPLICANT : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY DATE OF ISSUE : Jun. 01, 2020 STANDARD(S) : FCC Part 95 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.:AGC02294200304FE10 Page 2 of 53 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 01, 2020 Valid Initial release Report No.:AGC02294200304FE10 Page 3 of 53 VERIFICATION OF COMPLIANCE Applicant PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong manufacturer PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Factory PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Designation: TWO WAY RADIO Brand Name: POFUNG, BAOFENG Test Model F17 Serial Model BF-T17, F17G, F175M, F17Z Difference Description All the same except the model name. Date of Test: Mar. 15, 2020~Jun. 01, 2020 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA 603. The sample tested as described in this report is in compliance with the FCC Rules Part 95 requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Calvin Liu (Project Engineer) Jun. 01, 2020 Reviewed By Max Zhang (Reviewer ) Jun. 01, 2020 Approved By Forrest Lei (Authorized Officer) Jun. 01, 2020 Report No.:AGC02294200304FE10 Page 4 of 53 TABLE OF CONTENTS 1. GENERAL INFORMATION .............................................................................................................................. 6 1.1 PRODUCT DESCRIPTION ......................................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 8 1.3 TEST METHODOLOGY............................................................................................................................... 8 1.4 TEST FACILITY ........................................................................................................................................... 8 1.5 SPECIAL ACCESSORIES ........................................................................................................................... 8 1.6 EQUIPMENT MODIFICATIONS .................................................................................................................. 8 2. SYSTEM TEST CONFIGURATION .................................................................................................................. 9 2.1EUT CONFIGURATION ............................................................................................................................... 9 2.2 EUT EXERCISE .......................................................................................................................................... 9 2.4 CONFIGURATION OF TESTED SYSTEM ................................................................................................ 10 3. SUMMARY OF TEST RESULTS .................................................................................................................... 11 4. DESCRIPTION OF TEST MODES ................................................................................................................. 13 5. FREQUENCY TOLERANCE .......................................................................................................................... 14 5.1 PROVISIONS APPLICABLE ..................................................................................................................... 14 5.2 MEASUREMENT PROCEDURE .............................................................................................................. 14 5.3 TEST SETUP BLOCK DIAGRAM ............................................................................................................. 15 5.4 TEST RESULT ........................................................................................................................................... 16 6. EMISSION BANDWIDTH ............................................................................................................................... 17 6.1 PROVISIONS APPLICABLE ..................................................................................................................... 18 6.2 MEASUREMENT PROCEDURE .............................................................................................................. 18 6.3 TEST SETUP BLOCK DIAGRAM ............................................................................................................. 18 6.4 MEASUREMENT RESULT ........................................................................................................................ 21 7. UNWANTED RADIATION ............................................................................................................................... 24 7.1 PROVISIONS APPLICABLE ..................................................................................................................... 24 7.2 MEASUREMENT PROCEDURE .............................................................................................................. 24 7.3 TEST SETUP BLOCK DIAGRAM .............................................................…

Text truncated - open the document above for the full version.

Report No.:AGC02294200304FE10 Page 31 of 53 Measurement Result for 12.5 KHz Channel Separation @ 462.6500MHz-2W-Horizontal NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 1387.7888 -39.78 -46.23 -13.00 33.23 -6.45 74 Horizontal 2 1850.7851 -43.34 -46.93 -13.00 33.93 -3.59 56 Horizontal 3 3701.5952 -41.40 -37.59 -13.00 24.59 3.81 327 Horizontal 4 4164.5915 -42.43 -37.11 -13.00 24.11 5.32 1 Horizontal 5 5089.4089 -42.94 -36.17 -13.00 23.17 6.77 19 Horizontal 6 5552.4052 -45.02 -38.01 -13.00 25.01 7.01 336 Horizontal Note: 1. Factor=Antenna Factor + Cable loss. (Below 1GHz) 2. Factor=Antenna Factor+ Cable loss-Pre-amplifier.(Above 1 GHz) 3. Margin=Limit- Level Report No.:AGC02294200304FE10 Page 32 of 53 Measurement Result for 12.5 KHz Channel Separation @ 462.6500MHz-2W -Vertical NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 462.6200 -47.96 -15.09 -13.00 2.09 32.87 359 Vertical 2 925.3100 -75.09 -34.52 -13.00 21.52 40.57 26 Vertical 3 1387.7888 -33.51 -35.10 -13.00 22.10 -1.59 239 Vertical 4 2410.1410 -37.15 -37.15 -13.00 24.15 0.00 137 Vertical 5 4163.4163 -43.82 -39.28 -13.00 26.28 4.54 202 Vertical 6 5089.4089 -43.88 -37.77 -13.00 24.77 6.11 340 Vertical Note: 1. Factor=Antenna Factor + Cable loss. (Below 1GHz) 2. Factor=Antenna Factor+ Cable loss-Pre-amplifier.(Above 1 GHz) 3. Margin=Limit- Level Report No.:AGC02294200304FE10 Page 33 of 53 7.5 EMISSION MASK PLOT Standard Applicable [FCC Part 95.579] FRS: Unwanted emissions shall be attenuated below the unmodulated carrier power in accordance with the following: (1) At least 25 dB (decibels) on any frequency removed from the center of the authorized bandwidth by more than 50 %up to and including 100% of the authorized bandwidth. (2) At least 35 dB on any frequency removed from the center of the authorized bandwidth by more than 100 % up to and including 250 % of the authorized bandwidth. (3) At least 43 + 10 log10 (T) dB on any frequency removed from the center of the authorized bandwidth by more than250 %. The detailed procedure employed for Emission Mask measurements are specified as following: - The transmitter shall be modulated by a 2.5 kHz audio signal, - The level of the audio signal employed is 16 dB greater than that necessary to produce 50% of rated system deviation. Rated system deviation is 2.5 kHz. Report No.:AGC02294200304FE10 Page 34 of 53 Channel 4: The Worst Emission Mask for channel 4 -2W Report No.:AGC02294200304FE10 Page 35 of 53 CHANNEL 11: The Worst Emission Mask for channel 11-0.5W Report No.:AGC02294200304FE10 Page 36 of 53 Channel 19: The Worst Emission Mask for channel 19-2W Report No.:AGC02294200304FE10 Page 37 of 53 8. MAXIMUMN TRANSMITTER POWER 8.1 PROVISIONS APPLICABLE Per FCC §2.1046 and §95.567(h): Maximum ERP is dependent upon the station’s antenna HAAT and required service area. FCC Part 95.567 For FRS Each FRS transmitter type must be designed such that the effective radiated power (ERP) on channels 8 through 14 does not exceed 0.5 Watts and the ERP on channels 1 through 7 and 15 through 22 does not exceed 2.0 Watts. 8.2 TEST PROCEDURE (1) The spectrum setting for Equivalent Isotropically Radiated Power (EIRP) is RBW = 100 kHz, VBW = 300 kHz. Detector Mode is RMS. (2) In the semi-anechoic chamber, setup as illustrated above the EUT placed on the 1.5m height of Turn Table, rotated the table 45 degree each interval to search the maximum radiation power and receiver antenna shall be rotated vertical and horizontal polarization and moved height from 1m to 4m to find the maximum polar radiated power for each degree interval. The “Read Value” is the spectrum reading of maximum power value. (3) The substitution antenna is substituted for EUT at the same position and signals generator (S.G) export the CW signal to the substitution antenna via a TX cable. The receiver antenna shall be rotated vertical and horizontal polarization and moved height from 1m to 4m to find the maximum radiation power. Record the power level of maximum radiation power from spectrum. So, the Measured substitution value = Ref level of S.G + TX cables loss – Substituted Antenna Gain 8.3 TEST CONFIGURATION Effective Radiated Power Radiated Below1GHz Report No.:AGC02294200304FE10 Page 38 of 53 Radiated Above 1 GHz Report No.:AGC02294200304FE10 Page 39 of 53 8.4 TEST RESULT The maximum Power (CP) for UHF is Analog: 2W/0.5W for 12.5 KHz Channel Separation Calculation Formula: CP = R + A + L * Note: CP: The final Conducted Power R : The reading value from spectrum analyzer A : The attenuation value of the used attenuator L : The loss of all connection cables ERP RESULT: NOTE: Calculation Formula: Emission Level(dBm) = S.G.(dBm)- Cable Loss(dB)+ Ant.Gain(dBi) Margin(dB) = Limit(dBm)- Emission Level(dBm) Frequency Reading Level Antenna S.G. Cable Loss Ant.Gain Emission Level Limit Margin (MHz) (dBuv/m) Polarization (dBm) (dB) (dBi) (dBm) (dBm) (dB) Frequency: 462.6375MHz 462.6375 121.68 V 26.45 0.38 6.6 32.67 33.01 0.34 462.6375 121.52 H 26.29 0.38 6.6 32.51 33.01 0.50 Frequency: 467.6375MHz 467.6375 115.94 V 20.71 0.38 6.6 26.93 26.99 0.06 467.6375 115.89 H 20.66 0.38 6.6 26.88 26.99 0.11 Frequency: 462.6500MHz 462.6500 121.72 V 26.49 0.38 6.6 32.71 33.01 0.30 462.6500 121.67 H 26.44 0.38 6.6 32.66 33.01 0.35 Report No.:AGC02294200304FE10 Page 40 of 53 9. MODULATION CHARACTERISTICS 9.1 PROVISIONS APPLICABLE According to [FCC Part 95.575, Part 2.1047(a)], for Voice Modulation Communication Equipment, the frequency response of the audio modulation circuit over a range of 100 to 5000Hz shall be measured. Part 95.575 A FRS unit that transmits emission type F3E must not exceed a peak frequency deviation of plus orminus 2.5 kHz, and the audio frequency response must not exceed 3.125 kHz. Part 2.1047(a) A curve or equivalent data showing the frequency response of the audio modulating circuit over a range of100 to 5000㎐ shall be submitted. For equipm…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP

Test Setup Photos Face Up with 2.5 cm Separation Distance. Body Back Touch with all accessories The thickness of EUT is 2.4 cm 25mm Note : The headset is just for testing. This tested and electrically similar headsets may be used. DEPTH OF THE LIQUID IN THE PHANTOM—ZOOM IN Note：The position used in the measurement were according to IEEE 1528-2013 450MHz body
