2AJGM-F8FRS TWO WAY RADIO

User Manual(Draft） FCC Model: F8 ,BF-V8,F8i, F8U, F8X IC Model: F8 ,BF-V8 ATTENTION Pofung F8 is a multi-task FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, F8 is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family. To help you ward off bodily injury or property loss that may arise from improper operation, please read all the information carefully before using our products. Intended Use Our products are designed to provide reliable wireless communication services for users across many industry sectors. In order to use the products safely and to achieve the best performance, they must be used as intended. The operator of the product is responsible for damage to the product or damage caused by the product if the product was used beyond the intended use instructions. Intended use includes that: • The product is used by users who have full knowledge of its RF exposure and can exercise control over their RF exposure to meet the occupational limits in FCC/ICNIRP and international standards. • All the security instructions set forth in this document are always heeded. • The general, national and in-house safety regulations are heeded. • The product is exclusively used with the frequencies licensed by the respective authority. • The product is configured appropriately by the dealer. Besides, intended use also requires the product operator to be well-trained and to be familiar with the applicable standards, regulations and provisions. REGULATORY Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Important: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the radio to exceed those limitations. Any adjustments to your radio must be made by qualified technicians. To be safe and sure: • Never open your radio’s case. • Never change or replace anything in your radio except the battery. Your radio might cause TV or radio interference even when it is operating properly. To determine whether Your radio is causing the interference, turn it off. If the interference goes away, your radio is causing it. Try to eliminate the interference by moving your radio away from the receiver. If you cannot eliminate the interference, the FCC requires that you stop using the radio. Hazardous Environments: Do not operate the radio in hazardous environments. Explosion or fire may result. Do not operate the radio near unshielded electrical blasting caps. Under certain conditions, radios can interfere with blasting operations and may cause an explosion. Turn your radio OFF to prevent accidental transmission when in a blasting area or in areas posted: "Turn off two-way radio." Construction crews often use remote control RF devices to set off explosives. RF EXPOSURE INFORMATION WARNING! Read this information before using the radio. In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human Exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and User Manual(Draft） FCC Model: F8 ,BF-V8,F8i, F8U, F8X IC Model: F8 ,BF-V8 International standards bodies. The design of the radio complies with the FCC guidelines and these international standards. Never allow children to operate the radio without adult supervision and the knowledge of the following guidelines. WARNING! It is up to the user to properly operate this radio transmitter to insure safe operation. Please adhere to the following: Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or Attachments could impair call quality, damage the radio, or result in violation of FCC regulations. Do not use the radio with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for a replacement antenna. This radio not only supports the tones allowed in RSS-210 Annex E E.1.1 (b), but also supports the requirements of RSS-210 Issue 10 E.1.6, with the tones transmitted by FRS equipment, and voice tones indicating the end of transmission. WARNING! This radio complieswith IEEE and ICNIRP exposure limits for occupational/controlled RF exposure emvironment at operating duty factors of up to 50% and is authorized by the FCC for occupational use only. An appropriate warning lable is affixed to all units. In order to comply with RF exposure requirements, a minimum distance of 2.5 cm must be maintained when held-to-face, and body-worn operations are restricted to the approved original acessories (belt clip), a minimum distance of 2.5 cm. Do not use this device when antenna shows obvious damages. Cet EUT est conforme aux normes SAR pour les limites d’exposition contrôlée de la norme IC RSS-102 et a été testé conformément aux méthodes et procédures de mesure spécifiées dans les normes IEEE 1528 et IEC 62209. Cet équipement doit être installé et utilisé à une distance minimale de 2,5 cm. être maintenu face à face, et les opérations portées sur le corps sont limitées aux accessoires d'origine approuvés. Hand-held Operation (Held-to-Face) This device was evaluated for typical hand-held (held-toface) operations with a 1 inch spacing from the front of the radio. For…

Text truncated - open the document above for the full version.

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Agent Authorization Company: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Name: TWO WAY RADIO Model Number(s): F8, BF-V8, F8i, F8U, F8X Product Description: FRS TWO WAY RADIO We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 08, 2020 Name: Peter Wang Title: General Manager Company: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Jun. 08, 2020 To: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation statement regarding the Mobile Radio frequency Applicant: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong TYPE OF QEUIPMENT: Family Radio Face Held Transmitter FCC ID: 2AJGM-F8 Dear Sir or Madam I attest that the product has one antenna, one battery capacity, one USB cable and audio accessories. And that the product could program the frequency on computer through interface by manufacturer, is incapable of tuning, or readily being altered, by the end-user. Please contact the undersigned if you have any questions or need any further information. Regards Signature: Name, Job Title and Dept.: Peter Wang / General Manager

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Jun. 08, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2AJGM-F8 Models: F8, BF-V8, F8i, F8U, F8X To Whom It May Concern: We, The PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY hereby declare that the model : F8 is identical with the model : BF-V8, F8i, F8U, F8X, except the model name. Except for the different above, no other modification is performed. Sincerely, PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Signature: [Peter Wang, General Manager]

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 08, 2020 Subject; Request for Confidentiality FCC ID: 2AJGM-F8 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peter Wang Title: General Manager

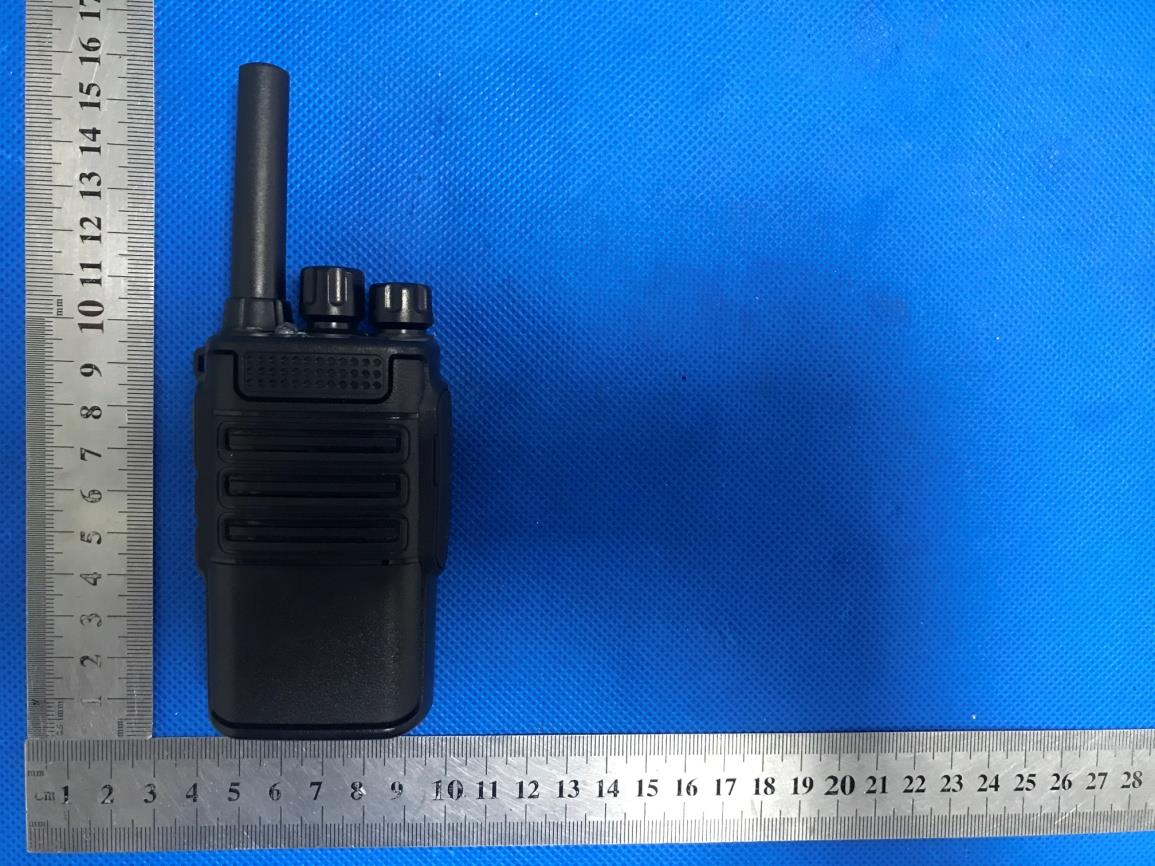

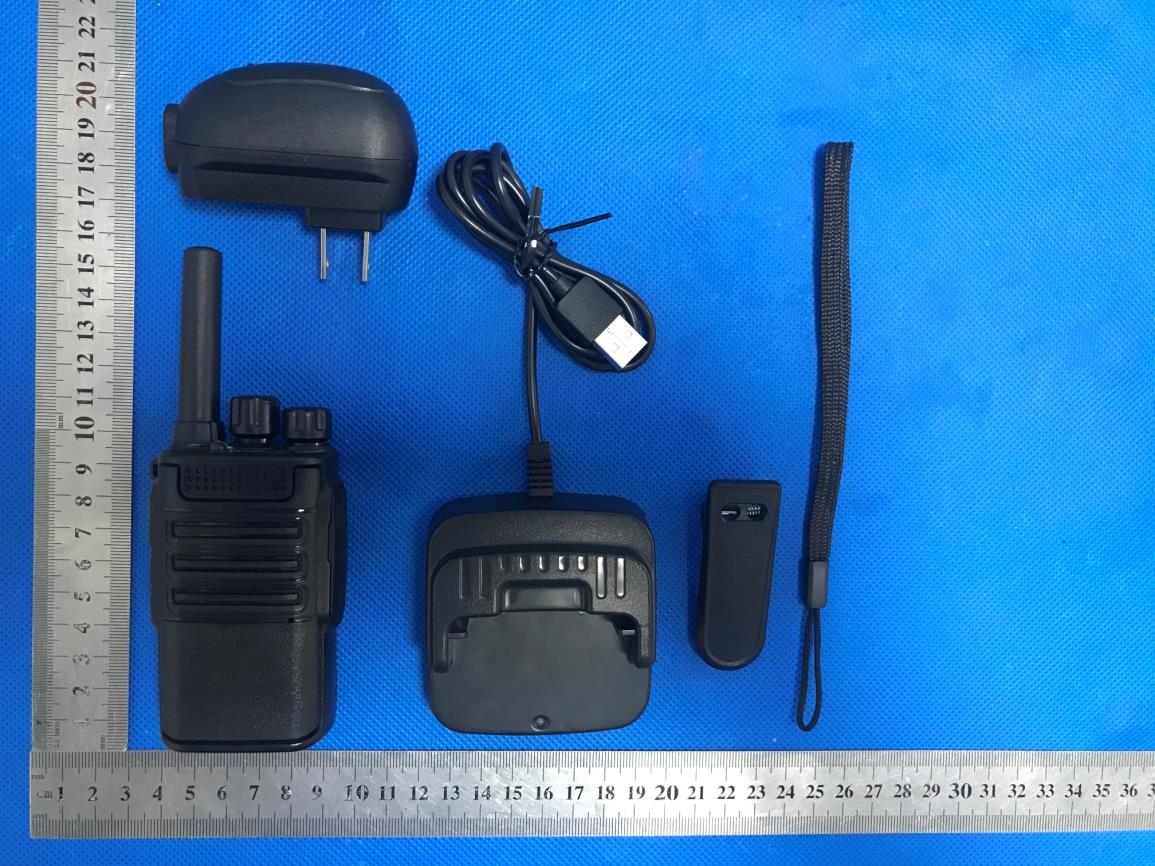

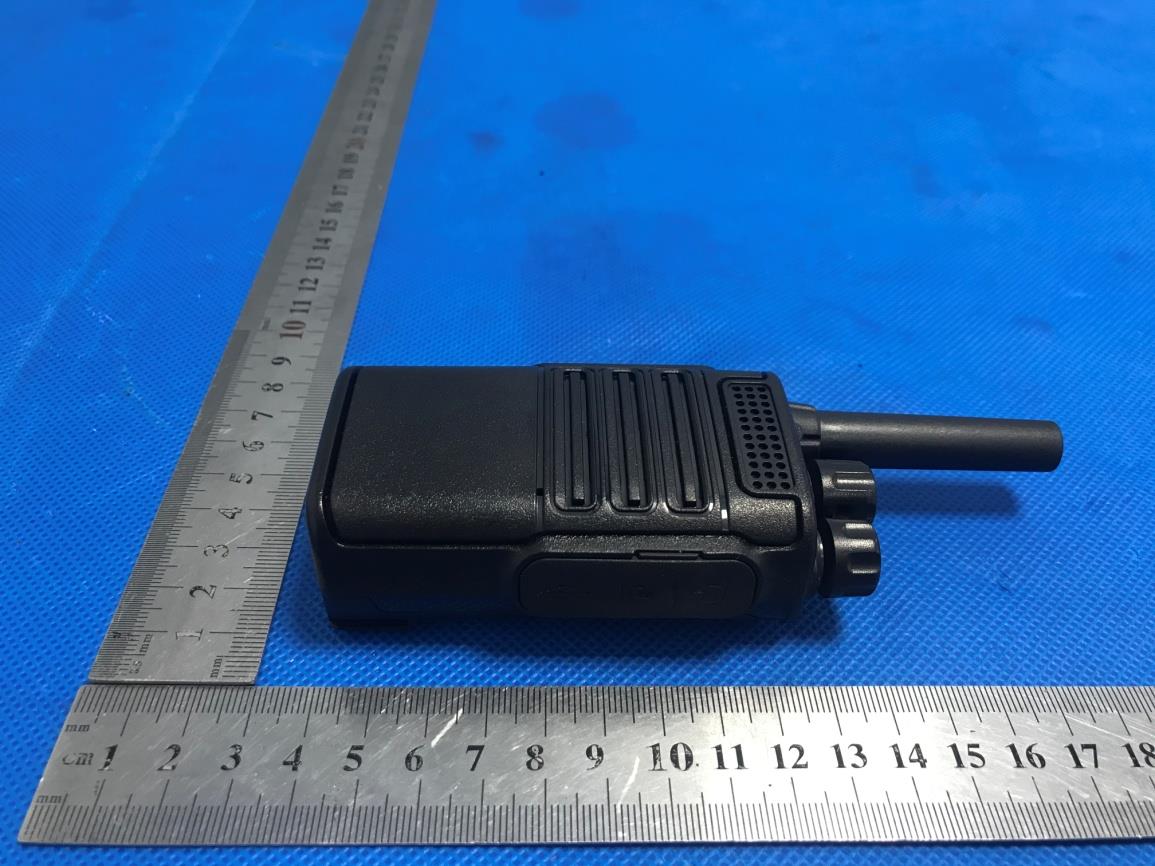

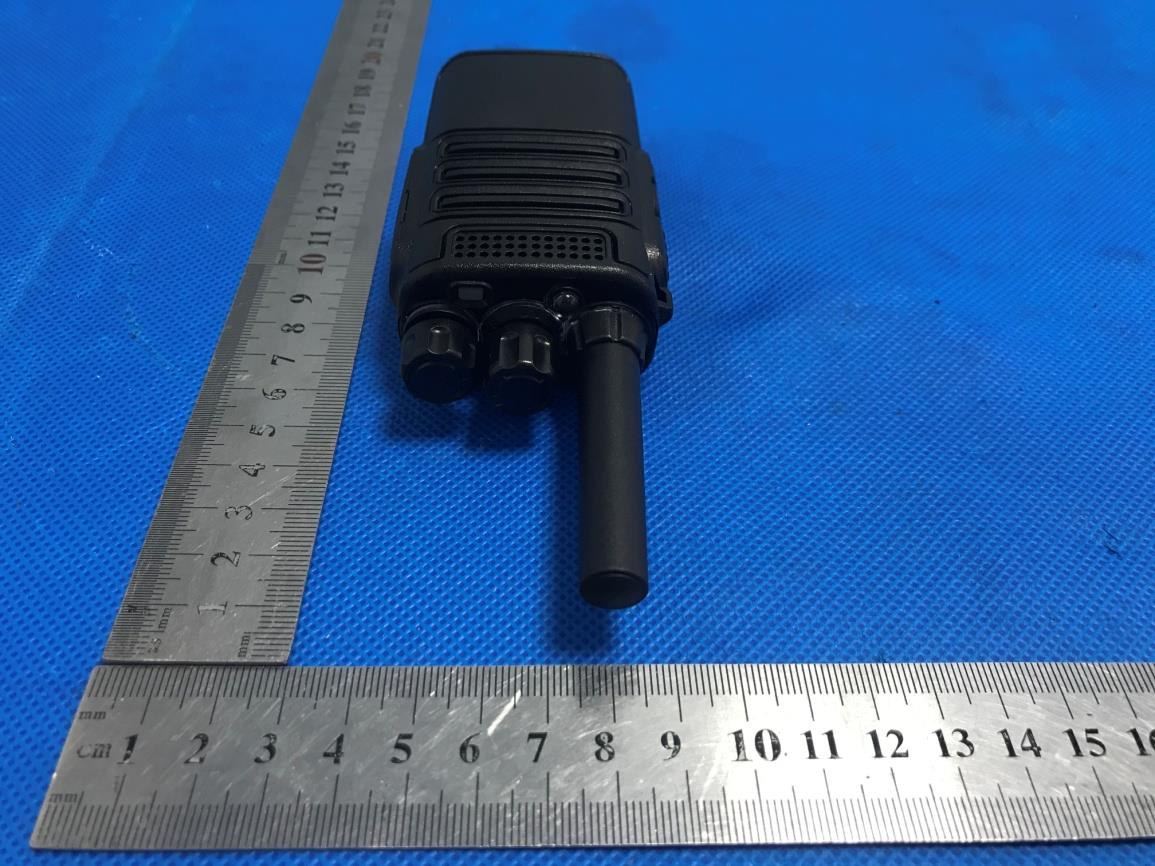

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID and IC Label Location FCC ID: 2AJGM-F8 IC: 25962-F8 HVIN: F8 FCC ID: 2AJGM-F8 IC: 25962-F8 HVIN: BF-V8

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT INTERNAL VIEW-1 OF EUT Antenna INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT

Page 1 of 40 SAR Test Report Report No.: AGC02294200303FH01 FCC ID : 2AJGM-F8 PRODUCT DESIGNATION : TWO WAY RADIO BRAND NAME : POFUNG,BAOFENG MODEL NAME : F8, BF-V8, F8i, F8U, F8X APPLICANT : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY DATE OF ISSUE : Jun. 09,2020 STANDARD(S) : IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02294200303FH01 Page 2 of 40 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 09,2020 Valid Initial Release Report No.: AGC02294200303FH01 Page 3 of 40 Test Report Applicant Name PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Applicant Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Manufacturer Name PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Manufacturer Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Factory Name PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Factory Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Designation TWO WAY RADIO Brand Name POFUNG,BAOFENG Model Name F8, BF-V8, F8i, F8U, F8X Different Description All the same except the model name. EUT Voltage DC3.7 V Applicable Standard IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 Test Date Jun. 05,2020 Report Template AGCRT- US -PTT/SAR (2018-02-02) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Thea Huang (Project Engineer) Jun. 05,2020 Reviewed By Angela Li (Reviewer) Jun. 09,2020 Approved By Forrest Lei (Authorized Officer) Jun. 09,2020 Report No.: AGC02294200303FH01 Page 4 of 40 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ......................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................... 6 2.1. EUT DESCRIPTION......................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ........................................................................................................................ 7 3.1. THE DASY5 SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS .................... 7 3.2. DASY5 E-FIELD PROBE ................................................................................................................................. 8 3.3. DATA ACQUISITION ELECTRONICS DESCRIPTION ............................................................................................... 8 3.4. ROBOT .......................................................................................................................................................... 9 3.5. LIGHT BEAM UNIT .......................................................................................................................................... 9 3.6. DEVICE HOLDER .......................................................................................................................................... 10 3.7. MEASUREMENT SERVER ............................................................................................................................... 10 3.8. PHANTOM ................................................................................................................................................. 11 4. SAR MEASUREMENT PROCEDURE ............................................................................................................ 12 4.1. SPECIFIC ABSORPTION RATE (SAR) .............................................................................................................. 12 4.2. SAR MEASUREMENT PROCEDURE ................................................................................................................ 13 5. TISSUE SIMULATING LIQUID ....................................................................................................................... 15 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID..................................................................................... 15 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ............................................................... 15 5.3. TISSUE CALIBRATION RESULT ....................................................................................................................... 16 6. SAR SYSTEM CHECK PROCEDURE ........................................................................................................... 17 6.1. SAR SYSTEM CHECK PROCEDURES ............................................................................................................. 17 7. EUT TEST POSITION ...................................................................................................................................... 19 7.1. BODY WORN POSITION ................................................................................................................................ 19 8. SAR EXPOSURE LIMITS ............................................................................................................................... 20 9. TEST FACILITY .............................................................................................................................................. 21 10. TEST EQUIPMENT LIST .............................................................................................................................. 22 11. MEASUREMENT UNCERTAINTY ................................................................................................................ 23 12. POWER MEASUREMENT .....…

Text truncated - open the document above for the full version.

Page 1 of 26 CALIBRATION DATA PROBE CALIBRATION DATA Page 2 of 26 Page 3 of 26 Page 4 of 26 Page 5 of 26 Page 6 of 26 Page 7 of 26 Page 8 of 26 Page 9 of 26 Page 10 of 26 Page 11 of 26 DAE CALIBRATION DATA Page 12 of 26 Page 13 of 26

Page 14 of 26 Page 15 of 26 Page 16 of 26 DIPOLE CALIBRATION DATA Page 17 of 26 Page 18 of 26 Page 19 of 26 Page 20 of 26 Page 21 of 26 Page 22 of 26 Page 23 of 26 Page 24 of 26 Page 25 of 26 Page 26 of 26

Page 1 of 48 FCC Part 95 Rules Test Report Report No.:AGC02294200303FE10 FCC ID : 2AJGM-F8 PRODUCT DESIGNATION : TWO WAY RADIO BRAND NAME : POFUNG, BAOFENG MODEL NAME : F8, BF-V8, F8i, F8U, F8X APPLICANT : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY DATE OF ISSUE : Jun. 06, 2020 STANDARD(S) : FCC Part 95 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.:AGC02294200303FE10 Page 2 of 48 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 06, 2020 Valid Initial release Report No.:AGC02294200303FE10 Page 3 of 48 VERIFICATION OF COMPLIANCE Applicant PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong manufacturer PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Factory PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Designation: TWO WAY RADIO Brand Name: POFUNG, BAOFENG Test Model F8 Serial Model BF-V8, F8i, F8U, F8X Difference Description All the same except the model name. Date of Test: May 15, 2020~Jun. 06, 2020 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA 603. The sample tested as described in this report is in compliance with the FCC Rules Part 95 requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Calvin Liu (Project Engineer) Jun. 06, 2020 Reviewed By Max Zhang (Reviewer ) Jun. 06, 2020 Approved By Forrest Lei (Authorized Officer) Jun. 06, 2020 Report No.:AGC02294200303FE10 Page 4 of 48 TABLE OF CONTENTS 1. GENERAL INFORMATION .............................................................................................................................. 6 1.1 PRODUCT DESCRIPTION ......................................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 8 1.3 TEST METHODOLOGY............................................................................................................................... 8 1.4 TEST FACILITY ........................................................................................................................................... 8 1.5 SPECIAL ACCESSORIES ........................................................................................................................... 8 1.6 EQUIPMENT MODIFICATIONS .................................................................................................................. 8 2. SYSTEM TEST CONFIGURATION .................................................................................................................. 9 2.1EUT CONFIGURATION ............................................................................................................................... 9 2.2 EUT EXERCISE .......................................................................................................................................... 9 2.4 CONFIGURATION OF TESTED SYSTEM ................................................................................................ 10 3. SUMMARY OF TEST RESULTS .................................................................................................................... 11 4. DESCRIPTION OF TEST MODES ................................................................................................................. 13 5. FREQUENCY TOLERANCE .......................................................................................................................... 14 5.1 PROVISIONS APPLICABLE ..................................................................................................................... 14 5.2 MEASUREMENT PROCEDURE .............................................................................................................. 14 5.3 TEST SETUP BLOCK DIAGRAM ............................................................................................................. 15 5.4 TEST RESULT ........................................................................................................................................... 16 6. EMISSION BANDWIDTH ............................................................................................................................... 17 6.1 PROVISIONS APPLICABLE ..................................................................................................................... 18 6.2 MEASUREMENT PROCEDURE .............................................................................................................. 18 6.3 TEST SETUP BLOCK DIAGRAM ............................................................................................................. 18 6.4 MEASUREMENT RESULT ........................................................................................................................ 21 7. UNWANTED RADIATION ............................................................................................................................... 23 7.1 PROVISIONS APPLICABLE ..................................................................................................................... 23 7.2 MEASUREMENT PROCEDURE .............................................................................................................. 23 7.3 TEST SETUP BLOCK DIAGRAM ...........................................................................…

Text truncated - open the document above for the full version.

Report No.:AGC02294200303FE10 Page 31 of 48 Channel 4: The Worst Emission Mask for channel 4 -1.5W Report No.:AGC02294200303FE10 Page 32 of 48 Channel 19: The Worst Emission Mask for channel 19-1.5W Report No.:AGC02294200303FE10 Page 33 of 48 8. MAXIMUMN TRANSMITTER POWER 8.1 PROVISIONS APPLICABLE Per FCC §2.1046 and §95.567(h): Maximum ERP is dependent upon the station’s antenna HAAT and required service area. FCC Part 95.567 For FRS Each FRS transmitter type must be designed such that the effective radiated power (ERP) on channels 8 through 14 does not exceed 0.5 Watts and the ERP on channels 1 through 7 and 15 through 22 does not exceed 2.0 Watts. 8.2 TEST PROCEDURE (1) The spectrum setting for Equivalent Isotropically Radiated Power (EIRP) is RBW = 100 kHz, VBW = 300 kHz. Detector Mode is RMS. (2) In the semi-anechoic chamber, setup as illustrated above the EUT placed on the 1.5m height of Turn Table, rotated the table 45 degree each interval to search the maximum radiation power and receiver antenna shall be rotated vertical and horizontal polarization and moved height from 1m to 4m to find the maximum polar radiated power for each degree interval. The “Read Value” is the spectrum reading of maximum power value. (3) The substitution antenna is substituted for EUT at the same position and signals generator (S.G) export the CW signal to the substitution antenna via a TX cable. The receiver antenna shall be rotated vertical and horizontal polarization and moved height from 1m to 4m to find the maximum radiation power. Record the power level of maximum radiation power from spectrum. So, the Measured substitution value = Ref level of S.G + TX cables loss – Substituted Antenna Gain 8.3 TEST CONFIGURATION Effective Radiated Power Radiated Below1GHz Report No.:AGC02294200303FE10 Page 34 of 48 Radiated Above 1 GHz Report No.:AGC02294200303FE10 Page 35 of 48 8.4 TEST RESULT The maximum Power (CP) for UHF is Analog: 1.5W for 12.5 KHz Channel Separation Calculation Formula: CP = R + A + L * Note: CP: The final Conducted Power R : The reading value from spectrum analyzer A : The attenuation value of the used attenuator L : The loss of all connection cables ERP RESULT: NOTE: Calculation Formula: Emission Level(dBm) = S.G.(dBm)- Cable Loss(dB)+ Ant.Gain(dBi) The Ant. Gain including the correct factor 2.15. Margin(dB) = Limit(dBm)- Emission Level(dBm) Frequency Reading Level Antenna S.G. Cable Loss Ant.Gain Emission Level Limit Margin (MHz) (dBuv/m) Polarization (dBm) (dB) (dBi) (dBm) (dBm) (dB) Frequency: 462.6375MHz 462.6375 120.70 V 25.47 0.38 6.6 31.69 33.01 1.32 462.6375 120.54 H 25.31 0.38 6.6 31.53 33.01 1.48 Frequency: 462.6500MHz 462.65 120.71 V 25.48 0.38 6.6 31.7 33.01 1.31 462.65 120.66 H 25.43 0.38 6.6 31.65 33.01 1.36 Report No.:AGC02294200303FE10 Page 36 of 48 9. MODULATION CHARACTERISTICS 9.1 PROVISIONS APPLICABLE According to [FCC Part 95.575, Part 2.1047(a)], for Voice Modulation Communication Equipment, the frequency response of the audio modulation circuit over a range of 100 to 5000Hz shall be measured. Part 95.575 A FRS unit that transmits emission type F3E must not exceed a peak frequency deviation of plus orminus 2.5 kHz, and the audio frequency response must not exceed 3.125 kHz. Part 2.1047(a) A curve or equivalent data showing the frequency response of the audio modulating circuit over a range of100 to 5000㎐ shall be submitted. For equipment required to have an audio low-pass filter, a curve showing thefrequency response of the filter, or of all circuitry installed between the modulation limiter and the modulated stage shallbe submitted. 9.2 MEASUREMENT METHOD 9.2.1 Modulation Limit (1). Configure the EUT as shown in figure 1, adjust the audio input for 60% of rated system deviation at 1KHz using this level as a reference (0dB) and vary the input level from –20 to +20dB. Record the frequency deviation obtained as a function of the input level. (2). Repeat step 1 with input frequency changing to 300, 1000, 1500 and 3000Hz in sequence. 9.2.2 Audio Frequency Response Personal Radio Service stations that transmit voice emissions may also transmit audible or subaudible tones or other signals for the purpose of selective calling and/or receiver squelch activation. These tones and signals are ancillary to voice communications and are considered to be included within the voice emission types, e.g., A3E, F3E, and G3E. (a) Tones that are audible (having a frequency higher than 300 Hertz), must last no longer than 15 seconds at one time. (b) Tones that are subaudible (having a frequency of 300 Hertz or less), may be transmitted continuously during a communication session. (1). Configure the EUT as shown in figure 1. (2). Adjust the audio input for 20% of rated system deviation at 1 KHz using this level as a reference (0 dB). (3). Vary the Audio frequency from 100 Hz to 10 KHz and record the frequency deviation. (4). Audio Frequency Response = 20log10 (Deviation of test frequency/Deviation of 1 KHz reference). Report No.:AGC02294200303FE10 Page 37 of 48 9.3 MEASUREMENT RESULT TEST CHANNEL: 4 (A). MODULATION LIMIT: 462.6375MHz @ 12.5 KHz Channel Separations-1.5W Modulation Level (dB) Peak Freq. Deviation At 300 Hz Peak Freq. Deviation At 1000 Hz Peak Freq. Deviation At 1500 Hz Peak Freq. Deviation At 3000 Hz -20 0.13 0.43 0.63 0.79 -15 0.47 0.71 0.89 1.22 -10 0.58 0.83 1.15 1.39 -5 0.66 0.92 1.28 1.56 0 0.78 1.13 1.43 1.63 +5 1.03 1.34 1.58 1.77 +10 1.22 1.49 1.67 1.89 +15 1.31 1.53 1.78 1.92 +20 1.29 1.42 1.73 1.85 Note: All the modes had been tested, but only the worst data recorded in the report. Report No.:AGC02294200303FE10 Page 38 of 48 (B). AUDIO FREQUENCY RESPONSE: 462.6375MHz @ 12.5 KHz Channel Separations-1.5W Frequency (Hz) Deviation (KHz) Audio Frequency Response(dB) 100 -- -- 200 -- -- 300 0.23 -10.83 400 0.34 -7.43 500 0.41 -5.81 600 0.45 -5.00 700 0.46 -4.81 800 0.55 -3.25 900 0.63 -2.07 1000 0.69 -1.28 1200 0.76 -0.45 1400 0.88 0.83 1600 0.91 1.12 1800 1.11 2.84 2000 1…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP

Test Setup Photos Face Up with 2.5 cm Separation Distance. Body Back Touch with all accessories The thickness of EUT is 3.0cm 25mm Note : The headset is just for testing. This tested and electrically similar headsets may be used. DEPTH OF THE LIQUID IN THE PHANTOM—ZOOM IN Note：The position used in the measurement were according to IEEE 1528-2013 450MHz Head 450MHz Body
