2AJGM-MP25FRS Two Way Radio

MP25/BF-25A SERIES FRS Two Way Radio OWNER’S MANUAL ATTENTION! The radio is a multitask FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, the radio is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family. To help you ward off bodily injury or property loss that may arise from improper operation, please read all the information carefully before using our products. Before operating the radio, please read all safety and operating instructions. Save all instructions in a safe place for future reference. FCC Part 15.21 Warning Statement NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Main features • 22 FRS Channels • Output power: ≤2W (channels 1-7and 15-22) • 12 NOAA Weather Channels • NOAA Weather Scan • 2 Channels Watch • Privacy Codes Scan and Store • Channel Monitor • Channel Scan Function • 155 Privacy Codes (50 CTCSS codes/ 105 DCS codes) • 10 Selectable Call Alerts • Hands-Free Operation (VOX) • Call Alert • Roger Beep Tone • Keypad Lock • Battery Level Meter • Emergency Strobe Light • Battery/Power Saver • Backlit LCD Display • Low Battery Audible Alert • TOT (Time out timer) • 2pin Kenwood headset jack • Type-C USB connector for charging • Li-Ion 1500mAh battery pack • Keystroke Tones • Up to 5 km range* • Battery Life: up to 18 hours (under typical use conditions) *Range may vary depending on environmental and/or topographical conditions. Installation of Accessories Installing and Removing Belt Clips With the belt clip, you can easily attach the radio to the belt. However, the belt clip must be removed to install or replace the battery. To remove the belt clip, follow the illustration. Fasten the clip into the slot on the unit in the radio's rear rail until it snaps into the square. Install the Li-ion Battery (BL-T22) Each radio operates with either a Li-ion battery pack or optional 3 AA alkaline batteries. The belt clip should be removed (see below) to ease installation or removal of the batteries. • Install 1) Remove the belt clip as described in the previous paragraph. 2) Insert the battery pack into the appropriate compartment of the device. 3) Close the battery compartment with the cover and put the belt clip back in place • Remove 1) Remove the belt clip as previously described. 2) Open the battery compartment as shown in the figure; 3) Remove the battery pack from the device; 4) Snap the belt clip back into place. 5) Close the battery compartment with the cover and put the belt clip back in place. Install three AA Ni-MH Batteries (3 x AA, rechargeable) Warning: Ni-MH batteries are rechargeable batteries and cannot be mixed with alkaline batteries. 1) Turn off the radio. 2) With the back of the radio facing you, lift up the battery cover latch, and then remove the battery cover. 3) As shown in the figure, insert three AA Ni-MH batteries with + and – polarity (wrong installation of the batteries will cause the unit to fail or damage the unit). 4) Close the battery cover. Replace the belt clip and make sure it locks in place. Installing the Three AA Alkaline Batteries (non-rechargeable) Warning: Alkaline batteries can only be used in emergency situations and cannot be charged. There is a danger of explosion when charging alkaline batteries. 1) Turn the radio off. 2) With the back of the radio facing you, lift the battery cover latch up and remove the cover. 3) Insert the three AA Alkaline batteries with + and – polarity as shown inside (Installing the batteries incorrectly will prevent the unit from operating or may damage the unit). 4) Close the battery cover. Replace the belt clip, making sure it locks into place. External Speaker/Microphone Jack Each radio can be used with an optional external speaker/microphone or headset, freeing your hands for other tasks. To use an optional speaker / microphone or headset: 1) Open the rubber cap on the side of the radio. 2) Insert the plug(s) into the SPK/MIC jacks. 3) Place the ear bud into your ear, and adjust the Microphone into your desired position. Using a Headset You can use a headset (#480_5R) for more private communications. To use a headset, lift the rubber cover from over the headset jack, and then plug in the headset. Important: Your radio is not submersible or waterproof when using a headset jack. When you remove the headset, be sure to fully press the jack cover into place to restore its waterproof capability. Charging the Battery Charging the Radio Two radios can be charged directly by using the supplied charging cradle. A single radio can charge using the Type-C USB port to connect to a USB power source. For fastest charging, turn off the radio before charging. Warning! To avoid the risk of personal injury or property damage from fire or electrical shock, only use the accessories specifically designated for this product. Using the Type-C USB Port 1) Connect the included AC adapter with Type-C USB connector cable to the radio's Type-C USB port. Connect the other end to an outlet that provides USB charging power (NOT to a USB hub). 2) Charge the batteries for 6 hours until the battery indicator either stops flashing. Using the Charging Cradle 1) Connect the included AC adapter with USB connector cable to the charging cradle's Type-C USB port. Connect the other end to a standard AC wall outlet. 2) Set the charging cradle on the desk or tabletop, and place the radio in the charging cradle with the keypad facing forward. 3) Charge the batteries for 6 hours. Note: • Use only the supplied batteries, charger, and AC adapter or approved accessories. • Charge time may vary depending on the battery life remaining. • The batteries m…

Text truncated - open the document above for the full version.

QA-FR-170-B PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED ADD: Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong TEL: 00852-90831684 FAX: 00852-90831684 E-mail: [email protected] FCC Authorization Date: 2022-09-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED, Hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Peter Wang Title: Manager

QA-FR-171-A PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED ADD: Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong TEL: 00852-90831684 FAX: 00852-90831684 E-mail: [email protected] FCC Confidential Authorization Date: 2022-09-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AJGM-MP25 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed name: Peter Wang Title: Manager

PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED ADD: Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong TEL: 00852-90831684 FAX: 00852-90831684 E-mail: [email protected] DECLARATION OF SIMILARITY Date: 2022-09-20 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED, hereby declare that the product: FRS Two Way Radio, FCC ID: 2AJGM-MP25. model: BF-25A, BF-T25, F25, TH25 are electrically identical with the model: MP25 which was tested by Shenzhen Accurate Technology Co., Ltd. with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, just has different name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Peter Wang Title: Manager

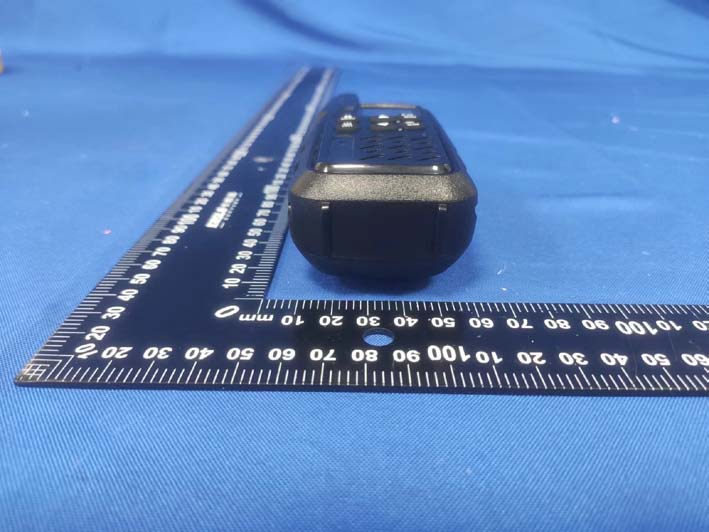

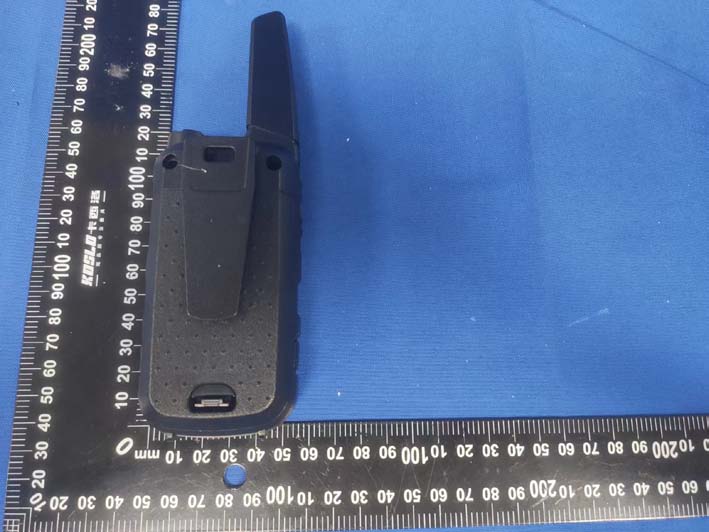

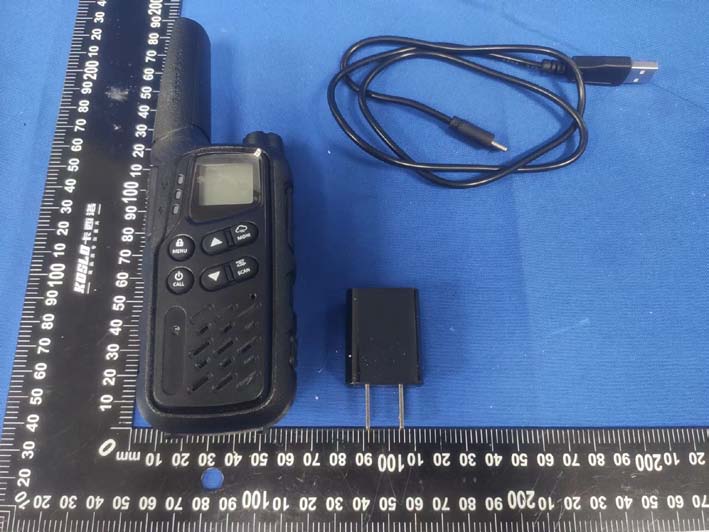

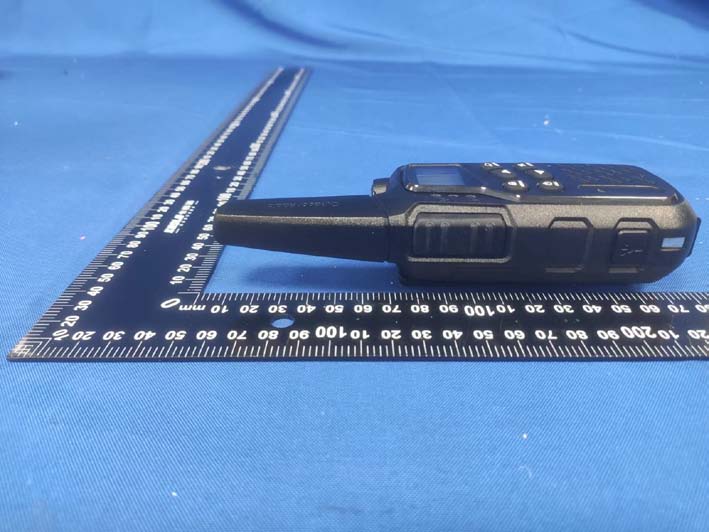

Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E External Photos Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E Internal Photos Page 1 of 5 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E Internal Photos Page 2 of 5 Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E Internal Photos Page 3 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E Internal Photos Page 4 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E Internal Photos Page 5 of 5

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 59 2021-11-09 Page 1 of 36 FCC-EMC TEST REPORT Applicant Name : PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED Address : Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong Report Number : XMTN1220727-34211E-EM-01 FCC ID: 2AJGM-MP25 Te st Standard (s) FCC PART 15B Sample Description Product Type: FRS Two Way Radio Model No.: MP25 Multiple Model: BF-25A, BF-T25, F25, TH25 Trade Mark: BAOFENG, POFUNG Date Received: 2022-07-27 Date of Test: 2022-08-11 Report Date: 2022-08-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Zeki.Ma Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: XMTN1220727-34211E-EM-01 Version 59 2021-11-09 Page 2 of 36 FCC-EMC TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SPECIAL ACCESSORIES ................................................................................................................................................. 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 BLOCK DIAGRAM OF RADIATED TEST SETUP............................................................................................................... 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.107 – CONDUCTED EMISSIONS ............................................................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 10 TEST PROCEDURE ...................................................................................................................................................... 11 FACTOR & OVER LIMIT CALCULATION ...................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §15.109 - RADIATED EMISSIONS ................................................................................................................. 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP ............................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E Test Photos Page 1 of 3 Photo of Conducted Emission Measurement Test mode 1 Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E Test Photos Page 2 of 3 Photo of Radiated Emission Measurement ( Below 1G) Test mode1 Test mode 2/3/4/5 Shenzhen Accurate Technology Co., Ltd. Project No.: XMTN1220727-34211E Test Photos Page 3 of 3 Photo of Radiated Emission Measurement (Above 1G) Test mode 1 Test mode 2/3/4/5
