2AJGM-P51UVGMRS TWO WAY RADIO

USER’S MANUAL Model: P51UV ______________________________ PREFACE Thank you for purchasing P51UV Portable Radio, which is a dual band/dual display radio/dual watch. This easy-to-use radio will deliver you secure, instant and reliable communications at peak efficiency. Please read this manual carefully before use. The information presented herein will help you to derive maximum performance from your radio. This manual is applicable to the following product: P51UV,P8UV,P9UV,UV-5R,UV-5REX,UV-5R+PLUS,UV-5RTP,GT-3,GT-3TP,BF-R3,UV-S9, UV-B2PLUS,TR-818UV,UV-5REPLUS,UV-5X,FF-12P, BF-F8GP,BF-F8TD GMRS Radio. Table of Contents 1. GETTING STARTED 1.1 Regulations and Safety Warnings 1.2 Main features 1.3 Maintenance 1.4 Programming software (optional) 1.5 Content of the packaging 2. BATTERY INFORMATION 2.1 Charging the Battery Pack 2.2 Charger Supplied 2.3 Use Caution with the Li-ion Battery 2.4 How to Charge 2.5 LED Indicator 2.6 How to Store the Battery 3. INSTALLATION OF ACCESSORIES 3.1 Installing the belt clip 3.2 Installing the battery pack 3.3 Additional Speaker/Microphone (Optional) 4. RADIO OVERVIEW 4.1 Buttons and controls of the radio 4.2 Main controls and parts of the radio 4.3 Status Indications 4.4 Main keypad controls 5. BASIC OPERATIONS 5.1 Power on the radio 5.2 Adjusting the volume 5.3 Making a call 5.4 Channel selection 5.5 Frequency (VFO) mode 5.6 Channel (MR) mode 6. ADVANCED FEATURES 6.1 Frequency scanning 6.2 Channel scanning 6.3 Search CTCSS/DCS Code 6.4 Cursor▼▲Conversion (A/B) 6.5 High/low power fast selection 6.6 Keypad lock 6.7 Flashlight 6.8 1000Hz, 1450Hz, 1750Hz Tone-burst 6.9 NOAA Weather radio/ scan 6.10 Manual Programming (Channels Memory) 6.11 Repeaters Programming 7. WORKING THE MENU SYSTEM 7.1 Basic use 7.2 Using short-cuts 7.3 Functions and operations (1) Squelch level (SQL) - MENU No.0 (2) Step frequency (STEP) - MENU No.1 (3) Output power (TXP) - MENU No.2 (4) Battery save (SAVE) - MENU No.3 (5) VOX Function (VOX) - MENU No.4 (6) Narrow bandwidth - MENU No.5 (7) Backlight (ABR) - MENU No. 6 (8) Dual Watch Operation (TDR) - MENU No. 7 (9) Keypad beep (BEEP) - MENU No. 8 (10) Time-Out-Timer (TOT) - MENU No.9 (11) Receiving DCS (R-DCS) - MENU No.10 (12) Receiving CTCSS (R-CTCSS) - MENU No.11 (13) Transmitting DCS - (T-DCS) - MENU No.12 (14) Transmitting CTCSS (T-CTCSS) - MENU No.13 (15) Voice function (VOICE) - MENU No. 14 (16) ANI-ID (ANI-ID) - MENU No.15 (17) DTMFST (DTMFST) - MENU No.16 (18) Signal code (S-CODE) - MENU No.17 (19) SCAN Resume Mode (SC-REV) - MENU No.18 (20) PTT-ID (PTT-ID) - MENU No.19 (21) PTT ID delay (PTT-LT) - MENU No.20 (22) Channel A Display Mode (MDF-A) - MENU No.21 (23) Channel B Display Mode (MDF-B) - MENU No.22 (24) Busy Channel Lock (BCL) - MENU No. 23 (25) Auto Keypad Lock (AUTOLK) - MENU No.24 (26) Frequency offset direction (SFT-D) - MENU No.25 (27) Frequency offset (OFFSET) - MENU No. 26 (28) Channel store - (MEM-CH) - MENU No. 27 (29) Channel Delete (DEL-CH) - MENU No.28 (30) Standby backlight (WT-LED) - MENU No.29 (31) RX backlight (RX-LED) - MENU No. 30 (32) TX backlight (TX-LED) - MENU No.31 (33) Alarm Mode (AL-MOD) - MENU No.32 (34) Frequency band (BAND) - Menu No.33 (35) Dual Watch (TDR-AB) - Menu No.34 (36) Side tone elimination (STE) - Menu No. 35 (37) Side tone elimination in communication through repeater (RP-STE) - Menu No. 36 (38) Delay time of side tone elimination in communication through repeater (RPT-RL) - Menu No.37 (39) Display mode at the turning on (PONMSG) Menu No.38 (40) Roger beep (ROGER) - Menu No. 39 (41) Reset (RESET) - Menu No.40 8. ON-LINE SERVICE AND SUPPORT Appendix A. - Trouble shooting guide Appendix B. - Technical Specifications Appendix C. - GMRS/FRS Frequency Chart Appendix D. - Weather Channel Assignments Appendix E. - Shortcut Menu operations Appendix F. - CTCSS Table Appendix G. - DCS Table 1. GETTING STARTED 1.1 Regulations and Safety Warnings ATTENTION! To help you ward off bodily injury or property loss that may arise from improper operation, please read all the information carefully before using our products. This contains instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulation. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Verification of harmful interference by this equipment to radio or television reception can be determined by turning it off and then on. The user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBIITED UNDER FCC RULES AND FEDERRAL LAW. Compliance with RF Exposure Standards The radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communicati…

Text truncated - open the document above for the full version.

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Office of Engineering Technology Date: Jun. 19, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: 2AJGM-P51UV Subject: Declaration of compliance to the requirements of §15.121 We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. If you have any questions, please feel free to contact me. Thank you. Sincerely, Signatory [Peter Wang, General Manager]

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Agent Authorization Company: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Name: TWO WAY RADIO Model Number(s): P51UV, P8UV, P9UV, UV-5R, UV-5REX, UV-5R+PLUS, UV-5RTP, GT-3, GT-3TP, BF-R3, UV-S9, UV-B2PLUS, TR-818UV, UV-5REPLUS, UV-5X, FF-12P, BF-F8GP, BF-F8TD Product Description: GMRS TWO WAY RADIO We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 19, 2020 Name: Peter Wang Title: General Manager Company: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Jun. 19, 2020 To: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation statement regarding the Mobile Radio frequency Applicant: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong TYPE OF QEUIPMENT: Licensed Non-Broadcast Transmitter Held to Face FCC ID: 2AJGM-P51UV Dear Sir or Madam I attest that the product has one antenna, one battery capacity, one body-worn and audio accessory. And that the product could program the frequency on computer through interface by manufacturer, is incapable of tuning, or readily being altered, by the end-user. Please contact the undersigned if you have any questions or need any further information. Regards Signature: Name, Job Title and Dept.: Peter Wang / General Manager

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Jun. 19, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2AJGM-P51UV Models: P51UV, P8UV, P9UV, UV-5R, UV-5REX, UV-5R+PLUS, UV- 5RTP, GT-3, GT-3TP, BF-R3, UV-S9, UV-B2PLUS, TR-818UV, UV- 5REPLUS, UV-5X, FF-12P, BF-F8GP, BF-F8TD To Whom It May Concern: We, The PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY hereby declare that the model : P8UV, P9UV, UV-5R, UV- 5REX, UV-5R+PLUS, UV-5RTP, GT-3, GT-3TP, BF-R3, UV-S9, UV- B2PLUS, TR-818UV, UV-5REPLUS, UV-5X, FF-12P, BF-F8GP, BF- F8TD is identical with the model : P51UV, except the shell design differences & models, trademarks are different. Except for the different above, no other modification is performed. Sincerely, PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Signature: [Peter Wang, General Manager]

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 19, 2020 Subject; Request for Confidentiality FCC ID: 2AJGM-P51UV To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peter Wang Title: General Manager

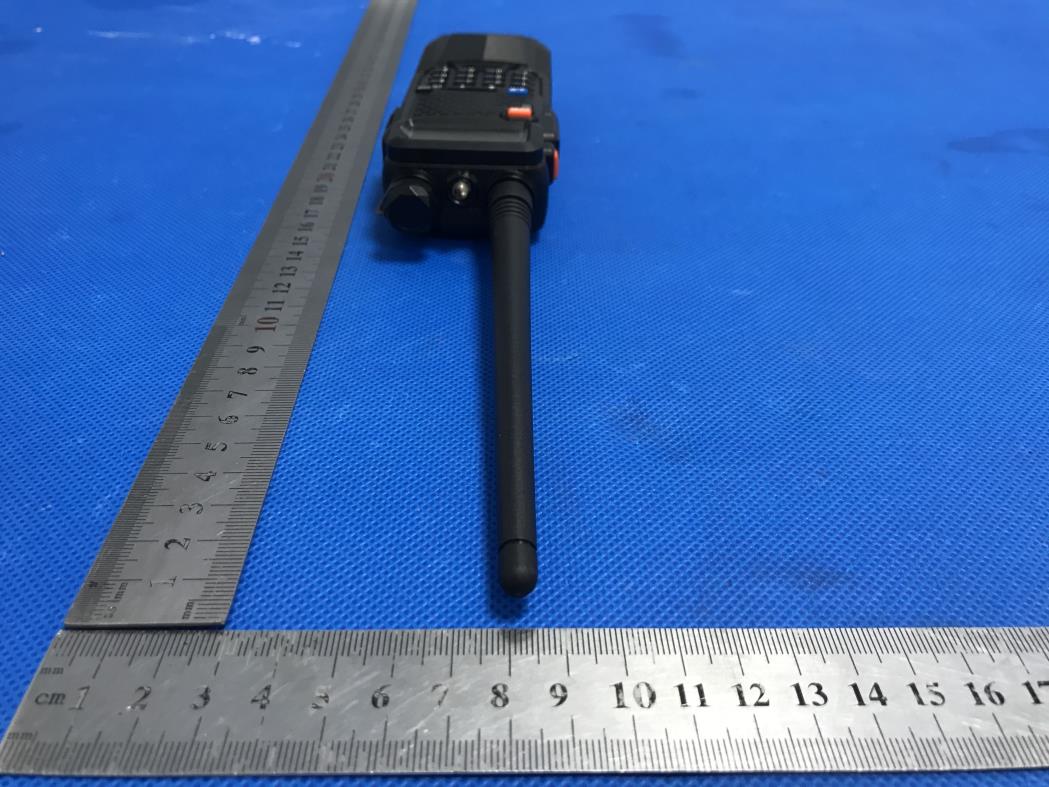

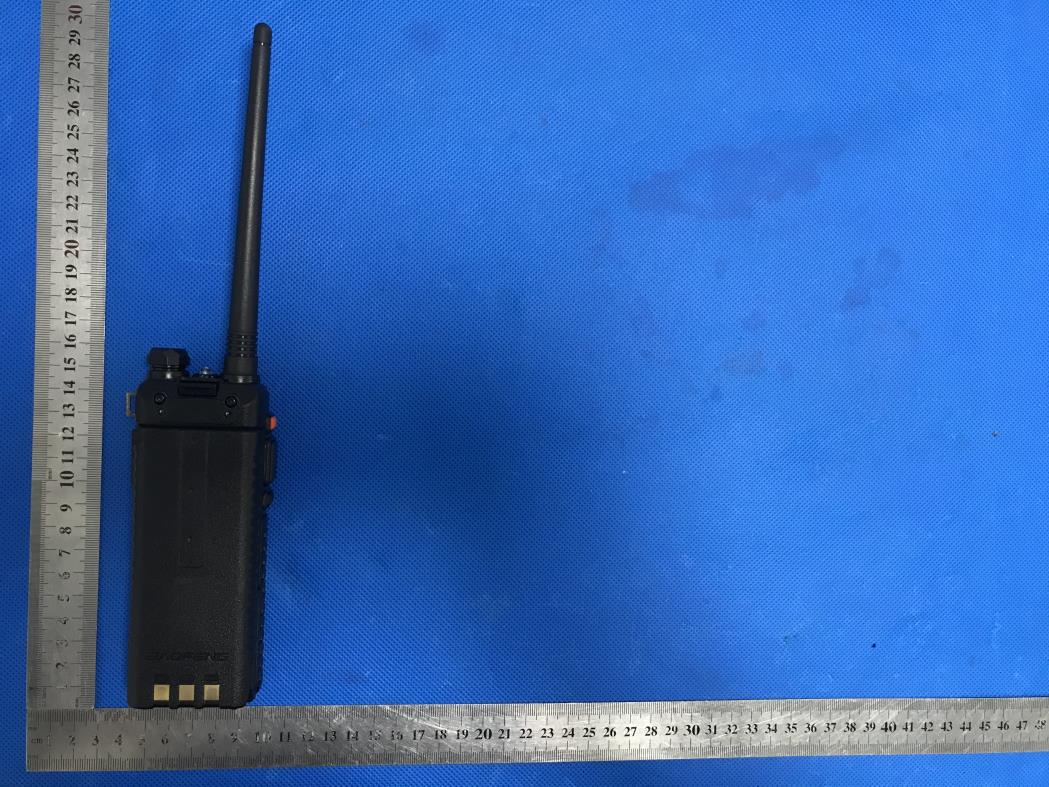

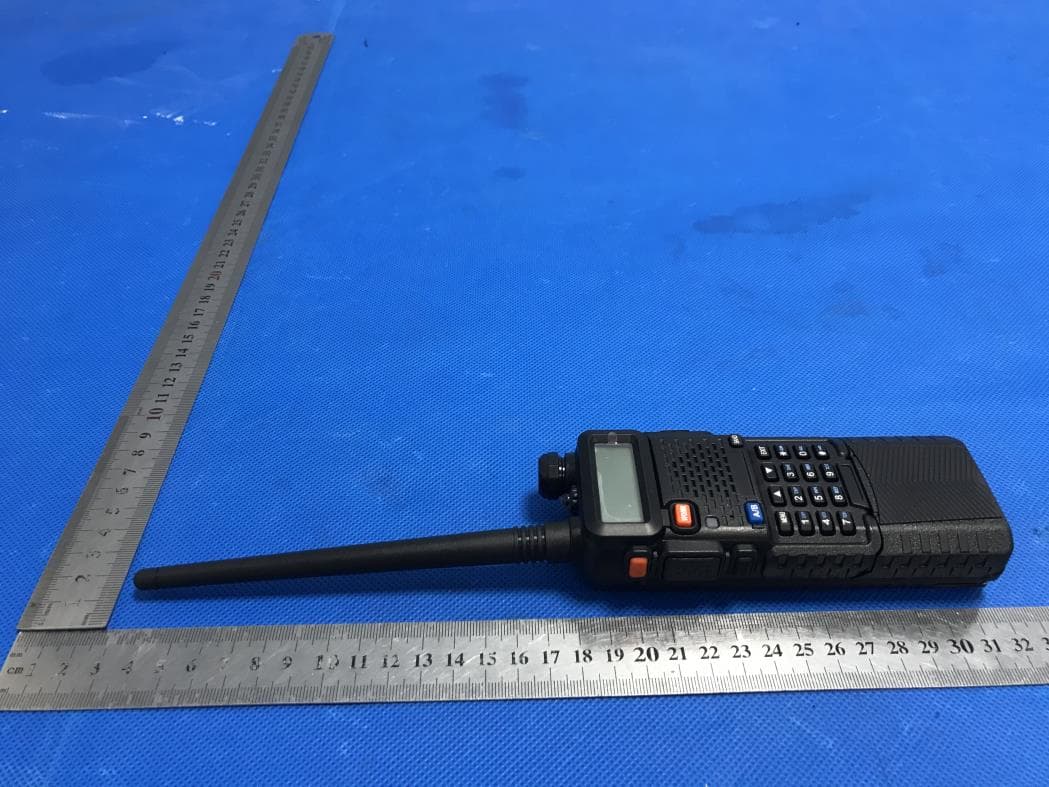

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 15mm*15mm FCC ID: 2AJGM-P51UV

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Jun. 19, 2020 Statement We, PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY (FCC ID: 2AJGM-P51UV) puts the label inside the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Contact person: Peter Wang Title: General Manager

Internal Photos OPEN VIEW OF EUT(FIGURE 1) OPEN VIEW OF EUT(FIGURE 2) OPEN VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 1) GMRS Antenna INTERNAL VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 4) INTERNAL VIEW OF EUT(FIGURE 5) INTERNAL VIEW OF EUT(FIGURE 6) INTERNAL VIEW OF EUT(FIGURE 7) INTERNAL VIEW OF EUT(FIGURE 8)

Page 1 of 26 FCC ID : 2AJGM-P51UV PRODUCT DESIGNATION : TWO WAY RADIO BRAND NAME : BAOFENG,POFUNG MODEL NAME : P51UV, P8UV, P9UV, UV-5R, UV-5R EX, UV-5R+PLUS, UV-5RTP, GT-3, GT-3TP, BF-R3, UV-S9, UV-B2PLUS, TR-818UV, 5REPLUS, UV-5X, FF-12P, BF-F8GP, BF-F8TD APPLICANT : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY DATE OF ISSUE : Jun. 19, 2020 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. FCC Test Report Report No.: AGC02294200302FE08 Report No.: AGC02294200302FE08 Page 2 of 26 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 19, 2020 Valid Initial Release Report No.: AGC02294200302FE08 Page 3 of 26 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ................................................................................................................. 4 2. PRODUCT INFORMATION .............................................................................................................................. 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION ............................................................... 6 4. SUPPORT EQUIPMENT LIST ......................................................................................................................... 7 5. SYSTEM DESCRIPTION .................................................................................................................................. 7 6. SUMMARY OF TEST RESULTS ..................................................................................................................... 8 7. FCC RADIATED EMISSION TEST .................................................................................................................. 9 7.1. TEST EQUIPMENT OF RADIATED EMISSION .................................................................................... 9 7.2. LIMITS OF RADIATED EMISSION TEST .............................................................................................. 9 7.3 BLOCK DIAGRAM OF RADIATED EMISSION TEST ............................................................................ 9 7.4 PROCEDURE OF RADIATED EMISSION TEST ................................................................................. 11 7.5 TEST RESULT OF RADIATED EMISSION TEST ................................................................................ 12 8. CONDUCTED EMISSION TEST .................................................................................................................... 16 8.1 PROVISIONS APPLICABLE ................................................................................................................. 16 8.2 MEASUREMENT PROCEDURE ........................................................................................................... 16 8.3 TEST SETUP BLOCK DIAGRAM ......................................................................................................... 17 8.4 TEST RESULT ....................................................................................................................................... 18 9. ANTENNA CONDUCTED POWER FOR RECEIVERS ................................................................................. 20 10. SANNING RECEIVERS AND FREQUENCY CONVERTERS USED WITH SANNING RECEIVERS. ...... 23 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ............................................................................................ 25 Report No.: AGC02294200302FE08 Page 4 of 26 1. VERIFICATION OF COMPLIANCE Applicant PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Manufacturer PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Factory PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Designation TWO WAY RADIO Brand Name BAOFENG,POFUNG Test Model P51UV Serial Model P8UV, P9UV, UV-5R, UV-5R EX, UV-5R+PLUS, UV-5RTP, GT-3, GT-3TP, BF-R3, UV-S9, UV-B2PLUS, TR-818UV, 5REPLUS, UV-5X, FF-12P, BF-F8GP, BF-F8TD Difference Description The same motherboard and specifications, only the shell design differences & models, trademarks are different Hardware Version 5RTS.V05 Software Version 5RTS.V05 Measurement Procedure ANSI C63.4: 2014 Date of test Mar. 03, 2019~Jun. 19, 2020 Deviation No any deviation from the test method. Condition of Test Sample Normal The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Calvin Liu (Project Engineer) Jun. 19, 2020 Reviewed By Max Zhang (Reviewer) Jun. 19, 2020 Approved By Forrest Lei (Authorized Officer) Jun. 19, 2020 Report No.: AGC02294200302FE08 Page 5 of 26 2. PRODUCT INFORMATION The EUT is a TWO WAY RADIO designed for voice communication. It is designed by way of utilizing the F3E modulation achieves the system operating. A major technical description of EUT is described as following: Communication Type Voice / Tone only Modulation FM RX Frequency Range RX:136 MHz -174 MHz, 400MHz -520MHz Emission Type F3E Antenna Designation Inseparable Antenna Type Integral Antenna Antenna Gain 1.50dBi Power Supply DC 7.4V, 3800mAh by battery Adapter Parameter Input: AC 100-240V 50/60Hz, 0.25A Output: DC 10V 0.5A Charger Parameter Input: DC 10V Output: DC 8.4V 400mA I/O Port Information (Applicable Not Applicable) I/O Port of…

Text truncated - open the document above for the full version.

Test Setup Photos CONDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP-BELOW 1GHZ RADIATED EMISSION TEST SETUP-ABOVE 1GHZ
