2AJGM-T26FRS Two Way Radio

PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED
FRS Two Way Radio - FCC ID 2AJGM-T26 - PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED
Click to zoom

Application Details

Equipment Class
FRF - Part 95 Family Radio Face Held Transmitter
Date of Grant
Sep 04, 2024
Application Purpose
Original Equipment
Date of Application
Sep 04, 2024
Equipment Note
FRS Two Way Radio
Frequency Range
467.56250000 - 467.71250000
Company
PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗

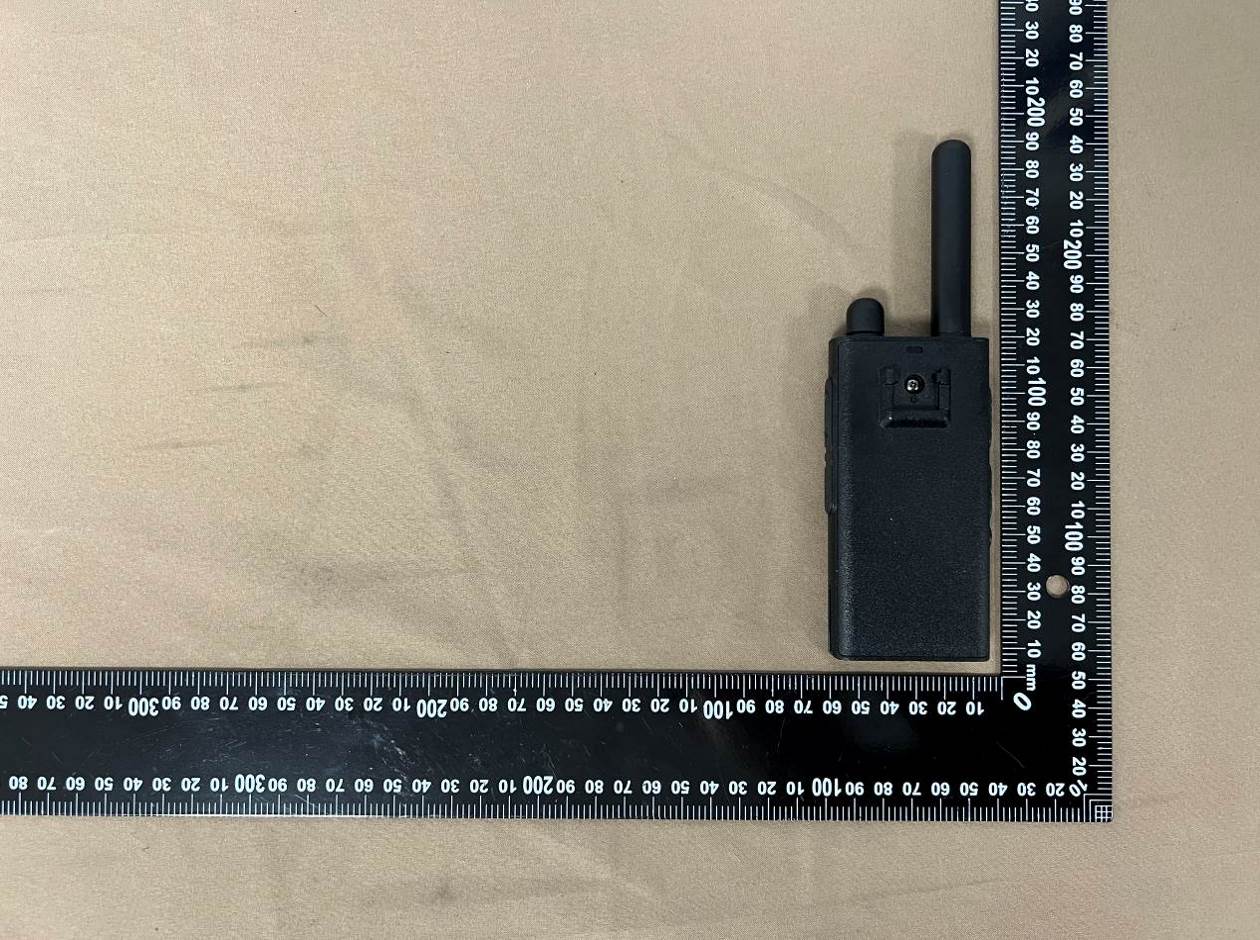

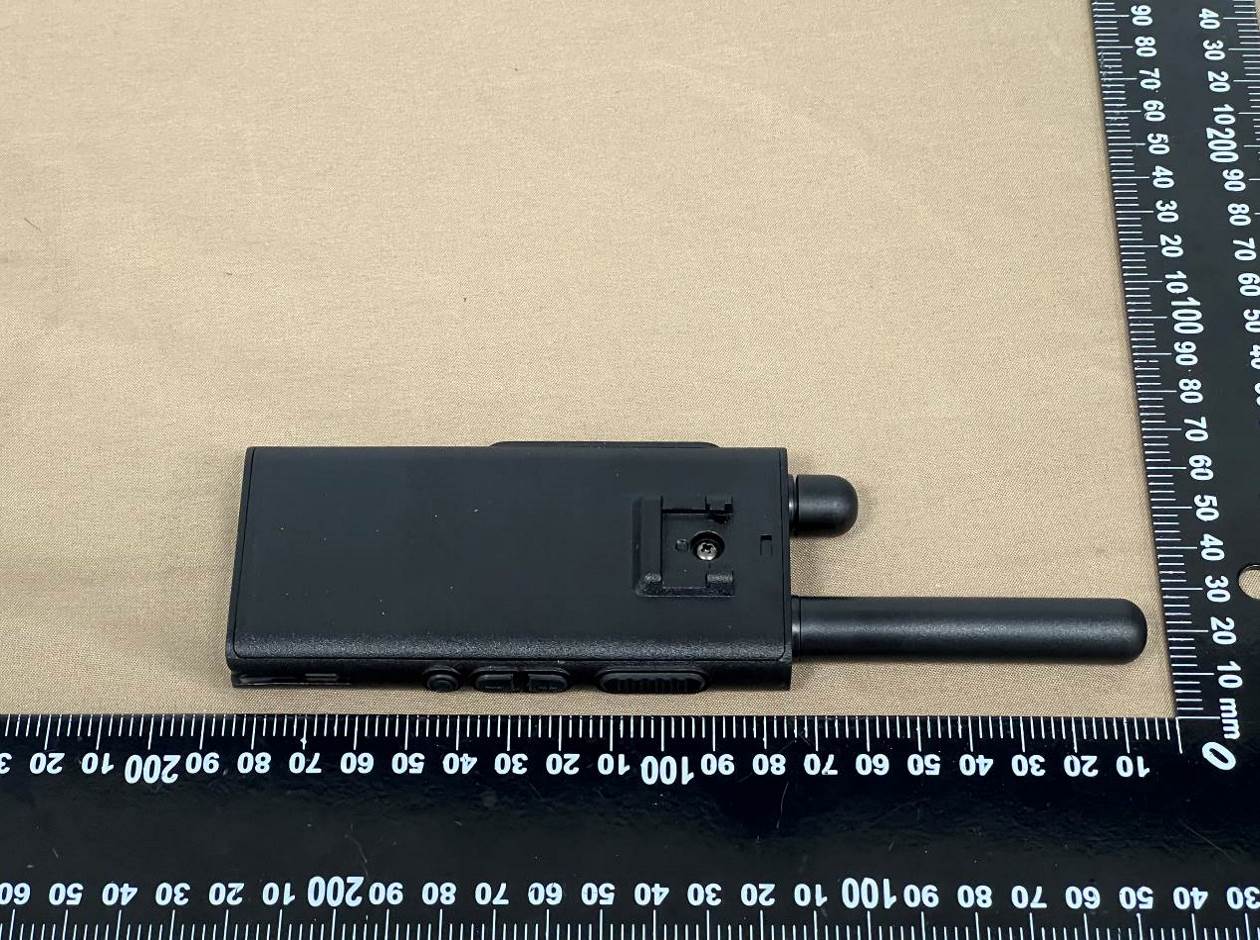

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

OW NER’S MANUAL FRS Two Way Radio AT TENTION! The radio is a multitask FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, the radio is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family. To help you ward off bodily injury or property loss that may arise from improper operation, please read all the information carefully before using our products. Before operating the radio, please read all safety and operating instructions. Save all instructions in a safe place for future reference. FC C Part 15.21 Warning Statement NO TE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Co ntent of the packaging No te: The number of the above materials may be depending on the number of packages. Ma in features •Maximum Output Power:462.5500-462.7250MHz: 31.07dBm • C hannel monitor • 26 0 Privacy Codes (50 CTCSS Codes & 210 DCS codes) • Bat tery save • TOT (T ime out timer) • M icro USB connector for charging • FRS transceiver • 22 FRS channels • Channel scan • Vocal tuning • Battery low alert • 2Pin Kenwood accessory jack • Li-Ion 1400mAh battery pack • Battery Life: up to 18 hours (under typical use conditions) Pa ckage Content 1 PAC K 2 PAC K 6 PAC K Rad io 1 2 6 Belt Clip 1 2 6 La nyard 1 2 6 Ow ner’s Manual 1 1 1 467.5625-467.7125MHz: 25.41dBm R adio Overview C harging the Battery U sing the Type-C USB Charger T he Type-C USB charger is a handy port that allows you to conveniently charge your Li-ion battery pack. 1. Make sure your radio is turned OFF. 2. Plug the Type-C USB cable into the Type-C USB charging port on your battery. The other end of the data line is connected to the output port of the power bank or the adapter of the mobile phone. 3. An empty battery will be fully charged in 4 hours. Note: 1. Antenna 2. LED: TX red light, RX green light 3. PTT (Push-To-Talk) Button 4. +/Channel UP Button (SK1) 5. -/Channel Down Button (SK2) 6. Monitor/Alarm Button (Sk3) 7. Speaker 8. Power switch/ Volume control 9. Accessory Port 10.Type-C USB Charging Port 11. Built -in microphone 12. Belt Clip • It is recommended to power OFF your radio while charging. However, if power is turned on while charging, you may not be able to transmit a message if the battery is completely empty. • For optimal battery life, remove the radio from the charger within 6 hours. Do not store the radio while connected to the ch a r g e r. Operations P ower on/off and volume adjustment R otate the Power/Volume knob clockwise to turn the radio on. Rotate the control clockwise /counter-clockwise to adjust the volume level as you prefer. To turn the radio off, rotate the control counter-clockwise till hearing a mechanical “click”. C hannel selection I n standby mode, Press the + (SK1)/ - (SK2) buttons to step down or down to select the channel. When the voice prompt function is turned on, the corresponding channel is broadcast by voice. T ransmission T o communicate, all radios in your group must be set to the same channel. Press and hold the Monitor ( SK3) button to enable the Monitor feature in order to make sure that the frequency is not busy, and then press the [PTT] button. Release the [PTT] button to receive. Only one user at a time can talk during radio communications. Therefore, it is important not to transmit when you are receiving a communication and use the transmission mode sparingly to allow other users to talk. Transmission consumes a significant amount of energy and should therefore be used sparingly to prolong the battery life. If you are unable to contact a station that you have no problems in receiving, the station may be using CTCSS tones or DCS codes. S can I n standby mode, press and hold the - (SK2) button to enter the scanning function. The scan starts from the current channel, and the signal light is flashing "green". Lights green when scanning pauses on a channel. Press and hold the [PTT] button to making a callback. Press and hold the - ( SK2) button again to exit the scan. M onitor T he Monitor feature is for excluding (opening) the Squelch, in order to listen to signals that are too weak to keep the Squelch permanently o pened. Press the Monitor ( SK3) button to enable such function. Press Monitor ( SK3) button again to exit monitor state. E mergency alarm I n standby mode, press and hold the Monitor ( SK3) button to turn on and off the emergency alarm function. VOX T he VOX feature enables hands free conversations without using PTT: just speak in the direction of the microphone and the communication will be automatically activated. The VOX sensitivity can be adjusted in 5 different levels (1...5) through the programming software: Level 2 is set by default and has the lowest VOX sensitivity, 5 is the lowest one. With the programming software you can enable/disable the VOX feature and select the sensitivity levels. Squ elch T he Squelch function suppresses noises on free channels and allows receiving even weak signals. The radio has 10 different Squelch levels that can be set by programming software: 0 means that the Squelch is turned off; from level 1 to level 9 you will have different levels of noise reduction. The higher is the level, the louder will be the Squelch. By default, the Squelch level of radio is set on level 4. Make sure you do not set an excessively high squelch level because in this case you may not be able to receive weaker signals. On the other hand an excessively low Squelch value could enable the Squelch even when no signals are present. Squelch must always be adjusted when no signals are present. CT CSS/DCS tones C TCSS and DCS tones are similar to access codes and enable the radio to commu…

Text truncated - open the document above for the full version.

Attestation Statements

PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED ADD: Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong TEL: 00852-90831684 FAX: 00852-90831684 E-mail: [email protected] CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 06-25-2024 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: 2AJGM-T26 PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Contact Person: Peter Wang Title: Manager

Attestation Statements

U.S. AGENT LETTER OF ATTESTATION Date: 2024-06-27 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AJGM-T26 PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED (“the Applicant”) certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong FRN: 0025809377 Tel: 00852-90831684 Email: [email protected] Signed by (printed name): Peter Wang Signature:

Cover Letter(s)

QA-FR-170-B PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED ADD: Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong TEL: 00852-90831684 FAX: 00852-90831684 E-mail: [email protected] FCC Authorization Date: 2024-06-27 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED, Hereby authorizes Bay Area Compliance Laboratories Corp. (Xiamen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Xiamen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature: Printed Name: Peter Wang Title: Manager

Cover Letter(s)

QA-FR-171-A PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED ADD: Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong TEL: 00852-90831684 FAX: 00852-90831684 E-mail: [email protected] FCC Confidential Authorization Date: 2024-06-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AJGM-T26 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • BOM • Tune Up Procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Peter Wang Title: Manager

External Photos

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-EXP Page 1 / 5 EUT EXTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-EXP Page 2 / 5 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-EXP Page 3 / 5 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-EXP Page 4 / 5 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-EXP Page 5 / 5

Internal Photos

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-INP Page 1 / 8 EUT INTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-INP Page 2 / 8 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-INP Page 3 / 8 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-INP Page 4 / 8 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-INP Page 5 / 8 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-INP Page 6 / 8 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-INP Page 7 / 8 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-INP Page 8 / 8 Battery Label

Test Report

       *+,-./--0123.45/ 678967:;<= >?@ABC=ADC?E AF?GD AN-E88 PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANYLIMITED Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong

Test Report

FCC PART 95 TES T REPORT For PO FUNG ELECTRONIC (HK) INTERNATONAL GROUP COMPANY LIMITED Room 1508, 15/F, Office Tower II, Grand Plaza, 625 Nathan Road, Kowloon, Hong Kong Report Type: Original Report Product Name: FRS Two Way Radio Report Number: 2407S46185E-RF-01 Report Date: 2024-06-11 Reviewed By: Stein Peng Approved By: Miles Chen Prepared By: Bay Area Compliance Laboratories Corp. (Xiamen) Unit 102, No. 902 Meifeng South Road, Binhai West Avenue, Science and Technology Innovation Park, Torch High tech Zone XiaMen Tel: +86-592-3200111 www.baclcorp.com.cn FCC ID: 2AJGM-T26 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-01 FCC Part 95 Page 2 of 36 TABLE OF CONTENTS REPORT REVISION HISTORY ................................................................................................................................ 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 ★ANTENNA INFORMATION ......................................................................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 TEST MODE AND VOLTAGE .......................................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 TEST EQUIPMENT LIST ......................................................................................................................................... 11 FCC §2.1046, §95.567 – FRS TRANSMIT POWER ................................................................................................ 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP BLOCK DIAGRAM ................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 13 FCC §2.1047, §95.575 – FRS MODULATION LIMITS .......................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST SETUP BLOCK DIAGRAM .................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 16 FCC §2.1049, §95.573, §95.579 - AUTHOURIZED BANDWIDTH AND EMISSION MASK ............................ 20 APPLICABLE STANDARD ............................................................................................................................................ 20 EUT SETUP BLOCK DIAGRAM ................................................................................................................................... 20 TEST PROCEDURE ...................................................................................................................................................... 21 TEST DATA ................................................................................................................................................................ 22 FCC §2.1053 & §95.579 - RADIATED SPURIOUS EMISSION ............................................................................ 25 APPLICABLE STANDARD ..............................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-01-TSP Page 1 / 2 EUT SETUP PHOTOS Radiation Emission - Front View (Below 1GHz) Radiation Emission - Back View (Below 1GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2407S46185E-RF-01-TSP Page 2 / 2 Radiation Emission - Front View (Above 1GHz) Radiation Emission - Back View (Above 1GHz)

Contact Information

Applicant

Peter Wang
[email protected]00852-90831684Fax: 00852-90831684

Test Firm

Bay Area Compliance Laboratories Corp.(Xiamen)Mike Tu
[email protected]86 592 3200111

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
395B467.5625 MHz - 467.7125 MHz350.00 mW11K0F3E2.5 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is ERP. This device is authorized to operate in the FRS (Part 95B) radio service. SAR compliance for body-worn operating configurations is limited to the specific body-worn accessories, such as belt-clips and holsters tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for head and body-worn accessory transmission exposure conditions are 0.74 W/kg and 1.03 W/kg, respectively when operating at 50% duty cycle.
