UHF and VHF Two Way Radio UV-10R SERIES USER’S MANUAL PREFACE Thank you for purchasing UV-10R Amateur Radio, which is a dual band/dual display/dual watch. This easy-to-use radio will deliver you secure, instant and reliable communications at peak efficiency. Please read this manual carefully before use. The information presented herein will help you to derive maximum performance from your radio. This manual is applicable to the following product: UV-10R, TR-818UV, BF-UVB2PLUS, UV-T2, UV878, FF-12P, UV-S9X3, UV-S9 PLUS, Mate5R, UV52X, BF-860, UN-57Sand TF-920 Amateur Radios. ATTENTION! >> When programming the radio, start by reading the factory software data, and then rewrite this data with your frequency etc., to a new saved code plug, otherwise errors may occur. >> You can use the programming cable with a PC to program the authorized frequency, bandwidth, power, etc. your programming must comply with your FCC (or EU other country) license certification. RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE TWO-WAY RADIOS ATTENTION! Before using this product, read the RF Energy Exposure and Product Safety Guide that ship with the radio which contains instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulation. Table of Contents Chapter1. Getting Started 1.1 Regulations and Safety Warnings 1.2 Main features 1.3 Content of the packaging Chapter2. Battery Information 2.1 Charging the Battery Pack 2.2 Charger Supplied 2.3 Use Caution with the Li-ion Battery 2.4 How to Charge 2.5 LED Indicator 2.6 How to Store the Battery Chapter3. Installation of Accessories 3.1 Installing / Removing the Antenna 3.2 Installing the belt clip 3.3 Installing the battery pack 3.4 Additional Speaker/Microphone (Optional) Chapter4. Radio Overview 4.1 Buttons and controls of the radio 4.2 Main controls and parts of the radio 4.3 Status Indications 4.4 Main keypad controls Chapter5. Basic Operations 5.1 Power on the radio 5.2 Adjusting the volume 5.3 Making a call 5.4 Channel selection 5.5 Frequency (VFO) mode 5.6 Channel (MR) mode Chapter6. Advanced Features 6.1 Frequency scanning 6.2 Channel scanning 6.3 Search CTCSS/DCS Code 6.4 Cursor▼▲Conversion (A/B) 6.5 High/low power fast selection 6.6 Keypad lock 6.7 FM Radio (FM) 6.8 Flashlight 6.9 1000Hz, 1450Hz, 1750Hz Tone-burst 6.10 Manual Programming (Channels Memory) 6.11 Repeaters Programming Chapter7. Working the MENU System 7.1 Basic use 7.2 Using short-cuts 7.3 Functions and operations Appendix A. - Trouble shooting guide Appendix B. - Technical Specifications Appendix C. - Shortcut Menu operations Chapter1. Getting Started 1.1 Regulations and Safety Warnings FCC Regulatory Conformance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Verification of harmful interference by this equipment to radio or television reception can be determined by turning it off and then on. The user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. WARNING！MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBIITED UNDER FCC RULES AND FEDERRAL LAW. EU Regulatory Conformance As certified by the qualified laboratory, the product is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU. All applicable EU regulations are regarded (2006/66/EC, 2011/65/EU,(EU)2015/863, 2012/19/EU). NOTE: It can be operating under 2000m. WARNING！European Users should note that operation of this unit in Transmit mode requires the operator to have a valid Amateur Radio License from their respective Countries Amateur Radio Licensing Authority for the Frequencies and Transmitter Power levels that this Radio transmits on. Failure to comply may be unlawful and liable for prosecution. At this subject, refer to the “EU” specification guide 2014/53/EU. Please note that the above information is applicable to EU countries only. Compliance with RF Exposure Standards The radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47 CFR § 1.1307, 1.1310 and 2.1093 • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95.1:2005; Canada RSS102 Issue 5 March 2015 • Institute of Electrical and Electronic Engineers (IEEE) C95.1:2005 Edition RF Exposure Compliance and Control Guidelines and Operating Instructions To control your exposure and ensure compliance with the occupational/ controlled environmental exposure limits, always adhere to the following procedures. Guidelines: • Do not remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. • Do not use this device if the operational requirements described herein are not met. Operating Instructions: • Transmit no more than the rated …

Text truncated - open the document above for the full version.

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Mar.29, 2021 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AJGM-UV10R Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description 4: Parts List 5: Tune up The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Contact person: Peter Wang Title: General Manager

PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY ___________________________________________________________________________________________ Date: 2021-04-08 Declaration Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Declaration of compliance to the requirements of §15.121 FCC ID: 2AJGM-UV10R Dear Sir/Madam, We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. Sincerely Yours, Signature: __________________________ Peter Wang PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY

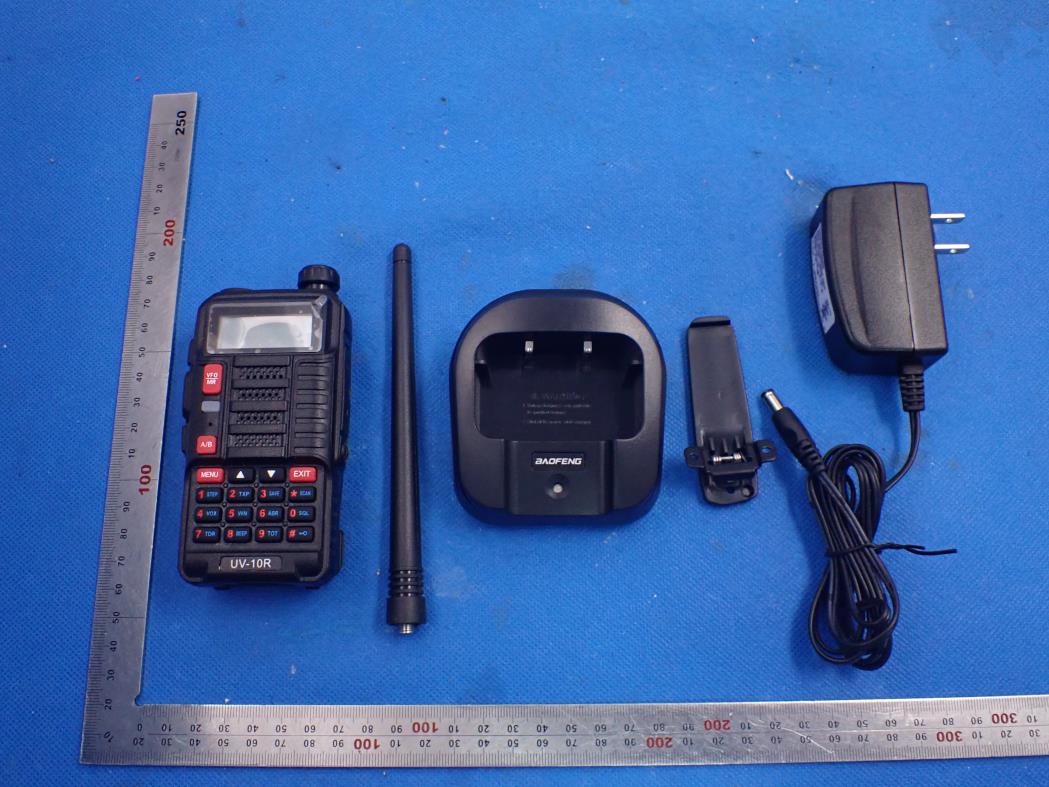

External Photos ALL VIEW OF SERIAES MODEL ALL VIEW OF SERIES MODEL-BACK VIEW All VIEW OF EUT TOP VIEW OF EUT Antenna BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

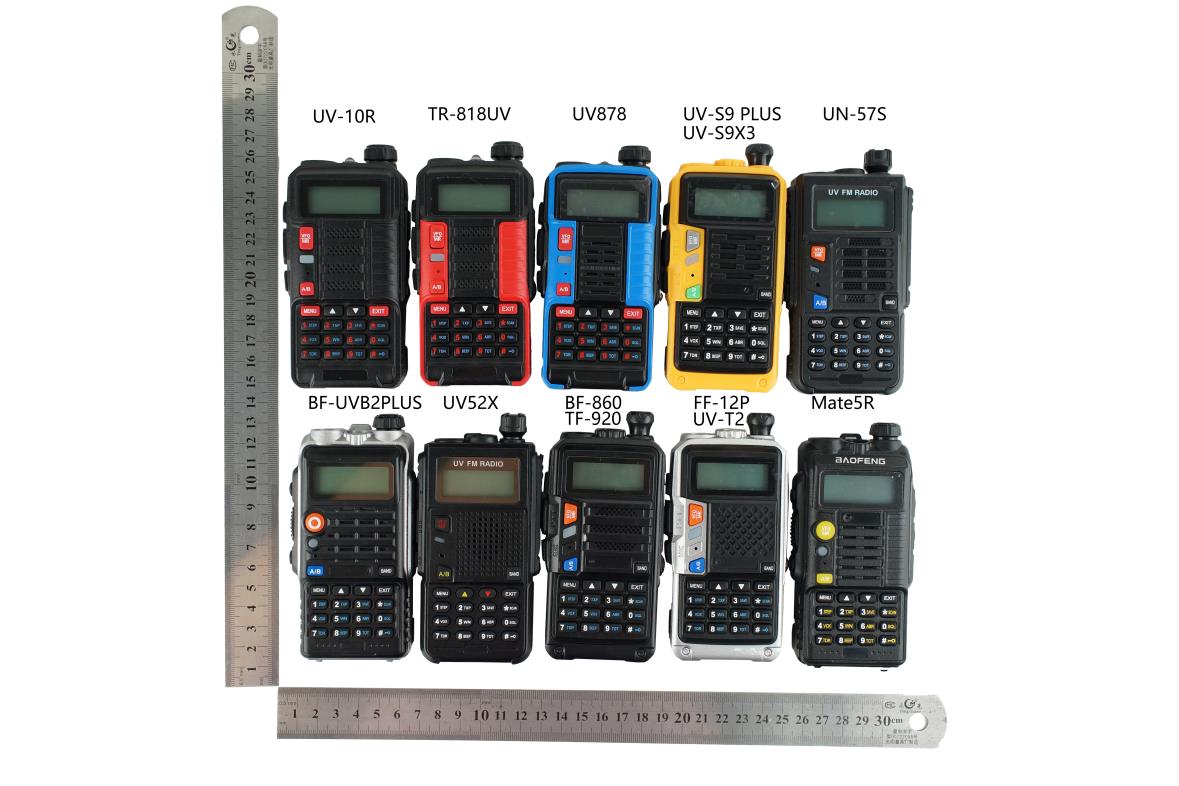

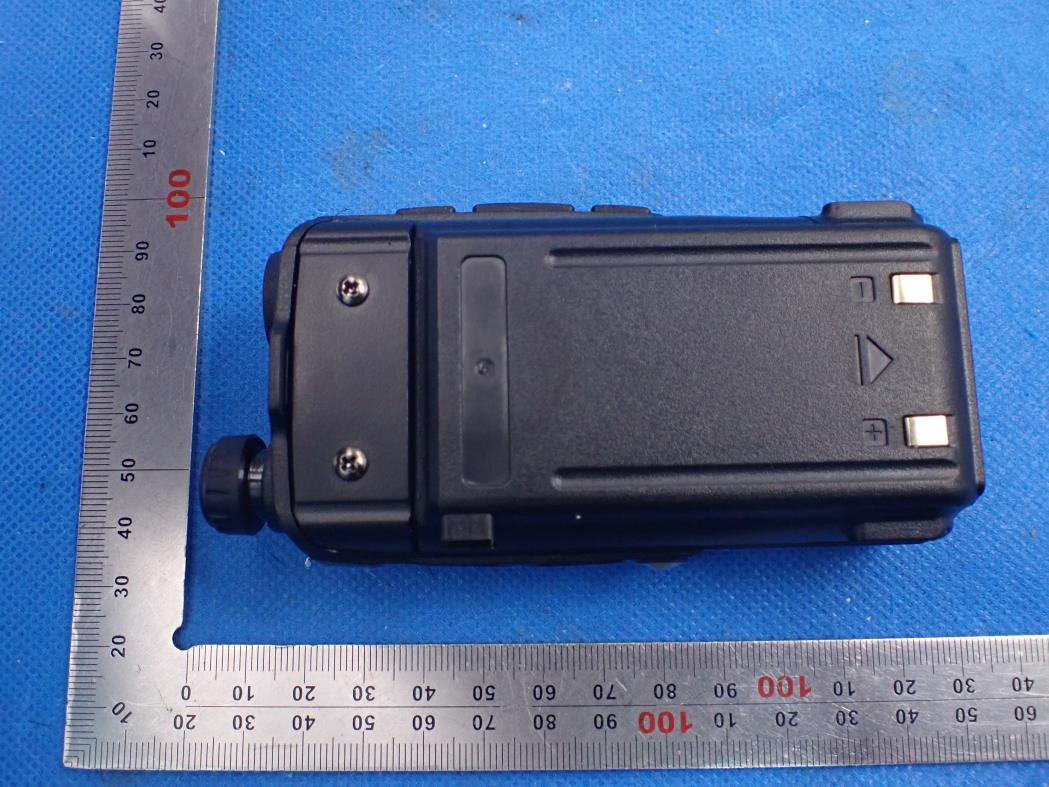

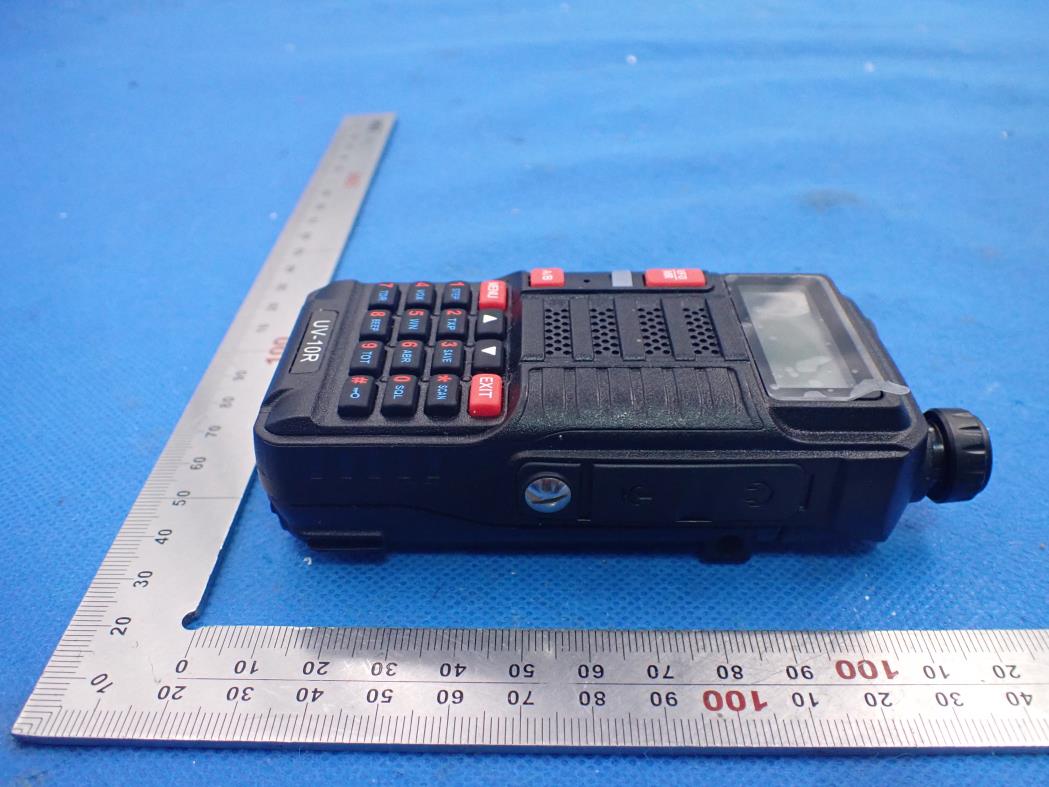

Page 1 of 12 EUT PHOTO Report No.: AGC02294210301AP01 PRODUCT DESIGNATION : Two-way Radio BRAND NAME : POFUNG,BAOFENG MODEL NAME : UV-10R, UV-10R, TR-818UV, BF-UVB2PLUS, UV-T2, UV878, FF-12P, UV-S9X3, UV-S9 PLUS, Mate5R, UV52X, BF-860, TF-920 APPLICANT : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY DATE OF ISSUE : Mar. 22, 2021 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC02294210301AP01 Page 2 of 12 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 22, 2021 Valid Initial release Report No.: AGC02294210301AP01 Page 3 of 12 PHOTO GRAPHS OF EUT ALL VIEW OF SERIAES MODEL ALL VIEW OF SERIES MODEL-BACK VIEW Report No.: AGC02294210301AP01 Page 4 of 12 All VIEW OF EUT TOP VIEW OF EUT Antenna Report No.: AGC02294210301AP01 Page 5 of 12 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC02294210301AP01 Page 6 of 12 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC02294210301AP01 Page 7 of 12 RIGHT VIEW OF EUT OPEN VIEW OF EUT(FIGURE 1) Report No.: AGC02294210301AP01 Page 8 of 12 OPEN VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 1) Report No.: AGC02294210301AP01 Page 9 of 12 INTERNAL VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 3) Report No.: AGC02294210301AP01 Page 10 of 12 INTERNAL VIEW OF EUT(FIGURE 4) INTERNAL VIEW OF EUT(FIGURE 5) Report No.: AGC02294210301AP01 Page 11 of 12 INTERNAL VIEW OF EUT(FIGURE 6) INTERNAL VIEW OF EUT(FIGURE 7) Report No.: AGC02294210301AP01 Page 12 of 12 INTERNAL VIEW OF EUT(FIGURE 8) INTERNAL VIEW OF EUT (FIGURE 9) ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

FCC ID Label Location WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBIITED UNDER IC RULES AND FEDERRAL LAW.

Internal Photos OPEN VIEW OF EUT(FIGURE 1) OPEN VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 4) INTERNAL VIEW OF EUT(FIGURE 5) INTERNAL VIEW OF EUT(FIGURE 6) INTERNAL VIEW OF EUT(FIGURE 7) INTERNAL VIEW OF EUT(FIGURE 8) INTERNAL VIEW OF EUT (FIGURE 9)

Page 1 of 27 FCC Test Report Report No.: AGC02294210301FE08 FCC ID : 2AJGM-UV10R PRODUCT DESIGNATION : Two-way Radio BRAND NAME : POFUNG,BAOFENG MODEL NAME : UV-10R, TR-818UV, BF-UVB2PLUS, UV-T2, UV878, FF-12P, UV-S9X3, UV-S9 PLUS, Mate5R, V52X,BF-860, TF-920, UN-57S APPLICANT : PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY DATE OF ISSUE : Mar. 22, 2021 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC02294210301FE08 Page 2 of 27 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 22, 2021 Valid Initial release Report No.: AGC02294210301FE08 Page 3 of 27 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 4 2. PRODUCT INFORMATION ........................................................................................................................... 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION .............................................................. 6 4. SUPPORT EQUIPMENT LIST ....................................................................................................................... 7 5. SYSTEM DESCRIPTION ............................................................................................................................... 7 6. MEASUREMENT UNCERTAINTY................................................................................................................. 8 7. SUMMARY OF TEST RESULTS ................................................................................................................... 8 8. FCC RADIATED EMISSION TEST ................................................................................................................ 9 8.1 PROVISIONS APPLICABLE ................................................................................................................. 9 8.2 TEST SETUP BLOCK DIAGRAM ......................................................................................................... 9 8.3 TEST PROCEDURE ........................................................................................................................... 11 8.4 TEST RESULT .................................................................................................................................... 12 9. FCC CONDUCTED EMISSION TEST ......................................................................................................... 16 9.1 PROVISIONS APPLICABLE ............................................................................................................... 16 9.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 16 9.3 TEST PROCEDURE ........................................................................................................................... 17 9.4 TEST RESULT .................................................................................................................................... 18 10. ANTENNA CONDUCTED POWER FOR RECEIVERS ............................................................................. 20 10.1 PROVISIONS APPLICABLE ............................................................................................................. 20 10.2 TEST SETUP BLOCK DIAGRAM ..................................................................................................... 20 10.3 TEST PROCEDURE ......................................................................................................................... 20 10.4 TEST RESULT .................................................................................................................................. 21 11. SANNING RECEIVERS AND FREQUENCY CONVERTERS USED WITH SANNING RECEIVERS ....... 23 11.1 PROVISIONS APPLICABLE ............................................................................................................. 23 11.2 TEST SETUP BLOCK DIAGRAM ..................................................................................................... 23 11.3 TEST PROCEDURE ......................................................................................................................... 23 11.4 TEST RESULT .................................................................................................................................. 24 APPENDIX I PHOTOGRAPHS OF TEST SETUP ........................................................................................... 25 APPENDIX II: PHOTOGRAPHS OF EUT ........................................................................................................ 27 Report No.: AGC02294210301FE08 Page 4 of 27 1. VERIFICATION OF COMPLIANCE Applicant: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Manufacturer: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Factory: PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Product Designation Two-way Radio Brand Name POFUNG,BAOFENG Test Model UV-10R Series Model TR-818UV, BF-UVB2PLUS, UV-T2, UV878, FF-12P, UV-S9X3, UV-S9 PLUS, Mate5R, UV52X, BF-860 ,TF-920,UN-57S Difference Description Only the product shell line design & model are different Measurement Procedure: ANSI C63.4: 2014 Deviation: No any deviation from the test method. Date of Test: Mar. 15, 2021~Mar. 22, 2021 Condition of Test Sample: Normal Test Result: Pass Report Template； AGCRT-US-PTT/EMC The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this r…

Text truncated - open the document above for the full version.

Test Setup Photos CONDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP-BELOW 1GHZ RADIATED EMISSION TEST SETUP-ABOVE 1GHZ
