2AJU8-RG34XXSPHandheld Game Console

3. Game Import Insert a FAT32 formatted memory card into the external card slot of the game console, and a new folder for each platform will be created. Just put the game in the folder and select the game in the game rooms. Supported platform are: ported games,PSP,PS1, N64,DC,NDS,ARCADE,GBA,GBC,GB,SFC,FC,MAME,MD, GG,PCE,Sega32x,NGPC,SMS,WSC 6.Indicator light and charging function The packaging of the machine is matched with a 5V/1.5A four-lines charging data cable. Plug in the charging cable and the machine will start charging. RG 34XXSP has two indicators, the down is the charging indicator, and the Up is the working indicator. The following light color and status table: Green light Red light Yellow light Working Low power Charging 7.RA Emulator Shortcuts Menu Menu+R2 Menu+L2 Menu+R1 Menu+L1 Menu+Y Menu+B Menu+X Menu+START Menu+ -VOL+ Menu+Left/Right Direction Menu Fast Forward Slow Motion Save State Load State Display Frame Rate Screenshot Pause Quit Adjust Brightness Select Save State Slot Language Settings Backlight Brightness Select Settings -> Backlight Brightness in the main interface. There are 8 levels of backlight brightness. Backlight Time Select Settings -> Backlight Time in the main interface. There are 1 minutes, 2 minutes, 5 minutes, 10 minutes, and always on. The screen backlight will be turned off after the set time has elapsed. Key Customization Button Custom: Select Settings -> Button Custom in the main interface. You can customize the button mapping of the body buttons or the gamepad. Select Settings -> Language Settings in the main interface. Available languages are: Chinese, English, Japanese, Korean, Russian, French, German, Spanish, Portuguese 4.Common Settings Game quality divided into high-definition, scan line, fast, dot matrix. Different options will present different screen filter display effects. RG 34XXSP Instructions 2.Game Buttons and Ports Catalogs 1 2 3 4 5 6 Main interface operation Game Buttons and Ports Game Import Common Settings Game Settings 7 8 Indicator light and charging function Online Play RA Emulator Shortcuts Game quality divided into high-definition, scan line, fast, dot matrix. Different options will present different screen filter display effects. Bluetooth Settings First, select Settings->Bluetooth Settings in the main interface, select Enable Bluetooth, and press the X key to scan for devices in the Search device. Finally, select the controller you want to connect according to the device name. Game streaming First, make sure that the game console and the computer are under the same WIFI. Select Settings -> moonlight in the main interface. Enter the IP address of the computer to start pairing. Enter the PIN code to pair successfully and select Connect. During streaming, press menu+START to exit streaming. 5. Game Settings 8.Online Play AB First make sure the two consoles are on the same WIFI Note down the IP addresses of the two consoles by going to NETWORK SETTINGS ->IP ADDRESS In the RetroArch, enter the same game and call out the menu through the menu Set it up with the following steps: Game console A (host) Select Netplay->Host->Start Netplay Host Game console B (slave) Select Netplay->Connect to Netplay Host, enter the IP address and press the START button to connect successfully Main Interface Menu: 1. Main interface operation 2 3 4 5 6 RA Game Favorites Search History App Center After entering, you can choose "Internal Card" or "External Card". And select the game platform to play the game. 1 Game Rooms After entering, you can choose "Internal Card" or "External Card". And select the game platform to play the game. Press the START button in the game center to collect the game, and the game will appear in this section. The run game will appear in this section. History can be cleared in settings. Quickly search games from memory cards. The X key deletes the keyword and the Y key confirms the search result. 7 Settings Contains all settings for theRG 34XXSP. Including language settings, backlight settings, background settings, etc. Including video player，music player, e-book, file manager, expert mode. 1234567 RG 34XXSP RG 34XXSP Right shoulder button(R2) Right shoulder button(R1) TF1/INT. TF2/EXT. Left shoulder button(L2) Left shoulder button(L1) SELECT START Indicator light Power key D-Pad MENU Game keys RESET HD -VOL+ OTG/USB Left joystick Right joystick FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment…

Text truncated - open the document above for the full version.

Shenzhen Yangliming Electronic Technology Co., Ltd. 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/06/17 U.S. Agent Designation Shenzhen Yangliming Electronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AJU8-RG34XXSP): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Yangliming Electronic Technology Co., Ltd. with the FRN [0025906058] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Yingxin Yin Manager Shenzhen Yangliming Electronic Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

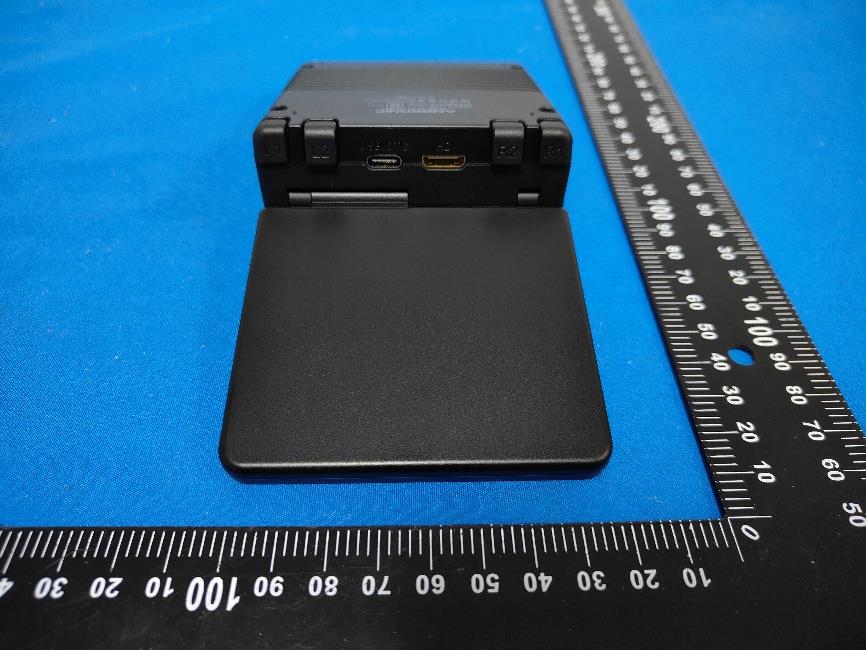

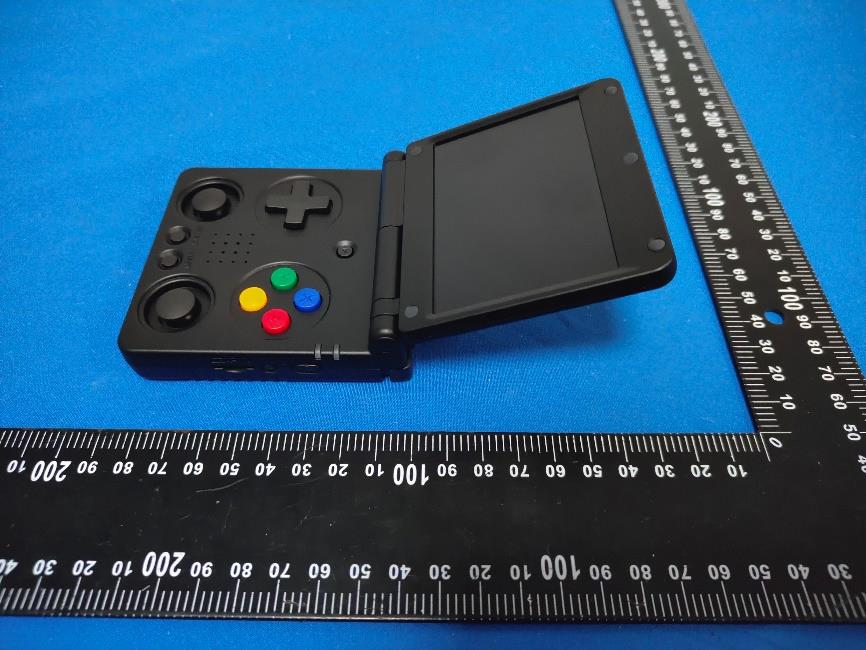

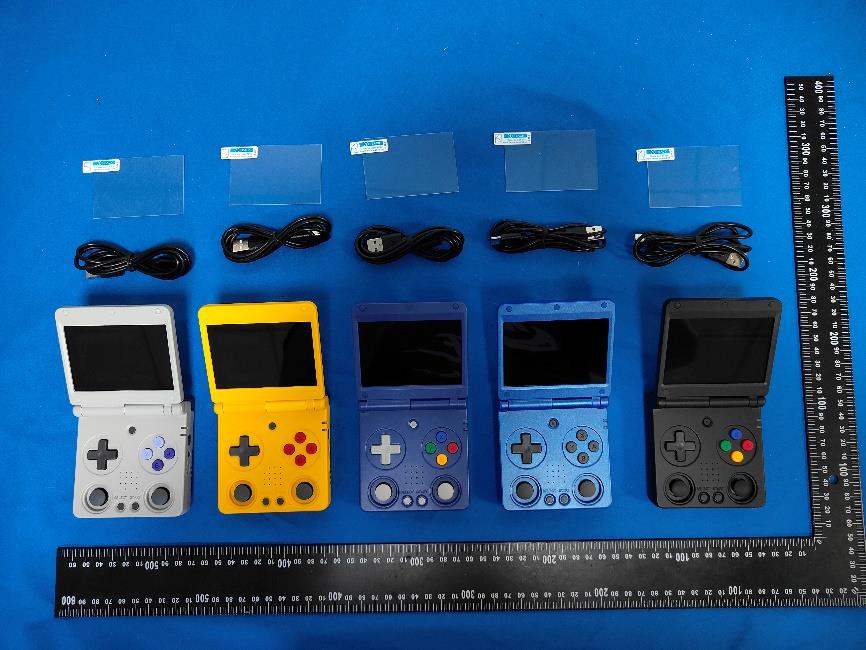

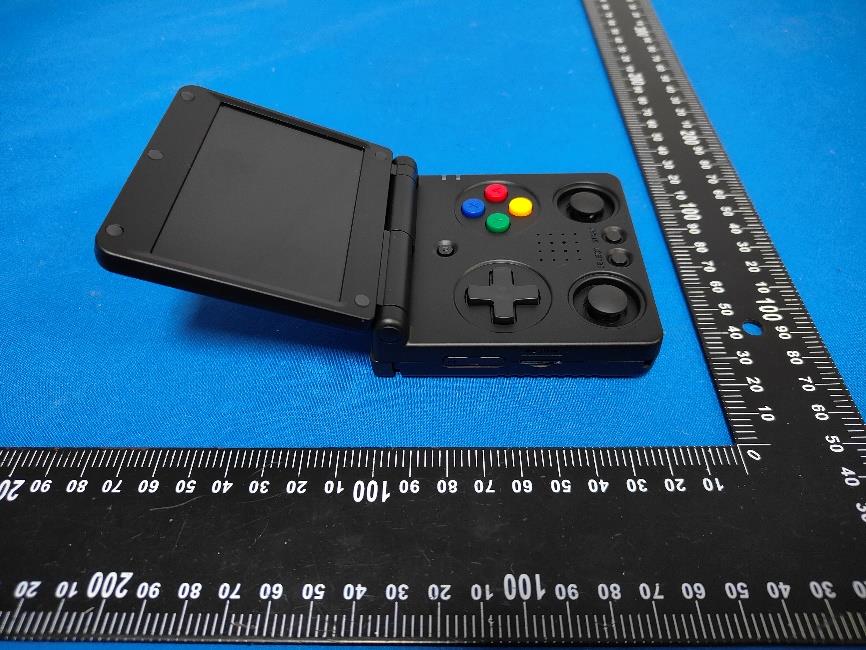

FCC ID: 2AJU8-RG34XXSP External Photos of the EUT FCC ID: 2AJU8-RG34XXSP FCC ID: 2AJU8-RG34XXSP

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2AJU8-RG34XXSP

FCC ID: 2AJU8-RG34XXSP Internal Photos of the EUT ANT FCC ID: 2AJU8-RG34XXSP FCC ID: 2AJU8-RG34XXSP FCC ID: 2AJU8-RG34XXSP

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26060900903 2AJU8-RG34XXSP Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 15, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Yangliming Electronic Technology Co., Ltd. Address............................................ : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Handheld Game Console Trade Mark ....................................... : ANBERNIC Manufacturer .................................... : Shenzhen Yangliming Electronic Technology Co., Ltd. Model/Type reference ...................... : RG 34XXSP Listed Models ................................... : RG 34XX, RG CubeXX, RG 40XXV, RG 40XXH, RG SP, RG DS, RG DDS, RG DS Pro Rating ............................................... : Input: DC 5V Battery: 3.7V 3300Ah 12.2Wh Result ............................................... : PASS Report No.: CTA26060900903 Page 2 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Handheld Game Console Model /Type : RG 34XXSP Listed Models : RG 34XX, RG CubeXX, RG 40XXV, RG 40XXH, RG SP, RG DS, RG DDS, RG DS Pro Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model RG 34XXSP and the test results for the main test model can cover the listed models. Applicant : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Manufacturer : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26060900903 Page 3 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance .......................................................................................... 9 4.4 Evaluation Result ..................................................................................................... 9 4.5 Simultaneous Transmission for SAR Exclusion ...................................................…

Text truncated - open the document above for the full version.

规 格 承 认 书 SPECIFICATION FOR APPROVAL 日 期 Date 2025/04/02 编 号 File No 25040201 版 本 Revision 1.0 客户 品名 PART N AME: WIFI Antenn C U S T O M E R 客 CUS 户 TOM 料 ER 号 NO: RG34XXSP a 供 方 料 号 SUPPLIERNO: YJW01.137.182.301A SUPPLIERNO: YJW01.137.182.301A 送样日期Date: 送样数量Q'TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN ChenGuoqiangXieLiChenXingyi YJ-RD-F04-A 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面（Spec Cover） 11 2 承认书项目表（Spec Item ） 12 3 工程成品图（Drawing） 13 4 天线规格（Antenna Specification） 14 5 S参数测试（S Parameter ） 15 5 S参数测试（S Parameter ） 15 6 无源测试（Passive Test ） 36 ~ 8 7 方向图（Radiation Pattern ） 79 ~ 15 8 天线装配图（Antenna Profile） 216 ~ 17 9 材质证明（Material Certificate ） 3118 ~ 48 10 RoHS报告（RoHSTest Report ） **** 11N/AN/AN/A 12--- 13--- 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz 5.15-5.85GHz Impedance50 Ohm Nominal V.S.W.R 2.0 [email protected] 4.5 [email protected] Gain -0.2 [email protected] -0.1 [email protected] RadiationOmni-directional PolarizationLinear Physical Properties ConnectorNone Cable TypeNone Cable LengthNone Cable ColorNone Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% Agilent E5071C S Antenna Performance Test S Parameter Test // WiFi Antenna Z Y X Antenna Passive Test Y X Z Passive Test For WiFi Antenna Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 240020.1 -7.0 -0.4 241020.3 -6.9 -0.4 242020.7 -6.8 -0.3 243021.3 -6.7 -0.2 244021.2 -6.7 -0.3 245021.0 -6.8 -0.4 246020.7 -6.8 -0.4 247020.8 -6.8 -0.4 248020.1 -7.0 -0.4 249020.0 -7.0 -0.5 250018.8 -7.3 -0.9 Passive Test For WiFi Antenna Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 515017.7 -7.5 -3.8 520022.0 -6.6 -3.2 525024.6 -6.1 -2.8 530025.4 -6.0 -2.2 535025.8 -5.9 -2.1 540029.8 -5.3 -1.2 545027.2 -5.7 -1.6 550024.2 -6.2 -1.6 555029.5 -5.3 -0.3 560027.2 -5.7 -0.4 565021.3 -6.7 -1.0 570024.7 -6.1 -0.3 575026.1 -5.8 -0.1 580019.7 -7.1 -1.3 585020.6 -6.9 -1.3 Radiation Pattern For WiFiAntenna （ 2400MHz ） Radiation Pattern For WiFiAntenna （ 2450MHz ） Radiation Pattern For WiFiAntenna （ 2500MHz ） Radiation Pattern For WiFiAntenna （ 5150MHz ） Radiation Pattern For WiFiAntenna （ 5500MHz ） Radiation Pattern For WiFiAntenna （ 5850MHz ） RadiationPatternForWiFiAntenna Phi0° Phi90° Theta90° Device WiFi Antenna WiFi ANT PSM-800FSDM-A/SMH-800 ， 安 全 資 料 表 1 版權 2021-01-10 First, chemical products and materials for business Chemical name: PSM-800FSDM-A/SMH-800 liquid solid plate ink Other names: Use and restricted use of construction: flexible printed circuit board (PI/Cu), hand machine roof board Name, address and address of the creator, entrant or supplier: Creator: Yueli Reachability Co., Ltd. Address: No.22 Jingjian Fourth Road, Guanyin District, Taoyuan City: 886-3- 4836651 Urgent/true: 886-3-4836651, true: 886-3-4837487 Second, the hazard identification of resources and materials Hazard classification of chemical products: Health and environmental hazards: Acute toxicity (swallowing) 4, rot/skin irritation 2, heavy weight/eye irritation 2, skin Pass sensitive substance first, carcinogenic substance second, and hazardous substance second (acute toxicity). Indication of content: S y m b o l n u m b e r : Warning language: Warning hazard warning interest: Harmful to swallow Cause skin irritation Causing severe eye irritation may cause skin hypersensitivity and suspected carcinogenesis Toxic to aquatic organisms Hazard prevention measures: Put the container in a place with good ventilation far away from the high temperature Do not eat or drink when using Remove the blindfold/face mask immediately when your clothes are contaminated If you touch your eyes, wash them with plenty of water immediately, and then ask the mud to wear suitable gloves Do not inhale gas/gas/steam gas/gas before use Place it in the upper lock Do not place until you know all safety precautions Avoid releasing release in the environment Other hazards:- III. Composition identification of PSM-800FSDM-A/SMH-800 ， 安 全 資 料 表 2 版權 2021-01-10 capital mixture: Liquid solid plate ink PSM-800FSDM-A/SMH-800 Chemical geology: Chinese and English names of hazardous components Register number of Chemical Digest Service (CAS No.) Degree or degree (percentage of components) Oxygen acrylate oligmer Epoxy acrylate oligmer 28064-14-4 50% Silicon dioxide Fused silica 7631-86-9 13% Aromatic solution 64742-94-5 4% PSM-800FSDM-A/SMH-800 ， 安 全 資 料 表 3 版權 2021-01-10 Methyl dipropylene glycol 34590-94-8 4% Carbon black 1333-86-4 3.5% BaSO4 sulfate 13462-86-7 24% Photoinitiator and the others 5495-84-1 1.5% Fourth, first aid measures First aid methods for the same road: Inhalation: 1. Take self-protection measures before rescue. 2. Remove pollution sources or move patients to new places. 3. If a patient stops breathing, artificial respiration should be given immediately by the person who has been adalmed. If the heart stops, cardiopulmonary resuscitation should be given. When the patient inhales and swallows toxic substances, mouth-to-mouth artificial respiration should be used directly, and pocket masks and other medical equipment should be used for artificial respiration. 4. Maintain the patient's safety and normal temperature. 6. Treat the cure quickly. Pi Mo: Wash the contaminated area with harmonious water for at least 20 minutes, and remove contaminated clothes, shoes and leather products before water. Eye touching: Immediately open the eyelids and wash the contaminated eyes with water for at least 20 minutes, and immediately take care of them. Intake: 1. If the patient will be frustrated, or has been frustrated, he can feed anything. 2. It can induce vomiting and give 240-300ml of water. 3. If you vomit spontaneously, rinse your mouth and supply water repeatedly. The most important diseases and harmful effects:- Protection against first aid workers:- Tips for doctors:- V. Fire measures Suitable for fire: chemical dry powder, wine foam, carbon dioxide, water, fire: water, water, foam water. Special ha…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26060900902 2AJU8-RG34XXSP Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 15, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Yangliming Electronic Technology Co., Ltd. Address ............................................ : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Handheld Game Console Trade Mark ....................................... : ANBERNIC Manufacturer .................................... : Shenzhen Yangliming Electronic Technology Co., Ltd. Model/Type reference ...................... : RG 34XXSP Listed Models ................................... : RG 34XX, RG CubeXX, RG 40XXV, RG 40XXH, RG SP, RG DS, RG DDS, RG DS Pro Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: DC 5V Battery: 3.7V 3300Ah 12.2Wh Result ............................................... : PASS Report No.: CTA26060900902 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Handheld Game Console Model /Type : RG 34XXSP Listed Models : RG 34XX, RG CubeXX, RG 40XXV, RG 40XXH, RG SP, RG DS, RG DDS, RG DS Pro Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model RG 34XXSP and the test results for the main test model can cover the listed models. Applicant : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Manufacturer : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26060900902 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ...............................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2AJU8-RG34XXSP Company : Shenzhen Yangliming Electronic Technology Co., Ltd. EUT : Handheld Game Console Model Number : RG 34XXSP Report No. : CTA26060900902 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.960 2467.160 0.5 PASS 11G Ant1 2412 15.880 2404.000 2419.880 0.5 PASS 2437 15.600 2429.080 2444.680 0.5 PASS 2462 15.680 2454.040 2469.720 0.5 PASS 11N20SISO Ant1 2412 16.800 2403.680 2420.480 0.5 PASS 2437 16.320 2429.120 2445.440 0.5 PASS 2462 16.080 2454.320 2470.400 0.5 PASS 11N40SISO Ant1 2422 35.840 2404.320 2440.160 0.5 PASS 2437 35.760 2419.320 2455.080 0.5 PASS 2452 35.360 2434.720 2470.080 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.498 2405.2671 2418.7651 --- --- 2437 13.481 2430.2842 2443.7652 --- --- 2462 13.479 2455.2962 2468.7752 --- --- 11G Ant1 2412 16.880 2403.5920 2420.4720 --- --- 2437 16.836 2428.6165 2445.4525 --- --- 2462 16.830 2453.6648 2470.4948 --- --- 11N20SISO Ant1 2412 17.982 2403.0595 2421.0415 --- --- 2437 17.848 2428.0921 2445.9401 --- --- 2462 17.836 2453.1217 2470.9577 --- --- 11N40SISO Ant1 2422 36.089 2404.1035 2440.1925 --- --- 2437 36.136 2419.0556 2455.1916 --- --- 2452 36.104 2434.0978 2470.2018 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[M Hz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 6.48 ≤30.00 PASS 2437 6.47 ≤30.00 PASS 2462 6.29 ≤30.00 PASS 11G Ant1 2412 6.06 ≤30.00 PASS 2437 5.79 ≤30.00 PASS 2462 5.84 ≤30.00 PASS 11N20SISO Ant1 2412 5.86 ≤30.00 PASS 2437 5.59 ≤30.00 PASS 2462 5.55 ≤30.00 PASS 11N40SISO Ant1 2422 4.95 ≤30.00 PASS 2437 5.11 ≤30.00 PASS 2452 5.34 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -20.88 ≤8.00 PASS 2437 -20.39 ≤8.00 PASS 2462 -20.13 ≤8.00 PASS 11G Ant1 2412 -25.50 ≤8.00 PASS 2437 -25.70 ≤8.00 PASS 2462 -26.11 ≤8.00 PASS 11N20SISO Ant1 2412 -25.63 ≤8.00 PASS 2437 -25.71 ≤8.00 PASS 2462 -26.20 ≤8.00 PASS 11N40SISO Ant1 2422 -27.59 ≤8.00 PASS 2437 -27.71 ≤8.00 PASS 2452 -27.41 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -6.87 -56.31 ≤-26.87 PASS High 2462 -6.53 -57.85 ≤-26.53 PASS 11G Ant1 Low 2412 -10.46 -42.66 ≤-30.46 PASS High 2462 -10.52 -57.66 ≤-30.52 PASS 11N20SIS O Ant1 Low 2412 -10.43 -42.48 ≤-30.43 PASS High 2462 -10.66 -57.81 ≤-30.66 PASS 11N40SIS O Ant1 Low 2422 -13.57 -43.02 ≤-33.57 PASS High 2452 -13.37 -57.61 ≤-33.37 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_An…

Text truncated - open the document above for the full version.
