2AJU8-RG476HHandheld Game Console

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AJU8-RG476H RG 476H, RG 477V, RG 477M, RG 556, RG 557, RG Slide, RG DS We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2025-11-25 Signature Date: 2025-11-25 Company Name: HOORAY INDUSTRY LLC Shenzhen Yangliming Electronic Technology Co., Ltd. FRN: 0033926106 0025906058 Contact Name: Cindy Wu Yingxin Yin Address: 1408 Pinon Place Fullerton, CA 92835 United States 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District, Shenzhen, China Phone: (626) 910-5808 15099921439 Email: [email protected] [email protected]

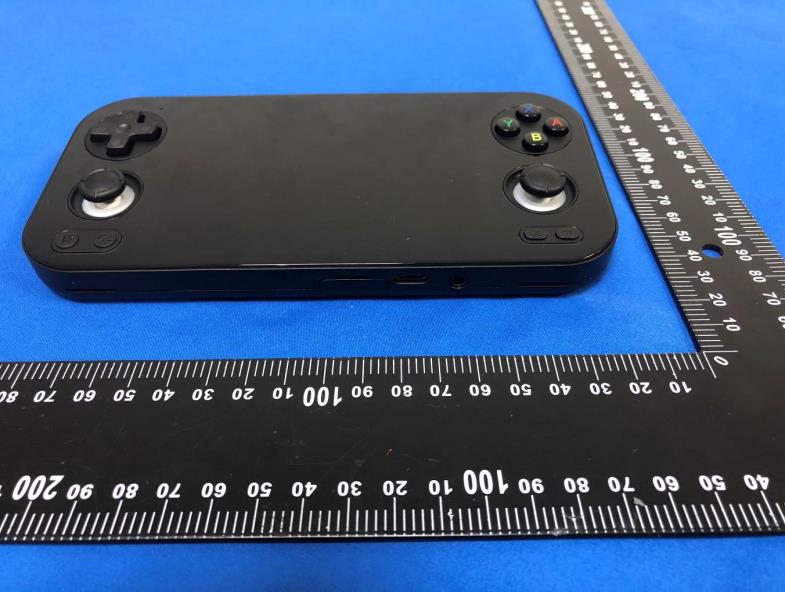

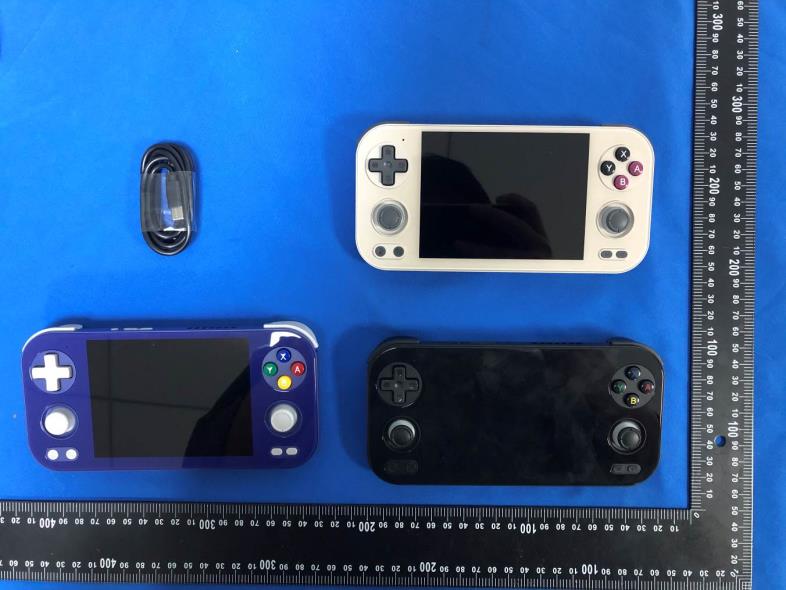

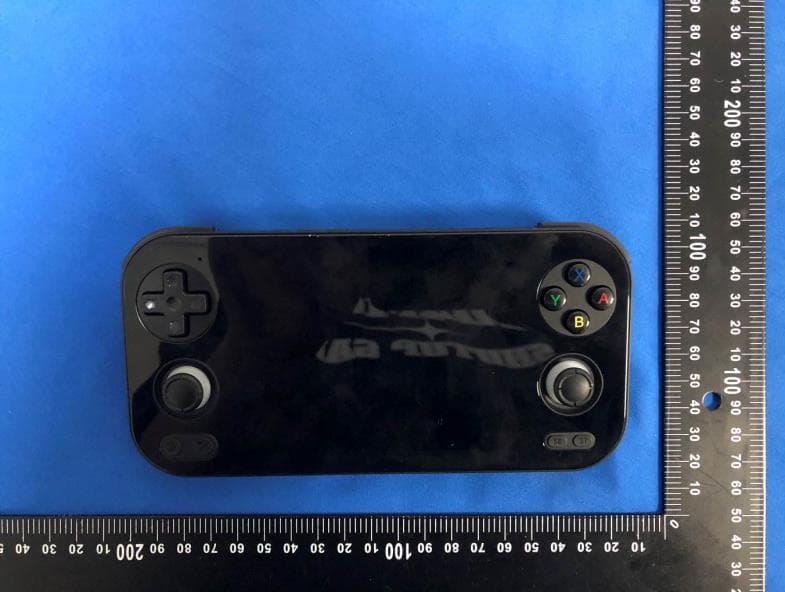

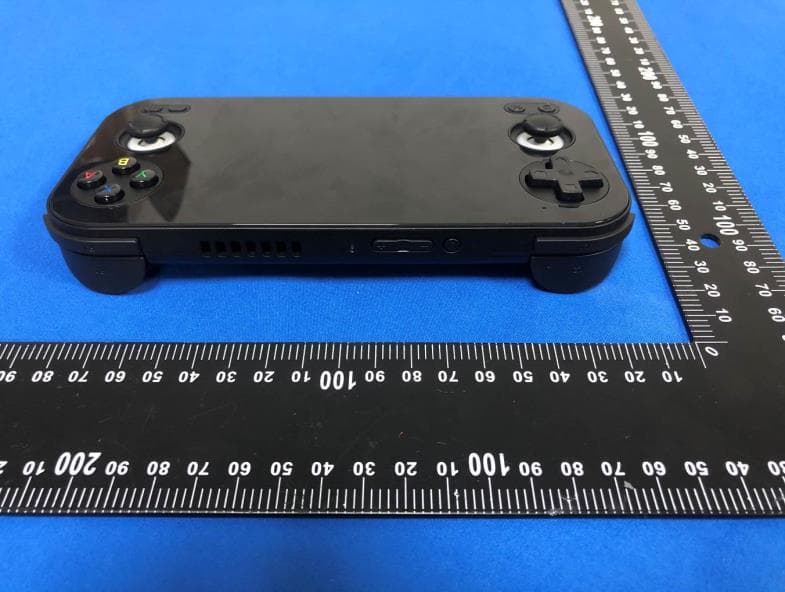

FCC ID: 2AJU8-RG476H External Photos of the EUT FCC ID: 2AJU8-RG476H FCC ID: 2AJU8-RG476H

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2AJU8-RG476H

FCC ID: 2AJU8-RG476H Internal Photos of the EUT FCC ID: 2AJU8-RG476H FCC ID: 2AJU8-RG476H FCC ID: 2AJU8-RG476H FCC ID: 2AJU8-RG476H FCC ID: 2AJU8-RG476H ANT

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25093000403 2AJU8-RG476H Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 13, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Yangliming Electronic Technology Co., Ltd. Address............................................ : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Handheld Game Console Trade Mark ........................................ ANBERNIC Manufacturer .................................... : Shenzhen Yangliming Electronic Technology Co., Ltd. Model/Type reference ...................... : RG 476H Listed Models ................................... : RG 477V, RG 477M, RG 556, RG 557, RG Slide, RG DS Rating ............................................... : DC 3.8V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25093000403 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Handheld Game Console Model /Type : RG 476H Listed Models : RG 477V, RG 477M, RG 556, RG 557, RG Slide, RG DS Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Manufacturer : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25093000403 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: C…

Text truncated - open the document above for the full version.

规格承认书 SPECIFICATION FOR APPROVAL 日期 Date 2025/07/25 编号 File No 25072501 版本 Revision 1.0 客户 CUSTOMER: 客户料号 CUSTOMER NO: RG476H 品名 PARTNAME: WIFI双频Antenna 供方料号 SUPPLIERNO: YJW01.137.198.301A SUPPLIERNO: YJW01.137.198.301A 送样日期Date: 送样数量Q'TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR APPROVA 供方确认SUPPLIERSIGNATURE LCHECKDESIGN ChenGuoqiangXieLiChenXingyi TENGITECHNOLOGYCOMPANYLIMITED YJ-RD-F04-A 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面（Spec Cover） 11 2 承认书项目表（Spec Item ） 12 3 工程成品图（Drawing） 13 4 天线规格（Antenna Specification） 14 5 S参数测试（S Parameter ） 15 5 S参数测试（S Parameter ） 15 6 无源测试（Passive Test ） 26 ~ 7 7 方向图（Radiation Pattern ） 88 ~ 15 8 有源测试（Active Test ） 116 9 天线装配图（Antenna Profile） 317 ~ 19 10 材质证明（Material Certificate ） 2520 ~ 44 11 RoHS报告（RoHSTest Report ） **** 12N/AN/AN/A 13--- 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz 5.15-5.85GHz Impedance50 Ohm Nominal V.S.W.R 2.5 [email protected] 3.0 [email protected] Gain 2.4 [email protected] 3.1 [email protected] RadiationOmni-directional RadiationOmni-directional PolarizationLinear Physical Properties ConnectorNone Cable TypeNone Cable LengthNone Cable ColorNone Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% Agilent E5071C S S Parameter Test // WiFi Antenna Passive Test For WiFiAntenna(2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 47.0 -3.3 2.1 2410 47.6 -3.2 2.1 2420 47.8 -3.2 2.0 2430 48.5 -3.1 2.1 2440 47.9 -3.2 1.8 2450 48.3 -3.2 2.1 2460 44.7 -3.5 1.9 2470 46.2 -3.4 2.4 2480 43.8 -3.6 2.0 2490 43.3 -3.6 2.1 2500 38.7 -4.1 1.5 Passive Test For WiFiAntenna(5.8G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 5150 59.0 -2.3 3.1 5200 55.3 -2.6 3.0 5250 49.1 -3.1 2.8 5300 46.3 -3.3 2.2 5350 45.8 -3.4 1.9 5400 47.0 -3.3 1.6 5450 44.6 -3.5 1.5 5500 39.4 -4.1 0.7 5550 43.3 -3.6 1.5 5600 46.5 -3.3 1.8 5650 40.6 -3.9 1.4 5700 39.2 -4.1 1.5 5750 47.3 -3.3 1.8 5800 40.9 -3.9 1.2 5850 32.7 -4.9 0.1 Radiation Pattern For WiFiAntenna （ 2400MHz ） Radiation Pattern For WiFiAntenna （ 2450MHz ） Radiation Pattern For WiFiAntenna （ 2500MHz ） Radiation Pattern For WiFiAntenna Phi 0° Phi 90° Theta 90° Radiation Pattern For WiFiAntenna （ 5150MHz ） Radiation Pattern For WiFiAntenna （ 5500MHz ） Radiation Pattern For WiFiAntenna （ 5850MHz ） Radiation Pattern For WiFiAntenna Phi 0° Phi 90° Theta 90° Active Test For WiFiAntenna BandChannel Data Rate TRP EIRP Data Rate TISEIS WIFI 2.4G 802.11b 1 11Mbps 15.4 17.9 11Mbps -81.1 -82.6 6 18.6 21.1 -83.3 -85.8 11 16.6 19.5 -82.3 -83.3 Antenna Active Test WIFI 2.4G 802.11g 1 6Mbps 14.2 16.6 54Mbps -73.3 -75.3 6 16.5 19.0 -75.6 -78.1 11 15.0 18.1 -74.2 -77.2 WIFI 5G 802.11a 149 6Mbps 14.3 19.8 54Mbps -73.0 -79.1 157 13.5 19.0 -72.6 -78.6 165 13.1 19.1 -72.5 -78.5 Device WiFi Antenna WiFi天线 Material safety data (MSDS) 1、 Item and manufacturer information page: 1 / 2 Item name: FPC antenna electroplated nickel and gold (flexible printed circuit) Other names: FPC nickel gold coating Recommended use and restricted use: communication products Name of manufacturer or supplier: Dongguan Xiaoge Electronic Technology Co., Ltd Address of manufacturer or supplier: 1 / 2 / F, Sanxing Road, Fenghuang Middle Road, Shajiao community, Humen Town, Dongguan City Emergency contact / Fax: 2、 Hazard identification data Hazard classification: other dangerous substances, acute toxic substances, grade 4 (swallowing, skin, inhalation) Label content: Symbols: other dangerous objects, exclamation marks Warning: warning Hazard warning message: harmful if swallowed, harmful if inhaled Hazard prevention measures: put the container in a well ventilated place; avoid contact with skin and eyes; in case of accident or discomfort, consult medical treatment immediately Other hazards:- 3、 Component identification data mixture Chinese and English Name: nickel CAS no.7440-02-0 percentage 98.95% Gold CAS no.7440-57-5 percentage 1% Brightener CAS no.6155-57-3 percentage 0.05% Synonymous Name: gold finger nickel gold layer Case No Composition of hazardous substances (percentage of components) 4、 First aid measures First aid methods for different exposure routes: Inhalation: - irritates respiratory tract Skin contact: wash the contact area with soap and water Eye contact: flush with plenty of water for more than 15 minutes and seek medical assistance Ingestion: drink plenty of water and seek medical assistance The most important symptom and harmful effect: irritant. Protection of first-aid personnel: wear class C protective equipment to implement first aid in safe area Tips for doctors: patients should be given oxygen when inhaled.When swallowing, consider gastric lavage. 5、 Fire fighting measures Suitable extinguishing agent: Carbon dioxide, chemical powder, water mist, alcohol foam. Special hazards that may be encountered during fire fighting: When heated to dry, the salt will decompose to produce carbon monoxide and carbon dioxide. Special fire fighting procedures: 1.Spray water mist to cool containers exposed to fire.2. Spray water to wash away the leakage to avoid exposure. Special protective equipment for fire fighters: If necessary, wear a full body chemical protective respirator 6、 Physical and chemical properties page: 2 / 2 State of mattercoloursmellproportionmelting pointboiling point NI solid statesilvery whitetasteless 8.9 1453Temperature2732Temperature AU solid stateyellowtasteless 19.3 1064Temperature2807Temperature Brightenerliquid stateLight browntasteless 1.1NANA 7、Safe handling and storage methods management: Avoid contact with eyes, skin and clothing, wear personal protective equipment and do not inhale mist Storage: Store in a cool, dry place 8、 Waste disposal methods Waste disposal method: 1.According to the current laws and regulations. 2.According to the manufacturer's treatment, the waste to be treated should be treated first 3.In accordance with the relevant national and local government industrial wastewater discharge standards 9、 Leakage treatment method Personal pr…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25093000401 2AJU8-RG476H Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 13, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Yangliming Electronic Technology Co., Ltd. Address ............................................ : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Handheld Game Console Trade Mark ....................................... : ANBERNIC Manufacturer .................................... : Shenzhen Yangliming Electronic Technology Co., Ltd. Model/Type reference ...................... : RG 476H Listed Models ................................... : RG 477V, RG 477M, RG 556, RG 557, RG Slide, RG DS Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.8V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25093000401 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Handheld Game Console Model /Type : RG 476H Listed Models : RG 477V, RG 477M, RG 556, RG 557, RG Slide, RG DS Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Manufacturer : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25093000401 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2AJU8-RG476H Company : Shenzhen Yangliming Electronic Technology Co., Ltd. EUT : Handheld Game Console Model Number : RG 476H Report No. : CTA25093000401 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.939 2401.550 2402.489 --- --- 2441 0.951 2440.550 2441.501 --- --- 2480 0.954 2479.550 2480.504 --- --- 2DH5 Ant1 2402 1.320 2401.346 2402.666 --- --- 2441 1.281 2440.379 2441.660 --- --- 2480 1.281 2479.379 2480.660 --- --- 3DH5 Ant1 2402 1.317 2401.352 2402.669 --- --- 2441 1.278 2440.382 2441.660 --- --- 2480 1.308 2479.355 2480.663 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87202 2401.5732 2402.4452 --- --- 2441 0.87193 2440.5727 2441.4446 --- --- 2480 0.87121 2479.5734 2480.4446 --- --- 2DH5 Ant1 2402 1.1957 2401.4136 2402.6093 --- --- 2441 1.1852 2440.4189 2441.6041 --- --- 2480 1.1910 2479.4173 2480.6083 --- --- 3DH5 Ant1 2402 1.1896 2401.4151 2402.6047 --- --- 2441 1.1879 2440.4173 2441.6052 --- --- 2480 1.1757 2479.4204 2480.5961 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.13 ≤20.97 PASS 2441 -0.48 ≤20.97 PASS 2480 -0.84 ≤20.97 PASS 2DH5 Ant1 2402 -0.74 ≤20.97 PASS 2441 -1.27 ≤20.97 PASS 2480 -1.63 ≤20.97 PASS 3DH5 Ant1 2402 -0.69 ≤20.97 PASS 2441 -1.26 ≤20.97 PASS 2480 -1.61 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.052 ≥0.954 PASS 2DH5 Ant1 Hop 1.144 ≥0.880 PASS 3DH5 Ant1 Hop 1.164 ≥0.878 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 317 0.124 ≤0.4 PASS DH3 Ant1 Hop 1.650 154 0.254 ≤0.4 PASS DH5 Ant1 Hop 2.890 97 0.28 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 318 0.124 ≤0.4 PASS 2DH3 Ant1 Hop 1.640 155 0.254 ≤0.4 PASS 2DH5 Ant1 Hop 2.890 114 0.329 ≤0.4 PASS 3DH1 Ant1 Hop 0.390 315 0.123 ≤0.4 PASS 3DH3 Ant1 Hop 1.640 156 0.256 ≤0.4 PASS 3DH5 Ant1 Hop 2.900 104 0.302 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.04 -59.46 ≤-20.04 PASS High 2480 -0.94 -63.26 ≤-20.94 PASS Low Hop_2402 -4.02 -63.31 ≤-24.02 PASS High Hop_2480 -4.24 -63.61 ≤-24.24 PASS 2DH5 Ant1 Low 2402 -3.33 -56.08 ≤-23.33 PASS High 2480 -7.19 -59.83 ≤-27.19 PASS Low Hop_2402 -6.30 -59.1 ≤-26.3 PASS High Hop_2480 -5.39 -64.51 ≤-25.39 PASS 3DH5 Ant1 Low 2402 -3.44 -61.4 ≤-23.44 PASS High 2480 -5.24 -64.51 ≤-25.24 PASS Low Hop_2402 -5.11 -57.85 ≤-25.11 PASS High Hop_2480 -4.41 -63.78 ≤-24.41 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -1.01 -1.01 --- PASS 30~1000 -1.01 -67.66 ≤-21.01 PASS 1000~26500 -1.01 -41.95 ≤-21.01 PASS 2441 Reference -1.47 -1.47 --- PASS 30~1000 -1.47 -67.46 ≤-21.47 PASS 1000~26500 -1.47 -41.98 ≤-21.47 PASS 2480 Reference -1.92 -1.92 --- PASS 30~1000 -1.92 -67.63 ≤-21.92 PASS 1000~26500 -1.92 -43.13 ≤-21.92 PASS 2DH5 Ant1 2402 Reference -5.88 -5.88 --- PASS 30~1000 -5.88 -68.05 ≤-25.88 PASS 1000~26500 -5.88 -45.22 ≤-25.88 PASS 2441 Reference -7.39 -7.39 --- PASS 30~1000 -7.39 -67.49 ≤-27.39 PASS 1000~26500 -7.39 -44.81 ≤-27.39 PASS 2480 Reference -6.01 -6.01 --- PASS 30~1000 -6.01 -67.17 ≤-26.01 PASS 1000~26500 -6.01 -51.09 ≤-26.01 PASS 3DH5 Ant1 2402 Reference -4.32 -4.32 --- PASS 30~1000 -4.32 -67.82 ≤-24.32 PASS 1000~26500 -4.32 -46.26 ≤-24.32 PASS 2441 Reference -6.59 -6.59 --- PASS 30~1000 -6.59 -67.55 ≤-26.59 PASS 1000~26500 -6.59 -49.47 ≤-26.59 PASS 2480 Reference -7.69 -7.69 --- PASS 30~1000 -7.69 -67.53 ≤-27.69 PASS 1000~26500 -7.69 -45.86 ≤-27.69 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000

36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 2DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 3DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480

FCC ID: 2AJU8-RG476H Test Setup Photos of the EUT FCC ID: 2AJU8-RG476H
