2AJU8-RGROTATEHandheld Game Console

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Yangliming Electronic Technology Co., Ltd. 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/06/17 U.S. Agent Designation Shenzhen Yangliming Electronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AJU8-RGROTATE): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Yangliming Electronic Technology Co., Ltd. with the FRN [0025906058] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Yingxin Yin Manager Shenzhen Yangliming Electronic Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

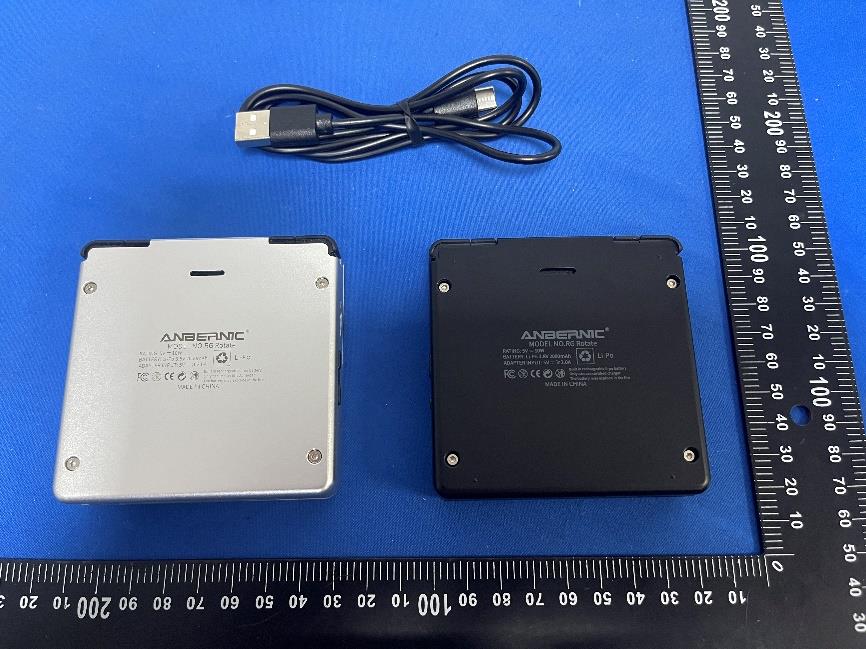

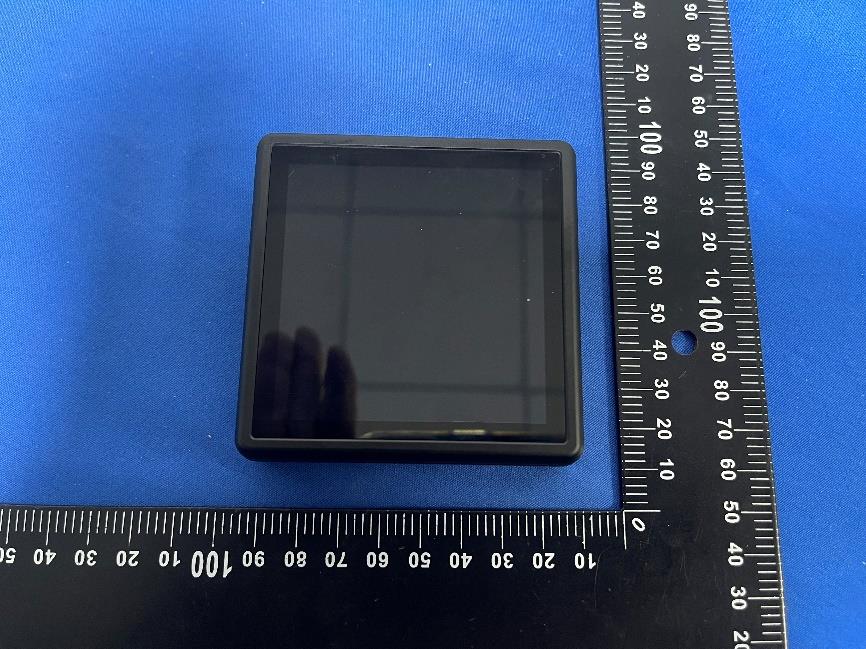

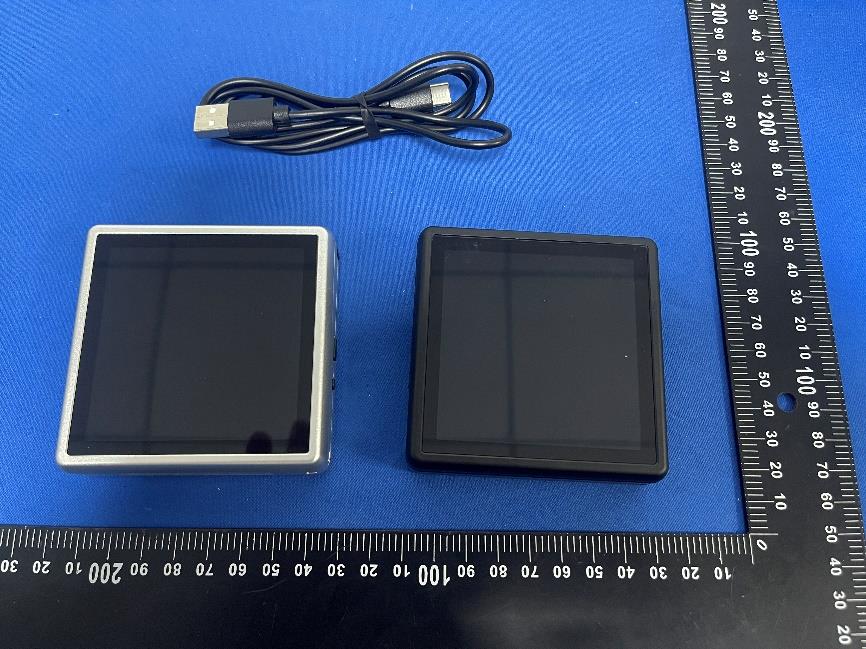

FCC ID: 2AJU8-RGROTATE External Photos of the EUT FCC ID: 2AJU8-RGROTATE FCC ID: 2AJU8-RGROTATE

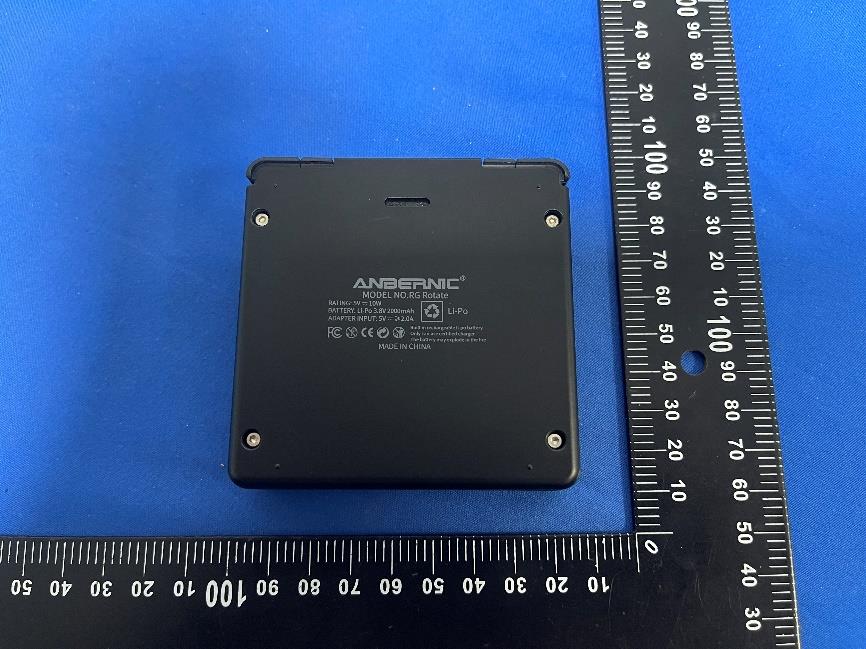

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2AJU8-RGROTATE

FCC ID: 2AJU8-RGROTATE Internal Photos of the EUT ANT FCC ID: 2AJU8-RGROTATE FCC ID: 2AJU8-RGROTATE FCC ID: 2AJU8-RGROTATE

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26060901303 2AJU8-RGROTATE Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 15, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Yangliming Electronic Technology Co., Ltd. Address............................................ : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Handheld Game Console Trade Mark ....................................... : ANBERNIC Manufacturer .................................... : Shenzhen Yangliming Electronic Technology Co., Ltd. Model/Type reference ...................... : RG Rotate Listed Models ................................... : RG VITA, RG 405V, RG 405M, RG 505, RG VITA Pro, RG DS Plus Rating ............................................... : Input: DC 5V Battery: 3.8V 2000mAh 7.6Wh Result ............................................... : PASS Report No.: CTA26060901303 Page 2 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Handheld Game Console Model /Type : RG Rotate Listed Models : RG VITA, RG 405V, RG 405M, RG 505, RG VITA Pro, RG DS Plus Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model RG Rotate and the test results for the main test model can cover the listed models. Applicant : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Manufacturer : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26060901303 Page 3 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance .......................................................................................... 9 4.4 Evaluation Result ..................................................................................................... 9 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 9 5 Conclusion .......…

Text truncated - open the document above for the full version.

规 格 承 认 书 SPECIFICATION FOR APPROVAL 日 期 Date 2026/03/24 编 号 File No 26032401 版 本 Revision 1.0 客 户 CUSTOMER: 客户料 号 CUSTOMER NO: 品 名 PART NAME: WIFI双频 Antenna L=80mm MHF 供方料号 SUPPLIER NO: YJW01.137.224.301A 送样日期Date: 送样数量Q'TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认 SUPPLIER SIGNATURE APPROVALCHECKDESIGN ChenGuoqiangZhangLiqunLiaoGuangxi YJ-RD-F04-A RG-Rotate 承认书项目表 NO. 内 容 （Contents） 页 数 （Number of Page） 页 码 （Page Code） 1承认书封面（Spec Cover）11 2承认书项目表（Spec Item ）12 3工程成品图 （Drawing）13 4天线规格（Antenna Specification）14 5S参数测试 （S Parameter ）15 6无源测试 （Passive Test ）36 ~ 8 7方向图（Radiation Pattern ）29 ~ 10 8天线装配图（Antenna Profile）311 ~ 13 9材质证明（ Material Certificate ）2614 ~ 39 10RoHS报告（ RoHS Test Report ）**** 11N/AN/AN/A 12--- 13--- DC R E V . E D E S C R I P T I O N D A T E B 8 6 7 5 4 A 1 2 3 A 首 次 发 行 2 0 2 6 - 0 1 - 1 7 W I F I 双 频 A n t e n n a L = 8 0 m m M H F Y J W 0 1 . 1 3 7 . 2 2 4 . 3 0 1 A 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz 5.15-5.85GHz Impedance50 Ohm Nominal V.S.W.R 3.0 [email protected] 6.5 [email protected] Gain -7.9 [email protected] -1.5 [email protected] RadiationOmni-directional PolarizationLinear Physical Properties Connector IPEX-1 Cable Type O.D.0.81mm Cable Length 80mm Cable Color Black Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% Agilent E5071C S Parameter Test // Antenna Antenna Performance Test Antenna Passive Test Z Y X Y X Z Passive Test For WiFi Antenna(2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 7.8-11.1-8.0 2410 7.9-11.0-7.9 2420 7.8-11.1-8.1 2430 7.7-11.1-8.0 2440 7.7-11.2-8.2 2450 7.8-11.1-8.1 2460 7.6-11.2-8.2 2470 7.5-11.2-8.4 2480 7.5-11.3-8.5 2490 7.7-11.1-8.2 2500 7.6-11.2-8.4 Passive Test For WiFi Antenna(5.8G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 5150 14.8-8.3-7.2 5200 12.9-8.9-4.3 5250 19.9-7.0-1.5 5300 16.4-7.8-3.0 5350 11.0-9.6-5.0 5400 11.7-9.3-4.8 5450 9.7-10.1-5.1 5500 6.3-12.0-6.8 5550 7.3-11.4-6.3 5600 8.7-10.6-6.3 5650 10.2-9.9-5.2 5700 13.6-8.7-3.8 5750 14.7-8.3-3.7 5800 13.1-8.8-3.7 5850 13.7-8.6-3.4 Radiation Pattern For WiFi Antenna(2450MHz) Radiation Pattern For WiFi Antenna(5150MHz) Device WiFi Antenna WiFi Antenna 江阴凯博通信科技有限公 NGBPC26000015821 NGBPC26000015815 司 环境有关物质材质证明书 CertificationoftheRawMaterialofEnvironmentSubstance 公司名称 CompanyName 江阴凯博通信科技有限公司 制造商名称 Manufacturer 江阴凯博通信科技有限公司 产品重量 ProductWeight 1.51g/m 产品料号 PartNo. KB081/50-008D 产品名称 ProductName RF0.81银锡线黑色 客户料号 P/N. 填写人姓名/部门 Name/Dept. 联络电 /工程部 话 Telephone (0510-86070002) [email protected] 兹证明向贵公司销售的产品和半成品中，使用之原材料，包装材料以及生产工程中，不含有贵公司规定的相关禁止使用物质。 另，向贵公司报告成品、半成品中使用的原材料、包装材料以及生产工程中的添加剂成分如下所述： RoHS及其它环保物质填写 项次 Item 零件名称 MaterialName 原料厂 Vendor 材质 Substance 重量 (g) Weight 组成成份 Substance Composition 含百分比 (%)Substance Amount 化验报告 NO. TestReportNo. 限用物质含量(单位：PPM) 铅 (Pb) 镉 (Cd) 汞 (Hg) 六价铬 (Cr+6) PBBPBDESONYPFOSPFOAPVC 卤素 (Cl、Br) 其它项目 Othersubstance 1. 导体 恒丰镀银铜线0.146 铜 N 8.74% SHAEC25028332819 DNDNDNDNDNDN/ANDN/AN/AN/A 银 2 0.15% . 绝缘 巨化FEPFE0.246P N14.98%DNDNDNDNDNDN/ANDNDN/AND 3. 编织 震雄镀锡铜线0.75 铜 N 45.21% A2250642229101001 DNDNDNDNDNDN/AN/AN/AN/AN/A 锡 4 0.46% . 护套 巨化FEP0.45FEP N24.36%DNDNDNDNDNDN/ANDNDN/AND FEP（黑色 ）0.05FEP N A2250269592101001E 6.10%DNDNDNDNDNDN/ANDNDN/AND 使用材料请贴图示于此栏，并标项次： NGBPC26000015821 NGBPC26000015815 MATERIAL SAFETY 1210 Qianjin Road(E), Jiujiang Jiangxi,China 332006 DATA SHEET Tel: 86-792-8358899, Fax: 86-792-8355803 Page 1 of 4 SECTION 1 PRODUCT AND COMPANY IDENTIFICATION 1.1 Material Name: Flexible Copper-Clad Polyimide Laminates 1.2 Part Number: LPI-HF 1.3 Use of Material: Printed Circuit Boards 1.4 Date of Prepared: April 22nd, 2021 1.5 Company Identification: Jiu Jiang Flex Co., Ltd. 1210Qianjin Road (E) Jiujiang, Jiangxi, China 332006 1.6 Emergency Telephone Number: 86-792-8358899 1.7 Telephone Number for Information: 86-792-8358899, 8355813 SECTION 2 COMPOSITION/INFORMATION ON INGREDIENTS Composition / substance CAS# % PI polyimide 25038-81-7 2.93~28.11 Adhesive Epoxy resin 25036-25-3 2.42~6.81 Flame Retardant (additive type) 225789-38-8 0.49~1.36 Rubber 9003-18-3 1.45~3.99 Copper foil Copper 7440-50-8 92.66~59.72 SECTION 3 HAZARDOUS IDENTIFICATION Dust, soot, combustion gases produced when burning, of inhaled, ingested or absorbed through skin it will be harmful or irritating to the eyes, skin, mucous membrane, respiratory system, allergies can be caused to skin, flammable irritating and sensitive. SECTION 4 FIRST-AID MEASURES (on Dust) Inhalation: Remove to fresh air. Obtain medical attention if symptoms persist. Eye Contact: Flush immediately with large amounts of water. Do not rub eyes. Obtain medical attention if symptoms persist. Skin Contact: Wash area of contact thoroughly with soap and water. Do not rub or scratch. Obtain medical attention if symptoms persist. Ingestion: Drinking water as much as possible, emetic, and see doctor. MATERIAL SAFETY 1210 Qianjin Road(E), Jiujiang Jiangxi,China 332006 DATA SHEET Tel: 86-792-8358899, Fax: 86-792-8355803 Page 2 of 4 SECTION 5 FIRE FIGHTING MEASURES Extinguishing Agents Following extinguishing media can be used: Carbon dioxide extinguisher Dry powder fire extinguisher Water Pump Foam fire extinguisher Hazards of Unusual burning and Explosion: The material produces carbon monoxide, carbon dioxide, nitrogen, oxides of nitrogen, smoke and dust when extremely high temperature or burning. Personal Protective Equipment As in any burning, wear self-contained breathing apparatus and full protective gear. Upper limit of Flammability: not ascertained SECTION 6 EMERGENCY HANDLING OF LEAKAGE Emergency handling: Block the leakage area to avoid dust flying and wear protective equipment, use vacuum cleaner to clean the leakage. SECTION 7 HANDLING AND STORAGE Handling: Wear cotton gloves to protect product damage and hand lacerated. Storage conditions The material should be stored in dry, ambient temperature wrapped with PE film. Environment: Keep away from heat, ignition sources, and direct sunlight. Other conditions: Keep cartons tightly closed w…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26060901301 2AJU8-RGROTATE Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 15, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Yangliming Electronic Technology Co., Ltd. Address ............................................ : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Handheld Game Console Trade Mark ....................................... : ANBERNIC Manufacturer .................................... : Shenzhen Yangliming Electronic Technology Co., Ltd. Model/Type reference ...................... : RG Rotate Listed Models ................................... : RG VITA, RG 405V, RG 405M, RG 505, RG VITA Pro, RG DS Plus Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : Input: DC 5V Battery: 3.8V 2000mAh 7.6Wh Result ............................................... : PASS Report No.: CTA26060901301 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Handheld Game Console Model /Type : RG Rotate Listed Models : RG VITA, RG 405V, RG 405M, RG 505, RG VITA Pro, RG DS Plus Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model RG Rotate and the test results for the main test model can cover the listed models. Applicant : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Manufacturer : Shenzhen Yangliming Electronic Technology Co., Ltd. Address : 4/F Environmental Technology Center Liu Xian No2 Road, Bao'an District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26060901301 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ...................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2AJU8-RGROTATE Company : Shenzhen Yangliming Electronic Technology Co., Ltd. EUT : Handheld Game Console Model Number : RG Rotate Report No. : CTA26060901301 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.945 2401.550 2402.495 --- --- 2441 0.942 2440.550 2441.492 --- --- 2480 0.939 2479.550 2480.489 --- --- 2DH5 Ant1 2402 1.329 2401.343 2402.672 --- --- 2441 1.281 2440.379 2441.660 --- --- 2480 1.287 2479.376 2480.663 --- --- 3DH5 Ant1 2402 1.323 2401.352 2402.675 --- --- 2441 1.287 2440.364 2441.651 --- --- 2480 1.305 2479.358 2480.663 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.85503 2401.5825 2402.4375 --- --- 2441 0.86426 2440.5773 2441.4416 --- --- 2480 0.84870 2479.5836 2480.4323 --- --- 2DH5 Ant1 2402 1.1765 2401.4194 2402.5959 --- --- 2441 1.1854 2440.4166 2441.6020 --- --- 2480 1.1938 2479.4131 2480.6069 --- --- 3DH5 Ant1 2402 1.1842 2401.4190 2402.6032 --- --- 2441 1.1862 2440.4210 2441.6072 --- --- 2480 1.1898 2479.4171 2480.6069 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -3.51 ≤20.97 PASS 2441 -3.52 ≤20.97 PASS 2480 -3.78 ≤20.97 PASS 2DH5 Ant1 2402 -0.86 ≤20.97 PASS 2441 -0.62 ≤20.97 PASS 2480 -0.83 ≤20.97 PASS 3DH5 Ant1 2402 -0.20 ≤20.97 PASS 2441 -0.26 ≤20.97 PASS 2480 -0.51 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.004 ≥0.945 PASS 2DH5 Ant1 Hop 1.034 ≥0.886 PASS 3DH5 Ant1 Hop 1.142 ≥0.882 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.405 319 0.129 ≤0.4 PASS DH3 Ant1 Hop 1.662 159 0.264 ≤0.4 PASS DH5 Ant1 Hop 2.910 109 0.317 ≤0.4 PASS 2DH1 Ant1 Hop 0.415 318 0.132 ≤0.4 PASS 2DH3 Ant1 Hop 1.667 159 0.265 ≤0.4 PASS 2DH5 Ant1 Hop 2.916 118 0.344 ≤0.4 PASS 3DH1 Ant1 Hop 0.415 319 0.132 ≤0.4 PASS 3DH3 Ant1 Hop 1.666 153 0.255 ≤0.4 PASS 3DH5 Ant1 Hop 2.916 110 0.321 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -4.22 -57.96 ≤-24.22 PASS High 2480 -4.69 -54.49 ≤-24.69 PASS Low Hop_2402 -3.94 -57.11 ≤-23.94 PASS High Hop_2480 -4.18 -50.39 ≤-24.18 PASS 2DH5 Ant1 Low 2402 -4.12 -54.13 ≤-24.12 PASS High 2480 -4.77 -57.36 ≤-24.77 PASS Low Hop_2402 -8.44 -57.6 ≤-28.44 PASS High Hop_2480 -6.14 -57.27 ≤-26.14 PASS 3DH5 Ant1 Low 2402 -4.06 -57.05 ≤-24.06 PASS High 2480 -4.12 -57.25 ≤-24.12 PASS Low Hop_2402 -5.46 -56.81 ≤-25.46 PASS High Hop_2480 -4.14 -53.1 ≤-24.14 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -4.30 -4.30 --- PASS 30~1000 -4.30 -68.92 ≤-24.3 PASS 1000~26500 -4.30 -46.12 ≤-24.3 PASS 2441 Reference -3.90 -3.90 --- PASS 30~1000 -3.90 -68.99 ≤-23.9 PASS 1000~26500 -3.90 -47.53 ≤-23.9 PASS 2480 Reference -5.08 -5.08 --- PASS 30~1000 -5.08 -69.19 ≤-25.08 PASS 1000~26500 -5.08 -45.88 ≤-25.08 PASS 2DH5 Ant1 2402 Reference -5.46 -5.46 --- PASS 30~1000 -5.46 -69.12 ≤-25.46 PASS 1000~26500 -5.46 -48.97 ≤-25.46 PASS 2441 Reference -4.16 -4.16 --- PASS 30~1000 -4.16 -49.56 ≤-24.16 PASS 1000~26500 -4.16 -44.29 ≤-24.16 PASS 2480 Reference -6.62 -6.62 --- PASS 30~1000 -6.62 -68.9 ≤-26.62 PASS 1000~26500 -6.62 -46.42 ≤-26.62 PASS 3DH5 Ant1 2402 Reference -6.34 -6.34 --- PASS 30~1000 -6.34 -67.88 ≤-26.34 PASS 1000~26500 -6.34 -48.12 ≤-26.34 PASS 2441 Reference -6.18 -6.18 --- PASS 30~1000 -6.18 -67.85 ≤-26.18 PASS 1000~26500 -6.18 -48.87 ≤-26.18 PASS 2480 Reference -6.42 -6.42 --- PASS 30~1000 -6.42 -68.78 ≤-26.42 PASS 1000~26500 -6.42 -48.9 ≤-26.42 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference
