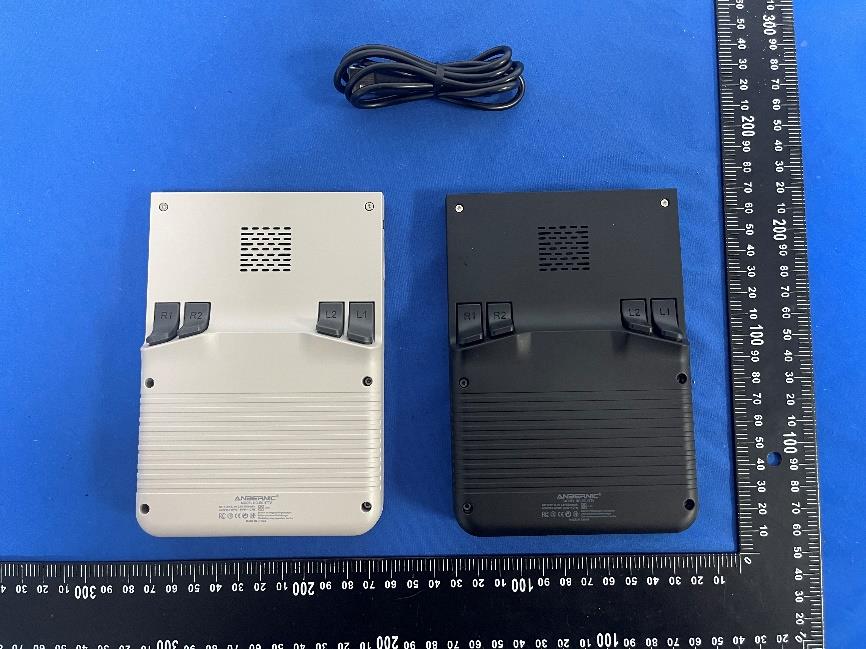

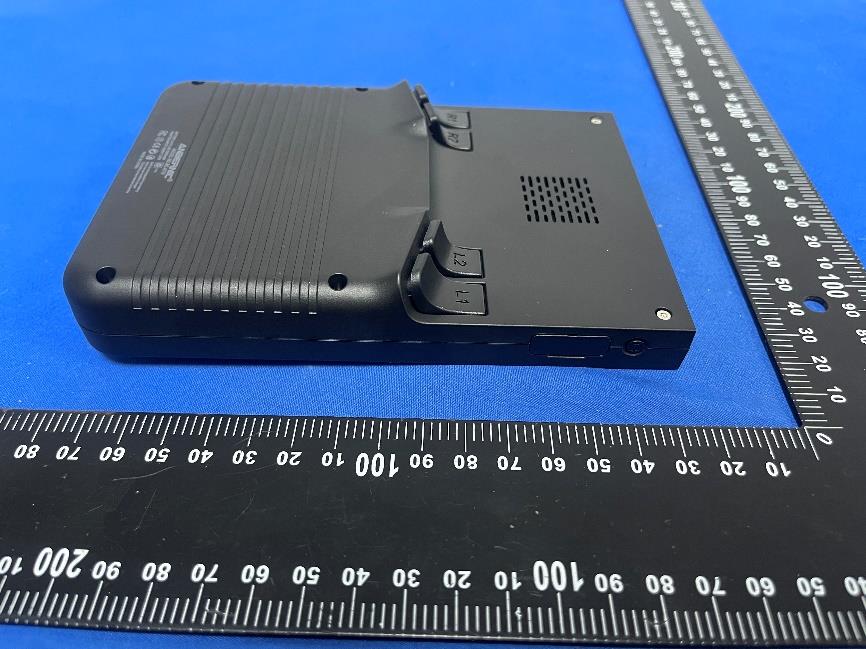

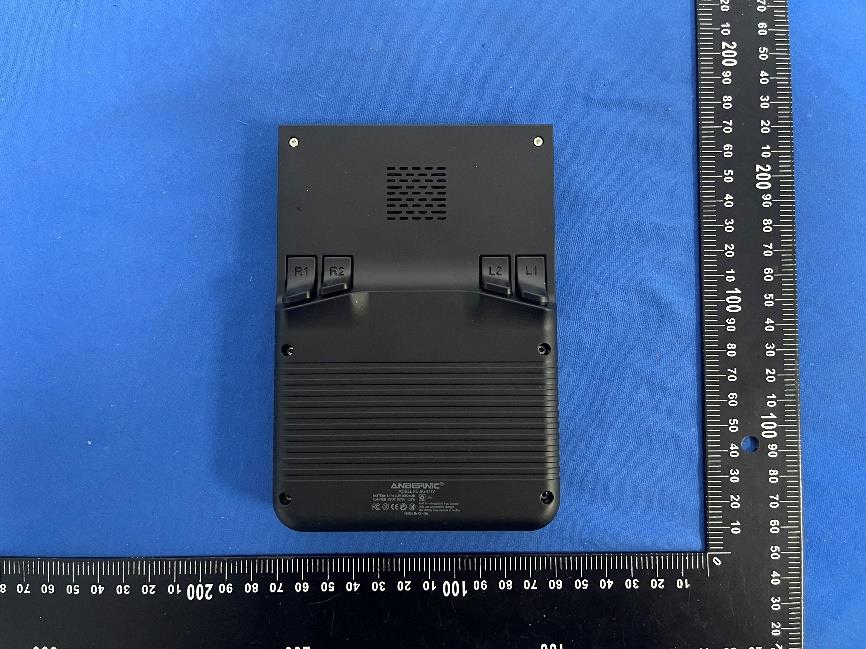

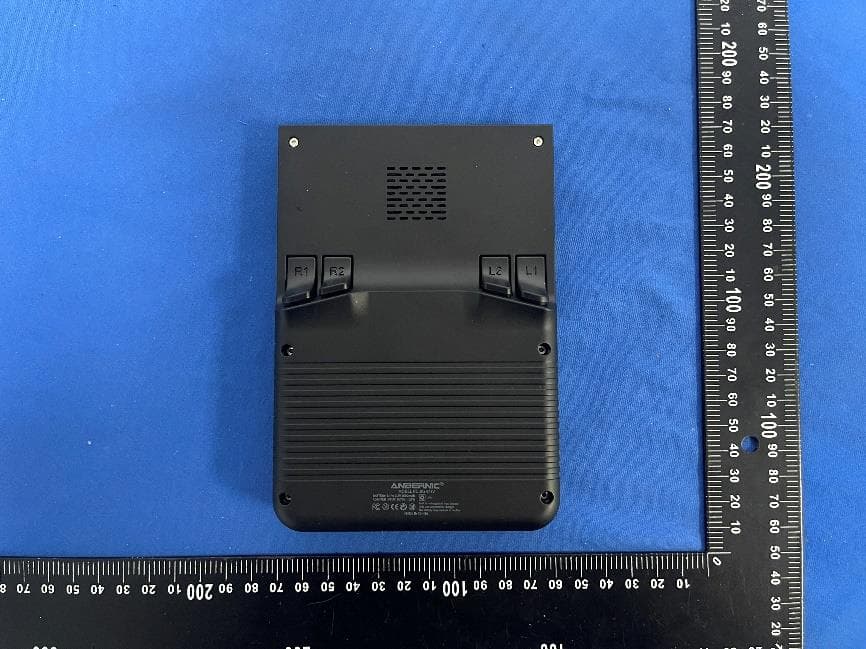

2AJU8-RG477VHandheld Game Console

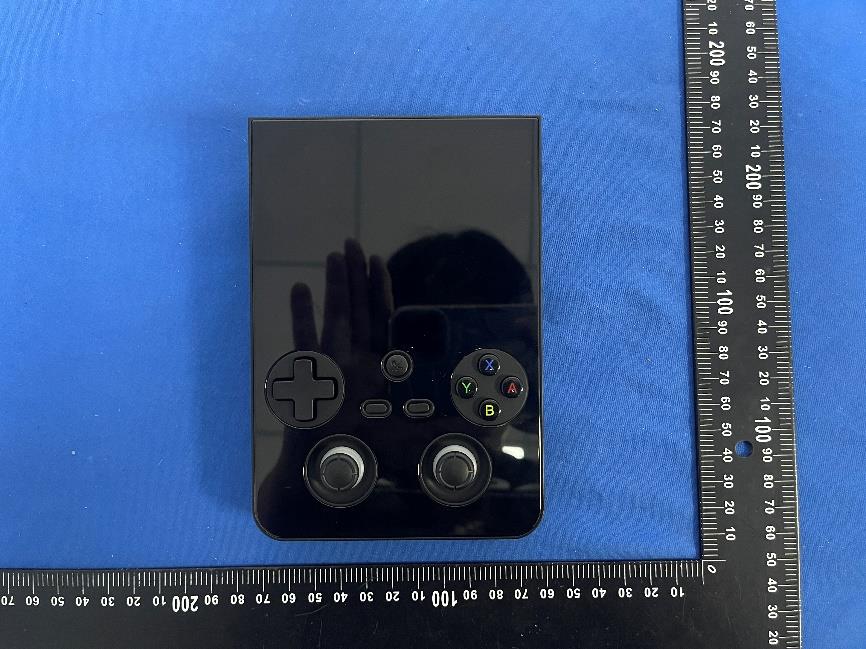

RG 477V User Manual Android main UI: D-pad and joystick A key / START key Y key / touch screen SELECT key B Key Volume key +/- Function key Select application Confirm/Enter the application Open menu Cancel /Close menu Volume adjustment Switch Android Front-end Return key Short press RETURN Long press HOME Button A/Y X SELECT B/F（Short press） D-pad (joystick) Confirm Cancel (return) Scan refresh game Function and settings Moving cursor Confirm Cancel (return) Collect Setting Moving cursor Main interface of Emulator Game List Interface Note: Long press Return key in the game running interface to return to the Android front-end interface START SearchSearch First Boot up Key mapping First Boot up can Select Language,Next need to wait for the first boot configuration to complete. Open the Key mapping for the Quick settings tile, the usagewindow will pop up to the interface,For specific use,please refer to the application's internal usage details page instructions. Supports automatic speed adjustment mode and multi-mode speed control. Fan DP output Supports external display devices via USB. Joystick light Indicator light and charging function The machine packaging matches 5V/2A four-line charging data cable.Plug in the charging cable and the machine will start charging.The status of the device indicators is as follows:Red light on when charging,Green light on when fully charged,Red light twinkling when battery is low. 16 million color RGB joystick lighting, support constant light, breath, rainbow, marquee, chasing, gaming and other light effects, support customize the color and adjust the brightness. RG Android Front-end Usage Instructions RG Android Front-end Button Description Opening the Android Front-end Emulator interface: On Android, click the RG icon in Quick settings tile to open the front-end. When you enter the front-end for the first time, Click to confirm according to the prompt pop-up box,Pop up the RetroArch decompression resource process Exit RetroArch after decompression is complete,will return to the RG Front-end. SELECT: Function and settings START: Game search (full emulator) Press X button: Scan and refresh games (after changing to a new TF card) Game list interface: SELECT: Game settings interface START: Game search (single emulator) X button: Game collection and cancel operation Game Button and Port Main Interface Operation Function Description https://win.anbernic.com Get technical support services Left shoulder button(L1） Left shoulder button(L2） Right shoulder button(R2) Right shoulder button(R1) microphone Left joystick Right joystick Air outlet SELECTSTART Indicator light D-Pad VOL-/+ power key TF Card Game keys Function key Return key USB FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

规格承认书 SPECIFICATION FOR APPROVAL 日期 Date 2025/11/13 编号 File No 25111301 版本 Revision 1.0 客户 CUSTOMER: 客户料 号 CUSTOMER NO: RG477V 品名 PARTNAME: WIFI双频Antenna L=35mm MHF 供方料号 SUPPLIERNO: YJW01.137.210.302A SUPPLIERNO: YJW01.137.210.302A 送样日期Date: 送样数量Q'TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN ZhangLiquChenGuoqiangnChenXingyi YJ-RD-F04-A 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面（Spec Cover） 11 2 承认书项目表（Spec Item ） 12 3 工程成品图（Drawing） 13 4 天线规格（Antenna Specification） 14 5 S参数测试（S Parameter ） 15 5 S参数测试（S Parameter ） 15 6 无源测试（Passive Test ） 26 ~ 7 7 方向图（Radiation Pattern ） 88 ~ 15 8 天线装配图（Antenna Profile） 316 ~ 18 9 材质证明（Material Certificate ） 4219 ~ 60 10 RoHS报告（RoHSTest Report ） **** 11N/AN/AN/A 12--- 13--- DC 6 R E V . E 4 5 3 2 1 CDE 7 8 D E S C R I P T I O N D A T E B B A 8 6 7 5 4 A 1 2 3 A 首 次 发 行 2 0 2 5 - 1 0 - 2 9 W I F I 双 频 A n t e n n a L = 3 5 m m M H F Y J W 0 1 . 1 3 7 . 2 1 0 . 3 0 2 A 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz 5.15-5.85GHz Impedance50 Ohm Nominal V.S.W.R 3.5 [email protected] 7.0 [email protected] Gain -1.9 [email protected] 2.0 [email protected] RadiationOmni-directional RadiationOmni-directional PolarizationLinear Physical Properties Connector 1代IPEX Cable TypeO.D.0.81mm Cable Length35mm Cable ColorBlack Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% Agilent E5071C S S Parameter Test // WiFi2 Antenna Passive Test For WiFi2 Antenna(2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 14.4 -8.4 -3.2 2410 14.7 -8.3 -2.8 2420 14.7 -8.3 -2.6 2430 15.5 -8.1 -2.3 2440 16.5 -7.8 -2.2 2450 17.3 -7.6 -2.0 2460 17.5 -7.6 -2.0 2470 17.0 -7.7 -2.0 2480 16.4 -7.9 -2.0 2490 16.1 -7.9 -1.9 2500 15.6 -8.1 -1.9 Passive Test For WiFi2 Antenna(5.8G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 5150 35.6 -4.5 1.4 5200 35.2 -4.5 1.4 5250 32.1 -4.9 1.1 5300 32.4 -4.9 1.1 5350 35.2 -4.5 1.5 5400 39.4 -4.1 2.0 5450 38.9 -4.1 2.0 5500 33.0 -4.8 1.6 5550 33.2 -4.8 1.8 5600 25.8 -5.9 0.8 5650 22.8 -6.4 -0.9 5700 24.4 -6.1 -0.3 5750 25.8 -5.9 -0.3 5800 20.1 -7.0 -1.7 5850 21.1 -6.8 -1.7 Radiation Pattern For WiFi2 Antenna （ 2400MHz ） Radiation Pattern For WiFi2 Antenna （ 2450MHz ） Radiation Pattern For WiFi2 Antenna （ 2500MHz ） Radiation Pattern For WiFi2 Antenna Phi 0° Phi 90° Theta 90° Radiation Pattern For WiFi2 Antenna （ 5150MHz ） Radiation Pattern For WiFi2 Antenna （ 5500MHz ） Radiation Pattern For WiFi2 Antenna （ 5850MHz ） Radiation Pattern For WiFi2 Antenna Phi 0° Phi 90° Theta 90° Device WiFi2 Antenna WiFi1天线 WiFi2天线 PSM-800FSDM-A/SMH-800 ， 安 全 資 料 表 1 版權 2021-01-10 First, chemical products and materials for business Chemical name: PSM-800FSDM-A/SMH-800 liquid solid plate ink Other names: Use and restricted use of construction: flexible printed circuit board (PI/Cu), hand machine roof board Name, address and address of the creator, entrant or supplier: Creator: Yueli Reachability Co., Ltd. Address: No.22 Jingjian Fourth Road, Guanyin District, Taoyuan City: 886-3- 4836651 Urgent/true: 886-3-4836651, true: 886-3-4837487 Second, the hazard identification of resources and materials Hazard classification of chemical products: Health and environmental hazards: Acute toxicity (swallowing) 4, rot/skin irritation 2, heavy weight/eye irritation 2, skin Pass sensitive substance first, carcinogenic substance second, and hazardous substance second (acute toxicity). Indication of content: S y m b o l n u m b e r : Warning language: Warning hazard warning interest: Harmful to swallow Cause skin irritation Causing severe eye irritation may cause skin hypersensitivity and suspected carcinogenesis Toxic to aquatic organisms Hazard prevention measures: Put the container in a place with good ventilation far away from the high temperature Do not eat or drink when using Remove the blindfold/face mask immediately when your clothes are contaminated If you touch your eyes, wash them with plenty of water immediately, and then ask the mud to wear suitable gloves Do not inhale gas/gas/steam gas/gas before use Place it in the upper lock Do not place until you know all safety precautions Avoid releasing release in the environment Other hazards:- III. Composition identification of PSM-800FSDM-A/SMH-800 ， 安 全 資 料 表 2 版權 2021-01-10 capital mixture: Liquid solid plate ink PSM-800FSDM-A/SMH-800 Chemical geology: Chinese and English names of hazardous components Register number of Chemical Digest Service (CAS No.) Degree or degree (percentage of components) Oxygen acrylate oligmer Epoxy acrylate oligmer 28064-14-4 50% Silicon dioxide Fused silica 7631-86-9 13% Aromatic solution 64742-94-5 4% PSM-800FSDM-A/SMH-800 ， 安 全 資 料 表 3 版權 2021-01-10 Methyl dipropylene glycol 34590-94-8 4% Carbon black 1333-86-4 3.5% BaSO4 sulfate 13462-86-7 24% Photoinitiator and the others 5495-84-1 1.5% Fourth, first aid measures First aid methods for the same road: Inhalation: 1. Take self-protection measures before rescue. 2. Remove pollution sources or move patients to new places. 3. If a patient stops breathing, artificial respiration should be given immediately by the person who has been adalmed. If the heart stops, cardiopulmonary resuscitation should be given. When the patient inhales and swallows toxic substances, mouth-to-mouth artificial respiration should be used directly, and pocket masks and other medical equipment should be used for artificial respiration. 4. Maintain the patient's safety and normal temperature. 6. Treat the cure quickly. Pi Mo: Wash the contaminated area with harmonious water for at least 20 minutes, and remove contaminated clothes, shoes and leather products before water. Eye touching: Immediately open the eyelids and wash the contaminated eyes with water for at least 20 minutes, and immediately take care of them. Intake: 1. If the patient will be frustrated, or has been frustrated, he can feed anything. 2. It can induce vomiting and give 240-300ml of water. 3. If you vomit spontaneously, r…

Text truncated - open the document above for the full version.

FCC ID: 2AJU8-RG477V Test Setup Photos of the EUT FCC ID: 2AJU8-RG477V

99 11G_Ant1_2412 11G_Ant1_2437 100 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 101 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 102 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 103 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.56 3.70 0.02 38.36 ≤54 PASS AV 2380.990 -59.24 3.70 0.02 39.68 ≤54 PASS AV 2390.000 -59.87 3.70 0.02 39.05 ≤54 PASS Peak 2310.000 -52.47 3.70 0.00 46.43 ≤74 PASS Peak 2389.830 -48.35 3.70 0.00 50.55 ≤74 PASS Peak 2390.000 -51.14 3.70 0.00 47.76 ≤74 PASS High 2462 AV 2483.500 -59.56 3.70 0.03 39.37 ≤54 PASS AV 2497.640 -58.97 3.70 0.03 39.96 ≤54 PASS AV 2500.000 -59.93 3.70 0.03 39 ≤54 PASS Peak 2483.500 -51.37 3.70 0.00 47.53 ≤74 PASS Peak 2487.630 -48.16 3.70 0.00 50.74 ≤74 PASS Peak 2500.000 -53.68 3.70 0.00 45.22 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.19 3.70 1.33 40.04 ≤54 PASS AV 2384.240 -59.37 3.70 1.33 40.86 ≤54 PASS AV 2390.000 -59.8 3.70 1.33 40.43 ≤54 PASS Peak 2310.000 -52.51 3.70 0.00 46.39 ≤74 PASS Peak 2350.440 -49.54 3.70 0.00 49.36 ≤74 PASS Peak 2390.000 -51.72 3.70 0.00 47.18 ≤74 PASS High 2462 AV 2483.500 -59.42 3.70 1.03 40.51 ≤54 PASS AV 2491.260 -58.91 3.70 1.03 41.02 ≤54 PASS AV 2500.000 -59.6 3.70 1.03 40.33 ≤54 PASS Peak 2483.500 -51.11 3.70 0.00 47.79 ≤74 PASS Peak 2499.070 -49.2 3.70 0.00 49.7 ≤74 PASS Peak 2500.000 -51.29 3.70 0.00 47.61 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.71 3.70 1.06 39.25 ≤54 PASS AV 2382.420 -59.23 3.70 1.06 40.73 ≤54 PASS AV 2390.000 -60.05 3.70 1.06 39.91 ≤54 PASS Peak 2310.000 -53.85 3.70 0.00 45.05 ≤74 PASS Peak 2363.440 -49.18 3.70 0.00 49.72 ≤74 PASS Peak 2390.000 -52.69 3.70 0.00 46.21 ≤74 PASS High 2462 AV 2483.500 -59.6 3.70 1.06 40.36 ≤54 PASS AV 2490.380 -59.11 3.70 1.06 40.85 ≤54 PASS AV 2500.000 -59.23 3.70 1.06 40.73 ≤54 PASS Peak 2483.500 -52.06 3.70 0.00 46.84 ≤74 PASS Peak 2488.950 -49.65 3.70 0.00 49.25 ≤74 PASS Peak 2500.000 -51.65 3.70 0.00 47.25 ≤74 PASS 104 11N40SI SO Ant1 Low 2422 AV 2310.000 -60.35 3.70 1.06 39.61 ≤54 PASS AV 2384.150 -59.2 3.70 1.06 40.76 ≤54 PASS AV 2390.000 -60.26 3.70 1.06 39.7 ≤54 PASS Peak 2310.000 -52.2 3.70 0.00 46.7 ≤74 PASS Peak 2387.450 -49.31 3.70 0.00 49.59 ≤74 PASS Peak 2390.000 -53.41 3.70 0.00 45.49 ≤74 PASS High 2452 AV 2483.500 -59.11 3.70 1.06 40.85 ≤54 PASS AV 2485.125 -58.63 3.70 1.06 41.33 ≤54 PASS AV 2500.000 -59.51 3.70 1.06 40.45 ≤54 PASS Peak 2483.500 -51.31 3.70 0.00 47.59 ≤74 PASS Peak 2485.625 -48.18 3.70 0.00 50.72 ≤74 PASS Peak 2500.000 -51.69 3.70 0.00 47.21 ≤74 PASS Note： 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 105 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 106 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 107 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 108 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 109 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 110 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 111 11N40SISO_Ant1_High_2452_Peak

66 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 67 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 68 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 69 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz ] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 5.97 ≤30.00 PASS 2437 5.93 ≤30.00 PASS 2462 5.85 ≤30.00 PASS 11G Ant1 2412 5.53 ≤30.00 PASS 2437 5.30 ≤30.00 PASS 2462 5.29 ≤30.00 PASS 11N20SISO Ant1 2412 5.42 ≤30.00 PASS 2437 5.17 ≤30.00 PASS 2462 5.26 ≤30.00 PASS 11N40SISO Ant1 2422 5.46 ≤30.00 PASS 2437 5.75 ≤30.00 PASS 2452 5.71 ≤30.00 PASS 70 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -20.73 ≤8.00 PASS 2437 -20.81 ≤8.00 PASS 2462 -20.45 ≤8.00 PASS 11G Ant1 2412 -25.74 ≤8.00 PASS 2437 -26.41 ≤8.00 PASS 2462 -26.61 ≤8.00 PASS 11N20SISO Ant1 2412 -25.65 ≤8.00 PASS 2437 -25.94 ≤8.00 PASS 2462 -25.66 ≤8.00 PASS 11N40SISO Ant1 2422 -29.22 ≤8.00 PASS 2437 -29.16 ≤8.00 PASS 2452 -27.61 ≤8.00 PASS 71 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 72 11G_Ant1_2412 11G_Ant1_2437 73 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 74 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 75 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 76 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -7.34 -55.98 ≤-27.34 PASS High 2462 -7.13 -57.29 ≤-27.13 PASS 11G Ant1 Low 2412 -10.90 -41.61 ≤-30.9 PASS High 2462 -11.04 -57.67 ≤-31.04 PASS 11N20SIS O Ant1 Low 2412 -10.88 -42.14 ≤-30.88 PASS High 2462 -10.98 -56.87 ≤-30.98 PASS 11N40SIS O Ant1 Low 2422 -13.83 -42.41 ≤-33.83 PASS High 2452 -13.97 -58.06 ≤-33.97 PASS 77 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 78 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 79 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 80 81 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -8.53 -8.53 --- PASS 30~1000 -8.53 -69.35 ≤-28.53 PASS 1000~26500 -8.53 -56.51 ≤-28.53 PASS 2437 Reference -7.90 -7.90 --- PASS 30~1000 -7.90 -68.79 ≤-27.9 PASS 1000~26500 -7.90 -57.15 ≤-27.9 PASS 2462 Reference -7.41 -7.41 --- PASS 30~1000 -7.41 -69.25 ≤-27.41 PASS 1000~26500 -7.41 -56.81 ≤-27.41 PASS 11G Ant1 2412 Reference -11.09 -11.09 --- PASS 30~1000 -11.09 -68.34 ≤-31.09 PASS 1000~26500 -11.09 -56.42 ≤-31.09 PASS 2437 Reference -12.25 -12.25 --- PASS 30~1000 -12.25 -69.42 ≤-32.25 PASS 1000~26500 -12.25 -56.12 ≤-32.25 PASS 2462 Reference -12.43 -12.43 --- PASS 30~1000 -12.43 -68.7 ≤-32.43 PASS 1000~26500 -12.43 -56.48 ≤-32.43 PASS 11N20SISO Ant1 2412 Reference -11.01 -11.01 --- PASS 30~1000 -11.01 -69.31 ≤-31.01 PASS 1000~26500 -11.01 -55.51 ≤-31.01 PASS 2437 Reference -11.55 -11.55 --- PASS 30~1000 -11.55 -69.04 ≤-31.55 PASS 1000~26500 -11.55 -56.94 ≤-31.55 PASS 2462 Reference -12.50 -12.50 --- PASS 30~1000 -12.50 -69.07 ≤-32.5 PASS 1000~26500 -12.50 -56.89 ≤-32.5 PASS 11N40SISO Ant1 2422 Reference -13.96 -13.96 --- PASS 30~1000 -13.96 -69.07 ≤-33.96 PASS 1000~26500 -13.96 -57.29 ≤-33.96 PASS 2437 Reference -14.57 -14.57 --- PASS 30~1000 -14.57 -69.24 ≤-34.57 PASS 1000~26500 -14.57 -57.41 ≤-34.57 PASS 2452 Reference -14.17 -14.17 --- PASS 30~1000 -14.17 -68.14 ≤-34.17 PASS 1000~26500 -14.17 -56.79 ≤-34.17 PASS 82 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 83 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 84 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 85 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 86 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 87 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 88 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 89 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 90 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 91 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 92 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 93 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 94 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 95 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 96 11N40SISO_Ant1_2452_1000~26500 97 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.36 8.40 99.52 0.02 0.12 2437 8.35 8.39 99.52 0.02 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.14 0.19 73.68 1.33 7.14 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.19 78.95 1.03 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.22 81.82 0.87 5.56 2462 0.18 0.23 78.26 1.06 5.56 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.22 81.82 0.87 5.56 2452 0.18 0.23 78.26 1.06 5.56 98 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462

35 11N20SISO_Ant0_2412_1000~26500 11N20SISO_Ant0_2437_0~Reference 11N20SISO_Ant0_2437_30~1000 36 11N20SISO_Ant0_2437_1000~26500 11N20SISO_Ant0_2462_0~Reference 37 11N20SISO_Ant0_2462_30~1000 11N20SISO_Ant0_2462_1000~26500 11N40SISO_Ant0_2422_0~Reference 38 11N40SISO_Ant0_2422_30~1000 11N40SISO_Ant0_2422_1000~26500 39 11N40SISO_Ant0_2437_0~Reference 11N40SISO_Ant0_2437_30~1000 11N40SISO_Ant0_2437_1000~26500 40 11N40SISO_Ant0_2452_0~Reference 11N40SISO_Ant0_2452_30~1000 41 11N40SISO_Ant0_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant0 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant0 2412 0.15 0.20 75.00 1.25 6.67 2437 0.14 0.19 73.68 1.33 7.14 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant0 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.22 81.82 0.87 5.56 2462 0.18 0.23 78.26 1.06 5.56 11N40SISO Ant0 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.22 81.82 0.87 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant0_2412 11B_Ant0_2437 11B_Ant0_2462 44 11G_Ant0_2412 11G_Ant0_2437 45 11G_Ant0_2462 11N20SISO_Ant0_2412 11N20SISO_Ant0_2437 46 11N20SISO_Ant0_2462 11N40SISO_Ant0_2422 47 11N40SISO_Ant0_2437 11N40SISO_Ant0_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant0 Low 2412 AV 2310.000 -60.83 2.00 0.03 36.40 ≤54 PASS AV 2387.490 -59.03 2.00 0.03 38.20 ≤54 PASS AV 2390.000 -59.5 2.00 0.03 37.73 ≤54 PASS Peak 2310.000 -52.71 2.00 0.00 44.49 ≤74 PASS Peak 2318.200 -49 2.00 0.00 48.20 ≤74 PASS Peak 2390.000 -51.52 2.00 0.00 45.68 ≤74 PASS High 2462 AV 2483.500 -58.91 2.00 0.03 38.32 ≤54 PASS AV 2488.290 -58.64 2.00 0.03 38.59 ≤54 PASS AV 2500.000 -59.14 2.00 0.03 38.09 ≤54 PASS Peak 2483.500 -51.51 2.00 0.00 45.69 ≤74 PASS Peak 2494.560 -48.12 2.00 0.00 49.08 ≤74 PASS Peak 2500.000 -49.53 2.00 0.00 47.67 ≤74 PASS 11G Ant0 Low 2412 AV 2310.000 -60.29 2.00 1.25 38.16 ≤54 PASS AV 2356.030 -59.07 2.00 1.25 39.38 ≤54 PASS AV 2390.000 -59.96 2.00 1.25 38.49 ≤54 PASS Peak 2310.000 -52.1 2.00 0.00 45.10 ≤74 PASS Peak 2383.850 -48.82 2.00 0.00 48.38 ≤74 PASS Peak 2390.000 -52 2.00 0.00 45.20 ≤74 PASS High 2462 AV 2483.500 -59.52 2.00 1.25 38.93 ≤54 PASS AV 2486.200 -58.62 2.00 1.25 39.83 ≤54 PASS AV 2500.000 -59.3 2.00 1.25 39.15 ≤54 PASS Peak 2483.500 -50.94 2.00 0.00 46.26 ≤74 PASS Peak 2487.190 -49.56 2.00 0.00 47.64 ≤74 PASS Peak 2500.000 -51.87 2.00 0.00 45.33 ≤74 PASS 11N20SI SO Ant0 Low 2412 AV 2310.000 -59.76 2.00 1.06 38.50 ≤54 PASS AV 2371.110 -58.88 2.00 1.06 39.38 ≤54 PASS AV 2390.000 -59.48 2.00 1.06 38.78 ≤54 PASS Peak 2310.000 -51.22 2.00 0.00 45.98 ≤74 PASS Peak 2389.960 -48.28 2.00 0.00 48.92 ≤74 PASS Peak 2390.000 -48.28 2.00 0.00 48.92 ≤74 PASS High 2462 AV 2483.500 -59.45 2.00 1.06 38.81 ≤54 PASS AV 2499.510 -58.53 2.00 1.06 39.73 ≤54 PASS AV 2500.000 -59.49 2.00 1.06 38.77 ≤54 PASS Peak 2483.500 -51.56 2.00 0.00 45.64 ≤74 PASS Peak 2491.040 -48.75 2.00 0.00 48.45 ≤74 PASS Peak 2500.000 -50.64 2.00 0.00 46.56 ≤74 PASS 49 11N40SI SO Ant0 Low 2422 AV 2310.000 -60.01 2.00 1.06 38.25 ≤54 PASS AV 2387.600 -59.08 2.00 1.06 39.18 ≤54 PASS AV 2390.000 -59.8 2.00 1.06 38.46 ≤54 PASS Peak 2310.000 -52.94 2.00 0.00 44.26 ≤74 PASS Peak 2375.300 -49.13 2.00 0.00 48.07 ≤74 PASS Peak 2390.000 -52.17 2.00 0.00 45.03 ≤74 PASS High 2452 AV 2483.500 -58.61 2.00 1.06 39.65 ≤54 PASS AV 2487.500 -58.37 2.00 1.06 39.89 ≤54 PASS AV 2500.000 -59.62 2.00 1.06 38.64 ≤54 PASS Peak 2483.500 -52 2.00 0.00 45.20 ≤74 PASS Peak 2492.000 -48.3 2.00 0.00 48.90 ≤74 PASS Peak 2500.000 -51.43 2.00 0.00 45.77 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant0_Low_2412_AV 11B_Ant0_Low_2412_Peak 11B_Ant0_High_2462_AV 51 11B_Ant0_High_2462_Peak 11G_Ant0_Low_2412_AV 52 11G_Ant0_Low_2412_Peak 11G_Ant0_High_2462_AV 11G_Ant0_High_2462_Peak 53 11N20SISO_Ant0_Low_2412_AV 11N20SISO_Ant0_Low_2412_Peak 54 11N20SISO_Ant0_High_2462_AV 11N20SISO_Ant0_High_2462_Peak 11N40SISO_Ant0_Low_2422_AV 55 11N40SISO_Ant0_Low_2422_Peak 11N40SISO_Ant0_High_2452_AV 56 11N40SISO_Ant0_High_2452_Peak 57 FCC Appendix RF Test Data for 2.4GWIFI Antenna 1 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.200 2456.960 2467.160 0.5 PASS 11G Ant1 2412 15.880 2404.120 2420.000 0.5 PASS 2437 15.720 2429.040 2444.760 0.5 PASS 2462 15.840 2454.080 2469.920 0.5 PASS 11N20SISO Ant1 2412 16.960 2403.680 2420.640 0.5 PASS 2437 16.840 2428.680 2445.520 0.5 PASS 2462 17.080 2453.400 2470.480 0.5 PASS 11N40SISO Ant1 2422 34.960 2405.120 2440.080 0.5 PASS 2437 35.200 2419.720 2454.920 0.5 PASS 2452 35.840 2434.320 2470.160 0.5 PASS 58 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 59 11G_Ant1_2412 11G_Ant1_2437 60 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 61 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 62 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 63 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.498 2405.2681 2418.7661 --- --- 2437 13.496 2430.2785 2443.7745 --- --- 2462 13.486 2455.2932 2468.7792 --- --- 11G Ant1 2412 16.890 2403.5790 2420.4690 --- --- 2437 16.898 2428.5741 2445.4721 --- --- 2462 16.888 2453.6231 2470.5111 --- --- 11N20SISO Ant1 2412 17.986 2403.0334 2421.0194 --- --- 2437 17.925 2428.0437 2445.9687 --- --- 2462 17.974 2453.0602 2471.0342 --- --- 11N40SISO Ant1 2422 36.074 2404.1271 2440.2011 --- --- 2437 36.113 2419.0909 2455.2039 --- --- 2452 36.121 2434.0856 2470.2066 …

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2AJU8-RG477V Company : Shenzhen Yangliming Electronic Technology Co., Ltd. EUT : Handheld Game Console Model Number : RG 477V Report No. : CTA26060901102 Reviewed By : Eric Wang 2 FCC Appendix RF Test Data for 2.4GWIFI Antenna 0 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant0 2412 10.160 2406.960 2417.120 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant0 2412 15.720 2404.080 2419.800 0.5 PASS 2437 15.720 2429.080 2444.800 0.5 PASS 2462 15.920 2454.120 2470.040 0.5 PASS 11N20SISO Ant0 2412 17.120 2403.480 2420.600 0.5 PASS 2437 16.400 2428.680 2445.080 0.5 PASS 2462 16.440 2454.080 2470.520 0.5 PASS 11N40SISO Ant0 2422 35.520 2404.640 2440.160 0.5 PASS 2437 35.440 2419.640 2455.080 0.5 PASS 2452 35.520 2434.480 2470.000 0.5 PASS 3 Test Graphs 11B_Ant0_2412 11B_Ant0_2437 11B_Ant0_2462 4 11G_Ant0_2412 11G_Ant0_2437 5 11G_Ant0_2462 11N20SISO_Ant0_2412 11N20SISO_Ant0_2437 6 11N20SISO_Ant0_2462 11N40SISO_Ant0_2422 7 11N40SISO_Ant0_2437 11N40SISO_Ant0_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant0 2412 13.477 2405.2786 2418.7556 --- --- 2437 13.488 2430.2818 2443.7698 --- --- 2462 13.473 2455.2999 2468.7729 --- --- 11G Ant0 2412 16.821 2403.6292 2420.4502 --- --- 2437 16.869 2428.6197 2445.4887 --- --- 2462 17.016 2453.5386 2470.5546 --- --- 11N20SISO Ant0 2412 17.925 2403.0397 2420.9647 --- --- 2437 17.981 2428.0263 2446.0073 --- --- 2462 17.966 2453.0416 2471.0076 --- --- 11N40SISO Ant0 2422 36.211 2404.0687 2440.2797 --- --- 2437 36.181 2419.0941 2455.2751 --- --- 2452 36.071 2434.0961 2470.1671 --- --- 9 Test Graphs 11B_Ant0_2412 11B_Ant0_2437 11B_Ant0_2462 10 11G_Ant0_2412 11G_Ant0_2437 11 11G_Ant0_2462 11N20SISO_Ant0_2412 11N20SISO_Ant0_2437 12 11N20SISO_Ant0_2462 11N40SISO_Ant0_2422 13 11N40SISO_Ant0_2437 11N40SISO_Ant0_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant0 2412 6.06 ≤30.00 PASS 2437 5.90 ≤30.00 PASS 2462 5.89 ≤30.00 PASS 11G Ant0 2412 5.49 ≤30.00 PASS 2437 5.39 ≤30.00 PASS 2462 5.32 ≤30.00 PASS 11N20SISO Ant0 2412 5.40 ≤30.00 PASS 2437 5.12 ≤30.00 PASS 2462 5.12 ≤30.00 PASS 11N40SISO Ant0 2422 5.28 ≤30.00 PASS 2437 5.36 ≤30.00 PASS 2452 5.56 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant0 2412 -20.28 ≤8.00 PASS 2437 -20.89 ≤8.00 PASS 2462 -20.67 ≤8.00 PASS 11G Ant0 2412 -27.00 ≤8.00 PASS 2437 -26.59 ≤8.00 PASS 2462 -26.23 ≤8.00 PASS 11N20SISO Ant0 2412 -25.74 ≤8.00 PASS 2437 -26.56 ≤8.00 PASS 2462 -26.80 ≤8.00 PASS 11N40SISO Ant0 2422 -28.01 ≤8.00 PASS 2437 -28.07 ≤8.00 PASS 2452 -28.67 ≤8.00 PASS 16 Test Graphs 11B_Ant0_2412 11B_Ant0_2437 11B_Ant0_2462 17 11G_Ant0_2412 11G_Ant0_2437 18 11G_Ant0_2462 11N20SISO_Ant0_2412 11N20SISO_Ant0_2437 19 11N20SISO_Ant0_2462 11N40SISO_Ant0_2422 20 11N40SISO_Ant0_2437 11N40SISO_Ant0_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant0 Low 2412 -7.20 -56.67 ≤-27.2 PASS High 2462 -6.74 -56.82 ≤-26.74 PASS 11G Ant0 Low 2412 -10.99 -41.98 ≤-30.99 PASS High 2462 -11.36 -57.87 ≤-31.36 PASS 11N20SIS O Ant0 Low 2412 -10.98 -42.12 ≤-30.98 PASS High 2462 -11.22 -58.08 ≤-31.22 PASS 11N40SIS O Ant0 Low 2422 -13.73 -41.98 ≤-33.73 PASS High 2452 -13.99 -58.2 ≤-33.99 PASS 22 Test Graphs 11B_Ant0_Low_2412 11B_Ant0_High_2462 11G_Ant0_Low_2412 23 11G_Ant0_High_2462 11N20SISO_Ant0_Low_2412 24 11N20SISO_Ant0_High_2462 11N40SISO_Ant0_Low_2422 11N40SISO_Ant0_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant0 2412 Reference -7.25 -7.25 --- PASS 30~1000 -7.25 -68.73 ≤-27.25 PASS 1000~26500 -7.25 -56.31 ≤-27.25 PASS 2437 Reference -7.07 -7.07 --- PASS 30~1000 -7.07 -67.84 ≤-27.07 PASS 1000~26500 -7.07 -56.16 ≤-27.07 PASS 2462 Reference -7.25 -7.25 --- PASS 30~1000 -7.25 -68.95 ≤-27.25 PASS 1000~26500 -7.25 -56.57 ≤-27.25 PASS 11G Ant0 2412 Reference -11.62 -11.62 --- PASS 30~1000 -11.62 -68.35 ≤-31.62 PASS 1000~26500 -11.62 -55.45 ≤-31.62 PASS 2437 Reference -11.53 -11.53 --- PASS 30~1000 -11.53 -68.07 ≤-31.53 PASS 1000~26500 -11.53 -55.85 ≤-31.53 PASS 2462 Reference -12.06 -12.06 --- PASS 30~1000 -12.06 -68.61 ≤-32.06 PASS 1000~26500 -12.06 -56.76 ≤-32.06 PASS 11N20SISO Ant0 2412 Reference -11.33 -11.33 --- PASS 30~1000 -11.33 -68.59 ≤-31.33 PASS 1000~26500 -11.33 -57.09 ≤-31.33 PASS 2437 Reference -11.79 -11.79 --- PASS 30~1000 -11.79 -67.67 ≤-31.79 PASS 1000~26500 -11.79 -55.68 ≤-31.79 PASS 2462 Reference -11.44 -11.44 --- PASS 30~1000 -11.44 -69.15 ≤-31.44 PASS 1000~26500 -11.44 -56.43 ≤-31.44 PASS 11N40SISO Ant0 2422 Reference -14.46 -14.46 --- PASS 30~1000 -14.4…

Text truncated - open the document above for the full version.
