2AJYRNM01172185Base One Max with MagSafe

Base One Max with MagSafe User manual 1 Name : Base One Max| with MagSafe | Carbide SKU: NM01172185 UPC: 856500011516 Base One Max | with MagSafe | White SKU: NM01173885 UPC: 856500011745 Base One Max | with MagSafe | Gold SKU: NNM00499685 UPC: 856500011752 2 include：Dock X 1, Cable X 1； 3 Appearance and specifications： 3.1 Product appearance picture： 3.2 Specifications： 3.2.1 Size：189*90*47mm (Dock) 3.2.2 Weight：950g (Cable not included) 3.2.3 Input receptor：USB C 3.2.4 Input requirement: PD 30W (12V/2.5A,15V/2A OR 20V 1.5A) or above. 3.2.5 Output1: 15W(Max with iPhone12/iPhone13). 3.2.6 Output2：5W(Max with watch series) 4 Opera tion instructions： 4.1.1 Insert one USB-C plug of the USB C To C Cable into the USB-C receptacle of the charger. 4.1.2 Insert the other USB-C plug of the USB C To C Cable into the PD 30W+ adapter。 4.1.3 Plug the PD ADAPTOR into an AC socket。 4.1.4 Place a Phone with MagSafe wireless charging feature on the wireless charger and align the phone center with the MagSafe module center of the charger. The phone will be sucked in by the MagSafe module of the charger and then charged. 4.1.5 Place a watch with Watch Charge Moudul center of the charge.The watch will be sucked in by the module of the charger and then charged. 5 Environment Requirements a. Operation temperature and relative Humidity:-5°C to +25°C;10%RH to 85%RH。 b. Storage temperature and relative Humidity：-20°C to +40°C;5%RH to 95%RH。 6 Notice: 6.1 A PD adapter of no less than 30W is required for charging, otherwise the charger will not work properly. 6.2 For indoor and dry conditions use only, away from damp or damp location. 6.2 Away from any liquid or damp environment. 6.3 Avoid any fire and shocks. 6.4 Unplug the USB-C cable if you don’t use for a long time. 6.3 Please do not disassemble this product without professional help. 7 Manufacturer. Nomad Goods, Inc. 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State FCC WARING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Any chang es or modifications not expressly approv ed by the part y responsib le for compliance could void the user's authority Note: This equipment has been tested and foun d to comply with the limits for a Class B digital device, pursuant to part 15 o f the F CC Rules. These limits are desig ned to provid e reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Howeve r, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocat e the receiving antenna. —Increase the separation between the equipment and receive r. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation expo-sure limits set forth for an uncontrolled environment and mee ts the FCC radio frequ ency (RF) Exposur e Guidelines. When using the product, keep a distance of at least 15cm from the product.

Author_i�ent July. 2 6, 2022] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (Nomad Goods, Inc.) FCC ID: (2AJYRNM01172185 ) To Whom It May Concern: W e, (Nomad Goods, Inc.), hereby authorized Shenzhen UnionTrust Quality and Technology Co., Ltd. 凰 to act as our Agent for the purpose of preparing application for FCC ID number (2AJYRNM01151685) under all applicable parts of the FCC rules and regulations We certify that we are not subject to denial of federal benefits, that includes FCC benefits. pursuant to Section 530 I of the Anti-Drug Abuse Act of 1988、2 I U.S.C. 862. Further, no party, as defined in 47 CFR i.2002 (b), to the application is subject to denial of federal b enefits, that includes FCC benefits. Thank you 气 Agency Agreement Expiration Date: � By: ｀贮气＼Martin (Print name) Title: ;!'l:Qduc_t_Mana型 On behalf of: (N,,mad Goods, Inc.) (Signature') 1 -Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorizer! agent letter has been provided. Letters should be pbced on appropriate letterhead

[Aug.I 7, 2022]] Attention: Application Examiner RE: R equest for Confidentiality Applicant: [ Nomad Goods. Inc.] FCC ID: [2AJYRNM01172185 ] To Whom It May Concern: [Nomad Goods, Inc.] Pemu111e11t Co,,jitlentiality [Complete this section /(permanent co,?fidentiality is 1•eq11ested] Request is hereby submitted by [ Nomad Goods. Inc.] to withhold permanently from public review certain p'）rtions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential • Schematics • Detailed Block Diagrams • Detailed Operational/F�nctional Description Rationale for request for confidentiality: [ Nomad Goods. Inc.] has invested considerable time and materials in research and development to produce the referenced product. [Permanent COJ?.fidentiality: Disclosure of the permanently confidential po1tions of this application to competitors would-not only give them significant competitive advantages in developing similar products 气 but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need fur1her information, please contact the undersigned Sincer e l y , ： 二 二 ］ r l n ] 已 心 心 [: Product Mana g er ] ［欢omadGoods. Inc.] 1( 1 )

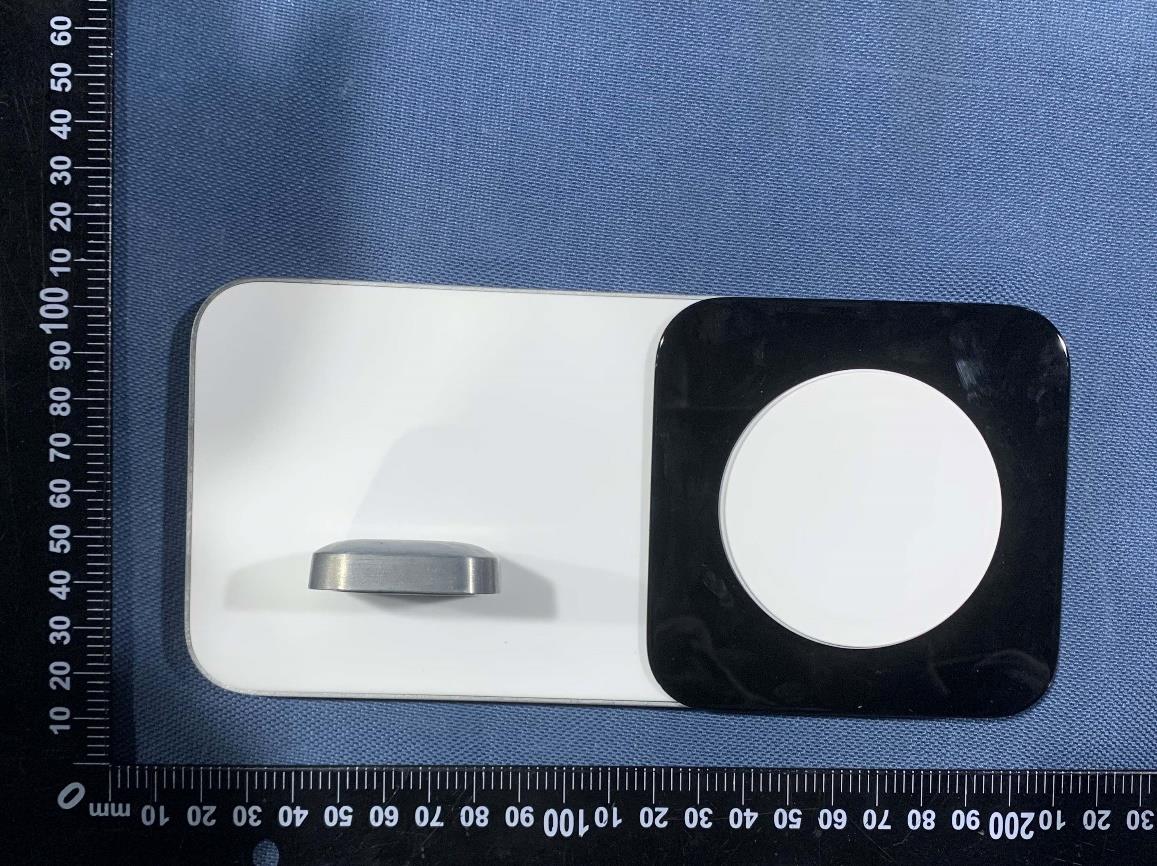

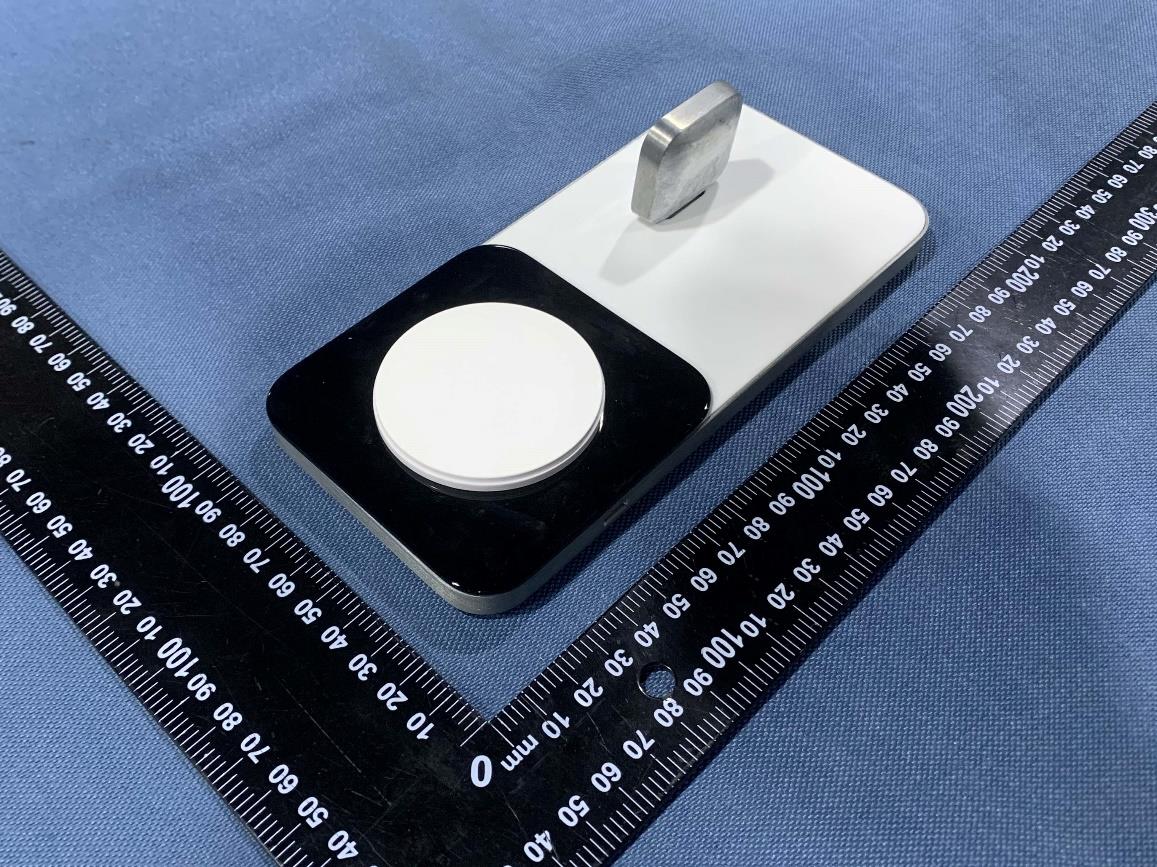

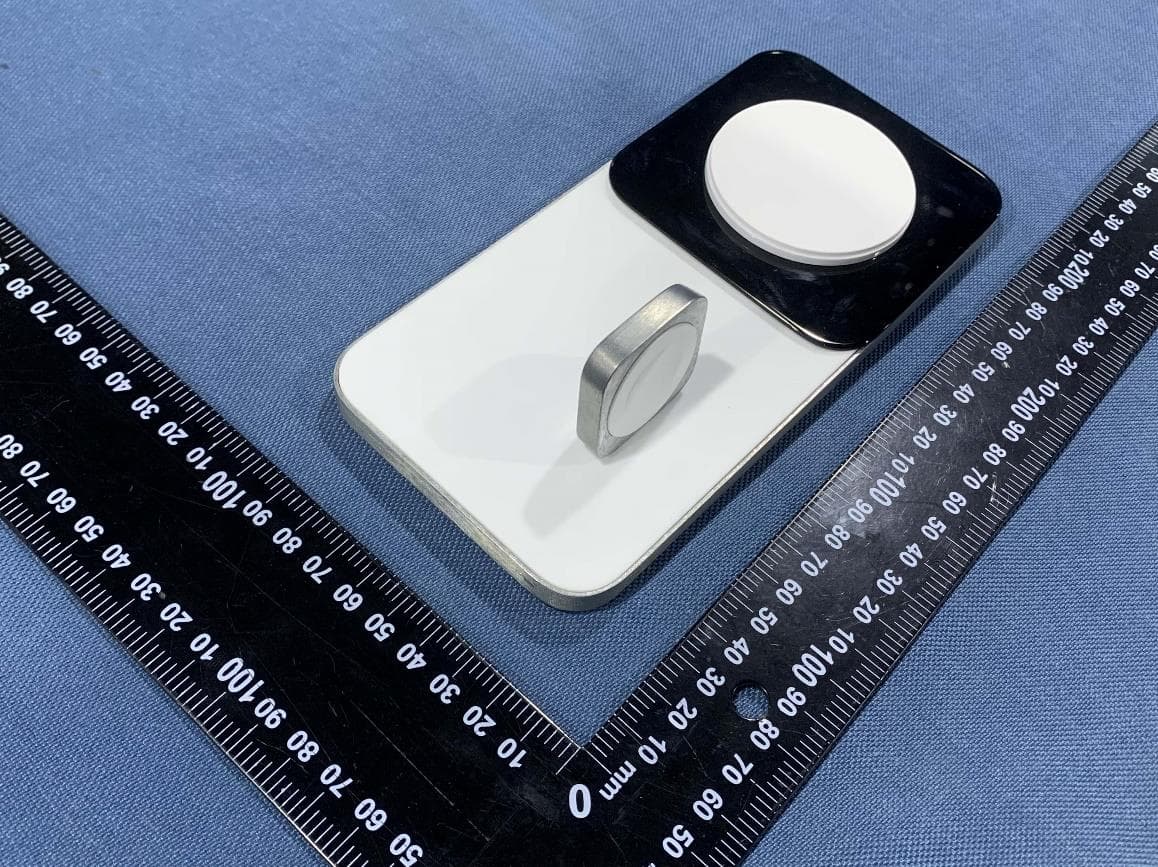

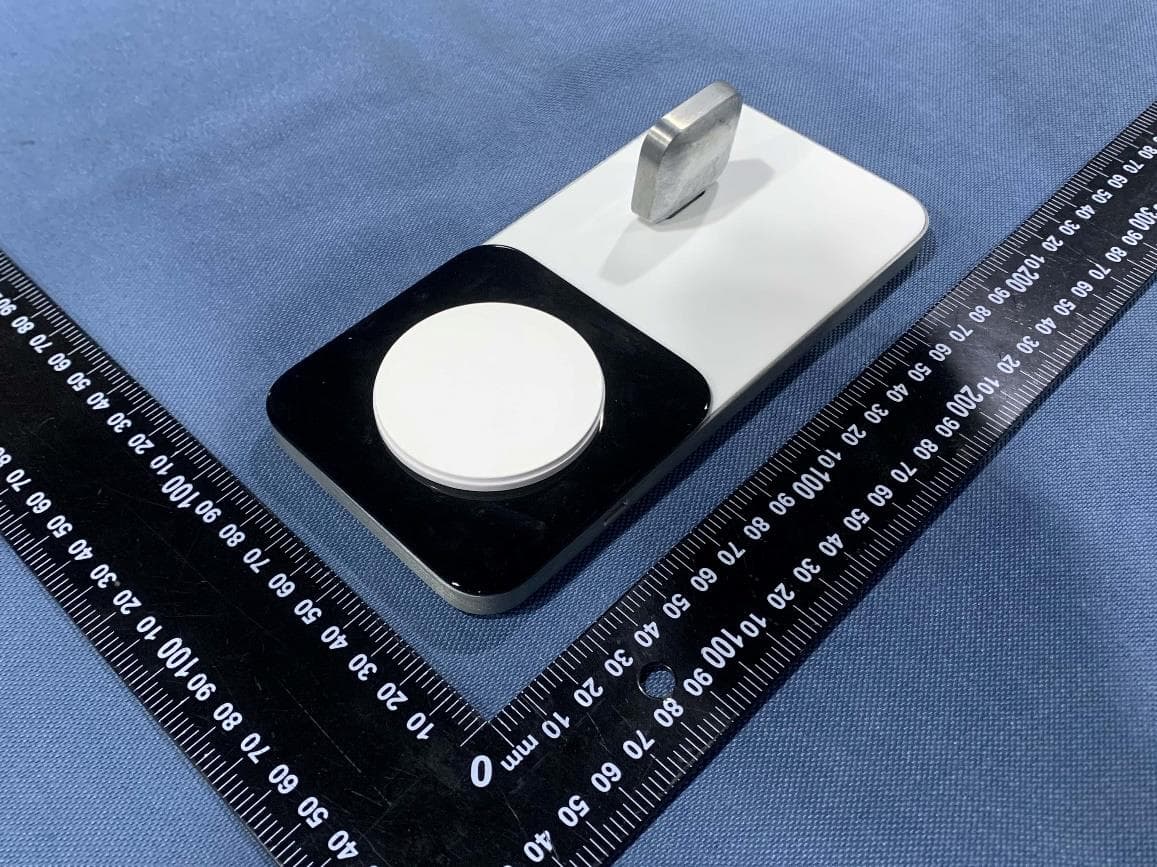

Page 1 of 4 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT External Photos EUT Photo EUT Photo Page 2 of 4 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo Page 3 of 4 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo Page 4 of 4 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo

Label Location

Page 1 of 7 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Internal Photos EUT Photo EUT Photo Page 2 of 7 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo Page 3 of 7 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo Page 4 of 7 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo Page 5 of 7 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo Page 6 of 7 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo Page 7 of 7 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo

Nomad Goods, Inc. MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: NM01172185, NM01173885, NM00499685 REPORT NUMBER: 220801056SHA-003 ISSUE DATE: August 22, 2022 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 15 Report no.: 220801056SHA-003 Applicant: Nomad Goods, Inc. Address of Applicant: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Manufacturer: Nomad Goods, Inc. Address of Manufacturer: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Factory: Zhongshan Zen Factory Ltd. Address of Factory: 6th.Industrial Area, Nanlang Town, Zhongshan City, Guangdong, China FCC ID: 2AJYRNM01172185 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: FCC PART 1 SECTION 1.1310 PREPARED BY: REVIEWED BY: Project Engineer Sky Yang Reviewer Wakeyou Wang Report No.: 220801056SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 15 Revision History Report No. Version Description Issued Date 220801056SHA-003 Rev. 01 Initial issue of report August 22, 2022 Report No.: 220801056SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 15 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Base One Max with MagSafe Type/Model: NM01172185, NM01173885, NM00499685 Description of EUT: The EUT is Base One Max with MagSafe. The additional model NM01173885, NM00499685 is identical with the test model NM01172185, Except for the appearance color. Rating: 20W Category of EUT: Class B EUT type: Table top Floor standing Operating Frequency range: 127.7 kHz Antenna Type: Coil antenna Sample received date: July 28, 2022 Date of test: August 4, 2022 to August 4, 2022 Report No.: 220801056SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 15 1.2 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road (North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN0175 IC Registration Lab CAB identifier.: CN0014 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 All tests were sub-contracted. Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China 518109 Telephone: +86 (0) 755 2823 0888 Fax: +86 (0) 755 2823 0886 All tests were sub-contracted at Shenzhen UnionTrust Quality and Technology Co., Ltd, and conducted by Kieron Luo Reviewed and approved by Wakeyou Wang from Intertek Testing Services Shanghai. The test facility is recognized, certified, or accredited by the following organizations: CNAS-Lab Code: L9069 The measuring equipment utilized to perform the tests documented in this report has been calibrated once a year or in accordance with the manufacturer's recommendations, and is traceable under the ISO/IEC/EN 17025 to international or national standards. Equipment has been calibrated by accredited calibration laboratories. IC-Registration No.: 21600-1 Report No.: 220801056SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 15 The 3m Semi-anechoic chamber of Shenzhen UnionTrust Quality and Technology Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 21600-1. A2LA-Lab Certificate No.: 4312.01 Shenzhen UnionTrust Quality and Technology Co., Ltd. has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2005 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. FCC Accredited Lab. Designation Number: CN1194 Test Firm Registration Number: 259480 Report No.: 220801056SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 15 2 TEST SPECIFICATIONS 2.1 Standards or specification FCC PART 1 SECTION 1.1310 KDB 680106 D01 RF Exposure Wireless Charging App v03 2.2 Mode of operation during the test Within this test report, EUT was tested under all modes and tested under its rating voltage and frequency. Other voltage and frequency are specified if used. The test mode is as follows: Test Mode 1: Wireless charging mode with Mobile phone (15W) Test Mode 2: Wireless charging mode with watch(5W) Test Mode 3: Wireless charging mode with Mobile phone (15W) + Wireless charging mode with watch (5W) Test Mode 4: Standby 2.3 Test peripherals list Item No. Name Band and Model Description 1 Mobile phone Apple, iphone…

Text truncated - open the document above for the full version.

Nomad Goods, Inc. TEST REPORT Report Type: FCC Part 15C Model: NM01172185, NM01173885, NM00499685 REPORT NUMBER: 220801056SHA-002 ISSUE DATE: August 22, 2022 DOCUMENT CONTROL NUMBER: TTRF15c_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15b_V1 © 2018 Intertek Page 2 of 26 Report no.: 220801056SHA-002 Applicant: Nomad Goods, Inc. Address of Applicant: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Manufacturer: Nomad Goods, Inc. Address of Manufacturer: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Factory: Zhongshan Zen Factory Ltd. Address of Factory: 6th.Industrial Area, Nanlang Town, Zhongshan City, Guangdong, China FCC ID: 2AJYRNM01172185 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2019): Radio Frequency Devices (Subpart C) ANSI C63.10 (2013): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices PREPARED BY: REVIEWED BY: Project Engineer Sky Yang Reviewer Wakeyou Wang Report No.: 220801056SHA-002 TEST REPORT TTRF15b_V1 © 2018 Intertek Page 3 of 26 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 7 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................... 9 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................... 9 2.3 TEST SOFTWARE LIST .......................................................................................................................................... 10 2.4 TEST PERIPHERALS LIST ....................................................................................................................................... 11 2.5 SUPPORT CABLE LIST .......................................................................................................................................... 11 2.6 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 11 2.7 INSTRUMENT LIST .............................................................................................................................................. 12 2.8 MEASUREMENT UNCERTAINTY ............................................................................................................................. 12 3 RADIATED EMISSIONS ............................................................................................................................... 13 3.1 LIMIT .............................................................................................................................................................. 13 3.1.1 the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table .................................................................................................................................................. 13 3.2 BLOCK DIAGRAM AND TEST SET UP ........................................................................................................................ 14 3.3 MEASUREMENT PROCEDURE ............................................................................................................................... 15 3.4 TEST RESULTS OF RADIATED EMISSIONS ................................................................................................................. 16 4 POWER LINE CONDUCTED EMISSION ......................................................................................................... 19 4.1 LIMIT .............................................................................................................................................................. 19 4.1.1 Limits for conducted disturbance voltage at the mains ports of class B device .................................. 19 4.2 BLOCK DIAGRAM AND TEST SET UP ..................…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 APPENDIX 1 PHOTOS OF TEST SETUP Radiated emission Test Setup (Below 30MHz) Radiated emission Test Setup (30 MHz~1 GHz) Page 2 of 2 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 Conducted emission

Page 1 of 9 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 APPENDIX 1 PHOTOS OF TEST SETUP Test Mode 1 E-Field Strength and H-Field Strength Position A (15cm) E-Field Strength and H-Field Strength Position B (15cm) Page 2 of 9 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 E-Field Strength and H-Field Strength Position C (15cm) E-Field Strength and H-Field Strength Position D (15cm) Page 3 of 9 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 E-Field Strength and H-Field Strength Position E (20cm) Page 4 of 9 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 Test Mode 2 E-Field Strength and H-Field Strength Position A (15cm) E-Field Strength and H-Field Strength Position B (15cm) Page 5 of 9 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 E-Field Strength and H-Field Strength Position C (15cm) E-Field Strength and H-Field Strength Position D (15cm) Page 6 of 9 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 E-Field Strength and H-Field Strength Position E (20cm) Page 7 of 9 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 Test Mode 3 E-Field Strength and H-Field Strength Position A (15cm) E-Field Strength and H-Field Strength Position B (15cm) Page 8 of 9 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 E-Field Strength and H-Field Strength Position C (15cm) E-Field Strength and H-Field Strength Position D (15cm) Page 9 of 9 FCC ID: 2AJYRNM01172185 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 E-Field Strength and H-Field Strength Position E (20cm)
