2AJYRNM30011A30Base Station Hub Edition

Instruction NM30011A30 NM300W4A00 Base Station Hub Edition NM30045A00 Base Station Hub with Apple Watch Charger Mount

Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. FCC Supplier’s Declaration of Conformity Base Station Hub Edition / NM30011A30， NM300W4A00，NM30045A00 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Nomad Goods, Inc. 1187 Coast Village Rd. #638 Santa Barbara, CA 93108 United States Phone: 86-760-28191714/Email: [email protected]

Nomad Goods, Inc. Date: 2020/3/31 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

Base Station Hub - Walnut Edition-NM300W4A00 3.5mm 13mm 1.6mm

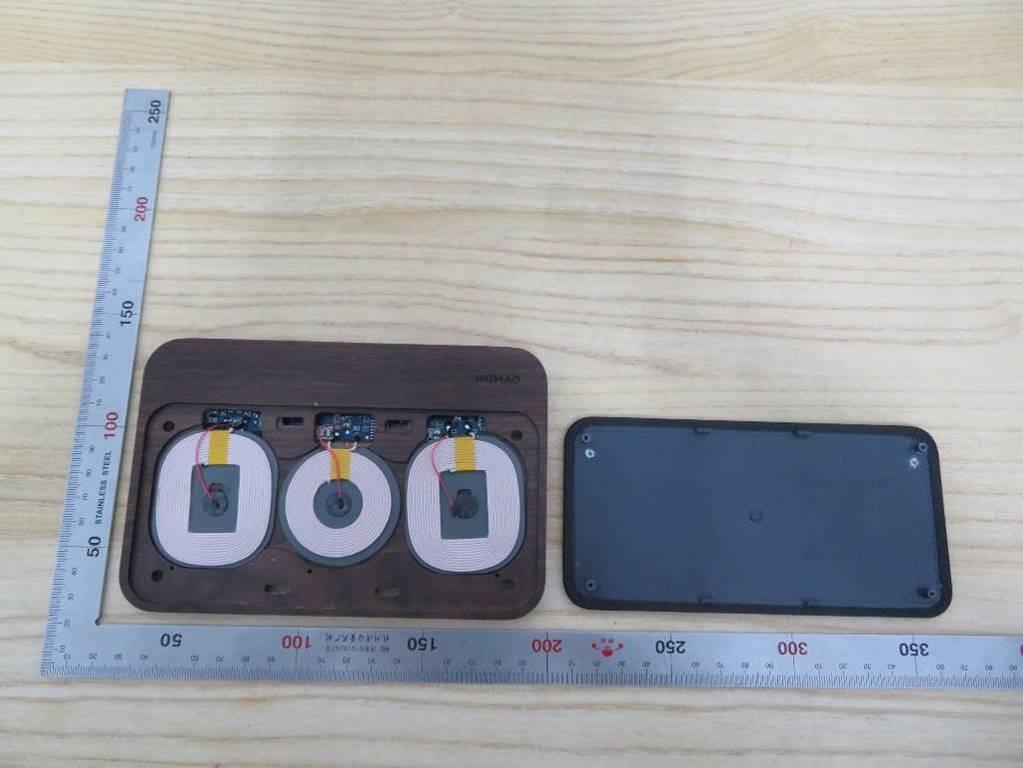

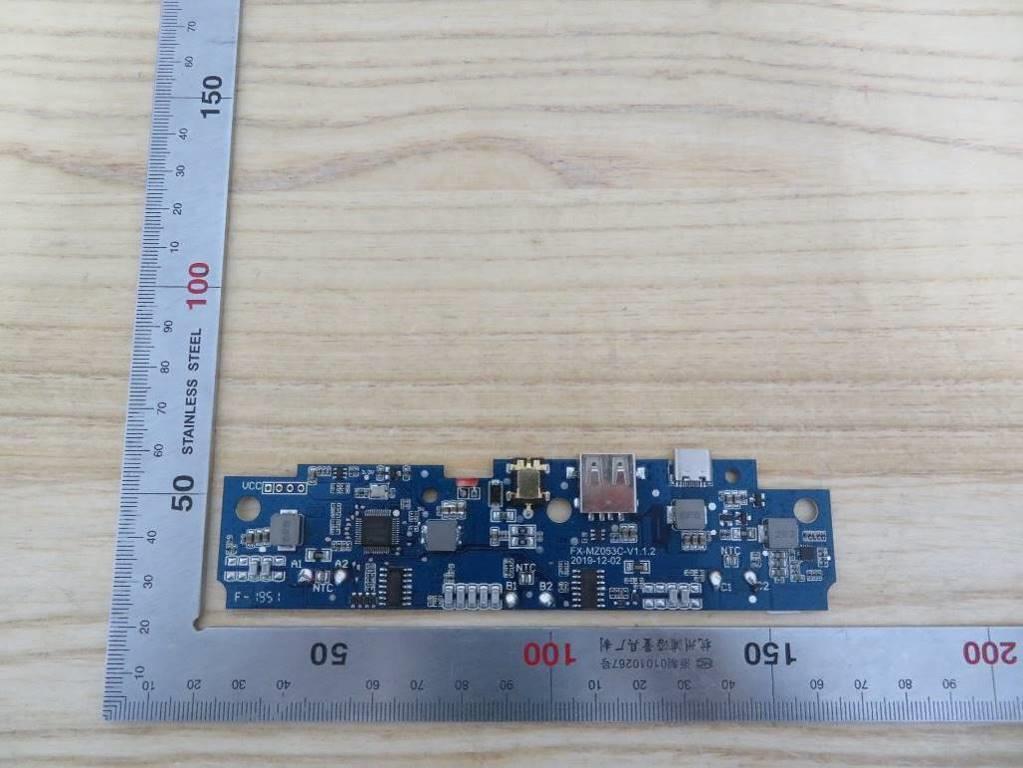

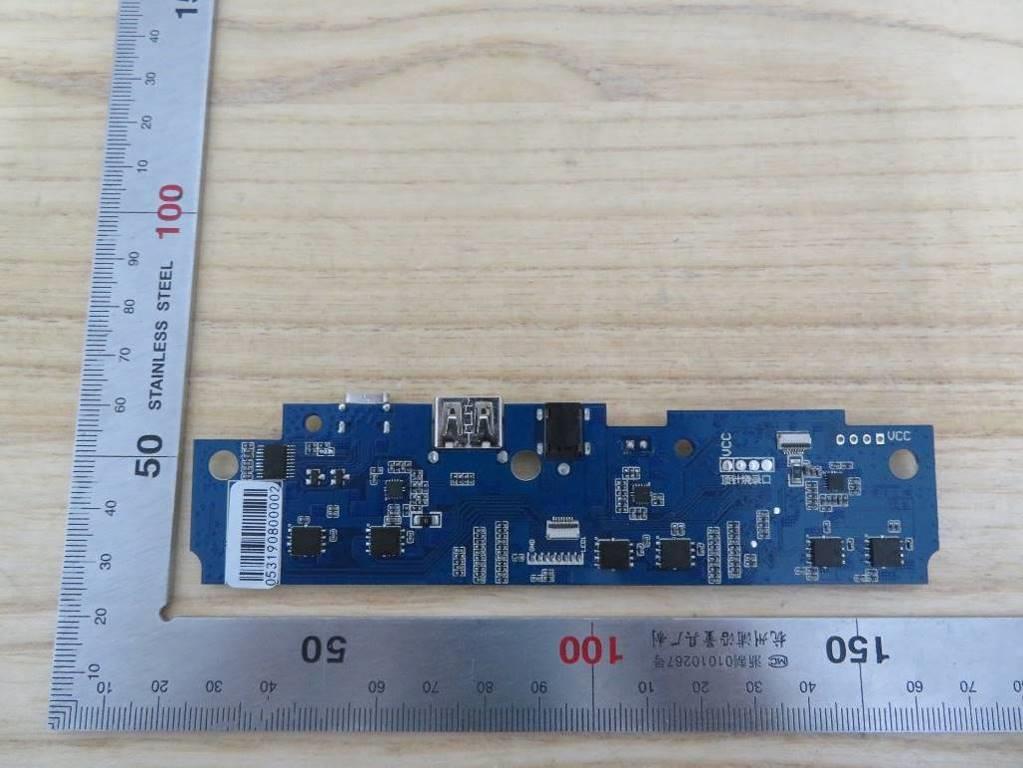

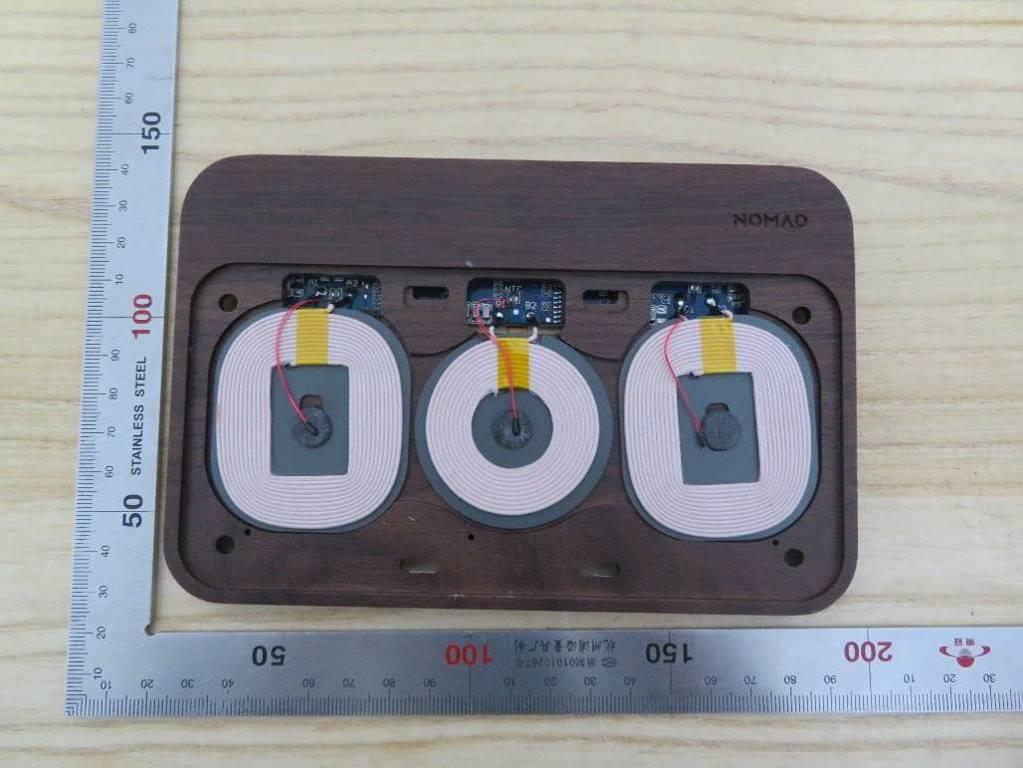

Appendix II Internal Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Left Coil Antenna 2 middle Coil Antenna 2 Right Coil Antenna 3 Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. .

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE TEST REPORT For Base Station Hub Edition MODEL NUMBER: NM30011A30, NM300W4A00, NM30045A00 FCC ID: 2AJYRNM30011A30 REPORT NUMBER: 4789432896.1-4 ISSUE DATE: April 13, 2020 Prepared for Nomad Goods Inc. 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789432896.1-4 Page 2 of 20 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 04/13/2020 Initial Issue REPORT NO.: 4789432896.1-4 Page 3 of 20 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. DESCRIPTION OF EUT ..................................................................................................... 6 5. REQUIREMENT ................................................................................................................. 7 REPORT NO.: 4789432896.1-4 Page 4 of 20 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Nomad Goods Inc. Address: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Manufacturer Information Company Name: Zhongshan Zen Factory Ltd. Address: 6th.Industrial Area,Nanlang Town,Zhongshan City, Guangdong,China EUT Information EUT Name: Base Station Hub Edition Model: NM300W4A00 Series Model: NM30011A30, NM30045A00 Model Difference: Refer to section 4 for details Brand: NOMAD Sample Received Date: March 26, 2020 Sample Status: Normal Sample ID: 2981551 Date of Tested: March 26, 2020 ~ April 13 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§1.1307 PASS FCC 47CFR§1.1310 PASS FCC 47CFR§2.1093 PASS FCC 47CFR§2.1091 PASS Prepared By: Checked By: Gary Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT NO.: 4789432896.1-4 Page 5 of 20 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with FCC 47CFR§1.1307(b)(1), FCC 47CFR§1.1310, FCC 47CFR§2.1093, 680106 D01 RF Exposure wireless charging apps v03. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules IC (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report Filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China REPORT NO.: 4789432896.1-4 Page 6 of 20 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. DESCRIPTION OF EUT EUT Name Base Station Hub Edition EUT Description The EUT is a wireless charger with USB type-A and type-C output. Model NM300W4A00 Series Model NM30011A30, NM30045A00 Model Difference Their electrical circuit design, layout and internal wiring are identical, all models have wireless charging function, the appearance are different. We select “NM300W4A00” as the representative model for formal test Operation Frequency 119.74kHz (for Left coils) 121.55kHz (for Right coils) 110.09kHz (…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC 47 CFR PART 15 SUBPART C TEST REPORT For Base Station Hub Edition MODEL NUMBER: NM30011A30, NM300W4A00, NM30045A00 FCC ID: 2AJYRNM30011A30 REPORT NUMBER: 4789432896.1-3 ISSUE DATE: April 13, 2020 Prepared for Nomad Goods Inc. 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789432896.1-3 Page 2 of 38 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 04/13/2020 Initial Issue REPORT NO.: 4789432896.1-3 Page 3 of 38 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Description of Test Item Standard Results Power Line Conducted Emission Test FCC 15.207 PASS Radiated Emission Test FCC 15.209 PASS 20dB Bandwidth FCC 15.215 PASS This test report is only published to and used by the applicant, and it is not for evidence purpose in China. REPORT NO.: 4789432896.1-3 Page 4 of 38 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. TEST MODE ............................................................................................................. 9 5.3. TEST ENVIRONMENT ............................................................................................. 9 5.4. ACCESSORY ......................................................................................................... 10 5.5. MEASURING INSTRUMENT LIST .......................................................................... 12 6. 20dB BANDWIDTH TEST ................................................................................................... 13 7. EMISSION TEST ................................................................................................................. 16 7.1. SPURIOUS EMISSIONS BELOW 30MHz ............................................................... 19 7.2. SPURIOUS EMISSIONS 30MHz - 1GHz ................................................................ 34 8. AC POWER LINE CONDUCTED EMISSIONS .................................................................... 36 REPORT NO.: 4789432896.1-3 Page 5 of 38 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Nomad Goods Inc. Address: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Manufacturer Information Company Name: Zhongshan Zen Factory Ltd. Address: 6th.Industrial Area,Nanlang Town,Zhongshan City, Guangdong,China EUT Information EUT Name: Base Station Hub Edition Model: NM300W4A00 Series Model: NM30011A30, NM30045A00 Model Difference: Refer to section 5.1 for details Brand: NOMAD Sample Received Date: March 26, 2020 Sample Status: Normal Sample ID: 2981551 Date of Tested: March 26, 2020 ~ April 13 2020 Prepared By: Checked By: Gary Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 FCC PART 15 SUBPART C PASS REPORT NO.: 4789432896.1-3 Page 6 of 38 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY All tests were performed in accordance with the standard FCC CFR 47 Part 2, FCC CFR 47 Part 15C KDB414788 D01 Radiated Test Site v01 and ANSI C63.10-2013. 3. FACILITIES AND ACCREDITATION Test Location UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Address Building …

Text truncated - open the document above for the full version.

Appendix III Setup Photographs RADIATED EMISSIONS MEASUREMENT SETUP (Below 30MHz) RADIATED EMISSIONS MEASUREMENT SETUP (Below 30MHz) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP RADIATED EMISSIONS MEASUREMENT SETUP (30MHz ~ 1 GHz) RADIATED EMISSIONS MEASUREMENT SETUP (30MHz ~ 1 GHz) E-FILED AND H-FILED STRENGTH MEASUREMENT E-FILED AND H-FILED STRENGTH MEASUREMENT E-FILED AND H-FILED STRENGTH MEASUREMENT E-FILED AND H-FILED STRENGTH MEASUREMENT E-FILED AND H-FILED STRENGTH MEASUREMENT
