2AJYRNM01838685Base Station Compact

Proprietary Information PAGE 1 OF 3 Maxwise Group Base Station Compact Model No.: NM01838685 This product is based on electromagnetic induction technology, it meets the Qi WPC 1.2.4 wireless charging protocol issued by WPC (wireless charging Union). Power or charge devices that support the Qi 5W/10W/ 15W wireless charging protocol, Apple 7.5W, Samsumg10W,Google fast Charge . A. Electric Parameter a.Input Parameter Comment Input voltage range 4.5V-17V Input voltage 5V/9V/12V/15V DC PD POWR Input power 5V/2A;9V/2A;12V/2A;15V/2A Output (Max)：5V 5W；9V 10W；12V 10W；15V 15W Standby power ≤500mW b. Output Parameter Comment WPC Certification Qi 1.2.4 15W EPP Or latest spec at time of certification Output Power 0W~15W BPP 5W @5-15V APPLE 7.5W@9-15V EPP10W@9-15V EPP15W@15V Operating frequency 110kHz~128kHz 127.795kHz FOR APPLE Frequency Accuracy = 50ppm Power Modulation Modulate voltage amplitude B. Led lights Power on self-test, enter the standby state after about 2 seconds (only 2 seconds of self-test for the first power on), during this period, and then go out ; In standby mode, when the wireless charging device is sensed, the corresponding part of the pure blue LED lights up, when two receiving devices are placed, the other part corresponding pure blue LED lights up ; When entering quick charging mode, the pure blue color LED will turn into pure red color; When recovering from quick charging mode to normal charging mode, the pure red color LED will turn back to pure blue color; When the metal foreign object(FOD) is detected, the pure red LED flashes. a) work indicting lamp Working LED Proprietary Information Page 2 of 3 Maxwise Group Power-on on 2s then off Standby LED off Charging LED on Charging full LED on b) Alarm type Alarm type Led Over-temperature/Low-temperature Flashing LED FOD Flashing LED Over voltage Flashing LED Under voltage Flashing LED Other Flashing LED C. Protection Requirements NO. Item product qualification a Input Low-voltage protection 4.3±0.2V b Input Over-voltage protection 17±0.5V c Input Over-current protection ≥2A d Over-temperature protection -10°C＞°C＜60°C 5.5 FOD (Foreign object detection) The device has FOD function. When a metal foreign object is detected, enters the FOD mode, the pure red LED flashes, 1 time/sec; When the metal foreign object is removed, the device exits FOD mode and enters standby mode. D. Environment Requirements a) Operation temperature and relative Humidity. -10°C to +25°C;10%RH to 85%RH。 b) Storage temperature and relative Humidity. -20°C to +80°C;5%RH to 95%RH。 Proprietary Information Page 3 of 3 Maxwise Group

Nomad Goods Inc. [December 30, 2020] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Nomad Goods Inc. FCC ID: 2AJYRNM01838685 To Whom It May Concern: We, Nomad Goods Inc. , hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2AJYRNM01838685 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is December 30, 2020. The Limited Agency Agreement expires on December 30, 2021, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This i s to advise that we are in full compl iance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] [Sophia Dentzel] [CEO] [Nomad Goods Inc.]

1(1) Nomad Goods Inc. [December 30, 2020] Attention: Application Examiner RE: Request for Confidentiality Applicant: Nomad Goods Inc. FCC ID: 2AJYRNM01838685 To Whom It May Concern: Permanent Confidentiality Request is hereby submitted by Nomad Goods Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: Schematics Detailed Block Diagrams Detailed Operational/Functional Description Rationale for request for confidentiality: [Nomad Goods Inc.] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] [Sophia Dentzel] [CEO] [Nomad Goods Inc.]

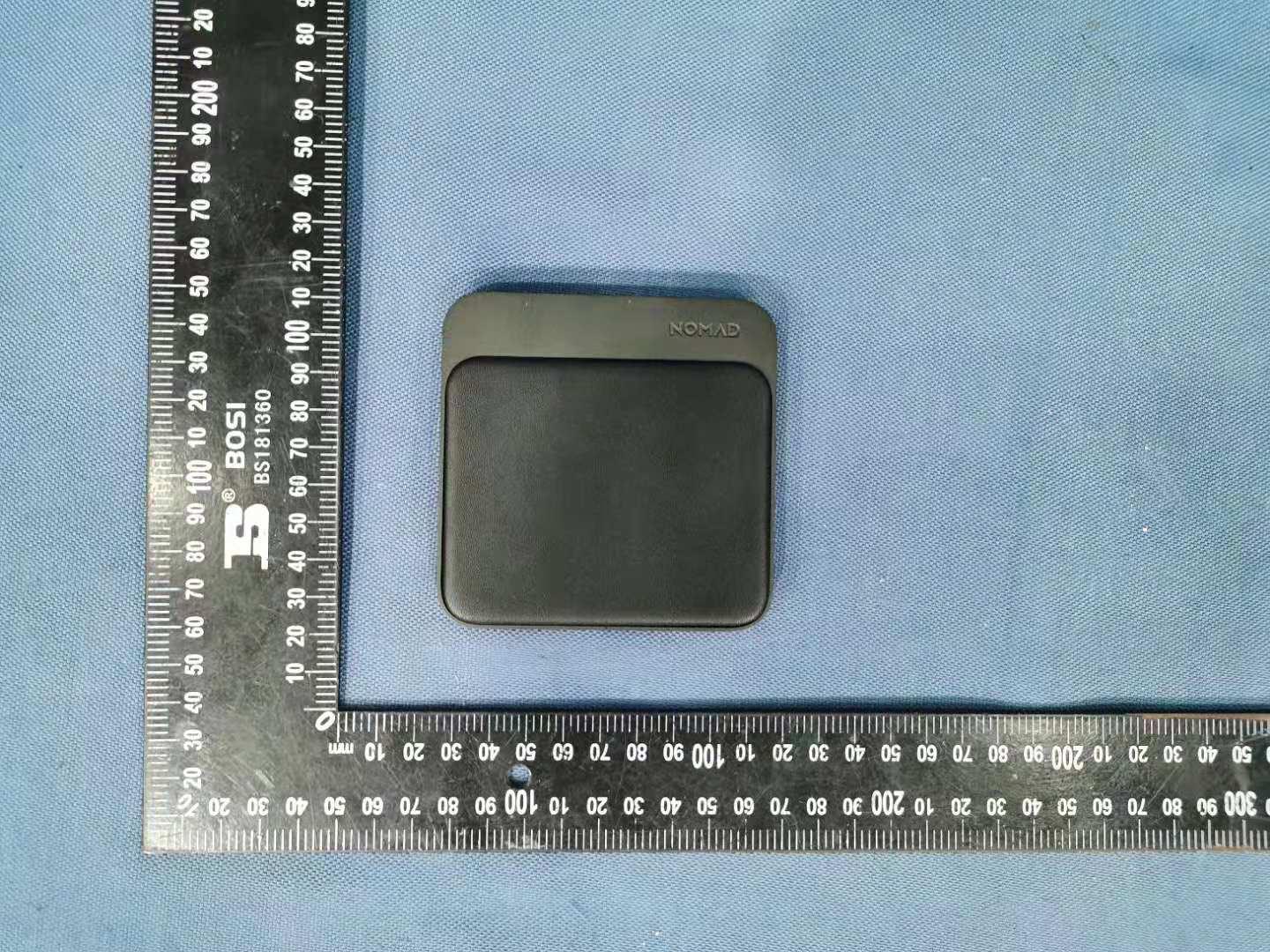

Page 1 of 2 Model No.: NM01838685 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 2 Model No.: NM01838685 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo

Nomad Goods, Inc. MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: NM01838685 REPORT NUMBER: 210102258SHA-003 ISSUE DATE: January 15, 2021 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 10 Report no.: 210102258SHA-003 Applicant: Nomad Goods, Inc. Address of Applicant: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Manufacturer: Nomad Goods, Inc. Address of Manufacturer: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State FCC ID: 2AJYRNM01838685 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) TESTED, PREPARED AND CHECKED BY : REVIEWED AND APPROVED BY : Project Engineer Wade Zhang Intertek Testing Services Shanghai Reviewer Daniel Zhao Intertek Testing Services Shanghai Report No.: 210102258SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 10 Revision History Report No. Version Description Issued Date 210102258SHA-003 Rev. 01 Initial issue of report January 15, 2021 Report No.: 210102258SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 10 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Base Station Compact Type/Model: NM01838685 Description of EUT: Base Station Compact Rating: Power the by AC adapter Category of EUT: Class B EUT type: Table top Floor standing Operating Frequency Range: 127.8 KHz Antenna Type: Coil antenna Sample received date: December 8, 2020 Date of test: December 8, 2020 to December 28, 2020 Report No.: 210102258SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 10 1.2 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab CAB identifier.: CN0051 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 All tests were sub-contracted. Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China 518109 Telephone: +86 (0) 755 2823 0888 Fax: +86 (0) 755 2823 0886 Tested, Prepared and Checked by Kieron Luo from Shenzhen UnionTrust Quality and Technology Co., Ltd. Reviewed and Approved by Daniel Zhao from Intertek Testing Services Shanghai. The test facility is recognized, certified, or accredited by the following organizations: CNAS-Lab Code: L9069 The measuring equipment utilized to perform the tests documented in this report has been calibrated once a year or in accordance with the manufacturer's recommendations, and is traceable under the ISO/IEC/EN 17025 to international or national standards. Equipment has been calibrated by accredited calibration laboratories. IC-Registration No.: 21600-1 Report No.: 210102258SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 10 The 3m Semi-anechoic chamber of Shenzhen UnionTrust Quality and Technology Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 21600-1. A2LA-Lab Certificate No.: 4312.01 Shenzhen UnionTrust Quality and Technology Co., Ltd. has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2005 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. FCC Accredited Lab. Designation Number: CN1194 Test Firm Registration Number: 259480 1.3 Instrument list Test Equipment List Used Equipment Manufacturer Model No. Serial Number Cal. date (mm dd, yyyy) Cal. Due date (mm dd, yyyy) ☒ Broadband Field meter STT SEM-600 D-1044 May 29, 2018 May 28, 2021 ☒ Probe STT LF-04 I-1044 May 29, 2018 May 28, 2021 ☒ Probe holder STT TR-01 N/A N/A N/A ☒ Optical fiber line STT L=5M N/A N/A N/A Report No.: 210102258SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 10 2 MPE Assessment Test result: Pass 2.1 MPE Assessment Limit According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging T…

Text truncated - open the document above for the full version.

Nomad Goods, Inc. EMC TEST REPORT Report Type: FCC Part 15C Model: NM01838685 REPORT NUMBER: 210102258SHA-002 ISSUE DATE: January 15, 2021 DOCUMENT CONTROL NUMBER: TTRF15c_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15b_V1 © 2018 Intertek Page 2 of 25 Report no.: 210102258SHA-002 Applicant: Nomad Goods, Inc. Address of Applicant: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State Manufacturer: Nomad Goods, Inc. Address of Manufacturer: 1187 Coast Village Rd. #638 Suite 1 Santa Barbara, CA 93108, United State FCC ID: 2AJYRNM01838685 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2017): Radio Frequency Devices (Subpart C) ANSI C63.10 (2013): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices TESTED, PREPARED AND CHECKED BY : REVIEWED AND APPROVED BY : Project Engineer Wade Zhang Intertek Testing Services Shanghai Reviewer Daniel Zhao Intertek Testing Services Shanghai Report No.: 210102258SHA-002 TEST REPORT TTRF15b_V1 © 2018 Intertek Page 3 of 25 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 7 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................... 9 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................... 9 2.3 TEST SOFTWARE LIST ............................................................................................................................................ 9 2.4 TEST PERIPHERALS LIST ......................................................................................................................................... 9 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 10 2.6 INSTRUMENT LIST .............................................................................................................................................. 10 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 11 3 RADIATED EMISSIONS ............................................................................................................................... 12 3.1 LIMIT .............................................................................................................................................................. 12 3.1.1 The field strength of any emissions appearing outside of the 13.110-14.010 MHz band shall not exceed the general radiated emission limits in §15.209. .................................................................................. 12 3.2 BLOCK DIAGRAM AND TEST SET UP ........................................................................................................................ 13 3.3 MEASUREMENT PROCEDURE ............................................................................................................................... 14 3.4 TEST RESULTS OF RADIATED EMISSIONS ................................................................................................................. 15 4 POWER LINE CONDUCTED EMISSION ......................................................................................................... 18 4.1 LIMIT .............................................................................................................................................................. 18 4.1.1 Limits for conducted disturbance voltage at the mains ports of class B device .................................. 18 4.2 BLOCK DIAGRAM AND TEST SET UP ........................................................................................................................ 19 4.3 MEASUREMENT PROCEDURE .....................................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AJYRNM01838685 APPENDIX 1 PHOTOS OF TEST SETUP Radiated emission Test Setup (Below 30MHz) Radiated emission Test Setup(30 MHz~1 GHz) Page 2 of 2 FCC ID: 2AJYRNM01838685 Conducted Emission Test Setup

Page 1 of 1 FCC ID: 2AJYRNM01838685 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 APPENDIX 1 PHOTOS OF TEST SETUP E-Field Strength and H-Field Strength (15cm) E-Field Strength and H-Field Strength (20cm) Probe Position D D Probe Position D Probe Position C D Probe Position D Probe Position A D Probe Position D Probe Position B D Probe Position D
