2AK7ELBP05Wireless Security Camera PRO

©2022 VUPOINT SOLUTIONS, INC. All Rights Reserved. The Toucan logo and Toucan are trademarks or registered trademarks of VuPoint Solutions Inc. in the United States and other countries. App Store is a registered trademark of Apple Inc. iOS is a registered trademark of Cisco Technology, Inc. in the U.S. and other countries and is under license. Android and Google Play are registered trademarks of Google LLC. Product names, logos, brands and other trademarks referred to herein are the property of their respective trademark holders. All trademarks remain the property of their respective holders, and are used only to describe the products or services being provided. These trademark holders are not affiliated with VuPoint Solutions, Inc. They do not sponsor or endorse VuPoint Solutions, Inc’s products or services. VuPoint Solutions, Inc. (USA): 710 Nogales Street, City of Industry, CA 91748 VuPoint (Europe) Company Limited: 1 Devon Way, Longbridge Technology Park, Longbridge, Birmingham B31 2TS facebook.com/toucansmarthome Instagram.com/toucansmarthome YouTube.com/c/toucansmarthome For additional info, visit our website at ToucanSolution.com Wall Anchors Mounting Screws Adhesive Tape Warranty CardUser Manual Thank You Card Charging Cable Magnetic Base Mount Magnetic Ball Wireless Security Camera PRO Items included USER MANUAL Wireless Security Camera PRO TSCP05GR Regulations & Compliance FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. ISED Regulatory Compliance This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure Compliance This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Cet équipement est conforme aux limites d’exposition aux radiations FCC/IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Microphone Camera Lens LED Indicator Speaker Radar Sensor Toucan Login Email ID Password Create A New Account SET button Open the mirco USB plug cover, plug in the micro USB cable to charge the camera. Recommend to fully charge the device before 1st use. Charge your Wireless Security Camera PRO Setup your Wireless Security Camera PRO Install your Wireless Security Camera PRO Threaded screw hole (for magnetic ball or accessory secure mount) RST button Mirco USB plug 1 Download the Toucan App 2 Login to the App 4 Connect your device 3 Add your device www.toucansolution.com/pages/toucan-smart-home-app Available at Apple © App Store © and Google Play™ Scan QR code or visit Open the app and create a free account. Follow the instructions in the Toucan App to complete the setup Tap the “+” to add a device 1 Check WiFi signal at installation area 2 Attach the magnetic ball 3 Mark the Magnetic Mount's preferred placement 4 Choose how you want to secure the Magnetic Mount A B C 5 Place the camera on the Magnetic Mount If using 3M Adhesive only (B), allow 24 to 48 hours curing time before placing the camera onto the Magnetic Mount to ensure maximum bonding strength. When using just the 3M adhesive (B) to install the Magnetic Mount, apply the adhesive on dry surfaces only. It is suitable for UPVC, wooden or smooth surface door frames. (Not suitable for brick or stone) * ** Screw the magnetic ball onto the back of the camera Using the magnetic mount as a template, mark where you want to mount the camera with a pencil. Take the camera to the planned installation area. Tap on the camera in the To…

Text truncated - open the document above for the full version.

VuPoint Solutions Inc Date: 2022-10-12 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID:2AK7ELBP05 To Whom It May Concern: This letter is to ascertain that VuPoint Solutions Inc EUT ：Wireless Security Camera PRO MODEL No.: TSCP05GR, TSCP05GR-EF, TSCP05GR-ML Has been the units used for conducting FCC compliance testing, the SDoC part will be tested by EMTEK (SHENZHEN) CO., LTD. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature ： Client’s name / title ：Sam Lin / Director Contact information / address: VuPoint Solutions Inc / 710 Nogales St., City of Industry, CA 91748

Rev 11/20/07 VuPoint Solutions Inc Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:2AK7ELBP05 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram, Schematics, Operational Description, The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Client’s signature ： Client’s name / title ：Sam Lin / Director Contact information / address: VuPoint Solutions Inc / 710 Nogales St., City of Industry, CA 91748 Date：2022-10-12

Declaration on model difference We the undersigned hereby confirm that any of ou r production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; only indicates for different market purposes; FCC ID:2AK7ELBP05 Production name Trade name Model no. Wireless Security Camera PRO TOUCAN TSCP05GR, TSCP05GR-EF, TSCP05GR-ML Co nfirmed by VuPoint Solutions Inc Client’s signature ： Cl ient’s name / title ：Sam Lin / Director Contact information / address: VuPoint Solutions Inc / 710 Nogales St., City of Industry, CA 91748 Date：2022- 10- 12

VuPoint Solutions Inc Federal Communications Commission Authorization and Evaluation Division 1435 Oakla nd Mills Road Columbia, MD 21046 Date: 2 022-1 0-1 2 SUBJECT: FCC Application for FCC ID:2AK7ELBP05 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wangat EMTEK (SHENZHEN) CO., LTD.o n our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out byEMTEK (SHENZHEN) CO., LTD.on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the A nti - Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefit s pursuant to Section 5301 of the Anti -Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursu ant to that sec tion. Regards, Client’s signature ： Client’s name / title ：Sam Lin / Director Contact information / address: VuPoint Solutions Inc / 710 Nogales St., City of Industry, CA 91748 Date：2022-10-12

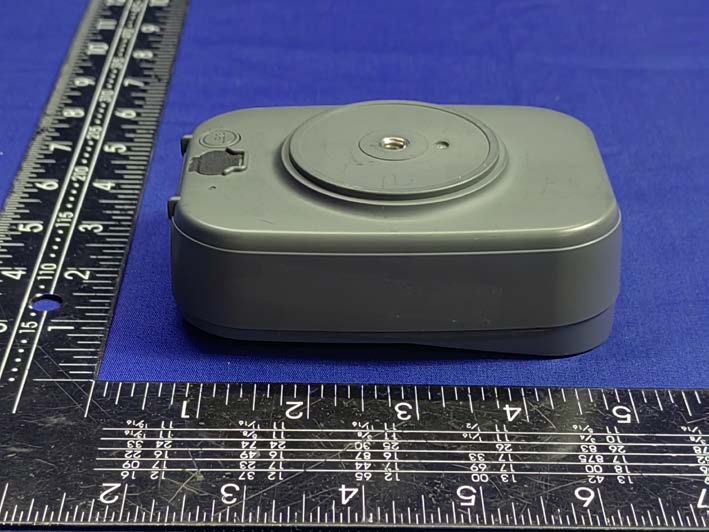

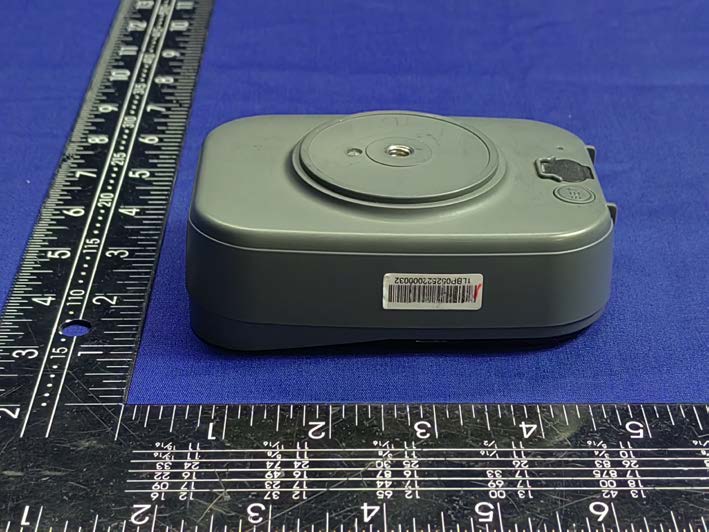

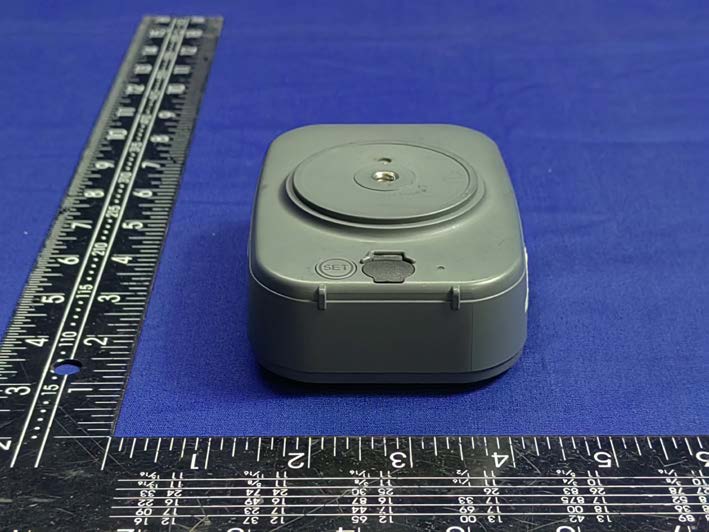

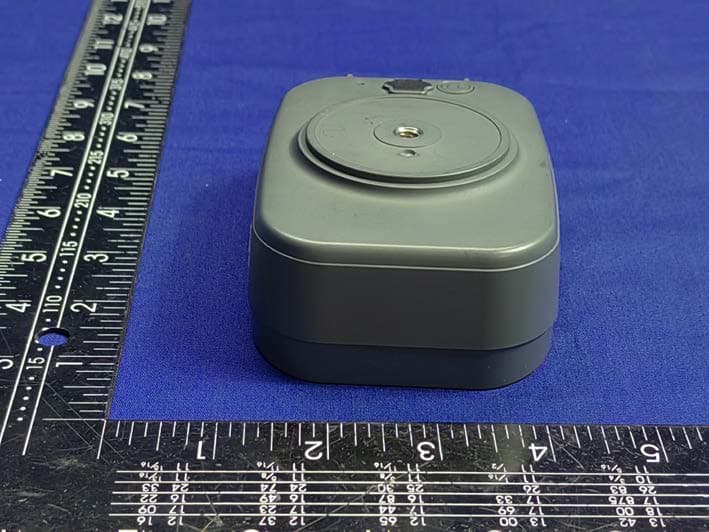

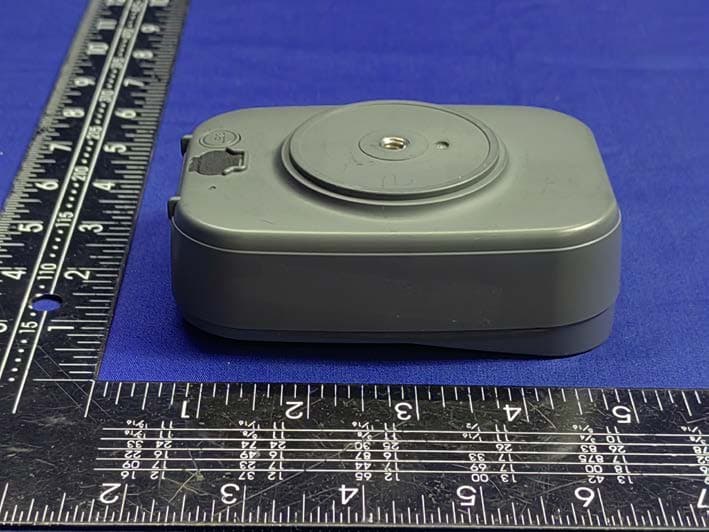

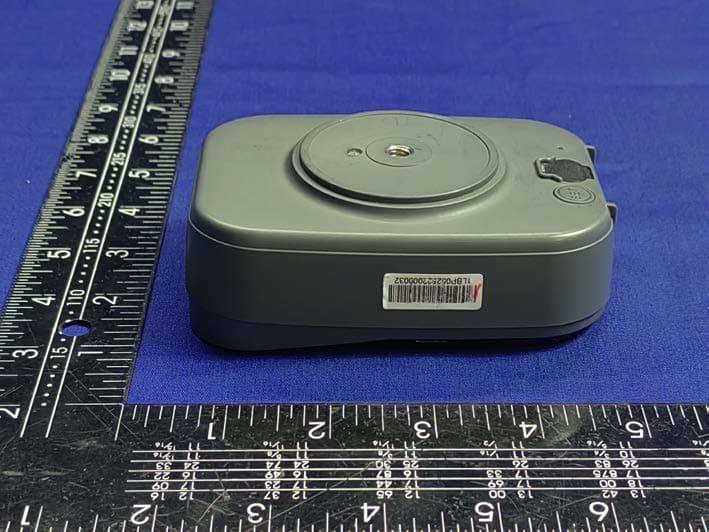

EUT EXTERNAL PHOTOGRAPHS ----------------The end---------------- USB point

技术要求： 1.材质：PET 白色,0.08MM, 印刷后过哑膜，粘性强，背纸厚度薄（不大于0.1mm 2.尺寸：刀线如上图。 3.印刷：100%黑色印刷。按上图内容 4.其他要求：1）成卷来料，来料后天彩打印SN. 居中排列，间距均匀 2）无脏污、油渍等不良现象 3）高温不残胶，不起翘。 Requirements： 1.Material: PET ,white,0.08MM, matte film,strong stickiness bottom paper not more than 0.1mm 2.Dimension：following the dieline. 3.Printing color：100%black,follow the artwork. 4.others:1Rolled into a roll, follow above drawing. 2)No dirt,no oil stain,etc. 3)No residual glue and No warp after high temperatures A B C D E F A B C D E F 1 2 3 4 5 6 1 2 3 4 5 6 绘图/日期 DRN/Date 天彩物料名称: Sky Light part name: 天彩物料号码: Sky Light Part No: 审核/日期 CHK/Date 批准/日期 APR/Date 页面: SHEET： 版本: REV： A0 1:1 mm 1 of 1 客户物料号码: customer Part No: 单位: UNIT： 比例: SCALE： 天彩电子(深圳)有限公司 SKY LIGHT Electronic (ShenZhen) Limited 投影标识: third angle projection： REV 客户物料名称: customer part name: 版本 变更内容 日期 SPECIFICATION OF REVISION DATE 来料注意事项： 1. 除我们要求”成片来料“的情况，所有贴纸尽量成卷来料；如不太清楚的是成卷还是成 片的料号，请给我们确认。 2. 成卷来料使用的纸筒： 内直径必须为3英寸（约76.2MM)，宽度不超过110MM且与贴纸底 纸的宽度一致 3. 每卷贴纸的数量不超过5000PCS，且贴纸卷在纸筒上后，总外径不能超过180MM 4. 贴纸的底纸: 请尽量薄。 贴纸和底纸合并后总厚度不超过0.2MM 5. 贴纸在底纸上的排列： 1）左右居中 2）贴纸与贴纸间的间距要相等 6. 贴纸送货时，请用塑料胶袋包装，以免潮湿，影响贴纸的粘性。 外包装塑料袋上面和纸筒内壁上用贴纸标示清楚物料信息。至少包含： 1）料号 2）物料 描述 3）数量 4）生产日期. 需要的其他信息，请参考天彩的通用要求。 IC: 22430-LBP05 Made in Vietnam Input: 5V 2A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Wireless Security Camera PRO Model: TSCP05GR-EF FCC ID: 2AK7ELBP05

A B C D E F A B C D E F 1 2 3 4 5 6 1 2 3 4 5 6 绘图/日期 DRN/Date 文件名称 审核/日期 CHK/Date 批准/日期 APR/Date 页面: SHEET： 版本: REV： A0 1:1 mm 1 of 1 单位: UNIT： 比例: SCALE： 天彩电子(深圳)有限公司 SKY LIGHT Electronic (ShenZhen) Limited 投影标识: third angle projection： REV File Name 版本 变更内容 日期 SPECIFICATION OF REVISION DATE 1. P3L-LBP05-UK2 2. 100% 3. SNWork Order Print Description: 1. Material number of the label: P3L-LBP05-UK2 3. Printed artwork: Following the above drawing. SN Number date,please reference work order 2. Printed color:100% black LBP05 The Printing Guidance -----SN Label of LBP05(UK) . The Printing Guidance --SN Label of LBP05 LBP05 1./Printed by Vendor This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AK7ELBP05 IC: 22430-LBP05 Made in China Input: 5V 2A URL: https://www.toucansolution.co.uk/pages/contact_us B31 2TS – United Kingdom VuPoint (Europe) Company Limited 2022/10/31 Wireless Security Camera PROModel: TSCP05GR-ML

Label location

EUT INTERNAL PHOTOGRAPHS

Patch Antenna FPC Antenna ----------------The end----------------

FCC ID:2AK7ELBP05 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result BLE Antenna gain: 1.49 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 6.85 5 to 7 7 1.41 0.00141 1 Wifi 2.4G Antenna gain: 1.49 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 26.09 25 to 27 27 1.41 0.14052 1 WIFI bluetooth support for simultaneous delivery MAX RF EXPOSURE EVALUATION WIFI2.4G (mW/cm2 ) BLE (mW/cm2 ) Summation of Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 0.14052 0.00141 0.14193 1

AntennaSpecifications DesignSpecificationsTypical AntennaType*Patch WorkingFrequency5.68GHz~5.93GHz Isolation>30dB AntennaGain≥3dBi AntennaEfficiency≥30% VSWR≤2 Impedance50ohm OverallDimensions* 13.5mm * 13.5mm Manufacturer FerryIntelligent Frequency(GHz)PeakGain(dBi)Frequency(GHz)PeakGain(dBi) 5.7953.95.8123.9 Frequency(GHz)PeakGain(dBi)Frequency(GHz)PeakGain(dBi) 5.8313.95.8483.9 Frequency(GHz)PeakGain(dBi)Frequency(GHz)PeakGain(dBi) 5.8263.95.8443.9 Frequency(GHz)PeakGain(dBi) 5.8583.9 Schematic 图一 13.5mm 1 3 . 5 m m SParameters 图二回波损耗 图三端口隔离度 3DAntennaGain 图四3D方向图5.795GHz 图五3D方向图5.812GHz 图六3D方向图5.831GHz 图七3D方向图5.848GHz 图八3D方向图5.826GHz 图九3D方向图5.844GHz 2DAntennaGain 图十3D方向图5.858GHz 图十一2D方向图5.795GHz 图十二2D方向图5.812GHz 图十三2D方向图5.831GHz 图十四2D方向图5.848GHz 图十五2D方向图5.826GHz 图十六2D方向图5.844GHz 图十七2D方向图5.858GHz

Report No. ENS2206300148W00103R Page 1 of 35 Ver.1.0 TEST REPORT Product Name ： Wireless Security Camera PRO Model Number ： TSCP05GR, TSCP05GR-EF, TSCP05GR-ML FCC ID ： 2AK7ELBP05 Prepared for : VuPoint Solutions Inc. Address : 710 Nogales St., City of Industry, CA 91748 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2206300148W00103R Date(s) of Tests : July 4, 2022 to September 14, 2022 Date of issue : September 16, 2022 $二维码$ Report No. ENS2206300148W00103R Page 2 of 35 Ver.1.0 Table of Contents TEST REPORT ................................................................................................................................................. 1 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................................ 6 4 TEST METHODOLOGY ........................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................ 7 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ................................................................................................. 9 5 FACILITIES AND ACCREDITATIONS .................................................................................................. 10 5.1 FACILITIES .................................................................................................................................. 10 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................. 10 6 TEST SYSTEM UNCERTAINTY ............................................................................................................ 11 7 SETUP OF EQUIPMENT UNDER TEST ................................................................................................ 12 7.1 RADIO FREQUENCY TEST SETUP 1 ......................................................................................... 12 7.2 RADIO FREQUENCY TEST SETUP 2 ......................................................................................... 12 7.3 CONDUCTED EMISSION TEST SETUP ..................................................................................... 14 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ......................................................... 15 7.5 SUPPORT EQUIPMENT ............................................................................................................ 15 8 TEST REQUIREMENTS ......................................................................................................................... 16 8.1 BANDWIDTH TEST ...................................................................................................................... 16 8.2 RADIATED SPURIOUS EMISSION ............................................................................................. 19 8.3 CONDUCTED EMISSIONS TEST ................................................................................................ 32 8.4 ANTENNA APPLICATION ............................................................................................................ 35 Report No. ENS2206300148W00103R Page 3 of 35 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : VuPoint Solutions Inc. Address : 710 Nogales St., City of Industry, CA 91748 Manufacturer : VuPoint Solutions Inc. Address : 710 Nogales St., City of Industry, CA 91748 EUT : Wireless Security Camera PRO Model Name : TSCP05GR, TSCP05GR-EF, TSCP05GR-ML Trademark : TOUCAN Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.249 This report applies to above tested sample only and shall not be reproduced in part without written approval of EMTEK (SHENZHEN) CO., LTD. Date of Test : July 4, 2022 to September 14, 2022 Prepared by : Una Yu /Editor Reviewer : Joe Xia/Supervisor Approved & Authorized Signer : Lisa Wang/Manager Report No. ENS2206300148W00103R Page 4 of 35 Ver.1.0 Modified Information Version Report No. Revision Data Summary Ver.1.0 ENS2206300148W00103R / Original Version Report No. ENS2206300148W00103R Page 5 of 35 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Product Wireless Security Camera PRO Modulation: TSCP05GR, TSCP05GR-EF, TSCP05GR-ML Note: all models are identical except for the Model. We chose TSCP05GR as the final test prototype. Sample: 2# Operating Frequency Range: 5795MHz-5848MHz Transmit Power Max 96.97 dBuV/m Channel number 4 channels Modulation: GFSK Antenna Type: Patch Antenna Antenna Gain: 3.9 dBi Power supply DC 5V/2A from USB Port DC 3.6V from battery Date of Received July 4, 2022 Temperature Range 0°C ~ +45°C Note: for more details, please refer to the User’s manual of the EUT. Report No. ENS2206300148W00103R Page 6 of 35 Ver.1.0 3 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.207 Conducted Emission PASS 15.209 Radiated Emission PASS 15.249 Radiated Spurious Emission PASS 15.249 Band edge test PASS 15.249 20dB Bandwidth PASS 15.203 Antenna Requirement PASS NOTE1: N/A (Not Ap…

Text truncated - open the document above for the full version.

1.1. Photos of Radiation Emission Measurement Photos of Conducted Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
