2AK7ELVD07Wireless Video Doorbell Dual Lens,Wireless Video Doorbell V3

1. Drill holes for wall anchor placement. If installing to use existing doorbell wiring, the hole in the center of the mounting plate should be over the old doorbell wiring hole. 2. Insert wall anchors 3. Attach the mounting plate with included screws FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. RF Exposure Compliance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Please register to activate your 1-year free warranty within the App or by visiting our website: www.toucansolution.com. Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that the unit is within the warranty period, must be presented to obtain warranty service. VuPoint Solutions and VuPoint (Europe) Company Limited (herein referred to as “VuPoint”, “us”, “we”, or “our”) warrants this Toucan Product (including any included accessories) against defects in material and workmanship as follows: For 1 year (12 months) from date of original retail purchase of this Product, if Product is used primarily for personal, family, or household purposes (“Household Consumer Use”), VuPoint will repair or replace the Product, at its sole discretion, if the Product is determined to be defective due to material or workmanship. If Product is used for any other purpose than Household Consumer Use, including but not limited to commercial, industrial, or other non-household purposes, VuPoint will repair or replace the Product at no charge, at its sole discretion, if the Product is determined to be defective due to material or workmanship. Before returning the product, please contact us for help and support. Details of your local customer support can be found on our website: www.toucansolution.com To obtain warranty services, you must deliver the Product at your cost in either its original packaging or packaging that affords equivalent degree of protection as the original packaging to the VuPoint service facility. Please deliver the Product with an explanation of the defect, the dated sales receipt, a return address, and contact details. Please allow 7 working days for the Product to be tested for defects. This warranty does not cover customer instruction, installation, set up adjustments or signal reception problems. This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of, or to any part of the Product. This warranty does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or attempted repair by anyone other than VuPoint service center. This warranty does not cover Products sold AS IS or WITH ALL FAULTS, or consumables (such as fuses or batteries). This warranty is invalid if the factory applied serial number has been altered or removed from the Product. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, VUPOINT SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY ON THIS PRODUCT, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some regions do not allow the exclusion or limitations of incidental or consequential damages or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which may vary from region to region. Warranty may vary according to local applicable law, please visit the website to ascertain warranty services in your region. For troubleshooting information and frequently asked questions, please visit our website or contact customer support, details of which can be found on our website for your region. VuPoint (Europe) Company Limited: 1 Devon Way, Longbridge Technology Park, Longbridge, Birmingham B31 2TS, UK VuPoint Solutions, Inc. (USA): 12339 Denholm Dr, El Monte, CA 91732 ©2024 VUPOINT SOLUTIONS, INC. All Rights Reserved. The Toucan logo and Toucan are trademarks or registered trademarks of VuPoint Solutions Inc. in the United States and other countries. App Store is a registered trademark of Apple Inc. iOS is a registered trademark of Cisco Technology, I…

Text truncated - open the document above for the full version.

TVD100DL-ML EN TVD100DL-ML DE TVD100DL-ML FR TVD100DL-ML ES TVD100DL-ML IT TVD100DL-ML NL Wireless Video Doorbell Dual Lens USER MANUAL Vídeo Timbre Inalámbrico Doble Lente MANUAL DEL USUARIO Drahtlose Video-Türklingel Doppellinse BEDIENUNGSANLEITUNG Videocitofono Wireless Doppio Obiettivo MANUALE UTENTE Sonnette Vidéo Sans Fil Double Objectif MODE D’EMPLOI Draadloze Videodeurbel Dubbele Lens GEBRUIKERSHANDLEIDING Bitte registrieren Sie sich, um Ihre 2-jährige kostenlose Garantie in der App zu aktivieren, oder besuchen Sie unsere Website: www.toucansolution.com Der Kaufnachweis in Form eines Kaufvertrags oder einer erhaltenen Rechnung, aus dem hervorgeht, dass sich das Gerät innerhalb der Garantiezeit befindet, muss vorgelegt werden, um einen Garantieservice zu erhalten. VuPoint Solutions und VuPoint (Europe) Company Limited (hier als “VuPoint”, “uns”, “wir” oder “unser” bezeichnet) garantieren dieses Toucan-Produkt (einschließlich des mitgelieferten Zubehörs) gegen Material- und Verarbeitungsfehler wie folgt: Für zwei Jahrs (24 Monate) ab dem Datum des ursprünglichen Einzelhandelskaufs dieses Produkts, wenn das Produkt hauptsächlich für persönliche, familiäre oder Haushaltszwecke verwendet wird (“Verwendung von Haushaltsverbrauchern”), repariert oder ersetzt VuPoint das Produkt nach eigenem Ermessen, wenn festgestellt wird, dass das Produkt aufgrund von Material oder Verarbeitung fehlerhaft ist. Wenn das Produkt für einen anderen Zweck als den Haushaltsverbrauch verwendet wird, einschließlich, aber nicht beschränkt auf gewerbliche, industrielle oder andere nicht haushaltsbezogene Zwecke, repariert oder ersetzt VuPoint das Produkt kostenlos nach eigenem Ermessen, wenn festgestellt wird, dass das Produkt aufgrund von Material oder Verarbeitung fehlerhaft ist. Bevor Sie das Produkt zurücksenden, kontaktieren Sie uns bitte, um Hilfe und Support zu erhalten. Details zu Ihrem lokalen Kundensupport finden Sie auf unserer Website: www.toucansolution.com Um Garantieleistungen zu erhalten, müssen Sie das Produkt auf Ihre Kosten entweder in der Originalverpackung oder in einer Verpackung an die VuPoint-Serviceeinrichtung liefern, die den gleichen Schutz bietet wie die Originalverpackung. Bitte liefern Sie das Produkt mit einer Erklärung des Mangels, dem datierten Kaufbeleg, einer Rücksendeadresse und Kontaktdaten. Bitte erlauben Sie 7 Werktage, damit das Produkt auf Mängel geprüft werden kann. Diese Garantie beinhaltet Kundenanweisungen, Installationen, Einstellungen oder Signalempfang- sprobleme nicht. Diese Garantie deckt keine kosmetischen Schäden oder Schäden ab, die auf höhere Gewalt, Unfall, falsche Verwendung, Missbrauch, Fahrlässigkeit, kommerzielle Nutzung oder Änderung des Produkts oder eines Teils davon zurückzuführen sind. Diese Garantie deckt keine Schäden ab, die auf unsachgemäße Betätigung oder Wartung, Anschluss an eine unsachgemäße Spannungsversorgung oder Reparaturversuche durch andere Personen als das VuPoint Service Center zurückzuführen sind. Diese Garantie gilt nicht für Produkte, die WIE BESEHEN oder MIT ALLEN FEHLERN verkauft werden, oder Verbrauchsmaterialien (wie Sicherungen oder Batterien). Diese Garantie ist ungültig, wenn die werkseitig verwendete Seriennummer geändert oder aus dem Produkt entfernt wurde. REPARATUR ODER AUSTAUSCH, WIE IM RAHMEN DIESER GARANTIE ZUR VERFÜGUNG GESTELLT WIRD, IST DAS AUSSCHLIESSLICHE RECHTSMITTEL DES VERBRAUCHERS. VUPOINT HAFTET NICHT FÜR NEBEN- ODER FOLGESCHÄDEN WEGEN VERLETZUNG AUSDRÜCKLICHER ODER STILLSCHWEIGENDER GARANTIE AN DIESEM PRODUKT, MIT AUSNAHME DES UMFANGS, DER DURCH DAS GELTENDE RECHT VERBOTEN IST. JEGLICHE STILLSCHWEIGENDE GEWÄHRLEISTUNG ODER MARKTGÄNGIGKEIT ODER EIGNUNG FÜR EINEN BESTIMMTEN ZWECK AN DIESEM PRODUKT IST AUF DIE DAUER DIESER GARANTIE BESCHRÄNKT. Einige Regionen erlauben nicht den Ausschluss oder die Beschränkung von Neben- oder Folgeschäden, oder erlauben nicht Beschränkungen für die Dauer einer impliziten Garantie, sodass die oben genannten Einschränkungen oder Ausschlüsse möglicherweise nicht für Sie gelten. Diese Garantie gewährt Ihnen bestimmte gesetzliche Rechte, und Sie haben möglicherweise andere Rechte, die von Region zu Region variieren können. Die Garantie kann je nach lokalem geltendem Recht variieren. Besuchen Sie die Website, um die Garantieleistungen in Ihrer Region zu ermitteln. Informationen zur Fehlerbehebung und häufig gestellte Fragen finden Sie auf unserer Website oder erhalten Sie vom Kundendienst. Einzelheiten dazu finden Sie auf unserer Website für Ihre Region. EINGESCHRÄNKTE GARANTIE Kamera-Eingang: 5V 2A (USB-C) FCC-ERKLÄRUNG Warnung: Änderungen oder Modifikationen an diesem Gerät, die nicht ausdrücklich von der für die Konformität verantwortlichen Partei genehmigt wurden, können zum Erlöschen der Berechtigung des Benutzers zum Betrieb des Geräts führen. HINWEIS: Dieses Gerät wurde getestet und entspricht den Grenzwerten für digitale Geräte der Klasse B gemäß Teil 15 der FCC-Bestimmungen. Diese Grenzwerte sollen einen angemessenen Schutz gegen schädliche Störungen in einer Wohninstallation bieten. Dieses Gerät erzeugt, verwendet und strahlt möglicherweise Radiofrequenzenergie aus. Wird es nicht gemäß den Anweisungen installiert und verwendet, kann dies ebenfalls zu Funkstörungen führen. Es gibt jedoch keine Garantie dafür, dass bei einer bestimmten Installation keine Störungen auftreten. Wenn dieses Gerät den Radio- oder Fernsehempfang schädigt, was durch Aus- und Einschalten des Geräts festgestellt werden kann, wird dem Benutzer empfohlen, eine oder mehrere der folgenden Maßnahmen zum Korrigieren der Störungen auszuprobieren: • Richten Sie die Empfangsantenne neu aus oder stellen Sie sie neu auf. • Erhöhen Sie den Abstand zwischen Gerät und Empfänger. • Schließen Sie das Gerät an einen anderen Stromkreis an als den, mit dem der Empfänger verbunden ist. • Wenden Sie sich an den Händler oder einen erfahrenen Radio-/Fernsehtechniker. Dieses Gerät entspricht Teil 15 der FCC-Bestimmungen. …

Text truncated - open the document above for the full version.

Please register to activate your 1-year free warranty within the App or by visiting our website: www.toucansolution.co.uk. Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that the unit is within the warranty period, must be presented to obtain warranty service. VuPoint Solutions and VuPoint (Europe) Company Limited (herein referred to as “VuPoint”, “us”, “we”, or “our”) warrants this Toucan Product (including any included accessories) against defects in material and workmanship as follows: For 1 year (12 months) from date of original retail purchase of this Product, if Product is used primarily for personal, family, or household purposes (“Household Consumer Use”), VuPoint will repair or replace the Product, at its sole discretion, if the Product is determined to be defective due to material or workmanship. If Product is used for any other purpose than Household Consumer Use, including but not limited to commercial, industrial, or other non-household purposes, VuPoint will repair or replace the Product at no charge, at its sole discretion, if the Product is determined to be defective due to material or workmanship. Before returning the product, please contact us for help and support. Details of your local customer support can be found on our website: www.toucansolution.co.uk To obtain warranty services, you must deliver the Product at your cost in either its original packaging or packaging that affords equivalent degree of protection as the original packaging to the VuPoint service facility. Please deliver the Product with an explanation of the defect, the dated sales receipt, a return address, and contact details. Please allow 7 working days for the Product to be tested for defects. This warranty does not cover customer instruction, installation, set up adjustments or signal reception problems. This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of, or to any part of the Product. This warranty does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or attempted repair by anyone other than VuPoint service center. This warranty does not cover Products sold AS IS or WITH ALL FAULTS, or consumables (such as fuses or batteries). This warranty is invalid if the factory applied serial number has been altered or removed from the Product. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, VUPOINT SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY ON THIS PRODUCT, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some regions do not allow the exclusion or limitations of incidental or consequential damages or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which may vary from region to region. Warranty may vary according to local applicable law, please visit the website to ascertain warranty services in your region. For troubleshooting information and frequently asked questions, please visit our website or contact customer support, details of which can be found on our website for your region. Limited Warranty Plug Camera Input: 5V 2A (USB-C) FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. RF Exposure Compliance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. EU Compliance VuPoint (Europe) Company Limited hereby declares that Wireless Video Doorbell V3 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.toucansolution.co.uk/pages/certificates. ©2024 VUPOINT SOLUTIONS, INC. All Rights Reserved. The Toucan logo and Toucan are trademarks or registered trademarks of VuPoint Solutions Inc. in the United States and other countries. App Store is a registered trademark of Apple Inc. iOS is a registered trademark of Cisco Technology, Inc. in the U.S. and other countries and is under license. Android and Google Play are registered trade…

Text truncated - open the document above for the full version.

Rev 1/26/2023 VuPoint Solutions Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-31-2024 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AK7ELVD07 VuPoint Solutions Inc. ("the applicant")certifies that the equipment for which authorization is sought is not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicantsignature) (Applicant printed name) Mitchell Kuan /Executive Vice President Rev 1/26/2023 VuPoint Solutions Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-31-2024 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AK7ELVD07 VuPoint Solutions Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List(as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Mitchell Kuan /Executive Vice President

Declaration on model difference We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; All models only difference is the TVD300 series does not have MIPISWATCH IC related circuit components, sensor related circuit components, AC related circuit components, and LED board white lights compared to the TVD100 series for trading purpose. TVD100 series 3 models only packaging material and product appearance color is different. TVD300 series 3 models only packaging material and product appearance color is different. FCC ID: 2AK7ELVD07 Production name Trade name Model no. Wireless Video Doorbell Dual Lens N/A TVD100DL, TVD100DL-ML, TVD100DL-EC Wireless Video Doorbell V3 N/A TVD300V, TVD300V-ML, TVD300V-EC Confirmed by VuPoint Solutions Inc. Mitchell Kuan VuPoint Solutions Inc. Date: 2024-08-31

VuPoint Solutions Inc. Date: 2024-08-31 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AK7ELVD07 To Whom It May Concern: This letter is to ascertain that VuPoint Solutions Inc. EUT：Wireless Video Doorbell Dual Lens,Wireless Video Doorbell V3 MODEL No.: TVD100DL, TVD100DL-ML, TVD100DL-EC, TVD300V, TVD300V-ML, TVD300V-EC Has been the units used for conducting FCC compliance testing, the SDoC part will be tested by EMTEK (SHENZHEN) CO., LTD. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature ： Client’s name / title ： Mitchell Kuan Contact information / address: VuPoint Solutions Inc. /12339 Denholm Drive, El Monte, California 91732

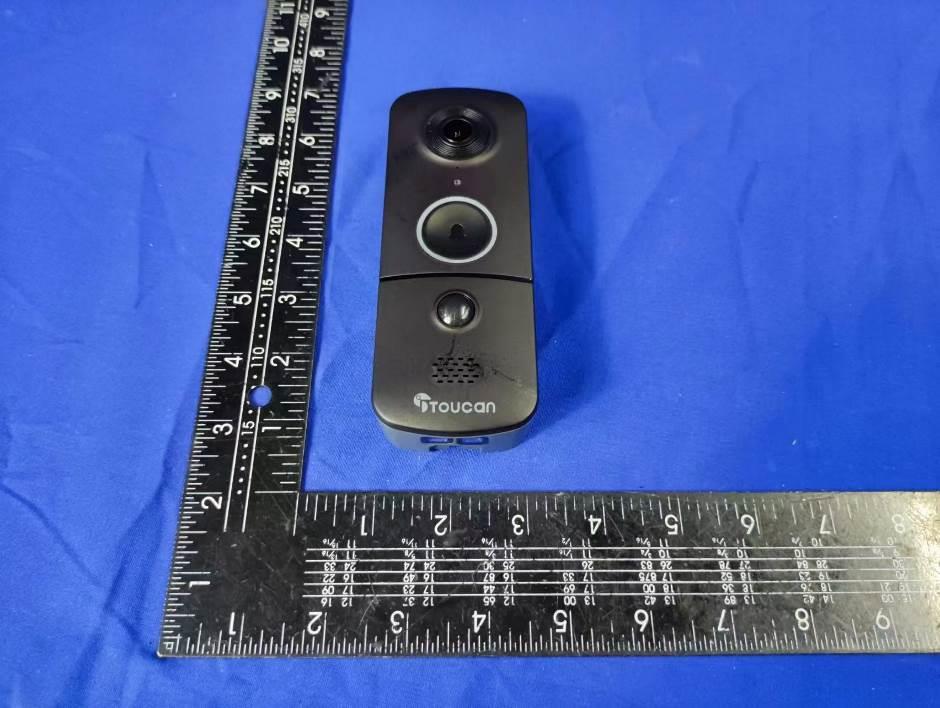

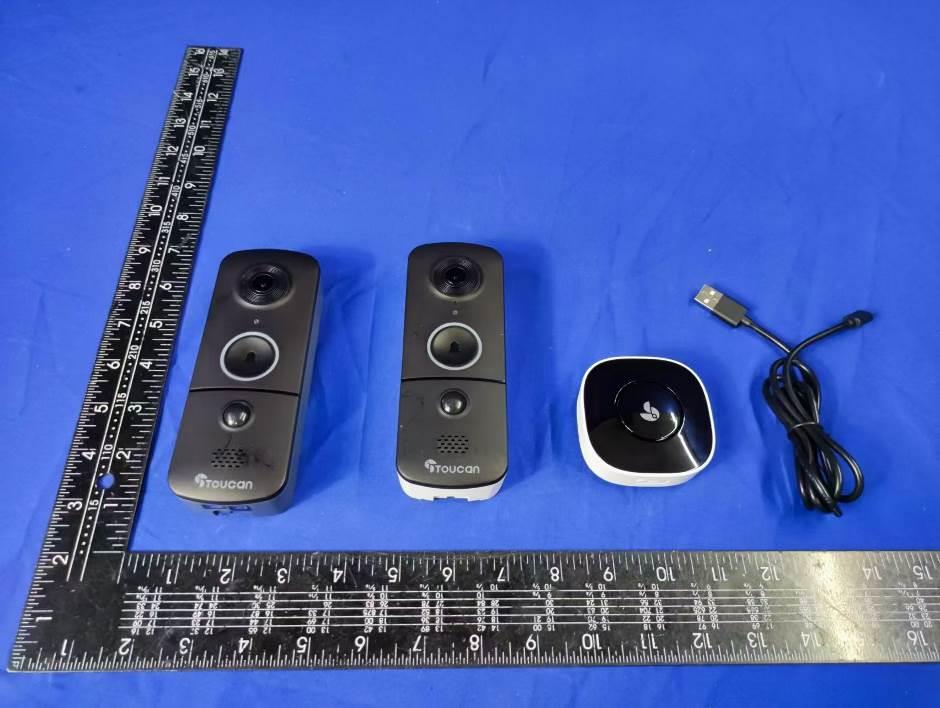

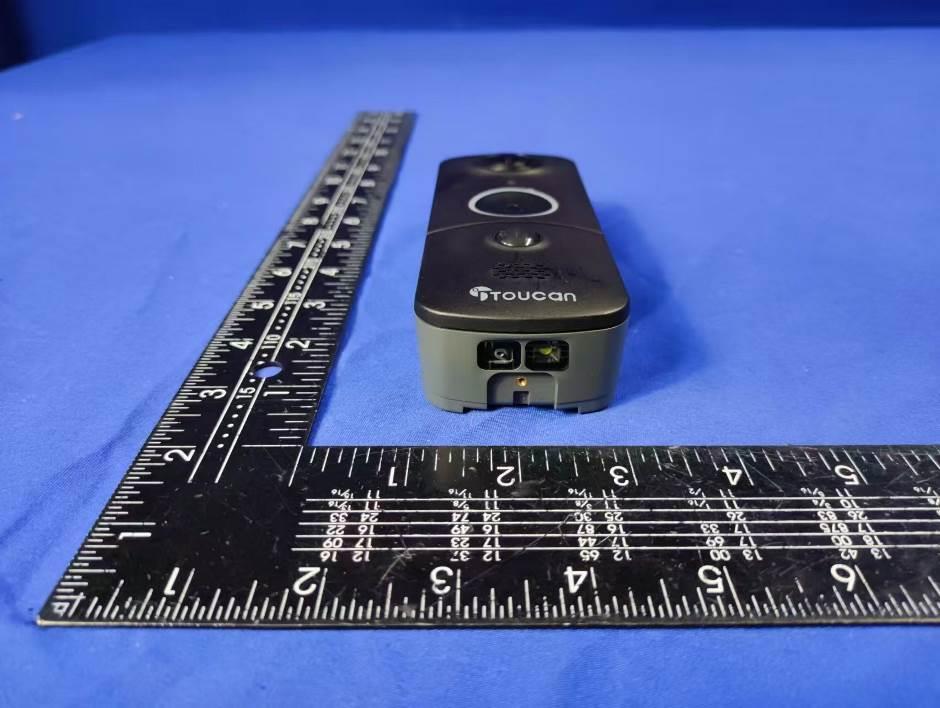

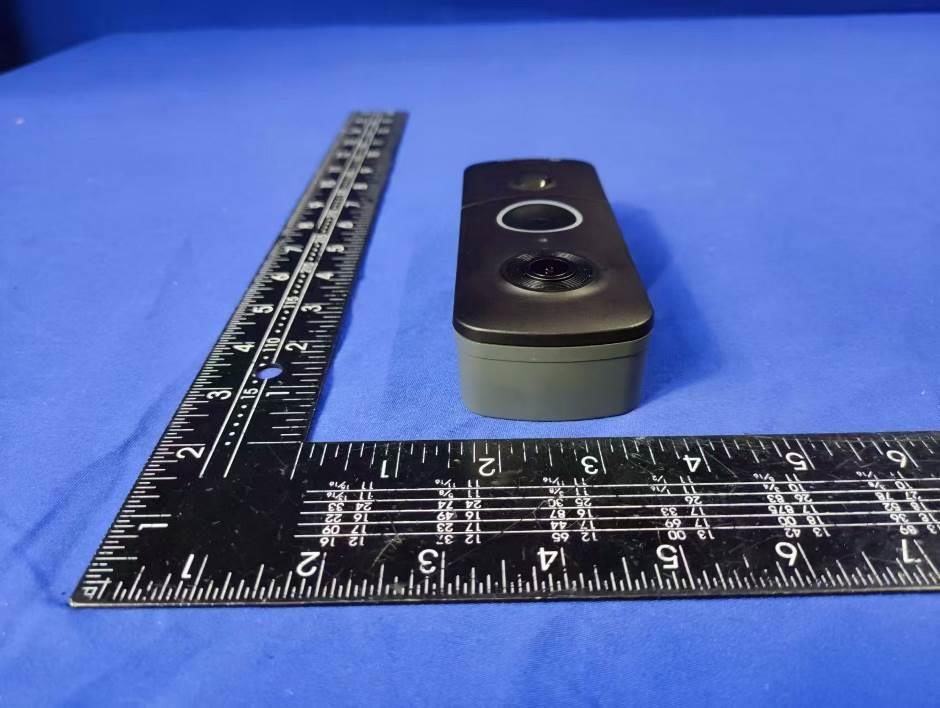

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

EUT INTERNAL PHOTOGRAPHS TVD100 series TVD100 series TVD100 series TVD100 series 433MHz antenna TVD100 series TVD100 series TVD100 series WiFi antenna TVD100 series TVD100 series TVD100 series TVD300 series TVD300 series TVD300 series TVD300 series TVD300 series TVD300 series TVD300 series TVD300 series ----------------The end----------------

FCC ID : 2AK7ELVD07 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result WIFI2.4G Antenna gain: 2.57 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 21.01 21 to 22 22 1.81 0.05698 1 433.92MHz Antenna gain: -9.14 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) -25.91 -26 to -24 -24 0.12 0.0000001 1 Note: WIFI and 433.92MHz support for simultaneous delivery MAX RF EXPOSURE EVALUATION WIFI2.4G (mW/cm2 ) 433.92MHz (mW/cm2 ) Summation of Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 0.05698 0.0000001 0.0569801 1

Antenna test Report LVD06 SKYLIGHT ENGINEER DEPT DRAWN BY DATEVersion Louisjiang2024.6.14V01 SKY LIGHT Electronic (ShenZhen) Limited Website: http://www.skylight.com.hk(TEL)86-755-27511234 Content Antenna Performance{LVD06 Antenna} conclusion Instrumentation Performance 1 3 2 3/9 ITEMANTENNA SPEC Model NameLVD06--WiFi Frequency & Gain 2400MHz2420MHz2440MHz2460MHz2480MHz 2.572.371.952.302.29 Peak Gain(dBi) 2.57 Average Gain(dB) 2.29 Impedance50 Ω Antenna Size 20.87*16.2（mm） ManufactureSky Light Electronic (ShenZhen) Limited VSWR < 2.0 Antenna Typemetal Return Loss(dB) <-10 SPEC--WiFi 4/9 ITEMANTENNA SPEC Model NameLVD06 --Sub-1G Frequency & Gain 413MHz423MHz433MHz443MHz453MHz -14.53-11.83-9.14-8.75-10.19 Peak Gain(dBi) -8.75 Average Gain(dB) -10.88 Impedance50 Ω Antenna Size 57.2*8.3（mm） ManufactureSky Light Electronic (ShenZhen) Limited VSWR < 2.0 Antenna Type PCBA Return Loss(dB) <-10 SPEC--Sub 1G 5/9 Instrumentation Performance 6/9 Instrumentation Performance 7/9 LVD06 in the lab 8/9 Antenna Size--WiFi 9/9 Antenna Size--WiFi 10/9 Performance of LVD06-2.4G 2D&3D sectional view XY Plane at 2.4GHz 11/9 Performance of LVD06-2.4G 2D&3D sectional view XZ Plane at 2.4GHz 12/9 Performance of LVD06-2.4G 2D&3D sectional view YZ Plane at 2.4GHz 13/9 Antenna Size--Sub-1G 14/9 Antenna Size--Sub-1G 15/9 Antenna Size--Sub-1G FrequencyGain (dBi)Efficiency( ) 403MHz-15.77 1% 413MHz-14.53 1% 423MHz-11.83 2% 433MHz-9.14 5% 443MHz-8.75 5% 453MHz-10.19 3% 463MHz-11.86 2% 473MHz-13.57 1% 483MHz-14.57 1% 493MHz-14.83 1% 16/9 SKY LIGHT Electronic (ShenZhen) LimitedVersion: 01 Website: http://www.skylight.com.hk(TEL)86-755-27511234

Report No. ENS2407090030W00101R Page 1 of 27 Ver.1.0 $印章$ TEST REPORT Product Name ： Wireless Video Doorbell Dual Lens,Wireless Video Doorbell V3 Model Number ： TVD100DL, TVD100DL-ML, TVD100DL-EC, TVD300V, TVD300V-ML, TVD300V-EC FCC ID ： 2AK7ELVD07 Prepared for : VuPoint Solutions Inc. Address : 12339 Denholm Dr, El Monte, CA 91732 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2407090030W00101R Date(s) of Tests : July 27, 2024 to August 23, 2024 Date of issue : August 30, 2024 $二维码$ Report No. ENS2407090030W00101R Page 2 of 27 Ver.1.0 TEST RESULT CERTIFICATION Applicant : VuPoint Solutions Inc. Address : 12339 Denholm Dr, El Monte, CA 91732 Manufacturer : VuPoint Solutions Inc. Address : 12339 Denholm Dr, El Monte, CA 91732 EUT : Wireless Video Doorbell Dual Lens,Wireless Video Doorbell V3 Model Name : TVD100DL, TVD100DL-ML, TVD100DL-EC, TVD300V, TVD300V-ML, TVD300V-EC Trademark : TOUCAN Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.231 REQUIREMENTS. The test results of this report relate only to the tested sample identified in this report. Date of Test : July 27, 2024 to August 23, 2024 Prepared by : Una Yu/Editor Reviewer : Joe Xia/Supervisor Approved & Authorized Signer : Lisa Wang/Manager Report No. ENS2407090030W00101R Page 3 of 27 Ver.1.0 Table of Contents 1 EUT TECHNICAL DESCRIPTION ........................................................................................................ 4 2 SUMMARY OF TEST RESULT ............................................................................................................ 5 3 TEST METHODOLOGY ........................................................................................................................ 6 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ...................................................................... 6 3.2 MEASUREMENT EQUIPMENT USED ................................................................................................. 6 3.3 DESCRIPTION OF TEST MODES ....................................................................................................... 7 4 FACILITIES AND ACCREDITATIONS ................................................................................................. 8 4.1 FACILITIES ........................................................................................................................................... 8 4.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................... 8 5 TEST SYSTEM UNCERTAINTY ........................................................................................................... 9 6 SETUP OF EQUIPMENT UNDER TEST ............................................................................................ 10 6.1 RADIO FREQUENCY TEST SETUP 1 ............................................................................................... 10 6.2 RADIO FREQUENCY TEST SETUP 2 ............................................................................................... 10 6.3 CONDUCTED EMISSION TEST SETUP ............................................................................................ 12 6.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ............................................................... 13 6.5 SUPPORT EQUIPMENT ..................................................................................................................... 13 7 TEST REQUIREMENTS ..................................................................................................................... 14 7.1 OCCUPIED BANDWIDTH ................................................................................................................... 14 7.2 FREQUENCY STABILITY ................................................................................................................... 16 7.3 RADIATED SPURIOUS EMISSION .................................................................................................... 17 7.4 TRANSMISSION REQUIREMENT ..................................................................................................... 22 7.5 CONDUCTED EMISSION TEST ......................................................................................................... 24 7.6 ANTENNA APPLICATION................................................................................................................... 27 Report No. ENS2407090030W00101R Page 4 of 27 Ver.1.0 1 EUT TECHNICAL DESCRIPTION Characteristics Description Product: Wireless Video Doorbell Dual Lens…

Text truncated - open the document above for the full version.
