2AK7ELVD05Wireless Video Doorbell PRO

Regulations & Compliance Fcc Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. ISED Regulatory Compliance This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure Compliance This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Cet équipement est conforme aux limites d’exposition aux radiations FCC/IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. VuPoint Solutions, Inc. (USA): 710 Nogales Street, City of Industry, CA 91748 VuPoint (Europe) Company Limited: Innovation Center, Longbridge Technology Park, Longbridge, Birmingham B31 2TS For additional info, visit our website at ToucanSolution.com ©2022 VUPOINT SOLUTIONS, INC. All Rights Reserved. The Toucan logo and Toucan are trademarks or registered trademarks of VuPoint Solutions Inc. in the United States and other countries. App Store is a registered trademark of Apple Inc. iOS is a registered trademark of Cisco Technology, Inc. in the U.S. and other countries and is under license. Android and Google Play are registered trademarks of Google LLC. Product names, logos, brands and other trademarks referred to herein are the property of their respective trademark holders. All trademarks remain the property of their respective holders, and are used only to describe the products or services being provided. These trademark holders are not affiliated with VuPoint Solutions, Inc. They do not sponsor or endorse VuPoint Solutions, Inc’s products or services. Wireless Video Doorbell PRO MANUAL TVDP05GR facebook.com/toucansmarthome USB Charging Cable Instagram.com/toucansmarthome AA BatteriesMounting Tape Wireless Chime Wireless Video Doorbell PRO Thank You Card Warranty Card Screwdriver ScrewsWall Anchors Mounting Plate Manual Items Included Youtube.com/c/toucansmarthome For detailed setup procedure, please refer to Toucan website www.ToucanSolution.com (Optional) Wiring your video doorbell This section should be followed ONLY if you are using existing doorbell wiring, and only after completing steps 1through 1 in the “Install your video doorbell and chime” section ENSURE THAT YOU HAVE TURNED OFF ALL POWER TO DOORBELL WIRING AT YOUR BREAKER BOX Pull a few inches of doorbell wiring through mounting plate Twist ends of each doorbell wire together with the wire end of a connector Place a wire nut over each pair of twisted wires, turn nut clockwise to tighten Slide the U-shaped ends of the con- nectors under the screws in the back of the doorbell. Tighten screws so that connectors do not slip out. Push excess wires back into the wall 12 34 56 Doorbell Wiring Kit We Make Security Easy Return to Step 4 in the section “Install your video doorbell and chime” 1 3 1 www.toucansolution.com/pages/ toucan-smart-home-app Doorbell 1. Camera lens 2. Microphone 3. Light sensor 4. Doorbell button 5. Speaker 6. SET / Power ON button 7. RST / Power OFF pinhole button 8. Charging port 9. (Optional) Power Terminals Open the back cover, plug in micro usb cable to charge the video doorbell. Recommend to fully charge the device before 1st use. Solid Red Solid Blue Charging Battery Battery Fully Charged Download the Toucan App for Android or IOS Scan QR code or visit Tap the ‘+’ in the upper right to add a device The chime and doorbell come pre-paired, but if you need to pair it again, follow the instructions in this section. Flashing BLUE Flashing PURPLE Flashing RED Setup Mode Connecting to cloud server Connection Failed Chime LED Description LED Description Chime 10. LED indicator 11.…

Text truncated - open the document above for the full version.

VuPoint Solutions Inc. Date: 2022-12-10 To: Federal Communications Commission 1435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AK7ELVD05 To Whom It May Concern: This letter is to ascertain that VuPoint Solutions Inc. EUT：Wireless Video Doorbell PRO MODEL No.: TVDP05GR, TVDP05GR-EF, TVDP05GR-ML Has been the units used for conducting FCC compliance testing, the SDoC part will be tested by EMTEK (SHENZHEN) CO., LTD. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature ： Client’s name / title ： Sam Lin Contact information / address: VuPoint Solutions Inc. /710 Nogales Street, City of Industry, CA 91748

Rev 11/20/07 VuPoint Solutions Inc. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AK7ELVD05 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram Operation Description schematic diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Sam Lin VuPoint Solutions Inc.

Declaration on model difference We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; All models only difference is language in packaging box for trading purpose. FCC ID: 2AK7ELVD05 Production name Trade name Model no. Wireless Video Doorbell PRO TOUCAN TVDP05GR, TVDP05GR-EF, TVDP05GR-ML Confirmed by VuPoint Solutions Inc. Sam Lin VuPoint Solutions Inc. Date: 2022-12-10

VuPoint Solutions Inc. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2022 -12-10 SUBJECT: FCC Application for FCC ID: 2AK7ELVD05 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at EMTEK (SHENZHEN) CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK (SHENZHEN) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti -Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Sam Lin VuPoint Solutions Inc.

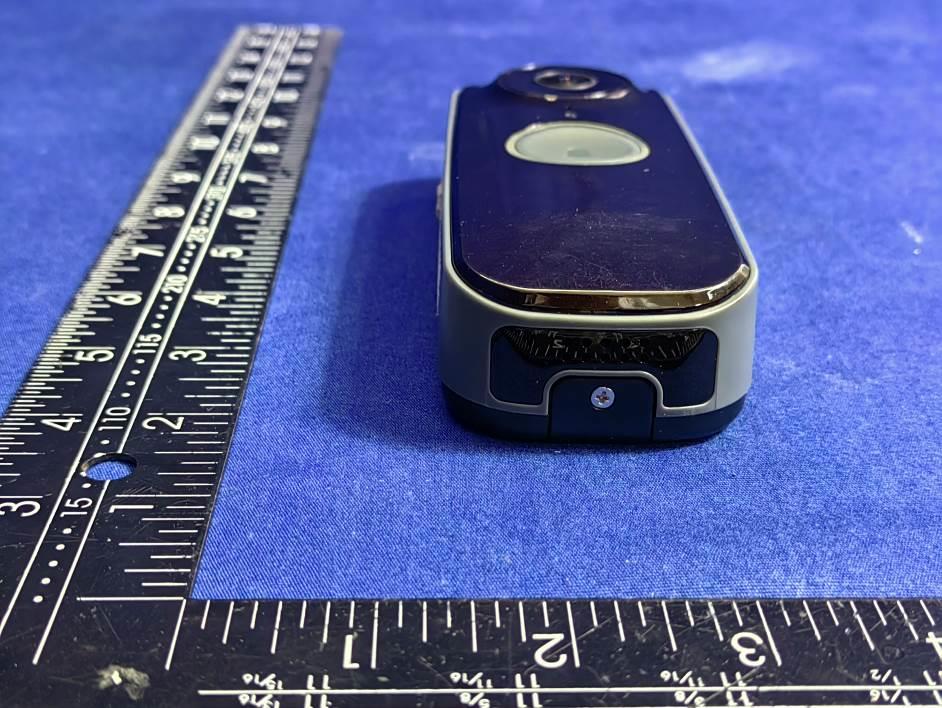

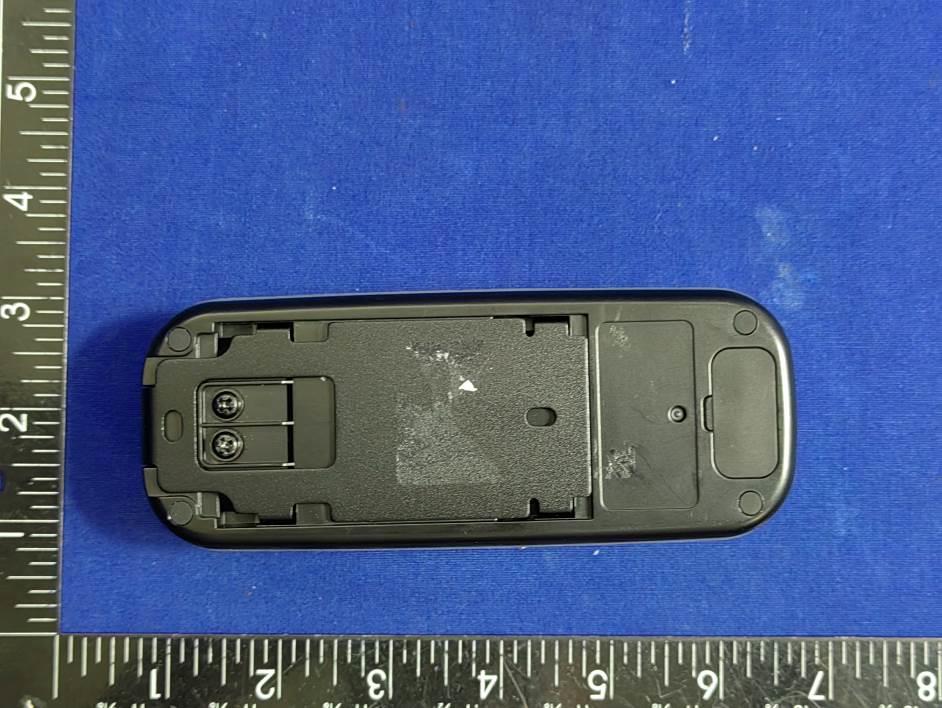

Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS Page 2 of 4 Page 3 of 4 Page 4 of 4 ----------------The end----------------

LVD05LVD05 VDUS22XXXNNNNNNN 待提供确认 SN号码（SN Number) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Wireless Video Doorbell PRO Model: TVDP05GR FCC ID: 2AK7ELVD05 IC ID: 22430-LVD05 Input: DC5V-2A,DC12V-1A,AC13-30V,50/60Hz0.5A CAN ICES-3 (B)/NMB-3(B) VUPOINT (EUROPE) CO.LTD B312TS Made in China 100% Arial Regular 3pt This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Wireless Video Doorbell PRO Model: TVDP05GR FCC ID: 2AK7ELVD05 IC: 22430-LVD05 Input: DC5V-2A,DC12V-1A,AC13-30V,50/60Hz0.5A CAN ICES-3 (B)/NMB-3(B) VUPOINT (EUROPE) CO.LTD B312TS Made in China S/N:VDUS22XXXNNNNNNN VDUS22765NNNNNNN SN号码（SN Number) SN序列号及条码/SN&Bar Code 1) 条码类型/Barcode type：QR code 2) 条码尺寸/Barcode size：5*5mm 3) 字体/font：Arial / Regular 4) 字号/font size：4 pt 5) SN序列号规则/SN rule 100% Arial Regular 3pt This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Wireless Video Doorbell PRO Model: TVDP05GR FCC ID: 2AK7ELVD05 IC: 22430-LVD05 Input: DC5V-2A,DC12V-1A,AC13-30V,50/60Hz0.5A CAN ICES-3 (B)/NMB-3(B) Made in Vietnam S/N:VDUS22765NNNNNNN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Wireless Video Doorbell PRO Model: TVDP05GR FCC ID: 2AK7ELVD05 IC: 22430-LVD05 Input: DC5V-2A,DC12V-1A,AC13-30V,50/60Hz0.5A CAN ICES-3 (B)/NMB-3(B) Made in Vietnam 年年（Year,Year) 常量（Non-variable) PO#,常量（Non-variable) 年年（Year,Year) 常量（Non-variable) Page 1 of 1

EUT INTERNAL PHOTOGRAPHS RFID Antenna BLE & WiFi antenna 5.8G Antenna ----------------The end----------------

FCC ID : 2AK7ELVD05 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. the 433 MHz and 5.8 GHz band does not effect the overall RF Exposure and there was no need to evaluate for these bands. 11.2 Measurement Result Wifi 2.4G-- Antenna gain: 2.5 dBi modulation Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 11b 2412 20.26 20 to 21 21 1.78 0.04454 1 2437 20.23 20 to 21 21 1.78 0.04454 1 2462 20.43 20 to 21 21 1.78 0.04454 1 11g 2412 25.25 25 to 26 26 1.78 0.14084 1 2437 25.20 25 to 26 26 1.78 0.14084 1 2462 25.50 25 to 26 26 1.78 0.14084 1 11n HT20 2412 24.93 25 to 26 26 1.78 0.14084 1 2437 24.81 25 to 26 26 1.78 0.14084 1 2462 25.21 25 to 26 26 1.78 0.14084 1 BLE-- Antenna gain: 2.5 dBi modulation Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) BLE_1M 2402 6.26 6 to 7 7 1.78 0.00177 1 2440 6.38 6 to 7 7 1.78 0.00177 1 2480 6.79 6 to 7 7 1.78 0.00177 1

Report No.: BL-SZ2290717-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Sky Light Electronic (ShenZhen) Limited Address: 1No. 8 Building 1F-5F & 9 Building 1F-2F, AnTuoShan High-tech Industrial Park, XinSha Road, ShaJing, Bao’An, Shenzhen. Equipment Type: LVD05-Sub-1G Model Name: EP-FPC-LVD01S1G-03 Brand Name: N/A Test Standard: ANSI/IEEE Std 149-1979 Test Date: Sep. 19, 2022 Date of Issue: Sep. 22, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Tolan Tu Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ2290717-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Sep. 22, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ................................................................................................................... 3 1.2 Test Location ....................................................................................................................... 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information ........................................................................................................... 4 2.2 Manufacturer Information .................................................................................................... 4 2.3 Factory Information ............................................................................................................. 4 2.4 General Description for Equipment under Test (EUT) ......................................................... 4 2.5 Ancillary Equipment ............................................................................................................. 4 2.6 Technical Information .......................................................................................................... 4 3 SUMMARY OF TEST RESULTS ............................................................................................... 5 3.1 Test Standards .................................................................................................................... 5 3.2 Test Verdict ......................................................................................................................... 5 3.3 Test Uncertainty .................................................................................................................. 5 4 GENERAL TEST CONFIGURATIONS ...................................................................................... 6 4.1 Test Condition ..................................................................................................................... 6 4.2 Test Equipment List ............................................................................................................. 6 4.3 Test Setup ........................................................................................................................... 6 ANNEX A TEST RESULTS ........................................................................................................... 7 A.1 Gain and Efficiency ............................................................................................................. 7 ANNEX B RADIATION PATTERN ................................................................................................ 8 ANNEX C TEST SETUP PHOTO ................................................................................................ 10 ANNEX D EUT PHOTO .............................................................................................................. 11 Report No.: BL-SZ2290717-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Report No.: BL-SZ2290717-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Sky Light Electronic (ShenZhen) Limited Address 1No. 8 Building 1F-5F & 9 Building 1F-2F, AnTuoShan High-tech Industrial Park, XinSha Road, ShaJing, Bao’An, Shenzhen. Contact Person Jiang Liang Yong Telephone Number 13302940314 Fax Number 86-755-27511777 E-mail Address [email protected] 2.2 Manufacturer Information Manufacturer Sky Light Electronic (ShenZhen) Limited Address 1No. 8 Building 1F-5F & 9 Building 1F-2F, AnTuoShan High-tech Industrial Park, XinSha…

Text truncated - open the document above for the full version.

Report No. ENS2205310037W00104R Page 1 of 27 Ver.1.0 $印章$ TEST REPORT Product Name ： Wireless Video Doorbell PRO Model Number ： TVDP05GR, TVDP05GR-EF, TVDP05GR-ML FCC ID ： 2AK7ELVD05 Prepared for : VuPoint Solutions Inc. Address : 710 Nogales St., City of Industry, CA 91748 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2205310037W00104R Date(s) of Tests : May 31, 2022 to August 18, 2022 Date of issue : August 18, 2022 $二维码$ Report No. ENS2205310037W00104R Page 2 of 27 Ver.1.0 TEST RESULT CERTIFICATION Applicant : VuPoint Solutions Inc. Address : 710 Nogales St., City of Industry, CA 91748 Manufacturer : VuPoint Solutions Inc. Address : 710 Nogales St., City of Industry, CA 91748 EUT : Wireless Video Doorbell PRO Model Name : TVDP05GR, TVDP05GR-EF, TVDP05GR-ML Trademark : TOUCAN Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.231 REQUIREMENTS. The test results of this report relate only to the tested sample identified in this report. Date of Test : May 31, 2022 to August 18, 2022 Prepared by : Tracy Hu/Editor Reviewer : Joe Xia/Supervisor Approved & Authorized Signer : Lisa Wang/Manager Report No. ENS2205310037W00104R Page 3 of 27 Ver.1.0 Table of Contents 1 EUT TECHNICAL DESCRIPTION ..................................................................................... 4 2 SUMMARY OF TEST RESULT .......................................................................................... 5 3 TEST METHODOLOGY....................................................................................................... 6 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................................. 6 3.2 MEASUREMENT EQUIPMENT USED ........................................................................................... 6 3.3 DESCRIPTION OF TEST MODES .................................................................................................. 7 4 FACILITIES AND ACCREDITATIONS ............................................................................. 8 4.1 FACILITIES.......................................................................................................................................... 8 4.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................... 8 5 TEST SYSTEM UNCERTAINTY ........................................................................................ 9 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................ 10 6.1 RADIO FREQUENCY TEST SETUP 1 .......................................................................................... 10 6.2 RADIO FREQUENCY TEST SETUP 2 .......................................................................................... 10 6.3 CONDUCTED EMISSION TEST SETUP ...................................................................................... 12 6.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................... 13 6.5 SUPPORT EQUIPMENT ................................................................................................................. 13 7 TEST REQUIREMENTS .................................................................................................... 14 7.1 OCCUPIED BANDWIDTH ............................................................................................................... 14 7.2 FREQUENCY STABILITY ............................................................................................................... 16 7.3 RADIATED SPURIOUS EMISSION............................................................................................... 17 7.4 TRANSMISSION REQUIREMENT ................................................................................................ 22 7.5 CONDUCTED EMISSION TEST .................................................................................................... 24 7.6 ANTENNA APPLICATION ...................................................................................................................... 27 Report No. ENS2205310037W00104R Page 4 of 27 Ver.1.0 1 EUT TECHNICAL DESCRIPTION Characteristics Description Product: Wireless Video Doorbell PRO Model Number: TVDP05GR, TVDP05GR-EF, TVDP05GR-ML Modulation: FSK modulation Operating Frequency Range(s): 433.92MHz Number of Channels: 1 channel Max Transmit Power: 87.03 dBuV/m Antenna Type : Internal Antenna Antenna Gain: -9.14dBi Power supply: DC5V/2A from USB port DC12V/1A from adapter Input: AC13-30V,50/60Hz,0.5A Temperature Range 0°C ~ 45°C Note: for more details, please refer to the User’s manual of the EUT. Report No. ENS2205310037W00104R Page 5 of 27 Ver.1.0 2 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.231(c) Occupied Bandwidth PASS 15.231(d) Frequency stability N/A 15.231(b) Radiated Spurious Emissions PASS 15.231(a) Transmission Requirement PASS 15.203 Antenna Requirement PASS 15.207(a) Conducted Emission PASS NOTE1: N/A (Not Applicable) RELATED SUBMITTAL(S) / GRANT(S): This submittal(s) (test report) is intended for FCC ID: 2AK7ELVD05 filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules Report No. ENS2205310037W00104R Page 6 of 27 Ver.1.0 3 TEST METHODOLOGY 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS According to its specifications, the EUT must comply with the requirements of the following standard…

Text truncated - open the document above for the full version.

Photos of Conducted Emissions from the AC Mains Power Ports 1.1. Photos of Radiation Emission Measurement ---The End---
