2AK9FSWD90068BLUETOOTH ACTIVITY TRACKER

Reflex 2C SWD90068 Quick Start Guide What’s in the Box Quick Start Guide Reflex 2C –Quick start guideBand Getting Started •Getting started with your Reflex 2C is super simple. When the band is shipped from the factory, it’s charged and in shipment mode. •To wake-up your Reflex 2C, all you need to do is to charge it . Band comes to normal mode & you’re good to go! Turn on the Band: App Installation Install the Reflex App •Please download the “Reflex “ app from Google play store or Apple App store Pairing the band •Open the app and follow the on-screen instructions. •App will search for the near by Reflex 2C band & display. •Select FT_Reflex2C and click start pairing. •Band will show a pairing pin, enter the same on App & you will find pairing successful. Pair your smart band Select to Pair FT_Reflex2c Note : It is recommended to keep the band close to phone. Features •Payment Strap •Activity Tracker ( Steps , Distance & Calories ) •Bring to see •Sleep Tracker •Timer , Stop Watch & Alarm •Find your phone •Music control •Camera control •Weather •Sedentary reminder •WhatsApp & SMS display •Call notifications •All Notifications •Time function: Display time in 12 or 24 hour format, month and date. Also shows the current battery level. SPECS Range: Steps: 0 –999999 steps Distance: 0 –9999.99 km Target progress: 0-999 % Product Specifications Band Dimension Case material Glass material Strap PC ABS TPU Sensors Connectivity Sensors Feedback BLE4.2 3 Axis Accelerometer Vibrator Battery Batterytype Battery capacity Battery life Li Polymer –Rechargeable 70mAh Up to 7days Water Resistance RatingIP67 Hazardous/Toxic substances/Elements FCC Statement FCC ID: 2AK9FSWD90068 CE Statement CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS If you use a third-party charger, the recommended output voltage/current of the adaptor is 5V DC/1A.,and the adapter shall be CE approval type. This device is a low-power radio transmitter and receiver. As recommended by international guidelines, the device meets applicable national SAR limits of 2.0W/kg (10g).10g SAR: meets low-power exclusion level, SAR test is not required. Bluetooth: BLE, 2402MHz~2480MHz Max EIRP: -4.02dBm Operating temperature: -20～45°C Note on the accuracy of Activity tracker

1

1

1

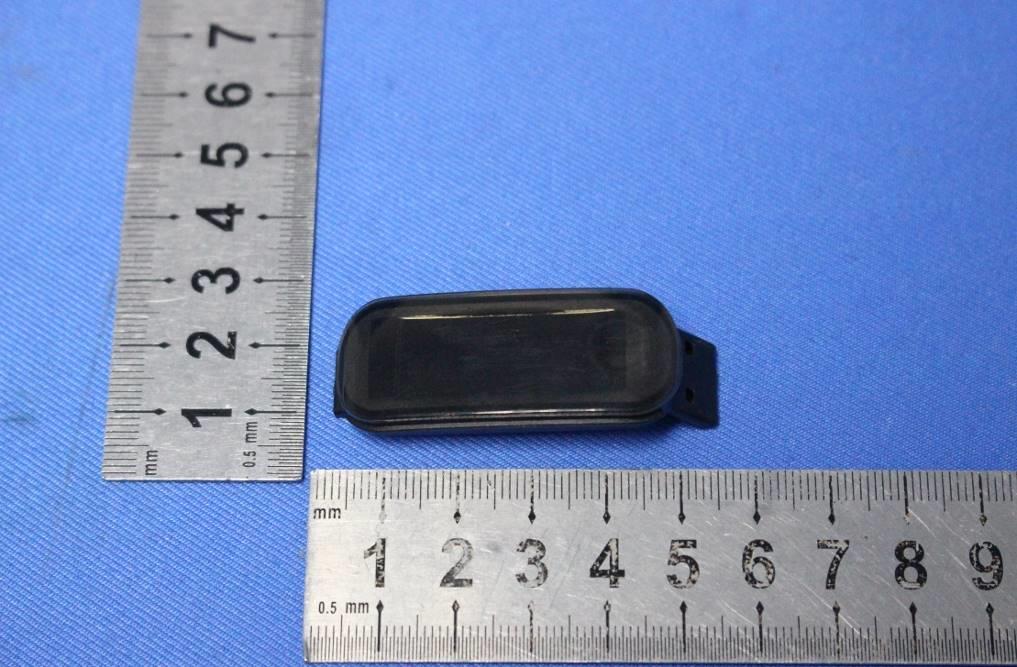

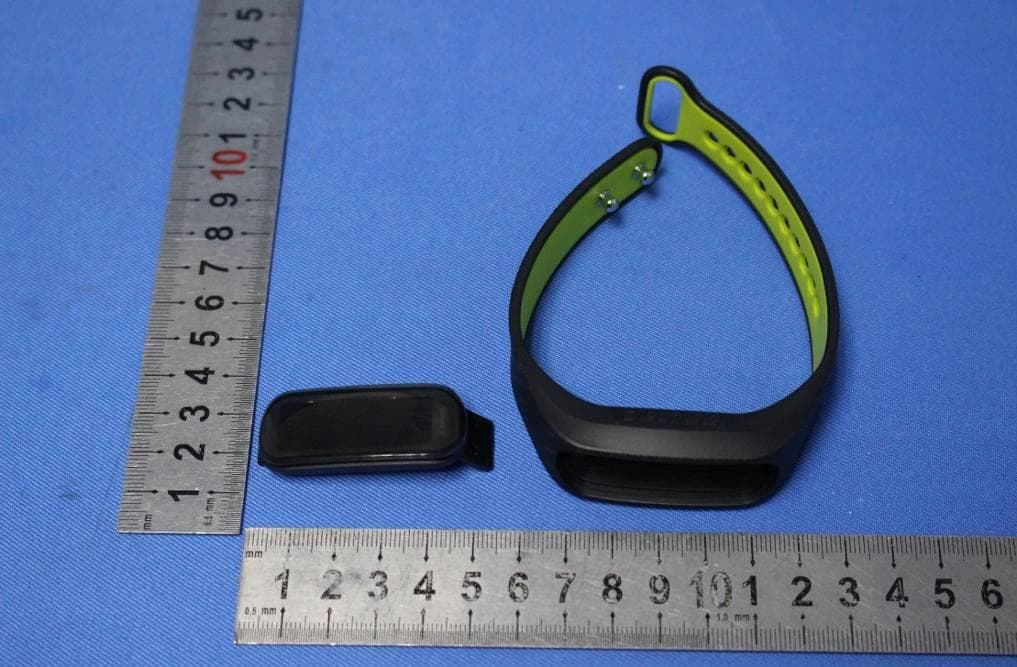

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 5 External Photos for SZEM2012012753CR FCC ID: 2AK9FSWD90068 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 5 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 5

THOMAS SAMUEL FCC ID: 2AK9FSWD90068

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 5 Internal Photos for SZEM2012012753CR FCC ID: 2AK9FSWD90068 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 5 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 5 Antenna SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 5

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275303 Page: 1 of 6 Keny Xu EMC Laboratory Manager 1 Cover page SAR Evaluation Report Application No.: SZEM2012012753CR Applicant: Titan Company Limited Address of Applicant: Integrity, #193, Veerasandra, Electronics City P.O., Off Hosur Main Road, Bangalore, India Manufacturer: GUANGXI MILLION CONCEPT TECHNOLOGY CO., LTD Address of Manufacturer: Linjiang Industrial Park, Pingnan County, Guigang City, Guangxi, China Factory: GUANGXI MILLION CONCEPT TECHNOLOGY CO., LTD Address of Factory: Linjiang Industrial Park, Pingnan County, Guigang City, Guangxi, China Equipment Under Test (EUT): EUT Name: BLUETOOTH ACTIVITY TRACKER Model No.: SWD90068 Trade mark: FASTRACK FCC ID: 2AK9FSWD90068 Standards: 47 CFR Part 1.1307 47 CFR Part 2.1093 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2020-12-11 Date of Test: 2020-12-11 to 2020-12-30 Date of Issue: 2021-01-07 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275303 Page: 2 of 6 2 Version Revision Record Version Chapter Date Modifier Remark 01 2021-01-07 Original Authorized for issue by: Bill Chen/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275303 Page: 3 of 6 3 Contents Page 1 COVER PAGE ........................................................................................................................................ 1 2 VERSION ................................................................................................................................................ 2 3 CONTENTS ............................................................................................................................................ 3 4 GENERAL INFORMATION ..................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 4 4.2 TEST LOCATION ................................................................................................................................ 5 4.3 TEST FACILITY .................................................................................................................................. 5 4.4 DEVIATION FROM STANDARDS ............................................................................................................ 5 4.5 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................... 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .......................................................................... 5 5 SAR EVALUATION ................................................................................................................................. 6 5.1 RF EXPOSURE COMPLIANCE REQUIREMENT ........................................................................................ 6 5.1.1 Standard Requirement ................................................................................................................ 6 5.1.2 Limits .......................................................................................................................................... 6 5.1.3 EUT RF Exposure ....................................................................................................................... 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275303 Page: 4 of 6 4 General Information 4.1 General Description of EUT Battery: Rechargeable battery:DC 3.7V 70mAh(Charging by USB port) Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V4.2 LE Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: Monopole Antenna Gain: 0dBi SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275303 Page: 5 of 6 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 4620C. 4.4 Deviation from Standards None. 4.5 Abnormalities from Standard Conditions None. 4.6 Other Information Requested by the Customer None. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275303 Page: 6 of 6 5 SAR Evaluation 5.1 RF Exposure Compliance Requirement 5.1.1 Standard Requirement According to KDB447498D01 General RF Exposure…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275302 Page: 1 of 51 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2012012753CR Applicant: Titan Company Limited Address of Applicant: Integrity, #193, Veerasandra, Electronics City P.O., Off Hosur Main Road, Bangalore, India Manufacturer: GUANGXI MILLION CONCEPT TECHNOLOGY CO., LTD Address of Manufacturer: Linjiang Industrial Park, Pingnan County, Guigang City, Guangxi, China Factory: GUANGXI MILLION CONCEPT TECHNOLOGY CO., LTD Address of Factory: Linjiang Industrial Park, Pingnan County, Guigang City, Guangxi, China Equipment Under Test (EUT): EUT Name: BLUETOOTH ACTIVITY TRACKER Model No.: SWD90068 Trade Mark: FASTRACK FCC ID: 2AK9FSWD90068 Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-12-11 Date of Test: 2020-12-11 to 2020-12-30 Date of Issue: 2021-01-07 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275302 Page: 2 of 51 Revision Record Version Chapter Date Modifier Remark 01 2021-01-07 Original Authorized for issue by: Bill Chen/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275302 Page: 3 of 51 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201275302 Page: 4 of 51 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 7 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 4.4 TEST LOCATION ............................................................................................................................. 8 4.5 TEST FACILITY ............................................................................................................................... 8 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 8 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 8 5 EQUIPMENT LIST ............................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................11 6.1 ANTENNA REQUIREMENT ................................................................................................................11 6.1.1 Test Requirement: ..................................................................................................................11 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................12 7.1 CONDUCTED PEAK OUTPUT POWER ................................................................................................12 7.1.1 E.U.T. Operation .....................................................................................................................12 7.1.2 Test Mode Description ............................................................................................................12 7.1.3 Test Setup Diagram ................................................................................................................13 7.1.4 Measurement Procedure and Data .........................................................................................13 7.2 MINIMUM 6DB BANDWIDTH .............................................................................................................14 7.2.1 E.U.T. Operation .....................................................................................................................14 7.2.2 Test Mode Description ..................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 2 Setup Photos for SZEM2012012753CR FCC ID: 2AK9FSWD90068 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 2 1 Photographs Radiated Spurious Emissions Below 1GHz Above 1GHz
