Connect your AI Recorderusing this WiFi SSID and password,making sure to keep them in a safe place for future reference. AI Recorder(AIR-I, AIR-II) What’s included with the AI Recorder Please ensure the AI Recorder and any necessary power components are secured and out of reach of passengers. AIR-I AIR-II Or AI Recorder Mount Plate & Adhesive AI RecorderWedge Mount Plate & Adhesive L-shaped Torx Flat Screwdriver InstallationGuide OBD-II Power Cord J1939 Power Cord Power Cord (one of below) Direct Wire Power Cord 1 2 AI Recorder Cleaning Wipes Wet Dry Click x 1 Force power on Click x 3 Flip on WiFi Direct Mode Press for 2s Mark an EventPress for 8s Restart the Camera Magic Button Solid BLUE Power On/Idle Solid RED Recording Blink BLUE Firmware Updating Solid GREEN 5s to Restart Update Success Solid RED 5s to Restart Update Fail Blink BLUE and RED Error Camera LED Solid Green Connected to the ServerSolid Blue Connected to 4G but not the Server Off No network connections Network LED Solid Green Expansions (Aux Cam) in workingOff No Expansions Expansion LED Road Facing Camera Al Recorder Overview Install Waylens Fleet App to verify the AI Recorder installationThe Waylens Fleet App is the companion to the AI Recorder, providing the fleet administrator with an easy way to install, maintain, and diagnose the AI Recorder. Installation Check Points:Ɣ Network/Cloud Connection Ɣ External AUX cameras (if installed) Ɣ Preview video Ɣ Network Test Ɣ Power Test Do not use mobile devices to access the AI Recorder while operating the vehicle. Park your vehicle in a safe location before accessing the App. Simply connect to the wifi network broadcasted by the AI recorder and then open the Waylens Fleet App. The wifi network name and password can be located on the camera label, or on the back of this installation guide. 4 3 Fleet Expansion cable locker Security Panel Magic Button Driver Privacy Cover Driver Facing Camera IR Lights IR Lights AIR-II only Camera LED Road Facing Camera Adjuster SD Card Slot Power Socket External Mounting bracket connection Network LED Expansion LED DFC Blocker Holder Install power in the vehicle Direct Wire Power Cord1. Make sure the vehicle is off.2. Find the location and layout of your fuse box as well as the appropriate fuse type from the vehicle’s user manual. IMPORTANT NOTE:The recorder should only be wired on a fuse circuit which is non-essential.The users should never install the recorder on any safety system such as airbag, anti-lock braking systems, vehicle lights, driver assistance systems.NOTE:Professional installation assistance is recommended, if you are not familiar with identifying fuses in a vehicle and installing power system related items. 3. Connect the white ACC wire to a switched fuse via Fuse Tap Cable: a. A switched fuse is used to monitor the accessory power such as cigarette lighter, car radio, etc. They will be switched off after you turn off the car. Identify them by referring to the vehicle user manual or consulting a qualified professional. b. Verify the fuse is a switched fuse by using a multimeter to track voltage within the circuit across ignitions ON and OFF positions. 2 IMPORTANT NOTE:Backup the existing content of a microSD card before inserting it into the AI Recorder." 5 Installing your AI RecorderPark the car in a safe and convenient place for the installation Insert the microSD card (if not already installed) Remove the Security Panel, if needed unlock it using L-Shaped Torx Flat Screwdriver provided A microSD card will be automatically formatted the first time it was inserted into an AI Recorder. Waylens requires a high endurance micro SD card (class 10 or higher MLC microSD card 32-512 GB), designed for continuous recording applications. While other cards will technically work with the AI Recorder, they are much more prone to card errors and failures. 1 6 g. Insert the Fuse Tap Cable into the fuse panel carefully.h. Insert the exposed ACC wire from the camera harness into the Fuse Tap Cable connector and crimp to secure the connection. 4. Connect the red B+ wire to a constant power fuse via Fuse Tap Cable. a. The constant power fuses are used to monitor constant power within a vehicle. They will not be switched off after you turn off the car. Identify them by referring to the vehicle manual or consulting a professional. b. Verify the fuse is a constant fuse by a multimeter to track voltage within the circuit across ignitions ON and OFF positions. c. If confirmed as a constant power fuse, remove the identified constant fuse from the fuse panel. Use the fuse puller tool if available. d. Refer steps 3.d to 3.h for the Fuse Tap Cable usage and connection. Ensure working on the yellow B+ wire and the right constant power fuse. 5. Connect the black GND wire to a chassis ground point, such as a bolt, that is directly touching a bare metal surface of the vehicle’s chassis. 6. Route the wire with USB Type-C plug of the Direct Wire Power Cord to the expected camera mounting location on the windshield. Direct Wire + + Acc B+ GND 8 c. If confirmed as a switched power fuse, remove the identified switched fuse from the fuse panel. Use the fuse puller tool if available. d. Select the right Fuse Tap Cable for your vehicle. e. Insert the supplied 5 Amp fuse to the socket 2 if it’s not inserted yet.f. Insert the identified vehicle fuse into slot 3 on the Fuse Tap Cable. NOTE: The supplied 5Amp fuse MUST be placed in the uppermost socket, as shown below. Inline with the red cable. The original vehicle fuse is to be placed in the lower socket. 5 Amp 5 Amp 7 ACU Type(Regular)ACS Type(Mini)ACN Type(Low profile mini)ACZ Ty p e(Micro2) 4 23232323 1111 444 7. Secure any excess wire after the recorder is mounted. IMPORTANT NOTE: If your vehicle has side impact airbags, make sure the harness does not interfere with its ability to deploy.NOTE: Leave an extra few inches of cord length near the camera to insert the Type-C plug into the AI Recorder’s Power socket, and…
Text truncated - open the document above for the full version.
Company name: Waylens Inc. Address: 2711 Centerville Road - Suite 400, Wilmington, Delaware, United States 19808 Tel: +14084975377 Fax:+14084975377 Email: [email protected] Attestation Letter for Agent Date: 2024-05-30 FEDERAL COMMUNICATIONS COMMISSIONS A uthorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 R ef: Attestation Statements Part 2.911 (d)(7) Filing FCC ID: 2AKAF-CAM 17 Waylens Inc. certifies that, as of the date of the filing of the application, Waylens Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Way lens Inc. agrees to maintain an a gent for no less than one year after the grantee has terminated all mar k e t i n g a n d i m p o r t a t i o n o r t h e c o n c l u s i o n o f a n y C o m m i s s i o n - r e l a t e d p r o c e e d i n g i n v o l v i n g the equipment. Waylens Inc. accepts, a s of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company name: Waylens Inc. FRN: 0026008268 Address: 271 I Centerville Road - Suite 400, Wilmington, Delaware, United States 19808 Contact person: Ding Gang Tel:+ 14084975377 Email: eldon.ding(fYwaylens.com Sincerely, Applicant Name Applicant Printed Name Waylens Inc. Ding Gang Applicant Signature 丁 QA-FR-I 004-A RC 02-08-2023

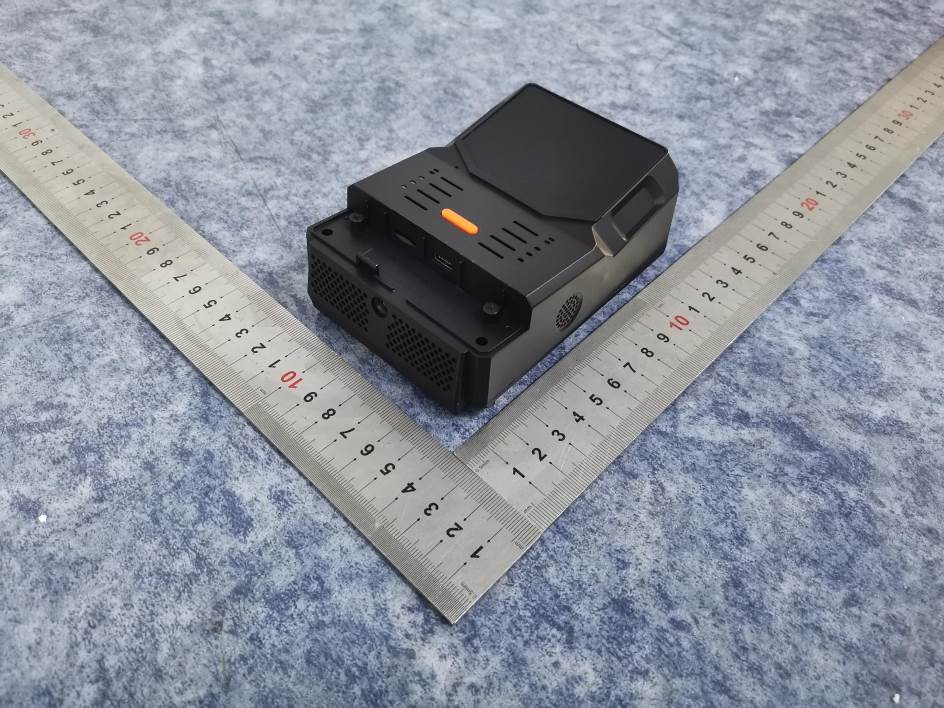

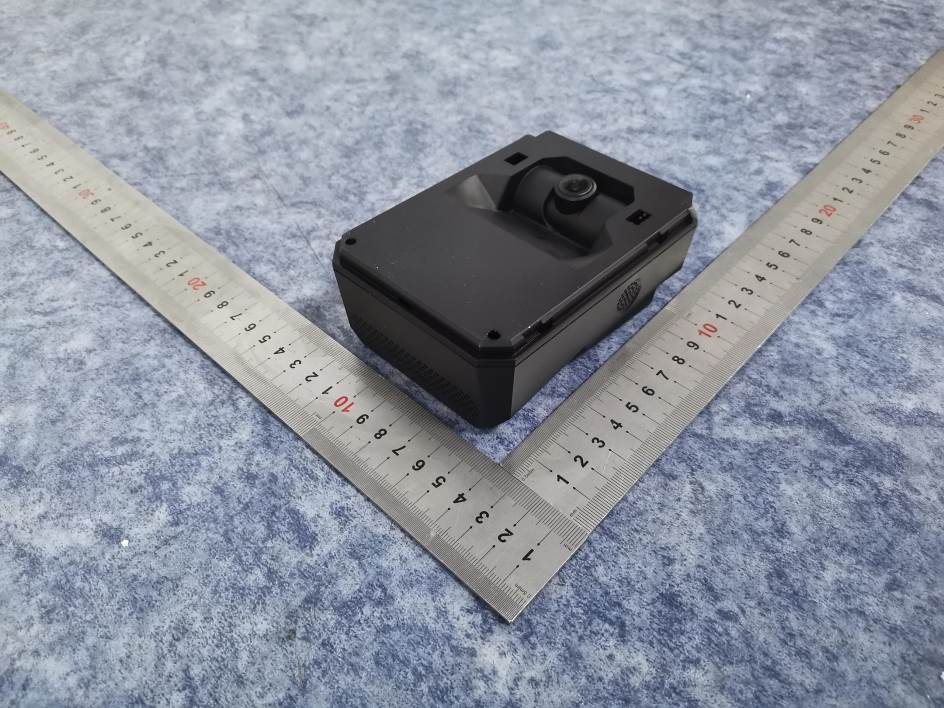

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 1 / 2 EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 2 / 2
Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 1 / 13 EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 2 / 13 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 3 / 13 4G Antenna Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 4 / 13 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 5 / 13 GPS Antenna Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 6 / 13 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 7 / 13 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 8 / 13 Contains FCC ID:2AKAF-MDM01 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 9 / 13 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 10 / 13 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 11 / 13 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 12 / 13 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240530002 13 / 13 WiFi antenna
Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 24 of 91 FCC §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 1.1310, 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: ≤1.0 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 25 of 91 Calculated Data: Mode Frequency Range (MHz) Antenna Gain Tune-up Output Power★ Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) MPE radio (dBi) (numeric) (dBm) (mW) 2.4G WIFI 2412~2462 2.93 1.96 24.0 251.19 20 0.0979 1.0 0.0979 BLE 2402-2480 2.93 1.96 4.0 2.51 20 0.0010 1.0 0.0010 BT 2402-2480 2.93 1.96 7.50 5.62 20 0.0022 1.0 0.0022 LTE Band 2 1850-1910 3.01 2.00 25.0 316.23 20 0.1258 1.0 0.1258 LTE Band 4 1710-1755 1.59 1.44 25.0 316.23 20 0.0906 1.0 0.0906 LTE Band 5 824-849 0.05 1.01 25.0 316.23 20 0.0636 0.5493 0.1158 LTE Band 12 699-716 -3.80 0.42 25.0 316.23 20 0.0262 0.4660 0.0562 LTE Band 17 704-716 -3.80 0.42 25.0 316.23 20 0.0262 0.4693 0.0558 LTE Band 66 1710-1780 1.84 1.53 25.0 316.23 20 0.0962 1.0 0.0962 Note: 1. For the above tune up power were declared by the manufacturer. 2. The devices contain certified WWAN Module, FCC ID: 2AKAF-MDM01 3. 2.4G Wi-Fi , LTE can transmit simultaneously(worst case). =0.0979+0.1258=0.2237 < 1.0 Result: The device meet FCC MPE at 20 cm distance.
Part number:D23171-00 Manufacturer:Auden communications & Mult imedia Techno(Kun Shan)Co.,Ltd NO. 15 Ying Bin Road Zhoushi Town Kunshan Jiangsu China terminal unit:mm Frequency/MHzEfficiency / dBEfficiency / %MaxGain/dBi 700-7.3318.49-3.8 710-7.0419.77-3.92 720-6.6321.73-4.17 730-4.2837.33-1.05 740-4.4236.140.3 750-4.9232.210.1 760-5.1130.83-1.3 770-3.9440.36-0.68 780-3.7841.88-0.31 790-3.5144.57-0.25 800-3.643.65-1.58 810-2.951.29-0.54 820-3.5644.06-0.65 830-3.940.74-0.28 840-3.8441.3-1.34 850-2.753.70.05 860-3.3246.560.27 870-3.742.660.35 1710-3.8141.611.45 1730-3.5943.711.59 1750-3.7042.671.24 1770-3.3046.771.84 1790-3.2547.281.35 1810-3.0549.511.85 1830-2.9950.241.55 1850-3.0449.672.27 1870-2.9550.732.97 1890-2.8352.153.01 1910-2.5156.112.99 1930-2.2160.083.15 1950-2.2060.294.2 1970-1.8864.894.53 1990-2.1461.134.14 2010-1.9164.434.12 2030-2.3857.852.87 2050-2.1061.672.99 2070-2.5555.551.92 2090-2.7253.461.99 2110-3.1348.651.18 2130-3.2946.921.27 2150-3.6243.440.73 2170-3.8541.240.32 2190-3.9040.760.14 2210-3.9440.41-0.4 2230-3.9140.64-0.39 2250-3.8940.82-0.66 2270-4.0439.43-0.84 2290-4.0839.1-1.18 2310-4.2537.59-1.61 2330-4.2637.49-1.42 2350-4.4535.89-1.44 2370-4.5734.95-1.6 2390-4.7433.54-2.04 2410-4.8432.78-2.19 2430-4.9132.3-1.39 2450-5.1030.89-1.69 2470-4.9631.94-0.64 2490-5.1130.81-1.48 2510-5.1030.89-0.79 2530-4.9132.3-1.3 2550-4.5235.280.12 2570-4.2537.590.49 2590-3.9340.471.85 2610-3.3146.622.65 2630-3.2547.362.62 2650-3.0749.282.53 2670-3.0349.832.44 2690-3.1848.042.02 LTE MAIN Antenna
Part number:D23173 -00 Manufacturer:Auden communications & Mult imedia Techno(Kun Shan)Co.,Ltd NO. 15 Ying Bin Road Zhoushi Town Kunshan Jiangsu China unit:mm Frequency/MHzEfficiency / dBEfficiency / %MaxGain/dBi 2400-3.1648.311.99 2410-3.3446.341.64 2420-3.2647.212.11 2430-3.2946.882.26 2440-3.5743.952.16 2450-3.4944.771.99 2460-3.5144.572.3 2470-3.0949.092.93 2480-3.643.652.25 2490-3.2946.881.96 2500-3.445.712.37 5200-2.3957.688.29 5220-2.4157.418.06 5240-1.9863.398.56 5260-2.2859.168.15 5280-2.3757.948.17 5300-2.3258.617.9 5320-2.5156.17.85 5340-2.1361.248.32 5360-2.3957.688.51 5380-2.1960.398.68 5400-2.0662.238.92 5420-2.9350.937.77 5440-2.6953.838.11 5460-2.8651.767.89 5480-2.8751.648.03 5500-3.1947.977.53 5520-2.8352.127.85 5540-2.5655.467.88 5560-3.148.987.34 5580-2.4457.027.87 5600-3.0949.097.17 5620-3.544.676.72 5640-3.7142.566.69 5660-4.0339.546.66 5680-3.940.747.01 5700-4.1138.827.19 5720-3.5943.757.75 5740-3.7242.467.92 5760-3.3446.348.24 5780-3.2447.428.2 5800-3.5444.267.68 WIFI&BT Antenna
Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S.Govemment. FCC PART 15.247 TEST REPORT For Waylens Inc. 2711 Centerville Road - Suite 400, Wilmington, Delaware, United States FCC ID: 2AKAF-CAM17 R e p o r t T y p e : O r i g i n a l R e p o r t P r o d u c t N a m e: AI R e c o r d e r I Report Number: RSHA240530002-00B Report Date: 2024-07-30 Reviewed By: Bard Liu Approved By: Kyle Xu Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu Province, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 2 of 91 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 6 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 12 EXTERNAL I/O CABLE ................................................................................................................................................ 12 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 12 SUMMARY OF TEST RESULTS ............................................................................................................................. 14 TEST EQUIPMENT LIST ......................................................................................................................................... 15 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 16 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 17 APPLICABLE STANDARD ............................................................................................................................................ 17 TEST SYSTEM SETUP .................................................................................................................................................. 17 EMI TEST RECEIVER SETUP ....................................................................................................................................... 18 TEST PROCEDURE ...................................................................................................................................................... 19 TEST RESULTS SUMMARY .......................................................................................................................................... 19 TEST DATA: SEE APPENDIX ....................................................................................................................................... 19 FCC §15.247(A) (2) - 6 DB EMISSION BANDWIDTH ........................................................................................... 20 APPLICABLE STANDARD ............................................................................................................................................ 20 TEST PROCEDURE ...................................................................................................................................................... 20 TEST DATA: SEE APPENDIX ....................................................................................................................................... 20 FCC §15.247(B) (3) - MAXIMUM CONDUCTED OUTPUT POWER ................................................................. 21 APPLICABLE STANDARD ............................................................................…
Text truncated - open the document above for the full version.
Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 67 of 91 802.11n-HT20 Mode Low Channel 802.11n-HT20 Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 68 of 91 802.11n-HT20 Mode High Channel 802.11n-HT40 Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 69 of 91 802.11n-HT40 Mode Middle Channel 802.11n-HT40 Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 70 of 91 For BLE Mode: Channel Frequency (MHz) 99% Occupied Bandwidth (MHz) Low 2402 1.026 Middle 2440 1.044 High 2480 1.032 Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 71 of 91 Middle Channel High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 72 of 91 POWER SPECTRAL DENSITY Test Result: Compliant. EUT operation mode: Transmitting For Wi-Fi Mode: Channel Frequency (MHz) PSD (dBm/3kHz) Limit (dBm/3kHz) 802.11b Mode Low 2412 -6.85 ≤8 Middle 2437 -6.52 ≤8 High 2462 -6.82 ≤8 802.11g Mode Low 2412 -13.16 ≤8 Middle 2437 -13.51 ≤8 High 2462 -12.24 ≤8 802.11n-HT20 mode Low 2412 -14.58 ≤8 Middle 2437 -14.04 ≤8 High 2462 -14.21 ≤8 802.11n-HT40 mode Low 2422 -20.30 ≤8 Middle 2437 -19.31 ≤8 High 2452 -19.79 ≤8 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 73 of 91 802.11b Low Channel 802.11b Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 74 of 91 802.11b High Channel 802.11g Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 75 of 91 802.11g Middle Channel 802.11g High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 76 of 91 802.11n-HT20 Low Channel 802.11n-HT20 Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 77 of 91 802.11n-HT20 High Channel 802.11n-HT40 Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 78 of 91 802.11n-HT40 Middle Channel 802.11n-HT40 High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 79 of 91 For BLE Mode: Channel Frequency (MHz) PSD (dBm/3kHz) Limit (dBm/3kHz) Low 2402 -13.16 ≤8 Middle 2440 -12.74 ≤8 High 2480 -13.33 ≤8 Low Channel 1 M A X R e f L v l 1 0 d B m R e f L v l 1 0 d B m R B W 3 k H z V B W 1 0 k H z S W T 3 4 0 m s R F A t t 2 0 d B 1 0 . 5 d B O f f s e t A 1 M A U n i t d B m 1 2 0 k H z / C e n t e r 2 . 4 0 2 G H z S p a n 1 . 2 M H z P r o j e c t N o : R S H A 2 4 0 5 3 0 0 0 2 T e s t e r : J a s o n L u - 8 0 - 7 0 - 6 0 - 5 0 - 4 0 - 3 0 - 2 0 - 1 0 0 - 9 0 1 0 1 M a r k e r 1 [ T 1 ] - 1 3 . 1 6 d B m 2 . 4 0 2 0 9 4 9 9 G H z 1 [ T 1 ] - 1 3 . 1 6 d B m 2 . 4 0 2 0 9 4 9 9 G H z D a t e : 1 8 . J U L . 2 0 2 4 1 7 : 2 8 : 3 4 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 80 of 91 Middle Channel 1 M A X R e f L v l 1 0 d B m R e f L v l 1 0 d B m R B W 3 k H z V B W 1 0 k H z S W T 3 4 0 m s R F A t t 2 0 d B 1 0 . 5 d B O f f s e t A 1 M A U n i t d B m 1 2 0 k H z / C e n t e r 2 . 4 4 G H z S p a n 1 . 2 M H z P r o j e c t N o : R S H A 2 4 0 5 3 0 0 0 2 T e s t e r : J a s o n L u - 8 0 - 7 0 - 6 0 - 5 0 - 4 0 - 3 0 - 2 0 - 1 0 0 - 9 0 1 0 1 M a r k e r 1 [ T 1 ] - 1 2 . 7 4 d B m 2 . 4 4 0 0 9 4 9 9 G H z 1 [ T 1 ] - 1 2 . 7 4 d B m 2 . 4 4 0 0 9 4 9 9 G H z D a t e : 1 8 . J U L . 2 0 2 4 1 7 : 2 9 : 1 0 High Channel 1MAX Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 3 kHz VBW 10 kHz SWT 340 ms RF Att 20 dB 10.5 dB Offset A 1MA UnitdBm 120 kHz/Center2.48 GHzSpan1.2 MHz Project No : RSHA240530002 Tester: Jason Lu -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -13.33 dBm 2.48009499 GHz 1 [T1] -13.33 dBm 2.48009499 GHz Date: 18.JUL.2024 17:29:33 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 81 of 91 TRANSMITTER OUTPUT POWER MEASUREMENT Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Peak Output Power Limit (dBm) 802.11b Mode Low 2412 19.94 ≤30 Middle 2437 19.15 ≤30 High 2462 20.39 ≤30 802.11g Mode Low 2412 23.14 ≤30 Middle 2437 23.54 ≤30 High 2462 23.65 ≤30 802.11n-HT20 Mode Low 2412 22.79 ≤30 Middle 2437 23.41 ≤30 High 2462 23.55 ≤30 802.11n-HT40 Mode Low 2422 23.74 ≤30 Middle 2437 23.69 ≤30 High 2452 23.12 ≤30 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 82 of 91 BLE Mode: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Peak Output Power Limit (dBm) Low 2402 2.89 ≤30 Middle 2440 3.06 ≤30 High 2480 3.70 ≤30 Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 83 of 91 Middle Channel High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 84 of 91 OUT OF BAND EMISSIONS EUT operation mode: Transmitting For Wi-Fi Mode: 802.11b Mode Left Side 802.11b Mode Right Side Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 85 of 91 802.11g Mode Left Side 802.11g Mode Right Side Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 86 of 91 802.11n-HT20 Mode Left Side 802.11n-HT20 Mode Right Side Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 87 of 91 802.11n-HT40 Mode Right Side 802.11n-HT40 Mode Right Side Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240530002-00B FCC Part 15.247 Page 88 of 91 BLE 1Mbps: Left Side Right Side Bay Area Compli…
