2AKAF-DOC014G Dock

    PlacementGuide Power Cord InstallationGuide     ငစ  ငတစ  ဈ"# Secure4K
Camera & Dock Secure4KMount Plate & Adhesive Please ensure the Secure4K and any necessary power components are secured and out of reach of passengers, especially young children and pets. 1 2 Option A OBD-II Power CordOption B Direct Wire Power Cord DMS Module(Optional) Power Cord Locker Tamper Tape (
%PDL Status LED mode Camera Mount ScrewmicroSD Card Slot Remote Camera Cable Holder Reset Button USB Type-C PowerWaylens ButtonCabin Lumination Remote Camera Cable Socket SIM Card Slot Status LED Remote Camera Cable Holder Solid GreenSolid BlueSolid redBlinks BlueBlinks Blue and Red Power OnIdleRecordingFirmware UpdatingError $ %%  Click x1Click x3Press for 2sPress for 4s Flip on WiFi On/OffFlip on WiFi Direct ModeFlip on RecordingRestart the camera Using the Waylens Fleet App                        Access the Secure4K through the App: Installation Guide of Secure4KPreview the video of Secure4KNetwork TestPower Cord TestSecure4K Maintenance Do not use mobile devices to access the Secure4K while operating the vehicle. Park your vehicle in a safe location before accessing the App . 3 4 Logo LED Waylens Button Function Installing your Secure4K (two options - Direct Wire or OBD-II Power Cord) 1. Locate the OBD-II socket in your vehicle, the upper figure shows some popular places.2. Insert the OBD-II plug into the OBD-II socket firmly. NOTE: The OBD-II connector fits only one way into the vehicle’s OBD-II socket, do not force the fit; observe correct orientation before applying force.3. Route the wire with USB Type-C plug of the OBD-II Power Cord to the expected camera mounting location on the windshield.NOTE: Leave an extra few inches of cord length near the camera to insert the Type-C plug into the Secure4K Dock, and also to make mounting and dismounting the camera easier.4. Secure any excess wire after the camera is mounted. Park the car in a safe and convenient place for the installation The OBD-II socket Option A OBD-II Power Cord Option B Direct Wire Power Cord 1. Install power in the vehicle 1. Turn off the engine and the accessory power.2. Find the location and layout of your fuse box as well as the appropriate fuse type from the vehicle’s user manual.NOTE: a. Professional installation assistance at a qualified dealer is recommended, if you are not familiar with identifying fuses in a vehicle and installing power system related items.b. Please contact [email protected] for assistance with finding an approved dealer in your area if you are unsure of where to locate one yourself. 3. Connect the red ACC wire to a switched fuse:a. A switched fuse is used to monitor the accessory power such as cigarette lighter, car radio, etc. They will be switched off after you turn off the car. Identify them by referring to the vehicle user manual or consulting a qualified professional.b. Verify the fuse is a switched fuse by using a multimeter to track voltage within the circuit across ignitions ON and OFF positions.c. If confirmed as a switched power fuse, remove the identified switched fuse from the fuse panel. Use the fuse puller tool if available.d. Remove the sleeve from the end of the red ACC wire, and wrap the wire around one of the blades of the switched fuse.e. Reinsert the fuse back into the fuse panel carefully and firmly to ensure the wire remains secured to the fuse blade.4. Connect the yellow BATT+ wire to a constant power fusea. The constant power fuses are used to monitor constant power within a vehicle. They will not be switched off after you turn off the car. Identify them by referring to the vehicle manual or consulting a professional. 5 6 b. Verify the fuse is a constant fuse by a multimeter to track voltage within the circuit across ignitions ON and OFF positions. c. If confirmed as a constant power fuse, remove the identified constant fuse from the fuse panel. Use the fuse puller tool if available.d. Remove the sleeve from the end of the yellow BATT+ wire and wrap the wire around one of the blades of the Constant Power fuse.e. Reinsert the fuse back into the fuse panel carefully and firmly to ensure the wire remains secured to the fuse blade.5. Connect the black GND wire to a chassis ground point, such as a bolt, that is directly touching a bare metal surface of the vehicle’s framework.6. Route the wire with USB Type-C plug of the Direct Wire Power Cord to the expected camera mounting location on the windshield.NOTE: Leave an extra few inches of cord length near the camera to insert the Type-C plug into the Secure4K Dock, and also to make mounting and dismounting the camera easier. 7. Secure any excess wire after the camera is mounted. 1. Put the Type-C Power Cord into the Power Cord Locker. Remove the Locker’s gasket if necessary.2. Remove the Locker’s tape paper.3. Insert the Type-C plug into the camera Type-C socket. Push the Locker to ensure glued together with the camera dock.4. Seal with Tamp Tape.5. Turn on the engine, the status LED will illuminate blue and then turn red if a SD card is inserted. For optimal performance, please ensure the power cord is firmly and securely fitted into the USB Type-C Power Connection. 1. Open the Waylens Fleet App and follow the prompts to connect to the Secure4K camera. 2. If can’t find the Secure4K WiFi network, normally is a network with name as Wa ylens- xxxxx (DIRECT-Waylens-xxxxx if WiFi Direct is enabled), press Waylens Button to wake up the WiFi. 3. Locate the diagnostic feature in the profile page(Skip Login) or Maintenance(Maintainer Login). 4. After the diagnostic, view the live preview of the camera to assist the placement on the windshield. Waylens Fleet App has the diagnostic feature to ensure the power cord connection is right. 3. Diagnostic with Waylens Fleet App…

Text truncated - open the document above for the full version.

Company: Waylens Inc. Add: 2711 Centerville Road - Suite 400, Wilmington, Delaware, United States, 19808 Tel:+ 14084975377 Fax:+14084975377 Email:[email protected] FCC Confidential Authorization 2021-12-22 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AKAF-D0CO 1 In accordance with Sections 0.457 and 0.459 of the Commission's Rules, Waylens Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Descriptionc • BOM • Tune up procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, 一....-一· (LAY\ Signature: Print Name: Ding Gang Title: CEO QA-FR-171-A

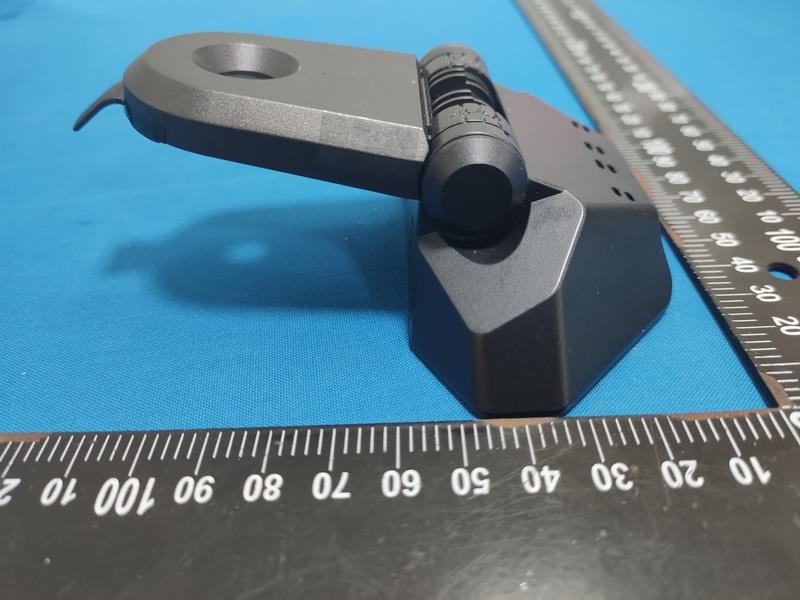

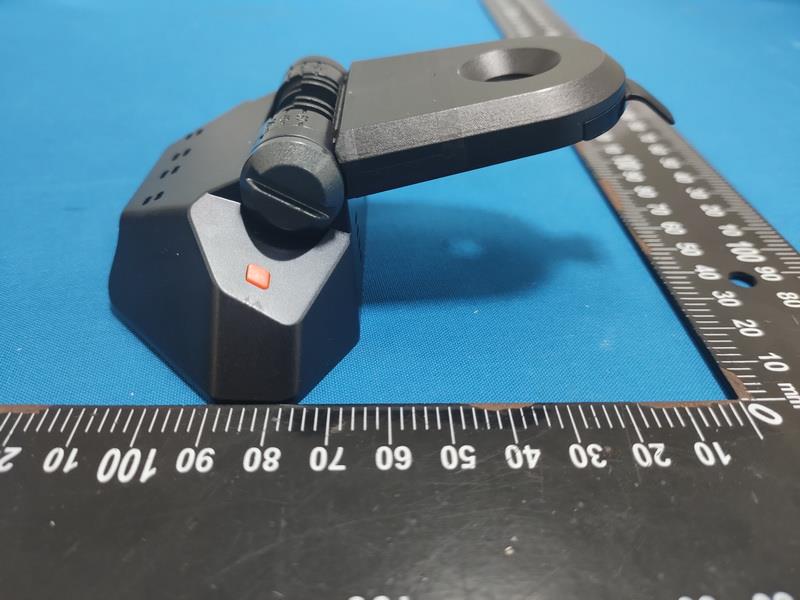

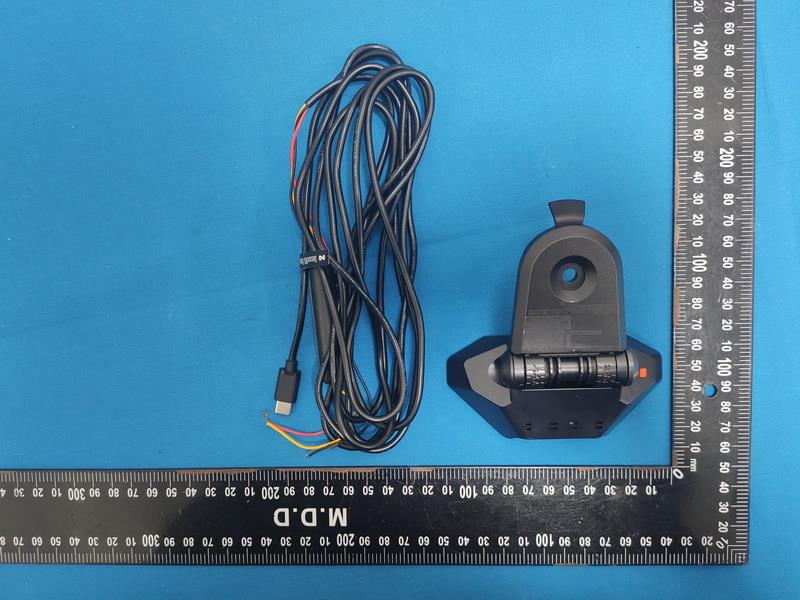

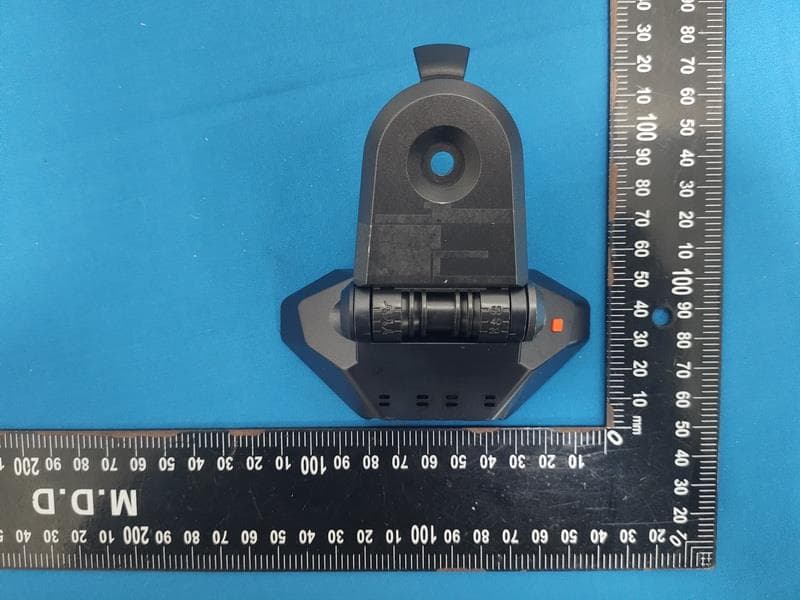

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ211001001 Page 1 of 4 External Photographs Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ211001001 Page 2 of 4 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ211001001 Page 3 of 4 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ211001001 Page 4 of 4 ----- END -----

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 1 of 12 Internal Photographs (Model: DOC01) Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 2 of 12 Antenna Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 3 of 12 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 4 of 12 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 5 of 12 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 6 of 12 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 7 of 12 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 8 of 12 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 9 of 12 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 10 of 12 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 11 of 12 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Report No.: RXZ211001001 Page 12 of 12 RF Chip ----- END -----

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 14 of 208 FCC §1.1310, § 2.1091 - Maximum Permissible Exposure (MPE) Applicable Standard According to subpart 1.1310, 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / f/1500 30 30 1500-100,000 / 1.0 30 30 f = frequency in MHz; * = Plane-wave equivalent power density Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency Range (MHz) Antenna Gain Tune-up Output Power Evaluation Distance (cm) Power Density (mW/cm2) MPE Limit (mW/cm2) (dBi) (numeric) (dBm) (mW) LTE Band 2 1850-1910 1.9 1.549 23.5 223.872 20 0.069 1 LTE Band 4 1710-1755 1.9 1.549 24 251.189 20 0.077 1 LTE Band 5 824-849 1.2 1.318 25 316.228 20 0.082 0.55 LTE Band 12 699-716 1.2 1.318 24.5 281.838 20 0.073 0.47 Result: The device meets MPE at distance 20cm.

Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 1 of 208 FCC Part 27 FCC Part 22H, Part 24E TEST REPORT For Waylens Inc. 2711 Centerville Road - Suite 400, Wilmington, Delaware, United States, 19808 FCC ID: 2AKAF-DOC01 Report Type: Original Report Product Type: 4G Dock Report Producer : Jojo Lin Report Number : RXZ211001001RF01 Report Date : 2022-01-12 Reviewed By: Andy Shih Prepared By: Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) 70, Lane 169, Sec. 2, Datong Road, Xizhi Dist., New Taipei City 22183, Taiwan, R.O.C. Tel: +886 (2) 2647 6898 Fax: +886 (2) 2647 6895 www.bacl.com.tw Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 2 of 208 Revision History Revision No. Report Number Issue Date Description Author/ Revised by 0.0 RXZ211001001 RXZ211001001RF01 2022.01.12 Original Report Jojo Lu Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 3 of 208 TABLE OF CONTENTS General Information ........................................................................................................................... 4 Product Description for Equipment under Test (EUT) ..................................................................... 4 Objective ........................................................................................................................................... 5 Related Submittal(s)/Grant(s) ............................................................................................................ 5 Test Methodology ............................................................................................................................. 5 Statement of Compliance .................................................................................................................. 5 Measurement Uncertainty ................................................................................................................. 6 Environmental Conditions ................................................................................................................. 6 Test Facility ....................................................................................................................................... 6 System Test Configuration ................................................................................................................. 7 Description of Test Configuration ..................................................................................................... 7 Equipment Modifications .................................................................................................................. 9 EUT Exercise Software ..................................................................................................................... 9 Support Equipment List and Details ................................................................................................. 9 Support Equipment List and Details ................................................................................................. 9 Block Diagram of Test Setup .......................................................................................................... 10 Summary of Test Results .................................................................................................................. 11 Test Equipment List and Details ...................................................................................................... 12 FCC §1.1310, § 2.1091 - Maximum Permissible Exposure (MPE) ............................................... 14 FCC §2.1047 - Modulation Characteristics..................................................................................... 15 FCC § 2.1046, § 22.913 (A) & § 24.232 (C) & § 27.50 - RF Output Power .................................. 16 FCC §2.1049, §22.917, §22.905 & §24.238 & §27.53 – Occupied Bandwidth .............................. 29 Applicable Standard ........................................................................................................................ 29 Test Procedure ................................................................................................................................. 29 Test Results ..................................................................................................................................... 29 FCC§2.1051, §22.917(a) & §24.238(a) & §27.53 – Spurious Emissions At Antenna Terminals 93 Applicable Standard ........................................................................................................................ 93 Test Procedure ................................................................................................................................. 93 Test Results ..................................................................................................................................... 94 FCC§2.1053, §22.917 & §24.238 & §27.53 – Spurious Radiated Emissions .............................. 154 Applicable Standard ...................................................................................................................... 154 Test Procedure ............................................................................................................................... 154 FCC§22.917(a) & §24.238(a) & §27.53 – Band Edges .................................................................. 163 Applicable Standard ...................................................................................................................... 163 Test Procedure ....…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 93 of 208 FCC§2.1051, §22.917(a) & §24.238(a) & §27.53 – Spurious Emissions At Antenna Terminals Applicable Standard FCC § 2.1051, §22.917, § 24.238, § 27.53 Test Procedure The RF output of the transceiver was connected to a spectrum analyzer and simulator through appropriate attenuation. Sufficient scans were taken to show any out of band emissions up to 10 th harmonic. The resolution bandwidth of the spectrum analyzer was set at 100 kHz for below 1GHz & 1MHz for above 1GHz. Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 94 of 208 Test Results (Worst case is Resource Block & RB offset : RB1#0) Please refer to the following plots LTE Band 2 30 MHz – 1 GHz (1.4 MHz, QPSK, Low Channel) 1 GHz – 20 GHz (1.4 MHz, QPSK, Low Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 95 of 208 30 MHz – 1 GHz (3 MHz, QPSK, Low Channel) 1 GHz – 20 GHz (3 MHz, QPSK, Low Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 96 of 208 30 MHz – 1 GHz (5 MHz, QPSK, Low Channel) 1 GHz – 20 GHz (5 MHz, QPSK, Low Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 97 of 208 30 MHz – 1 GHz (10 MHz, QPSK, Low Channel) 1 GHz – 20 GHz (10 MHz, QPSK, Low Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 98 of 208 30 MHz – 1 GHz (15 MHz, QPSK, Low Channel) 1 GHz – 20 GHz (15 MHz, QPSK, Low Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 99 of 208 30 MHz – 1 GHz (20MHz, QPSK, Low Channel) 1 GHz – 20 GHz (20 MHz, QPSK, Low Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 100 of 208 30 MHz – 1 GHz (1.4 MHz, QPSK, Middle Channel) 1 GHz – 20 GHz (1.4 MHz, QPSK, Middle Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 101 of 208 30 MHz – 1 GHz (3 MHz, QPSK, Middle Channel) 1 GHz – 20 GHz (3 MHz, QPSK, Middle Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 102 of 208 30 MHz – 1 GHz (5 MHz, QPSK, Middle Channel) 1 GHz – 20 GHz (5 MHz, QPSK, Middle Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 103 of 208 30 MHz – 1 GHz (10 MHz, QPSK, Middle Channel) 1 GHz – 20 GHz (10 MHz, QPSK, Middle Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 104 of 208 30 MHz – 1 GHz (15 MHz, QPSK, Middle Channel) 1 GHz – 20 GHz (15 MHz, QPSK, Middle Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 105 of 208 30 MHz – 1 GHz (20 MHz, QPSK, Middle Channel) 1 GHz – 20 GHz (20 MHz, QPSK, Middle Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 106 of 208 30 MHz – 1 GHz (1.4 MHz, QPSK, High Channel) 1 GHz – 20 GHz (1.4 MHz, QPSK, High Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 107 of 208 30 MHz – 1 GHz (3 MHz, QPSK, High Channel) 1 GHz – 20 GHz (3 MHz, QPSK, High Channel) Fundamental Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 108 of 208 30 MHz – 1 GHz (5 MHz, QPSK, High Channel) 1 GHz – 20 GHz (5 MHz, QPSK, High Chann…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 163 of 208 FCC§22.917(a) & §24.238(a) & §27.53 – Band Edges Applicable Standard FCC §22.917, § 24.238, § 27.53 According to § 22.917(a), the power of any emissions outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. According to §24.238(a), the power of any emissions outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. According to FCC §27.53 (h) (m), the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. For mobile digital stations, the attenuation factor shall be not less than 40 + 10 log (P) dB on all frequencies between the channel edge and 5 megahertz from the channel edge, 43 + 10 log (P) dB on all frequencies between 5 megahertz and X megahertz from the channel edge, and 55 + 10 log (P) dB on all frequencies more than X megahertz from the channel edge, where X is the greater of 6 megahertz or the actual emission bandwidth as defined in paragraph (m)(6) of this section. In addition, the attenuation factor shall not be less that 43 + 10 log (P) dB on all frequencies between 2490.5 MHz and 2496 MHz and 55 + 10 log (P) dB at or below 2490.5 MHz. Mobile Satellite Service licensees operating on frequencies below 2495 MHz may also submit a documented interference complaint against BRS licensees operating on channel BRS Channel 1 on the same terms and conditions as adjacent channel BRS or EBS licensees. Test Procedure The RF output of the transmitter was connected to the input of the spectrum analyzer through sufficient attenuation. The center of the spectrum analyzer was set to block edge frequency. Test Results Please refer to the following plots Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 164 of 208 (Worst case is Resource Block & RB offset : Full RB) LTE Band 2 QPSK (1.4MHz, RB6) – Left Band Edge QPSK (1.4MHz, RB6) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 165 of 208 16QAM (1.4MHz, RB6) – Left Band Edge 16QAM (1.4MHz, RB6) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 166 of 208 QPSK (3MHz, RB15) – Left Band Edge QPSK (3MHz, RB15) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 167 of 208 16QAM (3MHz, RB15) – Left Band Edge 16QAM (3MHz, RB15) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 168 of 208 QPSK (5MHz, RB25) – Left Band Edge QPSK (5MHz, RB25) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 169 of 208 16QAM (5MHz, RB25) – Left Band Edge 16QAM (5MHz, RB25) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 170 of 208 QPSK (10MHz, RB50) – Left Band Edge QPSK (10MHz, RB50) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 171 of 208 16QAM (10MHz, RB50) – Left Band Edge 16QAM (10MHz, RB50) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 172 of 208 QPSK (15MHz, RB75) – Left Band Edge QPSK (15MHz, RB75) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 173 of 208 16QAM (15MHz, RB75) – Left Band Edge 16QAM (15MHz, RB75) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 174 of 208 QPSK (20MHz, RB100) – Left Band Edge QPSK (20MHz, RB100) – Right Band Edge Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ211001001RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 175 of 208 16QAM (20MHz, RB100) – Left Band Edge 16QAM (20MHz, RB100)…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ211001001 Page 1 of 2 EUT Setup Photographs Radiated Emission (Below 1GHz)： Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ211001001 Page 2 of 2 Radiated Emission (Above 1GHz)： ----- END -----
