2ALB3LH575HSDECT 6.0 Wireless Headset

1 LH570/575 2 CONTENTS Headset controls 4 Charging base 5 Indicator lights 6 Audio signals 7 Set up your headset 8 Make a call 11 Answer a call 12 Use UniBase ® Technology 13 Control your volume 14 Activate auto-on feature 15 Turn on call control 15 Register a new primary headset 18 Connect a 2nd headset for conference calls or training 16 Health and Safety Instructions 21 Troubleshooting & Frequently Asked Questions 19 How to... Understanding your... 4 Speaker Volume Up & Mute Speaker Volume Down & Mute FocusLight Headset ON/OFF Battery Battery Door UNDERSTANDING YOUR HEADSET CONTROLS Headset Charging Base Lithium-Ion Battery Battery Door 8.5v AC Adaptor RJ-9 Phone Cord Type C-to-A USB Cord WHAT’S IN THE BOX A B C D E F A B C D E F 5 Battery Indicator Computer Mode Button Telephone Mode Button Charging Cradle USB Connector Port Power Port EHS and Handset Lifter Port Telephone Connector Port Handset Connector Port Microphone Volume Up/Down Accessory Selection Switch Compatibility Switch UNDERSTANDING YOUR CHARGING BASE 5 6 78 ９ 2 3 1 4 2 1 3 4 5 6 7 8 ９ 10 11 12 10 11 12 6 Battery Lights % Device Lights Telephone mode 4 solid lights = 100% charge 3 solid / 1 flashing lights = 75% charge 2 solid / 2 flashing lights = 50% charge 1 solid / 3 flashing lights = 25% charge 4 flashing lights = less than 25% charge Computer mode UNDERSTANDING THE INDICATOR LIGHTS 7 UNDERSTANDING THE AUDIO SIGNALS SOUND 2 quick beeps (60 sec repeat) 2 beeps 2 pitch tone 2 rapid beeps 1 beep 1 beep 2 pitch tone (8 sec repeat) Low battery Nearly out of range Out of range Back in range Receiver volume up/down Mute off/on Mute is on WHAT IT MEANS When you walk out of range of the base, you will hear warning beeps in the headset. If the headset disconnects due to being out of range, the call will not drop. The headset will automatically reconnect when you are back in range. NOTE: If you do not move back in range within 5 minutes, the call will disconnect. 8 HOW TO SET UP YOUR HEADSET 1 Plug the power adaptor into the charging base. The power light on the base will light up. We recommend charging your headset for at least 4 hours before use. 2a CONNECTING TO A TELEPHONE WITH A HEADSET JACK Use the included connector cord to connect the telephone port on the base to the headset port on your desk phone. You may need to adjust the compatibility switch on the bottom of the base to find the correct setting for your phone model. Most phones use 1. Cisco phones should be set to 4 when using the headset jack. Power socketTelephone port Compatibility switch 2b CONNECTING TO A TELEPHONE WITHOUT A HEADSET JACK Connect the curly cord of your handset to the handset port on the charging base. Use the included connector cord to connect the telephone port on the the charging base to the handset jack on your desk phone. See 2a on using the compatibility switch. Handset port 9 3 CONNECTING TO A LEITNER HANDSET LIFTER (OPTIONAL) Connect your headset to your desk phone as shown in Step 2b. Attach the handset lifter to your desk phone and connect it to the AUX port on the charging base. Set the accessory selection switch on the bottom of the base to RHL. See the included user guide or go to headsets.com/LifterSetup for more help. Accessory selection switch AUX port CONNECTING TO A LEITNER ELECTRONIC HOOKSWITCH (EHS) CABLE (OPTIONAL)* Each office phone is a bit different so please refer to the EHS cable instructions for quick and easy setup. * With a handset lifter or EHS cable connected, you’ll be able to answer and end calls using the ON/OFF button on the headset—up to 350 feet away from your desk! 4 10 5 CONNECTING TO YOUR COMPUTER Use the included USB cable to connect the charging base to an available USB port on your computer. If your computer doesn’t recognize the device after a minute, go to your sound settings and select “Leitner Headset” as both your default microphone and default speakers. USB port We’d love to help you get set up! Call us at 1-800-432-3738, Monday through Friday 9am-7pm Eastern Time 11 HOW TO MAKE A CALL 1 3 4 5 Make sure telephone mode is on ( 1 ). Press the headset button on your telephone or you can lift the phone handset if yours doesn't have one. If you have a handset lifter or electronic hookswitch (EHS) cable connected to the charging base, the line will automatically connect. Dial the number you’re calling. To end the call: Place the headset on the charging base or press the ON/OFF button ( 2 ). If you have a handset lifter or an EHS cable, the call will disconnect automatically. If not, then manually hang up the phone. 2 Press the ON/OFF button ( 2 ). 1 2 12 HOW TO ANSWER A CALL 1 1 Press the ON/OFF button ( 2 ) and make sure your base is in telephone mode ( 1 ). 2 Press the headset button on your phone. If your phone doesn't have a headset button, simply lift the handset to activate the call.* If you have a handset lifter or EHS cable connected to the charging base, the line will be connected automatically. 3 To end the call: Place the headset on the base or press the ON/OFF button ( 2 ) then manually hang up the line from your telephone.* If you have a handset lifter or EHS cable connected to the charging base, the line will disconnect automatically. 2 13 1 3 4 Turn your headset on ( 2 ) starting in telephone mode ( 1 ). Once both lights are illuminated, you can now conference in computer sound, including soft phone calls, to your existing call. To exit UniBase mode, press the telephone button ( 1 ) again. 2 Press and hold the computer button ( 3 ) for a few seconds. HOW TO USE UNIBASE ® 1 Sounds from your computer will be shared automatically with the conference 2 1 3 UniBase Technology allows you to conference your landline & softphone calls together! 14 To adjust the ring detection volume: If you’re using a handset lifter or EHS cable, you’ll hear a ring tone in your headset when you have an incoming call. While the headset is off, use the volume control buttons ( 1 or 2 ) on the headset to adjust t…

Text truncated - open the document above for the full version.

1 LH670/675 2 CONTENTS Headset controls 4 Charging base 5 Indicator lights 6 Audio signals 7 Set up your headset 8 Make a call 11 Answer a call 12 Use UniBase ® Technology 13 Control your volume 14 Activate auto-on feature 15 Turn on call control 15 Register a new primary headset 18 Connect a 2nd headset for conference calls or training 16 Health and Safety Instructions 21 Troubleshooting & Frequently Asked Questions 19 How to... Understanding your... 4 Speaker Volume Up & Mute Speaker Volume Down & Mute FocusLight Headset ON/OFF Battery Battery Door UNDERSTANDING YOUR HEADSET CONTROLS Headset Charging Base Lithium-Ion Battery Battery Door 8.5v AC Adaptor RJ-9 Phone Cord Type C-to-A USB Cord WHAT’S IN THE BOX A B C D E F A B C D E F 5 Battery Indicator Computer Mode Button Bluetooth Mode Button Telephone Mode Button Bluetooth Connection Light Charging Cradle USB Connector Port Power Port EHS and Handset Lifter Port Telephone Connector Port Handset Connector Port Microphone Volume Up/Down Accessory Selection Switch Compatibility Switch UNDERSTANDING YOUR CHARGING BASE 5 78 ９ 23 1 4 2 1 3 4 5 6 7 8 ９ 10 11 12 10 11 12 6 13 14 13 14 6 Battery Lights % Device Lights Telephone mode 4 solid lights = 100% charge 3 solid / 1 flashing lights = 75% charge 2 solid / 2 flashing lights = 50% charge 1 solid / 3 flashing lights = 25% charge 4 flashing lights = less than 25% charge Computer mode UNDERSTANDING THE INDICATOR LIGHTS Bluetooth ode Bluetooth connection light 7 UNDERSTANDING THE AUDIO SIGNALS SOUND 2 quick beeps (60 sec repeat) 2 beeps 2 pitch tone 2 rapid beeps 1 beep 1 beep 2 pitch tone (8 sec repeat) Low battery Nearly out of range Out of range Back in range Receiver volume up/down Mute off/on Mute is on WHAT IT MEANS When you walk out of range of the base, you will hear warning beeps in the headset. If the headset disconnects due to being out of range, the call will not drop. The headset will automatically reconnect when you are back in range. NOTE: If you do not move back in range within 5 minutes, the call will disconnect. 8 HOW TO SET UP YOUR HEADSET 1 Plug the power adaptor into the charging base. The power light on the base will light up. We recommend charging your headset for at least 4 hours before use. 2a CONNECTING TO A TELEPHONE WITH A HEADSET JACK Use the included connector cord to connect the telephone port on the base to the headset port on your desk phone. You may need to adjust the compatibility switch on the bottom of the base to find the correct setting for your phone model. Most phones use 1. Cisco phones should be set to 4 when using the headset jack. Power socketTelephone port Compatibility switch 2b CONNECTING TO A TELEPHONE WITHOUT A HEADSET JACK Connect the curly cord of your handset to the handset port on the charging base. Use the included connector cord to connect the telephone port on the the charging base to the handset jack on your desk phone. See 2a on using the compatibility switch. Handset port 9 3 CONNECTING TO A LEITNER HANDSET LIFTER (OPTIONAL) Connect your headset to your desk phone as shown in Step 2b. Attach the handset lifter to your desk phone and connect it to the AUX port on the charging base. Set the accessory selection switch on the bottom of the base to RHL. See the included user guide or go to headsets.com/LifterSetup for more help. Accessory selection switch AUX port CONNECTING TO A LEITNER ELECTRONIC HOOKSWITCH (EHS) CABLE (OPTIONAL)* Each office phone is a bit different so please refer to the EHS cable instructions for quick and easy setup. * With a handset lifter or EHS cable connected, you’ll be able to answer and end calls using the ON/OFF button on the headset—up to 350 feet away from your desk! 4 10 5 CONNECTING TO YOUR COMPUTER Use the included USB cable to connect the charging base to an available USB port on your computer. If your computer doesn’t recognize the device after a minute, go to your sound settings and select “Leitner Headset” as both your default microphone and default speakers. USB port 6 CONNECTING TO BLUETOOTH With your headset turned off, hold down the Bluetooth button ( １ ) for three seconds until the light starts flashing. Make sure Bluetooth is enabled on the device you're trying to connect to. Select 'Leitner Headset' from the list of available devices ( 2 ). The light on your charging base will stop flashing once it's successfullly connected. 1 2 11 HOW TO MAKE A CALL 1 3 4 5 Make sure the base is in the mode that you want to make the call on - Computer ( 1 ), Bluetooth ( 2 ), or Telephone ( ３ ) Place your call on the device you are calling from. Dial the number you’re calling. To end the call: Place the headset on the charging base or press the ON/OFF button ( 4 ). If you have a handset lifter or an EHS cable, the call will disconnect automatically from your landline phone. If not, then manually hang up the call from your telephone, computer, or Bluetooth device. 2 Press the ON/OFF button ( 4 ). 1 2 ３ 4 12 HOW TO ANSWER A CALL 1 1 Press the ON/OFF button ( 1 ) and make sure your base is in telephone mode ( 2 ). 2 Press the headset button on your phone. If your phone doesn't have a headset button, simply lift the handset to activate the call.* If you have a handset lifter or EHS cable connected to the charging base, the line will be connected automatically. 2 For incoming landline call: 1 Press the ON/OFF button ( 1 ) and your call will connect automat- ically. For incoming Bluetooth call: To end the call: Press the ON/OFF button ( 1 ) or place the headset on the charging base. If you have a handset lifter or EHS cable connected to the charging base, the call will end automatically. 1 2 Manually hang up the call from your landline phone or Bluetooth device.* 13 1 Sounds from your computer will be shared automatically with the conference 1 3 4 Begin a call on your first device. After a few seconds, the mode button lights for the two selected devices will light up. To exit UniBase mode, simply press the mode butto…

Text truncated - open the document above for the full version.

ŸIncrease the separation between the equipment and receiver ŸConnect the equipment into an outlet on a circuit different from that to which the receiver is connected The USB cable(s) included in this package must be used with this product to ensure compliance with the Class B FCC limits. The USB port on base station is for data transfer only without charging function. RF Radiation Exposure ŸConsult the dealer or an experienced radio/TV technician for help This product compliances with FCC RF radiation exposure limits set forth for an uncontrolled environment. For Base unit: Caution: To maintain the compliance with FCC’s RF exposure guidance, place the Base unit at least 20cm from nearby persons. Power adaptor model: ZHT061U-0850500 (CHNHT INTERNATIONAL (HK) CO LIMITED) Battery model: 402035 (OI NAN TECHNOLOGY LTD) ŸRisk of explosion if battery is replaced by incorrect type disposed of used batteries according to the instruction. ŸBattery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation. ŸReplacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas. ŸDisposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. CAUTION Safety Instruction ŸLeaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. ŸA battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. ŸUse only power supplies and rechargeable battery listed in below. ŸThe applied nameplate is located at the bottom of the product’s base. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ŸOperating, charging and storage temperatures are 32 ̊F to 104 ̊F (0 ̊C to 40 ̊C) ŸFor PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible ŸNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installtion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ŸReorient or relocate the receiving antenna Should you experience troubles with this equipment in the US, please contact: Headsets.com Inc 1. This device may not cause interference This Class B digital apparatus complies with Canadian requirements CAN ICES-003(B)/NMB-003 (B) 1854 Air Lane Drive, Unit 6 This device contains licence-exempt transmitter(s)receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: Industry Canada 2. This device must accept any interference, including interference that may cause undesired operation of the device. Nashville, Tn37210 USA Tel: 1-800-432-3738 ŸLaisser une batterie à des températures très élevées peut provoquer une explosion ou une fuite de liquide ou de gaz inflammable. ŸLa mise au rebut d'une batterie dans un feu ou un four chaud, ou l'écrasement ou la découpe d'une batterie, peut entraîner une explosion. Adaptateur secteur modele: ZHT061U-0850500 (CHNHT INTERNATIONAL (HK) CO LIMITED) Modele de batterie: 402035 (OI NAN TECHNOLOGY LTD) ŸPour l'équipement à brancher, la prise doit être proche de l'équipement et facile d'accès. ŸMettre au rebut les batteries usagées conformément aux réglementations locales. ŸLa plaque signalétique se trouve en bas de la base du produit. ŸUtilisez uniquement les alimentations et la batterie rechargeable énumérées ci-dessous. PRÉCAUTION ŸUne batterie sous très faible pression d'air peut causer une explosion ou une fuite de liquide ou de gaz inflammable. ŸLes températures de fonctionnement, de charge et d’entreposage sont de 0 °C à 40 °C (32 °F à 104 °F) L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) L'appareil ne doit pas produire de brouillage; CAN ICES-003 (B) / NMB-003 (B) ŸATTENTION: Remplacer une batterie par une batterie incorrecte peut provoquer une explosion ou une fuite de liquide ou de gaz inflammable. ŸLa batterie ne doit pas être soumise à des températures extrêmement élevées ou basses ou à une basse pression atmosphérique à haute altitude pendant son utilisation, son entreposage ou son transport. Instructions de Sécurité (2) L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

IPN Headsets

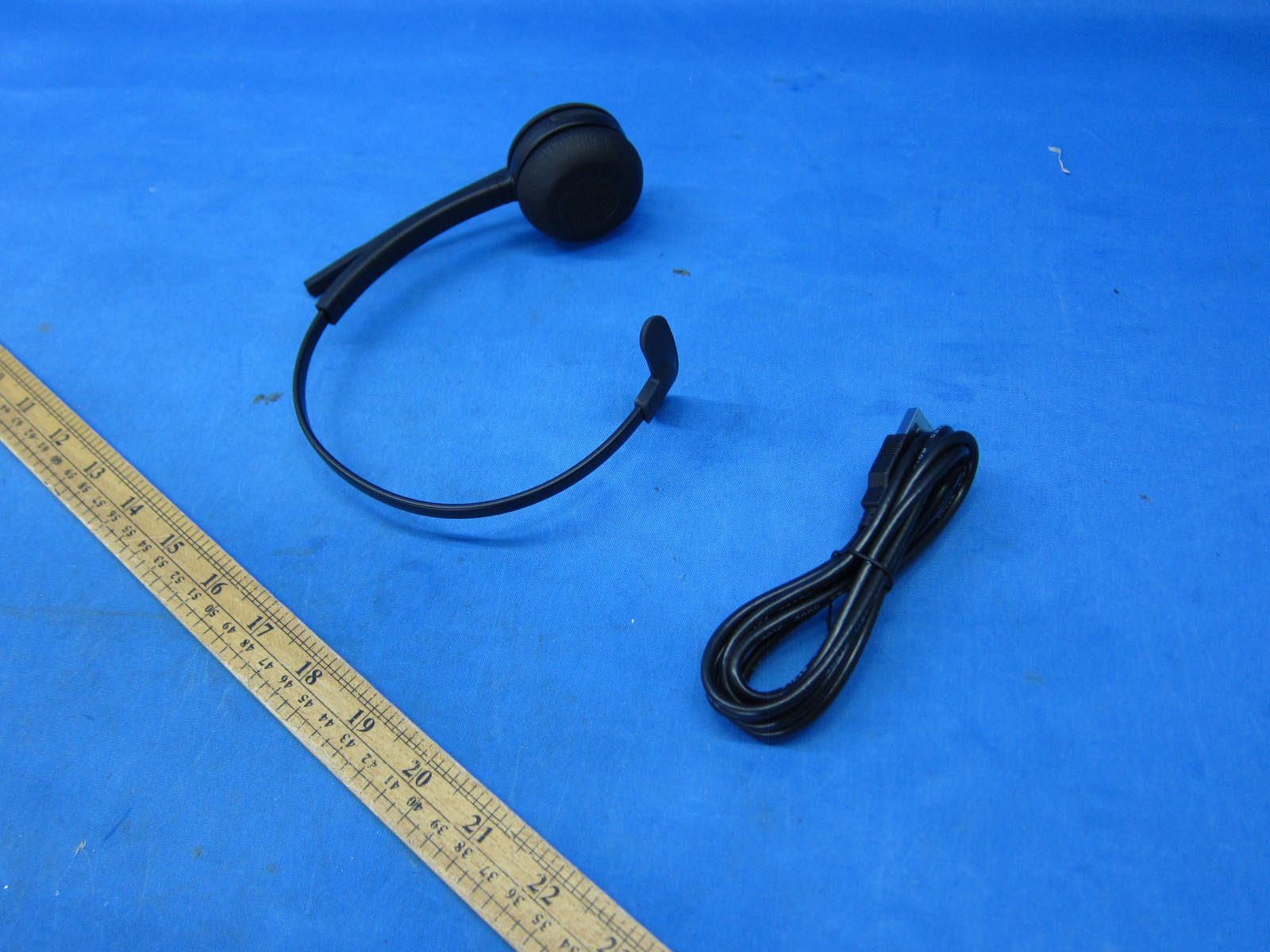

INTERTEK TESTING SERVICES External Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008 INTERTEK TESTING SERVICES External Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008

INTERTEK TESTING SERVICES External Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008 INTERTEK TESTING SERVICES External Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008

IC: 23665-HS008 570H FCC ID:2ALB3LH575HS IC: 23665-HS008 670H FCC ID:2ALB3LH575HS IC: 23665-HS008 675H FCC ID:2ALB3LH575HS IC: 23665-HS008 575H FCC ID:2ALB3LH575HS IC: 23665-HS008 570H FCC ID:2ALB3LH575HS Label Dimensions: 20 x 5mm

INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008

INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH575HS IC: 23665-HS008

INTERTEK TESTING SERVICES FCC ID: 2ALB3LH575HS IC: 23665-HS008 RF exposure - 1 of 1 For Standalone SAR test exclusion consideration, when the corresponding SAR Exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions, by measurement or numerical simulation is not required. Description the tested model: LH675HS EUT Description : 1.9GHz DECT 6.0 Cordless Headset Model : LH675HS Operating Configuration(s) : Next to ear Operating mode (s) : Voice call Device Category : Portable Device Tx Frequency : 1921.536 – 1928.448 MHz Production tolerance : 10 dBm (Minimum) to 20 dBm (Maximum) Antenna gain : 0.41 dBi = 1.10 (num gain) Maximum source-based time- averaging duty factor : 4.2% = (1/24 x100%) Minimum separation distance : 5 mm Applicable FCC KDB : FCC KDB 447498 D01v06 FCC KDB 865664 D02v01r02 From above data, the source-based time-averaging output power is as follow: The Maximum Conducted Power = 20 dBm = 100.0 mW The Maximum conducted Power source-based time-averaging output power = (100.0 * 0.042) mW = 4.2 mW In the frequency range of 100MHz to 6GHz and test separation distance ≤ 50mm, the SAR Exclusion Threshold will be determined as follow, The SAR exclusion threshold = () )(/0.3GHzFTD× = 10.80 mW where TD = 5 mm and F(GHz) = 1.928 GHz Conclusion Since the calculated conducted source-based time-averaged output power is 4.20 mW, which is less than the SAR Exclusion Threshold at 5mm test separation distance 10.80 mW for general population and uncontrolled exposure, standalone SAR evaluation for general population exposure conditions, by measurement or numerical simulation is not required.

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 49 Report Number: 22080932HKG-007 Application For Original Grant of 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices / 2 GHz License-exempt Personal Communications Service Devices (Headset) FCC ID: 2ALB3LH575HS Prepared and Checked by: Approved by: Signed on File Leung Chiu Kuen, Stanley Engineer Lee Shui Tim, Tim Assistant Manager Date: January 13, 2023 TEST REPORT IPN Headsets Intertek Report No: 22080932HKG-007 Page 2 of 49 GENERAL INFORMATION Grantee: IPN Headsets Grantee Address: Bijsterhuizen 2414, 6604 LL Wijchen, The Netherlands. FCC Specification Standard: FCC Part 15, October 1, 2021 Edition FCC ID: 2ALB3LH575HS FCC Model(s): LH675HS LH670HS, LH575HS, LH570HS, LHX7YHS Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: DECT 6.0 Wireless Headset Serial Number: N/A Sample Receipt Date: August 23, 2022 Date of Test: August 23, 2022 to October 11, 2022 Report Date: January 13, 2023 Environmental Conditions: Temperature: +10 to 40°C Relative Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT IPN Headsets Intertek Report No: 22080932HKG-007 Page 3 of 49 TABLE OF CONTENTS 1.0 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE .......................................... 4 1.1 Summary of Test Results ........................................................................................... 4 1.2 Statement of Compliance ......................................................................................... 5 2.0 GENERAL DESCRIPTION ................................................................................................ 6 2.1 Product Description .................................................................................................. 6 2.2 Technical Description ................................................................................................ 6 2.3 Test Methodology ..................................................................................................... 7 2.4 Test Facility ................................................................................................................ 7 3.0 SYSTEM TEST CONFIGURATION .................................................................................... 8 3.1 Justification ............................................................................................................... 8 3.2 Radiated Emission Test Setup ................................................................................... 9 3.3 AC Line Conducted Emission Test Setup ................................................................. 10 3.4 Conducted Emission Test Configuration ................................................................. 10 3.5 Conducted Monitoring and Operational Test Configuration ................................. 11 3.6 EUT Exercising Software.......................................................................................... 11 3.7 Details of EUT and Description of Accessories ....................................................... 12 3.8 Measurement Uncertainty...................................................................................... 12 4.0 MEASUREMENT RESULTS ........................................................................................... 13 4.1 Antenna Requirement ............................................................................................. 13 4.2 Digital Modulation Techniques ............................................................................... 13 4.3 Emission Bandwidth ................................................................................................ 13 4.4 Directional Gain of the Antenna ............................................................................. 15 4.5 Peak Transmit Power .............................................................................................. 16 4.6 Power Spectral Density ........................................................................................... 18 4.7 Automatic Discontinuation of Transmission ........................................................... 20 4.8 Unwanted Emission Inside the Sub-Band ............................................................... 21 4.9 Emissions Outside the Sub-Band ............................................................................ 24 4.10 AC Power Line Conducted Emissions ...................................................................... 31 4.11 Frame Repetition Stability ................................................................................…

Text truncated - open the document above for the full version.

NOTE:ThisdocumentisissuedbyShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,thetestreportshallnotbereproducedexceptin fullwithoutpriorwrittenpermissionofthecompany.Thetestresultsapplyonlytotheparticularsample(s)testedandtothespecifictestscarried outwhichisavailableonrequestforvalidationandinformationconfirmedatourwebsite. MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page1of 12 REPORTNo.：SZ22100214E03 TESTREPORT APPLICANT:OrchidElectronicsLimited PRODUCTNAME:DECTHeadsetAntenna MODELNAME:OEL_ANT_003 TRADENAME:N/A BRANDNAME:N/A STANDARD(S):IEEEStd149-2021 RECEIPTDATE:2022-10-24 TESTDATE:2022-10-25 ISSUEDATE:2022-12-26 Editedby: : FangJinshan(Rapporteur) Approvedby: : ChiShide(Supervisor) Testedby MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page2of12 REPORTNo.：SZ22100214E03 DIRECTORY 1.TechnicalInformation ........................................................................................................3 1.1.ApplicantandManufacturerInformation ....................................................................3 1.2.EquipmentUnderTest(EUT)Description...................................................................3 2.TestResults........................................................................................................................4 2.1.AppliedReferenceDocuments.....................................................................................4 2.2.TestConditions...............................................................................................................4 2.3.MeasurementUncertainty.............................................................................................4 2.4.TestResults.....................................................................................................................5 AnnexATestSetupPhotos..................................................................................................6 AnnexBFigures .....................................................................................................................7 1 ． 2DRadiationPattern ......................................................................................................7 2 ． 3DRadiationPattern ......................................................................................................8 AnnexCEUTPhotos ...........................................................................................................10 AnnexDGeneralInformation .............................................................................................12 1.1IdentificationoftheResponsibleTestingLaboratory..............................................12 1.2IdentificationoftheResponsibleTestingLocation..................................................12 1.3TestEquipmentsUtilized..............................................................................................12 ChangeHistory VersionDateReasonforchange 1.02022-12-26Firstedition MORLAB …

Text truncated - open the document above for the full version.
