2ALB3LH670BSDECT 6.0 Headsets System - Base(BT) Unit

1 LH670/675 2 CONTENTS Headset controls 4 Charging base 5 Indicator lights 6 Audio signals 7 Set up your headset 8 Make a call 11 Answer a call 12 Use UniBase ® Technology 13 Control your volume 14 Activate auto-on feature 15 Turn on call control 15 Register a new primary headset 18 Connect a 2nd headset for conference calls or training 16 Health and Safety Instructions 21 Troubleshooting & Frequently Asked Questions 19 How to... Understanding your... 4 Speaker Volume Up & Mute Speaker Volume Down & Mute FocusLight Headset ON/OFF Battery Battery Door UNDERSTANDING YOUR HEADSET CONTROLS Headset Charging Base Lithium-Ion Battery Battery Door 8.5v AC Adaptor RJ-9 Phone Cord Type C-to-A USB Cord WHAT’S IN THE BOX A B C D E F A B C D E F 5 Battery Indicator Computer Mode Button Bluetooth Mode Button Telephone Mode Button Bluetooth Connection Light Charging Cradle USB Connector Port Power Port EHS and Handset Lifter Port Telephone Connector Port Handset Connector Port Microphone Volume Up/Down Accessory Selection Switch Compatibility Switch UNDERSTANDING YOUR CHARGING BASE 5 78 ９ 23 1 4 2 1 3 4 5 6 7 8 ９ 10 11 12 10 11 12 6 13 14 13 14 6 Battery Lights % Device Lights Telephone mode 4 solid lights = 100% charge 3 solid / 1 flashing lights = 75% charge 2 solid / 2 flashing lights = 50% charge 1 solid / 3 flashing lights = 25% charge 4 flashing lights = less than 25% charge Computer mode UNDERSTANDING THE INDICATOR LIGHTS Bluetooth ode Bluetooth connection light 7 UNDERSTANDING THE AUDIO SIGNALS SOUND 2 quick beeps (60 sec repeat) 2 beeps 2 pitch tone 2 rapid beeps 1 beep 1 beep 2 pitch tone (8 sec repeat) Low battery Nearly out of range Out of range Back in range Receiver volume up/down Mute off/on Mute is on WHAT IT MEANS When you walk out of range of the base, you will hear warning beeps in the headset. If the headset disconnects due to being out of range, the call will not drop. The headset will automatically reconnect when you are back in range. NOTE: If you do not move back in range within 5 minutes, the call will disconnect. 8 HOW TO SET UP YOUR HEADSET 1 Plug the power adaptor into the charging base. The power light on the base will light up. We recommend charging your headset for at least 4 hours before use. 2a CONNECTING TO A TELEPHONE WITH A HEADSET JACK Use the included connector cord to connect the telephone port on the base to the headset port on your desk phone. You may need to adjust the compatibility switch on the bottom of the base to find the correct setting for your phone model. Most phones use 1. Cisco phones should be set to 4 when using the headset jack. Power socketTelephone port Compatibility switch 2b CONNECTING TO A TELEPHONE WITHOUT A HEADSET JACK Connect the curly cord of your handset to the handset port on the charging base. Use the included connector cord to connect the telephone port on the the charging base to the handset jack on your desk phone. See 2a on using the compatibility switch. Handset port 9 3 CONNECTING TO A LEITNER HANDSET LIFTER (OPTIONAL) Connect your headset to your desk phone as shown in Step 2b. Attach the handset lifter to your desk phone and connect it to the AUX port on the charging base. Set the accessory selection switch on the bottom of the base to RHL. See the included user guide or go to headsets.com/LifterSetup for more help. Accessory selection switch AUX port CONNECTING TO A LEITNER ELECTRONIC HOOKSWITCH (EHS) CABLE (OPTIONAL)* Each office phone is a bit different so please refer to the EHS cable instructions for quick and easy setup. * With a handset lifter or EHS cable connected, you’ll be able to answer and end calls using the ON/OFF button on the headset—up to 350 feet away from your desk! 4 10 5 CONNECTING TO YOUR COMPUTER Use the included USB cable to connect the charging base to an available USB port on your computer. If your computer doesn’t recognize the device after a minute, go to your sound settings and select “Leitner Headset” as both your default microphone and default speakers. USB port 6 CONNECTING TO BLUETOOTH With your headset turned off, hold down the Bluetooth button ( １ ) for three seconds until the light starts flashing. Make sure Bluetooth is enabled on the device you're trying to connect to. Select 'Leitner Headset' from the list of available devices ( 2 ). The light on your charging base will stop flashing once it's successfullly connected. 1 2 11 HOW TO MAKE A CALL 1 3 4 5 Make sure the base is in the mode that you want to make the call on - Computer ( 1 ), Bluetooth ( 2 ), or Telephone ( ３ ) Place your call on the device you are calling from. Dial the number you’re calling. To end the call: Place the headset on the charging base or press the ON/OFF button ( 4 ). If you have a handset lifter or an EHS cable, the call will disconnect automatically from your landline phone. If not, then manually hang up the call from your telephone, computer, or Bluetooth device. 2 Press the ON/OFF button ( 4 ). 1 2 ３ 4 12 HOW TO ANSWER A CALL 1 1 Press the ON/OFF button ( 1 ) and make sure your base is in telephone mode ( 2 ). 2 Press the headset button on your phone. If your phone doesn't have a headset button, simply lift the handset to activate the call.* If you have a handset lifter or EHS cable connected to the charging base, the line will be connected automatically. 2 For incoming landline call: 1 Press the ON/OFF button ( 1 ) and your call will connect automat- ically. For incoming Bluetooth call: To end the call: Press the ON/OFF button ( 1 ) or place the headset on the charging base. If you have a handset lifter or EHS cable connected to the charging base, the call will end automatically. 1 2 Manually hang up the call from your landline phone or Bluetooth device.* 13 1 Sounds from your computer will be shared automatically with the conference 1 3 4 Begin a call on your first device. After a few seconds, the mode button lights for the two selected devices will light up. To exit UniBase mode, simply press the mode butto…

Text truncated - open the document above for the full version.

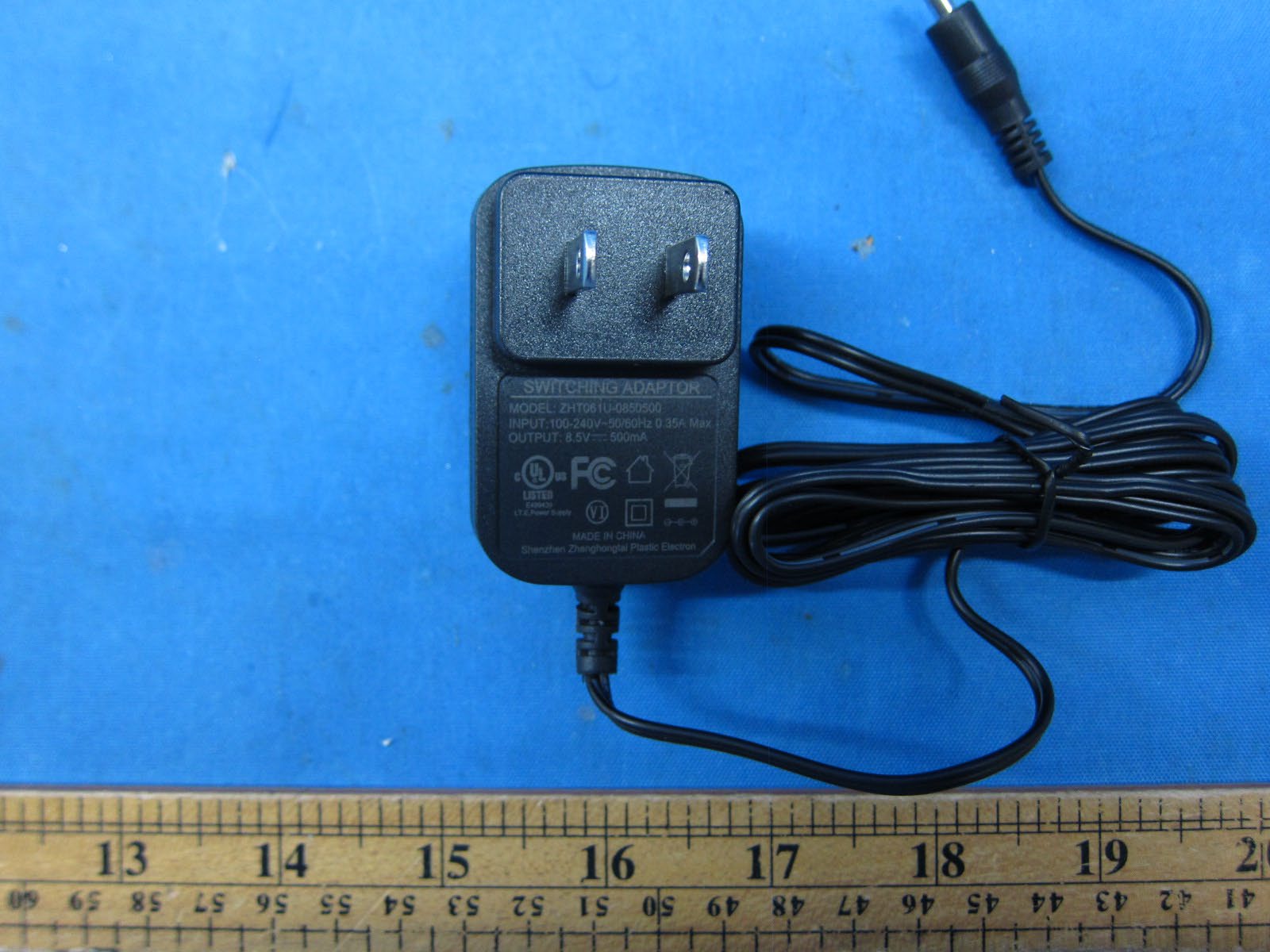

ŸIncrease the separation between the equipment and receiver ŸConnect the equipment into an outlet on a circuit different from that to which the receiver is connected The USB cable(s) included in this package must be used with this product to ensure compliance with the Class B FCC limits. The USB port on base station is for data transfer only without charging function. RF Radiation Exposure ŸConsult the dealer or an experienced radio/TV technician for help This product compliances with FCC RF radiation exposure limits set forth for an uncontrolled environment. For Base unit: Caution: To maintain the compliance with FCC’s RF exposure guidance, place the Base unit at least 20cm from nearby persons. Power adaptor model: ZHT061U-0850500 (CHNHT INTERNATIONAL (HK) CO LIMITED) Battery model: 402035 (OI NAN TECHNOLOGY LTD) ŸRisk of explosion if battery is replaced by incorrect type disposed of used batteries according to the instruction. ŸBattery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation. ŸReplacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas. ŸDisposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. CAUTION Safety Instruction ŸLeaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. ŸA battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. ŸUse only power supplies and rechargeable battery listed in below. ŸThe applied nameplate is located at the bottom of the product’s base. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ŸOperating, charging and storage temperatures are 32 ̊F to 104 ̊F (0 ̊C to 40 ̊C) ŸFor PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible ŸNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installtion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ŸReorient or relocate the receiving antenna Should you experience troubles with this equipment in the US, please contact: Headsets.com Inc 1. This device may not cause interference This Class B digital apparatus complies with Canadian requirements CAN ICES-003(B)/NMB-003 (B) 1854 Air Lane Drive, Unit 6 This device contains licence-exempt transmitter(s)receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: Industry Canada 2. This device must accept any interference, including interference that may cause undesired operation of the device. Nashville, Tn37210 USA Tel: 1-800-432-3738 ŸLaisser une batterie à des températures très élevées peut provoquer une explosion ou une fuite de liquide ou de gaz inflammable. ŸLa mise au rebut d'une batterie dans un feu ou un four chaud, ou l'écrasement ou la découpe d'une batterie, peut entraîner une explosion. Adaptateur secteur modele: ZHT061U-0850500 (CHNHT INTERNATIONAL (HK) CO LIMITED) Modele de batterie: 402035 (OI NAN TECHNOLOGY LTD) ŸPour l'équipement à brancher, la prise doit être proche de l'équipement et facile d'accès. ŸMettre au rebut les batteries usagées conformément aux réglementations locales. ŸLa plaque signalétique se trouve en bas de la base du produit. ŸUtilisez uniquement les alimentations et la batterie rechargeable énumérées ci-dessous. PRÉCAUTION ŸUne batterie sous très faible pression d'air peut causer une explosion ou une fuite de liquide ou de gaz inflammable. ŸLes températures de fonctionnement, de charge et d’entreposage sont de 0 °C à 40 °C (32 °F à 104 °F) L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) L'appareil ne doit pas produire de brouillage; CAN ICES-003 (B) / NMB-003 (B) ŸATTENTION: Remplacer une batterie par une batterie incorrecte peut provoquer une explosion ou une fuite de liquide ou de gaz inflammable. ŸLa batterie ne doit pas être soumise à des températures extrêmement élevées ou basses ou à une basse pression atmosphérique à haute altitude pendant son utilisation, son entreposage ou son transport. Instructions de Sécurité (2) L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

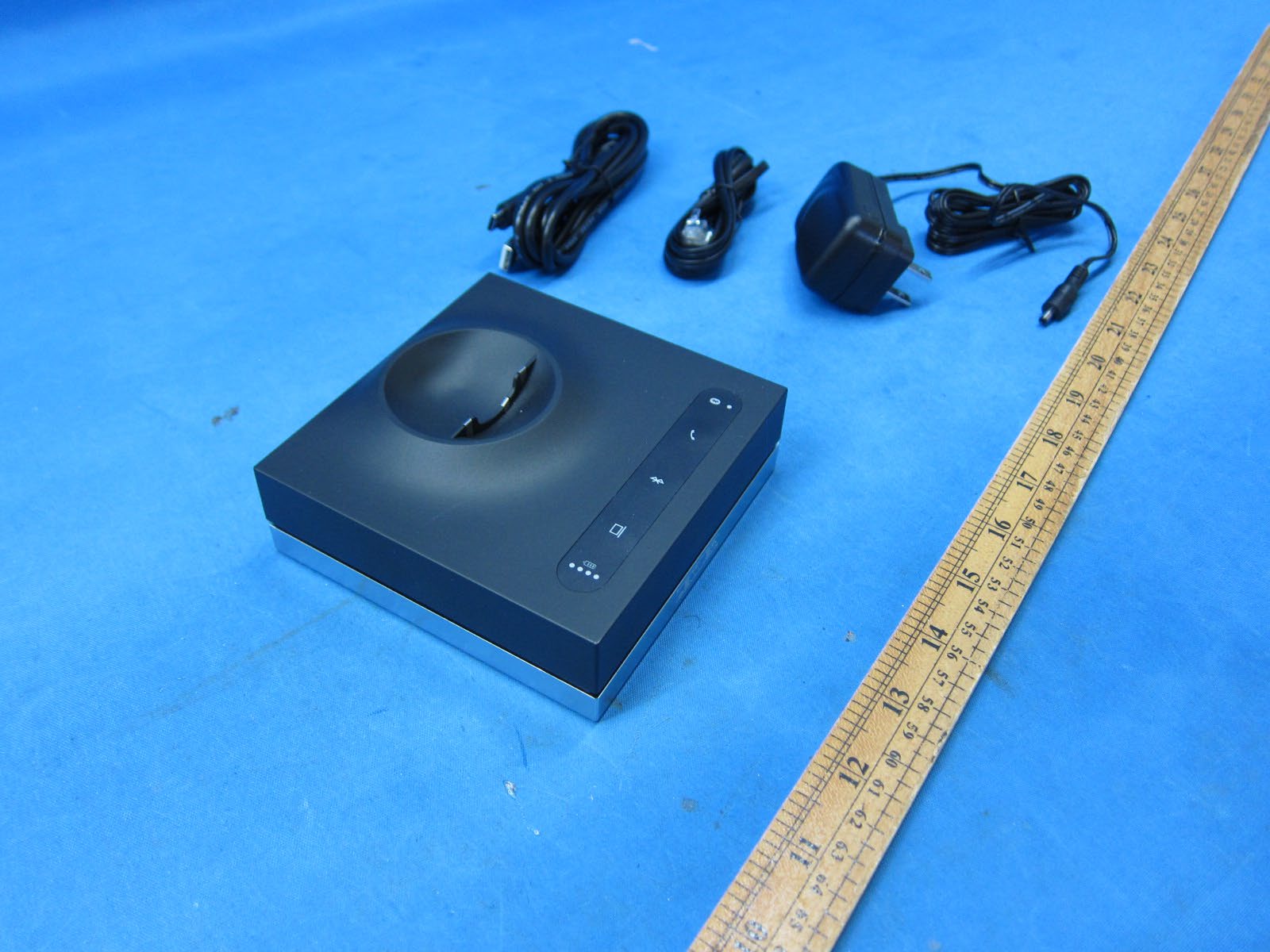

INTERTEK TESTING SERVICES External Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011 INTERTEK TESTING SERVICES External Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011

CM US C Intertek 5008497 A/V C.I. T.E. CM US C Intertek 5008497 A/V C.I. T.E. CM US C Intertek 5008497 A/V C.I. T.E. Model/Modèle.: LH 6 70 Model .:/ LH Modèle 670 Model .:/ LH Modèle 675 8 8 10067 13044 8 5 10067 13045 L 575 BASE LABELHL 670 BASE LABELHL 675 BASE LABELH Model/Modèle.: LH 6 70BS Model .:/ LH Modèle 675BS Model .:/ LH Modèle 670BS :HVIN 6 70B HVIN 675B:HVIN 670B: IC: 23665-HS01 1 IC: 23665-HS011IC: 23665-HS011 FCC ID: 2ALB3LH 6 70BS FCC ID: 2ALB3LH 70BS6FCC ID: 2ALB3LH 70BS6 THIS DEVICE COMPLIES WITH PART 15 OFTHE FCC RULES. OPERATION IS SUBJECTTO THE FOLLOWING TWO CONDITIONS:(1) THIS DEVICE MAY NOT CAUSEHARMFUL INTERFERENCE; AND (2) THISDEVICE MUST ACCEPT ANYINTERFERENCE RECEIVED, INCLUDINGINTERFERENCE THAT MAY CAUSEUNDESIRED OPERATION. THIS DEVICE COMPLIES WITH PART 15 OFTHE FCC RULES. OPERATION IS SUBJECTTO THE FOLLOWING TWO CONDITIONS:(1) THIS DEVICE MAY NOT CAUSEHARMFUL INTERFERENCE; AND (2) THISDEVICE MUST ACCEPT ANYINTERFERENCE RECEIVED, INCLUDINGINTERFERENCE THAT MAY CAUSEUNDESIRED OPERATION.THIS DEVICE COMPLIES WITH PART 15 OFTHE FCC RULES. OPERATION IS SUBJECTTO THE FOLLOWING TWO CONDITIONS:(1) THIS DEVICE MAY NOT CAUSEHARMFUL INTERFERENCE; AND (2) THISDEVICE MUST ACCEPT ANYINTERFERENCE RECEIVED, INCLUDINGINTERFERENCE THAT MAY CAUSEUNDESIRED OPERATION. Label Dimension: 48 x 31mm Label Dimension: 49 x 10mm 8 8 10067 13044

INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011 INTERTEK TESTING SERVICES Internal Photos FCC ID: 2ALB3LH670BS IC: 23665-HS011

INTERTEK TESTING SERVICES FCC ID: 2ALB3LH670BS RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz DECT Transmission of tested model: LH675BS, the measured powers among all the measured channels were within its production tolerance: +10 dBm (Minimum) and +20 dBm (Maximum). The antenna gain of LH675BS is -2.62 dBi = 0.55 (num gain) and its maximum source-based time-averaging duty factor is 12.5% (3/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 20 dBm = 100.0 mW The Conducted Power source-based time-averaging output power = (100.0 * 0.125) mW = 12.5 mW The power density at 20cm = 12.5 *0.55/ 4πR 2 = 0.0014 mW cm -2 For the 2.4GHz Bluetooth Transmission of tested model: LH675BS, the measured powers among all the measured channels were within its production tolerance: +0 dBm (Minimum) and +7 dBm (Maximum). The antenna gain of LH675BS is -2.18 dBi = 0.61 (num gain) and its maximum source-based time-averaging duty factor is 100.0% (6/6 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 7 dBm = 5.0 mW The Conducted Power source-based time-averaging output power = (5.0 * 1.000) mW = 5.01 mW The power density at 20cm = 5.01 *0.61/ 4πR 2 = 0.0006 mW cm -2 INTERTEK TESTING SERVICES FCC ID: 2ALB3LH670BS RF exposure - 1 of 1 Per KDB 447498 D01 v06, simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. The MPE ratio for DECT Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.0014 mW cm -2 / 1.0 mW cm -2 = 0.0014 The MPE ratio for Bluetooth Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.0006 mW cm -2 / 1.0 mW cm -2 = 0.0006 The sum of the MPE ratios for all simultaneous transmitting antennas = 0.0014 + 0.0006 = 0.0020 As the sum of MPE ratios for all simultaneous transmitting antennas is ≤ 1.0, simultaneous transmission MPE test exclusion will be applied. Conclusion In frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As simultaneous transmission MPE test exclusion is applied and the measured power density at 20cm from all the standalone transmissions is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 24 Report No.: 22080932HKG-003 IPN Headsets Application For Original Grant of 47 CFR Part 15 Certification DECT 6.0 Headset System - Base (BT) Unit FCC ID: 2ALB3LH670BS Prepared and Checked by: Approved by: Signed on File Wong Cheuk Ho, Herbert Wong Kwok Yeung, Kenneth Lead Engineer Assistant Supervisor Date: December 14, 2022 TEST REPORT IPN Headsets Intertek Report No: 22080932HKG-003 Page 2 of 24 GENERAL INFORMATION Grantee: IPN Headsets Grantee Address: Bijsterhuizen 2414, 6604 LL Weijchen, The Netherlands. FCC Specification Standard: FCC Part 15, October 1, 2021 Edition FCC ID: 2ALB3LH670BS FCC Model(s): LH675BS, LH670BS, LH67XBS Type of EUT: Transceiver Description of EUT: DECT 6.0 Headset System - Base (BT) Unit Serial Number: N/A Sample Receipt Date: August 23, 2022 Date of Test: August 23, 2022 to October 11, 2022 Report Date: December 14, 2022 Environmental Conditions: Temperature: +10 to 40°C Relative Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT IPN Headsets Intertek Report No: 22080932HKG-003 Page 3 of 24 SUMMARY OF TEST RESULT Test Items FCC Part 15 Section Results Transmitter Power Line Conducted Emissions 15.207 Complied Radiated Emission Complied Radiated Emission on the Bandedge 15.249, 15.209 Complied Radiated Emission in Restricted Bands 15.205 Complied The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2021 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT IPN Headsets Intertek Report No: 22080932HKG-003 Page 4 of 24 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION................................................................................................ 5 1.1 Product Description ..................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology.....................................................................................................5 1.4 Test Facility................................................................................................................5 2.0 SYSTEM TEST CONFIGURATION.................................................................................... 6 2.1 Justification ...............................................................................................................6 2.2 EUT Exercising Software............................................................................................6 2.3 Special Accessories....................................................................................................6 2.4 Measurement Uncertainty........................................................................................6 2.5 Support Equipment List and Description..................................................................7 3.0 EMISSION RESULTS ...................................................................................................... 8 3.1 Field Strength Calculation.........................................................................................8 3.2 Radiated Emission Configuration Photograph..........................................................9 3.3 Radiated Emission Data ............................................................................................9 3.4 Conducted Emission Configuration Photograph ......................................................9 3.5 Conducted Emission Data .........................................................................................9 4.0 EQUIPMENT PHOTOGRAPHS...................................................................................... 15 5.0 PRODUCT LABELLING ................................................................................................. 15 6.0 TECHNICAL SPECIFICATIONS ...................................................................................... 15 7.0 INSTRUCTION MANUAL ............................................................................................. 15…

Text truncated - open the document above for the full version.

NOTE:ThisdocumentisissuedbyShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,thetestreportshallnotbereproducedexceptin fullwithoutpriorwrittenpermissionofthecompany.Thetestresultsapplyonlytotheparticularsample(s)testedandtothespecifictestscarried outwhichisavailableonrequestforvalidationandinformationconfirmedatourwebsite. MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page1of 12 REPORTNo.：SZ22100214E02 TESTREPORT APPLICANT:OrchidElectronicsLimited PRODUCTNAME:BluetoothModuleAntenna MODELNAME:OEL_ANT_002 TRADENAME:N/A BRANDNAME:N/A STANDARD(S):IEEEStd149-2021 RECEIPTDATE:2022-10-24 TESTDATE:2022-10-25 ISSUEDATE:2022-12-26 Editedby: : FangJinshan(Rapporteur) Approvedby: : ChiShide(Supervisor) Testedby MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page2of12 REPORTNo.：SZ22100214E02 DIRECTORY 1.TechnicalInformation ........................................................................................................3 1.1.ApplicantandManufacturerInformation ....................................................................3 1.2.EquipmentUnderTest(EUT)Description...................................................................3 2.TestResults........................................................................................................................4 2.1.AppliedReferenceDocuments.....................................................................................4 2.2.TestConditions...............................................................................................................4 2.3.MeasurementUncertainty.............................................................................................4 2.4.TestResults.....................................................................................................................5 AnnexATestSetupPhotos..................................................................................................6 AnnexBFigures .....................................................................................................................7 1 ． 2DRadiationPattern ......................................................................................................7 2 ． 3DRadiationPattern ......................................................................................................8 AnnexCEUTPhotos ...........................................................................................................10 AnnexDGeneralInformation .............................................................................................12 1.1IdentificationoftheResponsibleTestingLaboratory..............................................12 1.2IdentificationoftheResponsibleTestingLocation..................................................12 1.3TestEquipmentsUtilized..............................................................................................12 ChangeHistory VersionDateReasonforchange 1.02022-12-26Firstedition MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page3of12 REPORTNo.：SZ22100214E02 1.TechnicalInformation Note:Providebymanufacturer. 1.1.ApplicantandManufacturerInformation Applicant:OrchidElectronicsLimited ApplicantAddress:Unit702,7/Fl.,OneHungToRoad,KwunTong,HongKong Manufacturer:OiNanTechnologyLimited ManufacturerAddress:4YinShaLu2Jie,XiaBin,CheungOn,DongGuan,Guangdong, China 1.2.EquipmentUnderTest(EUT)Description WirelessType Bluetooth Frequency N/A IMEI N/A SampleNo.2# Dimensions: MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page4of12 REPORTNo.：SZ22100214E02 2.TestResults 2.1.AppliedReferenceDocuments Leadingreferencedocumentsfortesting: No.IdentityDocumentTitle 1 IEEEStd149-2021 IEEERecommendedPracticeforAntenna Measurements 2.2.TestConditions TestEnvironmentConditions ： RelativeHumidity:25...75% Temperature:+10°Cto+30°C 2.3.MeasurementUncertainty Theuncertaintyiscalculatedusingthemethodssuggestedinthe"GuidetotheExpressionof UncertaintyinMeasurement"(GUM)publishedbyISO.Whenthetestresultisacriticalvalue,we willusethemeasurementuncertaintygivethejudgmentresultbasedonthe95%Confidence intervals. ItemMeasurementUncertainty(dB) Gain±0.5 VSWR±0.2 MeasurementUncertainty(95%ConfidenceInterval)K=2 MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page5of12 REPORTNo.：SZ22100214E02 2.4.TestResults Frequency (MHz) Gain(dBi) 2400 -3.39 2410-2.94 2420 -2.79 2430-2.73 2440 -2.45 2450-2.27 2460 -2.18 2470-2.20 2480 -2.45 2490-2.67 2500 -2.76 MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page6of12 REPORTNo.：SZ22100214E02 AnnexATestSetupPhotos MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page7of12 REPORTNo.：SZ22100214E02 AnnexBFig…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: 2ALB3LH670BS IC: 23665-HS011 Radiated Emission – Base(BT) Unit Front View Rear View The EUT is placed at the center of turntable INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: 2ALB3LH670BS IC: 23665-HS011 AC Conducted Emission Front View Side View 1 INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: 2ALB3LH670BS IC: 23665-HS011 AC Conducted Emission Side View 2
