2ALJJP41Mobile phone

-1- P41 Android™ 12 is the Operating System for your Touch Screen Phone. -2- INTRODUCTION Thanks for choosing P41PR, single SIM, Android-4G smart phone based on 1.28GHz Quad Core Processor. This smartphone is running on Android 12 OS. If you’d like your phone to live a long and fruitful life, please read this guide carefully and keep it for future reference. You never know when you might need it. And don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on its screen. It’s the functions that matter. -3- Table of Contents 1 Safety ....................................................................... 4 1.1 Safety Precautions ................................................ 4 1.2 Using your phone safely ....................................... 4 2 Understanding your Phone ........................................ 7 2.1 Your Phone ............................................................ 7 Here need to add your own pictures ............................. 错误!未定义 书签。 2.2 Description Icons .................................................. 7 2.3 Charging the battery ............................................. 8 2.4 Power ON/OFF ...................................................... 8 2.5 Enter Main Menu .................................................. 9 2.6 Enter Sub Menu .................................................... 9 2.7 Use Notification Panel .......................................... 9 2.8 Move icons on the main interface ........................ 9 2.9 Delete icons on the main interface ........................ 9 2.10 Change wallpapers ................................................ 10 2.11 Recent tasks .......................................................... 10 2.12 Install APK through File Manager ......................... 10 3 Using your Phone ...................................................... 11 3.1 Main Menu & Its Functions .................................. 11 3.2 Wi-Fi ...................................................................... 14 4 Inputting Text ............................................................ 15 5 Maintenance ............................................................. 16 6 Taking Care of your Device ........................................ 16 -4- 1 Safety 1.1 Safety Precautions Please read through the following briefings carefully and act in accordance with these rules, so as to prevent causing anydanger or violating any law. SAR Value • W/kg@1g(Head) W/kg@1g(Body) • Use cell phone when the signal strength is good. Keep your calls short or instead use headset or send a text message. This advice applies especially to children, adolescents and pregnant women. • If you are using a Bluetooth headset device, please make sure it has a low power emitter. 1.2 Using your phone safely On The Road Using a phone while driving is illegal in many countries. Please follow local laws and drive safely at all times. Near Sensitive Electronics Don’t use your phone near sensitive electronic equipment – particularly medical devices such as pacemakers – as it could cause them to malfunction. It can also interfere with the operation of fire detectors and other automatic-control equipment. For more information about how your phone affects pacemakers or other electronic equipment, please contact the manufacturer or your local distributor. Your phone may cause interference when used near TVs, radios or automated office equipment. While Flying Your phone can cause interference with aircraft equipment. So it’s essential you follow airline regulations. And if airline personnel ask you to switch off your phone, or disable its wireless functions, please do as they say. -5- In Hospital Your phone may interfere with the normal operation of medical equipment. Follow all hospital regulations and turn it off when you’re asked to by posted warnings or medical staff. At a Petrol Station Don’t use your phone at petrol stations. In fact, it’s always best to switch off whenever you’re near fuels, chemicals or explosives. Around Water Keep your phone away from water (or any other liquid). It’s not a waterproof model. Making Repairs Never take your phone apart. Please leave that to the professionals. Unauthorised repairs could break the terms of your warranty. Broken Antenna Don’t use your phone if the antenna is damaged, as it could cause injury. Around Children Keep your mobile out of children’s reach. It should never be used as a toy and it might not be good for their health. Original Accessories Only use the original accessories supplied with your phone or those approved by the manufacturer. Using unapproved accessories may affect performance, make the warranty void, break national regulations on the use of mobile phones, or even cause injury. Near Explosives Turn off your phone in or near areas where explosive materials are used. Always obey local laws -6- and turn off your phone when requested. Emergency Calls To make an emergency call your phone must be turned on and in an area where there’s network coverage. Dial the national emergency number and press ‘send’. Explain exactly where you are and don’t hang up until help has arrived. Working Temperature The working temperature for the phone is between 0 Degree and 40 Degree Celcius. Please don’t use the phone outside the range. Using the phone under too high or too low temperature might cause problems. At very high volume, prolonged listening to a mobile phone can damage your hearing. -7- 2 Understanding your Phone 2.1 Your Phone 2.2 Description Icons Keys Functions Home ⚫ Press this button to return home from any application or interface. Menu ⚫ Press it to open recently opened application window Back ⚫ Press it to return to the previous interface，or to close dialog box ,options, menu notification panel or the keypad. -8- Power ⚫ Press it to open the phone’s menu，then you could choose to restart phone or turn off the phone Up ⚫ Press it to increase the volume Dow…

Text truncated - open the document above for the full version.

7651 Southland Blvd. Orlando, FL 32809 | Phone: +1.407.857.3737 | www.pcdlatam.com Agent Authorization Date: 2022.11.28 Product Name: Mobile phone Model Number(s): P41 Product Description: Mobile phone FCC ID: 2ALJJP41 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Sincerely, Mauricio Velasco Chief Technology Officer, Latin America PCD, LLC [email protected] +1.631.495.7537

7651 Southland Blvd. Orlando, FL 32809 | Phone: +1.407.857.3737 | www.pcdlatam.com Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.11.28 Subject; Request for Confidentiality FCC ID: 2ALJJP41 To Whom It May Concern Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES Part List In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. 7651 Southland Blvd. Orlando, FL 32809 | Phone: +1.407.857.3737 | www.pcdlatam.com It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Mauricio Velasco Chief Technology Officer, Latin America PCD, LLC [email protected] +1.631.495.7537

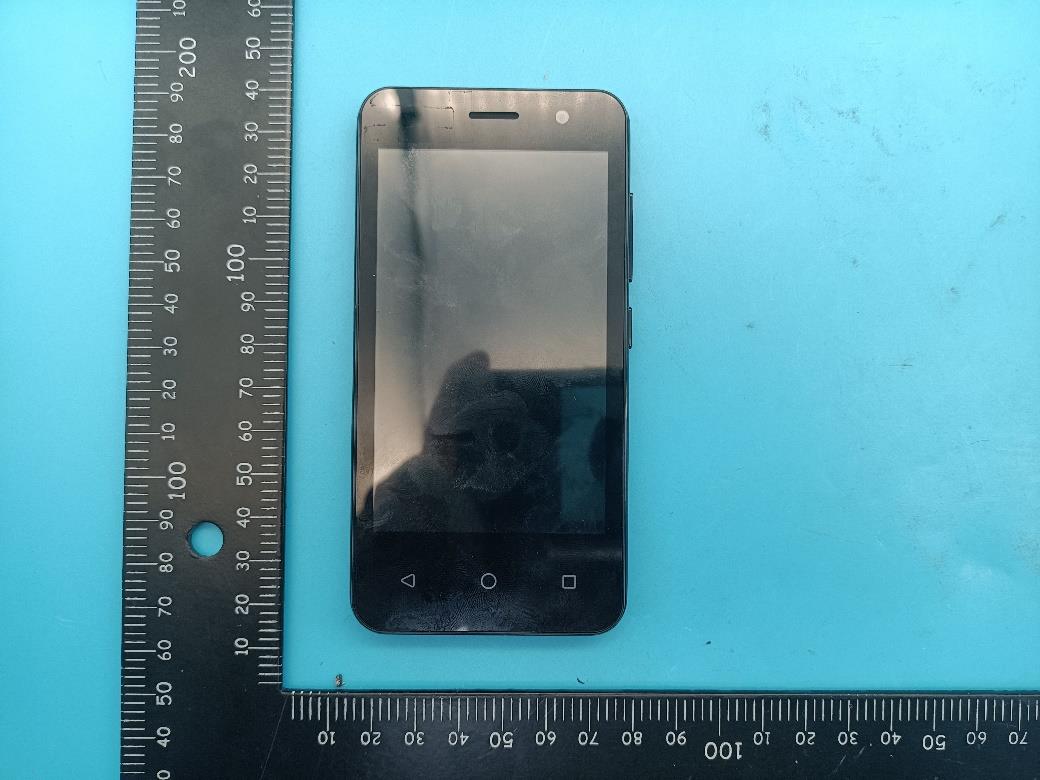

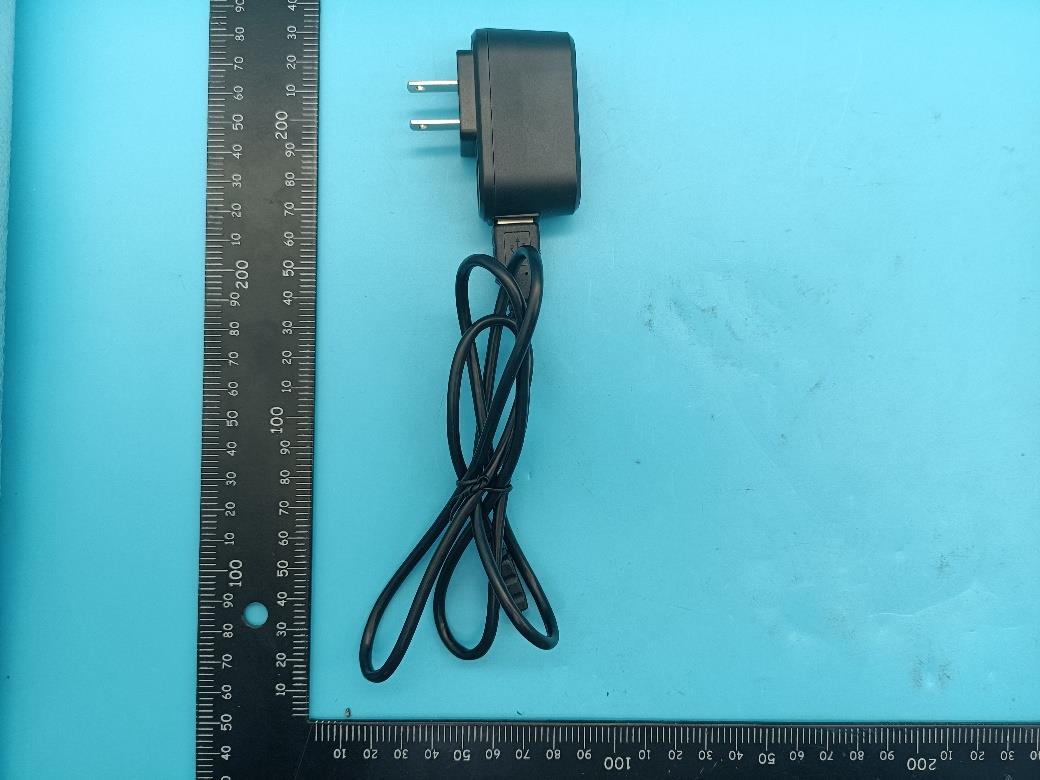

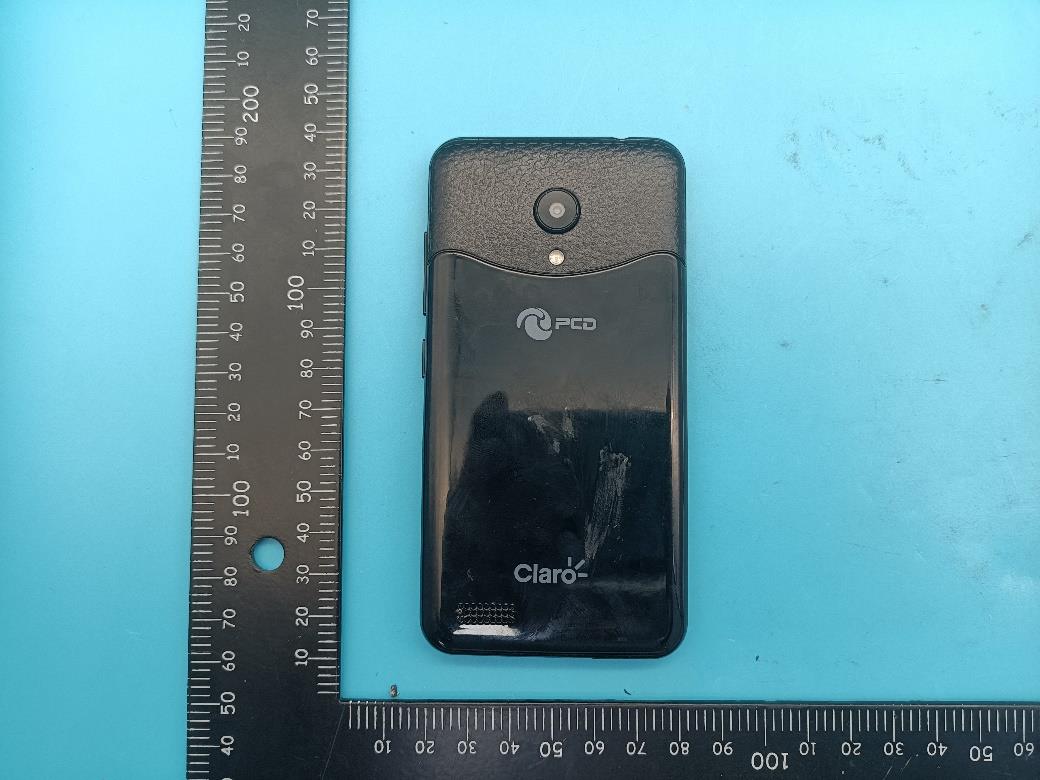

Page 1 of 4 Report No.: LGT22J010 Appendix - External Photographs of EUT Constructional Details Model Name: P41 Photo 1 Photo 2 Page 2 of 4 Report No.: LGT22J010 Photo 3 Photo 4 Page 3 of 4 Report No.: LGT22J010 Photo 5 Photo 6 Page 4 of 4 Report No.: LGT22J010 Photo 7 Photo 8

Label & Location

Page 1 of 4 Report No.: LGT22J010 Appendix - Internal Photographs of EUT Constructional Details Model Name: P41 Photo 1 Photo 2 Page 2 of 4 Report No.: LGT22J010 Photo 3 Photo 4 GSM/WCDMA/LTE RX ANT GPS/WIFI/BT ANT GSM/WCDMA/LTE TX ANT Page 3 of 4 Report No.: LGT22J010 Photo 5 Photo 6 Page 4 of 4 Report No.: LGT22J010 Photo 7

Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China SAR TEST REPORT Product Name : Mobile phone Model Number : P41 FCC ID : 2ALJJP41 Prepared For : PCD, LLC : 1500 Tradeport Drive, Suite A, Orlando, United States 32824 Prepared By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report Number : LGT22J010HA01 Date of Tests : October 11, 2022 –November 24, 2022 Date of Issue : November 25, 2022 Max. SAR (1g): : Head: 0.787W/kg : Body: 0.959W/kg Report No.: LGT22J010HA01 Page 2 of 100 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.3 Test Factory 7 2. Test Standards and Limits 8 3. SAR Measurement System 9 3.1 Definition of Specific Absorption Rate (SAR) 9 3.2 SAR System 9 4. Tissue Simulating Liquids 12 4.1 Simulating Liquids Parameter Check 12 5. SAR System Validation 13 5.1 Validation System 13 5.2 Validation Result 14 6. SAR Evaluation Procedures 15 7. EUT Test Position 16 7.1 Cheek Position 16 7.2 Tilt Position 17 7.3 Body-worn Position Conditions 17 8. Measurement Uncertainty 18 9. Conducted Power Measurement 19 10. Test Photos and Results 48 10.1 EUT Photos 48 10.2 Setup Photos 51 11. SAR Result Summary 57 12. Equipment List 65 Appendix A. System Validation Plots 66 Appendix B. SAR Test Plots 76 Appendix C. Probe Calibration and Dipole Calibration Report 94 Report No.: LGT22J010HA01 Page 3 of 100 Revision History Rev. Issue Date Contents 00 November 25, 2022 Initial Issue Report No.: LGT22J010HA01 Page 4 of 100 TEST REPORT CERTIFICATION Applicant PCD, LLC Address 1500 Tradeport Drive, Suite A, Orlando, United States 32824 Manufacture PCD, LLC Address 1500 Tradeport Drive, Suite A, Orlando, United States 32824 Product Name Mobile phone Trade Mark N/A Model Name P41 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC KDB 447498 D04 v01；FCC KDB 865664 D01 v01r04；FCC KDB 865664 D02 v01r02； FCC KDB 941225 D01 v03r01；FCC KDB 941225 D05 v02r05；FCC KDB 941225 D06 v02r01；FCC KDB 648474 D04 v01r03；FCC KDB 248227 D01 Wi-Fi SAR v02r02 PASS Prepared by: Approved by: Zane Shan Engineer Vita Li Manager (1) The test report is effective only with both signature and specialized stamp. (2) This report shall not be reproduced except in full without the written approval of the Laboratory. (3) The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. Report No.: LGT22J010HA01 Page 5 of 100 1. General Information 1.1 EUT Description Product Name Mobile phone Trademark N/A Model Name P41 Series Model N/A Model Difference N/A Hardware Version MM3971_MB_V1.0 Software Version PCD_P41_CLARO_PR_V1.0 Frequency Range GSM 850: 824 ~ 849 MHz PCS 1900: 1850 ~ 1910 MHz WCDMA Band II: 1850 ~ 1910 MHz WCDMA Band IV:1710 ~ 1755 MHz WCDMA Band V: 824 ~ 849 MHz LTE Band 4:1710 ~1755MHz LTE Band 5:824 ~ 849MHz LTE Band 12:699~716MHz LTE Band 13:777~787MHz LTE Band 17:704 ~ 716MHz LTE Band 66:1710~1780MHz WLAN 802.11b/g/n20: 2412 MHz ~ 2462 MHz WLAN 802.11n40: 2422 MHz ~ 2452 MHz Bluetooth: 2402 ~ 2480 MHz Max. Reported SAR(1g) Mode Head(W/ kg) Body(W/ kg) GSM 850 0.251 0.639 PCS 1900 0.210 0.380 WCDMA Band II 0.460 0.611 WCDMA Band IV 0.568 0.959 WCDMA Band V 0.177 0.351 LTE Band 4 0.402 0.714 LTE Band 5 0.374 0.452 LTE Band 12 0.113 0.170 LTE Band 13 0.172 0.284 LTE Band 66 0.787 0.817 2.4G WLAN 0.052 0.048 Bluetooth 0.044 0.060 Limit 1.6 W/kg Battery Rated Voltage:3.8V Charge Limit Voltage:4.2V Capacity: 1400mAh Description test modes Only one SIM card Modulation Mode GSM: GSM Voice; GPRS/EGPRS Class 12 WCDMA: RMC, HSDPA, HSUPA Release 6 LTE: QPSK, 16QAM 2.4G WLAN : 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Bluetooth: GFSK +π/4DQPSK+8DPSK BLE: GFSK Antenna Specification GSM/WCDMA/LTE: PIFA Antenna Bluetooth: PIFA Antenna Report No.: LGT22J010HA01 Page 6 of 100 WLAN: PIFA Antenna Operating Mode Maximum continuous output Report No.: LGT22J010HA01 Page 7 of 100 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report No.: LGT22J010HA01 Page 8 of 100 2. Test Standards and Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D04 v01 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices 5 FCC KDB 865664 D01 v01r04 SAR Measurement 100 MHz to 6 GHz 6 FCC KDB 865664 D02 v01r02 RF Exposure Reporting 7 FCC KDB 941225 D01 v03r01 SAR Measurement Procedures for 3G Devices 8 FCC KDB 941225 D05 v02r05 SAR for LTE Devices 9 FCC KDB 941225 D06 v02r01 Hotspot Mode SAR 10 FCC KDB 648474 D04 v01r03 SAR Evaluation Considerations for Wireless Handsets 11 FCC KDB 248227 D01 Wi-Fi SAR v02r02 SAR Considerations for 802.11 Devices (A). Limits for Occupational/Controlled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.4 8.0 20.0 (B). Limits for General Population/Uncontrolled Exposure (W/kg) W…

Text truncated - open the document above for the full version.

Page: 1/11 Ref : ACR.42.5.22.BES.A LGT(SHENZHEN) TEST TECHNOLOGY CO., LTD. 13-B205, ZONE B, CHEN HSONG INDUSTRIAL PARK(SHENZHEN), NO.33 RENMIN MIDDLE ROAD, JINSHA COMMUNITY KENGZI SUBDISTRICT, PINGSHAN NEW DISTRICT, SHENZHEN, GUANGDONG, CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 04/22 EPGO364 Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise – 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 02/11/2022 Accreditations #2-6789 Scope available on www.cofrac.fr The use of the Cofrac brand and the accreditation references is prohibited from any reproduction. Summary: This document presents the method and results from an accredited COMOSAR E-Field Probe calibration performed at MVG, usin g the CALIPROBE test bench, for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.42.5.22.BES.A Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vK This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. NameFunctionDateSignature Prepared by :Jérôme LucTechnical Manager 2/11/2022 Checked by :Jérôme LucTechnical Manager 2/11/2022 Approved by:Yann ToutainLaboratory Director 2/11/2022 Customer Name Distribution : LGT(Shenzhen) Test Technology Co., Ltd. IssueNameDateModifications AJérôme Luc2/11/2022Initial release 2022.02.11 11:49:06 +01'00' COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.42.5.22.BES.A Page: 3/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vK This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 4 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.1 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 8 5.4 Isotropy _________________________________________________________________ 9 6 List of Equipment .................................................................................................... 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.42.5.22.BES.A Page: 4/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vK This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 04/22 EPGO364 Product Condition (new / used) New Frequency Range of Probe 0.15 GHz-6GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.206 M: Dipo le 2: R2=0.225 M: Dipole 3: R3=0.212 M: 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards. Figure 1 – MVG COMOSAR Dosimetric E field Probe Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.42.5.22.BES.A Page: 5/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vK This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg…

Text truncated - open the document above for the full version.

致力于为客户提供专业级天线解决方案 微佳信息M4009L天线测试报告 射频：贺磊 日期：2022-10-12 联系方式：15767667652 致力于为客户提供专业级天线解决方案 射频：曾祥好 日期：2021-10-12 报告版次：V0.1 项目开发环境 昱晟通讯的产品几乎涵盖所有无线终端设备的 天线应用，包括汽车天线、高精度测量测绘天线、 无人机地面与卫星数据导航、高精度定位天线、 医疗设备无线传输、消费类天线(手机天线、PAD、 笔记本电脑天线),基站/室内分布天线，智能穿戴 天线（智能手表、TWS耳机）,安防家居天线以及 多种无线数据传输及无线控制的智能设备天线等。 我们正在从互联网时代迈向智能时代，国家在 构建数字社会与智慧城市。未来的5-10年无论是 消费电子市场还是物联网市场都存在着巨大的发 展潜力。无线通讯领域是非常多元化的，未来昱 晟依托天线主业的客户平台优势和本身的综合实 力,力争为客户提供具有市场竞争力的专业级产 品解决方案。 致力于为客户提供专业级天线解决方案 1 项目调试简介 报告版本提纲 天线有源参数 GPS、WIFI实测 天线环境处理及改善 总结&附加说明 2 3 4 5 6 致力于为客户提供专业级天线解决方案 项目调试简介 机型 手机 板型 主板 频段及天线材质 主天线 频段 材质 2GGSM850/900/1800/1900 FPC 3GWCDMA B1/2/4/5 4G LTE：2/4/5/12/13/66 其他天线 GWB1575.42MHz/2.450G FPC DRX1700MHz-2700MHz FPC 性能要求 按客户要求执行 致力于为客户提供专业级天线解决方案 报告版本提纲 报告版本 报告时间本次天线研发解决的问题 V1.0 2022-10-8天线增益报告 致力于为客户提供专业级天线解决方案 苹果图 致力于为客户提供专业级天线解决方案 苹果图 致力于为客户提供专业级天线解决方案 苹果图 致力于为客户提供专业级天线解决方案 苹果图 致力于为客户提供专业级天线解决方案 苹果图 致力于为客户提供专业级天线解决方案 苹果图 致力于为客户提供专业级天线解决方案 苹果图 致力于为客户提供专业级天线解决方案 苹果图GSM850/WCDMA850/B5 致力于为客户提供专业级天线解决方案 苹果图GSM900/1800 致力于为客户提供专业级天线解决方案 苹果图WCDMA1700/B4/B66 致力于为客户提供专业级天线解决方案 苹果图GSM1900/WCDMA1900/B2 致力于为客户提供专业级天线解决方案 苹果图WCDMA2100 致力于为客户提供专业级天线解决方案 苹果图LTE B12/13 致力于为客户提供专业级天线解决方案 Band Gain（MAX） GSM850 1.31 EGSM900 1.37 DCS1800 1.23 PCS1900 1.21 WCDMA2100 1.47 WCDMA1900 1.21 WCDMA850 1.31 WCDMA1700 1.15 Band2 1.21 Band4 1.15 Band5 1.31 Band121.07 Band13 1.07 Band66 1.15 天线增益 GPS 1.28 WiFi 1.17 BT 1.17 深圳地址：深圳市光明新区光明大道南太云创谷2栋4楼 电话：0755-23984257 传真：0755-86090455

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China RF TEST REPORT Product Name: Mobile phone Model Name: P41 FCC ID: 2ALJJP41 Issued For : PCD, LLC 1500 Tradeport Drive, Suite A, Orlando, United States 32824 Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report Number: LGT22J010RF02 Sample Received Date: Oct. 11, 2022 Date of Tested: Oct. 11, 2022 – Oct. 20, 2022 Date of Issue: Oct. 20, 2022 Report No.: LGT22J010RF02 Page 2 of 62 TEST REPORT CERTIFICATION Applicant PCD, LLC Address 1500 Tradeport Drive, Suite A, Orlando, United States 32824 Manufacturer PCD, LLC Address 1500 Tradeport Drive, Suite A, Orlando, United States 32824 Product Name Mobile phone Trademark N/A Model Name P41 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2013 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT22J010RF02 Page 3 of 62 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.5 EQUIPMENTS LIST 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 TEST PROCEDURE 14 3.3 TEST SETUP 14 3.4 EUT OPERATING CONDITIONS 14 4. RADIATED EMISSION MEASUREMENT 17 4.1 RADIATED EMISSION LIMITS 17 4.2 TEST PROCEDURE 19 4.3 TEST SETUP 20 4.4 EUT OPERATING CONDITIONS 20 4.5 FIELD STRENGTH CALCULATION 21 4.6 TEST RESULTS 22 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 34 5.1 LIMIT 34 5.2 TEST PROCEDURE 34 5.3 TEST SETUP 34 5.4 EUT OPERATION CONDITIONS 34 5.5 TEST RESULTS 35 6. POWER SPECTRAL DENSITY TEST 36 6.1 LIMIT 36 6.2 TEST PROCEDURE 36 6.3 TEST SETUP 36 6.4 EUT OPERATION CONDITIONS 36 6.5 TEST RESULTS 36 Report No.: LGT22J010RF02 Page 4 of 62 Table of Contents 7. BANDWIDTH TEST 37 7.1 LIMIT 37 7.2 TEST PROCEDURE 37 7.3 TEST SETUP 37 7.4 EUT OPERATION CONDITIONS 37 7.5 TEST RESULTS 37 8. PEAK OUTPUT POWER TEST 38 8.1 LIMIT 38 8.2 TEST PROCEDURE 38 8.3 TEST SETUP 38 8.4 EUT OPERATION CONDITIONS 38 8.5 TEST RESULTS 39 9. ANTENNA REQUIREMENT 40 9.1 STANDARD REQUIREMENT 40 9.2 EUT ANTENNA 40 APPENDIX I:TEST RESULTS 41 DUTY CYCLE 41 MAXIMUM PEAK CONDUCTED OUTPUT POWER 44 -6DB BANDWIDTH 45 OCCUPIED CHANNEL BANDWIDTH 48 MAXIMUM POWER SPECTRAL DENSITY LEVEL 51 BAND EDGE 54 CONDUCTED RF SPURIOUS EMISSION 57 APPENDIX II: TEST PHOTO 61 Report No.: LGT22J010RF02 Page 5 of 62 Revision History Rev. Issue Date Contents 00 Oct. 20, 2022 Initial Issue Report No.: LGT22J010RF02 Page 6 of 62 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Report No.: LGT22J010RF02 Page 7 of 62 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Accreditation Certificate FCC Registration No.: 746540 A2LA Certificate No.: 6727.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Report No.: LGT22J010RF02 Page 8 of 62 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Mobile phone Trademark N/A Model Name P41 Series Model N/A Model Difference N/A Product Description The EUT is a Mobile phone Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology: BLE Bluetooth Configuration: 1M PHY Number Of Channel: 40 Antenna Designation: Please refer to the Note 3. Antenna Gain (dBi) 1.17 Channel List Please refer to the Note 2. Adapter Input: 100-240V, 50-60Hz, 0.2A Ouptut: 5V, 0.5A Battery Capacity: 1400mAh Rated Voltage: 3.8 V Hardware version number MM3971_MB_V1.0 Software version number PCD_P41_CLARO_PR_V1.0 Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. Report No.: LGT22J010RF02 Page 9 of 62 2. Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequenc y (MHz) 00 2402 10 2422 20 2442 30 2462 01 2404 11 2424 21 2444 31 2464 02 2406 12 2426 22 2446 32 2466 03 2408 13 2428 23 2448 33 2468 04 2…
