2ALJJU15mobile phone

1 User Guide Product Name: mobile phone Model Name: U15 Brand Name: PCD Manufacture: PCD, LLC 2 Table of Contents 1. SECURITY ........................................................................................................................................................................................................ 5 2. GETTING STARTED .......................................................................................................................................................................................... 8 2.1. Batteries ........................................................................................................................................................................................................... 8 2.1.1. Installing and uninstalling the battery ..................................................................................................................................................... 9 2.1.2. Charging the battery ............................................................................................................................................................................. 9 2.1.3. Using the battery .................................................................................................................................................................................. 9 2.1.4. Battery level indicator ..........................................................................................................................................................................10 2.2. Connecting to the Network ................................................................................................................................................................................10 2.2.1. SIM card .............................................................................................................................................................................................10 2.2.2. Installing and uninstalling the SIM card .................................................................................................................................................10 2.2.3. Unlock the SIM card .............................................................................................................................................................................11 2.2.4. Connecting to the network ...................................................................................................................................................................11 2.3. Standby screen and Icons .................................................................................................................................................................................11 2.4. Key function .....................................................................................................................................................................................................12 2.5. Text Input Method ............................................................................................................................................................................................13 3. CALL FUNCTION ............................................................................................................................................................................................ 13 3.1. Phone power on/off ..........................................................................................................................................................................................13 3.2. Dial ..................................................................................................................................................................................................................13 3.2.1. Direct dial ............................................................................................................................................................................................13 3.2.2. Dial from the Phonebook ......................................................................................................................................................................14 3.2.3. Unanswered call ..................................................................................................................................................................................14 3.3. Answer call.......................................................................................................................................................................................................14 3.4. During a phone call ...........................................................................................................................................................................................14 4. MAIN MENU ................................................................................................................................................................................................... 15 5. CALL LOGS ..................................................................................................................................................................................................... 15 6. CONTACTS ..................................................................................................................................................................................................... 15 3 6.1. All ....................................................................................................................................................................................................................15 6.2. Groups ..........................................................................................................................................................................................................…

Text truncated - open the document above for the full version.

PCD, LLC TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.6.10 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, PCD, LLC hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Mauricio Velasco. Signature:

PCD, LLC TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.6.10 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (mobile phone / U15 /FCC ID: 2ALJJU15) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description • Tune up Procedure • Part List These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: Mauricio Velasco. Signature:

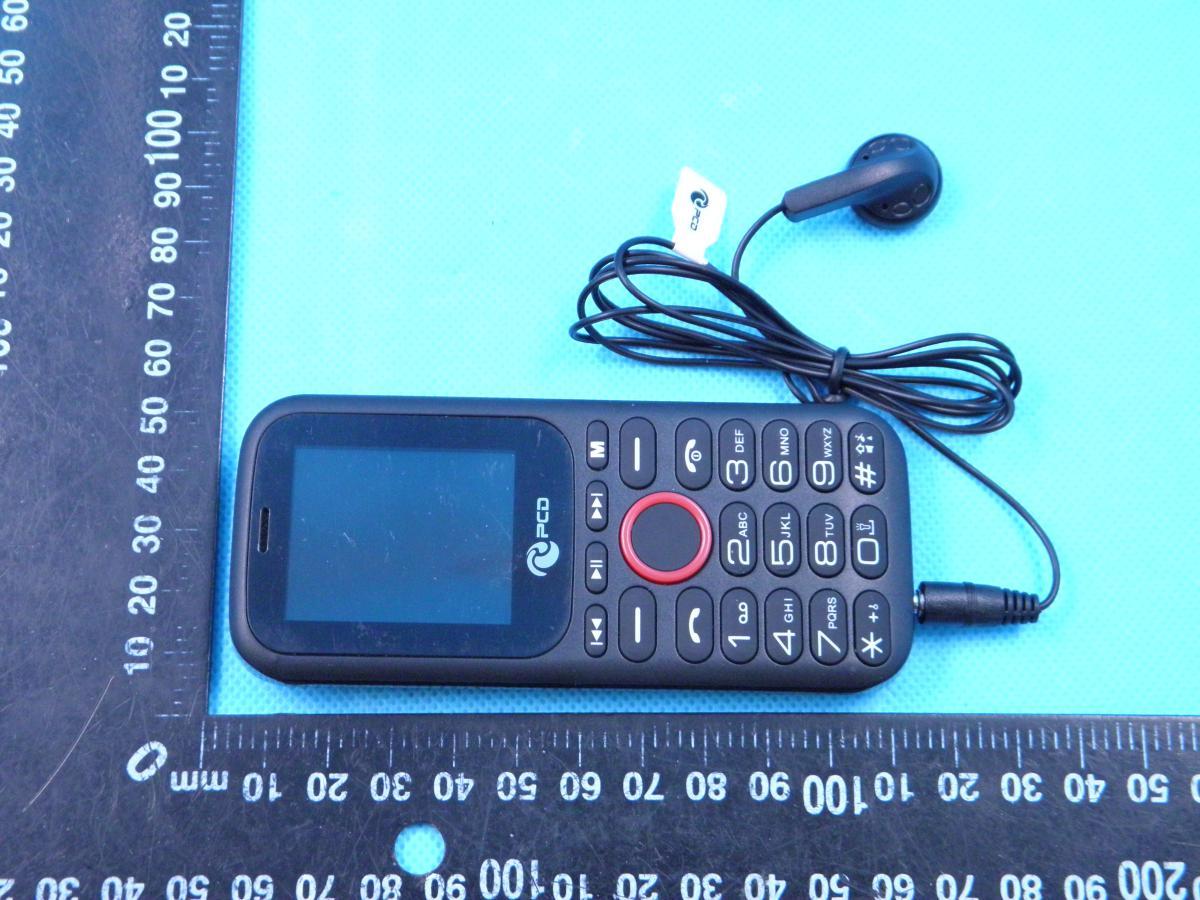

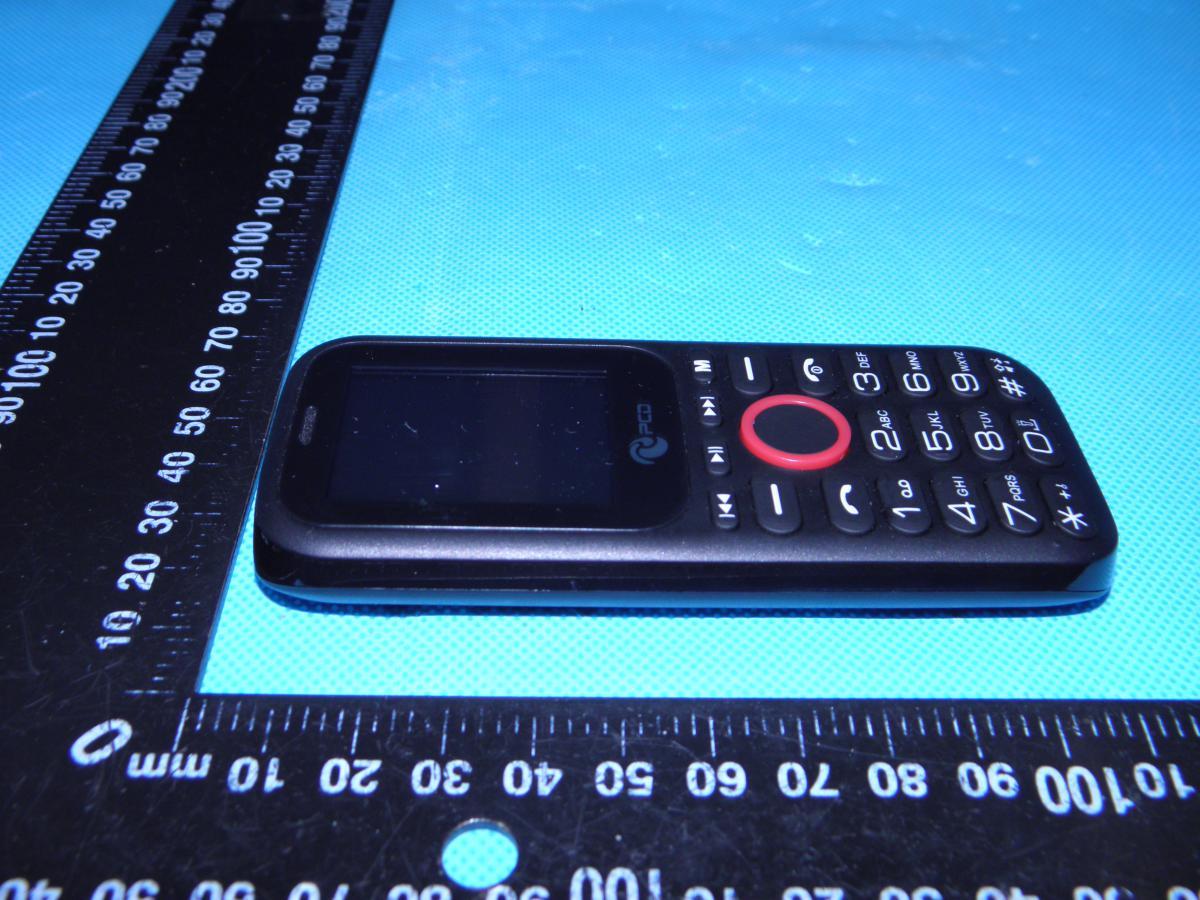

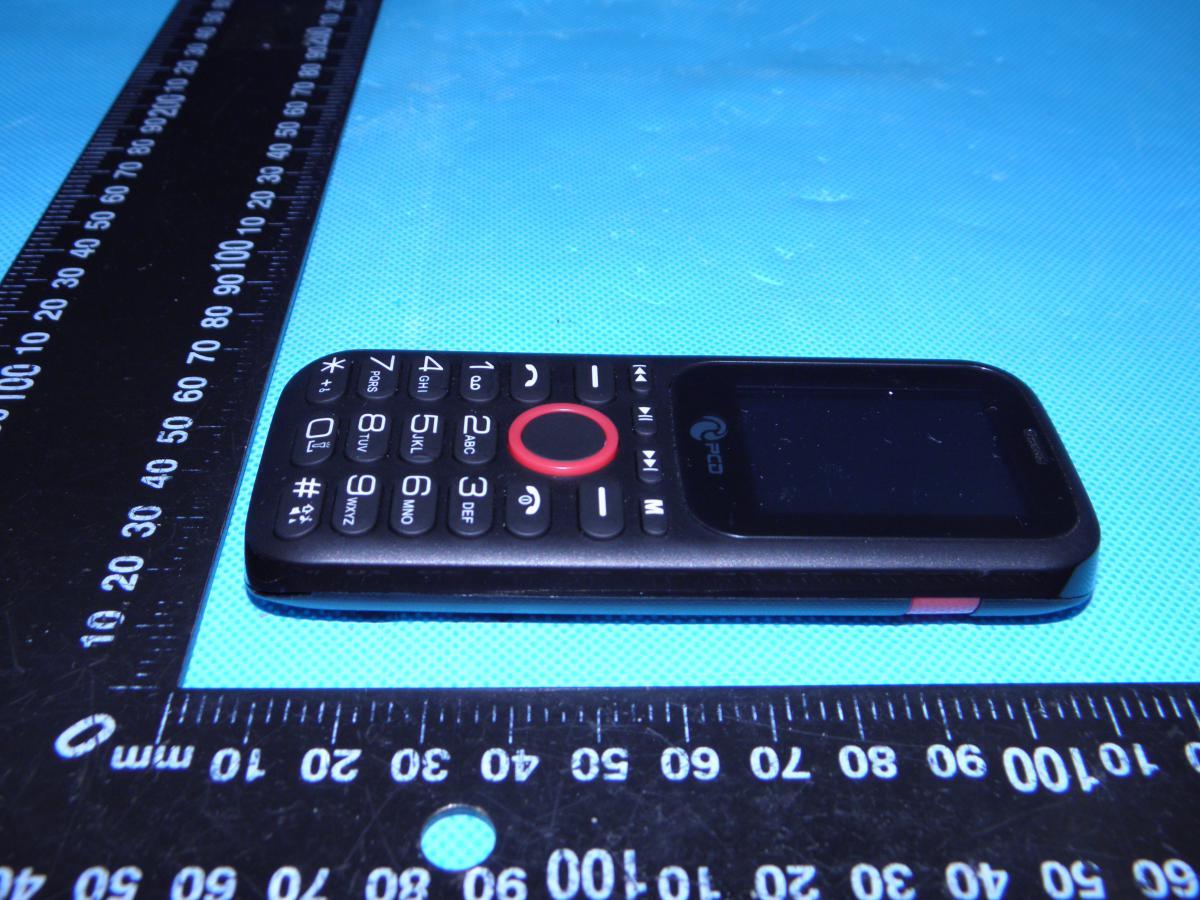

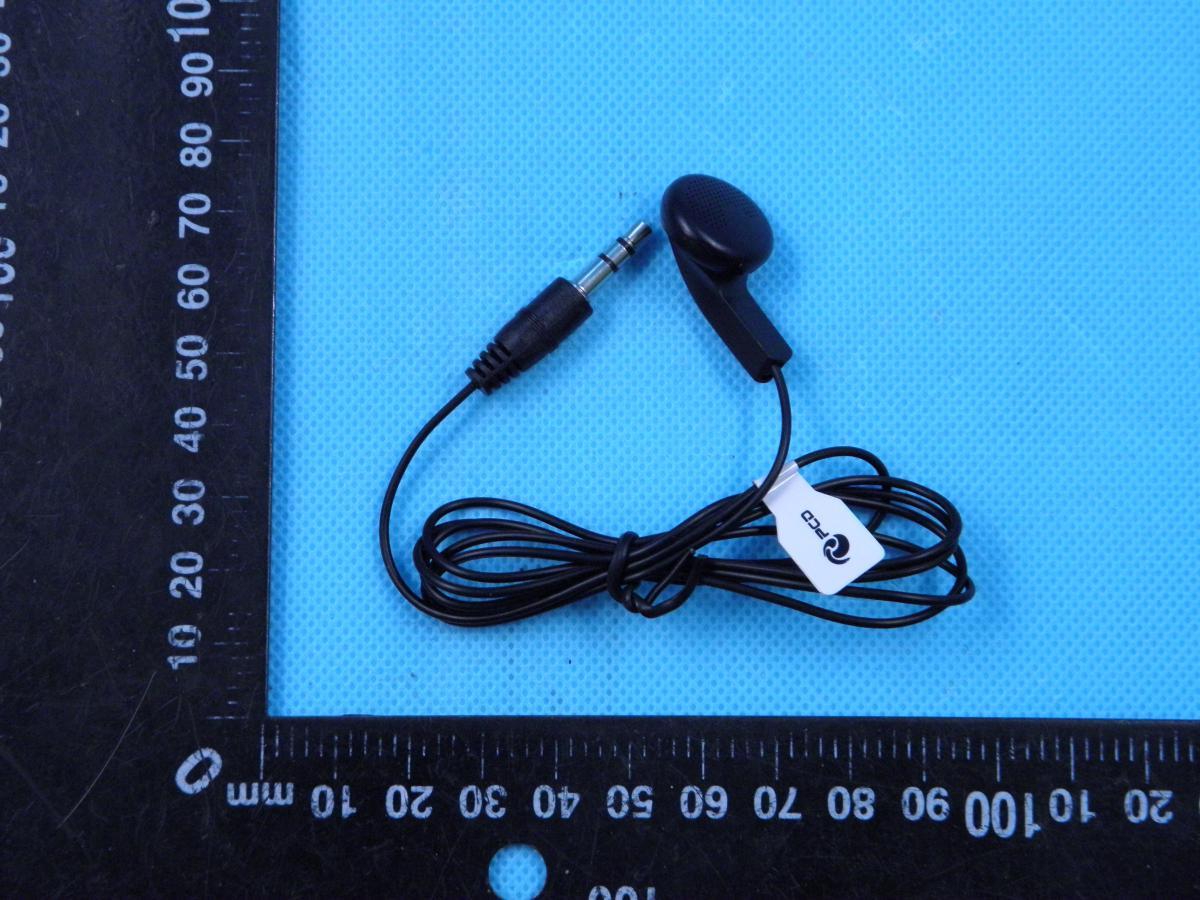

Page 1 of 5 Report No.: STS2005238 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: U15 Photo 1 Photo 2 Page 2 of 5 Report No.: STS2005238 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2005238 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2005238 Photo 7 Photo 8 FM Antenna Page 5 of 5 Report No.: STS2005238 Photo 9 Photo 10

Label mobile phone Model name: U15 FCC ID: 2ALJJU15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 6 Report No.: STS2005238 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: U15 Photo 1 Photo 2 GSM/WCDMA Antenna Page 2 of 6 Report No.: STS2005238 Photo 3 Photo 4 BT Antenna Page 3 of 6 Report No.: STS2005238 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2005238 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2005238 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2005238 Photo 11

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC Part 15B TEST REPORT Report No.: STS2005238E01 Issued for PCD, LLC 1500 TRADEPORT DR. ORLANDO, FL. 32824. USA Product Name: mobile phone Brand Name: PCD Model Name: U15 Series Model: N/A FCC ID: 2ALJJU15 Test Standard: FCC 47 CFR Part 15: Subpart B S T L A B S Page 2 of 24 Report No.: STS2005238E01 TEST RESULT CERTIFICATION Applicant’s Name .................: PCD, LLC Address ..................................: 1500 TRADEPORT DR. ORLANDO, FL. 32824. USA Manufacture's Name ............: PCD, LLC Address ..................................: 1500 TRADEPORT DR. ORLANDO, FL. 32824. USA Product Description .............: Product Name ........................: mobile phone Brand Name ...........................: PCD Model Name .........................: U15 Series Model ........................: N/A Standards..............................: FCC 47 CFR Part 15: Subpart B Test Procedure.....................: ANSI C63.4-2014 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test .......................................... : Date of Performance of Tests ............... : 26 May. 2020~27 May. 2020 Date of Issue ........................................ : 27 May. 2020 Test Result ........................................... : Pass Compiled by : (Mickey Deng) Technical Manager : (Chopin Xiao) Authorized Signatory : (Vita Li) Page 3 of 24 Report No.: STS2005238E01 Table of Contents 1. SUMMARY OF THE TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF THE EUT 6 2.2 DESCRIPTION OF THE TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF THE SYSTEM TESTED8 2.4 DESCRIPTION OF THE SUPPORT UNITS 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3. EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.2 RADIATED EMISSION MEASUREMENT 15 Page 4 of 24 Report No.: STS2005238E01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 27 May. 2020 STS2005238E01 ALL Initial Issue Page 5 of 24 Report No.: STS2005238E01 1. SUMMARY OF THE TEST RESULTS Test procedures according to the technical standards: EMISSION Standard Item Result Remarks FCC 47 CFR Part 15 Subpart B Conducted Emission PASS Meet Class B limit Radiated Emission PASS Meet Class B limit NOTE: (1) “ N/A” denotes test is not applicable in this Test Report 1.1 TEST FACTORY Company Name: SHENZHEN STS TEST SERVICES CO.,LTD. Address: A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China Telephone: +86-755 3688 6288 Fax: +86-755 3688 6277 Registration No.: FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±3.37dB 2 Conducted Emission (150KHz-30MHz) ±3.83dB 3 All emissions,radiated(<1G) 30MHz-1000MHz ±5.6dB 4 All emissions,radiated(>1G) 1GHz-6GHz ±5.5dB 5 All emissions,radiated(>1G) 6GHz-26GHz ±5.8dB Page 6 of 24 Report No.: STS2005238E01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name mobile phone Brand Name PCD Model Name U15 Series Model N/A Product Differences N/A Test Sample Number 2005220-1X Frequency Bands GSM 850: 824.2~848.8MHz 1900: 1850.2~1909.8MHz WCDMA Band II: 1852.4~1907.6MHz Band V: 826.4~846.6MHz Bluetooth 2402~2480MHz FM 87.5~108MHz Modulation Mode GSM GMSK for GSM/GPRS WCDMA QPSK; HSDPA:QPSK/16QAM; HSUPA:BPSK Bluetooth BT(1Mbps): GFSK BT EDR(2Mbps): π/4-DQPSK BT EDR(3Mbps): 8DPSK FM FM Adapter Input: AC100-240V,150mA,50/60Hz Output: DC 5V,500mA Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity: 600mAh Hardware Version Number C719B_MB_V1.0 Software Version Number Z1706_PCD_U15_V03_20191227(20200413 Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 24 Report No.: STS2005238E01 2.2 DESCRIPTION OF THE TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 Adapter + Back camera on + BT Link Mode 2 GSM850 Link + Adapter + USB cable + Earphone + BT Link Mode 3 PCS1900 Link + Adapter + USB cable + Earphone + BT Link Mode 4 WCDMA1900 Link + Adapter + USB cable + Earphone + BT Link Mode 5 WCDMA850 Link + Adapter + USB cable + Earphone + BT Link Mode 6 PC + USB Transmission + SD Card Mode 7 Charging + Video + Earphone Mode 8 Charging + Camera Mode 9 Charging + FM For Conducted Test Final Test Mode Description Mode 1 Adapter + Back camera on + BT Link For Radiated Test Final Test Mode Description Mode 1 Adapter + Back camera on + BT Link Note: 1. Fo…

Text truncated - open the document above for the full version.

U15 _JBP Setup photo Radiated Measurement Photos 30MHz- 1GHz Above 1GHz Conducted Measurement Photos
