R402 User Manual 1. Interface 1.1 LED Light Color Indication Number Indicator Color Working Status 1 Power Dark Power off Green,Solid Power on all led Green,Solid(except internet led ,it show pink) External Power supply Booting up the device 2 WIFI(2.4G) Green,Solid 2.4G WIFI is enable(No user) Green,Blink- 0.5s 2.4G Users connected to WIFI Dark 2.4G WIFI is disabled Green,Blink- 0.2s 2.4G WPS is Active 3 WIFI (5G) Green,Solid 5G WIFI enable(No user) Green,Blink- 0.5s 5G Users connected to WIFI Dark 5G WIFI is disabled Green,Blink- 0.2s 5G WPS is Active 4 WAN/LAN Green,Blink Wire inserted into WAN port or LAN port .have a data transmission Dark No Wire inserted into WAN port or LAN port 5 Internet Blue Solid:Disconnected to LTE Network . Blink: Connected to LTE Network Green Solid:Disconnected to 2G/3G Network . Blink: Connected to 2G/3G Network 6 Signal Green(1-4 bar) Indicate signal strength 1.2 Interface Number Connections Description 7 Power Turn on/off the router. 8 Power Adapter Connect Power to DC-Jack 12V/1A Power Adapter. Using power supplies with a different voltage from the one included with the R402 will cause damage and void the warranty. 9 LAN LAN ports provide connections to Ethernet enabled devices. 10 WAN/LAN If the WAN is set to the WAN Mode, will be as the WAN interface, you can dial the DSL module; If WAN set to LAN MODE, will be a LAN interface 11 TEL Connect the telephone 1.3 KEY Number Connections Description 12 RESET Press the reset button 3 seconds to restore the device to its factory default settings. 13 WPS Click this button to start WPS encryption. 14 SIM Insert SIM card to automatically identify registration 2. Using You can place R402 on a desk or other flat surface. Please keep R402 away from overheating. For optimal performance, please place your R402 router in the center of your home (office), in a location that is away from any potential interference source. 2.1 Access internet by Wire inserted into WAN port or LAN port 1) Connect Ethernet cable between your PC/Notebook and one of the four available LAN ports on R402. 2) Connect Ethernet cable between WAN ports of your ADSL/CABLE modem and WAN port of R402. Please make sure your ADSL/CABLE modem is working properly. Contact your ISP if you have any inquiry. 3) Powered up and turned on the R402 router 2.2 Wi-Fi wireless Internet access To establish a connection with the R402 router for the first time, you need to enter the SSID (Wi-Fi account) and the Wi-Fi passwords. Login Page 1. Open your browser, input http://192.168.1.1 and press enter on your computer ●The default user name is ClaroAdministrador ●The default password is soporteXXXXXX（XXXXXX is the last 6 bits of 2.4G WiFi MAC address） Enter the user name and password above on the login administration page. 2. Enter the Wi-Fi menu , to view the default 2.4G WIFI SSID and 5G WIFI SSID and Wi-Fi passwords.5G WIFI defaults disabled. ●The default 2.4G WIFI SSID is CLARO_WIFIXXX(XXX is the first three bits of WiFi 2.4G mac) ●The default 5G WIFI SSID is CLARO_5G_WIFIXXX(XXX is the first three bits of WiFi 5g mac) ●The default 2.4G password is CLAROIXXX(XXX is the first three bits of WiFi 2.4G mac) ●The default 5G password is CLAROIXXX(XXX is the first three bits of WiFi 5g mac) ★Recommend setting a convenient SSID and a more secure Wi-Fi passwords before using or browsing the other pages of R402. 3. Administrator menu ●Home The main display settings page shows the network status information such as SIM card status, type and quality of the network signal, new messages notification, and so on. ●Wizard To change the LAN configuration, set the APN , and change the WIFI SSID \ password through the wizard function. ●WAN 1. Connection Dialing Mode: Auto Mode, the device will automatically connect to the network after turning on R402. There is no need to do any other additional operations. Manual Mode, manually connect to the network after opening the R402 management page. 2. Connection Setting LAN Mode Choose your Internet Access Type. If you choose 3G/4G SIM card to access the network: On the APN setting page, Key in the “APN”, “Dial Number” and ”Authentication” which are provided by your mobile network operator. WAN Mode If you choose WAN Mode, please select the type of internet connection for your router. DHCP：A dynamic IP address connection that configures the router to automatically obtain IP address from a DHCP server on the ISP’s network. Static Mode: Please enter the IP address information provided to you by your ISP. The Subnet Mask for R820 is preconfigured to 255.255.255.0. Other configurations can be made, but it is not recommended. This feature is for advanced users. Your ISP should also provide the Default Gateway, Primary DNS and Secondary DNS (optional). PPPoE: Please enter the PPPoE username and password assigned by your ISP. Choose the Operation Mode; enable the Keep Alive option to automatically re-establish the connection when an application attempts to access the Internet again. The On Demand Mode Idle Time is a maximum period of time for which the Internet connection is maintained during inactivity. If the connection is in activate longer than the Maximum Idle Time, it will be dropped. 3. APN Settings You can customize the network configuration or manually add the new APN and set the default APN. 4. 4G/3G/2G Modem There are four types of networks available: Auto, LTE Only, WCDMA Only and GSM Only. The default function is Auto, after Turning On R402 the device will automatically register to the network. 5. SIM Card PIN Lock Open your PIN page to configure your SIM card. If you reboot the device, the log management page will prompt to enter the correct PIN code, to use the SIM card. The PIN / PUK code is supplied with the SIM card provided by your Network carrier, for more info please consult your Network carrier. 6. PLMN Into automatic and manual setting options Automatic: Select this mode to automatically selects the best network registratio…

Text truncated - open the document above for the full version.

1500 Tradeport Drive Orlando, FL. 32824 | Phone: +1.407.857.3737 | www.pcdlatam.com PCD, LLC Agent Authorization Company: PCD, LLC Address: 7651 Southland Blvd. Orlando, FL 32809 Model Number: R402 FCC ID :2ALJJR402 We authorize ICAS Testing Technology Services (Shanghai) Co., Ltd. to act on our behalf on all matters concerning the certification of above named equipment. We declare that ICAS Testing Technology Services (Shanghai) Co., Ltd. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by ICAS Labs on our behalf shall have the same effect as acts of our own. Sincerely, Mauricio Velasco CTO, Latin America [email protected] +1.631.495.7537

1500 Tradeport Drive Orlando, FL. 32824 | Phone: +1.407.857.3737 | www.pcdlatam.com January 7th, 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ALJJR402 Product Name: Router Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation Description • Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); • Internal Photos • User Manual For 45 days, pursuant to Public Notice DA 04-1705. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Mauricio Velasco CTO, Latin America [email protected] +1.631.495.7537

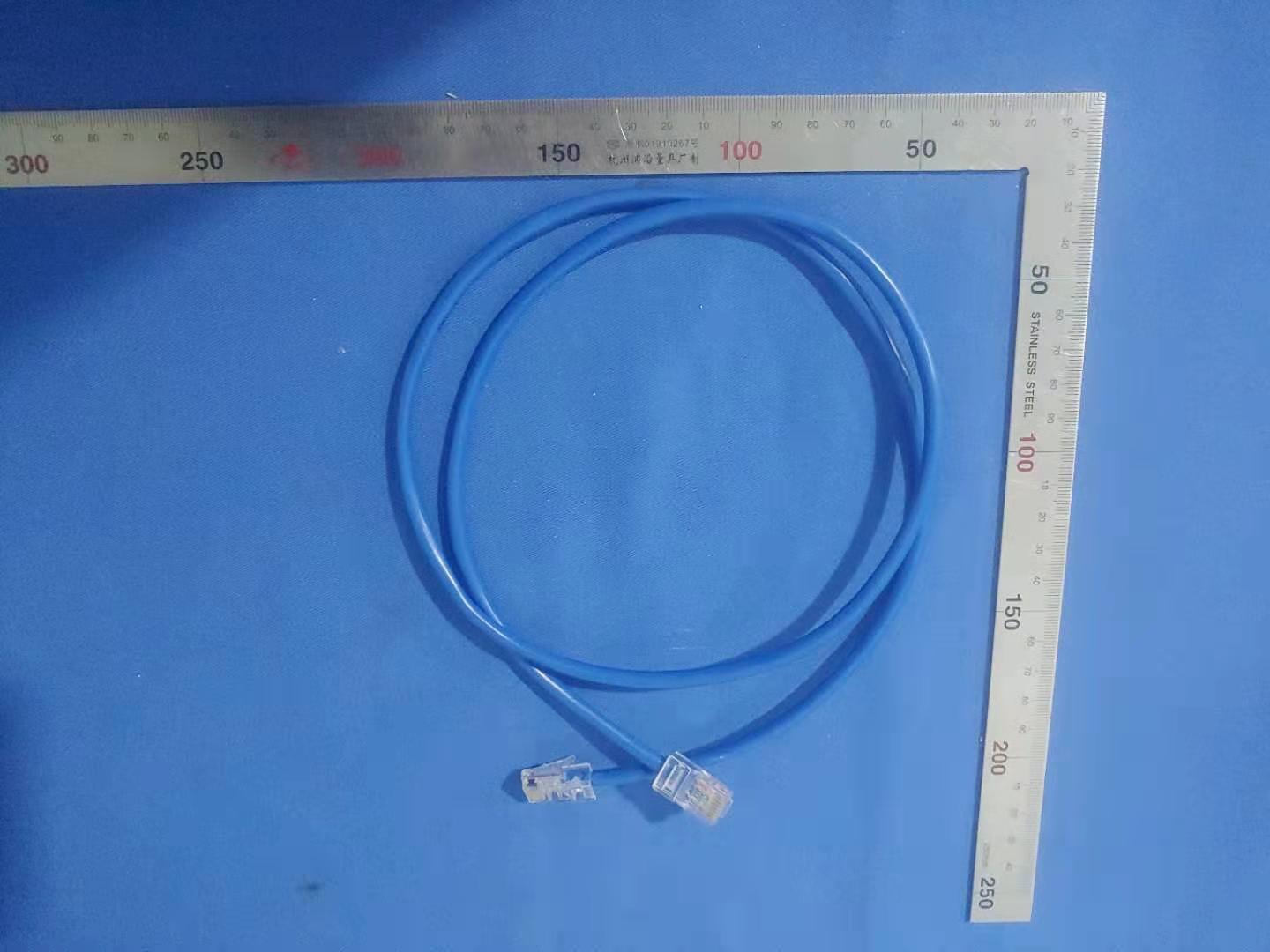

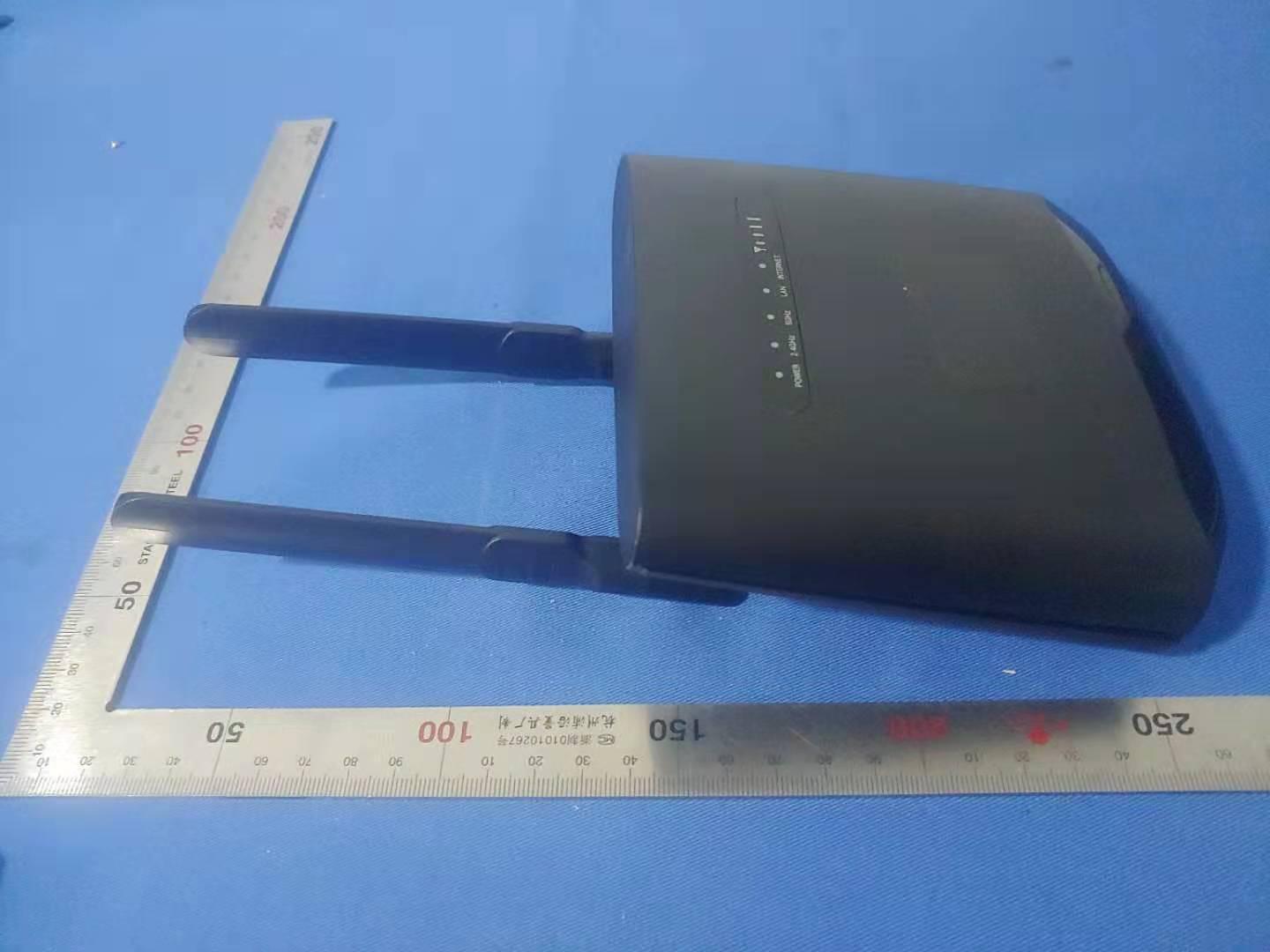

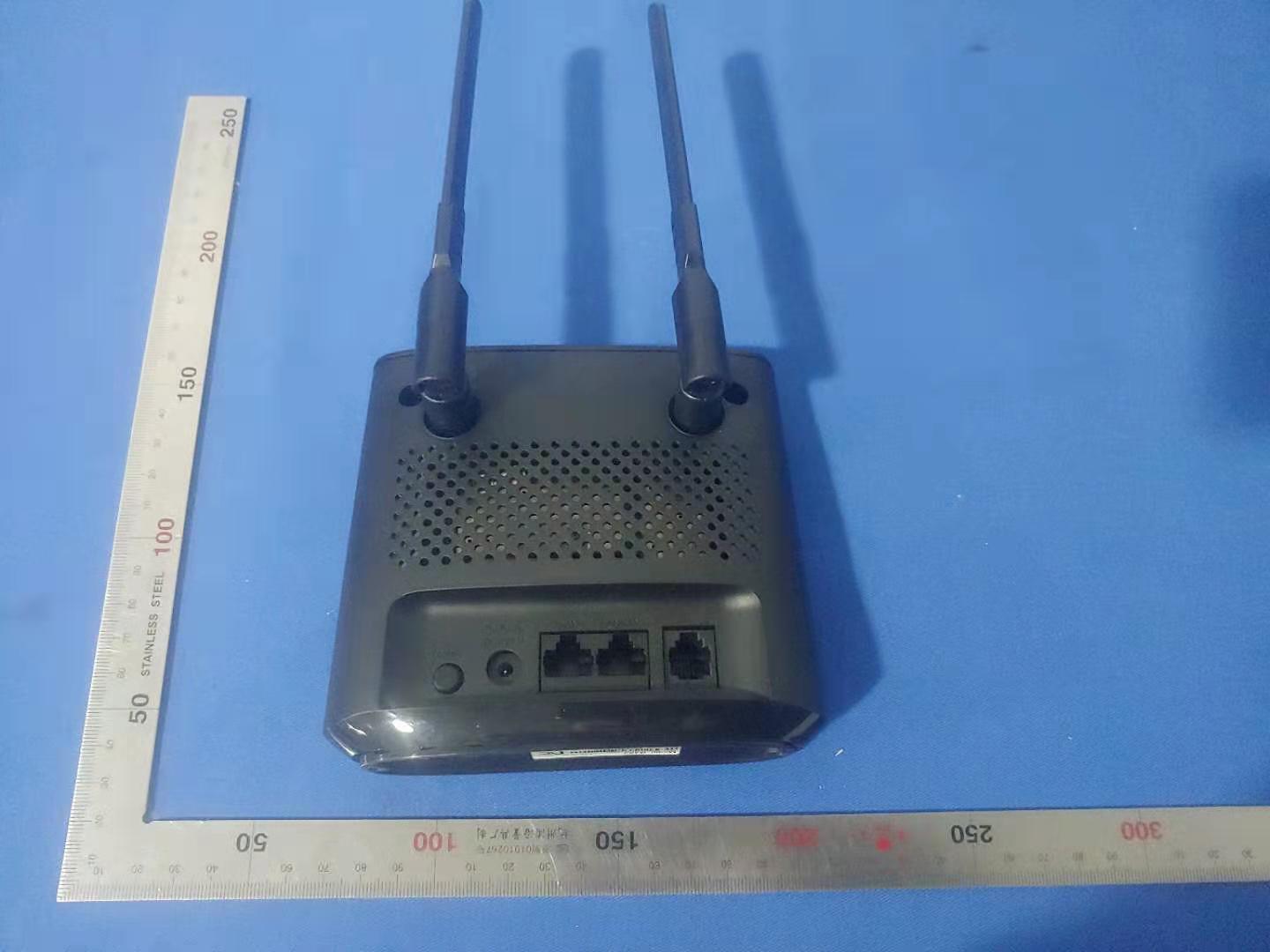

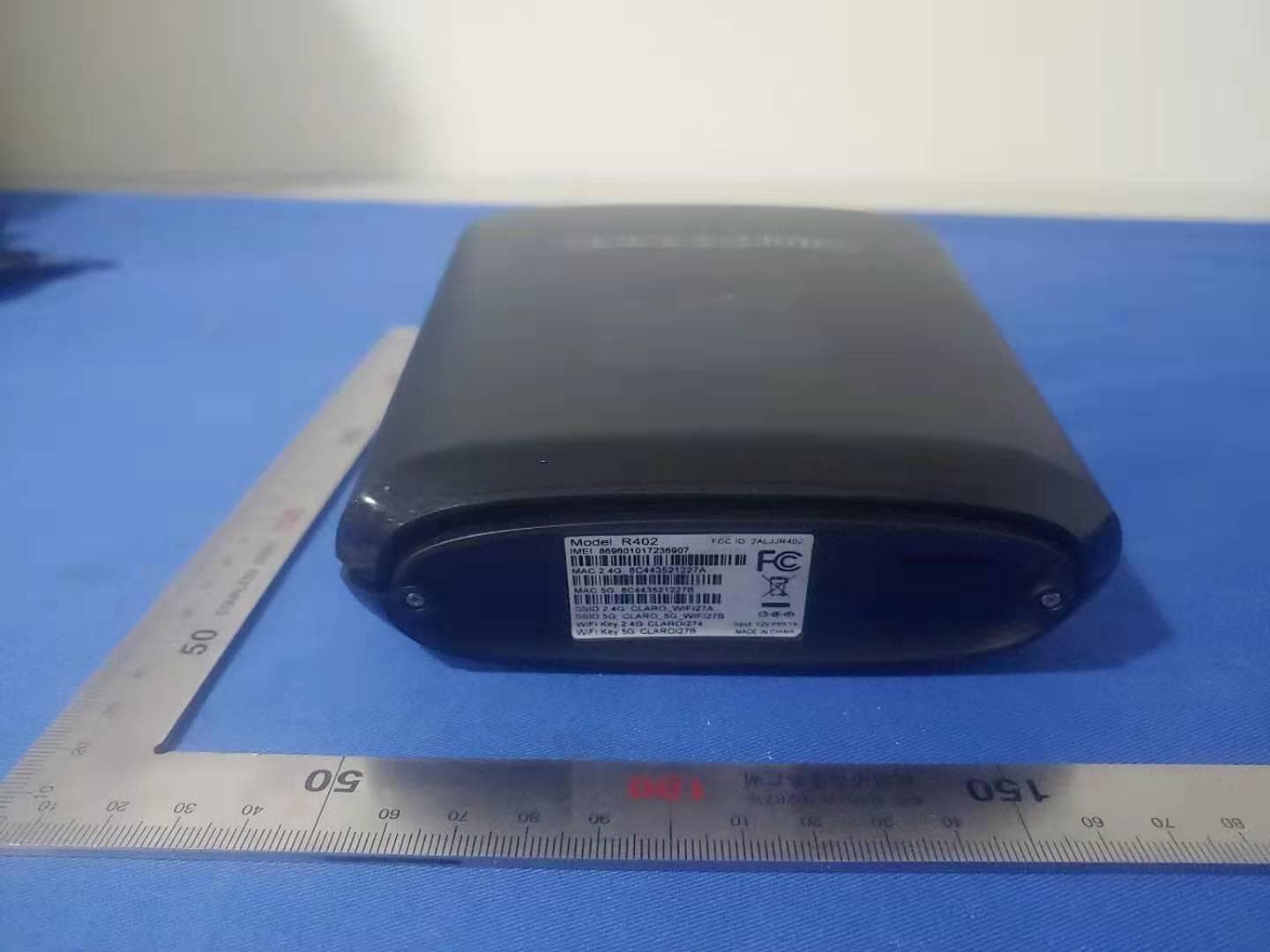

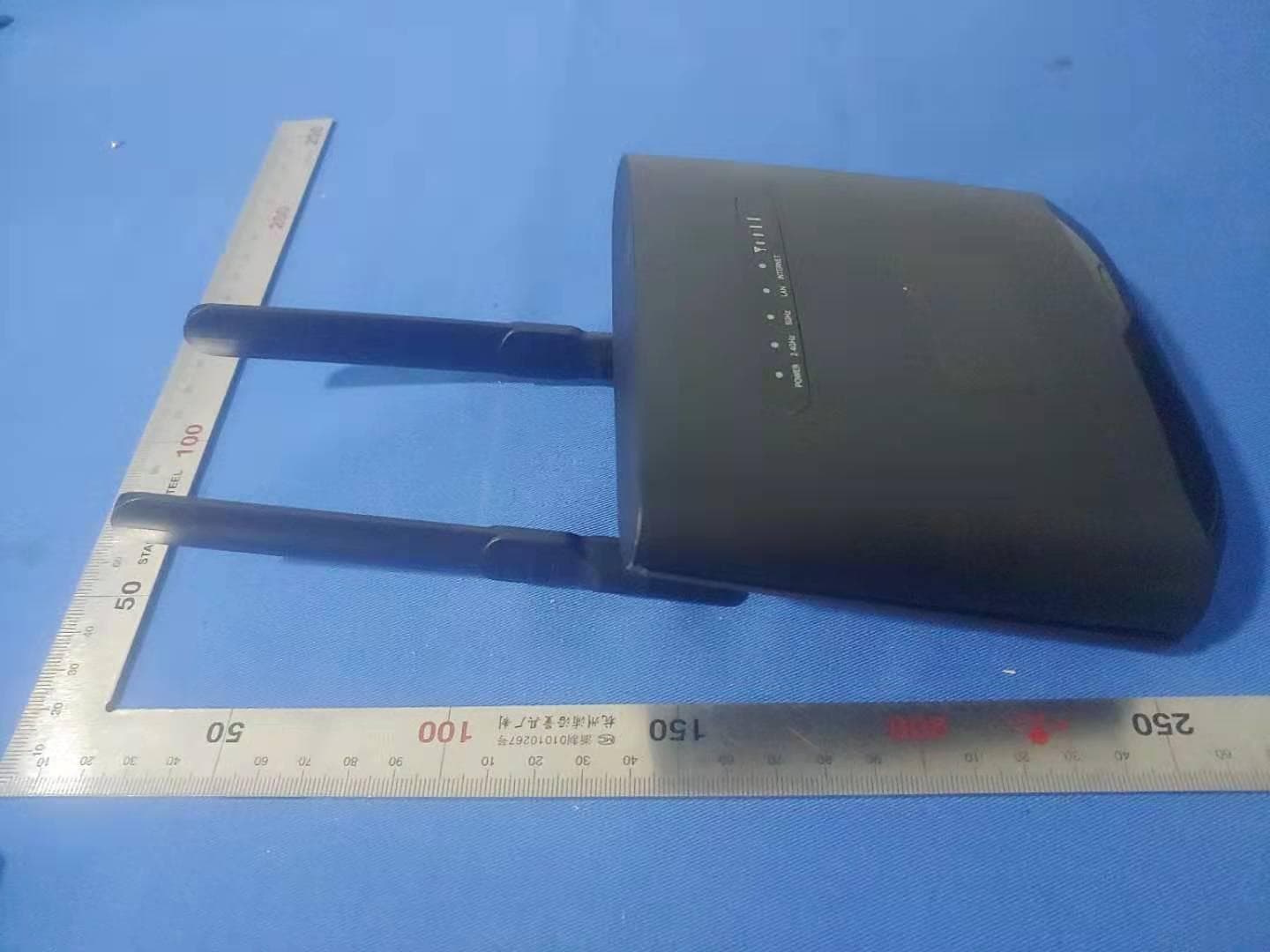

Photographs of the Sample Front of the sample Rear of the sample Left of the sample Right of the sample Bottom Top attachment

Internal Photographs of the Sample WIFI antenne 1 TX 2.4&5G 2.4 WIFI antenne 2 TX 2.4&5G DIV H F Point DIV LM F Point TX H F Point TX LM F Point NOTE : DIV H F Point =RX of 3&4G High frequencies DIV LM F Point =RX of 3&4G Low and Middle frequencies 3G4G antenne 3G4G antenne

TEST REPORT Report No.: SHE19110011-02FE Date: 2020-1-6 Page 1 of 9 Applicant : PCD, LLC Address of Applicant : 7651 Southland Blvd. Orlando, FL 32809 Product Name : Router Model No. : R402 Sample No. : E19110011-04#05 E19110011-05#02 FCC ID : 2ALJJR402 Standards : FCC CFR47 Part 2&1.1307(b)(1) Date of Receipt : 2019-12-23 Date of Test : 2019-12-24 ~ 2020-1-19 Date of Issue : 2020-1-20 Remark: This report details the results of the testing carried out on one sample, the results contained in this report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. Prepared by： Reviewed by： Approved by： (Jennifer Zhou) (Jesse) (Authorized signatory: Guoyou Chi) TEST REPORT Report No.: SHE19110011-02FE Date: 2020-1-6 Page 2 of 9 Revision Record Version Date Revisions Revised By 1.0 2020-1-20 Original -- TEST REPORT Report No.: SHE19110011-02FE Date: 2020-1-6 Page 3 of 9 Contents 1 GENERAL INFORMATION ................................................................................................................................................... 4 1.1 TESTING LABORATORY ............................................................................................................................................................... 4 1.2 DETAILS OF APPLICATION .......................................................................................................................................................... 4 1.3 DETAILS OF EUT ........................................................................................................................................................................ 4 1.4 TEST METHODOLOGY ................................................................................................................................................................. 5 1.5 TEST VERDICT ............................................................................................................................................................................ 6 RF EXPOSURE ................................................................................................................................................................................ 6 REQUIREMENTS .................................................................................................................................................................................. 6 THE PROCEDURES / LIMIT ................................................................................................................................................................... 6 MPE CALCULATION METHOD ............................................................................................................................................................. 8 TEST RESULT ...................................................................................................................................................................................... 8 TEST REPORT Report No.: SHE19110011-02FE Date: 2020-1-6 Page 4 of 9 1 General Information 1.1 Testing Laboratory Company Name ICAS Testing Technology Services (Shanghai) Co., Ltd. Address 155 Pingbei Rd, Minhang District, Shanghai, China Telephone 0086 21-51682999 Fax 0086 21-54711112 Homepage www.icasiso.com 1.2 Details of Application Company Name PCD, LLC Address 1500 Tradeport Drive, Suite A Orlando Florida 32824 United States Contact Person Mauricio Velasco Telephone +1.631.495.7537 Email [email protected] 1.3 Details of EUT Product Name Router Brand Name PCD Model No. R402 FCC ID 2ALJJR402 Network and Wireless connectivity WCDMA/HSDPA/HSUPA Band II/V/VIII; LTE FDD Band 2/4/7/28; WLAN 802.11b/g/n(HT20/HT40) Mode of Operation WCDMA/HSDPA/HSUPA Band II/V; LTE FDD Band 2/4/7; Modulation Type QPSK for WCDMA; QPSK/16QAM for HSDPA/HSUPA/LTE; Power Class WCDMA/HSDPA/HSUPA Band II: 3 WCDMA/HSDPA/HSUPA Band V: 3 LTE FDD Band 2: 3 LTE FDD Band 4: 3 LTE FDD Band 7: 3 Antenna Type External Antenna(for PCB) internal Antennna (for DTS NII) Antenna Gain 0.5 dBi(for PCB) 1dBi(for WIFI) Extreme Temperature Range -10°C~ +55°C TEST REPORT Report No.: SHE19110011-02FE Date: 2020-1-6 Page 5 of 9 1.4 Test Methodology 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 47 CFR Part 22 Subpart H Public Mobile Services 47 CFR Part 24 Subpart E Personal Communications Services 47 CFR Part 27 Miscellaneous Wireless Communications Services ANSI/TIA-603-E March 2016 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards ANSI C63.26:2015 American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services KDB 971168 D01 v03r01 Measurement Guidance for Certification of Licensed Digital Transmitters Note(s): All test items were verified and recorded according to the standards and without any addition/deviation/exclusion during the test. TEST REPORT Report No.: SHE19110011-02FE Date: 2020-1-6 Page 6 of 9 1.5 Test Verdict Test Items Test Requirement Result Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS RF Exposure Test Requirement : FCC Part 1.1307(b)(1) Evaluation Method : FCC Part 2.1091 Requirements Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. The procedures / limit (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-…

Text truncated - open the document above for the full version.

TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 1 of 232 Applicant : PCD, LLC Address of Applicant : 7651 Southland Blvd. Orlando, FL 32809 Product Name : Router Model No. : R402 Sample No. : E19110011-05#04 E19110011-05#02 FCC ID : 2ALJJR402 Standards : FCC CFR47 Part 15, Subpart C Date of Receipt : 2020-1-2 Date of Test : 2020-1-8 ~ 2020-1-19 Date of Issue : 2020-1-19 Remark: This report details the results of the testing carried out on one sample, the results contained in this report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. Prepared by： Reviewed by： Approved by： (Jennifer Zhou) (jesse) (Authorized signatory: Guoyou Chi) TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 2 of 232 Revision Record Version Date Revisions Revised By 1.0 2020-1-19 Original -- TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 3 of 232 Contents 1 GENERAL INFORMATION ................................................................................................................................................... 4 1.1 TESTING LABORATORY ............................................................................................................................................................... 4 1.2 DETAILS OF APPLICATION .......................................................................................................................................................... 4 1.3 DETAILS OF EUT ........................................................................................................................................................................ 4 1.4 TEST METHODOLOGY ................................................................................................................................................................. 4 2 TEST CONDITION .................................................................................................................................................................. 6 2.1 ENVIRONMENTAL CONDITIONS ................................................................................................................................................... 6 2.2 EQUIPMENT LIST ........................................................................................................................................................................ 6 2.3 MEASUREMENT UNCERTAINTY................................................................................................................................................... 6 3 TEST SET-UP AND OPERATION MODES ........................................................................................................................ 7 3.1 DETAILS OF TEST MODE ............................................................................................................................................................ 7 3.2 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................................................................................ 8 3.3 SUPPORT SOFTWARE ................................................................................................................................................................. 8 3.4 TEST SETUP DIAGRAM ............................................................................................................................................................... 9 4 TEST RESULTS .................................................................................................................................................................... 11 4.1 TRANSMITTER REQUIREMENT & TEST SUITES ........................................................................................................................ 11 4.1.1 Antenna Requirement ..................................................................................................................................................... 11 4.1.2 Peak Output Power.......................................................................................................................................................... 12 4.1.3 26dB Bandwidth and 99% Bandwidth ........................................................................................................................... 15 4.1.4 6dB Bandwidth ................................................................................................................................................................. 61 4.1.5 Power Spectral Density ................................................................................................................................................... 84 4.1.6 Undesirable Emission .................................................................................................................................................... 130 4.1.7 Spurious Emission ......................................................................................................................................................... 221 4.1.8 Band Edge (Restricted-band band-edge) .................................................................................................................. 223 4.1.9 Frequency Stability ........................................................................................................................................................ 224 4.2 MAINS EMISSIONS .................................................................................................................................................................. 230 4.2.1 Conducted Emission on AC Mains .............................................................................................................................. 230 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 4 of 232 1 General Information 1.1 Testing Laboratory Company Name ICAS Testing Technology Servic…

Text truncated - open the document above for the full version.

TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 130 of 232 4.1.6 Undesirable Emission RESULT: PASS Test standard : FCC Part 15.407(b), 15.209 RSS-247 6.2 Requirement : ANSI C63.10-2013, KDB 789033 Kind of test site : Shielded room Test setup Test Channel : Low/Middle/High Operation Mode : A.1.a Ambient temperature : 25°C Relative humidity : 52% For details refer to following test plot. TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 131 of 232 Chain 2 Undesirable Emission, 30MHz-25GHz, 802.11a, 5180MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 755.475 -60.05 -27 Pass 9700 1000 5150 1 Peak 5150 -42.62 -27 Pass 4150 5150 5350 1 Peak 5185.667 9.26 24 Pass 601 5350 10300 1 Peak 5526.036 -46.85 -27 Pass 4950 10300 10700 1 Peak 10588.667 -49.47 -27 Pass 601 10700 25000 1 Peak 24756.983 -38.51 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 132 of 232 MIMO Undesirable Emission, 30MHz-25GHz, 802.11a, 5180MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 524.851 -60.52 -27 Pass 9700 1000 5150 1 Peak 5149 -42.22 -27 Pass 4150 5150 5350 1 Peak 5176.667 8.97 24 Pass 601 5350 10300 1 Peak 6906.314 -44.34 -27 Pass 4950 10300 10700 1 Peak 10313.333 -48.78 -27 Pass 601 10700 25000 1 Peak 24782.985 -37.78 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 133 of 232 Chain 1 Undesirable Emission, 30MHz-25GHz, 802.11a, 5180MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 456.444 -60.52 -27 Pass 9700 1000 5150 1 Peak 5148 -42.4 -27 Pass 4150 5150 5350 1 Peak 5185.333 8.64 24 Pass 601 5350 10300 1 Peak 6906.314 -39.04 -27 Pass 4950 10300 10700 1 Peak 10352.667 -48.87 -27 Pass 601 10700 25000 1 Peak 24716.98 -37.99 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 134 of 232 Chain 2 Undesirable Emission, 30MHz-25GHz, 802.11a, 5220MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 891.789 -60.89 -27 Pass 9700 1000 5150 1 Peak 5128.995 -45.92 -27 Pass 4150 5150 5350 1 Peak 5225.333 9.63 24 Pass 601 5350 10300 1 Peak 5925.116 -47.48 -27 Pass 4950 10300 10700 1 Peak 10338.667 -48.84 -27 Pass 601 10700 25000 1 Peak 24713.98 -39 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 135 of 232 MIMO Undesirable Emission, 30MHz-25GHz, 802.11a, 5220MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 436.642 -60.08 -27 Pass 9700 1000 5150 1 Peak 5145.999 -46.55 -27 Pass 4150 5150 5350 1 Peak 5216.667 8.55 24 Pass 601 5350 10300 1 Peak 6960.325 -44.1 -27 Pass 4950 10300 10700 1 Peak 10370.667 -48.42 -27 Pass 601 10700 25000 1 Peak 24808.987 -38.38 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 136 of 232 Chain 1 Undesirable Emission, 30MHz-25GHz, 802.11a, 5220MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 930.393 -60.11 -27 Pass 9700 1000 5150 1 Peak 5085.985 -45.22 -27 Pass 4150 5150 5350 1 Peak 5225.667 8.61 24 Pass 601 5350 10300 1 Peak 6960.325 -38.81 -27 Pass 4950 10300 10700 1 Peak 10546 -48.52 -27 Pass 601 10700 25000 1 Peak 24841.989 -37.92 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 137 of 232 Chain 2 Undesirable Emission, 30MHz-25GHz, 802.11a, 5240MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 785.778 -60.35 -27 Pass 9700 1000 5150 1 Peak 4983.96 -46.03 -27 Pass 4150 5150 5350 1 Peak 5245.667 9.81 24 Pass 601 5350 10300 1 Peak 6038.139 -47.74 -27 Pass 4950 10300 10700 1 Peak 10604.667 -49.23 -27 Pass 601 10700 25000 1 Peak 24748.982 -37.86 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 138 of 232 MIMO Undesirable Emission, 30MHz-25GHz, 802.11a, 5240MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 921.492 -60.18 -27 Pass 9700 1000 5150 1 Peak 4887.937 -46.87 -27 Pass 4150 5150 5350 1 Peak 5236.667 8.53 24 Pass 601 5350 10300 1 Peak 6987.331 -44.64 -27 Pass 4950 10300 10700 1 Peak 10653.333 -48.87 -27 Pass 601 10700 25000 1 Peak 24736.982 -38.52 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 139 of 232 Chain 1 Undesirable Emission, 30MHz-25GHz, 802.11a, 5240MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 413.139 -59.93 -27 Pass 9700 1000 5150 1 Peak 5105.989 -45.14 -27 Pass 4150 5150 5350 1 Peak 5245.333 8.55 24 Pass 601 5350 10300 1 Peak 6986.331 -40.04 -27 Pass 4950 10300 10700 1 Peak 10336 -48.65 -27 Pass 601 10700 25000 1 Peak 24717.98 -37.99 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 140 of 232 Chain 2 Undesirable Emission, 30MHz-25GHz, 802.11n(HT20), 5180MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 30 1000 0.1 Peak 981.598 -60.17 -27 Pass 9700 1000 5150 1 Peak 5150 -41.1 -27 Pass 4150 5150 5350 1 Peak 5174 8.28 24 Pass 601 5350 10300 1 Peak 5533.037 -47.43 -27 Pass 4950 10300 10700 1 Peak 10360.667 -48.51 -27 Pass 601 10700 25000 1 Peak 24732.981 -38.42 -27 Pass 14300 TEST REPORT Report No.: SHE19110011-02DE Date: 2020-1-19 Page 141 of 232 MIMO Undesirable Emission, 30MHz-25GHz, 802.11n(HT20), 5180MHz Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sw…

Text truncated - open the document above for the full version.

EXHIBIT A- RADIATED SPURIOUS EMISSION DATA chain 0 report number :SHE19110011-01DE Note : Transmit frequency is ignore ,mark 30M-1G WIFI5GB1 -Horizontal-TX 英格尔 Test result Project Number: Certification Test Time: 2020-01-07_19.22.06 EUT Name: N.A Test Engineer: LYT Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: Normal Temp.(oC): 20.9 Load: Full load Hum.: 50 Remark: DR-RSE01-E19110011-05#04 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 95.701 31.81 -26.89 43.5 -11.69 Peak 173.90 200 Horizontal Pass 2 167.948 33.18 -29.04 43.5 -10.32 Peak 288.70 100 Horizontal Pass 3 251.903 36.35 -25.22 46.0 -9.65 Peak 360.00 100 Horizontal Pass 3* 251.903 30.33 -25.22 46.0 -15.67 QP 360.00 100 Horizontal Pass 4 311.957 36.66 -24.18 46.0 -9.34 Peak 258.20 100 Horizontal Pass 5 359.960 36.08 -23.76 46.0 -9.92 Peak 297.30 100 Horizontal Pass 6 919.268 40.35 -10.29 46.0 -5.65 Peak 360.00 200 Horizontal Pass WIFI5GB1 - Vertical -TX 英格尔 Test result Project Number: Certification Test Time: 2020 - 01 - 07_19.15.51 EUT Name: N.A Test Engineer: LYT Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: Normal Temp.(oC): 20.9 Load: Full load Hum.: 50 Remark: DR - R S E01 - E19110011 - 0 5 #0 4 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 71.450 34.60 - 28.41 40.0 - 5.40 Peak 108.60 108 Vertical Pass 1* 71.450 28.09 - 28.41 40.0 - 11.91 QP 108.60 108 Vertical Pass 2 119.945 33.07 - 27.10 43.5 - 10.43 Peak 360.00 200 Vertical Pass 3 167.948 31.22 - 29.04 43.5 - 12.28 Peak 104.20 100 Vertical Pass 4 311.957 30.04 - 24.18 46.0 - 15.96 Peak 263.40 200 Vertical Pass 5 503.969 34.57 - 19.17 46.0 - 11.43 Peak 227.40 100 Vertical Pass 6 917.813 40.46 - 10.11 46.0 - 5.54 Peak 0.00 200 Vertical Pass 1G-18G WIFI5GB1-A-Low channel-Horizontal-TX 英格尔 Test result Project Number: Certification Test Time: 2020 - 01 - 07_19.34.43 EUT Name: N.A Test Engineer: LYT Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: Normal Temp.(oC): 20.9 Load: Full load Hum.: 50 Remark: DR - R S E01 - E19110011 - 0 5 #0 4 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 1163.230 47.02 - 7.12 74.0 - 26.98 Peak 175.50 100 Horizontal Pass 1** 1163.230 35.29 - 7.12 54.0 - 18.71 AV 175.50 100 Horizontal Pass 2 1630.671 45.50 - 8.72 68.2 - 22.70 Peak 237.20 100 Horizontal Pass 2** 1630.671 33.59 - 8.72 -- 33.59 AV 237.20 100 Horizontal N/A 3 1992.626 49.91 - 6.13 68.2 - 18.29 Peak 108.50 100 Horizontal Pass 3** 1992.626 38.00 - 6.13 -- 38.00 AV 108.50 100 Horizontal N/A 4 2817.023 49.70 - 2.39 74.0 - 24.30 Peak 322.50 100 Horizontal Pass 4** 2817.023 39.21 - 2.39 54.0 - 14.79 AV 322.50 100 Horizontal Pass 5 3793.026 55.27 4.09 74.0 - 18.73 Peak 53.30 100 Horizontal Pass 5** 3793.026 44.92 4.09 54.0 - 9.08 AV 53.30 100 Horizontal Pass 6 5161.980 62.86 10.98 -- - 86.44 Peak 149.30 100 Horizontal Pass 6** 5161.980 51.82 10.98 -- 51.82 AV 149.30 100 Horizontal N/A 英格尔 Test result Project Number: Certification Test Time: 2020 - 01 - 07_20.39.15 EUT Name: N.A T…
