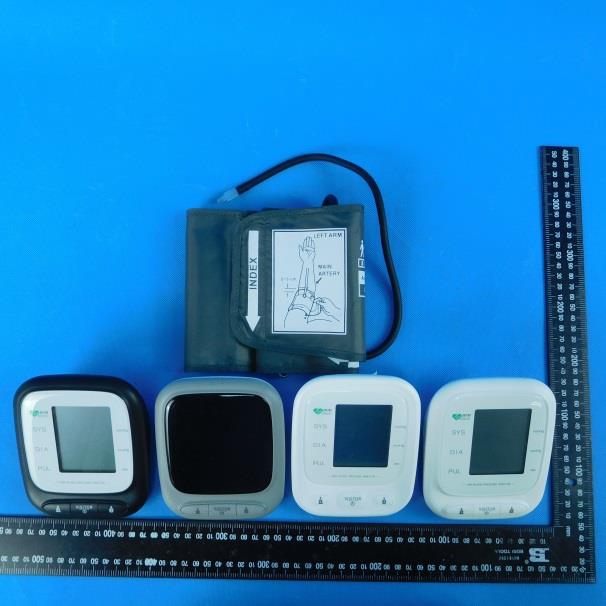

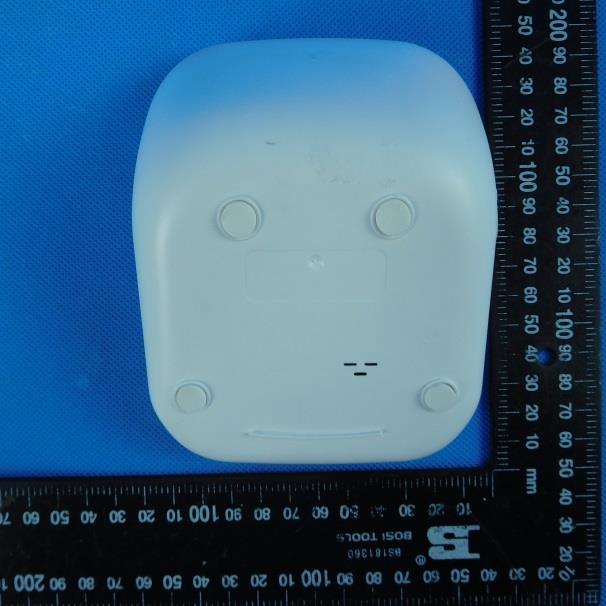

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT EXTERNAL PHOTOS OF EUT M odel:AES-U211

Label & Location

INTERNAL PHOTOS OF EUT M odel:AES-U211

FCC ID: 2AM8O-U211 RF Exposure Evaluation LIMIT The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable Type Tune-up (dBm) LTE Band 2 20.00~22.00 LTE Band 4 21.00~23.00 LTE Band 12 20.00~22.00 LTE Band 13 20.00~22.00 Type Conducted Average Power (dBm) Maximum Tune-up (dBm) Power Density (mW/cm2) Limit (mW/cm2) Result LTE Band 2 21.25 22.00 0.04997 1.0000 Pass LTE Band 4 22.56 23.00 0.06291 1.0000 Pass LTE Band 12 21.66 22.00 0.04997 0.4670 Pass LTE Band 13 21.80 22.00 0.04997 0.5197 Pass Note: 1) The maximum antenna gain is 2.0dBi 2) The exposure evaluation safety distance is 20cm.

Page: 1 of 45 FCC REPORT Report Reference No. .................... : CHTEW21020056 Report Verification: Project No.................................： SHT2101045201EW FCC ID ............................................. : 2AM8O-U211 Applicant’s name ........................... : Alicn Medical Shenzhen, Inc Address.............................................: Room 410 Building A 3rd Subpark Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East Road, Pingshan District, Shenzhen, China Test item description .................... : Arm Blood Pressure Monitor Trade Mark ....................................... : - Model/Type reference ....................... : AES-U211 Listed Model(s) ................................. : AES-U212, AES-U213, AES-U214 Standard ......................................... : FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 FCC CFR Title 47 Part 24 FCC CFR Title 47 Part 27 Date of receipt of test sample..........: Feb. 01, 2021 Date of testing..............................: Feb. 02, 2021- Feb. 22, 2021 Date of issue...............................: Feb. 23, 2021 Result .................. ........................: Pass Compiled by ( position+printedname+signature) ... : File administrators Silvia Li Supervised by (position+printedname+signature) .... : Project Engineer Aaron Fang Approved by (position+printedname+signature) .... : Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21020056 Page: 2 of 42 Issued: 2021-02-23 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TE S T S T AN D A R D S A N D R EP O R T V E R S I O N 3 1.1. Applicable Standards 3 1.2. Report version information 3 2. T E S T D E S C R I P T I O N 4 3. S U M M AR Y 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Operation state 6 3.4. EUT operation mode 7 3.5. EUT configuration 7 3.6. Modifications 7 4. T E S T E N V I R O N M E N T 8 4.1. Testing Laboratory Information 8 4.2. Equipments Used during the Test 8 4.3. Environmental conditions 9 4.4. Statement of the measurement uncertainty 9 5. T E S T C O N D I T I O N S A N D R E S U L T S 10 5.1. Conducted Output Power 10 5.2. Peak-to-Average Ratio 11 5.3. 99% Occupied Bandwidth & 26 dB Bandwidth 12 5.4. Band Edge 13 5.5. Conducted Spurious Emissions 14 5.6. Frequency stability VS Temperature measurement 15 5.7. Frequency stability VS Voltage measurement 16 5.8. ERP and EIRP 17 5.9. Radiated Spurious Emission 25 6. TE S T S E T U P P H O T O S O F T H E E U T 36 7. EX T E R N AL AN D I N T E R N AL P H O T O S O F T H E E U T 37 8. A P P E N D I X R E P O R T 42 Report No.: CHTEW21020056 Page: 3 of 42 Issued: 2021-02-23 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STANDARDS AND REPORT VERSION 1.1. Applicable Standards The tests were performed according to following standards: FCC Rules Part 2: FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS FCC Rules Part 22: PUBLIC MOBILE SERVICES FCC Rules Part 24: PERSONAL COMMUNICATIONS SERVICES FCC Rules Part 27: MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES ANSI C63.26: 2015: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services KDB 971168 D01 Power Meas License Digital Systems v03: MEASUREMENT GUIDANCE FOR CERTIFICATION OF LICENSED DIGITAL TRANSMITTERS 1.2. Report version information Revision No. Date of issue Description N/A 2021-02-23 Original Report No.: CHTEW21020056 Page: 4 of 42 Issued: 2021-02-23 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. Test Description Test Item Section in CFR 47 Result Test Engineer Conducted Output Power Part 2.1046 Part 22.913(a) Part 24.232(c) Part 27.50 Pass Jiongsheng Feng Peak-to-Average Ratio Part 24.232 Part 27.50 Pass Jiongsheng Feng 99% Occupied Bandwidth & 26 dB Bandwidth Part 2.1049 Part 22.917(b) Part 24.238(b) Part 27.53 Pass Jiongsheng Feng Band Edge Part 2.1051 Part 22.917 Part 24.238 Part 27.53 Pass Jiongsheng Feng Conducted Spurious Emissions Part 2.1051 Part 22.917 Part 24.238 Part 27.53 Pass Jiongsheng Feng Frequency stability VS Temperature Part 2.1055(a)(1)(b) Part 22.355 Part 24.235 Part 27.54 Pass Jiongsheng Feng Frequency stability VS Voltage Part 2.1055(d)(1)(2) Part 22.355 Part 24.235 Part 27.54 Pass Jiongsheng Feng ERP and EIRP Part 22.913(a) Part 24.232(b) Part 27.50 Pass Pan Xie Radiated Spurious Emissions Part 2.1053 Part 22.917 Part 24.238 Part 27.53 Pass Pan Xie Note: The measurement uncertainty is not included in the test result. Report No.: CHTEW21020056 Page: 5 of 42 Issued: 2021-02-23 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMM ARY 3.1. Client Information Applicant: Alicn Medical Shenzhen, Inc Address: Room 410 Building A 3rd Subpark Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East Road, Pingshan District, Shenzhen, China Manufacturer: Alicn Medical Shenzhen, Inc Address: Room 410 Building A 3rd Subpark Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East Road, Pingshan District, Shenzhen, China 3.2. Product Description Name of EUT: Arm Blood Pre…

Text truncated - open the document above for the full version.

Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 290 APPENDIX REPORT Project No. SHT2101045201EW Radio Specification LTE Test sample No. YPHT21010452001 Model No. AES-U211 Start test date 2021/2/8 Finish date 2021/2/10 Temperature 25°C Humidity 50% Test Engineer Jiongsheng.Feng Auditor Appendix clause Test item Result A Conducted Output Power PASS B Peak-to-Average Ratio PASS C 26 dB Bandwidth and Occupied Bandwidth PASS D Band edge PASS E Conducted Spurious Emission PASS F Frequency Stability PASS Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 290 8.1 Appendix A: Conducted Output Power Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band2 1.4MHz QPSK 18607 1RB#0 23.02 PASS Band2 1.4MHz QPSK 18607 1RB#2 22.92 PASS Band2 1.4MHz QPSK 18607 1RB#5 22.87 PASS Band2 1.4MHz QPSK 18607 3RB#0 22.90 PASS Band2 1.4MHz QPSK 18607 3RB#1 22.89 PASS Band2 1.4MHz QPSK 18607 3RB#3 22.96 PASS Band2 1.4MHz QPSK 18607 6RB#0 21.94 PASS Band2 1.4MHz QPSK 18900 1RB#0 23.14 PASS Band2 1.4MHz QPSK 18900 1RB#2 23.10 PASS Band2 1.4MHz QPSK 18900 1RB#5 23.04 PASS Band2 1.4MHz QPSK 18900 3RB#0 23.10 PASS Band2 1.4MHz QPSK 18900 3RB#1 23.11 PASS Band2 1.4MHz QPSK 18900 3RB#3 23.08 PASS Band2 1.4MHz QPSK 18900 6RB#0 22.10 PASS Band2 1.4MHz QPSK 19193 1RB#0 23.11 PASS Band2 1.4MHz QPSK 19193 1RB#2 23.02 PASS Band2 1.4MHz QPSK 19193 1RB#5 23.00 PASS Band2 1.4MHz QPSK 19193 3RB#0 23.00 PASS Band2 1.4MHz QPSK 19193 3RB#1 22.99 PASS Band2 1.4MHz QPSK 19193 3RB#3 23.01 PASS Band2 1.4MHz QPSK 19193 6RB#0 22.10 PASS Band2 1.4MHz 16QAM 18607 1RB#0 21.94 PASS Band2 1.4MHz 16QAM 18607 1RB#2 22.22 PASS Band2 1.4MHz 16QAM 18607 1RB#5 21.86 PASS Band2 1.4MHz 16QAM 18607 3RB#0 21.95 PASS Band2 1.4MHz 16QAM 18607 3RB#1 21.94 PASS Band2 1.4MHz 16QAM 18607 3RB#3 21.89 PASS Band2 1.4MHz 16QAM 18607 6RB#0 20.72 PASS Band2 1.4MHz 16QAM 18900 1RB#0 22.19 PASS Band2 1.4MHz 16QAM 18900 1RB#2 22.25 PASS Band2 1.4MHz 16QAM 18900 1RB#5 22.15 PASS Band2 1.4MHz 16QAM 18900 3RB#0 22.00 PASS Band2 1.4MHz 16QAM 18900 3RB#1 22.03 PASS Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 290 Band2 1.4MHz 16QAM 18900 3RB#3 21.98 PASS Band2 1.4MHz 16QAM 18900 6RB#0 21.21 PASS Band2 1.4MHz 16QAM 19193 1RB#0 22.23 PASS Band2 1.4MHz 16QAM 19193 1RB#2 22.21 PASS Band2 1.4MHz 16QAM 19193 1RB#5 22.18 PASS Band2 1.4MHz 16QAM 19193 3RB#0 22.13 PASS Band2 1.4MHz 16QAM 19193 3RB#1 22.08 PASS Band2 1.4MHz 16QAM 19193 3RB#3 22.07 PASS Band2 1.4MHz 16QAM 19193 6RB#0 20.98 PASS Band2 3MHz QPSK 18615 1RB#0 22.88 PASS Band2 3MHz QPSK 18615 1RB#2 22.90 PASS Band2 3MHz QPSK 18615 1RB#5 22.84 PASS Band2 3MHz QPSK 18615 3RB#0 22.03 PASS Band2 3MHz QPSK 18615 3RB#1 22.02 PASS Band2 3MHz QPSK 18615 3RB#3 22.05 PASS Band2 3MHz QPSK 18615 6RB#0 22.04 PASS Band2 3MHz QPSK 18900 1RB#0 23.24 PASS Band2 3MHz QPSK 18900 1RB#2 23.19 PASS Band2 3MHz QPSK 18900 1RB#5 23.27 PASS Band2 3MHz QPSK 18900 3RB#0 22.24 PASS Band2 3MHz QPSK 18900 3RB#1 22.24 PASS Band2 3MHz QPSK 18900 3RB#3 22.19 PASS Band2 3MHz QPSK 18900 6RB#0 22.28 PASS Band2 3MHz QPSK 19185 1RB#0 23.22 PASS Band2 3MHz QPSK 19185 1RB#2 23.13 PASS Band2 3MHz QPSK 19185 1RB#5 23.13 PASS Band2 3MHz QPSK 19185 3RB#0 22.31 PASS Band2 3MHz QPSK 19185 3RB#1 22.29 PASS Band2 3MHz QPSK 19185 3RB#3 22.29 PASS Band2 3MHz QPSK 19185 6RB#0 22.28 PASS Band2 3MHz 16QAM 18615 1RB#0 22.12 PASS Band2 3MHz 16QAM 18615 1RB#2 22.05 PASS Band2 3MHz 16QAM 18615 1RB#5 21.95 PASS Band2 3MHz 16QAM 18615 3RB#0 21.13 PASS Band2 3MHz 16QAM 18615 3RB#1 21.12 PASS Band2 3MHz 16QAM 18615 3RB#3 21.07 PASS Band2 3MHz 16QAM 18615 6RB#0 21.12 PASS Band2 3MHz 16QAM 18900 1RB#0 22.37 PASS Band2 3MHz 16QAM 18900 1RB#2 22.32 PASS Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 290 Band2 3MHz 16QAM 18900 1RB#5 22.45 PASS Band2 3MHz 16QAM 18900 3RB#0 21.30 PASS Band2 3MHz 16QAM 18900 3RB#1 21.30 PASS Band2 3MHz 16QAM 18900 3RB#3 21.23 PASS Band2 3MHz 16QAM 18900 6RB#0 21.25 PASS Band2 3MHz 16QAM 19185 1RB#0 22.11 PASS Band2 3MHz 16QAM 19185 1RB#2 22.14 PASS Band2 3MHz 16QAM 19185 1RB#5 22.06 PASS Band2 3MHz 16QAM 19185 3RB#0 21.26 PASS Band2 3MHz 16QAM 19185 3RB#1 21.27 PASS Band2 3MHz 16QAM 19185 3RB#3 21.26 PASS Band2 3MHz 16QAM 19185 6RB#0 21.14 PASS Band2 5MHz QPSK 18625 1RB#0 23.19 PASS Band2 5MHz QPSK 18625 1RB#2 23.14 PASS Band2 5MHz QPSK 18625 1RB#5 23.11 PASS Band2 5MHz QPSK 18625 3RB#0 22.17 PASS Band2 5MHz QPSK 18625 3RB#1 22.20 PASS Band2 5MHz QPSK 18625 3RB#3 22.08 PASS Band2 5MHz QPSK 18625 6RB#0 22.09 PASS Band2 5MHz QPSK 18900 1RB#0 23.39 PASS Band2 5MHz QPSK 18900 1RB#2 23.28 PASS Band2 5MHz QPSK 18900 1RB#5 23.22 PASS Band2 5MHz QPSK 18900 3RB#0 22.31 PASS Band2 5MHz QPSK 18900 3RB#1 22.29 PASS Band2 5MHz QPSK 18900 3RB#3 22.32 PASS Band2 5MHz QPSK 18900 6RB#0 22.30 PASS Band2 5MHz QPSK 19175 1RB#0 23.36 PASS Band2 5MHz QPSK 19175 1RB#2 23.30 PASS Band2 5MHz QPSK 19175 1RB#5 23.28 PASS Band2 5MHz QPSK 19175 3RB#0 22.36 PASS Band2 5MHz QPSK 19175 3RB#1 22.29 PASS Band2 5MHz QPSK 19175 3RB#3 22.26 PASS Band2 5MHz QPSK 19175 6RB#0 22.30 PASS Band2 5MHz 16QAM 18625 1RB#0 22.19 PASS Band2 5MHz 16QAM 18625 1RB#2 22.18 PASS Band2 5MHz 16QAM 18625 1RB#5 22.06 PASS Band2 5MHz 16QAM 18625 3RB#0 21.15 PASS Band2 5MHz 16QAM 18625 3RB#1 21.23 PASS Band2 5MHz 16QAM 18625 3RB#3 21.16 PASS Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 290 Band2 5MHz 16QAM 18625 6RB#0 21.16 PASS Band2 5MHz 16QAM 18900 1RB#0 22.62 PASS Band2 5MHz 16QAM 18900 1RB#2 22.47 PASS Band2 5MHz 16QAM 18900 1RB#5 22.47 PASS Band2 5MHz 16QAM 18900 3RB#0 21.36 PASS Band2 5MHz 16QAM 18900 3RB#1 21.31 PASS Band2 5MHz 16QAM 18900 3RB…

Text truncated - open the document above for the full version.

Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 46 of 290 Band2-20MHz-QPSK-18700-1RB#0 Band2-20MHz-QPSK-18700-6RB#0 Band2-20MHz-QPSK-18900-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 47 of 290 Band2-20MHz-QPSK-18900-6RB#0 Band2-20MHz-QPSK-19100-1RB#0 Band2-20MHz-QPSK-19100-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 48 of 290 Band2-20MHz-16QAM-18700-1RB#0 Band2-20MHz-16QAM-18700-6RB#0 Band2-20MHz-16QAM-18900-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 49 of 290 Band2-20MHz-16QAM-18900-6RB#0 Band2-20MHz-16QAM-19100-1RB#0 Band2-20MHz-16QAM-19100-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 50 of 290 Band4-1.4MHz-QPSK-19957-1RB#0 Band4-1.4MHz-QPSK-19957-6RB#0 Band4-1.4MHz-QPSK-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 51 of 290 Band4-1.4MHz-QPSK-20175-6RB#0 Band4-1.4MHz-QPSK-20393-1RB#0 Band4-1.4MHz-QPSK-20393-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 52 of 290 Band4-1.4MHz-16QAM-19957-1RB#0 Band4-1.4MHz-16QAM-19957-6RB#0 Band4-1.4MHz-16QAM-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 53 of 290 Band4-1.4MHz-16QAM-20175-6RB#0 Band4-1.4MHz-16QAM-20393-1RB#0 Band4-1.4MHz-16QAM-20393-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 54 of 290 Band4-3MHz-QPSK-19965-1RB#0 Band4-3MHz-QPSK-19965-6RB#0 Band4-3MHz-QPSK-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 55 of 290 Band4-3MHz-QPSK-20175-6RB#0 Band4-3MHz-QPSK-20385-1RB#0 Band4-3MHz-QPSK-20385-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 56 of 290 Band4-3MHz-16QAM-19965-1RB#0 Band4-3MHz-16QAM-19965-6RB#0 Band4-3MHz-16QAM-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 57 of 290 Band4-3MHz-16QAM-20175-6RB#0 Band4-3MHz-16QAM-20385-1RB#0 Band4-3MHz-16QAM-20385-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 58 of 290 Band4-5MHz-QPSK-19975-1RB#0 Band4-5MHz-QPSK-19975-6RB#0 Band4-5MHz-QPSK-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 59 of 290 Band4-5MHz-QPSK-20175-6RB#0 Band4-5MHz-QPSK-20375-1RB#0 Band4-5MHz-QPSK-20375-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 60 of 290 Band4-5MHz-16QAM-19975-1RB#0 Band4-5MHz-16QAM-19975-6RB#0 Band4-5MHz-16QAM-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 61 of 290 Band4-5MHz-16QAM-20175-6RB#0 Band4-5MHz-16QAM-20375-1RB#0 Band4-5MHz-16QAM-20375-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 62 of 290 Band4-10MHz-QPSK-20000-1RB#0 Band4-10MHz-QPSK-20000-6RB#0 Band4-10MHz-QPSK-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 63 of 290 Band4-10MHz-QPSK-20175-6RB#0 Band4-10MHz-QPSK-20350-1RB#0 Band4-10MHz-QPSK-20350-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 64 of 290 Band4-10MHz-16QAM-20000-1RB#0 Band4-10MHz-16QAM-20000-6RB#0 Band4-10MHz-16QAM-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 65 of 290 Band4-10MHz-16QAM-20175-6RB#0 Band4-10MHz-16QAM-20350-1RB#0 Band4-10MHz-16QAM-20350-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 66 of 290 Band4-15MHz-QPSK-20025-1RB#0 Band4-15MHz-QPSK-20025-6RB#0 Band4-15MHz-QPSK-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 67 of 290 Band4-15MHz-QPSK-20175-6RB#0 Band4-15MHz-QPSK-20325-1RB#0 Band4-15MHz-QPSK-20325-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 68 of 290 Band4-15MHz-16QAM-20025-1RB#0 Band4-15MHz-16QAM-20025-6RB#0 Band4-15MHz-16QAM-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 69 of 290 Band4-15MHz-16QAM-20175-6RB#0 Band4-15MHz-16QAM-20325-1RB#0 Band4-15MHz-16QAM-20325-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 70 of 290 Band4-20MHz-QPSK-20050-1RB#0 Band4-20MHz-QPSK-20050-6RB#0 Band4-20MHz-QPSK-20175-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 71 of 290 Band4-20MHz-QPSK-20175-6RB#0 Band4-20MHz-QPSK-20300-1RB#0 Band4-20MHz-QPSK-20300-6RB#0 Project No.: SHT2101045201EW Radio Specification…

Text truncated - open the document above for the full version.

Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 76 of 290 Band12-1.4MHz-16QAM-23017-1RB#0 Band12-1.4MHz-16QAM-23017-6RB#0 Band12-1.4MHz-16QAM-23095-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 77 of 290 Band12-1.4MHz-16QAM-23095-6RB#0 Band12-1.4MHz-16QAM-23173-1RB#0 Band12-1.4MHz-16QAM-23173-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 78 of 290 Band12-3MHz-QPSK-23025-1RB#0 Band12-3MHz-QPSK-23025-6RB#0 Band12-3MHz-QPSK-23095-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 79 of 290 Band12-3MHz-QPSK-23095-6RB#0 Band12-3MHz-QPSK-23165-1RB#0 Band12-3MHz-QPSK-23165-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 80 of 290 Band12-3MHz-16QAM-23025-1RB#0 Band12-3MHz-16QAM-23025-6RB#0 Band12-3MHz-16QAM-23095-1RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 81 of 290 Band12-3MHz-16QAM-23095-6RB#0 Band12-3MHz-16QAM-23165-1RB#0 Band12-3MHz-16QAM-23165-6RB#0 Project No.: SHT2101045201EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 82 of 290 Band12-5MHz-QP…
