2AM8O-U373Arm Blood Pressure Monitor

Page 1 of 18 Arm Blood Pressure Monitor Instruction Manual Model: AES-U373 Version:1.0 Date modified: 2022-03-22 Please read this instruction manual carefully before use Page 2 of 18 Table of Contents 1. Introduction ..................................................................................................................................... 3 2. Indications for Use ........................................................................................................................... 3 3. Product information ........................................................................................................................ 3 4. Classification .................................................................................................................................... 4 5. Safety Information ........................................................................................................................... 4 5.1 General usage ............................................................................................................................ 4 5.2 General precautions .................................................................................................................. 5 6. Explanation of Marks or Symbols .................................................................................................... 5 7. Unit Description .............................................................................................................................. 6 8. Display ............................................................................................................................................. 7 9. Battery Installation .......................................................................................................................... 7 10. Setting the User, Voice and Unit ...................................................................................................... 8 11. Precautions for Measurement ......................................................................................................... 8 12. Applying the Arm Cuff ..................................................................................................................... 9 13. Correct Measurement Posture ...................................................................................................... 10 14. Taking A Measurement .................................................................................................................. 10 15. Viewing Memory Values ................................................................................................................ 11 16. Deleting Memory Values ............................................................................................................... 11 17. Bluetooth connection .................................................................................................................... 11 18.Care and Maintenance ..................................................................................................................... 11 18.1 Cleaning the monitor and cuff ............................................................................................... 11 18.2 Maintaining the monitor and cuff ......................................................................................... 12 19.Guarantee ......................................................................................................................................... 12 20.Error Messages ................................................................................................................................. 12 21.Technical Specifications .................................................................................................................... 12 22.Blood Pressure Classification for Adult ............................................................................................ 13 23.Disposal ............................................................................................................................................ 14 24.Electromagnetic Compatibility ......................................................................................................... 14 25.FCC Warning ..................................................................................................................................... 17 Page 3 of 18 1. Introduction Thank you for purchasing the Arm Blood Pressure Monitor. The blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood’s movement through your brachial artery and converts the movements into a digital reading. An oscillometric monitor does not need a stethoscope so the monitor is simple to use. The Blood Pressure Monitor comes with the following components:  Monitor  Arm Cuff  4×AAA batteries  Instruction Manual Please read this instruction manual thoroughly before using the unit. Please keep for future reference. For specific information about your own blood pressure, please consult your doctor. 2. Indications for Use The Arm Blood Pressure Monitor is intended to measure the systolic and diastolic blood pressure as well as the pulse rate of adult person via non-invasive oscillometric technique in which an inflatable cuff is wrapped around the upper arm. It can be used at medical facilities or at home. The intended upper arm circumference is 22-42cm. Suitable for adults who over the age of 12. Contraindications: no. 3. Product information Product name: Arm Blood Pressure Monitor , Product model: AES-U373 , Software version: A.01.00.00 Standard: The product is made under the IEC 80601-2-30. Manufacturer Company name: Alicn Medical Shenzhen, Inc Address: Room 410, Building A, 3rd Sub-park, Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East Road, Pingshan District, 518118 Shenzhen, Guangdong, PEOPLE'S REPUBLIC OF CHINA Web: www.alicn-med.com Tel: +86 755 265…

Text truncated - open the document above for the full version.

Arm Blood Pressure Monitor Model:AES-U373 Power:DC 6V, 4*AAA batteries Type-c input: 5V, 1A Measurement range and accuracy of blood pressure:0-290mmHg (±3mmHg) Arm circumference:22-42cm FCC ID:2AM8O-U373 Alicn Medical Shenzhen,Inc Made in China 22E013 2022-05-20 2027-05-19

Label location

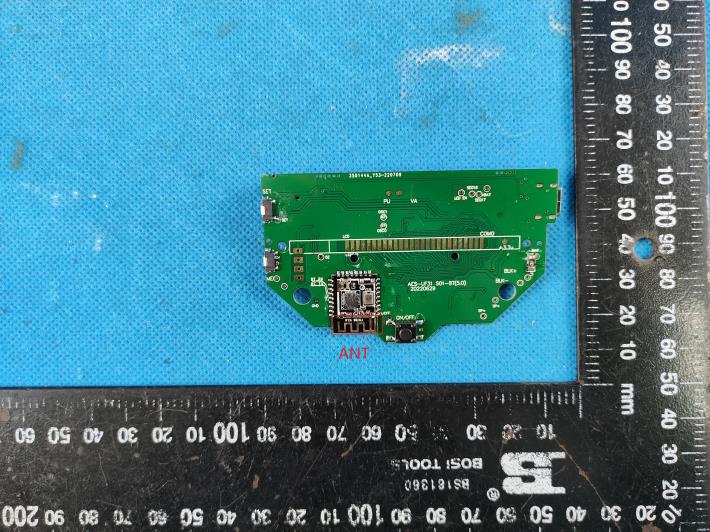

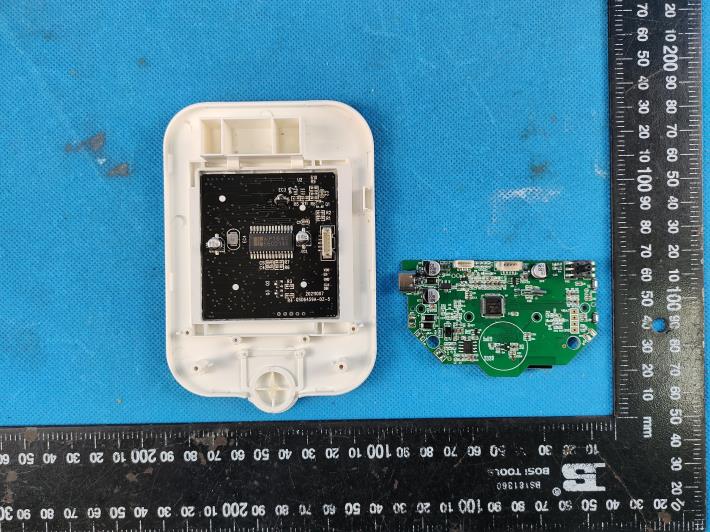

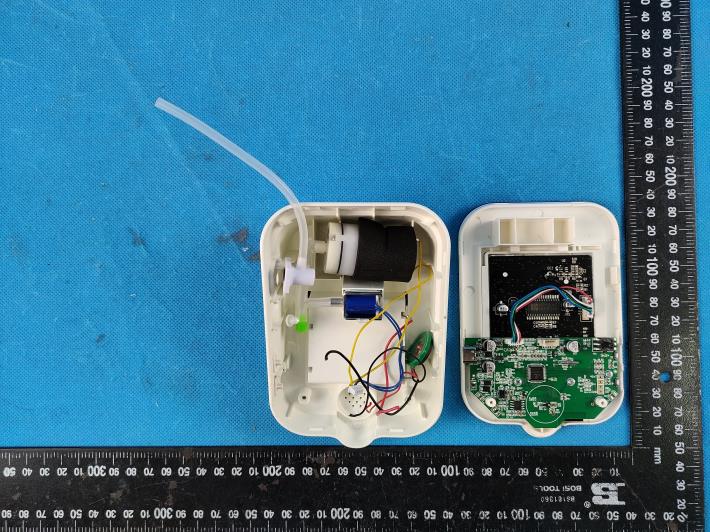

Internal Photos

FCC ID: 2AM8O-U373 RF Exposure Evaluation REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. TEST RESULT Passed Not Applicable Radio Type Frequency range (MHz) Conducted Power (dBm) Maximum Tune-up (dBm) Calculating data Limit Result Bluetooth 2402-2480 0.84 1.00 0.391 3.00 Pass Note: 1) The maximum antenna gain is 0dBi 2) The exposure evaluation safety distance is 5mm.

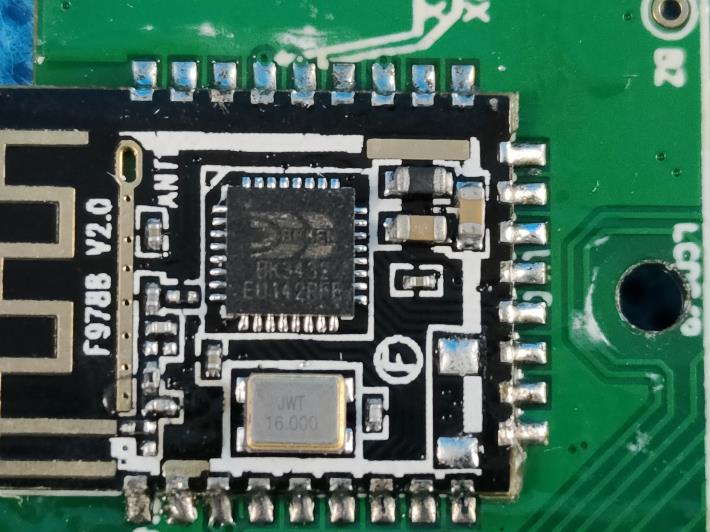

Antenna describe 1. Antenna describe: Antenna plate Monoploe antenna Make name/model name F-9788 Antenna gain 0dBi Frequency range 2.4GHZ-2.483GHZ Connector type direct Location of mearement(company name) XIAMENSHI C-CHIP TECHNOLOGY CO., LTD 2.External view drawing: Picture of antenna TOP view PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn Antenna Radiation Pattern Radiation [email protected] Total Average Gain:-0.475dbi Phi Gain 0 45 90 135 180 235 270 315 -0.1 -0.3 -0.8 -0.5 -0.2 -0.6 -0.8 -0.5 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn Radiation [email protected] Total Average Gain:-0.275dbi Phi Gain 0 45 90 135 180 235 270 315 0 -0.1 -0.3 -0.6 -0.1 -0.2 -0.6 -0.4 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn Radiation [email protected] Total Average Gain:-0.237dbi Phi Gain 0 45 90 135 180 235 270 315 0 -0.1 -0.2 -0.5 0 -0.3 -0.6 -0.2 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

Page: 1 of 32 TEST REPORT For Bluetooth-LE Report No. ...................................... : CHTEW22100051 Report Verification: Project No.................................： SHT2206102902EW FCC ID ............................................. : 2AM8O-U373 Applicant’s name ........................... : Alicn Medical Shenzhen, Inc Address ............................................. : Room 410, Building A, 3rd Sub-park, Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East Road, Pingshan District, 518118 Shenzhen, Guangdong, PEOPLE'S REPUBLIC OF CHINA Product Name ................................ : Arm Blood Pressure Monitor Trade Mark ....................................... : - Model No. ......................................... : AES-U373 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Aug.05, 2022 Date of testing.............................: Aug.05, 2022- Oct.19, 2022 Date of issue...............................: Oct.20, 2022 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW22100051 Page: 2 of 32 Date of issue: 2022-10-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) Contents 1. TEST STAN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test sample information 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Statement of the measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 14 5.4. Power Spectral Density 15 5.5. 6dB bandwidth 16 5.6. 99% Occupied Bandwidth 17 5.7. Duty Cycle 18 5.8. Conducted Band edge and Spurious Emission 19 5.9. Radiated Band edge Emission 20 5.10. Radiated Spurious Emission 22 6. TEST SETUP PHOTOS 27 7. EXTERNAL AND INTERNAL PHOTOS 29 8. APPENDIX REPORT 32 Report No.: CHTEW22100051 Page: 3 of 32 Date of issue: 2022-10-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2022-10-20 Original Report No.: CHTEW22100051 Page: 4 of 32 Date of issue: 2022-10-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203/15.247(c) PASS Xiaoxiao Li 5.2 AC Conducted Emission 15.207 PASS Junman Wang 5.3 Peak Output Power 15.247(b)(3) PASS Xiaoxiao Li 5.4 Power Spectral Density 15.247(e) PASS Xiaoxiao Li 5.5 6dB Bandwidth 15.247(a)(2) PASS Xiaoxiao Li 5.6 99% Occupied Bandwidth - PASS *1 Xiaoxiao Li 5.7 Duty cycle - PASS *1 Xiaoxiao Li 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS Xiaoxiao Li 5.9 Radiated Band Edge Emission 15.205/15.209 PASS Xiaoxiao Li 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Haoxin Luo Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW22100051 Page: 5 of 32 Date of issue: 2022-10-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 3. SUMMARY 3.1. Client Information Applicant: Alicn Medical Shenzhen, Inc Address: Room 410, Building A, 3rd Sub-park, Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East Road, Pingshan District, 518118 Shenzhen, Guangdong, PEOPLE'S REPUBLIC OF CHINA Manufacturer: Alicn Medical Shenzhen, Inc Address: Room 410, Building A, 3rd Sub-park, Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East Road, Pingshan District, 518118 Shenzhen, Guangdong, PEOPLE'S REPUBLIC OF CHINA 3.2. Product Description Main unit information: Product Name: Arm Blood Pressure Monitor Trade Mark: - Model No.: AES-U373 Listed Model(s): - Power supply: DC 6V from battery（4*1.5V） Hardware version: AES UG11 JV00 2022…

Text truncated - open the document above for the full version.

Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 14 APPENDIX REPORT Project No. SHT2206102902EW Radio Specification Bluetooth BLE Test sample No. YPHT22061029004 Model No. AES-U373 Start test date 2022-08-08 Finish date 2022-10-19 Temperature 25.9°C Humidity 36% Test Engineer Xiaoxiao Li Auditor Appendix clause Test item Result A Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 14 Appendix A：Peak Output Power Type Channel Peak Output power (dBm) Average Output power (dBm) Limit (dBm) Result BT-BLE 00 0.61 0.58 ≤ 30.00 Pass 19 1.09 0.84 39 0.32 0.27 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 14 CH00 Date: 19.OCT.2022 09:53:10 CH19 Date: 19.OCT.2022 09:59:22 CH39 Date: 19.OCT.2022 10:01:56 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 14 Appendix B：Power Spectral Density Type Channel Power Spectral Density(dBm/3KHz) Limit (dBm/3KHz) Result BT-BLE 00 -15.73 ≤8.00 Pass 19 -15.79 39 -16.05 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 14 CH00 Date: 19.OCT.2022 09:54:09 CH19 Date: 19.OCT.2022 09:59:59 CH39 Date: 19.OCT.2022 10:03:07 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 14 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth(kHz) Limit (kHz) Result BT-BLE 00 820.00 ≥500 Pass 19 830.00 39 826.00 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 14 CH00 Date: 19.OCT.2022 09:52:50 CH19 Date: 19.OCT.2022 09:59:05 CH39 Date: 19.OCT.2022 10:01:39 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 14 Appendix D：99% Occupied Bandwidth Type Channel 99% Occupied Bandwidth(MHz) Limit (kHz) Result BT-BLE 00 1.24 - Pass 19 1.26 39 1.23 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 14 CH00 Date: 19.OCT.2022 09:53:01 CH19 Date: 19.OCT.2022 09:59:13 CH39 Date: 19.OCT.2022 10:01:47 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 14 Appendix E：Duty cycle Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 2440 2.73 3.50 78.0% 0.4 Date: 19.OCT.2022 09:58:52 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 14 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Band edge CH00 Date: 19.OCT.2022 09:57:19 CH39 Date: 19.OCT.2022 10:03:17 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 14 Test Item: SE CH00 Reference level Date: 19.OCT.2022 10:12:59 CH00 30MHz~1000MHz Date: 19.OCT.2022 10:13:15 CH00 1GHz~26GHz Date: 19.OCT.2022 10:13:31 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 14 CH19 Reference level Date: 19.OCT.2022 10:00:06 CH19 30MHz~1000MHz Date: 19.OCT.2022 10:00:21 CH19 1GHz~26GHz Date: 19.OCT.2022 10:00:37 Project No.: SHT2206102902EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 14 CH39 Reference level Date: 19.OCT.2022 10:03:23 CH39 30MHz~1000MHz Date: 19.OCT.2022 10:03:39 CH39 1GHz~26GHz Date: 19.OCT.2022 10:03:55 --------End of Report--------

TEST SETUP PHOTOS Radiated Emission AC Conducted Emission
