2AM8O-U211-3Arm Blood Pressure Monitor

Page 1 of 16 Arm Blood Pressure Monitor Instruction Manual Model: AES-U211 Version:1.1 Date modified: 2023-05-10 Please read this instruction manual carefully before use Page 2 of 16 Table of Contents 1. Introduction ..................................................................................................................................... 3 2. Indications for Use ........................................................................................................................... 3 3. Product information ........................................................................................................................ 3 4. Classification .................................................................................................................................... 3 5. Safety Information ........................................................................................................................... 4 5.1 General usage ............................................................................................................................ 4 5.2 General precautions .................................................................................................................. 5 6. Explanation of Marks or Symbols .................................................................................................... 5 7. Unit Description .............................................................................................................................. 6 8. Display ............................................................................................................................................. 6 9. Charging the Battery ........................................................................................................................ 6 10. Setting the Measurement Unit ........................................................................................................ 7 11. Precautions for Measurement ......................................................................................................... 8 12. Applying the Arm Cuff ..................................................................................................................... 8 13. Correct Measurement Posture ........................................................................................................ 9 14. Taking A Measurement .................................................................................................................... 9 15. Care and Maintenance .................................................................................................................. 10 15.1 Cleaning the monitor and cuff ............................................................................................... 10 15.2 Maintaining the monitor and cuff ......................................................................................... 10 16. Guarantee ...................................................................................................................................... 11 17. Error Messages .............................................................................................................................. 11 18. Technical Specifications ................................................................................................................. 11 19. Blood Pressure Classification for Adult .......................................................................................... 12 20. Disposal ......................................................................................................................................... 12 21. Electromagnetic Compatibility ...................................................................................................... 12 22. FCC Warning .................................................................................................................................. 16 Page 3 of 16 1. Introduction Thank you for purchasing the Arm Blood Pressure Monitor. The blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood’s movement through your brachial artery and converts the movements into a digital reading. An oscillometric monitor does not need a stethoscope so the monitor is simple to use. The Blood Pressure Monitor comes with the following components:  Monitor  Arm Cuff  Instruction Manual Please read this instruction manual thoroughly before using the unit. Please keep for future reference. For specific information about your own blood pressure, please consult your doctor. 2. Indications for Use The Arm Blood Pressure Monitor is intended to measure the systolic and diastolic blood pressure as well as the pulse rate of person via non-invasive oscillometric technique in which an inflatable cuff is wrapped around the upper arm. It can be used at medical facilities or at home. The intended upper arm circumference is 22-42cm. Suitable for adults and adolescents who over the age of 12. 3. Product information Product name: Arm Blood Pressure Monitor , Product model: AES-U211 , Software version: A.01.00.00 Standard: The product is made under the IEC 80601-2-30. Manufacturer Company name: Alicn Medical Shenzhen, Inc Address: Room 410, Building A, 3rd Sub-park, Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East Road, Pingshan District, 518118 Shenzhen, Guangdong, PEOPLE'S REPUBLIC OF CHINA Web: www.alicn-med.com Tel: +86 755 26501548 Fax: +86 755 26504849 4. Classification (1) Internally powered equipment; (2) Type BF applied part; (3) IP classification: IP21; (4) Disinfection of 75% medical alcohol; (5) Not Category AP / APG equipment; (6) Mode of operation: continuous operation. Page 4 of 16 5. Safety Information 5.1 General usage  Do not adjust medication based on measurement values from this blood pressure monitor. Take medication as prescribed by your physician. Only a physician is qualifie…

Text truncated - open the document above for the full version.

Alien Medical Shenzhen, Inc U.S. Agent Designation for Service of Process - Certification Attestation Letter July 5, 2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1 H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AM80-U211-3 FRN: 0026737429 Per section 2.911 (d)(?) of the FCC rules, (" Alien Medical Shenzhen, Inc ") certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: Physical U.S. Company Address: Agent name: Agent Email Address: FRN: Global Product Services & Consultation LLC 328 W Palm Ave, Monrovia. CA91016 ChiS.Chan [email protected] 0033406703 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed:� Printed name: Renxiong.Huang Title: L&R manager Company Alien Medical Shenzhen, Name: Inc Date: July 4, 2023 Designated Agent Signed: (Required, if different to Applicant): Signed: Printed name: ChiS.Chan Title: Company Global Product Services Name: Consultation LLC Date: 2023-07-04 & * the applicant must designate a contact located in the United States for purposes of acting as the applicant's agent for seNice of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. T echnical Director SC3077287

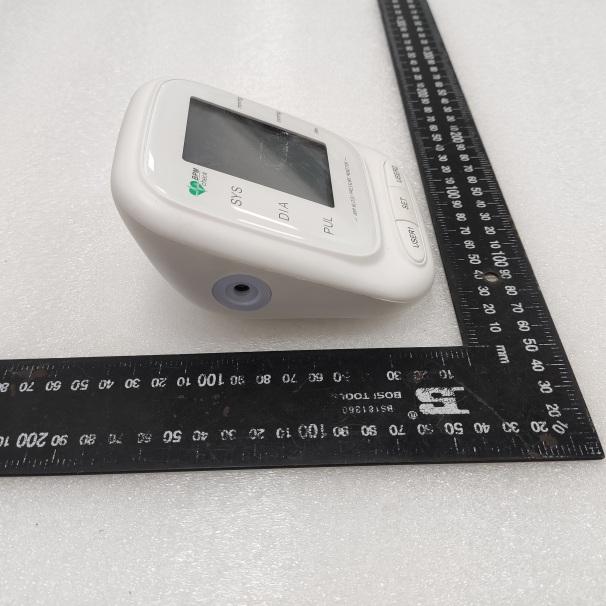

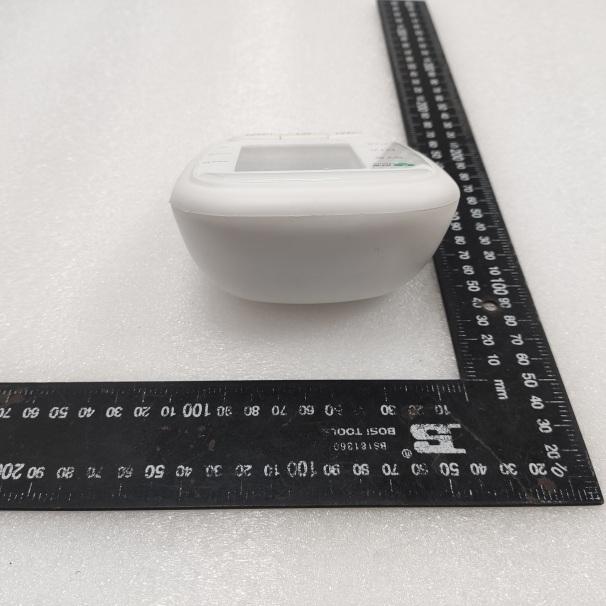

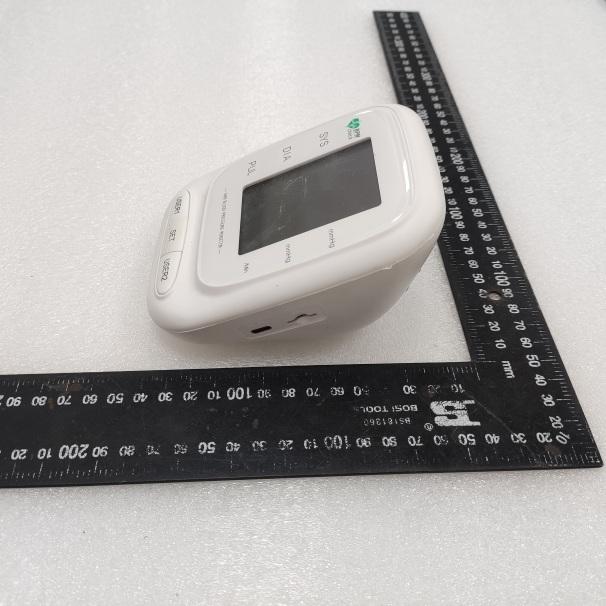

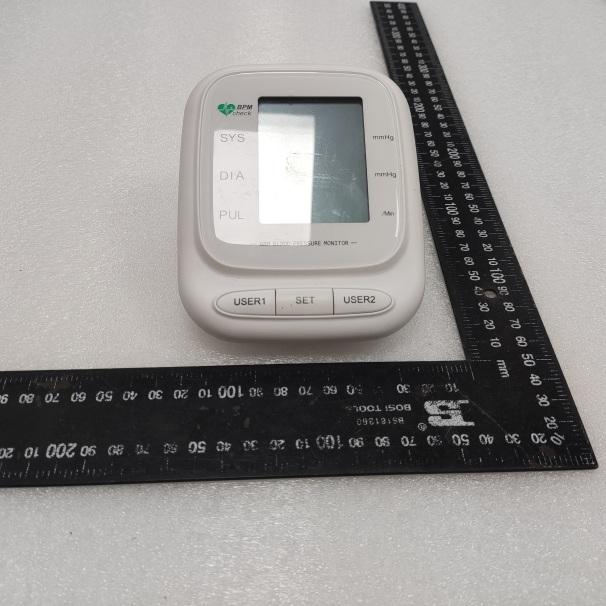

External photos

FCC ID: 2AM8O-U211-3

AES-U211

Internal photos

FCC ID: 2AM8O-U211-3 RF Exposure Evaluation REQUIREMENT KDB 447498 D04 Interim General RF Exposure Guidance v01 Appendix B Exemptions for Single RF Sources B.3 MPE-based Exemption and B.4 SAR-based Exemption: f is in GHz, d is the separation distance (cm), and ERP20cm is per Formula (B.1). TEST RESULT Passed Not Applicable FCC ID: 2AM8O-U211-3 Band Conducted Maximum Tune-up (dBm) duty cycle AV power (dBm) EGPRS850 33.00 12.5% 23.97 EGPRS1900 31.00 12.5% 21.97 LTE Cat M band 2 23.00 100% 23.00 LTE Cat M band 4 23.00 100% 23.00 LTE Cat M band 5 23.00 100% 23.00 LTE Cat M band 12 23.00 100% 23.00 LTE Cat M band 13 23.00 100% 23.00 LTE Cat NB band 2 23.00 100% 23.00 LTE Cat NB band 4 23.00 100% 23.00 LTE Cat NB band 5 23.00 100% 23.00 LTE Cat NB band 12 23.00 100% 23.00 LTE Cat NB band 13 23.00 100% 23.00 FCC ID: 2AM8O-U211-3 Band AV power (dBm) Ant Gain (dBi) ERP (dBm) ERP (mW) Minimum Separation Dis. (cm) Pth (mW) LTE Cat M band 2 23.00 -3.00 17.85 60.954 2.5 66.526 LTE Cat M band 4 23.00 -3.00 17.85 60.954 2.5 68.932 LTE Cat M band 5 23.00 -3.00 17.85 60.954 2.0 66.098 LTE Cat M band 12 23.00 -3.00 17.85 60.954 2.0 71.765 LTE Cat M band 13 23.00 -3.00 17.85 60.954 2.0 68.068 LTE Cat NB band 2 23.00 -3.00 17.85 60.954 2.5 66.526 LTE Cat NB band 4 23.00 -3.00 17.85 60.954 2.5 68.932 LTE Cat NB band 5 23.00 -3.00 17.85 60.954 2.0 66.098 LTE Cat NB band 12 23.00 -3.00 17.85 60.954 2.0 71.765 LTE Cat NB band 13 23.00 -3.00 17.85 60.954 2.0 68.068 EGPRS850 23.97 -3.00 16.82 48.084 2.5 66.526 EGPRS1900 21.97 -3.00 18.82 76.208 2.5 90.444 Note: The safety distance for body exposure assessment is 2.5cm.

Page: 1 of 32 TESTREPORT ForGSM ReportNo. ........................................... :CHTEW23060051ReportVerification: ProjectNo.................................：SHT2304055302EW FCCID...................................................:2AM8O-U211-3 Applicant .............................................. :AlicnMedicalShenzhen,Inc Address ................................................. :Room410,BuildingA,3rdSub-park,LeiboZhongchengLife SciencePark,No.22JinxiuEastRoad,PingshanDistrict, 518118Shenzhen,Guangdong,PEOPLE'SREPUBLICOF CHINA ProductName.....................................:ArmBloodPressureMonitor TradeMark ............................................ :- ModelNo...............................................:AES-U211 ListedModel(s) ..................................... : - Standard .............................................. : FCCCFRTitle47Part2 FCCCFRTitle47Part22SubpartH FCCCFRTitle47Part24SubpartE Dateofreceiptoftestsample..........:May.04,2023 Dateoftesting..............................:May.04,2023-Jun.27,2023 Dateofissue...............................:Jun.28,2023 Result............................................:Pass Compiledby (position+printedname+signature) ... :FileadministratorsFanghuiZhu Supervisedby (position+printedname+signature)....:ProjectEngineerXiaodongZhao Approvedby (position+printedname+signature)....:ManagerHansHu TestingLaboratoryName................:ShenzhenHuatongweiInternationalInspectionCo.,Ltd. Address.................................................:1/F,Bldg3,HongfaHi-techIndustrialPark,GenyuRoad, Tianliao,Gongming,Shenzhen,China ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenHuatongweiInternationalInspectionCo.,Ltd.isacknowledgedascopyrightownerandsource ofthematerial.ShenzhenHuatongweiInternationalInspectionCo.,Ltd.takesnoresponsibilityforandwill notassumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialdue toitsplacementandcontext. Thetestreportmerelycorrespondtothetestsample. ReportNo.:CHTEW23060051Page:2of32Dateofissue:2023-06-28 ShenzhenHuatongweiInternationalInspectionCo.,Ltd.ReportTemplateVersion:V05(2023-03) Contents 1.TESTSTANDARDSANDREPORTVERSION3 1.1.ApplicableStandards3 1.2.Reportversioninformation3 2.TESTDESCRIPTION4 3.SUMMARY5 3.1.ClientInformation5 3.2.ProductDescription5 3.3.RadioSpecificationDescription5 3.4.TestingLaboratoryInformation6 4.TESTCONFIGURATION7 4.1.Testfrequencylist7 4.2.Testmode7 4.3.Testsampleinformation7 4.4.Supportunitusedintestconfigurationandsystem8 4.5.Testingenvironmentalcondition8 4.6.Statementofthemeasurementuncertainty8 4.7.EquipmentsUsedduringtheTest9 5.TESTCONDITIONSANDRESULTS10 5.1.ConductedOutputPower10 5.2.Peak-to-AverageRatio11 5.3.99%OccupiedBandwidth&26dBBandwidth12 5.4.BandEdge13 5.5.ConductedSpuriousEmissions14 5.6.FrequencystabilityVSTemperaturemeasurement15 5.7.FrequencystabilityVSVoltagemeasurement16 5.8.ERPandEIRP17 5.9.RadiatedSpuriousEmission18 6.TESTSETUPPHOTOSOFTHEEUT26 7.EXTERNALANDINTERNALPHOTOSOFTHEEUT27 7.1.Externalphotos27 7.2.Internalphotos29 8.APPENDIXREPORT32 ReportNo.:CHTEW23060051Page:3of32Dateofissue:2023-06-28 ShenzhenHuatongweiInternationalInspectionCo.,Ltd.ReportTemplateVersion:V05(2023-03) 1.TESTSTANDARDSANDREPORTVERSION 1.1.ApplicableStandards Thetestswereperformedaccordingtofollowingstandards: FCCCFRTitle47Part2:FrequencyAllocationsandRadioTreatyMatters;GeneralRulesandRegulations FCCCFRTitle47Part22SubpartH:CellularRadiotelephoneService FCCCFRTitle47Part24SubpartE:BroadbandPCS ANSIC63.26-2015:AmericanNationalStandardforComplianceTestingofTransmittersUsedinLicensed RadioServices KDB971168D01PowerMeasLicenseDigitalSystemsv03:MEASUREMENTGUIDANCEFOR CERTIFICATIONOFLICENSEDDIGITALTRANSMITTERS 1.2.Reportversioninformation RevisionNo.DateofissueDescription N/A2023-06-28Original ReportNo.:CHTEW23060051Page:4of32Dateofissue:2023-06-28 ShenzhenHuatongweiInternationalInspectionCo.,Ltd.ReportTemplateVersion:V05(2023-03) 2.TESTDESCRIPTION SectionTestItemSectioninCFR47Result #1 TestEngineer 5.1 ConductedOutputPower Part2.1046 Part22.913(a) Part24.232(c) Pass XiaodongZhao 5.2Peak-to-AverageRatioPart24.232Pass XiaodongZhao 5.3 99%OccupiedBandwidth& 26dBBandwidth Part2.1049 Part22.917(b) Part24.238(b) Pass XiaodongZhao 5.4BandEdge Part2.1051 Part22.917 Part24.238 Pass XiaodongZhao 5.5 ConductedSpurious Emissions Part2.1051 Part22.917 Part24.238 Pass XiaodongZhao 5.6 Frequencystabilityvs temperature Part2.1055(a)(1)(b) Part22.355 Part24.235 Pass XiaodongZhao 5.7Frequencystabilityvsvoltage Part2.1055(d)(1)(2) Part22.355 Part24.235 Pass XiaodongZhao 5.8ERPandEIRP Part22.913(a) Part24.232(b) Pass XiaodongZhao 5.9RadiatedSpuriousEmissions Part2.1053 Part22.917 Part24.238 Pass YifanWang Note: #1:Thetestresultdoesnotincludemeasurementuncertaintyvalue ReportNo.:CHTEW23060051Page:5of32Dateofissue:2023-06-28 ShenzhenHuatongweiInternationalInspectionCo.,Ltd.ReportTemplateVersion:V05(2023-03) 3.SUMMARY 3.1.ClientInformation Applicant:AlicnMedicalShenzhen,Inc Address: Room410,BuildingA,3rdSub-park,LeiboZhongchengLifeScience Park,No.22JinxiuEastRoad,PingshanDistrict,518118Shenzhen, Guangdong,PEOPLE'SREPUBLICOFCHINA Manufacturer:AlicnMedicalShenzhen,Inc Address: Room410,BuildingA,3rdSub-park,LeiboZhongchengLifeScience Park,No.22JinxiuEastRoad,PingshanDistrict,518118Shenzhen, Guangdong,PEOPLE'SREPUBLICOFCHINA 3.2.ProductDescription Mainunitinformation: ProductName:ArmBloodPressureMonitor TradeMark:- ModelNo.:AES-U211 ListedModel(s): Powersupply:3.7V,1100mAhLi-ionbattery Hardwareversion:AES-066-4G-JV01 Softwareversion:A.01.00.00 3.3.RadioSpecificationDescription SupportOperatingBand:GSM850PCS1900 OperatingFrequencyRange:Pleaserefertonote#2 SupportNetwork:GSMGPRSEGPRS Modulationtype:GMSK8PSK GPRSMultislotClass:8101233 EGPRSMultislotClass:8101233 Antennatype:FPC Antennagain #3 :GSM850:-3.0dBiPCS1900:-3.0dBi Note: :meansthatthisfeatureissupported;:meansthatthisfeatu…

Text truncated - open the document above for the full version.

Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 27 APPENDIX REPORT Project No. SHT2304055302EW Radio Specification EGPRS Test sample No. YPHT23040553011 Model No. AES-U211 Start test date 2023-06-02 Finish date 2023-06-28 Temperature 25.3°C Humidity 54% Test Engineer Xiaodong Zhao Auditor Appendix clause Test item Result A Conducted Output Power PASS B Peak-to-Average Ratio PASS C 26 dB Bandwidth and Occupied Bandwidth PASS D Band edge PASS E Conducted Spurious Emission PASS F Frequency Stability PASS G ERP and EIRP PASS Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 27 8.1 Appendix A: Conducted Output Power Test Result Band Channel PCL Slot Power(dBm) Limit(dBm) Verdict EGPRS850 128 5 1 31.98 38.5 PASS EGPRS850 128 5 2 30.95 38.5 PASS EGPRS850 128 5 3 29.13 38.5 PASS EGPRS850 128 5 4 28.23 38.5 PASS EGPRS850 190 5 1 31.92 38.5 PASS EGPRS850 190 5 2 30.99 38.5 PASS EGPRS850 190 5 3 29.28 38.5 PASS EGPRS850 190 5 4 28.47 38.5 PASS EGPRS850 251 5 1 32.19 38.5 PASS EGPRS850 251 5 2 31.64 38.5 PASS EGPRS850 251 5 3 30.06 38.5 PASS EGPRS850 251 5 4 29.13 38.5 PASS EGPRS1900 512 0 1 30.44 33 PASS EGPRS1900 512 0 2 29.64 33 PASS EGPRS1900 512 0 3 27.27 33 PASS EGPRS1900 512 0 4 26.00 33 PASS EGPRS1900 661 0 1 30.05 33 PASS EGPRS1900 661 0 2 29.50 33 PASS EGPRS1900 661 0 3 27.14 33 PASS EGPRS1900 661 0 4 25.88 33 PASS EGPRS1900 810 0 1 30.66 33 PASS EGPRS1900 810 0 2 29.29 33 PASS EGPRS1900 810 0 3 26.81 33 PASS EGPRS1900 810 0 4 25.30 33 PASS Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 27 Band Channel PCL Slot Power(dBm) Limit(dBm) Verdict EGPRS850 128 8 1 26.00 38.5 PASS EGPRS850 128 8 2 24.77 38.5 PASS EGPRS850 128 8 3 22.93 38.5 PASS EGPRS850 128 8 4 21.49 38.5 PASS EGPRS850 190 8 1 26.12 38.5 PASS EGPRS850 190 8 2 25.07 38.5 PASS EGPRS850 190 8 3 23.20 38.5 PASS EGPRS850 190 8 4 21.74 38.5 PASS EGPRS850 251 8 1 26.29 38.5 PASS EGPRS850 251 8 2 25.16 38.5 PASS EGPRS850 251 8 3 23.60 38.5 PASS EGPRS850 251 8 4 22.18 38.5 PASS EGPRS1900 512 2 1 26.63 33 PASS EGPRS1900 512 2 2 25.92 33 PASS EGPRS1900 512 2 3 23.39 33 PASS EGPRS1900 512 2 4 21.90 33 PASS EGPRS1900 661 2 1 26.21 33 PASS EGPRS1900 661 2 2 25.63 33 PASS EGPRS1900 661 2 3 23.07 33 PASS EGPRS1900 661 2 4 21.53 33 PASS EGPRS1900 810 2 1 26.37 33 PASS EGPRS1900 810 2 2 25.59 33 PASS EGPRS1900 810 2 3 23.50 33 PASS EGPRS1900 810 2 4 21.98 33 PASS Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 27 8.2 Appendix B: Peak-to-Average Ratio Test Result Band Channel Peak-to-Average Ratio(dB) Limit(dBm) Verdict EGPRS850 128 3.13 13 PASS EGPRS850 190 3.17 13 PASS EGPRS850 251 3.20 13 PASS EGPRS850 128 5.76 13 PASS EGPRS850 190 5.74 13 PASS EGPRS850 251 5.76 13 PASS EGPRS1900 512 2.90 13 PASS EGPRS1900 661 2.93 13 PASS EGPRS1900 810 2.96 13 PASS EGPRS1900 512 5.88 13 PASS EGPRS1900 661 5.92 13 PASS EGPRS1900 810 5.92 13 PASS Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 27 8.3 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Channel Occupied Bandwidth (kHz) 26dB Bandwidth (kHz) Limit(kHz) Verdict EGPRS850 128 244.48 315.8 --- PASS EGPRS850 190 244.38 319.2 --- PASS EGPRS850 251 246.46 314.4 --- PASS EGPRS850 128 243.64 310.7 --- PASS EGPRS850 190 244.68 318.5 --- PASS EGPRS850 251 246.30 308.7 --- PASS EGPRS1900 512 244.32 316.1 --- PASS EGPRS1900 661 244.79 319.5 --- PASS EGPRS1900 810 244.45 310.5 --- PASS EGPRS1900 512 245.22 312.0 --- PASS EGPRS1900 661 246.22 311.9 --- PASS EGPRS1900 810 245.06 314.0 --- PASS Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 27 Test Graphs EGPRS850-128 EGPRS850-190 Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 27 EGPRS850-251 EGPRS850-128 EGPRS850-190 EGPRS850-251 Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 27 EGPRS1900-512 EGPRS1900-661 EGPRS1900-810 Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 27 EGPRS1900-512 EGPRS1900-661 EGPRS1900-810 Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 27 8.4 Appendix D: Band Edge Test Result Band Channel Value(dBm) Limit(dBm) Verdict EGPRS850 128 -26.93 -13 PASS EGPRS850 251 -25.51 -13 PASS EGPRS850 128 -32.39 -13 PASS EGPRS850 251 -33.66 -13 PASS EGPRS1900 512 -29.83 -13 PASS EGPRS1900 810 -29.53 -13 PASS EGPRS1900 512 -33.95 -13 PASS EGPRS1900 810 -35.62 -13 PASS Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 27 Test Graphs EGPRS850-128 EGPRS850-251 EGPRS850-128 Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 27 EGPRS850-251 EGPRS1900-512 EGPRS1900-810 Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 27 EGPRS1900-512 EGPRS1900-810 Project No.: SHT2304055302EW Radio Specification: EGPRS Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 27 8.5 Appendix E: Conducted Spurious Emission Test Result Band Channel Frequency Range(Mhz) Value(dBm) Limit(dBm) Verdict EGPRS850 128 30~1000 -40.77 -13 PASS EGPRS850 128 1000~10000 -25.57 -13 PASS EGPRS850 190 30~1000 -40.7…

Text truncated - open the document above for the full version.

Page: 1 of 45 FCC REPORT For LTE Cat M Report No. ...................................... : CHTEW23060052 Report Verification: Project No.................................： SHT2304055302EW FCC ID ............................................. : 2AM8O-U211-3 Applicant ........................................ : Alicn Medical Shenzhen, Inc Address ............................................. : Room 410, Building A, 3rd Sub-park, Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East Road, Pingshan District, 518118 Shenzhen, Guangdong, PEOPLE'S REPUBLIC OF CHINA Product Name ................................ : Arm Blood Pressure Monitor Trade Mark ....................................... : - Model No. ......................................... : AES-U211 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E FCC CFR Title 47 Part 27 Date of receipt of test sample..........: May.04, 2023 Date of testing..............................: May.04, 2023-Jun.27, 2023 Date of issue...............................: Jun.28, 2023 Result .................. ........................: Pass Compiled by ( position+printedname+signature) ... : File administrators Fanghui Zhu Supervised by (position+printedname+signature) .... : Project Engineer Xiaodong Zhao Approved by (position+printedname+signature) .... : Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23060052 Page: 2 of 39 Date of issue: 2023-06-28 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) Contents 1. TE S T S T A N D A R D S A N D R E P O R T V E R S I O N 3 1.1. Applicable Standards 3 1.2. Report version information 3 2. TE S T D E S C R I P T I O N 4 3. S U M M A R Y 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Test mode 8 4.3. Test sample information 9 4.4. Support unit used in test configuration and system 9 4.5. Testing environmental condition 9 4.6. Statement of the measurement uncertainty 10 4.7. Equipments Used during the Test 11 5. T E S T C O N D I T I O N S A N D R E S U L T S 12 5.1. Conducted Output Power 12 5.2. Peak-to-Average Ratio 13 5.3. 99% Occupied Bandwidth & 26 dB Bandwidth 14 5.4. Band Edge 15 5.5. Conducted Spurious Emissions 16 5.6. Frequency stability VS Temperature measurement 17 5.7. Frequency stability VS Voltage measurement 18 5.8. ERP and EIRP 19 5.9. Radiated Spurious Emission 20 6. TE S T S E T U P P H O T O S O F T H E E U T 38 7. EX T E R N A L A N D I N T E R N A L P H O T O S O F T H E E U T 39 8. A P P E N D I X RE P O R T 39 Report No.: CHTEW23060052 Page: 3 of 39 Date of issue: 2023-06-28 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 1. TEST STANDARDS AND REPORT VERSION 1.1. Applicable Standards The tests were performed according to following standards: FCC CFR Title 47 Part 2: Frequency Allocations and Radio Treaty Matters; General Rules and Regulations FCC CFR Title 47 Part 22 Subpart H: Cellular Radiotelephone Service FCC CFR Title 47 Part 24 Subpart E: Broadband PCS FCC CFR Title 47 Part 27: Miscellaneous Wireless Communications Services ANSI C63.26-2015: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services KDB 971168 D01 Power Meas License Digital Systems v03: MEASUREMENT GUIDANCE FOR CERTIFICATION OF LICENSED DIGITAL TRANSMITTERS 1.2. Report version information Revision No. Date of issue Description N/A 2023-06-28 Original Report No.: CHTEW23060052 Page: 4 of 39 Date of issue: 2023-06-28 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 2. TEST DESCRIPTION Section Test Item Section in CFR 47 Result #1 Test Engineer 5.1 Conducted Output Power Part 2.1046 Part 22.913(a) Part 24.232(c) Part 27.50 Pass Xiaodong Zhao 5.2 Peak-to-Average Ratio Part 24.232 Part 27.50 Pass Xiaodong Zhao 5.3 99% Occupied Bandwidth & 26 dB Bandwidth Part 2.1049 Part 22.917(b) Part 24.238(b) Part 27.53 Pass Xiaodong Zhao 5.4 Band Edge Part 2.1051 Part 22.917 Part 24.238 Part 27.53 Pass Xiaodong Zhao 5.5 Conducted Spurious Emissions Part 2.1051 Part 22.917 Part 24.238 Part 27.53 Pass Xiaodong Zhao 5.6 Frequency stability vs temperature Part 2.1055(a)(1)(b) Part 22.355 Part 24.235 Part 27.54 Pass Xiaodong Zhao 5.7 Frequency stability vs voltage Part 2.1055(d)(1)(2) Part 22.355 Part 24.235 Part 27.54 Pass Xiaodong Zhao 5.8 ERP and EIRP Part 22.913(a) Part 24.232(b) Part 27.50 Pass Xiaodong Zhao 5.9 Radiated Spurious Emissions Part 2.1053 Part 22.917 Part 24.238 Part 27.53 Pass Yifan Wang Note: #1: The test result does not include measurement uncertainty value Report No.: CHTEW23060052 Page: 5 of 39 Date of issue: 2023-06-28 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 3. SUMMARY 3.1. Client Information Applicant: Alicn Medical Shenzhen, Inc Address: Room 410, Building A, 3rd Sub-park, Leibo Zhongcheng Life Science Park, No. 22 Jinxiu East R…

Text truncated - open the document above for the full version.

Project No.: SHT2304055302EW Radio Specification: LTE Cat M Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 261 APPENDIX REPORT Project No. SHT2304055302EW Radio Specification LTE Cat M Test sample No. YPHT23040553011 Model No. AES-U211 Start test date 2023-06-02 Finish date 2023-06-28 Temperature 25.3°C Humidity 54% Test Engineer Xiaodong Zhao Auditor Appendix clause Test item Result A Conducted Output Power PASS B Peak-to-Average Ratio PASS C 26 dB Bandwidth and Occupied Bandwidth PASS D Band edge PASS E Conducted Spurious Emission PASS F Frequency Stability PASS G ERP and EIRP PASS Project No.: SHT2304055302EW Radio Specification: LTE Cat M Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 261 8.1 Appendix A: Conducted Output Power Test Result Band Bandwidth Modulation Channel RB Size RB Start Result(dBm) Verdict Band12 1.4MHz QPSK 23017 1 0 21.51 PASS Band12 1.4MHz QPSK 23017 1 5 21.33 PASS Band12 1.4MHz QPSK 23017 6 0 19.17 PASS Band12 1.4MHz QPSK 23095 1 0 21.59 PASS Band12 1.4MHz QPSK 23095 1 5 21.49 PASS Band12 1.4MHz QPSK 23095 6 0 19.48 PASS Band12 1.4MHz QPSK 23173 1 0 21.43 PASS Band12 1.4MHz QPSK 23173 1 5 21.14 PASS Band12 1.4MHz QPSK 23173 6 0 18.95 PASS Band12 1.4MHz 16QAM 23017 1 0 20.24 PASS Band12 1.4MHz 16QAM 23017 1 5 20.23 PASS Band12 1.4MHz 16QAM 23017 6 0 19.09 PASS Band12 1.4MHz 16QAM 23095 1 0 20.69 PASS Band12 1.4MHz 16QAM 23095 1 5 20.78 PASS Band12 1.4MHz 16QAM 23095 6 0 19.39 PASS Band12 1.4MHz 16QAM 23173 1 0 20.48 PASS Band12 1.4MHz 16QAM 23173 1 5 20.23 PASS Band12 1.4MHz 16QAM 23173 6 0 18.96 PASS Band12 3MHz QPSK 23025 1 0 21.70 PASS Band12 3MHz QPSK 23025 1 5 21.67 PASS Band12 3MHz QPSK 23025 6 0 19.34 PASS Band12 3MHz QPSK 23095 1 0 21.84 PASS Band12 3MHz QPSK 23095 1 5 21.68 PASS Band12 3MHz QPSK 23095 6 0 19.60 PASS Band12 3MHz QPSK 23165 1 0 21.44 PASS Band12 3MHz QPSK 23165 1 5 21.25 PASS Band12 3MHz QPSK 23165 6 0 19.30 PASS Band12 3MHz 16QAM 23025 1 0 20.41 PASS Band12 3MHz 16QAM 23025 1 5 20.42 PASS Band12 3MHz 16QAM 23025 6 0 19.43 PASS Band12 3MHz 16QAM 23095 1 0 20.50 PASS Band12 3MHz 16QAM 23095 1 5 20.57 PASS Band12 3MHz 16QAM 23095 6 0 19.59 PASS Band12 3MHz 16QAM 23165 1 0 20.61 PASS Band12 3MHz 16QAM 23165 1 5 20.46 PASS Band12 3MHz 16QAM 23165 6 0 19.30 PASS Band12 5MHz QPSK 23035 1 0 21.59 PASS Band12 5MHz QPSK 23035 1 5 21.79 PASS Band12 5MHz QPSK 23035 6 0 20.37 PASS Project No.: SHT2304055302EW Radio Specification: LTE Cat M Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 261 Band12 5MHz QPSK 23095 1 0 21.72 PASS Band12 5MHz QPSK 23095 1 5 21.86 PASS Band12 5MHz QPSK 23095 6 0 20.46 PASS Band12 5MHz QPSK 23155 1 0 21.…

Text truncated - open the document above for the full version.
