2AN62-UB15GMobile Radio

1 Radioddity UB15-G Manual 2 1. Overview  The UB15-G is a GMRS analog mobile transceiver.  It includes a main radio unit, a handheld microphone, and a mounting bracket. 2. Product Features  LCD display with 7 selectable backlight colors  LCD backlight brightness adjustable  Channel naming function  TX/RX indicator LED  Frequency Range: TX: GMRS；RX: 400–470MHz  80 Programmable channels（22 of which are GMRS fixed channels, the remaining channels are editable for frequency.）  CALL TONE  Keyboard lock function  NOAA Weather (NOAA)  Dual Watch  High/Low power selection  Wide/Narrow bandwidth selection  Priority Channel (PRI)  Priority Channel Watch  Scan  Monitor (MONI)  Squelch (SQL)  Transmit Timeout Timer 180S (TOT)  CTCSS/DCS  Noise Reduction (NRC)  TX Noise Cancellation (ANC)  Key Beep  Transmit End Tone (ROGER BEEP)  VOX (9 levels)  Mic Gain (3 levels)  Voice Record Playback 3. Technical Specifications GENERAL Frequency Range TX:GMRS Band RX:400–470MHz Channel Spacing 12.5KHz/25KHz Channel Capacity 22 channels+8 Repeater channels+50 Programable channels(Support GMRS Frequency only) Frequency Stability ±300Hz Operating Temperature -30°C~+60°C Operating Voltage 13.8V 3 Size 135*110*25 TRANSMITTER Power Output High：15W/ Low：5W Emission current High：5A/Low：1A Modulation Limiting Narrow：≦2.5KHz/Wide：≦5.0KHz Adjacent Channel Power Narrow：≧60dB/Wide：≧65dB Hum& Noise ≧40dB Audio Distortion ≦5% Mic Sensitivity(@L2) 5- 10mV Antenna port hum 9KHz-1GHz：≦-50dBc 1GHz-12.75GHz≦-55dBc RECEIVER Sensitivity ≦-119dBm@SINAD=12dB Audio Distortion ≦5% Hum& Noise ≧45dB@25KHz/≧[email protected] Adjacent Channel Selectivity ≧[email protected]/≧60dB@25KHz Inter Modulation ≧60dB Blocking or Desensitization ≧84dB Co-Channel Rejection ≧-12dB Max Audio Output@1KHz 8Ω ≧1W Standby Current ≦360mA 4. Structural Appearance  Microphone 4 NO Name Short Press Long Press 1 PTT Transmit/Save settings and return to main screen 2 LCD 3 LED TX/RX Indicator 4 MIC 5 MENU Enter Menu Mode Enter Menu Options Confirm changes and return to previous menu VFO Channel Store 6 PRI Recall Pri Channel Priority Channel Setup 7 VFO Enter/Exit VFO Mode Delete Channel 8 Scan Start / Stop Scan Add channel to / Remove channel from scan list 9 ▽ CH- Channel - Channel Continuous - 10 △ CH+ Channel + Channel Continuous + 11 + Volume + Volume Continuous + 12 - Volume - Volume Continuous - 13 1 Digit 1 14 2 Digit 2 15 3 Digit 3 16 * Back Key Enter/Exit Weather Mode 17 4 Digit 4 18 5 Digit 5 19 6 Digit 6 5 5. LCD Display Indicators 20 0 Digit 0 Start / Finish Channel Name Edit 21 7 Digit 7 22 8 Digit 8 23 9 Digit 9 24 # VFO Frequency Confirm Key Turn On / Turn Off Dual Watch 25 CALL/LOCK Transmit CALL TONE Keyboard Lock / Unlock 26 Power button Power On / Off 27 REPLAY/MON Voice Record Playback Monitor On / Off 6 NO Symbol Description NO Symbol Description 1 Transmit/Receive Strength Indicator 11 WX Weather Forecast Indicator 2 T T TX Indicator 12 SC Not Blinking Scan List Indicator R RX Indicator M Monitor Indicator Blinking Scanning 3 H H High Power Indicator 13 DW Dual Watch L Low Power Indicator 4 CH99 Channel No. 14 RCD Record On 5 USERNAME Channel Name 15 ANC TX Noise Reduction On 6 462.5625 Channel Frequency 16 WB NB Narrow Band WB Wide Band 7 NRC RX Noise Reduction On 17 PC Priority Channel Indicator 8 DCS104 CTC/DCS Indicator 18 LC Keyboard Lock Indicator 9 SQ1 SQ Level Indicator 19 BCL Busy Lock VOL 01 While Adjusting Volume 10 VX1 VOX Level Indicator 6. Function Introduction 6.1 Power on/off Power on the radio by long-pressing the power button when it is off. Press and hold the power button for 2 seconds to turn off the radio when it is on. High voltage alarm: If the supply voltage exceeds 16V, the radio will emit a high-voltage alert tone, display “DCH” on the LCD, and disable transmission. Low voltage alarm: If the supply voltage drops below 10V, the radio will emit a low-voltage alert tone and display “DCL” on the LCD. Low voltage auto power-off: If the supply voltage drops below 9V, the radio will power off automatically. 6.2 Channel Selection Users can select the current working channel using the △/▽ buttons on the hand microphone, or directly enter the channel number via the numeric keypad and press the # key to quickly switch channels.(Example: Enter 05 and press #, the radio will switch to Channel 5.) 6.3 Volume Adjustment Users can increase or decrease the radio's receive volume using the VOL+ / VOL- buttons on the hand 7 microphone.The unit supports a total of 10 volume levels from 0 to 9. 6.4 Transmit & Receive To communicate between two radios, both must be set to the same frequency and CTC/DCS code. To make a call, press and hold the PTT button on the microphone and speak into it in a normal voice. Note: For best clarity, hold the microphone 2 to 3 inches from your mouth while speaking. The T icon will appear continuously on the LCD during transmission.The R icon will appear continuously on the LCD during reception. 6.5 Squelch Level Adjustment Users can adjust the squelch sensitivity level via the menu.This radio provides 10 squelch levels (0–9). 0 – Squelch open 1 – Maximum sensitivity (minimum squelch) 5 – Medium sensitivity (medium squelch) 9 – Minimum sensitivity (maximum squelch) 6.6 CTCSS/DCS Settings Users can set the sub-audible tones of the radio via the menu.This radio provides 38 groups of analog tones (CTCSS) and 208 groups of digital tones (104 groups of DCSN + 104 groups of DCSI).Refer to the bottom of this manual for the sub-audible tone frequency list. 6.7 Power Level Setting The radio offers two power levels, high and low, for users to choose from.Users can select different power levels according to different scenarios. Note: Channels 1–7 are set to low power by default and cannot be changed. 6.8 Priority Channel - Set / Recall / Watch To allow users to quickly switch to frequently used channels, this radio provides priority channel setting and recall functions. Setting:Users can switch to a f…

Text truncated - open the document above for the full version.

SAIN3 LLC Covered Equipment Certification Attestation Letter 5/25/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AN62-UB15G SAIN3 LLC (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. SAIN3 LLC (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. SAIN3 LLC (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Damon Cheng Title: President Company Name: SAIN3 LLC Date: 5/25/2026

2.911 (d)(7)USA Agent v1.2 Section 2.911(d)(7) USA Agent for Service of Process Company name: SAIN3 LLC Address: 36 Berkley Drive Newark, DE 19702 United States FCC ID: 2AN62-UB15G 2.911(d)(7) USA Designated Agent for Service of Process We, SAIN3 LLC (“the applicant”) designate SAIN3 LLC NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent & Applicant Company name: SAIN3 LLC Address: 36 Berkley Drive Newark, DE 19702 United States FRN：0026960740 Contact Name: Damon Cheng Telephone No: 408455 3566 Email: [email protected] Signature: Title: President Date: 25 May 2026 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

SAIN3 LLC DATE: May 25, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongzhou Testing Co.,Ltd. (1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with SAIN3 LLC (36 Berkley Drive Newark, DE 19702 United States) <Signature> Name: Damon Cheng Title: President Applicant Company: SAIN3 LLC

Date: May 25, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Damon Cheng Title: President Company: SAIN3 LLC

DATE: May 25, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AN62-UB15G Product Name: Mobile Radio Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description • Tune-up procedure • Part lists These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Damon Cheng Title: President Company: SAIN3 LLC

SAIN3 LLC 36 Berkley Drive Newark, DE 19702 United States Date: 2026-05-25 Declaration Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Declaration of compliance to the requirements of §15.121 FCC ID: 2AN62-UB15G Dear Sir/Madam, We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. Sincerely Yours, Signature: ___________________________ Name: Damon Cheng Title: President

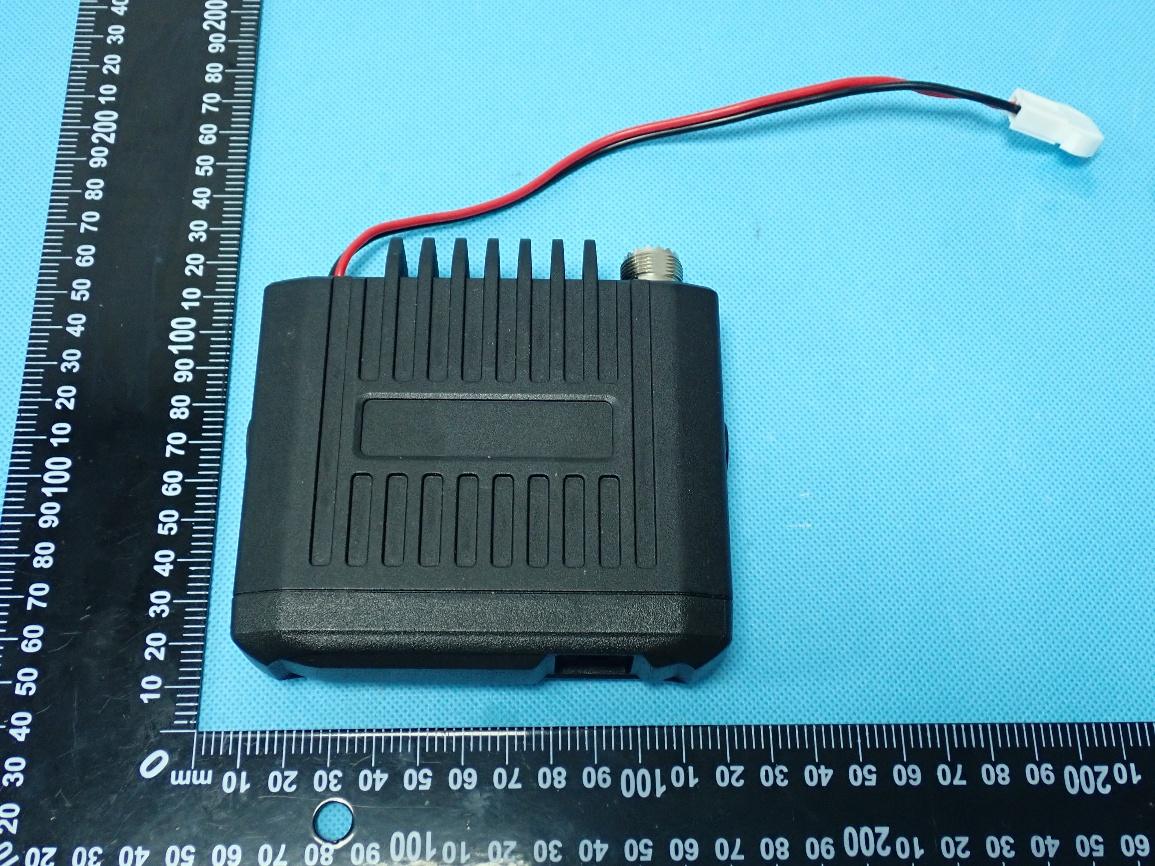

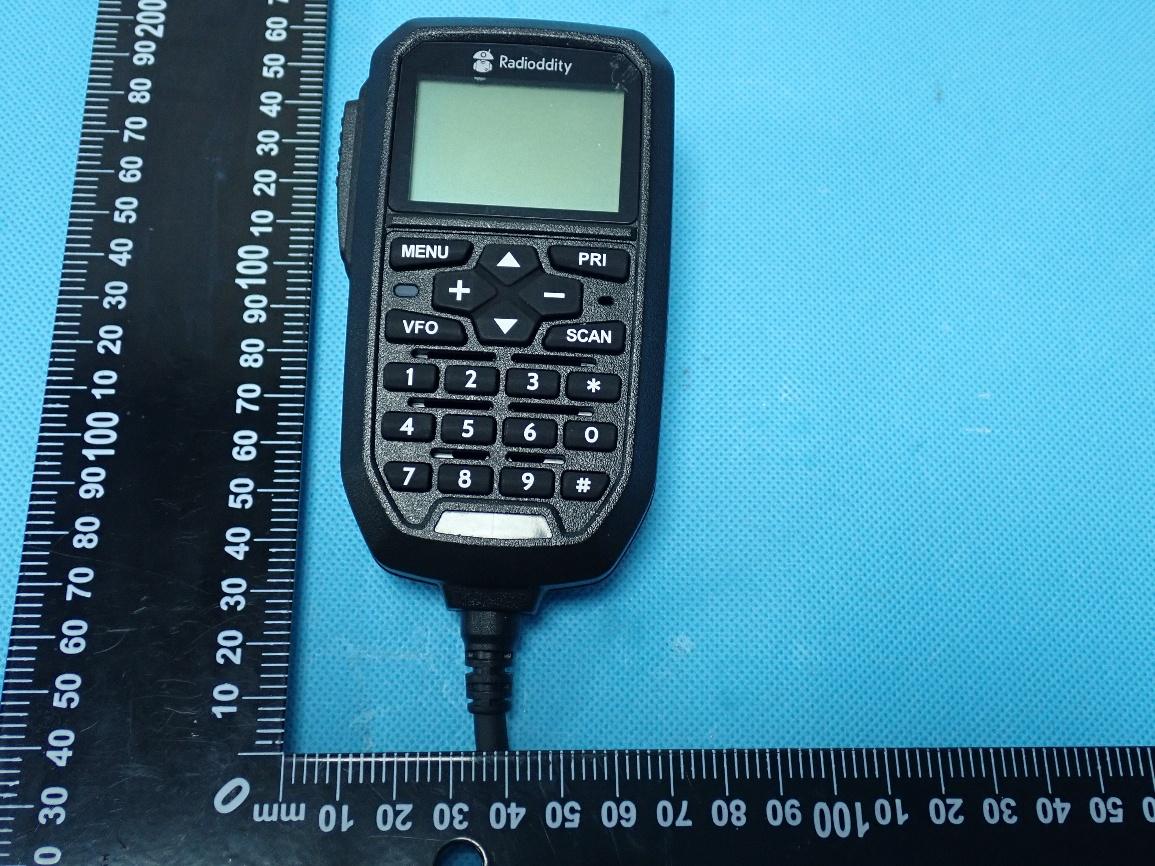

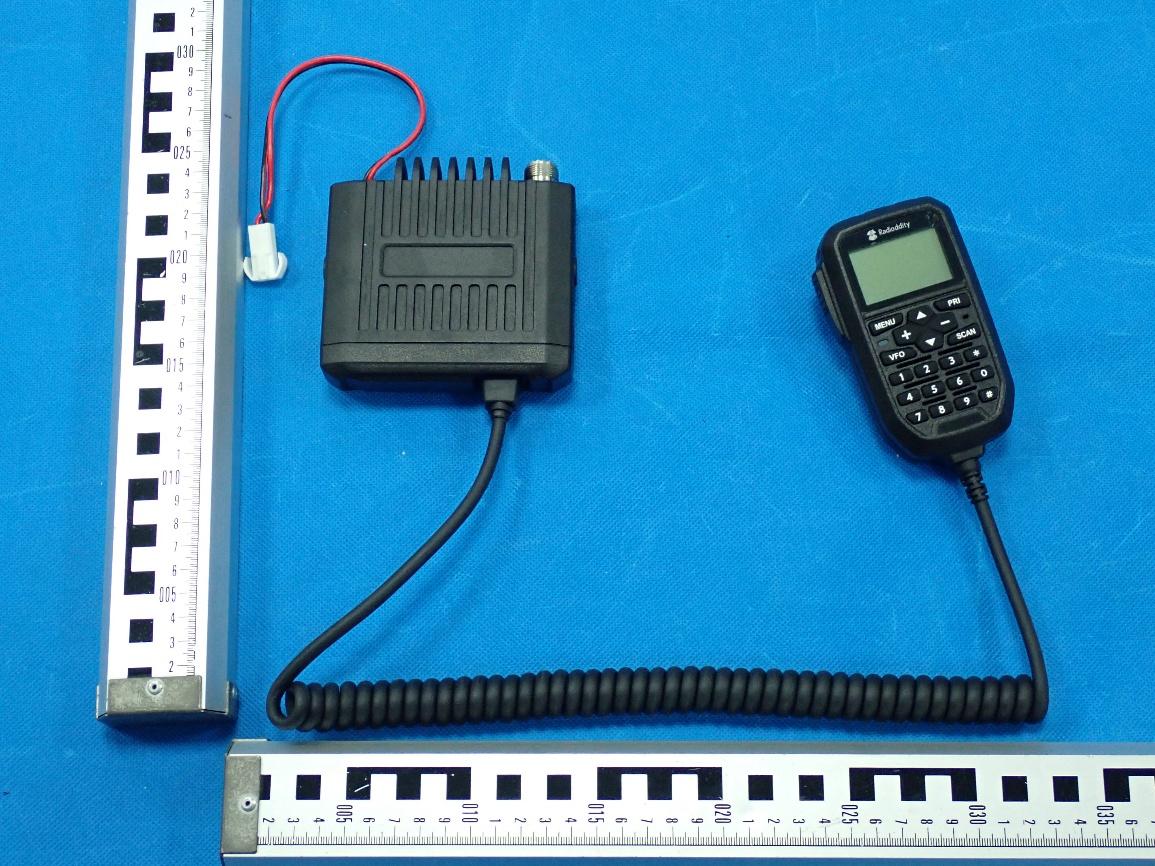

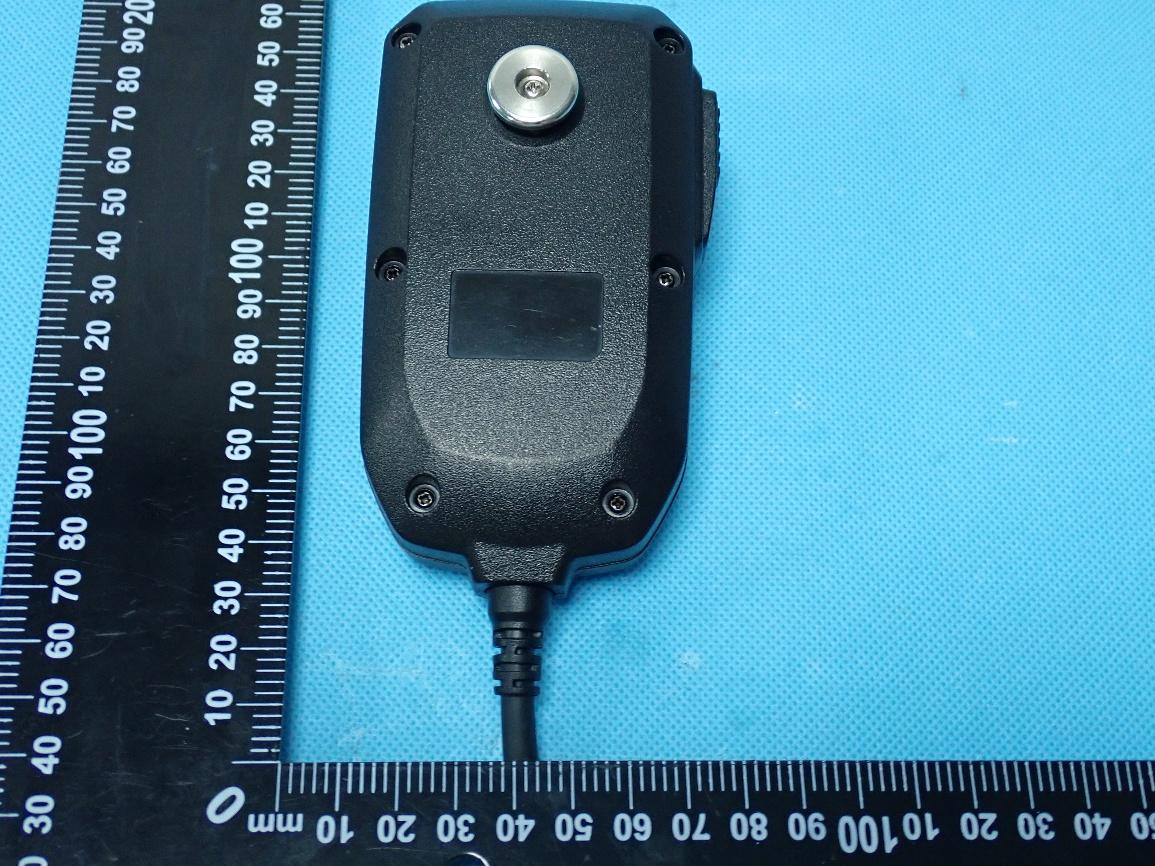

Report No.: TZ0413260402PH02 Page 1 of 5 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0413260402PH02 Page 2 of 5 External Photo 3 External Photo 4 Report No.: TZ0413260402PH02 Page 3 of 5 External Photo 5 External Photo 6 Report No.: TZ0413260402PH02 Page 4 of 5 External Photo 7 External Photo 8 Report No.: TZ0413260402PH02 Page 5 of 5 External Photo 9

The size of the label is 15mm*10mm with White forecolor. The size of the logo is 5mm*5mm. FCC ID: 2AN62-UB15G

Report No.: TZ0413260402PH03 Page 1 of 4 Internal Photographs of EUT Internal Photo 1 Internal Photo 2 Report No.: TZ0413260402PH03 Page 2 of 4 Internal Photo 3 Internal Photo 4 Report No.: TZ0413260402PH03 Page 3 of 4 Internal Photo 5 Internal Photo 6 Report No.: TZ0413260402PH03 Page 4 of 4 Internal Photo 7 Internal Photo 8

FCC ID: 2AN62-UB15G Page 1 of 2 Radio Frequency Exposure Limit Table 1 to §CFR Title 47 FCC Part 1.1310(e)(1) sets forth limits for Maximum Permissible Exposure (MPE) to radiofrequency electromagnetic fields. Table 1 to § 1.1310(e)(1)—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (i) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 f/300 <6 1,500-100,000 5 <6 (ii) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1,500 f/1500 <30 1,500-100,000 1.0 <30 f = frequency in MHz. * = Plane-wave equivalent power density. (2) Occupational/controlled exposure limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. The phrase fully aware in the context of applying these exposure limits means that an exposed person has received written and/or verbal information fully explaining the potential for RF exposure resulting from his or her employment. With the exception of transient persons, this phrase also means that an exposed person has received appropriate training regarding work practices relating to controlling or mitigating his or her exposure. In situations when an untrained person is transient through a location where occupational/controlled limits apply, he or she must be made aware of the potential for exposure and be supervised by trained personnel pursuant to § 1.1307(b)(2) of this part where use of time averaging is required to ensure compliance with the general population exposure limit. The phrase exercise control means that an exposed person is allowed and also knows how to reduce or avoid exposure by administrative or engineering work practices, such as use of personal protective equipment or time averaging of exposure. (3) General population/uncontrolled exposure limits apply in situations in which the general public may be exposed, or in which persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. For example, RF sources intended for consumer use shall be subject to the limits for general population/uncontrolled exposure in this section. FCC ID: 2AN62-UB15G Page 2 of 2 Results Test Mode Power Level Test Frequency Max Conducted Power [dBm] MPE evaluate distance (m) MPE (mW/cm 2 ) MPE Limit (mW/cm 2 ) [MHz] GMRS 15W 462.65 42.297 0.7 0.276 0.308 GMRS 15W 467.65 42.244 0.7 0.272 0.312 Remark: 1. GMRS Output power including tune-up tolerance; 41.5dBm±1dB for 15W, 37dBm±1dB for 5W; 2. The max antenna gain is 0 dBi for GMRS provided by manufacture; 3. MPE evaluate distance is at least 0.7m from user manual provide by manufacturer; .......................End of Report.........................

Report No.: TZ0413260402FRF19 Page 1 of 55 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 1 of 55 TEST REPORT Report Number : TZ0413260402FRF19 Product Name : Mobile Radio Model/Type reference : UB15-G FCC ID : 2AN62-UB15G Prepared for : SAIN3 LLC 36 Berkley Drive Newark, DE 19702 United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 95 Subpart E, ANSI C63.26-2015 Date of Test : 2026-04-23 ~ 2026-05-10 Date of Issue : 2026-05-10 Prepared by : Nancy Li Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0413260402FRF19 Page 2 of 55 Page 2 of 55 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-05-10 Valid Initial release Report No.: TZ0413260402FRF19 Page 3 of 55 Page 3 of 55 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ....................................................... 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. Description of Test Facility .................................................................................................... 5 1.5. Statement of the Measurement Uncertainty ......................................................................... 5 1.6. Measurement Uncertainty ...................................................................................................... 6 1.7. Frequency of Channels .......................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Related Submittal (s) / Grant (s) .................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. Special Accessories ............................................................................................................... 9 3.3. Block Diagram/Schematics .................................................................................................... 9 3.4. Equipment Modifications ....................................................................................................... 9 3.5. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ............................................... 10 5. T E S T R E S U L T .................................................................... 11 5.1. Frequency Stability ............................................................................................................... 11 5.2. Occupied Bandwidth and Emission Mask .......................................................................... 16 5.3. Transmitter Power................................................................................................................. 29 5.4. Modulation Characteristics .................................................................................................. 31 5.5. Spurious Emission on Antenna Port .................................................................................. 45 5.6. Spurious Radiated Emission ............................................................................................... 51 6. L I S T O F M E A S U R I N G E Q U I P M E N T S ....................................... 54 7. T E S T S E T U P P H O T O G R A P H S O F E U T ..................................... 55 8. E X T E R I O R P H O T O G R A P H S O F T H E E U T ................................. 55 9. I N T E R I O R P H O T O G R A P H S O F T H E E U T .................................. 55 Report No.: TZ0413260402FRF19 Page 4 of 55 Page 4 of 55 1. G E N E R A L I N F O R M A T I O N 1.1. Client Information Applicant : SAIN3 LLC Address : 36 Berkley Drive Newark, DE 19702 United States Manufacturer : SAIN3 LLC Address : 36 Berkley Drive Newark, DE 19702 United States 1.2. Description of Device (EUT) Product Name : Mobile Radio Trade Mark : Radioddity Model Number : UB15-G Power Supply : DC 13.8V Hardware version : 3600DB15411001 Software version : Ver 1.0 1.3. Wireless Function Tested in this Report GMRS Operation Frequency Range : 462.5500-462.7250MHz (GMRS 462MHz Main channels) 462.5625-462.7125MHz (GMRS 462MHz Interstitial channels) 467.5500-467.7250…

Text truncated - open the document above for the full version.

Report No.: TZ0413260402PH05 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0413260402PH05 Page 2 of 2 RF Conducted Test
