2ANAA-LTCONTROLG4LotTrack Controller G4

© Intellion 2024 Page 1/8 Intellion AG Schuppisstrasse 10 9016 St. Gallen Switzerland T 0041-71-280 81 81 E [email protected] www intellion.com User Manual LotTrack Controller G4 Version: 1.0 Date: August 2024 © Intellion 2024 Page 2/8 Table of Contents 1. Functional Use ................................................................................................................ 3 2. General handling instructions ....................................................................................... 5 3. Compliance Information ................................................................................................. 5 3.1 USA: Regulatory Notes .................................................................................................. 5 3.2 Europe: Declaration of Conformity (DoC) ..................................................................... 6 © Intellion 2024 Page 3/8 1. Functional Use The LotTrack Controller G4 is the communication centre of the LotTrack System. The Controller G4 receives localization and communication tasks from the LotTrack Control Suite, provides RF com- munication with DisTags, and controls US transmitters and USTX modules connected to it. Figure 1: LotTrack Controller G4 LotTrack Controller G4 – Datasheet – Technical Specifications - Type NA = Type for USA - Type EU = Type for Europe Timebase TCXO 25 MHz Frequency tolerance ± 2.5 ppm ETH IN / PoE Connector RJ45, 8P8C Ethernet 10/100, Full Duplex, Auto-MDIX Power PoE, IEEE 802.3af, 3 W Pluggable terminal block 4 pin Connector Terminal block 4 pin Power 24V DC, 2 W (Pin +24V, Pin GND) Sync Interface RS485 (Pin A, Pin B) PWR IN / SYNC IN Connector RJ12 / RJ25, 6P6C Power 24V DC, 2 W Sync Interface RS485 © Intellion 2024 Page 4/8 ETH OUT Connector RJ45, 8P8C Ethernet 10/100, Full Duplex, Auto-MDIX US BUS US = Ultrasound Connector RJ12 / RJ25, 6P6C Interface RS485 PWR OUT / SYNC OUT Connector RJ12 / RJ25, 6P6C Power source 24V DC Sync Interface RS485 US1, US2, US3 US = Ultrasound Connector RJ9 / RJ10 / RJ22, 4P4C Interface H-Bridge US Frequency 40 kHz Power Supply type PoE or 24V DC If DC and with US: nominal voltage 24 V If DC and no US: voltage Range 10 – 30 V Power per Controller G4 (without external devices) 2 W, if 24VDC 3 W, if PoE Indicators LEDs 6x RGB LEDs Ethernet LEDs 2x 2 LEDs Physical Dimension 300 mm x 63 mm x 36 mm Weight Approx. 340 g Environment Operating temperature 10 °C ... 40 °C Storage temperature 0 °C ... 50 °C Enclosure Rating IP 20 © Intellion 2024 Page 5/8 Internal UHF Antenna 1, Internal UHF Antenna 2 Antenna Type RHCP Modulation GFSK Output power To be done / measured Transceiver config possible: [-30 dBm ... +14 dBm] Europe: 25 mW USA: Max. 94 dBμV/m @3m Frequency band Europe, Type EU 867.2 – 869.85 MHz Frequency band USA Type NA 919.2 – 920.8 MHz 2. General handling instructions Important Notice: Before starting to use the LotTrack Controller G4 in the fab, carefully read all general handling and user instructions documented in this section. General terms of use for cleaning, storage and transport of the Controller G4  The Controller G4 is intended to be solely used indoor when implemented in a fab.  Gently wipe the surface using a clean room compliant towel that is moistened with Isopro- panol. Do not spray the Isopropanol directly on the Controller G4.  Do not use sharp devices for cleaning.  Do not drop, kick or throw the Controller G4.  Do not hit the Controller G4 against surfaces of e.g. desks, push-cards or equipment, nor impose strong mechanical pressure, e.g. on the antennas.  Do not expose the Controller G4 to water or other liquids, varnishes, gases, heat or steam.  Do not open the Controller G4.  For storage and transport, only use the recommended storage and transport devices for the Controller G4. All storage and transport devices shall be kept clean before use; the environ- ment shall be kept dry.  Do not install or place the Controller G4 near sources of strong electromagnetic fields and/or strong ultrasound sources. 3. Compliance Information 3.1 USA: Regulatory Notes This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful interference, and © Intellion 2024 Page 6/8 (2) this device must accept any interference received, including interference that may cause unde- sired operation. Class B digital device. A digital device that is marketed for use in a residential environment not- withstanding use in commercial, business and industrial environments. Examples of such devices include, but are not limited to, personal computers, calculators, and similar electronic devices that are marketed for use by the general public. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inter- ference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning This equipment must …

Text truncated - open the document above for the full version.

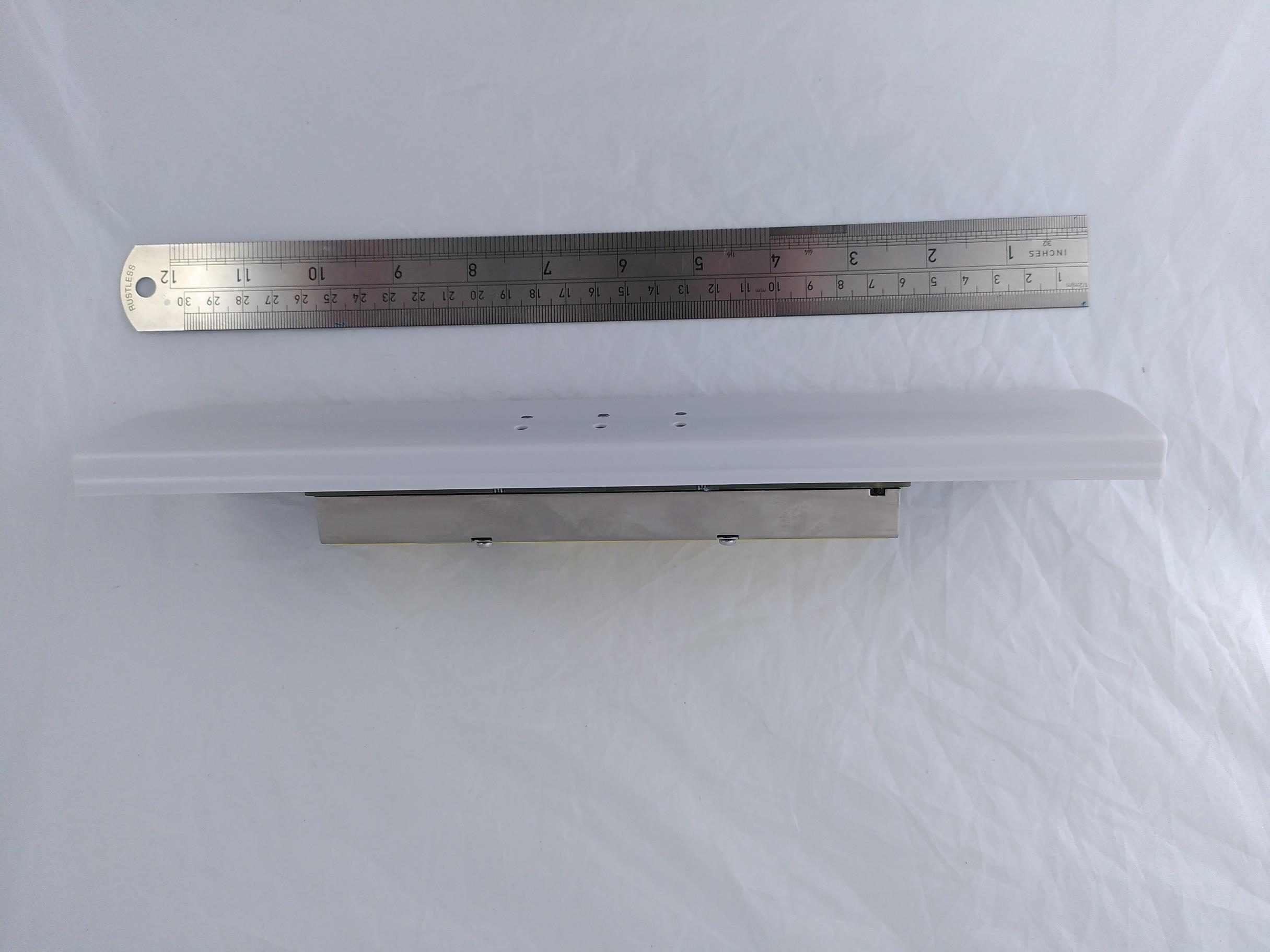

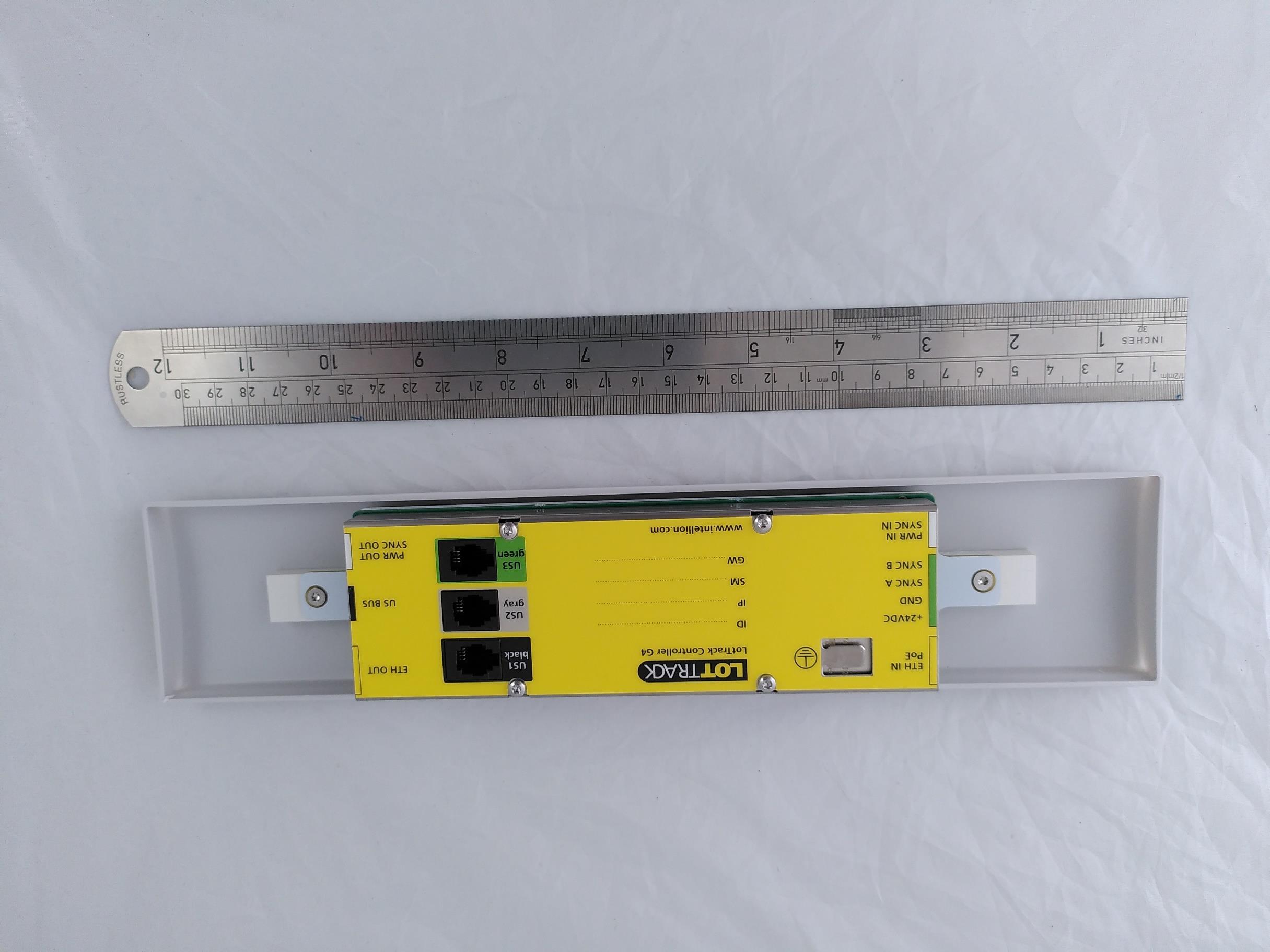

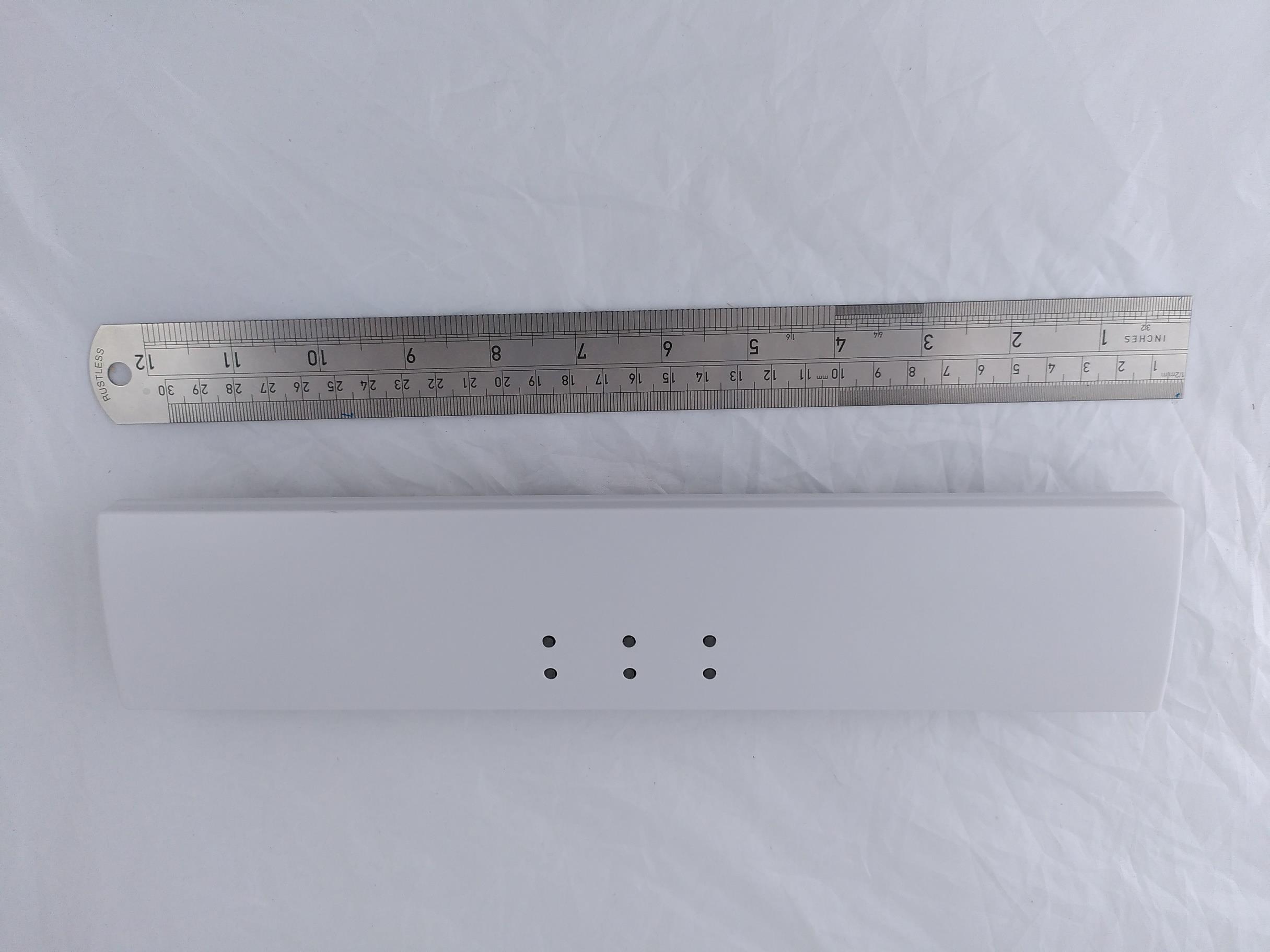

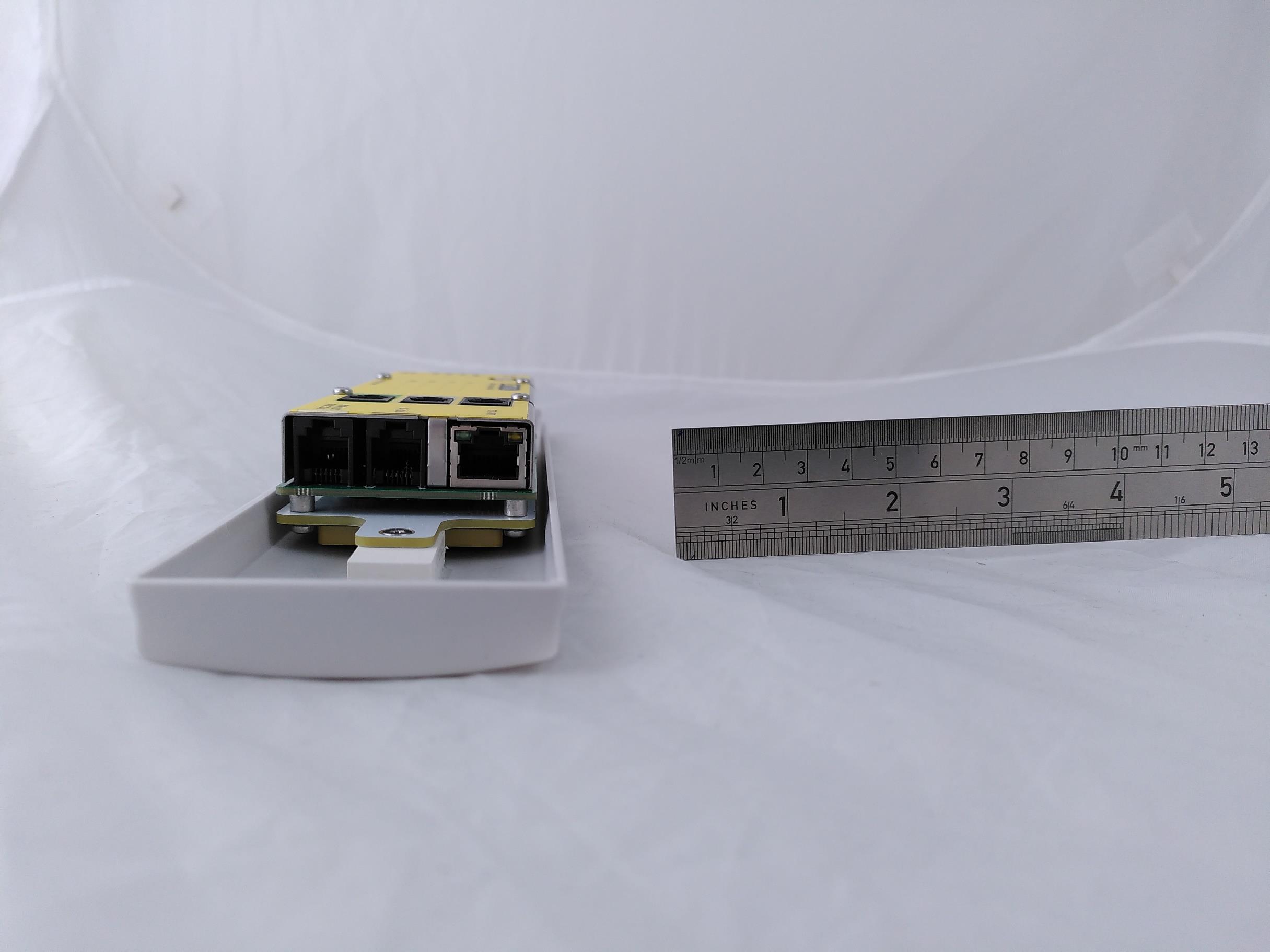

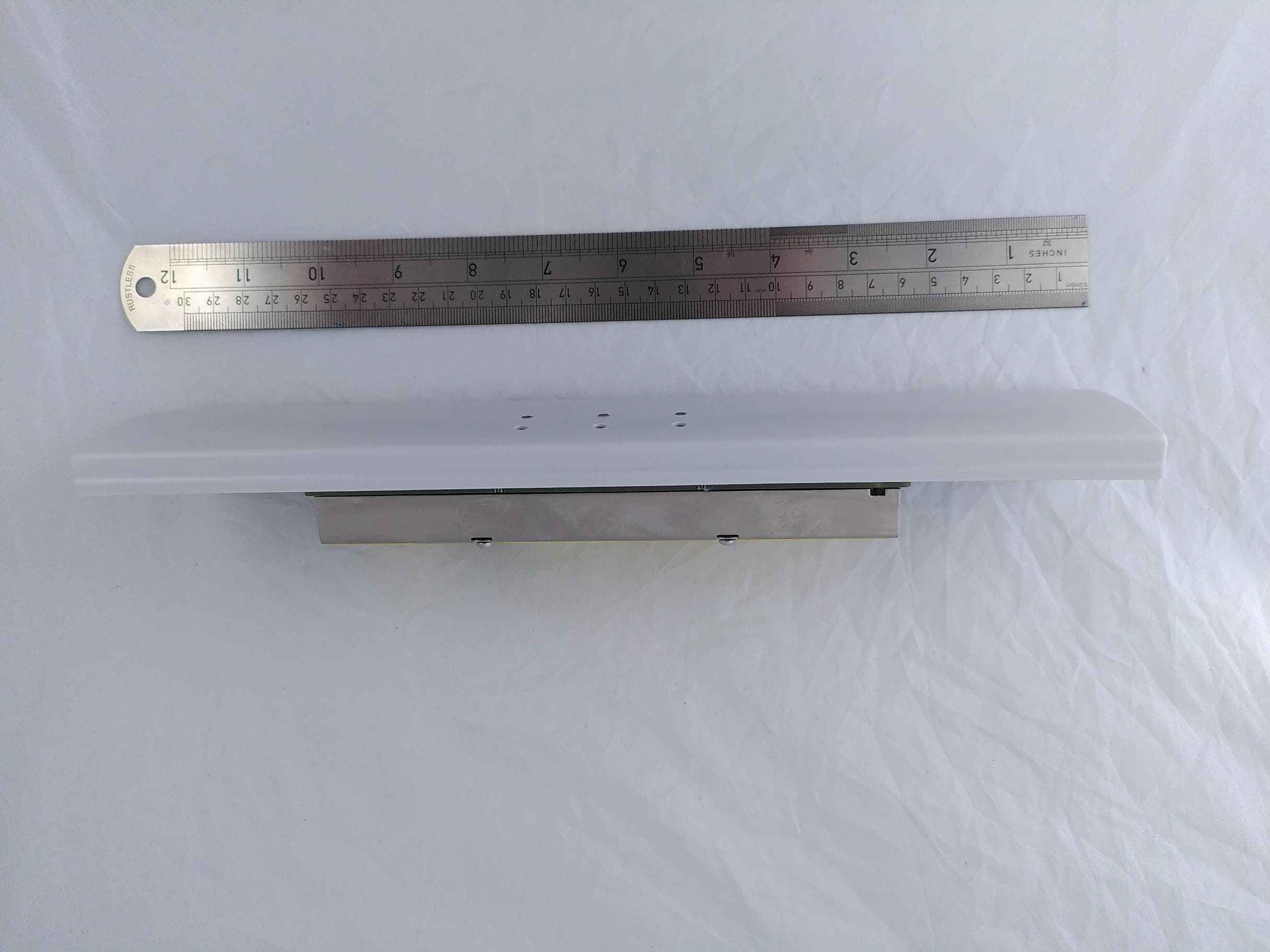

© 2024 INTELLION AG 1 STRICTLY CONFIDENTIAL Controller G4 photos - external © 2024 INTELLION AG 2 STRICTLY CONFIDENTIAL Controller G4 photos - external © 2024 INTELLION AG 3 STRICTLY CONFIDENTIAL Controller G4 photos - external © 2024 INTELLION AG 4 STRICTLY CONFIDENTIAL Controller G4 photos - external © 2024 INTELLION AG 5 STRICTLY CONFIDENTIAL Controller G4 photos - external © 2024 INTELLION AG 6 STRICTLY CONFIDENTIAL Controller G4 photos - external

Label draft Controller G4 2ANAA-LTCONTROLG4

© 2024 INTELLION AG 1 STRICTLY CONFIDENTIAL Controller G4 photos - internal © 2024 INTELLION AG 2 STRICTLY CONFIDENTIAL Controller G4 photos - internal

www.jkelec.com mail:[email protected] Tel: +86-573-82600953 浙江嘉康电子股份有限公司 Zhejiang Jiakang Electronics Co., Ltd. SPECIFICATION FOR APPROVAL Part NO. SS-RUI4050HP502-RF1.13L70IPEX TypeRFID Antenna Electrical Characteristics Antenna 1Antenna model40*40*5mm 2Frequency Range902MHz~928MHz 3Return loss ＜-10dB 4Band With@RL=-10dB ＞20MHz [email protected] 6Impedance 50Ω 7PolarizationRHCP 8Axial Ratio@Zenith ＜3dB Material NoPart NameSpec 1AntennaDielectric Ceramics 2Ground0.8mm,FR-4 3CableL=70mm,RF-1.13 4ConnectorIPEX(MHF)I Environment Condition 1Operation Temperature -40°C～+80°C 2Storage Temperature -45°C～+85°C 3Humidity Non-condensing 65°C95%RH Prepared By：Date: Dimensions Typical Characteristics 1.Return Loss & Impedance 浙江嘉康电子股份有限公司 Zhejiang Jiakang Electronics Co., Ltd. www.jkelec.com mail:[email protected] Tel: +86-573-82600953

© Intellion AG 2024, Version v3, Date: 18-Sep-2024 Page 1/ 2 LotTrack Controller G4 – Datasheet – Technical Specifications - Type NA - Type EU Timebase TCXO 25 MHz Frequency tolerance ± 2.5 ppm ETH IN / PoE Connector RJ45, 8P8C Ethernet 10/100, Full Duplex, Auto-MDIX Power PoE, IEEE 802.3af, 3 W Pluggable terminal block 4 pin Connector Terminal block 4 pin Power 24V DC, 2 W (Pin +24V, Pin GND) Sync Interface RS485 (Pin A, Pin B) PWR IN / SYNC IN Connector RJ12 / RJ25, 6P6C Power 24V DC, 2 W Sync Interface RS485 ETH OUT Connector RJ45, 8P8C Ethernet 10/100, Full Duplex, Auto-MDIX US BUS US = Ultrasound Connector RJ12 / RJ25, 6P6C Interface RS485 PWR OUT / SYNC OUT Connector RJ12 / RJ25, 6P6C Power source 24V DC Sync Interface RS485 US1, US2, US3 US = Ultrasound Connector RJ9 / RJ10 / RJ22, 4P4C Interface H-Bridge US Frequency 40 kHz Power Supply type PoE or 24V DC If DC and with US: nominal voltage 24 V If DC and no US: voltage Range 10 – 30 V © Intellion AG 2024, Version v3, Date: 18-Sep-2024 Page 2/ 2 Power per Controller G4 (without external devices) 2 W, if 24VDC 3 W, i f P o E Indicators LEDs 6x RGB LEDs Ethernet LEDs 2x 2 LEDs Physical Dimension 300 mm x 63 mm x 36 mm Weight Approx. 340 g Environment Operating temperature 10 °C ... 40 °C Storage temperature 0 °C ... 50 °C Enclosure Rating IP 20 Internal UHF Antenna 1, Internal UHF Antenna 2 Antenna Type RHCP Modulation GFSK Output power To be done / measured Transceiver config possible: [-30 dBm ... +14 dBm] Europa: 25 mW? USA: Max. 94 dBμV/ m @3m Frequency band Europe, Type EU 867.2 – 869.85 MHz Frequency band USA Type NA 919.2 – 920.8 MHz Remark: The Controller G4 does support simultaneous transmission for the Internal UHF Antenna 1 and 2.

Evaluation of product specific Health Aspects Page: 1 of 5 Evaluation Report Product Name: LotTrack Controller G4 Model Name: Controller G4 Report No.: Applicant: Intellion AG Prepared by: General Applied Standard(s): EN 62479:2010 CFR47 FCC Part 2: Section 2.1093 FCC KDB Publication 447498 v06 Test Result: complies Intellion AG, Schuppisstrasse 10, 9016 St. Gallen, Switzerland Dr. Kai Millarg Evaluation of product specific Health Aspects Page: 2 of 5 Contents GENERAL 1 Contents 2 Description of EUT 2 Rated Power according to the manufacturer 2 USA Part 3 Limits - USA 3 MPE Calculation Method – USA 3 Evaluation Result 4 Conclusion 4 Europe Part 5 Specification for Evaluation 5 Evaluation Result 5 Conclusion 5 Description of EUT Product Name: LotTrack Controller G4 Model No.: Controller G4 Trade Name: LotTrack Controller G4 Frequency Range: 919.2 – 920.8 MHz (Type NA) 867.2 – 869.85 MHz (Type EU) Working Frequency: Power Supply: PoE or 24V Rated Power according to the manufacturer Frequency (MHz) Target Power and Tolerance 920.8 max 1 mW 919.2 max 1 mW Evaluation of product specific Health Aspects Page: 3 of 5 USA Part Limits - USA Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm2) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm2) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density MPE Calculation Method – USA Predication of MPE limit at a given distance as described in Equation on page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR2 Where: S=power density Evaluation of product specific Health Aspects Page: 4 of 5 P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna Evaluation Result Modulation Type Target Output power Antenna gain (dBi) Antenna gain (linear) MPE (calculated) MPE (Limit) GFSK 2 mW 3 dBi 2 0.00080 mW/cm2 (Peak) 0.614 mW/cm2 Conclusion The device is compliant to the RF Exposure requirements. Evaluation of product specific Health Aspects Page: 5 of 5 Europe Part Specification for Evaluation EN 62479 sets force the basic restrictions related to human exposure to electromagnetic fields. Table A.1 in Annex A of the standard lists example values of SAR-based output power examinations P max for some cases as described by ICNIRP. An excerpt of the table is shown below. Guideline SAR limit, SAR max [W/kg] Averaging mass m [g] Pmax [mW] Exposure tier Regio of Body ICNIRP 2 10 20 General population Head and trunk Evaluation Result The antenna power of the EUT according to test report no.: is measured as: The manufacturer declares the maximum antenna power as: The maximum antenna power declared is below the low-power exclusion level defined in 4.2 (Pmax: 20mW). Conclusion The device is compliant to the Health requirements set out in the Radio EquipmentDirective.

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 20 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.com · E-Mail: [email protected] Test Report Test report no.: 24060222-41089-0 Date of issue: 2024-08-05 Test result: The test item - passed - and complies with the listed standards. Applicant Intellion AG Manufacturer Intellion AG Test Item Controller G4 Radio Frequency Testing according to: Title 47 FCC Regulations Subpart 15C §15.249 Tested by (name, function, signature) Piotr Sardyko Lab Manager RF _________________________________ signature Approved by (name, function, signature) Andreas Bender Deputy Managing Director _________________________________ signature {{$tested}} {{$approved}} TR no.: 24060222-41089-0 2024-08-05 2 / 20 IBL-Lab GmbH Applicant and Test item details Applicant Intellion AG Schuppisstrasse 10, 9016 St. Gallen, Switzerland Manufacturer Intellion AG Schuppisstrasse 10, 9016 St. Gallen, Switzerland Test item description LotTrack Controller G4 Model/Type reference Controller G4 Technology UHF SRD FCC ID 2ANAA-LTCONTROLG4 {{#tested=Sig_es_:signer1:signature:align(center):dimension(width=35mm, height=15mm)}} {{#approved=Sig_es_:signer2:signature:align(center):dimension(width=35mm, height=15mm)}} height=15mm)}} Disclaimer and Notes The content of this report relates to the mentioned test sample(s) only. IBL-Lab GmbH does not take samples. The samples used for testing are provided by the applicant. Without a written permit of IBL-Lab GmbH, this test report shall not be reproduced, except in full. The last valid version is available at TAMSys  . Signatures are done electronically, if signer does not match stated signer, it is signed per order. Information supplied by the applicant can affect the validity of results. The data is marked accordingly. Copyright ©: All rights reserved by IBL-Lab GmbH Within this test report, a ☒ point / ☐ comma is used as a decimal separator. If otherwise, a detailed note is added adjected to its use. Decision rule: Decision rule based on simple acceptance without guard bands, binary statement, based on mutually agreed uncertainty tolerances with expansion factor k=2. TR no.: 24060222-41089-0 2024-08-05 3 / 20 IBL-Lab GmbH 1 TABLE OF CONTENTS 1 TABLE OF CONTENTS ..................................................................................................................................... 3 2 GENERAL INFORMATION ................................................................................................................................ 4 2.1 ADMINISTRATIVE DETAILS ................................................................................................................................................... 4 2.2 POSSIBLE VERDICTS OF THE RESULTS ..................................................................................................................................... 4 2.3 OBSERVATIONS ................................................................................................................................................................ 5 2.4 OPINIONS AND INTERPRETATIONS ........................................................................................................................................ 5 2.5 REVISION HISTORY ............................................................................................................................................................ 5 2.6 FURTHER DOCUMENTS ...................................................................................................................................................... 5 2.7 FORMULA FOR DETERMINATION OF CORRECTION VALUES (E C ) ................................................................................................... 5 2.8 SOFTWARE/FIRMWARE USED FOR MEASUREMENTS ................................................................................................................. 5 2.9 BLOCK DIAGRAMS ............................................................................................................................................................. 6 3 ENVIRONMENTAL & TEST CONDITIONS ....................................................................................................... 7 3.1 ENVIRONMENTAL CONDITIONS OF LAB .................................................................................................................................. 7 4 TEST STANDARDS AND REFERENCES ......................................................................................................... 7 5 EQUIPMENT UNDER TEST (EUT) ................................................................................................................... 8 5.1 PRODUCT DESCRIPTION* ................................................................................................................................................... 8 5.2 TECHNICAL DATA OF EQUIPMENT* ...................................................................................................................................... 8 5.3 TEST ITEM (EQUIPMENT UNDER TEST) DESCRIPTION* ............................................................................................................. 8 5.4 AUXILIARY EQUIPMENT (AE) DESCRIPTION* .......................................................................................................................... 8 5.5 OPERATING MODES DESCRIPTION* ..................................................................................................................................... 9 5.6 SET-UPS DESCRIPTION ....................................................................................................................................................... 9 5.7 TEST CONDITIONS ............................................................................................................................................................. 9 5.8 ADDI…

Text truncated - open the document above for the full version.

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 27 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Annex A Measurement plots part of / in addition to Test report no.: 24060222-41089-0 Annex A of TR no.: 24060222-41089-0 2 / 27 IBL-Lab GmbH Table of contents: 1 General Limit - Radiated field strength emissions, 9 kHz – 12.75 GHz ........................ 3 1.1 Radiated field strength measurements (f < 30 MHz) ............................................................. 3 1.1.1 Set-up 1, 9 kHz – 30 MHz, Op. 1 - 6 ....................................................................................................................... 3 1.2 Radiated field strength measurements (30 MHz < f < 1000 MHz) ........................................ 4 1.2.1 Set-up 1, Op. 1 ......................................................................................................................................................... 4 1.2.2 Set-up 1, Op. 2 ......................................................................................................................................................... 5 1.2.3 Set-up 1, Op. 3 ......................................................................................................................................................... 6 1.2.4 Set-up 1, Op. 4 ......................................................................................................................................................... 7 1.2.5 Set-up 1, Op. 5 ......................................................................................................................................................... 8 1.2.6 Set-up 1, Op. 6 ......................................................................................................................................................... 9 1.3 Radiated field strength measurements (1 GHz < f < 18 GHz) ............................................. 10 1.3.1 Set-up 1, Op. 1 ....................................................................................................................................................... 10 1.3.2 Set-up 1, Op. 2 ....................................................................................................................................................... 11 1.3.3 Set-up 1, Op. 3 ....................................................................................................................................................... 12 1.3.4 Set-up 1, Op. 4 ....................................................................................................................................................... 13 1.3.5 Set-up 1, Op. 5 ....................................................................................................................................................... 14 1.3.6 Set-up 1, Op. 6 ....................................................................................................................................................... 15 2 Occupied Bandwidth ....................................................................................................... 16 2.1 Set-up 1, Op. 1..................................................................................................................... 16 2.2 Set-up 1, Op. 2..................................................................................................................... 16 2.3 Set-up 1, Op. 3..................................................................................................................... 17 2.4 Set-up 1, Op. 4..................................................................................................................... 17 2.5 Set-up 1, Op. 5..................................................................................................................... 18 2.6 Set-up 1, Op. 6..................................................................................................................... 18 3 Band Edge Emission ....................................................................................................... 19 3.1 Set-up 1, Op. 1..................................................................................................................... 19 3.2 Set-up 1, Op. 2..................................................................................................................... 20 3.3 Set-up 1, Op. 3..................................................................................................................... 21 3.4 Set-up 1, Op. 4..................................................................................................................... 21 3.5 Set-up 1, Op. 5..................................................................................................................... 22 3.6 Set-up 1, Op. 6..................................................................................................................... 23 4 Conducted emission........................................................................................................ 24 4.1 Set-up 1, Op. 1 – 6, L1 ........................................................................................................ 24 4.2 Set-up 1, Op. 1 – 6, N .......................................................................................................... 25 4.3 Set-up 2, Op. 1 – 6, L1 ........................................................................................................ 26 4.4 Set-up 2, Op. 1 – 6, N .......................................................................................................... 27 Annex A of TR no.: 24060222-41089-0 3 / 27 IBL-Lab GmbH 1 General Limit - Radiated field strength emissions, 9 kHz – 12.75 GHz 1.1 Radiated field strength measurements (f < 30 MHz) 1.1.1 Set-up 1, 9 kHz – 30 MHz, Op. 1 - 6 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 9…

Text truncated - open the document above for the full version.

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 8 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Annex B Photographs of EUT part of / in addition to Test report no.: 24060222-41089-0 Annex B of TR no.: 24060222-41089-0 2 / 8 IBL-Lab GmbH Table of contents 1. EUT and AE photographs ...................................................................................................................................... 3 Annex B of TR no.: 24060222-41089-0 3 / 8 IBL-Lab GmbH 1. EUT and AE photographs Photograph 1: View 1, EUT A, external photograph Photograph 2: View 2, EUT A, external photograph Annex B of TR no.: 24060222-41089-0 4 / 8 IBL-Lab GmbH Photograph 3: View 1, EUT A, internal photograph Photograph 4: View 2, EUT A, internal photograph Annex B of TR no.: 24060222-41089-0 5 / 8 IBL-Lab GmbH Photograph 5: AE 1 Photograph 6: AE 2 Annex B of TR no.: 24060222-41089-0 6 / 8 IBL-Lab GmbH Photograph 7: AE 3 Photograph 8: AE 4 Annex B of TR no.: 24060222-41089-0 7 / 8 IBL-Lab GmbH Photograph 9: AE 5 Photograph 10: AE 6 Annex B of TR no.: 24060222-41089-0 8 / 8 IBL-Lab GmbH Photograph 11: AE 7 Annex C of TR no.: 24060222-41089-0 8 / 8 IBL-Lab GmbH 5. Conducted emissions measurements Photograph 9: Overall view, set-up 1. Photograph 10: Overall view, set-up 2.

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 8 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Annex C Test setup photographs part of / in addition to Test report no.: 24060222-41089-0 Annex C of TR no.: 24060222-41089-0 2 / 8 IBL-Lab GmbH Table of contents 1. Radiated field strength measurements (f < 30 MHz) ............................................................................................. 3 2. Radiated field strength measurements (30 MHz < f < 1000 MHz) ........................................................................ 5 3. Radiated field strength measurements (1 GHz < f < 18 GHz) ............................................................................... 6 4. Occupied bandwidth .............................................................................................................................................. 7 5. Conducted emissions measurements ................................................................................................................... 8 Annex C of TR no.: 24060222-41089-0 3 / 8 IBL-Lab GmbH 1. Radiated field strength measurements (f < 30 MHz) Photograph 1: Overall view. Photograph 2: Close view 1. Annex C of TR no.: 24060222-41089-0 4 / 8 IBL-Lab GmbH Photograph 3: Close view 2. Annex C of TR no.: 24060222-41089-0 5 / 8 IBL-Lab GmbH 2. Radiated field strength measurements (30 MHz < f < 1000 MHz) Photograph 4: Overall view. Annex C of TR no.: 24060222-41089-0 6 / 8 IBL-Lab GmbH 3. Radiated field strength measurements (1 GHz < f < 12.75 GHz) Photograph 5: Overall view. Photograph 6: Close view. Annex C of TR no.: 24060222-41089-0 7 / 8 IBL-Lab GmbH 4. Occupied bandwidth Photograph 7: Overall view. Photograph 8: Close view. Annex C of TR no.: 24060222-41089-0 8 / 8 IBL-Lab GmbH 5. Conducted emissions measurements Photograph 9: Overall view, set-up 1. Photograph 10: Overall view, set-up 2.
