2ANAA-LTDISTAGG4LotTrack DisTag G4

© Intellion 2024 Page 1/8 Intellion AG Schuppisstrasse 10 9016 St. Gallen Switzerland T 0041-71-280 81 81 E [email protected] www intellion.com User Manual LotTrack DisTag G4 Version: 1.0 Date: September 2024 © Intellion 2024 Page 2/8 Table of Contents 1. Functional Use ................................................................................................................ 3 2. General handling instructions ....................................................................................... 5 3. Compliance Information ................................................................................................. 5 3.1 USA: Regulatory Notes .................................................................................................. 5 3.2 Europe: Declaration of Conformity (DoC) ..................................................................... 6 © Intellion 2024 Page 3/8 1. Functional Use The LotTrack DisTag G4 is the smart device attached to each wafer-box in the a semiconductor fab. Depending on the DisTag G4 Type, the DisTag G4 is used to perform different key functions within the LotTrack System. These functions are e.g. Operator Assistance (using the display and the LED), Discrete Position Detection (using the optical reader module (OR module) that detects Position Iden- tifiers attached to storage positions on racks/ carts) or Free Air Localization (using e.g. the UWB technology to perform 2D and 1D global localization). Figure 1: LotTrack DisTag G4 Types with UWB (Types 01, 05, 06) Figure 2: LotTrack DisTag G4 Types with Ultra-sound (Types 02, 03, 04) © Intellion 2024 Page 4/8 LotTrack DisTag G4 – Datasheet – Technical Specifications Wireless Communication Over- view Technology  Passive RFID LF to interact with a LotTrack LoadPort Identifier/ Door- way Identifier.  Active RFID UHF to transfer data to the LotTrack Antenna Inrastructure.  Active UWB to receive and send radio UWB signals for localization.  Passive infrared (IR) to receive data from a LotTrack LoadPort Identi- fier.  Passive ultrasonic (US) to receive ultrasonic signals for localization. Communication LF (receive only) Frequency 125 kHz Antenna Type 3D integrated LF receiver coils (x, y z) Modulation 7,8 kbit/s Communication UHF Frequency band Europe 867.2 – 869.85 MHz Frequency band USA 919.2 – 920.8 MHz Transmit Output Power < 1 mW Antenna Type omnidirectional Modulation 115.2 Kbit/s, GFSK, 64 kHz Deviation; bi-direcitonal Communication UWB Only for Types with UWB Frequency 6.5 GHz (center frequency) 6.2400 – 6.7392 GHz (Range) Transmit Channel Power < -17 dBm/500MHz Antenna Type omnidirectional Communication infrared (IR) (receive only) Receiver Type Infrared light Communication ultrasonic (US) (receive only) For Types with ultrasonic (US) Frequency 39 kHz to 41 kHz Receiver Type Ultrasonic Display Display Type MIP / extremely low power consumption/ ultra high resolution Capability graphic Display Resolution 536 x 336 (179 dpi) Display Size 80.3 mm (3.16in.) Display Update Rate Full display < 2s Energy Battery 2 AA Li / SOCl2 cells (exchangeable) Overall Voltage/ Capacity 3.6V / 5‘000mAh nominal © Intellion 2024 Page 5/8 Evironmental Operating temperature 10°C ... +40°C Storage temperature 0°C ... +60°C Dimensions LxWxH 94 x 62 x 21.5 mm Material ABS antistatic Weight approx. 100g Mounting different mounting solutions resp. back covers for each wafer-box type 2. General handling instructions Important Notice: Before starting to use the LotTrack DisTag G4 in the fab, carefully read all gen- eral handling and user instructions documented in this section. General terms of use for cleaning, storage and transport of the DisTag G4  The DisTag G4 is intended to be solely used indoor when implemented in a fab.  The DisTag G4 is intended to be solely used when attached to boxes.  When the DisTag G4 is attached to a box, never use the DisTag G4 as a handle device to move or carry the box.  Do in no event insert the DisTag G4 into any semiconductor equipment, such as for example implanter, stepper or wet benches.  Do not drop, kick or throw the DisTag G4.  Do not hit the DisTag G4 against surfaces of e.g. desks, push carts or equipments, nor impose strong mechanical pressure, e.g. on the display or optical reader.  Do not expose the DisTag G4 to water or other liquids, varnishes, gases, heat or steam.  Do not contaminate the DisTag G4, especially not the optical reader.  Do not open the DisTag G4.  Gently wipe the surface using a clean room compliant towel that is moistened with Isopro- panol. Do not spray the Isopropanol directly on the DisTag G4.  Do not use sharp devices for cleaning.  For storage and transport, only use the recommended storage and transport devices for the DisTag G4. All storage and transport devices shall be kept clean before use; the environment shall be kept dry. 3. Compliance Information 3.1 USA: Regulatory Notes This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde- sired operation. © Intellion 2024 Page 6/8 Class B digital device. A digital device that is marketed for use in a residential environment not- withstanding use in commercial, business and industrial environments. Examples of such devices include, but are not limited to, personal computers, calculators, and similar electronic devices that are marketed for use by the general public. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference t…

Text truncated - open the document above for the full version.

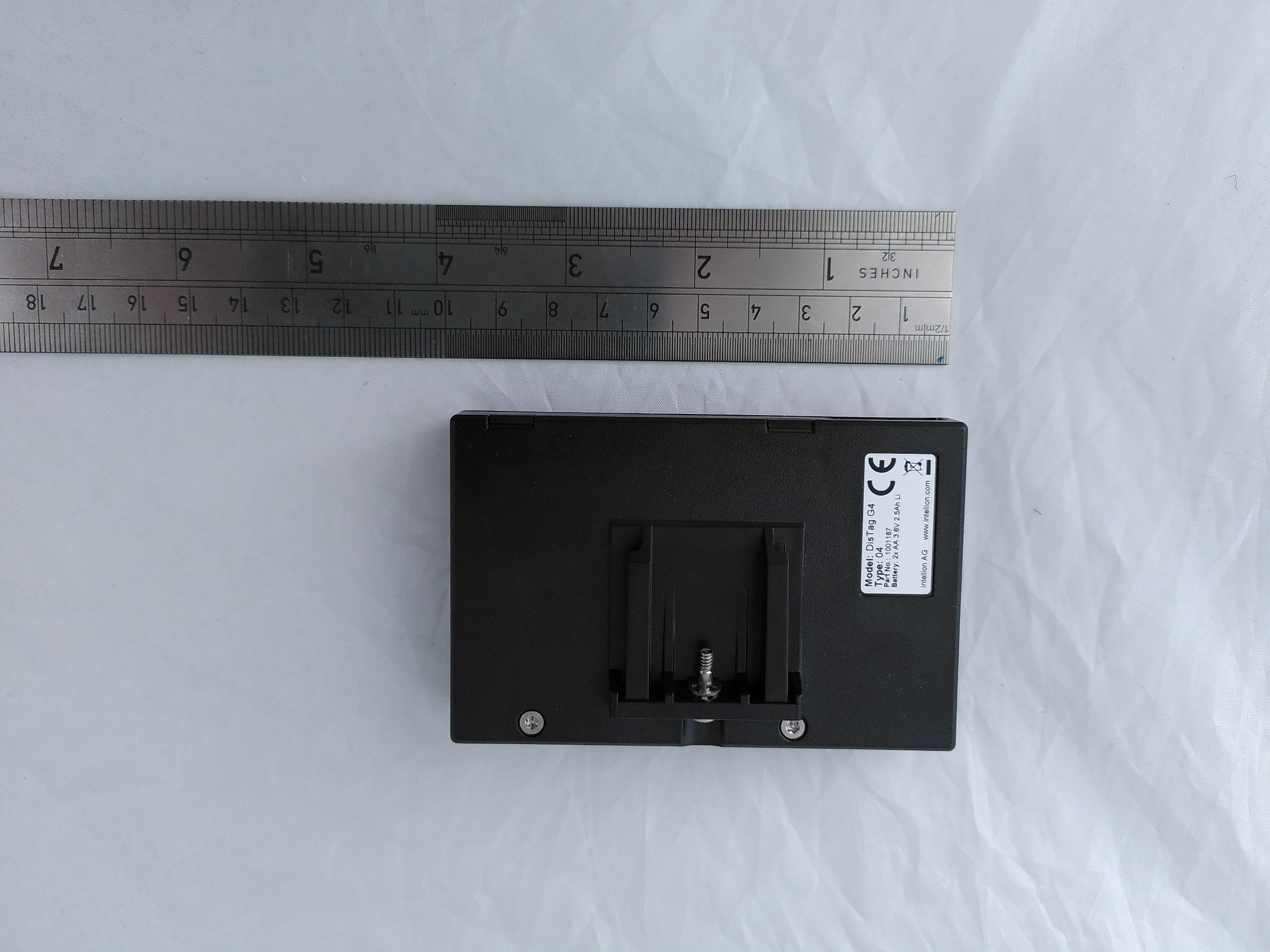

© 2024 INTELLION AG 1 STRICTLY CONFIDENTIAL DisTag G4, UWB - photos external © 2024 INTELLION AG 2 STRICTLY CONFIDENTIAL DisTag G4, UWB - photos external © 2024 INTELLION AG 3 STRICTLY CONFIDENTIAL DisTag G4, UWB - photos external © 2024 INTELLION AG 4 STRICTLY CONFIDENTIAL DisTag G4, UWB - photos external © 2024 INTELLION AG 5 STRICTLY CONFIDENTIAL DisTag G4, UWB - photos external © 2024 INTELLION AG 6 STRICTLY CONFIDENTIAL DisTag G4, UWB - photos external © 2024 INTELLION AG 7 STRICTLY CONFIDENTIAL DisTag G4, Ultrasound - photos external © 2024 INTELLION AG 8 STRICTLY CONFIDENTIAL DisTag G4, Ultrasound - photos external © 2024 INTELLION AG 9 STRICTLY CONFIDENTIAL DisTag G4, Ultrasound - photos external © 2024 INTELLION AG 10 STRICTLY CONFIDENTIAL DisTag G4, Ultrasound - photos external © 2024 INTELLION AG 11 STRICTLY CONFIDENTIAL DisTag G4, Ultrasound - photos external © 2024 INTELLION AG 12 STRICTLY CONFIDENTIAL DisTag G4, Ultrasound - photos external

© 2024 INTELLION AG 1 STRICTLY CONFIDENTIAL DisTag G4, UWB - photos internal © 2024 INTELLION AG 2 STRICTLY CONFIDENTIAL DisTag G4, UWB - photos internal © 2024 INTELLION AG 3 STRICTLY CONFIDENTIAL DisTag G4, Ultrasound - photos internal © 2024 INTELLION AG 4 STRICTLY CONFIDENTIAL DisTag G4, Ultrasound - photos internal

© Intellion AG 2024, Version v4, Date: 18-Sep-2024 Page 1/2 LotTrack DisTag G4 – Dataheet – Technical Specification Types DisTag G4 Types with UWB Types • 01 • 05 • 06 DisTag G4 Types with Ultrasound Types: • 02 • 03 • 04 Wireless Communication Overview Technology • Passive RFID LF to interact with a LotTrack LoadPort Identifier/ Doorway Identifier. • Active RFID UHF to transfer data to the LotTrack Antenna Inrastructure. • Active UWB to receive and send radio UWB signals for localization. • Passive infrared (IR) to receive data from a LotTrack LoadPort Identifier. • Passive ultrasonic (US) to receive ultrasonic signals for localization. Communication LF (receive only) Frequency 125 kHz Antenna Type 3D integrated LF receiver coils (x, y z) Modulation 7,8 kbit/s Communication UHF Frequency band Europe 867.2 – 869.85 MHz Frequency band USA 919.2 – 920.8 MHz Transmit Output Power < 1 mW Antenna Type omnidirectional Modulation 115.2 Kbit/s, GFSK, 64 kHz Deviation; bi-direcitonal Communication UWB Only for Types with UWB Frequency 6.5 GHz (center frequency) 6.2400 – 6.7392 GHz (Range) Transmit Channel Power < -17 dBm/500MHz Antenna Type omnidirectional Communication infrared (IR) (receive only) Receiver Type Infrared light © Intellion AG 2024, Version v4, Date: 18-Sep-2024 Page 2/2 Communication ultrasonic (US) (receive only) For Types with ultrasonic (US) Frequency 39 kHz to 41 kHz Receiver Type Ultrasonic Display Display Type MIP / extremely low power consumption/ ultra high resolution Capability graphic Display Resolution 536 x 336 (179 dpi) Display Size 80.3 mm (3.16in.) Display Update Rate Full display < 2s Energy Battery 2 AA Li / SOCl2 cells (exchangeable) Overall Voltage/ Capacity 3.6V / 5‘000mAh nominal Evironmental Operating temperature 10°C ... +40°C Storage temperature 0°C ... +60°C Dimensions LxWxH 94 x 62 x 21.5 mm Material ABS antistatic Weight approx. 100g Mounting different mounting solutions resp. back covers for each wafer-box type Remarks: • The DisTag G4 does support simultaneous transmission for the communication via UHF and UWB. • The integrated UWB module (FCC ID: 2AQ33-DWM1001) features a Bluetooth Low Energy (BLE) microprocessor. The BLE function is deactivated by the software and is not used in the DisTag G4.

Evaluation of product specific Health Aspects Page: 1 of 5 Evaluation Report Product Name: LotTrack DisTag G4 Model Name: DisTag G4 Report No.: Applicant: Intellion AG Prepared by: General Applied Standard(s): EN 62479:2010 CFR47 FCC Part 2: Section 2.1093 FCC KDB Publication 447498 v06 Test Result: complies Intellion AG, Schuppisstrasse 10, 9016 St. Gallen, Switzerland Dr. Kai Millarg Evaluation of product specific Health Aspects Page: 2 of 5 Contents GENERAL 1 Contents 2 Description of EUT 2 Rated Power according to the manufacturer 2 USA Part 3 Limits - USA 3 MPE Calculation Method – USA 3 Evaluation Result 4 Conclusion 4 Europe Part 5 Specification for Evaluation 5 Evaluation Result 5 Conclusion 5 Description of EUT Product Name: LotTrack DisTag G4 Model No.: DisTag G4 Trade Name: LotTrack DisTag G4 Frequency Range: 919.2 – 920.8 MHz (for USA) 867.2 – 869.85 MHz (for EU) 6.2400 – 6.7392 GHz (for USA, EU) Working Frequency: Power Supply: Battery, 2 AA Li / SOCl2 cells (exchangeable) Rated Power according to the manufacturer Frequency (MHz) Target Power and Tolerance 920.8 max 1 mW 919.2 max 1 mW 6240.0 – 6739.2 GHz max 0.2 mW Evaluation of product specific Health Aspects Page: 3 of 5 USA Part Limits - USA Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm2) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm2) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density MPE Calculation Method – USA Predication of MPE limit at a given distance as described in Equation on page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR2 Where: S=power density Evaluation of product specific Health Aspects Page: 4 of 5 P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna Evaluation Result Modulation Type Target Output power Antenna gain (dBi) Antenna gain (linear) MPE (calculated) MPE (Limit) GFSK 1 mW N/A N/A 0.00318 mW/cm2 (Peak) 0.614 mW/cm2 UWB 0.02 mW 2.5 dBi 1.8 0.00011 mW/cm2 (Peak) 1.000 mW/cm2 GFSK + UWB 0.00330 mW/cm2 (Peak) 0.614 mW/cm2 Remark GFSK: The DisTag G4 has an integrated Antenna. Output power measurements have only been done radiated. See Declaration of no Antenna Specification (Part 15C Devices) and Test Report 24039934-40528-0. Therefore, Antenna Gain (dBi) / Antenna Gain (linear) does not apply. Conclusion The device is compliant to the RF Exposure requirements. Evaluation of product specific Health Aspects Page: 5 of 5 Europe Part Specification for Evaluation EN 62479 sets force the basic restrictions related to human exposure to electromagnetic fields. Table A.1 in Annex A of the standard lists example values of SAR-based output power examinations P max for some cases as described by ICNIRP. An excerpt of the table is shown below. Guideline SAR limit, SAR max [W/kg] Averaging mass m [g] Pmax [mW] Exposure tier Regio of Body ICNIRP 2 10 20 General population Head and trunk Evaluation Result The antenna power of the EUT according to test report no.: is measured as: The manufacturer declares the maximum antenna power as: The maximum antenna power declared is below the low-power exclusion level defined in 4.2 (Pmax: 20mW). Conclusion The device is compliant to the Health requirements set out in the Radio EquipmentDirective.

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 20 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.com · E-Mail: [email protected] Test Report Test report no.: 24039934-40528-0 Date of issue: 2024-09-12 Test result: The test item - passed - and complies with the listed standards. Applicant Intellion AG Manufacturer Intellion AG Test Item DisTag G4 Radio Frequency Testing according to: Title 47 FCC Regulations Subpart 15C §15.249 Tested by (name, function, signature) Piotr Sardyko Lab Manager RF _________________________________ signature Approved by (name, function, signature) Andreas Bender Deputy Managing Director _________________________________ signature {{$tested}} {{$approved}} TR no.: 24039934-40528-0 2024-09-12 2 / 20 IBL-Lab GmbH Applicant and Test item details Applicant Intellion AG Schuppisstrasse 10, 9016 St. Gallen, Switzerland Manufacturer Intellion AG Schuppisstrasse 10, 9016 St. Gallen, Switzerland Test item description LotTrack DisTag G4 Model/Type reference DisTag G4 Technology UHF SRD FCC ID 2ANAA-LTDISTAGG4 Contains transceiver module: 2AQ33-DWM1001 {{#tested=Sig_es_:signer1:signature:align(center):dimension(width=35mm, height=15mm)}} {{#approved=Sig_es_:signer2:signature:align(center):dimension(width=35mm, height=15mm)}} height=15mm)}} Disclaimer and Notes The content of this report relates to the mentioned test sample(s) only. IBL-Lab GmbH does not take samples. The samples used for testing are provided by the applicant. Without a written permit of IBL-Lab GmbH, this test report shall not be reproduced, except in full. The last valid version is available at TAMSys  . Signatures are done electronically, if signer does not match stated signer, it is signed per order. Information supplied by the applicant can affect the validity of results. The data is marked accordingly. Copyright ©: All rights reserved by IBL-Lab GmbH Within this test report, a ☒ point / ☐ comma is used as a decimal separator. If otherwise, a detailed note is added adjected to its use. Decision rule: Decision rule based on simple acceptance without guard bands, binary statement, based on mutually agreed uncertainty tolerances with expansion factor k=2. TR no.: 24039934-40528-0 2024-09-12 3 / 20 IBL-Lab GmbH 1 TABLE OF CONTENTS 1 TABLE OF CONTENTS ..................................................................................................................................... 3 2 GENERAL INFORMATION ................................................................................................................................ 4 2.1 ADMINISTRATIVE DETAILS ................................................................................................................................................... 4 2.2 POSSIBLE VERDICTS OF THE RESULTS ..................................................................................................................................... 4 2.3 OBSERVATIONS ................................................................................................................................................................ 5 2.4 OPINIONS AND INTERPRETATIONS ........................................................................................................................................ 5 2.5 REVISION HISTORY ............................................................................................................................................................ 5 2.6 FURTHER DOCUMENTS ...................................................................................................................................................... 5 2.7 FORMULA FOR DETERMINATION OF CORRECTION VALUES (E C ) ................................................................................................... 5 2.8 SOFTWARE/FIRMWARE USED FOR MEASUREMENTS ................................................................................................................. 5 2.9 BLOCK DIAGRAMS ............................................................................................................................................................. 6 3 ENVIRONMENTAL & TEST CONDITIONS ....................................................................................................... 7 3.1 ENVIRONMENTAL CONDITIONS OF LAB .................................................................................................................................. 7 4 TEST STANDARDS AND REFERENCES ......................................................................................................... 7 5 EQUIPMENT UNDER TEST (EUT) ................................................................................................................... 8 5.1 PRODUCT DESCRIPTION* ................................................................................................................................................... 8 5.2 TECHNICAL DATA OF EQUIPMENT* ...................................................................................................................................... 8 5.3 TEST ITEM (EQUIPMENT UNDER TEST) DESCRIPTION* ............................................................................................................. 8 5.4 AUXILIARY EQUIPMENT (AE) DESCRIPTION* .......................................................................................................................... 8 5.5 OPERATING MODES DESCRIPTION* ..................................................................................................................................... 9 5.6 SET-UPS DESCRIPTION ....................................................................................................................................................... 9 5.7 TEST CONDITIONS ..........................................................................................................................................…

Text truncated - open the document above for the full version.

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 7 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Annex C Test setup photographs part of / in addition to Test report no.: 24039934-40528-0 Annex C of TR no.: 24039934-40528-0 2 / 7 IBL-Lab GmbH Table of contents 1. Radiated field strength measurements (f < 30 MHz) ............................................................................................. 3 2. Radiated field strength measurements (30 MHz < f < 1000 MHz) ........................................................................ 5 3. Radiated field strength measurements (1 GHz < f < 12.75 GHz) .......................................................................... 6 4. Occupied bandwidth .............................................................................................................................................. 7 Annex C of TR no.: 24039934-40528-0 3 / 7 IBL-Lab GmbH 1. Radiated field strength measurements (f < 30 MHz) Photograph 1: Overall view. Photograph 2: Close view 1. Annex C of TR no.: 24039934-40528-0 4 / 7 IBL-Lab GmbH Photograph 3: Close view 2. Annex C of TR no.: 24039934-40528-0 5 / 7 IBL-Lab GmbH 2. Radiated field strength measurements (30 MHz < f < 1000 MHz) Photograph 4: Overall view. Annex C of TR no.: 24039934-40528-0 6 / 7 IBL-Lab GmbH 3. Radiated field strength measurements (1 GHz < f < 12.75 GHz) Photograph 5: Overall view. Photograph 6: Close view. Annex C of TR no.: 24039934-40528-0 7 / 7 IBL-Lab GmbH 4. Occupied bandwidth Photograph 7: Overall view. Photograph 8: Close view.

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 17 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Annex A Measurement plots part of / in addition to Test report no.: 24039934-40528-0 Annex A of TR no.: 24039934-40528-0 2 / 17 IBL-Lab GmbH Table of contents: 1 General Limit - Radiated field strength emissions, 9 kHz – 12.75 GHz ........................ 3 1.1 Radiated field strength measurements (f < 30 MHz) ............................................................. 3 1.1.1 Set-up 1, 9 kHz – 30 MHz, Op. 1 - 4 ....................................................................................................................... 3 1.2 Radiated field strength measurements (30 MHz < f < 1000 MHz) ........................................ 4 1.2.1 Set-up 1, Op. 1 ......................................................................................................................................................... 4 1.2.2 Set-up 1, Op. 2 ......................................................................................................................................................... 5 1.2.3 Set-up 1, Op. 3 ......................................................................................................................................................... 6 1.2.4 Set-up 1, Op. 4 ......................................................................................................................................................... 7 1.3 Radiated field strength measurements (1 GHz < f < 18 GHz) ............................................... 8 1.3.1 Set-up 1, Op. 1 ......................................................................................................................................................... 8 1.3.2 Set-up 1, Op. 2 ......................................................................................................................................................... 9 1.3.3 Set-up 1, Op. 3 ....................................................................................................................................................... 10 1.3.4 Set-up 1, Op. 4 ....................................................................................................................................................... 11 2 Occupied Bandwidth ....................................................................................................... 12 2.1 Set-up 1, Op. 5..................................................................................................................... 12 2.2 Set-up 1, Op. 6..................................................................................................................... 12 2.3 Set-up 1, Op. 7..................................................................................................................... 13 2.4 Set-up 1, Op. 8..................................................................................................................... 13 3 Band Edge Emission ....................................................................................................... 14 3.1 Set-up 1, Op. 1* ................................................................................................................... 14 3.2 Set-up 1, Op. 2* ................................................................................................................... 15 3.3 Set-up 1, Op. 3..................................................................................................................... 16 3.4 Set-up 1, Op. 4..................................................................................................................... 17 Annex A of TR no.: 24039934-40528-0 3 / 17 IBL-Lab GmbH 1 General Limit - Radiated field strength emissions, 9 kHz – 12.75 GHz 1.1 Radiated field strength measurements (f < 30 MHz) 1.1.1 Set-up 1, 9 kHz – 30 MHz, Op. 1 - 4 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Meas. Time (ms) Bandwidth (kHz) Pol Azimuth (deg) Corr. (dB/m) 13.078500 16.00 29.54 13.54 100.0 9.000 V 80.0 -1.2 21.626250 2.20 29.54 27.34 100.0 9.000 V 75.0 0.6 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 9k 20 30 50 100k 200 300 500 1M 2M 3M 5M 10M 20 30M Level in dBμV/m Frequency in Hz Preview Result 1-PK+ Critical_Freqs PK+ FCC15.209_Magnetic_Field Final_Result QPK FCC15.209_Magnetic_Field Annex A of TR no.: 24039934-40528-0 4 / 17 IBL-Lab GmbH 1.2 Radiated field strength measurements (30 MHz < f < 1000 MHz) 1.2.1 Set-up 1, Op. 1 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Meas. Time (ms) Bandwidth (kHz) Height (cm) Pol Azimuth (deg) 919.200000 92.25 46.00 -46.25 100.0 120.000 135.0 H 120.0 10 20 30 40 50 60 70 80 90 100 30M 50 60 80 100M 200 300 400 500 800 1G Level in dBμV/m Frequency in Hz Preview Result 1-PK+ Critical_Freqs PK+ 15.209 @3m QP 15.209 @3m PK Final_Result QPK 15.209 @3m QP 15.209 @3m PK Annex A of TR no.: 24039934-40528-0 5 / 17 IBL-Lab GmbH 1.2.2 Set-up 1, Op. 2 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Meas. Time (ms) Bandwidth (kHz) Height (cm) Pol Azimuth (deg) 919.800000 92.67 46.00 -46.67 100.0 120.000 130.0 H 127.0 10 20 30 40 50 60 70 80 90 100 30M 5060 80100M200300400500 8001G Level in dBμV/m Frequency in Hz Preview Result 1-PK+Critical_Freqs PK+15.209 @3m QP 15.209 @3m PKFinal_Result QPK 15.209 @3m QP 15.209 @3m PK Annex A of TR no.: 24039934-40528-0 6 / 17 IBL-Lab GmbH 1.2.3 Set-up 1, Op. 3 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Meas. Time (ms) Bandwidth (kHz) Height (cm) Pol Azimuth (deg) 920.200000 92.42 46.00 -46.42 100.0 120.000 136.0 H -42.0 10 20 30 40 50 60 70 80 90 100 30M 5060 80100M200300400500 8001G Level in dBμV/m Frequency in Hz Preview Result 1-PK+Critical_Freqs PK+15.209 @3m QP 15.209 @3m PKFinal_Result QPK 15.209 @3m QP 15.209 @3m…

Text truncated - open the document above for the full version.

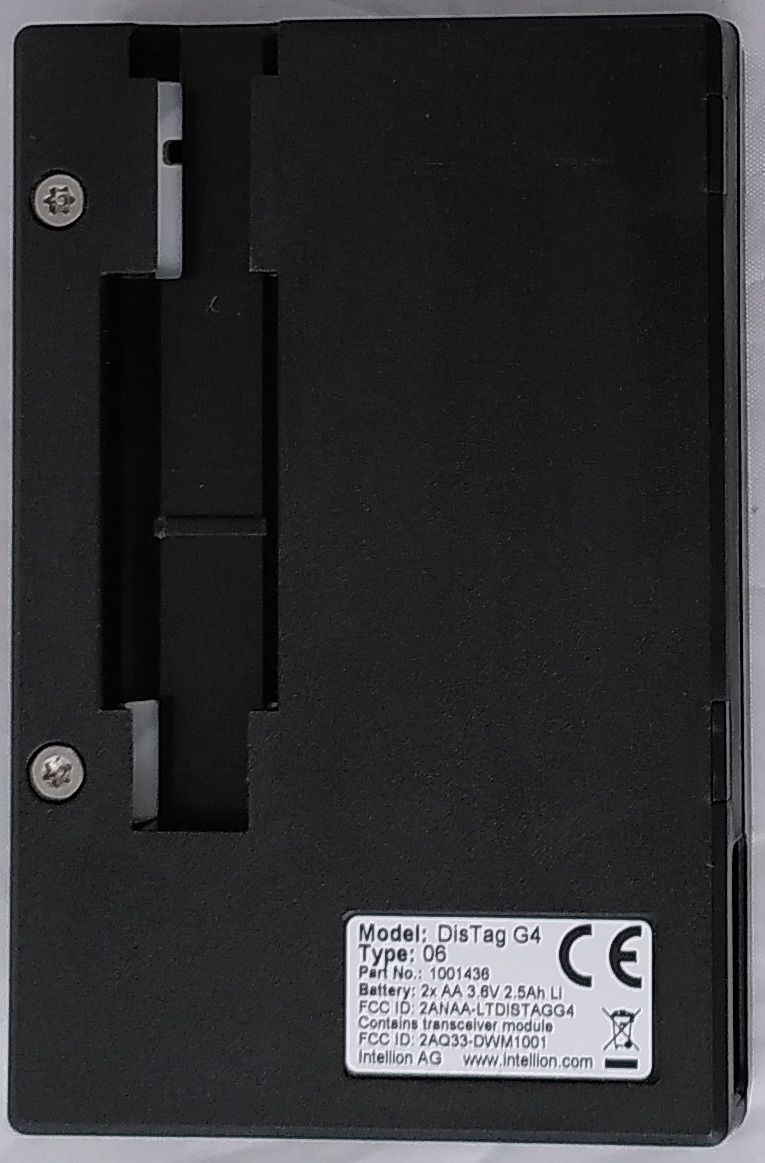

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 6 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Annex B Photographs of EUT part of / in addition to Test report no.: 24039934-40528-0 Annex B of TR no.: 24039934-40528-0 2 / 6 IBL-Lab GmbH Table of contents 1. EUT and AE photographs ...................................................................................................................................... 3 Annex B of TR no.: 24039934-40528-0 3 / 6 IBL-Lab GmbH 1. EUT and AE photographs Photograph 1: View 1, EUT A, external photograph Photograph 2: View 2, EUT A, external photograph Annex B of TR no.: 24039934-40528-0 4 / 6 IBL-Lab GmbH Photograph 3: EUT A, antenna view (provided by customer) Photograph 4: AE 1 Annex B of TR no.: 24039934-40528-0 5 / 6 IBL-Lab GmbH Photograph 5: AE 2 Photograph 6: AE 3, LAN cable Annex B of TR no.: 24039934-40528-0 6 / 6 IBL-Lab GmbH Photograph 7: AE 3, power supply cable Photograph 8: AE 4
