2ANAA-LTLPRLFLotTrack LPR LF

© Intellion 2026 Page 1/7 Intellion AG Schuppisstrasse 10 9016 St. Gallen Switzerland T 0041-71-280 81 81 E [email protected] www intellion.com User Manual LotTrack LPR LF Version: 1.1 Date: May 2026 © Intellion 2026 Page 2/7 Table of Contents 1. Functional Use .............................................................................................................. 3 2. General handling instructions ...................................................................................... 4 3. Compliance Information ............................................................................................... 4 3.1 USA: Regulatory Notes ................................................................................................. 4 3.2 Europe: Declaration of Conformity (DoC) ................................................................... 5 © Intellion 2026 Page 3/7 1. Functional Use The LotTrack LPR LF (LPR LF) is mounted to a load port of an equipment. When a cassette with an ID card is placed on a load port, the LPR LF detects the passive RFID tag of the ID Card attached to the cassette and sends the ID to the LotTrack System Figure 1: LotTrack LPR LF Technical Specifications of the LotTrack LPR LF: Connectors Ext1 (input or output) 8 pin connector  Power  RS422 Ext2 (input or output) 8 pin connector  Power  RS422 External LF antenna MMCX Digital Input Diagnostic use only RFID – LF Transponder / Technology Hitag S Frequency 125 kHz Transmit Output Power < 1 mW Antenna Type External Modulation OOK (on-off keying) Sensors Distance sensor ToF - Time of Flight Indicators Status LED 1x Red / Green Energy Power supply External DC Nominal supply voltage 5 V DC Voltage range 4.5 – 5.5 V DC Current consumption Max. 350 mA @ 5 VDC Evironmental Operating temperature 10°C ... +40°C © Intellion 2026 Page 4/7 Storage temperature 0°C ... +60°C Physical Dimension 66 x 30 x 15 mm Weight 15 g Material Makrolon 2456 - transparent Mounting different aluminium mounting rails 2. General handling instructions Important Notice: Before starting to use the LPR LF in the fab, carefully read all general handling and user instructions documented in this section. General terms of use for cleaning, storage and transport of the LPR LF:  The LPR LF is intended to be solely used indoor when implemented in a fab.  Gently wipe the surface using a clean room compliant towel that is moistened with Isopropanol. Do not spray the Isopropanol directly on the LPR LF.  Do not use sharp devices for cleaning.  Do not drop, kick or throw the LPR LF.  Do not hit the LPR LF against surfaces of e.g. desks, push-cards or equipment, nor impose strong mechanical pressure, e.g. on the antennas.  Do not expose the LPR LF to water or other liquids, varnishes, gases, heat or steam.  Do not open the LPR LF.  For storage and transport, only use the recommended storage and transport devices for the LPR LF. All storage and transport devices shall be kept clean before use; the environment shall be kept dry.  Do not install or place the LPR LF near sources of strong electromagnetic fields and/or strong ultrasound sources. 3. Compliance Information 3.1 USA: Regulatory Notes This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Class B digital device. A digital device that is marketed for use in a residential environment notwithstanding use in commercial, business and industrial environments. Examples of such devices include, but are not limited to, personal computers, calculators, and similar electronic devices that are marketed for use by the general public. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection © Intellion 2026 Page 5/7 against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Important: This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties according to Part 15.517 (f). 3.2 Europe: Declaration of Conformity (DoC) [Name of manufacturer] = Intellion AG [designation of type of radio equipment] = LPR LF (Type: STD) [Your web site address] = www.intellion.com/en/eu-doc/ BG С настоящото [Name of manufacturer] декларира, че този тип…

Text truncated - open the document above for the full version.

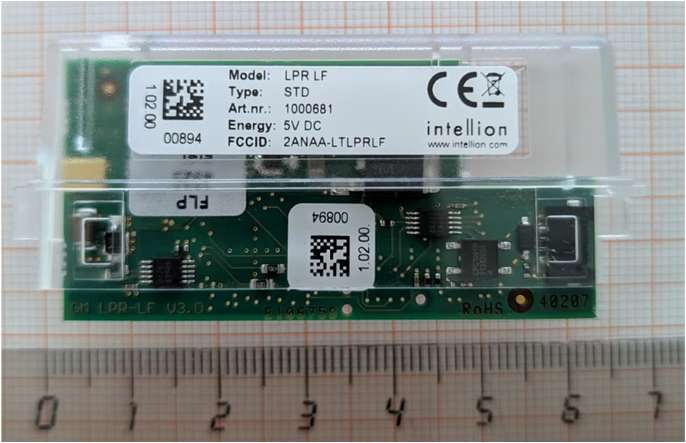

© 2025 INTELLION AG 1 STRICTLY CONFIDENTIAL LPR LF, Type STD - photos internal

Evaluation of product specific Health Aspects Page: 1 of 5 Evaluation Report Product Name: LotTrack LPR LF Model Name: LPR LF Report No.: Applicant: Intellion AG Prepared by: General Applied Standard(s): EN 62479:2010 CFR47 FCC Part 2: Section 2.1093 FCC KDB Publication 447498 v06 Test Result: complies Intellion AG, Schuppisstrasse 10, 9016 St. Gallen, Switzerland Dr. Kai Millarg Evaluation of product specific Health Aspects Page: 2 of 5 Contents GENERAL 1 Contents 2 Description of EUT 2 Rated Power according to the manufacturer 2 USA Part 3 Limits - USA 3 MPE Calculation Method – USA 3 Evaluation Result 4 Conclusion 4 Europe Part 5 Specification for Evaluation 5 Evaluation Result 5 Conclusion 5 Description of EUT Product Name: LotTrack LPR LF Model No.: LPR LF Trade Name: LotTrack LPR LF Frequency Range: 125 KHz Working Frequency: Power Supply: 5 V DC Rated Power according to the manufacturer Frequency (MHz) Target Power and Tolerance 0.125 MHz max 1 mW Evaluation of product specific Health Aspects Page: 3 of 5 USA Part Limits - USA Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm2) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm2) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density MPE Calculation Method – USA Predication of MPE limit at a given distance as described in Equation on page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR2 Where: S=power density Evaluation of product specific Health Aspects Page: 4 of 5 P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna Evaluation Result Modulation Type Target Output power Antenna gain (dBi) Antenna gain (linear) MPE (calculated) MPE (Limit) OOK < 1 mW 0.00000015 mW/cm2 100 mW/cm2 Conclusion The device is compliant to the RF Exposure requirements. Evaluation of product specific Health Aspects Page: 5 of 5 Europe Part Specification for Evaluation EN 62479 sets force the basic restrictions related to human exposure to electromagnetic fields. Table A.1 in Annex A of the standard lists example values of SAR-based output power examinations P max for some cases as described by ICNIRP. An excerpt of the table is shown below. Guideline SAR limit, SAR max [W/kg] Averaging mass m [g] Pmax [mW] Exposure tier Regio of Body ICNIRP 2 10 20 General population Head and trunk Evaluation Result The antenna power of the EUT according to test report no.: is measured as: The manufacturer declares the maximum antenna power as: The maximum antenna power declared is below the low-power exclusion level defined in 4.2 (Pmax: 20mW). Conclusion The device is compliant to the Health requirements set out in the Radio EquipmentDirective.

Company: IBL-Lab GmbH · Heinrich-Hertz-Allee 7 · 66386 St. Ingbert · Germany · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 26 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.com · E-Mail: [email protected] Test Report Test report no.: 24060240-41132-0 Date of issue: 2025-12-12 Test result: The test item - passed - and complies with below listed standards. Applicant Intellion AG Manufacturer Intellion AG Test Item LPR LF RF-Spectrum Testing according to: FCC 47 CFR Part 15 Radio Frequency Devices (Subpart C) Tested by (name, function, signature) Piotr Sardyko Deputy Head of Laboratory RF _______________________________ signature Approved by (name, function, signature) Janoschka Sebastian Head of Department Radio _________________________________ signature {{$tested}} {{$approved}} Sebastian Janoschka (Dec 12, 2025 15:07:53 GMT+1) TR no.: 24060240-41132-0 2025-12-12 2 / 26 IBL-Lab GmbH Applicant and Test item details Applicant Intellion AG Schuppisstrasse 10, 9016 St. Gallen, Switzerland Manufacturer Intellion AG Schuppisstrasse 10, 9016 St. Gallen, Switzerland Test item description LotTrack LPR LF Model/Type reference LPR LF FCC ID 2ANAA-LTLPRLF Frequency 125 kHz Technology RFID Antenna External LF antenna Power supply (function) Vnom: 5; Vmax: 5.5; Vmin: 4.5 Temperature range +10 °C - +40 °C {{#tested=Sig_es_:signer1:signature:align(center):dimension(width=35mm, height=15mm)}} {{#approved=Sig_es_:signer2:signature:align(center):dimension(width=35mm, height=15mm)}} height=15mm)}} Disclaimer and Notes The content of this report relates to the mentioned test sample(s) only. IBL-Lab GmbH does not take samples. The samples used for testing are provided by the applicant. Without a written permit of IBL-Lab GmbH, this test report shall not be reproduced, except in full. The last valid version is available at TAMSys  . Signatures are done electronically, if signer does not match stated signer, it is signed per order. Information supplied by the applicant can affect the validity of results. The data is marked accordingly. Copyright ©: All rights reserved by IBL-Lab GmbH Within this test report, a ☒ point / ☐ comma is used as a decimal separator. If otherwise, a detailed note is added adjected to its use. Decision rule: Decision rule based on simple acceptance without guard bands, binary statement, based on mutually agreed uncertainty tolerances with expansion factor k=2. TR no.: 24060240-41132-0 2025-12-12 3 / 26 IBL-Lab GmbH 1 TABLE OF CONTENTS 1 TABLE OF CONTENTS ........................................................................................................................... 3 2 GENERAL INFORMATION ..................................................................................................................... 4 2.1 Administrative details .......................................................................................................................... 4 2.2 Possible test case verdicts ................................................................................................................. 4 2.3 Observations ....................................................................................................................................... 5 2.4 Opinions and interpretations ............................................................................................................... 5 2.5 Revision history .................................................................................................................................. 5 2.6 Further documents .............................................................................................................................. 5 3 ENVIRONMENTAL & TEST CONDITIONS ............................................................................................ 6 3.1 Environmental conditions of lab .......................................................................................................... 6 3.2 Normal and extreme test conditions ................................................................................................... 6 4 TEST STANDARDS AND REFERENCES .............................................................................................. 6 5 EQUIPMENT UNDER TEST (EUT) ......................................................................................................... 7 5.1 Product description ............................................................................................................................. 7 5.2 Technical data of test item .................................................................................................................. 7 5.3 Test Item (Equipment Under Test) Description* ................................................................................. 7 5.4 AE (Auxiliary equipment) Description* ................................................................................................ 7 5.5 Test Item Operating Modes Description*............................................................................................ 7 5.6 Test Item Set-ups Description ............................................................................................................ 8 5.7 Test Conditions ................................................................................................................................... 8 5.8 Additional Information ......................................................................................................................... 8 6 SUMMARY OF TEST RESULTS ............................................................................................................. 9 7 TEST RESULTS .................................................................................................................................... 10 7.1. Field strength of emissions (spurious and harmonics) ..................................................................... 10 7.2. Conducted emissions .…

Text truncated - open the document above for the full version.

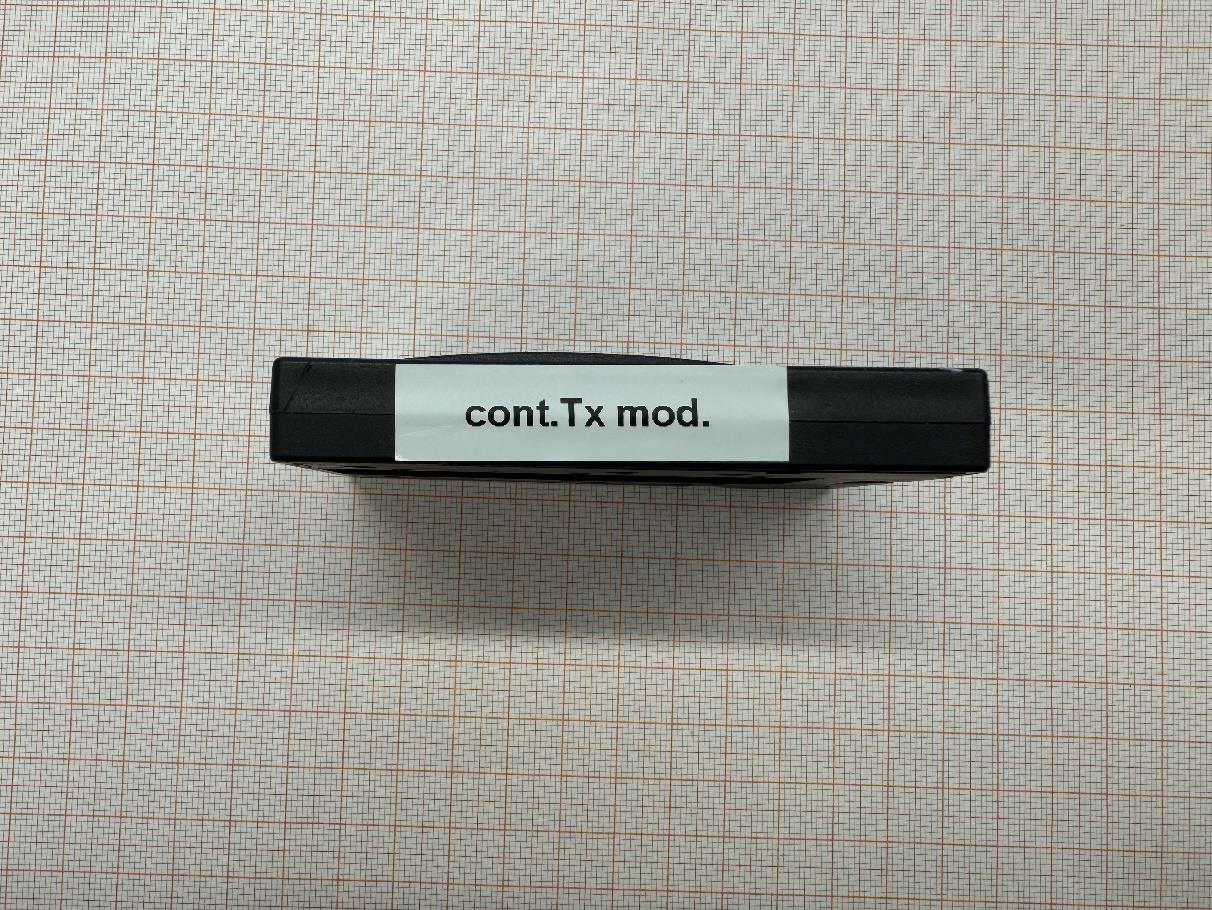

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 6 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Annex B Test setup photographs part of / in addition to Test report no.: 24060240-41132-0 Annex C of TR no.: 24060240-41132-0 2 / 6 IBL-Lab GmbH Table of contents 1. Measurements in frequency range f < 30 MHz ..................................................................................................... 3 2. Measurements in frequency range 30 MHz < f < 1000 MHz ................................................................................. 5 3. Conducted emissions measurement ..................................................................................................................... 6 Annex C of TR no.: 24060240-41132-0 3 / 6 IBL-Lab GmbH 1. Measurements in frequency range f < 30 MHz Photograph 1: Overall view. Photograph 2: Close view 1, lying. Annex C of TR no.: 24060240-41132-0 4 / 6 IBL-Lab GmbH Photograph 3: Close view 1, staying. Annex C of TR no.: 24060240-41132-0 5 / 6 IBL-Lab GmbH 2. Measurements in frequency range 30 MHz < f < 1000 MHz Photograph 4: Overall view. Annex C of TR no.: 24060240-41132-0 6 / 6 IBL-Lab GmbH 3. Conducted emissions measurement Photograph 5: Overall view.
