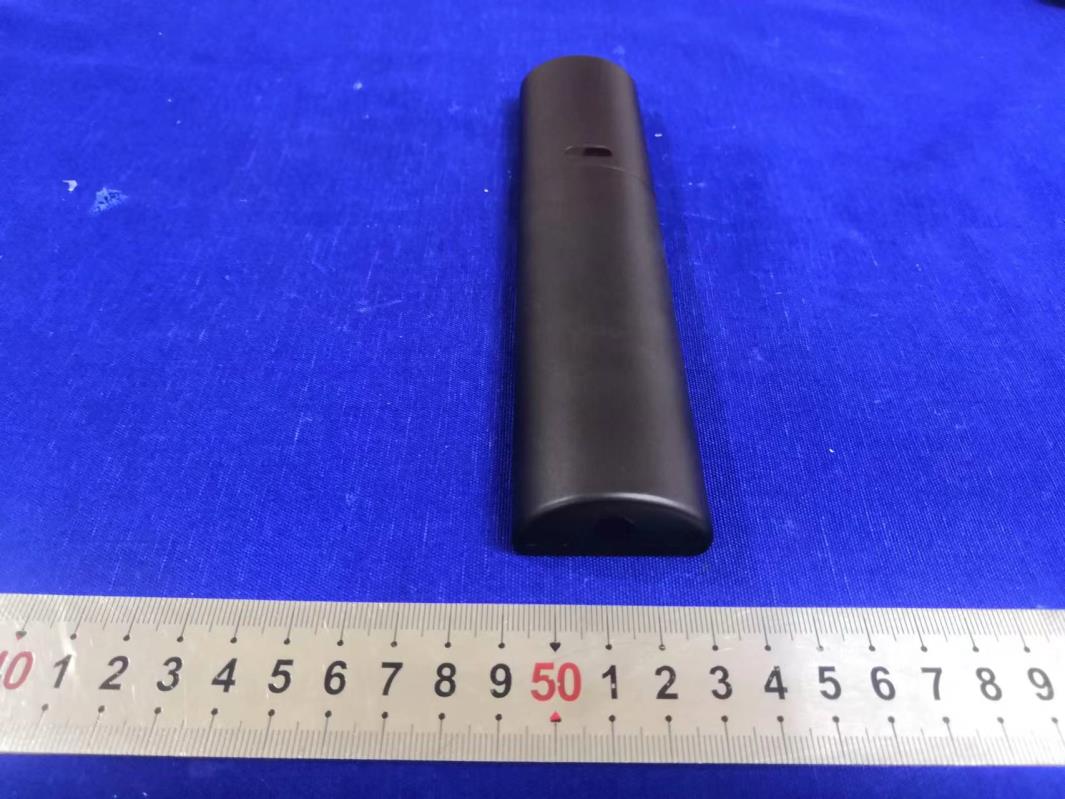

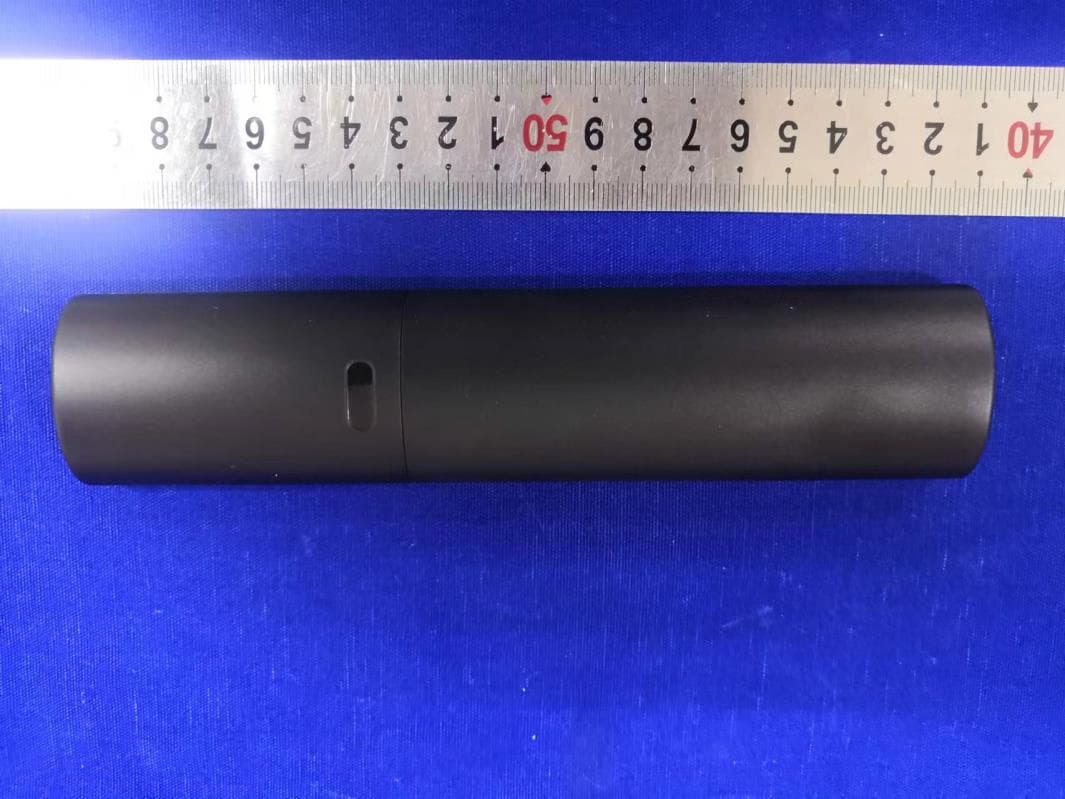

2ANM3HS8CHS-8C remote control

The remote control has two modes: IR + Bluetooth. Bluetooth IR 1.The remote and the TV are not paired or have been paired.Over but not connected, in the IR mode,key hair IR code. the indicator light is red after pressing the button.After pairing with the TV and connecting, press the button to send bluetooth code Keep pressing the voice key to start recording,Release the voice button to end the recording 2.Pairing button "LEFT+HOME" or "BACK+HOME",Hold down for more than 3 seconds to enter the pairing mode When the remote control is unpaired, press the voice key ,You can also enter matchmaking mode. IR protocol:TC9012 Customer code:0E0E BLE voice & Infrared remote control manualBLE voice & Infrared remote control manual The remote control has two modes: infrared and Bluetooth. In the infrared working mode, the key sends the infrared code.The indicator light is red after pressing the key. In Bluetooth mode (after successful pairing with the TV), press the key to issue the Bluetooth code (except the power key).The indicator light is green after pressing the key. Continue pressing the voice key, start the voice input.Release the voice key and end the voice input. The pairing keys are HOME and LEFT keys. Press for more than 3 seconds to enter the pairing mode. The red light changes from always on to green flashing. After the pairing is successful, the green light is always on and goes out after 2 seconds. If the pairing is unsuccessful within 1 minute, automatically exit the pairing mode and the green light goes out. No operation was performed within 10 seconds and the remote control went to sleep. Press any key to wake up the remote control. If the remote control has paired before, press LEFT + HOME for 3 seconds to clear the pairing information. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Statement： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. The remote control has two modes: infrared and Bluetooth. In the infrared working mode, the key sends the infrared code.The indicator light is red after pressing the key. In Bluetooth mode (after successful pairing with the TV), press the key to issue the Bluetooth code (except the power key).The indicator light is green after pressing the key. Continue pressing the voice key, start the voice input.Release the voice key and end the voice input. The pairing keys are HOME and LEFT keys. Press for more than 3 seconds to enter the pairing mode. The red light changes from always on to green flashing. After the pairing is successful, the green light is always on and goes out after 2 seconds. If the pairing is unsuccessful within 1 minute, automatically exit the pairing mode and the green light goes out. No operation was performed within 10 seconds and the remote control went to sleep. Press any key to wake up the remote control. If the remote control has paired before, press LEFT + HOME for 3 seconds to clear the pairing information. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning…

Text truncated - open the document above for the full version.

Shenzhen Chuangwei-RGB Electronics Co., Ltd. [2022/08/04] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Shenzhen Chuangwei-RGB Electronics Co., Ltd. FCC ID: 2ANM3HS8C To Whom It May Concern: We, Shenzhen Chuangwei-RGB Electronics Co., Ltd., hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2ANM3HS8C under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 2022/08/04. The Limited Agency Agreement expires on (2023/08/04), unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Dan Fang] [Certified Engineer] [2022/08/04 ]

1(2) Shenzhen Chuangwei-RGB Electronics Co., Ltd. Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2ANM3HS8C To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1. Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure 2(2) Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ [Dan Fang] [Title]Certified Engineer [Date]2022/08/04

BT Antenna

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a HS-8C remote control with Bluetooth(BLE only) function operating in 2402-2480MHz. The EUT is powered by DC 3V for 2*AAA batteries. For more detailed features description, please refer to the user’s manual. Antenna Type: Integral antenna Modulation Type: GFSK Antenna Gain: 1.5dBi Bluetooth Version: 5.0 BLE (Single Mode) The nominal conducted output power specified: 0.0 dBm (±2dB) The nominal radiated output power (e.i.r.p) specified: 1.5 dBm (±2dB) The maximum conducted output power for the EUT is 0.07dBm in the frequency 2440MHz which is within the production variation. The minimum conducted output power for the EUT is -0.26dBm in the frequency 2402MHz which is within the production variation. The maximum conducted output power specified is 2dBm= 1.585mW The source- based time-averaging conducted output power =1.585* Duty cycle mW <1.585 mW(Duty cycle <100%) The SAR Exclusion Threshold Level: 푃 th (mW) = ERP 20cm * (푑/20cm) 푥 (X= ) = 3060 * (0.5/20) 1.9 mW = 2.72 mW Since max. power of the source-based time-averaging conducted output power and effective radiated power (ERP) is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2ANM3HS8C

Shenzhen Chuangwei-RGB Electronics Co., Ltd. TEST REPORT SCOPE OF WORK FCC TESTING–HS-8C REPORT NUMBER 220614031SZN-001 ISSUE DATE [REVISED DATE] 04 August 2022 [---------------------] PAGES 31 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK Intertek Report No.: 220614031SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 31 FCC ID 247_b TEST REPORT 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com Shenzhen Chuangwei-RGB Electronics Co., Ltd. Application For Certification FCC ID: 2ANM3HS8C HS-8C remote control Model: HS-8C 2.4GHz Transceiver Report No.: 220614031SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-20] Prepared and Checked by: Approved by: Allen Qin Ryan Chen Engineer Project Engineer Date: 04 August 2022 Intertek Report No.: 220614031SZN-001 Version: 01-November-2017 Page: 2 of 31 FCC ID 247_b TEST REPORT MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (Wi-Fi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-20] Edition] provision. Report prepared by: Allen Qin Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6661 Intertek Report No.: 220614031SZN-001 Version: 01-November-2017 Page: 3 of 31 FCC ID 247_b TEST REPORT Table of Contents 1.0 Summary of Test Results ............................................................................................... 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description ........................................................................................................... 5 2.2 Related Submittal(s) Grants ............................................................................................... 5 2.3 Test Methodology .............................................................................................................. 5 2.4 Test Facility ........................................................................................................................ 5 3.0 System Test Configuration ............................................................................................ 6 3.1 Justification ........................................................................................................................ 6 3.2 EUT Exercising Software ..................................................................................................... 6 3.3 Special Accessories ............................................................................................................ 6 3.4 Measurement Uncertainty ................................................................................................. 7 3.5 Equipment Modification .................................................................................................... 7 3.6 Support Equipment List and Description .......................................................................... 7 4.0 Measurement Results ................................................................................................... 8 4.1 Maximum Conducted Output Power at Antenna Terminals ................................................. 8 4.2 Minimum 6 dB RF Bandwidth ............................................................................................ 9 4.3 Maximum Power Density Reading ................................................................................... 11 4.4 Out of Band Conducted Emissions ................................................................................... 13 4.5 Out of Band Radiated Emissions ...................................................................................... 19 4.6 Transmitter Radiated Emissions in Restricted Bands ........................................................ 20 4.7 Field Strength Calculation ................................................................................................ 21 4.8 Radiated Spurious Emission .............................................................................................…

Text truncated - open the document above for the full version.

The EUT was placed at the center of turntable The EUT was placed at the center of turntable
