2ANM3NTUDU21Wireless Module

Shenzhen skyworth RGB electronic co., LTD. Model: NTUD - U21 Operation Instruction Respect of customer, sincerely thank you for purchasing SKYWORTH equipped with wireless WIFI NTUD - U21 - type USB peripheral products. This product can support USB2.0 protocol, based on the IEEE802.11 a/b/g/n BT5.0 standard design. With all the way to send and receive all the way (2T2R) dual channel work, maximum transmission rate of up to 300 Mbps.Ensure that users browse and download data flow, security and stability. NTUD - U21 wireless WIFI USB peripheral product support Windows XP/Vista / 7 / Linux operating system.In SKYWORTH TV, have complete embedded in the product and the driver, without user to install, and at the same time support Linux and Android. Used in TV production operation is as follows: 1. Turn on the TV, switch to the "home page" interface. 2. Select "Settings" feature. "OK" to enter 3. Select "network setup" function. "OK" to enter; 4. Choose the "wireless network", "OK" to enter; 5. According to the needs, select "auto search", "manual connection", etc. Press the "OK" to enter 6. Choose their own after the AP name "OK" to enter, Enter the password. Television system has the memory function, for the first time to use should be according to the above steps, later need not operation, boot automatically connected.If need to change the AP or change the mode of connection, need according to the above steps again. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is - connected. - Consult the dealer or an experienced radio/television technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Regulation Information 1) List of applicable FCC rules: FCC part 15.249 FCC part 15.247 FCC part 15.407 2) Summarize the specific operational use conditions This Device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. The host product manufacturer should state this information to the host instruction manual. 3) Limited module procedures: No applicable. 4)Trace antenna designs No applicable. 5) RF exposure considerations This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, and minimum of 20cm separation between antenna and body. The host product shall show the same or similar statement to the end users. 6) Antennas Antenna types not included in this list, having a gain greater than the maximum gain indicated For that type, are strictly prohibited for use with this device. Antenna type: Integral Antenna Bluetooth Antenna Max. Gain: 2.0dBi Each 2.4G WIFI Antenna Max. Gain: 3.1dBi Each 5G WIFI Antenna Max. Gain: 2.26dBi 7) Label and compliance information The end product must carry a label stating “Contains Transmitter Module FCC ID: 2ANM3NTUDU21 ” or shall use e-labeling. 8) Information on test modes and additional testing requirements The host manufacturer can use the software “MPTool, Version: 9.02” and “ RTLBTAPP, Version: 5.2.2.75 ” for access to the test modes. Connected to the computer through the serial port of the host product, the channel and power controlling software provided by the applicant was used to control the operating channel as well as the output power level. The RF output power selection is for the setting of RF output power expected by the application and is going to be fixed on the firmware of the end product. 9) Additional testing, Part 15 Subpart B disclaimer The modular transmitter is only FCC authorized for the specific rule parts (FCC Part 15.249&15.247&15.407) list on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed when contains digital circuity. 10) The device is going to be operated in 5150~5250MHz frequency range. It is restricted indoor environment only. 11) The device working temperature 0°C to +60°C 12) The device working voltage 3.3V±10% 13) Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module.

ShenzhenChuangwei-RGBElectronicsCo.,Ltd. 2020.10.30 FederalCommunicationsCommission 44512 th StreetSW Washington,DC20554 Subject:LimitedAgencyAgreement (ShenzhenChuangwei-RGBElectronicsCo.,Ltd.) FCCID:2ANM3NTUDU21 ToWhomItMayConcern: We,ShenzhenChuangwei-RGBElectronicsCo.,Ltd.，herebyauthorizedIntertekTesting ServicestoactasourAgentforthepurposeofpreparingapplicationforFCCIDnumber 2ANM3NTUDU21underallapplicablepartsoftheFCCrulesandregulations. Theeffectivedateofthislimitedagencyagreementis(2020/10/30).TheLimitedAgency Agreementexpireson(2021/10/30),unlesssoonerterminatedorextendedbywrittennoticeto IntertekTestingServicesandtheFederalCommunicationsCommission. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.Theapplicantis notsubjecttoadenialoffederalbenefitspursuanttoSection5301oftheAnti-DrugActof1988, 21U.S.C.862,andnopartytotheapplicationissubjecttoadenialoffederalbenefitspursuantto thatsection. Ifyouhaveanyquestionsorcomments,pleasedonothesitatetocontactme. Sincerely, DanFang SeniorManager

1 ( 2 ) ShenzhenChuangwei-RGBElectronicsCo.,Ltd. Attention:Certificationreviewer RE:RequestforConfidentiality FCCID:2ANM3NTUDU21 ToWhomItMayConcern: PermanentConfidentiality[Completethissectionifpermanentconfidentialityisrequested] Requesttowithholdpermanentlyfrompublicreviewcertainportionsoftheapplicationforequipment certificationforthereferencedFCCidentifiers.Thisrequestforconfidentialityismadepursuantto47CFR 0.457(d)and0.459oftheFCCRules.Inparticular,thefollowingsectionsoftheapplicationaretobekept permanentlyconfidential: [Selectoneormoreofitemsbelow,asappropriate] Schematics BlockDiagrams OperationalDescription Tune-upProcedure PartsList InternalPhotos(seenote) UsersManual(seenote) Note1:InternalPhotosmaybeheldconfidential1)ifthecircuitboardorinternalcomponentsarenotaccessibletousers.For example,itisacceptableifthecircuitboardisenclosedinepoxy.2)Also,itisacceptableifthedeviceisnot accessibletothepublic,forexample,adevicemountedonthetopofalargetower(orinafencedenclosure)such thatitisonlyserviceablebyprofessionaldesignatedtechniciansunderaNon-DisclosureAgreement(NDA).All salesforthesedevicesmustbeunderaNDArestrictingthedisclosureoftheproprietyinformation,including internalphotos. UsersManualmaybeheldconfidentialonlywhenthemanualcontainsproprietarytechnicalinformationintended forprofessionaltechniciansobligatedunderaNDA.Allsalesanddistributionoftheuser’smanualmustbeundera NDAthatrestrictsthedisclosureoftheinformation. IntheapplicationcoverletterrequestingpermanentconfidentialitythefollowingadditionaldescriptionandtheNDA exhibitisrequired: 1.Describeindetailhowinternalphotosand/orusersmanualinformationarecontrolledtopreventthemfrom becomingpublicordisclosedtounauthorizedpersons. 2.Describehowpublicaccessisrestrictedforproductsserviceablebyprofessionaldesignatedtechnicians. 3.Astatementthatallsalesofthenon-consumerdevicewillbeunderaNDAtoincludethirdpartysalesandthatthe finaluserofthedeviceissubjecttotheNDA. 4.ProvideanexampleoftheNDAbetweenthegranteeandapurchaser.Therequestforconfidentialitymust Note2:Forscanningreceiver,theschematics,blockdiagrams,operationaldescription,tune-upprocedure,partslistand internalphotosarealwaysheldpermanentlyconfidential. Short-termConfidentiality[Completethissectionifshort-termconfidentialityisrequested] Requesttowithholdfrompublicreviewforaperiodof[pleaseenter1to180]daysfromthedateoftheGrant ofEquipmentAuthorizationandpriortomarketing,certainportionsoftheapplicationforequipment certificationforthereferencedFCCidentifiers.Thisrequestforconfidentialityismadepursuantto47CFR 0.457(d)and0.459oftheFCCRules.Inparticular,thefollowingsectionsoftheapplicationaretobekept short-termconfidentialforaperiodabovefromthedateofthegrant [Selectoneormoreofitemsbelowthatarenotselectedinthelistabove,asappropriate] Schematics Blockdiagrams OperationalDescription Tune-upProcedure PartsList 2 ( 2 ) TestSetupPhotos ExternalPhotos InternalPhotos UsersManual Rationaleforrequestforconfidentiality: Wehaveinvestedconsiderabletimeandmaterialsinresearchanddevelopmenttoproducethereferenced product. Permanentconfidentiality:Disclosureofthepermanentlyconfidentialportionsofthisapplicationto competitorswouldnotonlygivethemsignificantcompetitiveadvantagesindevelopingsimilarproducts,but wouldalsodisclosesuccessfulimplementationofunpublished,leadingedgetechnologydevelopedbyus. Short-termconfidentiality:Disclosureoftheshort-termconfidentialportionsofthisapplicationduring theperiodofimportationand/ordistributionwouldrevealkeyaspectsofproprietarytechnologyto competitorsanddiminishthevalueofourinvestmentinresearchanddevelopment. Ifyouhavequestionsorneedfurtherinformation,pleasecontacttheundersigned. Sincerely, _________________ DanFang SeniorManager 2020.10.30

1(2) Shenzhen Chuangwei-RGB Electronics Co., Ltd. RE FCC ID: 2ANM3NTUDU21 To the certification reviewer: We are hereby applying for full modular approval of the above-referenced FCC ID, based on compliance with all of the criteria as detailed below. Sincerely, _________________ Dan Fang Senior Manager 2020.10.30 Part 15 Unlicensed Single Modular Transmitter Approval Justifications per 15.212 Requirement per 15.212 Description (i) The radio elements of the modular transmitter must have their own RF shielding. Shielding is provided by a metal cover the circuitry. (ii) The modular transmitter must have buffered modulation/data inputs. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The Wi-Fi antennas are permanently attached. The Bluetooth antenna is a type of unique coupling. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Testing was performed with the module extended outside of the host on a special extender boards, as shown in the test setup photos. 2(2) (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. See KDB Publication 784748. A sample of the host label is provided as an exhibit, showing the FCC ID of the module. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular transmitter complies with part 15 as demonstrated in the test report exhibit. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The modular transmitter complies with RF exposure requirements as demonstrated in the RF exposure information exhibit.

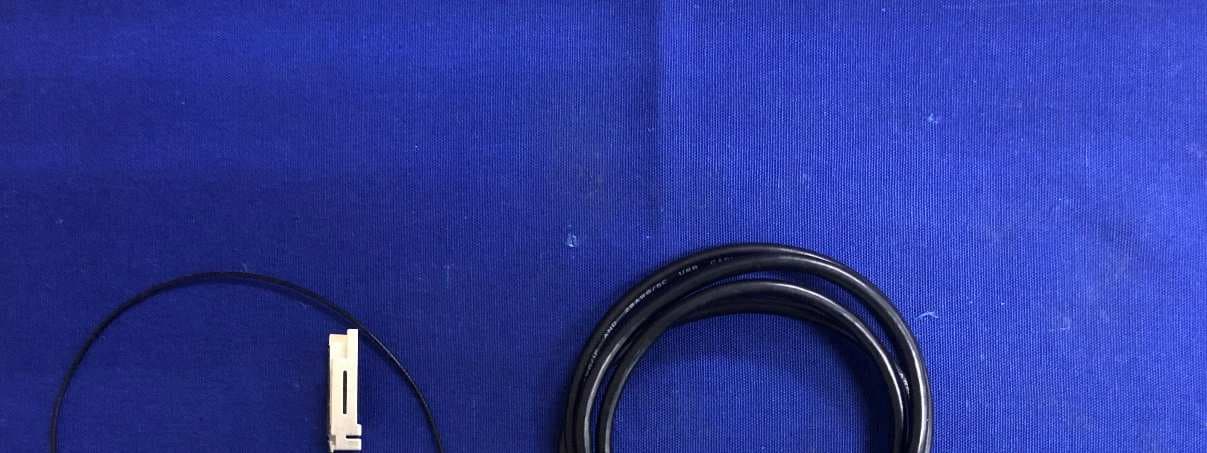

BT Antenna WIFI Antenna ComTool

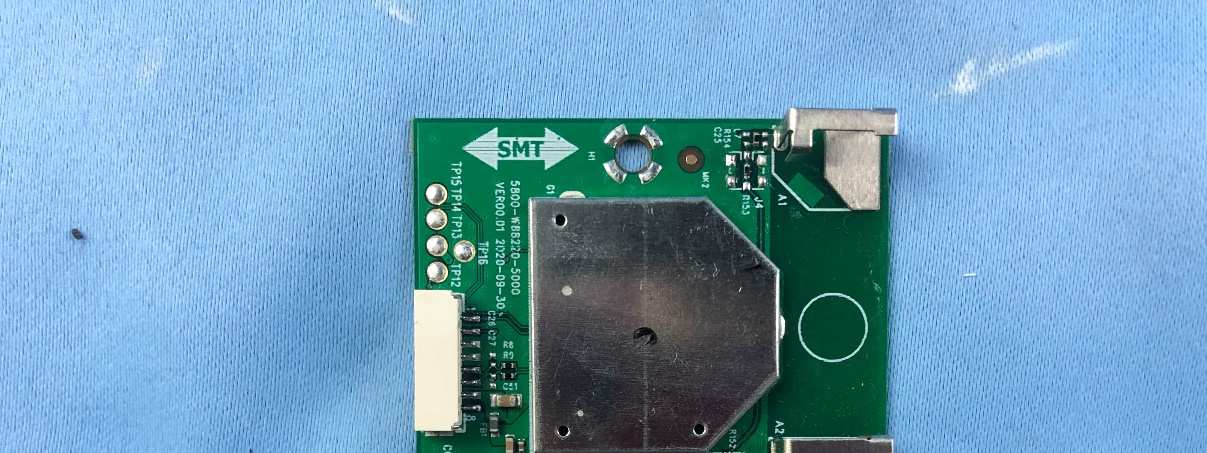

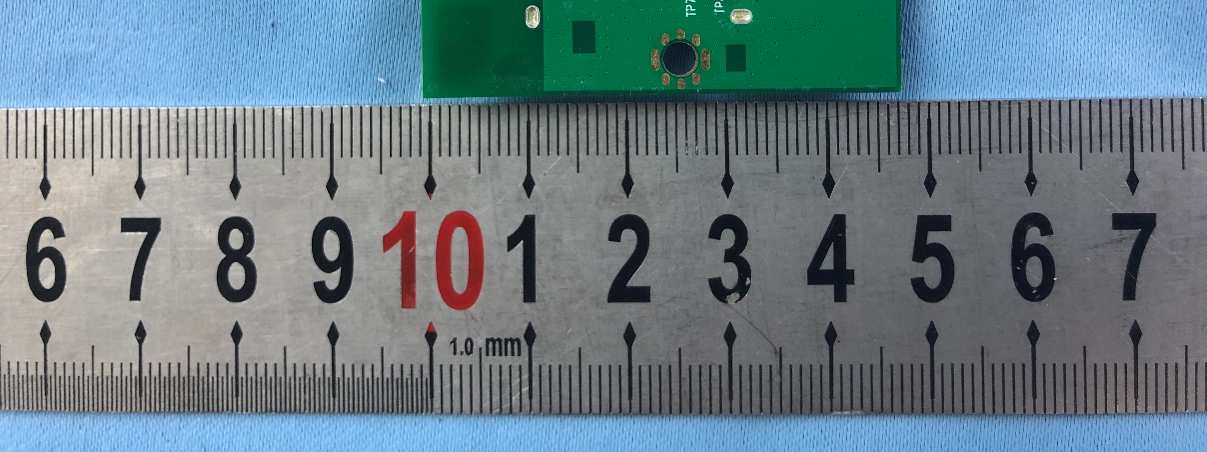

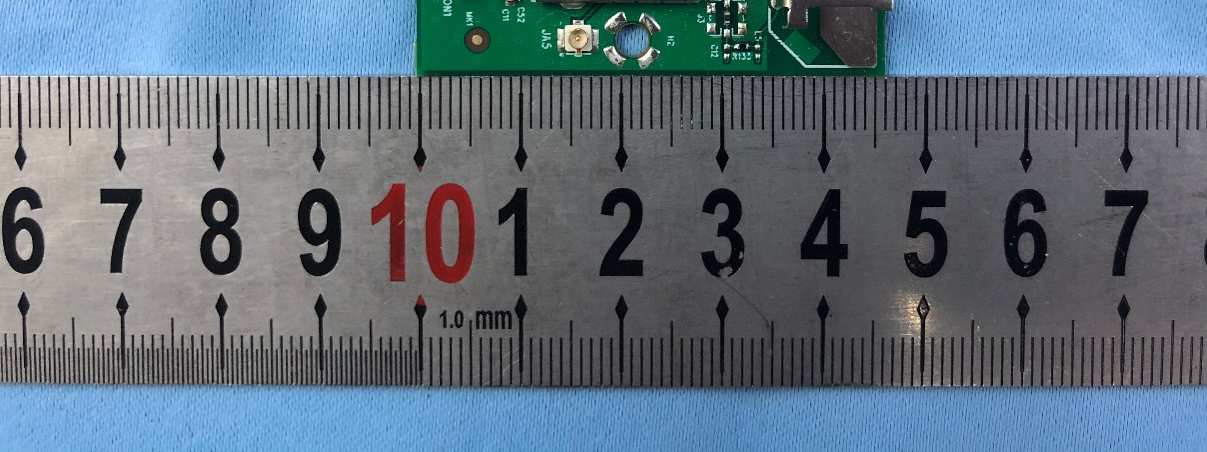

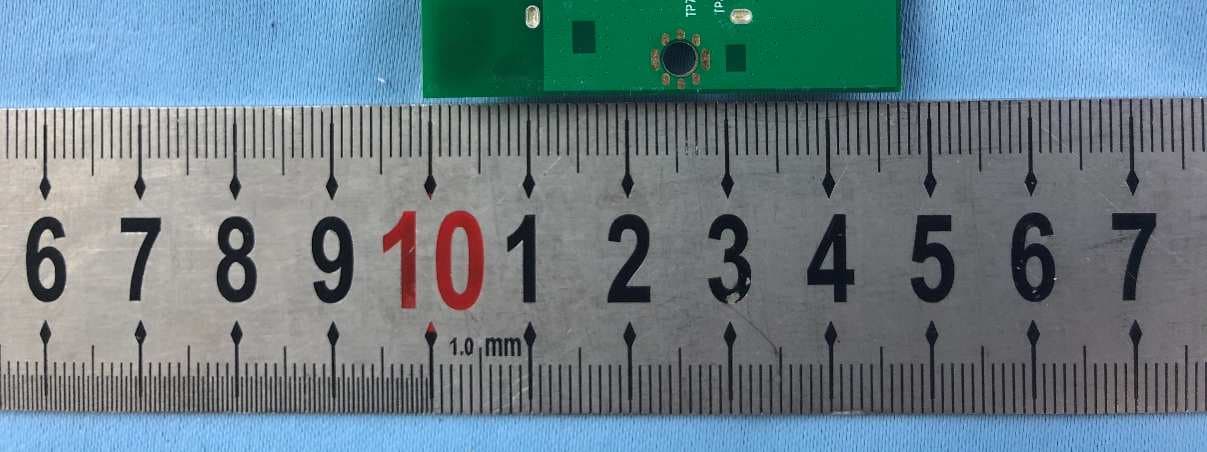

Sk y worth NTUD - U 21 FCC ID : 2ANM3NTUDU 21 IC : 23165 - NTUDU 21 Size: 2 6mm*10mm

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a wireless module with Bluetooth 5.0 (dual-mode) function operating in 2402-2480MHz, 2.4G WIFI function operating in 2412-2462MHz and 5G WIFI function operating in 5150MHz~5250 MHz, 5250MHz~5350MHz, 5470MHz-5725MHZ, 5725MHz~5850MHz. The EUT is powered by DC 3.3V. For more detail information pls. refer to the user manual. Bluetooth Version: 5.0 EDR mode. Antenna Type: Integral antenna. Antenna Gain: 2.0dBi. Modulation Type: GFSK, π/4DQPSK, 8DPSK. The nominal conducted output power specified: 4.0dBm (±2dB) The nominal radiated output power (e.i.r.p) specified: 6.0dBm (±2dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 101.4dBμV/m at 3m in the frequency 2441MHz The EIRP = [(FS*D) ^2 / 30] mW = 6.17dBm which is within the production variation. The minimum peak radiated emission for the EUT is 100.2dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = 4.97dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 6dBm+2dBi = 8dBm = 6.31mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 5.0 BLE mode can be calculated according to OET 65 as follow: = 6.31mW/ 4πR^2 = 0.0013 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the Bluetooth frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2ANM3NTUDU21 INTERTEK TESTING SERVICES Bluetooth Version: 5.0 BLE mode. Antenna Type: Integral antenna. Antenna Gain: 2.0dBi. Modulation Type: GFSK. The nominal conducted output power specified: 9.0dBm (+/-1dB) The maximun conducted output power for the EUT is 9.10dBm in the frequency 2480MHz which is within the production variation. The minimum conducted output power for the EUT is 8.17dBm in the frequency 2402MHz which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 12dBm = 15.85mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 15.85mW/ 4 πR^2 = 0.003 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the Bluetooth frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2ANM3NTUDU21 INTERTEK TESTING SERVICES 2.4GHz WiFi: Antenna Type: Integral Antenna. Antenna Gain: 3.1dBi. Directional Gain: 6.1dBi Modulation Type: BPSK, QPSK, 16QAM, 64QAM, CCK, DQPSK, DBPSK and DSSS. The nominal conducted output power specified: 17dBm (Tolerance: +/-3dB). The maximun conducted output power for the EUT is 14.5dBm in the frequency 2462MHz(802.11 n-HT20, SISO mode) which is within the production variation. The minimum conducted output power for the EUT is 18.7dBm in the frequency 2422MHz(802.11 n-HT40, MIMO mode) which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 26.1dBm = 407.4mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 407.4mW/ 4 πR^2 = 0.081 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the WIFI frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2ANM3NTUDU21 INTERTEK TESTING SERVICES 5GHz WiFi: Antenna Type: Integral Antenna. Antenna Gain: 2.26dBi for each antenna Directional Gain: 5.27dBi Modulation Type: BPSK, QPSK, 16QAM, 64QAM and OFDM. The nominal conducted output power specified: 17dBm (Tolerance: +/-3dB). The maximun conducted output power for the EUT is 14.56dBm in the frequency 5785MHz(802.11 a, SISO mode) which is within the production variation. The minimum conducted output power for the EUT is 18.4dBm in the frequency 5670MHz(802.11 n-HT40, MIMO mode) which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 25.27dBm = 336.51mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna fo…

Text truncated - open the document above for the full version.

Shenzhen Chuangwei-RGB Electronics Co., Ltd. TEST REPORT SCOPE OF WORK FCC TESTING–NTUD-U21 REPORT NUMBER 201019017SZN-004 ISSUE DATE [REVISED DATE] 5 November 2020 [--------------------] PAGES 32 DOCUMENT CONTROL NUMBER FCC 15C_Tx_b © 2017 INTERTEK 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com TEST REPORT Intertek Report No.: 201019017SZN-004 • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 32 FCC 15C_Tx_b RF TEST REPORT Report No. : 201019017SZN-004 Product : Wireless Module Model No. : NTUD-U21 FCC ID : 2ANM3NTUDU21 Applicant: Shenzhen Chuangwei-RGB Electronics Co., Ltd. Test Method/ Standard: FCC Part 15 Subpart E; KDB 789033 D02 v02r01; KDB 662911 D01 v02r01; KDB 905462 D02 v02; ANSI C63.10-2013 Test By: Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Prepared and Checked by: Approved by: Jeff Liang Kidd Yang Engineer Technical Supervisor Date: 5 November 2020 TEST REPORT Intertek Report No.: 201019017SZN-004 Version: 01-November-2017 Page: 2 of 32 FCC 15C_Tx_b Table of Contents Summary of Tests ....................................................................................................... 3 1. General information ................................................................................................ 4 1.1 Identification of the EUT ........................................................................................... 4 1.2 Additional information about the EUT .......................................................................... 5 1.3 Antenna description (15.203) ..................................................................................... 5 1.4 Peripherals equipment ............................................................................................. 5 2. Test specifications .................................................................................................. 6 2.1 Test standard ......................................................................................................... 6 2.2 Operation mode...................................................................................................... 6 2.3 EUT Exercising Software .......................................................................................... 7 3. Maximum Output Power test (FCC 15.407) ............................................................ 8 3.1 Operating environment ............................................................................................. 8 3.2 Test setup & procedure ............................................................................................ 8 3.3 Limit ..................................................................................................................... 8 3.4 Measured data of Maximum Output Power test results .................................................... 8 4. Power Spectrum Density test (FCC 15.407) ........................................................... 9 4.1 Operating environment ............................................................................................. 9 4.2 Test setup & procedure ............................................................................................ 9 4.3 Limit ..................................................................................................................... 9 4.4 Measured data of Power Spectrum Density test results ................................................... 9 5. Minimum 6 dB RF Bandwidth (FCC 15.407) ......................................................... 10 5.1 Operating environment ........................................................................................... 10 5.2 Test setup & procedure .......................................................................................... 10 5.3 Limit ................................................................................................................... 11 5.4 Measured data of 6dB down Emission Bandwidth test results ......................................... 11 6. Radiated Emission test (FCC 15.205 & 15.209 & 15.407) .................................... 12 6.1 Operating environment ........................................................................................... 12 6.2 Test setup & procedure ..............................................…

Text truncated - open the document above for the full version.

Appendix of 201019017SZN-004 Page: 1 of 175 Appendix of 201019017SZN-004 Appendix of 201019017SZN-004 Page: 2 of 175 Appendix A1: Emission Bandwidth Test Result Test Mode Antenna Channel 26db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5180 18.600 5170.600 5189.200 --- PASS Ant2 5180 18.600 5170.600 5189.200 --- PASS Ant1 5200 18.560 5190.640 5209.200 --- PASS Ant2 5200 18.560 5190.640 5209.200 --- PASS Ant1 5240 18.520 5230.720 5249.240 --- PASS Ant2 5240 18.520 5230.680 5249.200 --- PASS Ant1 5260 18.600 5250.680 5269.280 --- PASS Ant2 5260 18.520 5250.680 5269.200 --- PASS Ant1 5280 21.360 5269.240 5290.600 --- PASS Ant2 5280 18.600 5270.600 5289.200 --- PASS Ant1 5320 21.240 5309.280 5330.520 --- PASS Ant2 5320 18.560 5310.600 5329.160 --- PASS Ant1 5500 21.960 5489.160 5511.120 --- PASS Ant2 5500 18.600 5490.640 5509.240 --- PASS Ant1 5580 18.520 5570.720 5589.240 --- PASS Ant2 5580 18.520 5570.680 5589.200 --- PASS Ant1 5700 18.600 5690.600 5709.200 --- PASS Ant2 5700 18.520 5690.680 5709.200 --- PASS Ant1 5745 18.560 5735.600 5754.160 --- PASS Ant2 5745 18.520 5735.720 5754.240 --- PASS Ant1 5785 18.560 5775.640 5794.200 --- PASS Ant2 5785 18.560 5775.640 5794.200 --- PASS Ant1 5825 18.600 5815.640 5834.240 --- PASS Ant2 5825 18.600 5815.640 5834.240 --- PASS 11N20SISO Ant1 5180 19.480 5170.280 5189.760 --- PASS Ant2 5180 19.520 5170.240 5189.760 --- PASS Ant1 5200 19.440 5190.280 5209.720 --- PASS Ant2 5200 19.520 5190.280 5209.800 --- PASS Ant1 5240 19.480 5230.280 5249.760 --- PASS Ant2 5240 19.480 5230.280 5249.760 --- PASS Ant1 5260 19.480 5250.280 5269.760 --- PASS Ant2 5260 19.520 5250.240 5269.760 --- PASS Ant1 5280 19.520 5270.280 5289.800 --- PASS Ant2 5280 19.480 5270.240 5289.720 --- PASS Ant1 5320 19.680 5310.160 5329.840 --- PASS Ant2 5320 19.480 5310.240 5329.720 --- PASS Ant1 5500 19.920 5489.960 5509.880 --- PASS Appendix of 201019017SZN-004 Page: 3 of 175 Test Mode Antenna Channel 26db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict Ant2 5500 19.520 5490.240 5509.760 --- PASS Ant1 5580 19.600 5570.280 5589.880 --- PASS Ant2 5580 19.280 5570.440 5589.720 --- PASS Ant1 5700 19.520 5690.240 5709.760 --- PASS Ant2 5700 19.480 5690.280 5709.760 --- PASS Ant1 5745 19.480 5735.280 5754.760 --- PASS Ant2 5745 19.520 5735.320 5754.840 --- PASS Ant1 5785 19.640 5775.200 5794.840 --- PASS Ant2 5785 19.560 5775.240 5794.800 --- PASS Ant1 5825 19.560 5815.240 5834.800 --- PASS Ant2 5825 19.440 5815.280 5834.720 --- PASS 11N40SISO Ant1 5190 42.000 5169.120 5211.120 --- PASS Ant2 5190 41.760 5169.200 5210.960 --- PASS Ant1 5230 41.920 5209.200 5251.120 --- PASS Ant2 5230 41.920 5209.280 5251.200 --- PASS Ant1 5270 42.080 5249.200 5291.280 --- PASS Ant2 5270 41.680 5249.280 5290.960 --- PASS Ant1 5310 42.320 5289.200 5331.520 --- PASS Ant2 5310 41.920 5289.120 5331.040 --- PASS Ant1 5510 43.600 5488.880 5532.480 --- PASS Ant2 5510 42.240 5489.040 5531.280 --- PASS Ant1 5550 42.480 5528.960 5571.440 --- PASS Ant2 5550 41.840 5529.280 5571.120 --- PASS Ant1 5670 42.000 5649.120 5691.120 --- PASS Ant2 5670 41.680 5649.280 5690.960 --- PASS Ant1 5755 42.160 5734.040 5776.200 --- PASS Ant2 5755 42.080 5734.280 5776.360 --- PASS Ant1 5795 41.920 5774.120 5816.040 --- PASS Ant2 5795 42.000 5774.120 5816.120 --- PASS 11N20MIMO Ant1 5180 19.560 5170.240 5189.800 --- PASS Ant2 5180 19.520 5170.240 5189.760 --- PASS Ant1 5200 19.520 5190.280 5209.800 --- PASS Ant2 5200 19.480 5190.280 5209.760 --- PASS Ant1 5240 19.560 5230.240 5249.800 --- PASS Ant2 5240 19.480 5230.280 5249.760 --- PASS Ant1 5260 19.560 5250.240 5269.800 --- PASS Ant2 5260 19.440 5250.280 5269.720 --- PASS Ant1 5280 19.560 5270.240 5289.800 --- PASS Ant2 5280 19.480 5270.280 5289.760 --- PASS Ant1 5320 19.720 5310.160 5329.880 --- PASS Ant2 5320 19.480 5310.240 5329.720 --- PASS Ant1 5500 20.040 5489.880 5509.920 --- PASS Appendix of 201019017SZN-004 Page: 4 of 175 Test Mode Antenna Channel 26db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict Ant2 5500 19.520 5490.280 5509.800 --- PASS Ant1 5580 19.680 5570.240 5589.920 --- PASS Ant2 5580 19.520 5570.280 5589.800 --- PASS Ant1 5700 19.440 5690.320 5709.760 --- PASS Ant2 5700 19.440 5690.320 5709.760 --- PASS Ant1 5745 19.480 5735.240 5754.720 --- PASS Ant2 5745 19.520 5735.240 5754.760 --- PASS Ant1 5785 19.440 5775.280 5794.720 --- PASS Ant2 5785 19.520 5775.240 5794.760 --- PASS Ant1 5825 19.440 5815.280 5834.720 --- PASS Ant2 5825 19.440 5815.280 5834.720 --- PASS 11N40MIMO Ant1 5190 42.080 5169.040 5211.120 --- PASS Ant2 5190 41.920 5169.200 5211.120 --- PASS Ant1 5230 42.000 5209.280 5251.280 --- PASS Ant2 5230 42.000 5209.200 5251.200 --- PASS Ant1 5270 42.160 5249.120 5291.280 --- PASS Ant2 5270 42.000 5249.200 5291.200 …
