2ANMU-RT9Tablet

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Product Name: Tablet FCC ID: 2ANMU-RT9 Model(s): RT9, RT9 S,RT9 Pro,RT9 Ultra,RT9 TITAN 2.911(d)(5)(i) Equipment Type We, [SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Date: 2024.9.4 Title and Company name: Gaolei Yan/ Manager NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Product Name: Tablet FCC ID: 2ANMU-RT9 Model(s): RT9, RT9 S,RT9 Pro,RT9 Ultra,RT9 TITAN 2.911(d)(5)(ii) Applicant filing We, [SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2, established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Date: 2024.9.4 Title and Company name: Gaolei Yan/ Manager NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Agent Authorization Company: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: 202, Building A2, Silicon Valley Power Intelligent Terminal Industrial Park, No. 20, Dafu Industrial Zone, Kukeng Community, Guanlan Street, Longhua District, Shenzhen Model Number(s): RT9，RT9 S,RT9 Pro,RT9 Ultra,RT9 TITAN Product Description: Tablet We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024/09/04 Name: Gaolei Yan Title: Manager Company: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD

(SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD) U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC C ertification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of t he Applicant noted below. U.S. Agent Signature: Date: April 22, 2024 Signed by (Printed Name/Title): Kenneth Young/ Manager The Applicant acknowledges th at th ey must maintain an agent for no less than on e year aft er terminating all marketing and importation OR th e conclusion of any Commission-r elated proceeding involving the equipment. The appli ca nt fu rth er acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Grantee Code: 2ANMU FCC ID：2ANMU-RT9 Contact Name: Gaolei Yan StreetAddress:A2 2F BUILDINGENET NEW INDUSTRIALPARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA City/Province/Zip: SHENZHEN,China Telephone No: 0755-61156588 Email: [email protected] Applicant Signature: Signed by (Printed Name/Title): Gaolei Y Date:2024.8.01 an/ Manager FRN:0026810242

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2ANMU-RT9 Date: 2024/09/04 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune-up Procedure software security requirement In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Gaolei Yan Title: Manager

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Model Difference 2024/09/04 EUT NAME: Tablet FCC ID: FCC ID: 2ANMU-RT9 MODEL : RT9, RT9 S,RT9 Pro,RT9 Ultra,RT9 TITAN All the model are the same circuit and RF module, except model names. Sincerely Client’s signature Client’s name / title : Gaolei Yan / manager Contact information / address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China

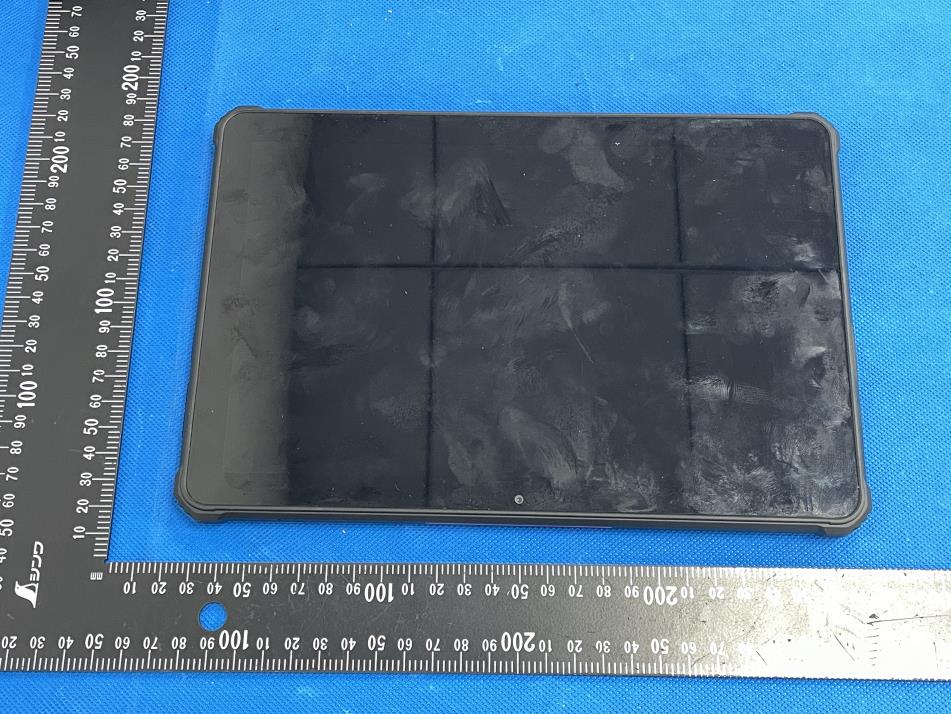

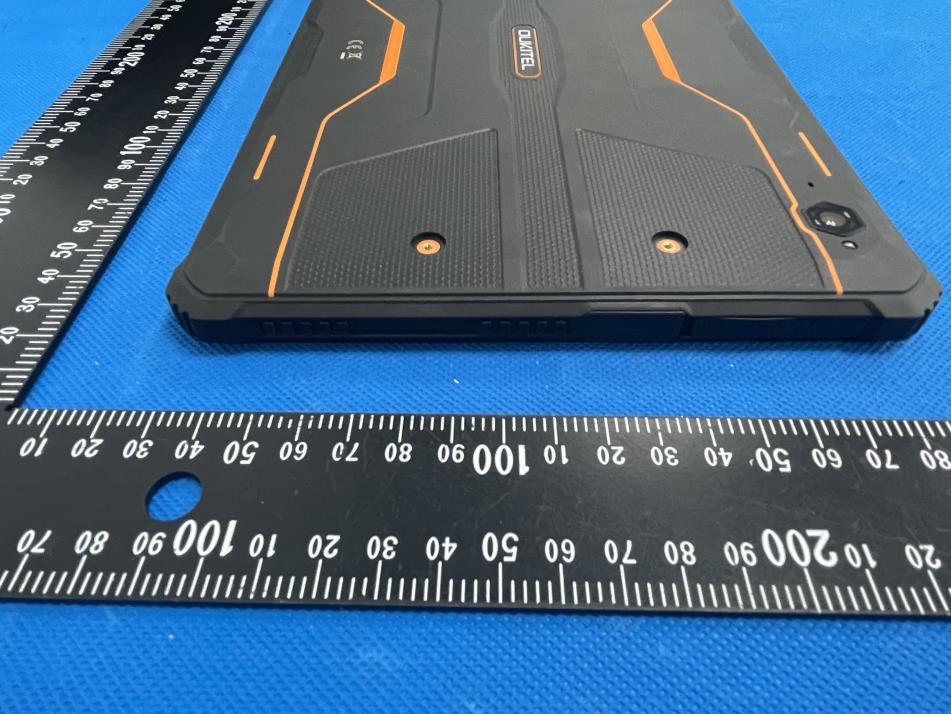

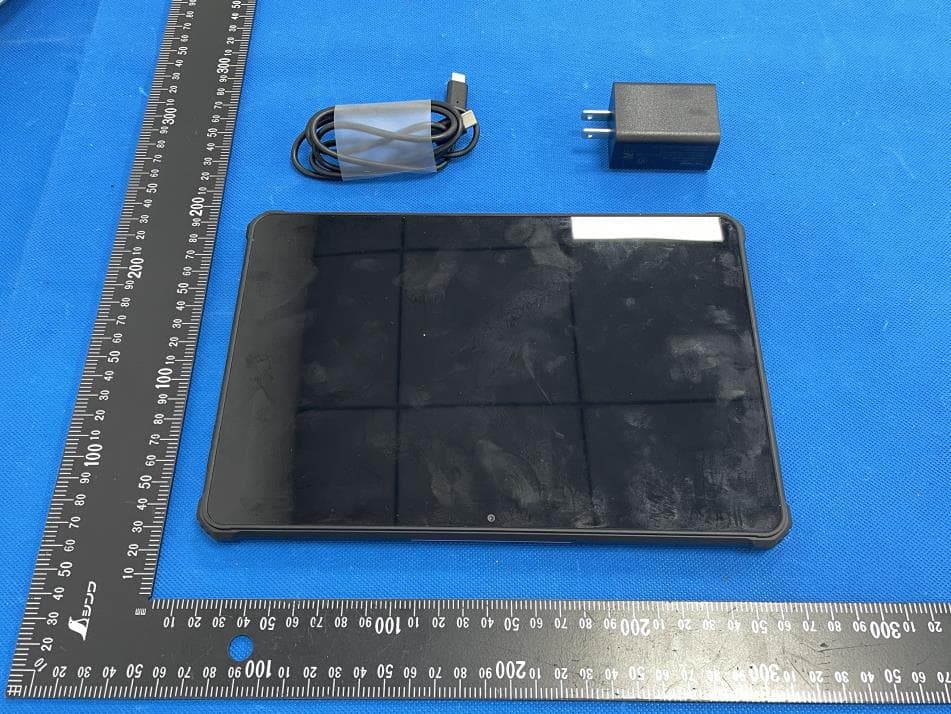

External Photos

Size:40*20mm Tablet FCC ID: 2ANMU-RT9 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos BT/WIFI/GPS Antenna 2G/3G/4G Antenna

Antenna specification Test Project Equipment Test Equipment Agilent 5071B （S Parameter（RL/VSWR）Test Equipment） 1. S Parameter 1. Return Loss(RL) 2. VSWR Network Analyzer： Agilent 5071B 2. RF Test （2/3/4/5G） 1. power 2. level 3.TRP/TIS Comprehensive Test： SP9500/CMW500/8960 Test Environment： Anechoic Chamber SP9500 （5GTest Equipment） Agilent 8960 （2G/3G Test Equipment） CMW 500 （2G/3G/4GTest Equipment） TestEnvironment Microwave Anechoic Chamber Test Steps Passive VSWR/RL Test Steps: Gain/Efficiency Test Steps: Active TRP/TIS Test Steps： 50Ω Coaxial Cable 90mm Length Copper Pipe 5071B Network Analyzer Test Fixture Open Computer OTA Test Software Open Turntable Switch And Reset To zero Open 8960/CMW500 Test Equipment Test mobile phone insert test SIM card and Put into the microwave darkroom to connect OTA Software automatic testing Output Data Open Computer Gain/Efficiency Test Software Open Turntable Switch And Reset To zero Open 5071B Test Equipment Put the Tested object into the microwave darkroom to connect OTA Software automatic testing Output Data 5. Antenna size diagram 7.Antenna Gain Band Max Gain Band Max Gain GSM850 (824-894MHZ) -2.16 Bluetooth (2400-2483.5MHZ) 1.33 GSM900 (880-960MHZ) -1.54 WIFI-2.4G (2400-2495MHZ) 1.33 DCS1800 (1710-1880MHZ) 1.47 WIFI-5.2G (5.17-5.33GHZ) 1.11 PCS1900 (1850-1990MHZ) 2.44 WIFI-5.8G (5.490-5.835GHZ) -0.75 WCDMA1 (1920-2170MHZ) 0.97 GPS (1575.4MHZ) -0.01 WCDMA2 (1950-1990MHZ) 2.44 WCDMA4 (1710-2155MHZ) 0.97 WCDMA5 (824-894MHZ) -2.16 WCDMA8 (880-960MHZ) -1.54 LTE-B1 (1920-2170MHZ) 0.97 LTE-B2 (1850-1990MHZ) 2.44 LTE-B3 (1710-1880MHZ) 1.47 LTE-B4 (1710-2155MHZ) 0.97 LTE-B5 (824-894MHZ) -2.16 LTE-B7 (2500-2690MHZ) 0.89 LTE-B8 (880-960MHZ) -1.54 LTE-B12 (699-746MHZ) -2.58 LTE-B17 (704-746MHZ) -2.58 LTE-B18 (815-875MHZ) -2.16 LTE-B19 (830-8790MHZ) -2.16 LTE-B20 (791-862MHZ) -2.16 LTE-B25 (1850-1995MHZ) 2.44 LTE-B26 (814-894MHZ) -2.16 LTE-B28 (703-803MHZ) -2.58 LTE-B66 (1715-2170MHZ) 0.97 LTE-B38 (2570-2620MHZ) 0.89 LTE-B40 (2300-2400MHZ) 0.32 LTE-B41 (2496-2690MHZ) 0.89 8.2D&3D Lobe Diagram GSM850 GSM900 DSC1800 PCS1900 W1 W2 W4 W5 W8 FDD-B1 FDD-B2 FDD-B3 FDD-B4 FDD-B5 FDD-B7 FDD-B8 FDD-B12 FDD-B17 FDD-B18 FDD-B19 FDD-B20 FDD-B25 FDD-B26 FDD-B28 FDD-B66 TDD-B38 TDD-B40 TDD-B41 GPS BT 2.4G-WIFI 5.1G-WIFI 5.8G-WIFI 9.Introduction to Antenna Information P03C Antenna type and frequency band MAIN ANTENNA(PIFA):2G/3G/4G DIV ANTENNA(PIFA):2G/3G/4G GPS/WIFI/BT ANTENNA(PIFA):L1/2.4GWIFI/5G WIFI/BT Antenna materia FPC

No.：BCTC/RF-EMC-005 Page 1 of 244 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2408028722E Applicant: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Product Name: Tablet Test Model: RT9 Tested Date: 2024-07-03 to 2024-09-03 Issued Date: 2024-09-03 Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 2 of 244 Edition：B.2 FCC ID: 2ANMU-RT9 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Tablet Trademark: OUKITEL Model/Type Ref.: RT9 RT9 S, RT9 Pro, RT9 Ultra, RT9 TITAN Applicant: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Manufacturer: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-07-03 Sample tested Date: 2024-07-03 to 2024-09-03 Issue Date: 2024-09-03 Test Standards: IEEE Std C95.1, 2019 IEEE Std 1528™-2013 FCC Part 2.1093 Test Results: PASS Remark: This is SAR test report Tested by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/Reviewer Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 3 of 244 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Standards ...................................................................................................... 6 3. Test Summary ....................................................................................................... 7 4. SAR Limits............................................................................................................. 8 5. Measurement Uncertainty ..................................................................................... 9 6. Product Information and Test Setup .................................................................... 10 6.1 Product Information ............................................................................................. 10 6.2 Test Setup Configuration .................................................................................... 14 6.3 Support Equipment ............................................................................................. 14 6.4 Test Environment ................................................................................................ 14 7. Test Facility and Test Instrument Used ............................................................... 15 7.1 Test Facility ......................................................................................................... 15 7.2 Test Instrument Used .......................................................................................... 16 8. Specific Absorption Rate (SAR) .......................................................................... 17 8.1 Introduction ......................................................................................................... 17 8.2 SAR Definition ..................................................................................................... 17 9. SAR Measurement System ................................................................................. 18 9.1 The Measurement System .................................................................................. 18 9.2 Probe .................................................................................................................. 18 9.3 Probe Calibration Process .................................................................................. 20 9.4 Phantom .............................................................................................................. 21 9.5 Device Holder ..................................................................................................... 21 10. Tissue Simulating Liquids .................................................................................... 22 10.1 Composition of Tissue Simulating Liquid .......................................................... 22 10.2 Limit .................................................................................................................. 23 10.3 Tissue Calibration Result .................................................................................. 24 11. System Check ..................................................................................................... 25 11.1 Purpose of System Performance Check ........................................................... 25 11.2 System Setup .................................................................................................... 25 11.3 Validation Results ............................................................................................. 26 12. EUT Testing Position ........................................................................................... 27 13. SAR Measurement Procedures ........................................................................... 28 13.1 Measurement Procedures ................................................................................. 28 13.2 Spatial Peak SAR Evaluation ............................................................................ 28 13.3 Area & Zoom Scan Procedures ........................................................................ 29 13.4 Volume Scan Procedures ................................................................................…

Text truncated - open the document above for the full version.

Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 42 of 244 Edition：B.2 Band4 5 20175 25 #0 16QAM 22.98 0.97 23.95 PASS Band4 5 20375 1 #0 QPSK 24.53 0.97 25.50 PASS Band4 5 20375 1 #Mid QPSK 24.42 0.97 25.39 PASS Band4 5 20375 1 #Max QPSK 24.43 0.97 25.40 PASS Band4 5 20375 12 #0 QPSK 23.71 0.97 24.68 PASS Band4 5 20375 12 #Mid QPSK 23.61 0.97 24.58 PASS Band4 5 20375 12 #Max QPSK 23.67 0.97 24.64 PASS Band4 5 20375 25 #0 QPSK 23.72 0.97 24.69 PASS Band4 5 20375 1 #0 16QAM 24.72 0.97 25.69 PASS Band4 5 20375 1 #Mid 16QAM 24.63 0.97 25.60 PASS Band4 5 20375 1 #Max 16QAM 24.64 0.97 25.61 PASS Band4 5 20375 12 #0 16QAM 22.72 0.97 23.69 PASS Band4 5 20375 12 #Mid 16QAM 22.66 0.97 23.63 PASS Band4 5 20375 12 #Max 16QAM 22.63 0.97 23.60 PASS Band4 5 20375 25 #0 16QAM 22.75 0.97 23.72 PASS Band4 10 20000 1 #0 QPSK 24.79 0.97 25.76 PASS Band4 10 20000 1 #Mid QPSK 24.59 0.97 25.56 PASS Band4 10 20000 1 #Max QPSK 24.63 0.97 25.60 PASS Band4 10 20000 25 #0 QPSK 23.89 0.97 24.86 PASS Band4 10 20000 25 #Mid QPSK 23.80 0.97 24.77 PASS Band4 10 20000 25 #Max QPSK 23.64 0.97 24.61 PASS Band4 10 20000 50 #0 QPSK 23.69 0.97 24.66 PASS Band4 10 20000 1 #0 16QAM 25.39 0.97 26.36 PASS Band4 10 20000 1 #Mid 16QAM 25.17 0.97 26.14 PASS Band4 10 20000 1 #Max 16QAM 25.17 0.97 26.14 PASS Band4 10 20000 25 #0 16QAM 22.94 0.97 23.91 PASS Band4 10 20000 25 #Mid 16QAM 22.78 0.97 23.75 PASS Band4 10 20000 25 #Max 16QAM 22.66 0.97 23.63 PASS Band4 10 20000 50 #0 16QAM 22.83 0.97 23.80 PASS Band4 10 20175 1 #0 QPSK 24.66 0.97 25.63 PASS Band4 10 20175 1 #Mid QPSK 24.78 0.97 25.75 PASS Band4 10 20175 1 #Max QPSK 24.89 0.97 25.86 PASS Band4 10 20175 25 #0 QPSK 23.73 0.97 24.70 PASS Band4 10 20175 25 #Mid QPSK 23.87 0.97 24.84 PASS Band4 10 20175 25 #Max QPSK 23.88 0.97 24.85 PASS Band4 10 20175 50 #0 QPSK 23.81 0.97 24.78 PASS Band4 10 20175 1 #0 16QAM 24.93 0.97 25.90 PASS Band4 10 20175 1 #Mid 16QAM 25.07 0.97 26.04 PASS Band4 10 20175 1 #Max 16QAM 25.16 0.97 26.13 PASS Band4 10 20175 25 #0 16QAM 22.92 0.97 23.89 PASS Band4 10 20175 25 #Mid 16QAM 23.01 0.97 23.98 PASS Band4 10 20175 25 #Max 16QAM 22.96 0.97 23.93 PASS Band4 10 20175 50 #0 16QAM 22.98 0.97 23.95 PASS Band4 10 20350 1 #0 QPSK 24.94 0.97 25.91 PASS Band4 10 20350 1 #Mid QPSK 24.83 0.97 25.80 PASS Band4 10 20350 1 #Max QPSK 24.76 0.97 25.73 PASS Band4 10 20350 25 #0 QPSK 23.81 0.97 24.78 PASS Band4 10 20350 25 #Mid QPSK 23.78 0.97 24.75 PASS Band4 10 20350 25 #Max QPSK 23.72 0.97 24.69 PASS Band4 10 20350 50 #0 QPSK 23.81 0.97 24.78 PASS Band4 10 20350 1 #0 16QAM 25.19 0.97 26.16 PASS Band4 10 20350 1 #Mid 16QAM 25.11 0.97 26.08 PASS Band4 10 20350 1 #Max 16QAM 24.93 0.97 25.90 PASS Band4 10 20350 25 #0 16QAM 22.95 0.97 23.92 PASS Band4 10 20350 25 #Mid 16QAM 22.89 0.97 23.86 PASS Band4 10 20350 25 #Max 16QAM 22.77 0.97 23.74 PASS Band4 10 20350 50 #0 16QAM 22.79 0.97 23.76 PASS Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 43 of 244 Edition：B.2 Band4 15 20025 1 #0 QPSK 24.84 0.97 25.81 PASS Band4 15 20025 1 #Mid QPSK 24.61 0.97 25.58 PASS Band4 15 20025 1 #Max QPSK 24.56 0.97 25.53 PASS Band4 15 20025 36 #0 QPSK 23.60 0.97 24.57 PASS Band4 15 20025 36 #Mid QPSK 23.71 0.97 24.68 PASS Band4 15 20025 36 #Max QPSK 23.57 0.97 24.54 PASS Band4 15 20025 75 #0 QPSK 23.66 0.97 24.63 PASS Band4 15 20025 1 #0 16QAM 25.42 0.97 26.39 PASS Band4 15 20025 1 #Mid 16QAM 25.15 0.97 26.12 PASS Band4 15 20025 1 #Max 16QAM 25.25 0.97 26.22 PASS Band4 15 20025 36 #0 16QAM 22.72 0.97 23.69 PASS Band4 15 20025 36 #Mid 16QAM 22.60 0.97 23.57 PASS Band4 15 20025 36 #Max 16QAM 22.69 0.97 23.66 PASS Band4 15 20025 75 #0 16QAM 22.72 0.97 23.69 PASS Band4 15 20175 1 #0 QPSK 24.58 0.97 25.55 PASS Band4 15 20175 1 #Mid QPSK 24.80 0.97 25.77 PASS Band4 15 20175 1 #Max QPSK 24.86 0.97 25.83 PASS Band4 15 20175 36 #0 QPSK 23.92 0.97 24.89 PASS Band4 15 20175 36 #Mid QPSK 23.96 0.97 24.93 PASS Band4 15 20175 36 #Max QPSK 23.97 0.97 24.94 PASS Band4 15 20175 75 #0 QPSK 23.78 0.97 24.75 PASS Band4 15 20175 1 #0 16QAM 24.85 0.97 25.82 PASS Band4 15 20175 1 #Mid 16QAM 25.03 0.97 26.00 PASS Band4 15 20175 1 #Max 16QAM 25.19 0.97 26.16 PASS Band4 15 20175 36 #0 16QAM 23.00 0.97 23.97 PASS Band4 15 20175 36 #Mid 16QAM 23.00 0.97 23.97 PASS Band4 15 20175 36 #Max 16QAM 23.05 0.97 24.02 PASS Band4 15 20175 75 #0 16QAM 22.92 0.97 23.89 PASS Band4 15 20325 1 #0 QPSK 24.91 0.97 25.88 PASS Band4 15 20325 1 #Mid QPSK 24.80 0.97 25.77 PASS Band4 15 20325 1 #Max QPSK 24.65 0.97 25.62 PASS Band4 15 20325 36 #0 QPSK 23.93 0.97 24.90 PASS Band4 15 20325 36 #Mid QPSK 23.84 0.97 24.81 PASS Band4 15 20325 36 #Max QPSK 23.79 0.97 24.76 PASS Band4 15 20325 75 #0 QPSK 23.86 0.97 24.83 PASS Band4 15 20325 1 #0 16QAM 25.46 0.97 26.43 PASS Band4 15 20325 1 #Mid 16QAM 25.32 0.97 26.29 PASS Band4 15 20325 1 #Max 16QAM 25.11 0.97 26.08 PASS Band4 15 20325 36 #0 16QAM 22.85 0.97 23.82 PASS Band4 15 20325 36 #Mid 16QAM 22.83 0.97 23.80 PASS Band4 15 20325 36 #Max 16QAM 22.73 0.97 23.70 PASS Band4 15 20325 75 #0 16QAM 22.91 0.97 23.88 PASS Band4 20 20050 1 #0 QPSK 24.99 0.97 25.96 PASS Band4 20 20050 1 #Mid QPSK 24.82 0.97 25.79 PASS Band4 20 20050 1 #Max QPSK 24.93 0.97 25.90 PASS Band4 20 20050 50 #0 QPSK 23.71 0.97 24.68 PASS Band4 20 20050 50 #Mid QPSK 23.69 0.97 24.66 PASS Band4 20 20050 50 #Max QPSK 23.70 0.97 24.67 PASS Band4 20 20050 100 #0 QPSK 23.76 0.97 24.73 PASS Band4 20 20050 1 #0 16QAM 24.50 0.97 25.47 PASS Band4 20 20050 1 #Mid 16QAM 24.29 0.97 25.26 PASS Band4 20 20050 1 #Max 16QAM 24.44 0.97 25.41 PASS Band4 20 20050 50 #0 16QAM 22.84 0.97 23.81 PASS Band4 20 20050 50 #Mid 16QAM 22.91 0.97 23.88 PASS Band4 20 20050 50 #Max 16QAM 22.92 0.97 23.89 PASS Band4 20 20050 100 #0 16QAM 22.83 0.97 23.80 PASS Band4 20 20175 1 #0 QPSK 24.86 0.97 25.83 PASS Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 44 of 244 Edition：B.2 Band4 20 20175 1 #Mid QPSK 25.07 0.97 26.04 PASS Band4 20 20175 1 #Max QPSK 25.16 0.97 26.13 PASS Band4 20 20175 50 #0 QPSK 23.87 0.97 24.84 PASS Band4 20 20175 50 #Mid QPSK 23.91 0.97 2…

Text truncated - open the document above for the full version.

Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 57 of 244 Edition：B.2 Band25 3 26055 8 #Max 16QAM 21.71 2.44 24.15 PASS Band25 3 26055 15 #0 16QAM 21.45 2.44 23.89 PASS Band25 3 26365 1 #0 QPSK 23.25 2.44 25.69 PASS Band25 3 26365 1 #Mid QPSK 23.30 2.44 25.74 PASS Band25 3 26365 1 #Max QPSK 23.41 2.44 25.85 PASS Band25 3 26365 8 #0 QPSK 22.50 2.44 24.94 PASS Band25 3 26365 8 #Mid QPSK 22.55 2.44 24.99 PASS Band25 3 26365 8 #Max QPSK 22.55 2.44 24.99 PASS Band25 3 26365 15 #0 QPSK 22.55 2.44 24.99 PASS Band25 3 26365 1 #0 16QAM 22.45 2.44 24.89 PASS Band25 3 26365 1 #Mid 16QAM 22.48 2.44 24.92 PASS Band25 3 26365 1 #Max 16QAM 22.57 2.44 25.01 PASS Band25 3 26365 8 #0 16QAM 21.54 2.44 23.98 PASS Band25 3 26365 8 #Mid 16QAM 21.58 2.44 24.02 PASS Band25 3 26365 8 #Max 16QAM 21.56 2.44 24.00 PASS Band25 3 26365 15 #0 16QAM 21.45 2.44 23.89 PASS Band25 3 26675 1 #0 QPSK 23.90 2.44 26.34 PASS Band25 3 26675 1 #Mid QPSK 24.04 2.44 26.48 PASS Band25 3 26675 1 #Max QPSK 24.07 2.44 26.51 PASS Band25 3 26675 8 #0 QPSK 22.98 2.44 25.42 PASS Band25 3 26675 8 #Mid QPSK 23.08 2.44 25.52 PASS Band25 3 26675 8 #Max QPSK 23.02 2.44 25.46 PASS Band25 3 26675 15 #0 QPSK 23.02 2.44 25.46 PASS Band25 3 26675 1 #0 16QAM 23.37 2.44 25.81 PASS Band25 3 26675 1 #Mid 16QAM 23.31 2.44 25.75 PASS Band25 3 26675 1 #Max 16QAM 23.30 2.44 25.74 PASS Band25 3 26675 8 #0 16QAM 22.39 2.44 24.83 PASS Band25 3 26675 8 #Mid 16QAM 22.39 2.44 24.83 PASS Band25 3 26675 8 #Max 16QAM 22.07 2.44 24.51 PASS Band25 3 26675 15 #0 16QAM 22.51 2.44 24.95 PASS Band25 5 26065 1 #0 QPSK 23.25 2.44 25.69 PASS Band25 5 26065 1 #Mid QPSK 23.32 2.44 25.76 PASS Band25 5 26065 1 #Max QPSK 23.44 2.44 25.88 PASS Band25 5 26065 12 #0 QPSK 22.43 2.44 24.87 PASS Band25 5 26065 12 #Mid QPSK 22.39 2.44 24.83 PASS Band25 5 26065 12 #Max QPSK 22.40 2.44 24.84 PASS Band25 5 26065 25 #0 QPSK 22.45 2.44 24.89 PASS Band25 5 26065 1 #0 16QAM 22.50 2.44 24.94 PASS Band25 5 26065 1 #Mid 16QAM 22.55 2.44 24.99 PASS Band25 5 26065 1 #Max 16QAM 22.54 2.44 24.98 PASS Band25 5 26065 12 #0 16QAM 21.22 2.44 23.66 PASS Band25 5 26065 12 #Mid 16QAM 21.66 2.44 24.10 PASS Band25 5 26065 12 #Max 16QAM 21.68 2.44 24.12 PASS Band25 5 26065 25 #0 16QAM 21.81 2.44 24.25 PASS Band25 5 26365 1 #0 QPSK 23.48 2.44 25.92 PASS Band25 5 26365 1 #Mid QPSK 23.51 2.44 25.95 PASS Band25 5 26365 1 #Max QPSK 23.51 2.44 25.95 PASS Band25 5 26365 12 #0 QPSK 22.43 2.44 24.87 PASS Band25 5 26365 12 #Mid QPSK 22.60 2.44 25.04 PASS Band25 5 26365 12 #Max QPSK 22.52 2.44 24.96 PASS Band25 5 26365 25 #0 QPSK 22.51 2.44 24.95 PASS Band25 5 26365 1 #0 16QAM 22.13 2.44 24.57 PASS Band25 5 26365 1 #Mid 16QAM 22.23 2.44 24.67 PASS Band25 5 26365 1 #Max 16QAM 22.14 2.44 24.58 PASS Band25 5 26365 12 #0 16QAM 21.34 2.44 23.78 PASS Band25 5 26365 12 #Mid 16QAM 21.38 2.44 23.82 PASS Band25 5 26365 12 #Max 16QAM 21.35 2.44 23.79 PASS Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 58 of 244 Edition：B.2 Band25 5 26365 25 #0 16QAM 21.56 2.44 24.00 PASS Band25 5 26665 1 #0 QPSK 23.92 2.44 26.36 PASS Band25 5 26665 1 #Mid QPSK 23.96 2.44 26.40 PASS Band25 5 26665 1 #Max QPSK 23.98 2.44 26.42 PASS Band25 5 26665 12 #0 QPSK 23.00 2.44 25.44 PASS Band25 5 26665 12 #Mid QPSK 23.00 2.44 25.44 PASS Band25 5 26665 12 #Max QPSK 22.95 2.44 25.39 PASS Band25 5 26665 25 #0 QPSK 23.09 2.44 25.53 PASS Band25 5 26665 1 #0 16QAM 22.95 2.44 25.39 PASS Band25 5 26665 1 #Mid 16QAM 22.98 2.44 25.42 PASS Band25 5 26665 1 #Max 16QAM 22.98 2.44 25.42 PASS Band25 5 26665 12 #0 16QAM 21.95 2.44 24.39 PASS Band25 5 26665 12 #Mid 16QAM 22.35 2.44 24.79 PASS Band25 5 26665 12 #Max 16QAM 22.39 2.44 24.83 PASS Band25 5 26665 25 #0 16QAM 22.42 2.44 24.86 PASS Band25 10 26090 1 #0 QPSK 23.30 2.44 25.74 PASS Band25 10 26090 1 #Mid QPSK 23.45 2.44 25.89 PASS Band25 10 26090 1 #Max QPSK 23.57 2.44 26.01 PASS Band25 10 26090 25 #0 QPSK 22.39 2.44 24.83 PASS Band25 10 26090 25 #Mid QPSK 22.37 2.44 24.81 PASS Band25 10 26090 25 #Max QPSK 22.55 2.44 24.99 PASS Band25 10 26090 50 #0 QPSK 22.47 2.44 24.91 PASS Band25 10 26090 1 #0 16QAM 23.27 2.44 25.71 PASS Band25 10 26090 1 #Mid 16QAM 23.50 2.44 25.94 PASS Band25 10 26090 1 #Max 16QAM 23.72 2.44 26.16 PASS Band25 10 26090 25 #0 16QAM 21.67 2.44 24.11 PASS Band25 10 26090 25 #Mid 16QAM 21.67 2.44 24.11 PASS Band25 10 26090 25 #Max 16QAM 21.39 2.44 23.83 PASS Band25 10 26090 50 #0 16QAM 21.85 2.44 24.29 PASS Band25 10 26365 1 #0 QPSK 23.46 2.44 25.90 PASS Band25 10 26365 1 #Mid QPSK 23.49 2.44 25.93 PASS Band25 10 26365 1 #Max QPSK 23.58 2.44 26.02 PASS Band25 10 26365 25 #0 QPSK 22.52 2.44 24.96 PASS Band25 10 26365 25 #Mid QPSK 22.48 2.44 24.92 PASS Band25 10 26365 25 #Max QPSK 22.57 2.44 25.01 PASS Band25 10 26365 50 #0 QPSK 22.59 2.44 25.03 PASS Band25 10 26365 1 #0 16QAM 22.61 2.44 25.05 PASS Band25 10 26365 1 #Mid 16QAM 22.51 2.44 24.95 PASS Band25 10 26365 1 #Max 16QAM 22.52 2.44 24.96 PASS Band25 10 26365 25 #0 16QAM 21.55 2.44 23.99 PASS Band25 10 26365 25 #Mid 16QAM 21.58 2.44 24.02 PASS Band25 10 26365 25 #Max 16QAM 21.92 2.44 24.36 PASS Band25 10 26365 50 #0 16QAM 21.60 2.44 24.04 PASS Band25 10 26640 1 #0 QPSK 23.68 2.44 26.12 PASS Band25 10 26640 1 #Mid QPSK 23.95 2.44 26.39 PASS Band25 10 26640 1 #Max QPSK 24.21 2.44 26.65 PASS Band25 10 26640 25 #0 QPSK 22.73 2.44 25.17 PASS Band25 10 26640 25 #Mid QPSK 22.80 2.44 25.24 PASS Band25 10 26640 25 #Max QPSK 23.01 2.44 25.45 PASS Band25 10 26640 50 #0 QPSK 22.86 2.44 25.30 PASS Band25 10 26640 1 #0 16QAM 22.63 2.44 25.07 PASS Band25 10 26640 1 #Mid 16QAM 22.74 2.44 25.18 PASS Band25 10 26640 1 #Max 16QAM 23.01 2.44 25.45 PASS Band25 10 26640 25 #0 16QAM 21.81 2.44 24.25 PASS Band25 10 26640 25 #Mid 16QAM 21.78 2.44 24.22 PASS Band25 10 26640 25 #Max 16QAM 22.41 2.44 24.85 PASS Band25 10 26640 50 #0 16QAM 21.83 2.44 24.27 PASS Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 59 of 244 Edition：B.2 Band25 15 26115 1 #0 QPSK 23.27 2.44 25.71 PASS Band25 15 26115 1 #Mid QPSK 23.53 2.44 25.97 PASS Band25 15 26115 1 #Max QPSK 23.64 2.44 26.…

Text truncated - open the document above for the full version.

Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 88 of 244 Edition：B.2 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 89 of 244 Edition：B.2 System check at 1800 MHz Date of measurement: 12/8/2024 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.01 Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band CW1800 Signal CW B. Permitivity Frequency (MHz) 1800.000 Relative permitivity (real part) 38.541 Relative permitivity (imaginary part) 15.200 Conductivity (S/m) 1.371 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-3.00, Y=1.00 ; SAR Peak: 6.69 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 4.941 SAR 1g (W/Kg) 9.767 Variation (%) -1.289 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 6.684 4.120 2.184 1.177 0.685 Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 90 of 244 Edition：B.2 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2408028722E No.：BCTC/RF-EMC-005 Page 91 of 244 Edition：B.2 System check at 1900 MHz Date of measurement: 13/8/2024 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.11 Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band CW1900 Signal CW B. Permitivity Frequency (MHz) 1900.000 Relative permitivity (real part) 40.493 Relative permitivity (imaginary part) 14.400 Conductivity (S/m) 1.419 C. SA…

Text truncated - open the document above for the full version.
