2ANMU-WP36Smart Phone

Manufacturer Address: 202, Building A2, Silicon Valley Power Intelligent Terminal Industrial Park, No. 20, Dafu Industrial Zone, Kukeng Community, Guanlan Street, Longhua District, Shenzhen China Manufacturer Name : Shenzhen Yunji Intelligent Technology CO , LTD WP36 WP36 User Manual Website: oukitel.com Contents English01 10 17 24 31 38 45 52 German Italiano Español Comes with the Googletm TM app and Google Chrome TM . Android is a trademark of Gooale LLC Vent holes Touch screen Receiver Front camera Light sensor Type-c MIC 10600 Comes with the Googletm TM app and Google Chrome TM . Android is a trademark of Gooale LLC Battery Accessories WP36 includes an internal battery You can track your battery status with the icon showed on the top right of the screen. Use only OUKITEL-approved batteries specifically designed for you phone. Incompatible batteries can cause serious iniuries or damage to your phone. Never place batteries or phones on or in heating devices such as microwave ovens , stoves , or radiators . Batteries may explode when overheated. 18 Comes with the Googletm TM app and Google Chrome TM . Android is a trademark of Gooale LLC Rear main camera flash Secondary camera Macro camera fingerprint Lanyard hole Volume + Volume - Power button SIM card Speaker sound hole Comes with the Googletm TM app and Google Chrome TM . Android is a trademark of Gooale LLC 2 SIM1 Card SIM2 Card SIM2 Card Comes with the Googletm TM app and Google Chrome TM . Android is a trademark of Gooale LLC How to boot How to send SMS , MMS SMS MMs-video Inguage switching settings SAR Non-removable battery Press the power button for 3-5 seconds to boot Open the SMS app Select New Information Enter a phone number or browse your contacts Select Edit Information and enter your text Send When writing a text message Select images, videos, or other files you want to add even you can take a new picture or video right away Selecting or sending Main menu-settings system--language and input method Language and input method--language--language adding Select the language you need, the system Will automatically jump back to the language interface Select the icon after the language bar and drag it to the first one The maximum electromagnetic radiation absorption ratio (SAR) In line with the requirements of the national standard EN62209-1:2016; EN 62209-2:2010; EN 62479:2010; EN 50360:2017; EN 50566:2017; Comes with the Googletm TM app and Google Chrome TM . Android is a trademark of Gooale LLC Safety - In order to ensure safety during use of the product , you must strictly abide by the follow The pad should be at least 15cm away from any medical implant or rhythm adjuster and never put the device in your coat pocket. Do not expose the device and other batteries toaether with high temperatures or heat-generating equipment such as sunlight , heaters , microwave ovens , ovens , or water heaters. Overheating of the battery can cause an explosion When charging is complete or not charging , disconnect the charger from the device and unplug the charger from the outlet. If the device is equipped with a non-removable battery , do not replace the battery by yourself to avoid damaging the battery or the device. Use of an unapproved or incompatible power source, charger, or battery may cause fire, explosion, or other hazards. Do not disassemble or reset the battery, insert other objects, immerse in water or other liquids to avoid battery leakage, overheating, fire or explosion. Do not drop, crush, scratch, or puncture the battery to avoid subjecting the battery to excessive external pressure, Which may result in internal short-circuit and overheating of the battery. The company does not bear responsibility for accidents caused by non-standard related charging equipment. If you want to read the full CE compliance, please check this Comes with the Googletm TM app and Google Chrome TM . Android is a trademark of Gooale LLC Thoroughly understand the maintenance of this pad to use the pad more safely and effectively, and extend the service life of the pad as much as possible. Please follow the instructions in the manual to open the pad, disassemble the accessories, and do not try other Please avoid dropping, knocking, or shaking your pad. Rough handling of the pad can cause the screen to rupture, damaging the internal circuit board and the delicate structure. Do not use chemical solvents or detergents to clean your pad. Wipe the pad case with a soft cotton cloth dampened with water and mild soap. Clean the lens with a clean, dry, soft cloth. ( Example camera lens) and display. When the charger is not in use, please unplug it from the power outlet. Do not connect the battery that has been fully charged to the charger for a long time, as overcharging will shorten the battery life. This machines standard package ( Package box-pad- manual-protective film-protective case-headset-usb datacable-otg cable-charger ) Maintenance This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: ( 1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to the user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information for the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip…

Text truncated - open the document above for the full version.

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Family models difference declaration Product Name: Smart Phone Trade Name: OUKITEL Model Name: WP36, WP36 S, WP36 Pro, WP36 Ultra Difference declaration: All the model are the same circuit and RF module, except the model name. Regards, Signature Name: Gaolei Yan Date: 2024-01-08

(SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD) U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Jan. 8, 2023 Signed by (Printed Name/Title): Kenneth Young/ Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of a ny Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Grantee Code: 2ANMU Applicant Signature: Date:2024. 01. 08 Signed by (Printed Name/Title): Gaolei Yan/ Manager FRN:0026810242 Contact Name: Gaolei Yan Street Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA City/Province/Zip: SHENZHEN,China Telephone No: 0755-61156588 Email: [email protected]

(SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD) (2024. 01.08) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2ANMU-WP36) [ SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Gaolei Yan (SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD) (2024.01.08) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2ANMU-WP36) [SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Gaolei Yan

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Agent Authorization Letter (2024-01-08) Eurofins Electrical and Electronic Testing NA, Inc. 914 W est Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To W hom It May Concern: W e, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. W e also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Gaolei Yan / Manager Date/City: 2024-01-08 / Shenzhen Phone: 0755-61156588 Fax: 0755-61156588 E-mail: [email protected]

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Long Term Confidentiality Request Letter (2024-01-08) Eurofins Electrical and Electronic Testing NA, Inc. 914 W est Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Smart Phone Model: WP36, WP36 S, WP36 Pro, WP36 Ultra FCC ID: 2ANMU-WP36 To W hom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. W e have requested that the  Schematic Diagram  Block Diagram  Part List / BOM List / PCB Layout  Operational Description  Software Security Requirements for UNII devices  Tune-up Procedure Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Gaolei Yan / Manager Date/City: 2024-01-08 / Shenzhen Phone: 0755-61156588 Fax: 0755-61156588 E-mail: [email protected]

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Short Term Confidentiality Request Letter (2024-01-08) Eurofins Electrical and Electronic Testing NA, Inc. 914 W est Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Product: Smart Phone Model: WP36, WP36 S, WP36 Pro, WP36 Ultra FCC ID: 2ANMU-WP36 To W hom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD >. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD > feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Gaolei Yan / Manager Date/City: 2024-01-08 / Shenzhen Phone: 0755-61156588 Fax: 0755-61156588 E-mail: [email protected]

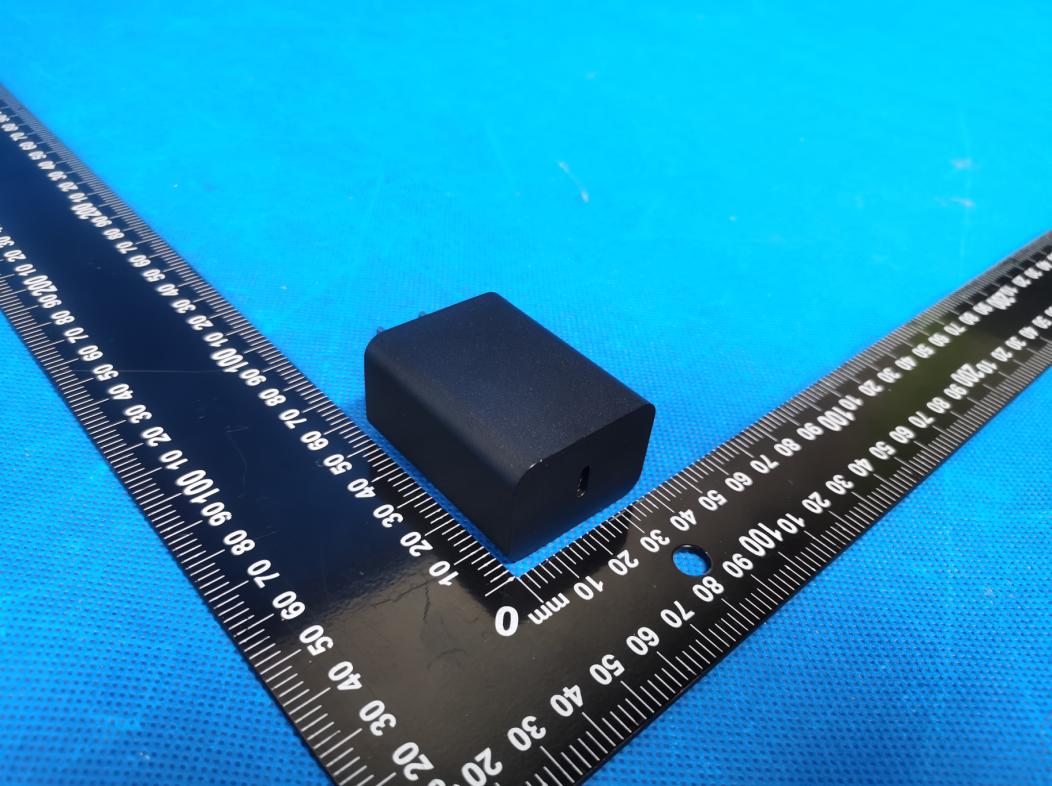

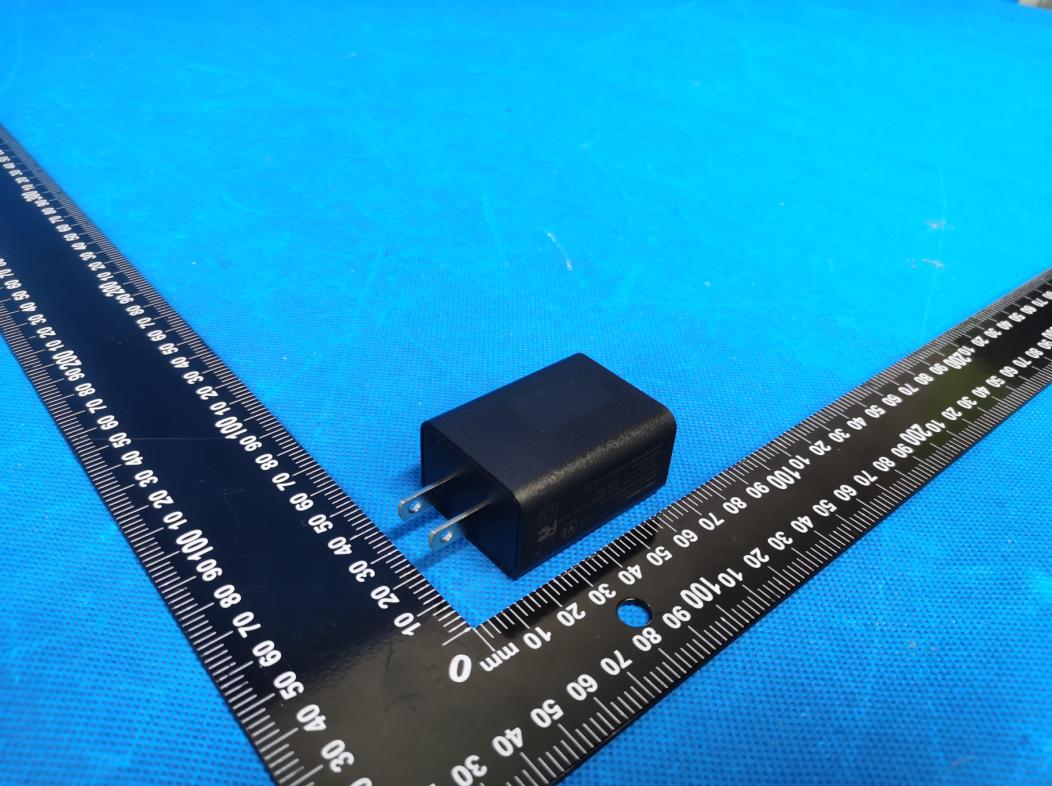

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

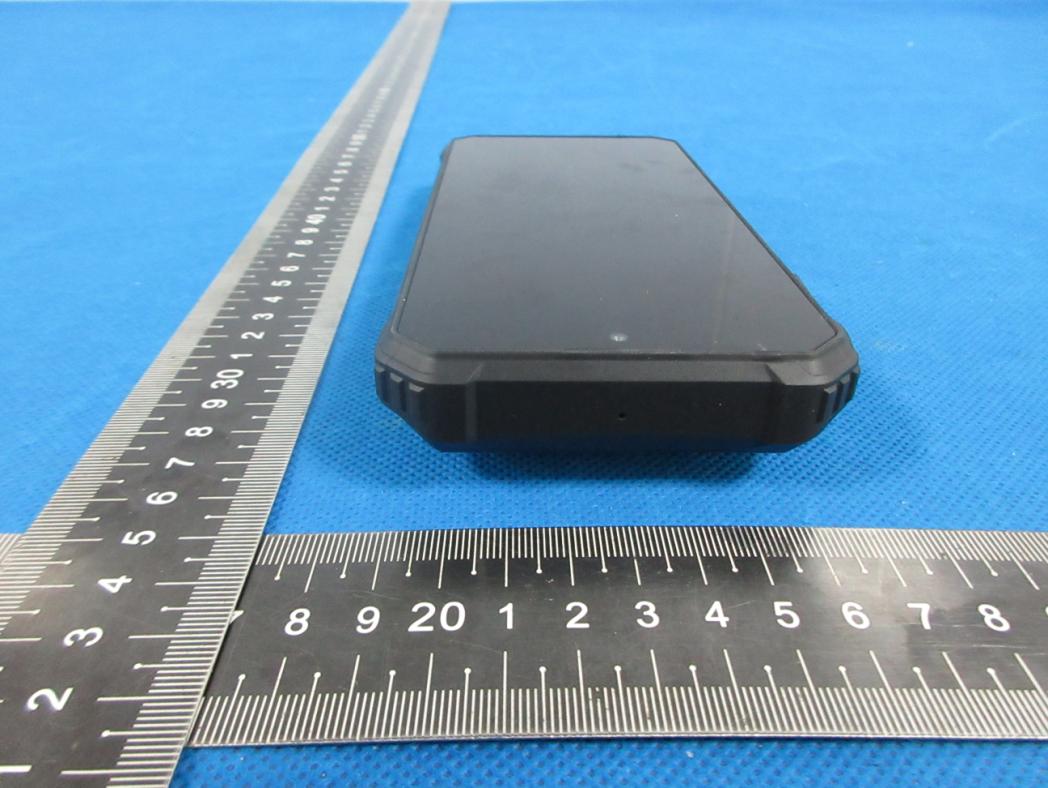

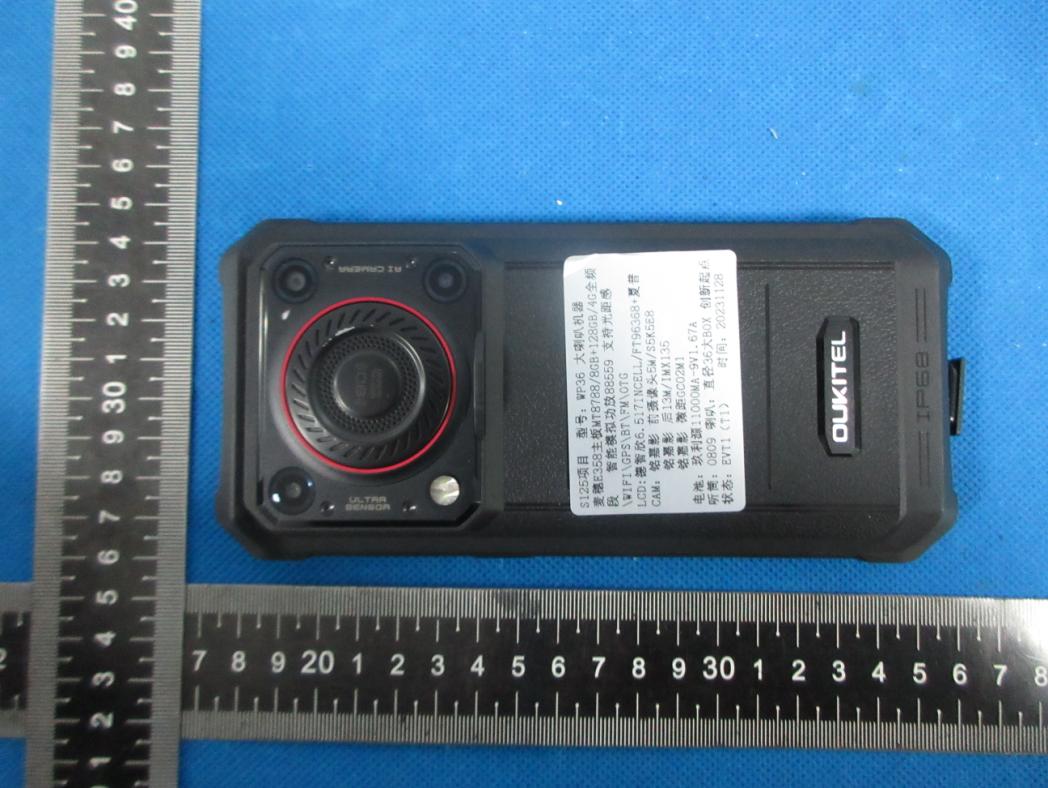

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 BT/WIFI ANT NFC ANT Photo 15 Photo 16 LTE AUX ANT GSM/WCDMA/LTE Main ANT

Page 1 of 233 Report No.: S23112100807001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Smart Phone Brand Name： OUKITEL Model Name： WP36 Family Model： WP36 S, WP36 Pro, WP36 Ultra Report No.： S23112100807001 FCC ID： 2ANMU-WP36 Prepared for SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1&5/F, Building C, 1&2/F, Building E, Fenda Science Park, Sanwei Community, Hangcheng Street, Baoan District, Shenzhen ,Guangdong, China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 233 Report No.: S23112100807001 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address .................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Manufacturer's Name .......... : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address .................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Product description Product name ........................ : Smart Phone Brand Name ......................... : OUKITEL Model and/or type reference .............................. : WP36 Family Model ......................... : WP36 S, WP36 Pro, WP36 Ultra Standards ............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................. S231121008008 Date of Test Date (s) of performance of tests .............. : Nov. 23, 2023 ~ Dec. 24, 2023 Date of Issue ........................................... : Jan. 05, 2024 Test Result ............................................... : Pass Prepared By : Reviewed By : Approved By : Jack Li (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 233 Report No.: S23112100807001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jan. 05, 2024 Jack Li Page 4 of 233 Report No.: S23112100807001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 19 3.1. Power Reference ................................................................................... 19 3.2. Area scan & Zoom scan .......................................................................... 19 3.3. Description of interpolation/extrapolation scheme .............................. 21 3.4. Volumetric Scan ..................................................................................... 21 3.5. Power Drift ............................................................................................ 21 4. System Verification Procedure .......................................................................... 22 4.1. Tissue Verification ................................................................................. 22 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 23 4.2. System Verification Procedure .............................................................. 24 4.2.1. System Verification Results .............................................................. 25 5. SAR Measurement variability and uncertainty .................................................. 2…

Text truncated - open the document above for the full version.

Page 117 of 233 Report No.: S23112100807001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.6167 0.2824 0.1225 0.1072 0.1007 0.0690 0.0360 3D screen shot Hot spot position Page 118 of 233 Report No.: S23112100807001 MEASUREMENT 16 Date of measurement: 7/12/2023 A. Experimental conditions. Area Scan dx=12mm dy=12mm, h= 5.00 mm ZoomScan 7x7x7,dx=5mm dy=5mm dz=5mm Phantom Validation plane Device Position Body Band IEEE 802.11b ISM Channels High Signal IEEE802.11b (Crest factor: 1.0) ConvF 2.85 B. SAR Measurement Results Frequency (MHz) 2462.000000 Relative permittivity (real part) 38.435761 Relative permittivity (imaginary part) 13.039994 Conductivity (S/m) 1.783581 Variation (%) -2.049999 SURFACE SAR VOLUME SAR Maximum location: X=-13.00, Y=22.00 SAR Peak: 0.30 W/kg SAR 10g (W/Kg) 0.092591 SAR 1g (W/Kg) 0.136267 Page 119 of 233 Report No.: S23112100807001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2749 0.1455 0.0660 0.0537 0.0659 0.0520 0.0773 3D screen shot Hot spot position Page 120 of 233 Report No.: S23112100807001 MEASUREMENT 17 Date of measurement: 23/11/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE band 2 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 2.63 B. SAR Measurement Results Frequency (MHz) 1880.000000 Relative permittivity (real part) 39.200699 Relative permittivity (imaginary part) 13.839800 Conductivity (S/m) 1.445490 Variation (%) -2.330000 SURFACE SAR VOLUME SAR Maximum location: X=-51.00, Y=-49.00 SAR Peak: 0.25 W/kg SAR 10g (W/Kg) 0.102222 SAR 1g (W/Kg) 0.169085 Page 121 of 233 Report No.: S23112100807001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2448 0.1717 0.1106 0.0725 0.0499 0.0345 0.0258 3D screen shot Hot spot position Page 122 of 233 Report No.: S23112100807001 MEASUREMENT 18 Date of measurement: 23/11/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE band 2 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 2.63 B. SAR Measurement Results Frequency (MHz) 1880.000000 Relative permittivity (real part) 39.200699 Relative permittivity (imaginary part) 13.839800 Conductivity (S/m) 1.445490 Variation (%) 0.570000 SURFACE SAR VOLUME SAR Maximum location: X=6.00, Y=21.00 SAR Peak: 0.33 W/kg SAR 10g (W/Kg) 0.139564 SAR 1g (W/Kg) 0.226371 Page 123 of 233 Report No.: S23112100807001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.3324 0.2287 0.1431 0.0919 0.0597 0.0416 0.0282 3D screen shot Hot spot position Page 124 of 233 Report No.: S23112100807001 MEASUREMENT 19 Date of measurement: 6/12/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE band 4 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 2.45 B. SAR Measurement Results Frequency (MHz) 1732.500000 Relative permittivity (real part) 40.107227 Relative permittivity (imaginary part) 13.863421 Conductivity (S/m) 1.334354 Variation (%) 3.040000 SURFACE SAR VOLUME SAR Maximum location: X=-51.00, Y=-49.00 SAR Peak: 0.20 W/kg SAR 10g (W/Kg) 0.088543 SAR 1g (W/Kg) 0.139997 Page 125 of 233 Report No.: S23112100807001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.1983 0.1449 0.0985 0.0694 0.0499 0.0363 0.0285 3D screen shot Hot spot position Page 126 of 233 Report No.: S23112100807001 MEASUREMENT 20 Date of measurement: 6/12/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE band 4 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 2.45 B. SAR Measurement Results Frequency (MHz) 1732.500000 Relative permittivity (real part) 40.107227 Relative permittivity (imaginary part) 13.863421 Conductivity (S/m) 1.334354 Variation (%) -0.700000 SURFACE SAR VOLUME SAR Maximum location: X=5.00, Y=-11.00 SAR Peak: 0.23 W/kg SAR 10g (W/Kg) 0.099176 SAR 1g (W/Kg) 0.155705 Page 127 of 233 Report No.: S23112100807001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2172 0.1592 0.1071 0.0726 0.0500 0.0365 0.0270 3D screen shot Hot spot position Page 128 of 233 Report No.: S23112100807001 MEASUREMENT 21 Date of measurement: 24/12/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE band 5 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 2.32 B. SAR Measurement Results Frequency (MHz) 836.500000 Relative permittivity (real part) 41.565029 Relative permittivity (imaginary part) 19.442995 Conductivity (S/m) 0.903559 Variation (%) 3.210000 SURFACE SAR VOLUME SAR Maximum location: X=-51.00, Y=-22.00 SAR Peak: 0.30 W/kg SAR 10g (W/Kg) 0.171873 SAR 1g (W/Kg) 0.233891 Page 129 of 233 Report No.: S23112100807001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2964 0.2433 0.1913 0.1515 0.1218 0.0960 0.0785 3D screen shot Hot spot position Page 130 of 233 Report No.: S23112100807001 MEASUREMENT 22 Date of measurement: 24/12/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE band 5 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 2.32 B. SAR Measurement Results Frequency (MHz) 836.500000 Relative permittivity (real part) 41.565029 Relative permittivity (imaginary part) 19.442995 Conductivity (S/m) 0.903559 Variation (%) -0.140000 SURFACE SAR VOLUME SAR Maximum location: X=7.00, Y=23.00 SAR Peak: 0.21 W/kg SAR 10g (W/Kg) 0.122981 SAR 1g (W/Kg) 0.163007 Page 131 of 233 Report No.: S23112100807001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.1945 0.1649 0.1304 0.1074 0.0830 0.0689 0.0560 3D screen shot Hot spot position Page 132 of 233 Report No.: S23112100807001 MEASUREMENT 23 Date of measurement:…

Text truncated - open the document above for the full version.

Page 178 of 233 Report No.: S23112100807001 Page 179 of 233 Report No.: S23112100807001 Page 180 of 233 Report No.: S23112100807001 Page 181 of 233 Report No.: S23112100807001 Page 182 of 233 Report No.: S23112100807001 Page 183 of 233 Report No.: S23112100807001 Page 184 of 233 Report No.: S23112100807001 Page 185 of 233 Report No.: S23112100807001 Page 186 of 233 Report No.: S23112100807001 Page 187 of 233 Report No.: S23112100807001 Page 188 of 233 Report No.: S23112100807001 Page 189 of 233 Report No.: S23112100807001 Page 190 of 233 Report No.: S23112100807001 Page 191 of 233 Report No.: S23112100807001 Page 192 of 233 Report No.: S23112100807001 Page 193 of 233 Report No.: S23112100807001 Page 194 of 233 Report No.: S23112100807001 Page 195 of 233 Report No.: S23112100807001 Page 196 of 233 Report No.: S23112100807001 Page 197 of 233 Report No.: S23112100807001 Page 198 of 233 Report No.: S23112100807001 Page 199 of 233 Report No.: S23112100807001 Page 200 of 233 Report No.: S23112100807001 Page 201 of 233 Report No.: S23112100807001 Page 202 of 233 Report No.: S23112100807001 Page 203 of 233 Report No.: S23112100807001 Page 204 of 233 Report No.: S23112100807001 Page 205 of 233 Report No.: S23112100807001 Page 206 of 233 Report No.: S23112100807001 Page 207 of 233 Report No.: S23112100807001 Page 208 of 233 Report No.: S23112100807001 Page 209 of 233 Report No.: S23112100807001 Page 210 of 233 Report No.: S23112100807001 Page 211 of 233 Report No.: S23112100807001 Page 212 of 233 Report No.: S23112100807001 Page 213 of 233 Report No.: S23112100807001 Page 214 of 233 Report No.: S23112100807001 Page 215 of 233 Report No.: S23112100807001 Page 216 of 233 Report No.: S23112100807001 Page 217 of 233 Report No.: S23112100807001 Page 218 of 233 Report No.: S23112100807001 Page 219 of 233 Report No.: S23112100807001 Page 220 of 233 Report No.: S23112100807001 Page 221 of 233 Report No.: S23112100807001 Page 222 of 233 Report No.: S23112100807001 Page 223 of 233 Report No.: S23112100807001 Page 224 of 233 Report No.: S23112100807001 Page 225 of 233 Report No.: S23112100807001 Page 226 of 233 Report No.: S23112100807001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.80 - 56.4 - Mar. 01, 2021 -23.642 0.66 56.998 0.598 Feb. 28, 2022 -22.051 7.35 51.838 4.562 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 227 of 233 Report No.: S23112100807001 <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 -23.947 5.87 56.615 2.215 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data

ShenZhenQiXinTongDaTechnologyCo.,Ltd. AntennaTestReport ClientName:OUQI ProjectName：S125-4G FrequencyBand:GSMB2/3/5/8+WCDMAB1/2/4/ 5/8+FDDB1/2/3/4/5/7/8/12/17/18/19/20/25/26/28/66 TDDB38/39/40/41 RF：LIHAILONG（13760255827） 2023-12-06 1.TestProject TestProjectEquipment 1.SParameter1.ReturnLoss(RL) 2.VSWR NetworkAnalyzer： Agilent5071B 2.RFTest （2G+3G+4G+5G） 1.power 2.level 3.TRP/TIS ComprehensiveTest： CMW500/8960 TestEnvironment： AnechoicChamber 2.TestEquipment Agilent5071B （SParameter（RL/VSWR）TestEquipment） Agilent8960（ 2G/3GTestEquipment ） CMW500（ 2G/3G/4GTestEquipment ） 3.TestEnvironment AnechoicChamber 4.TestSteps PassiveVSWR/RLTestSteps: 50 Ω CoaxialCable 100mmLength CopperPipe 5071BNetwork Analyzer TestFixture ActiveTRP/TISTestSteps： OpenComputerOTA TestSoftware OpenTurntableSwitch AndResetTozero Open8960/CMW500 TestEquipment TestmobilephoneinserttestSIM cardandPutintothemicrowave darkroomtoconnect OTASoftwareautomatic testing OutputData 5.AntennaDimensions 6．AntennaGain FrequencyBand Gain（dBi） GSM850（824-894MHz） -2.29 GSM900（880-960MHz） -1.20 DCS1800（1710-1880MHz） 0.19 PCS1900（1850-1990MHz） 0.14 WCDMA850（824-894MHz） -2.30 WCDMA900（880-960MHz） -1.19 WCDMA1700（1710-2155MHz） 0.20 WCDMA1900（1850-1990MHz） 0.14 WCDMA2100（1920-2170MHz） 0.17 FDDB1（1920-2170MHz） 0.17 FDDB2（1850-1990MHz） 0.14 FDDB3（1710-1880MHz） 0.20 FDDB4（1710-2155MHz） 0.21 FDDB5（824-894MHz） -2.29 FDDB7（2500-2690MHz） 0.34 FDDB8（880-960MHz） -1.19 FDDB12（699…

Text truncated - open the document above for the full version.
