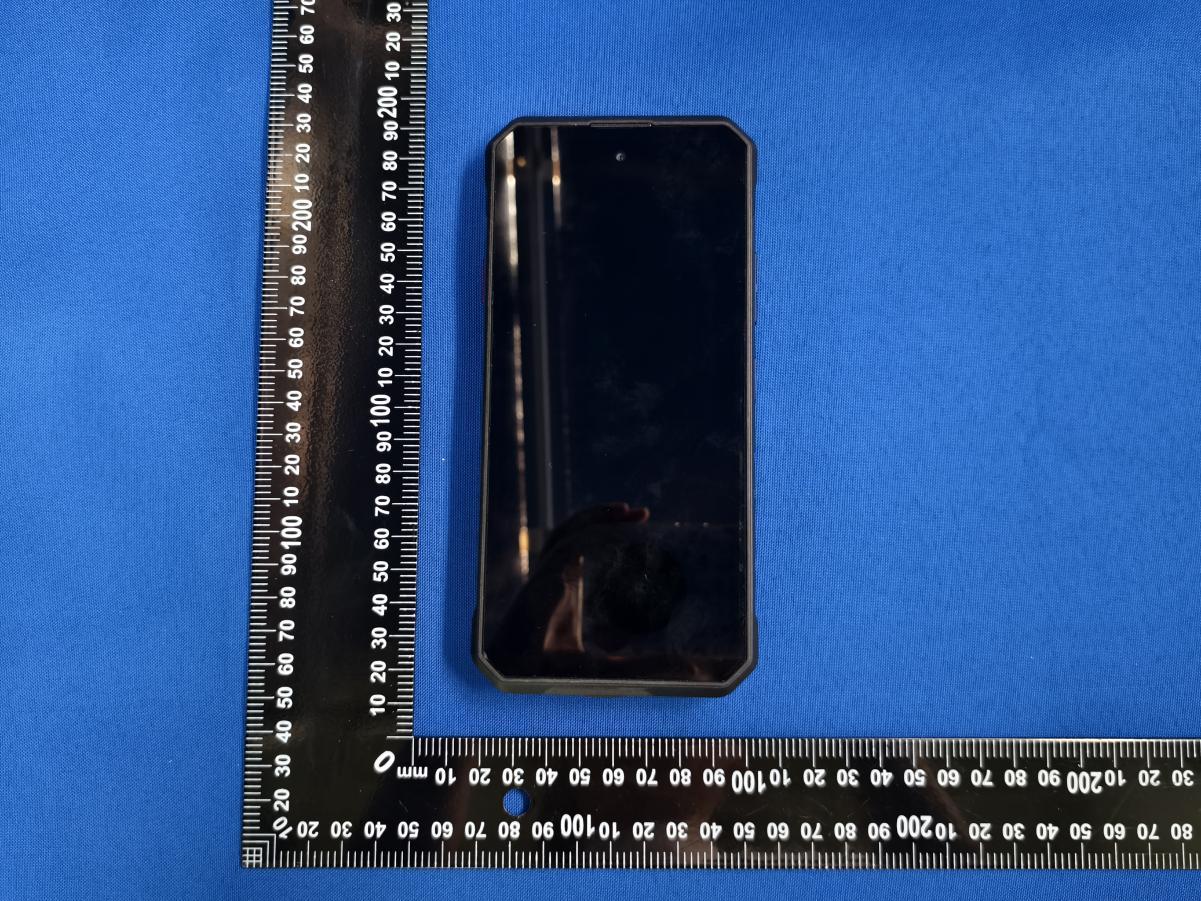

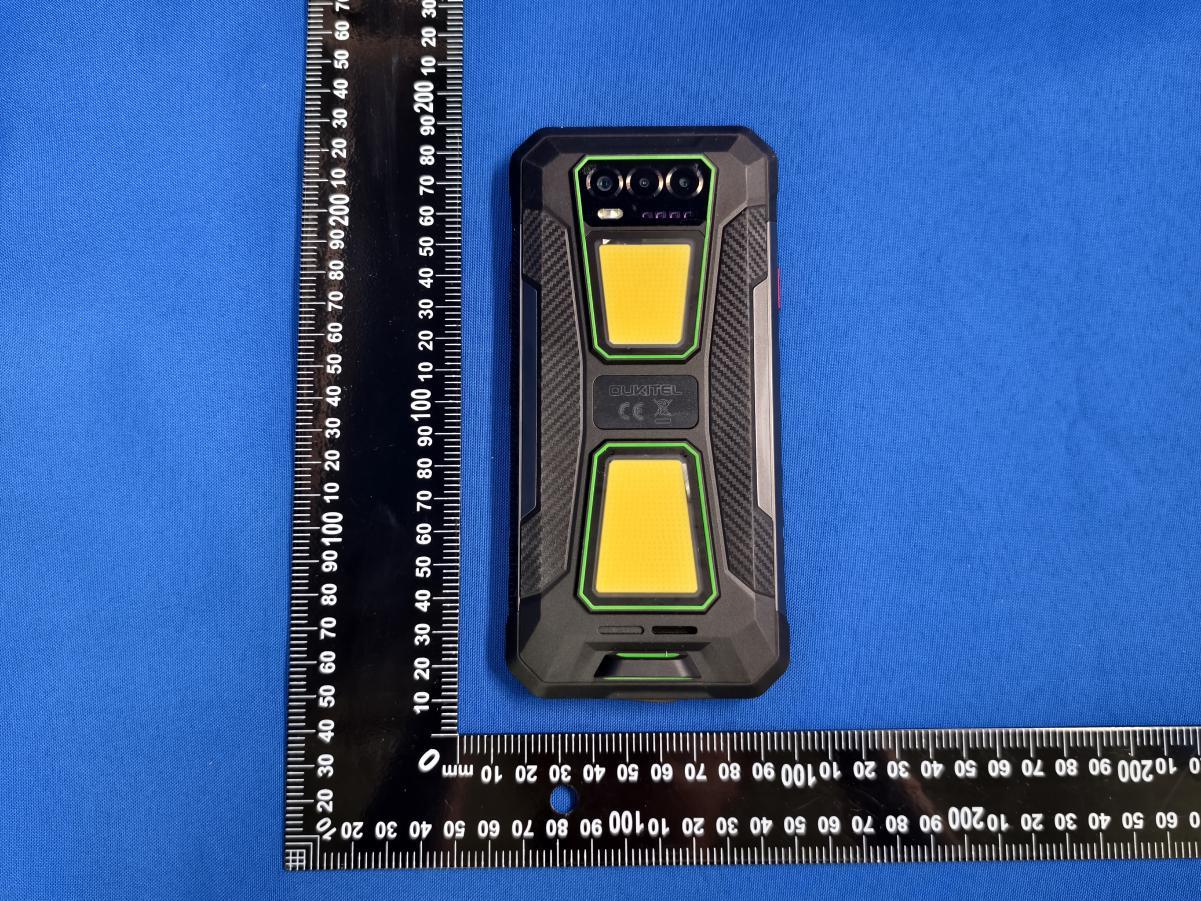

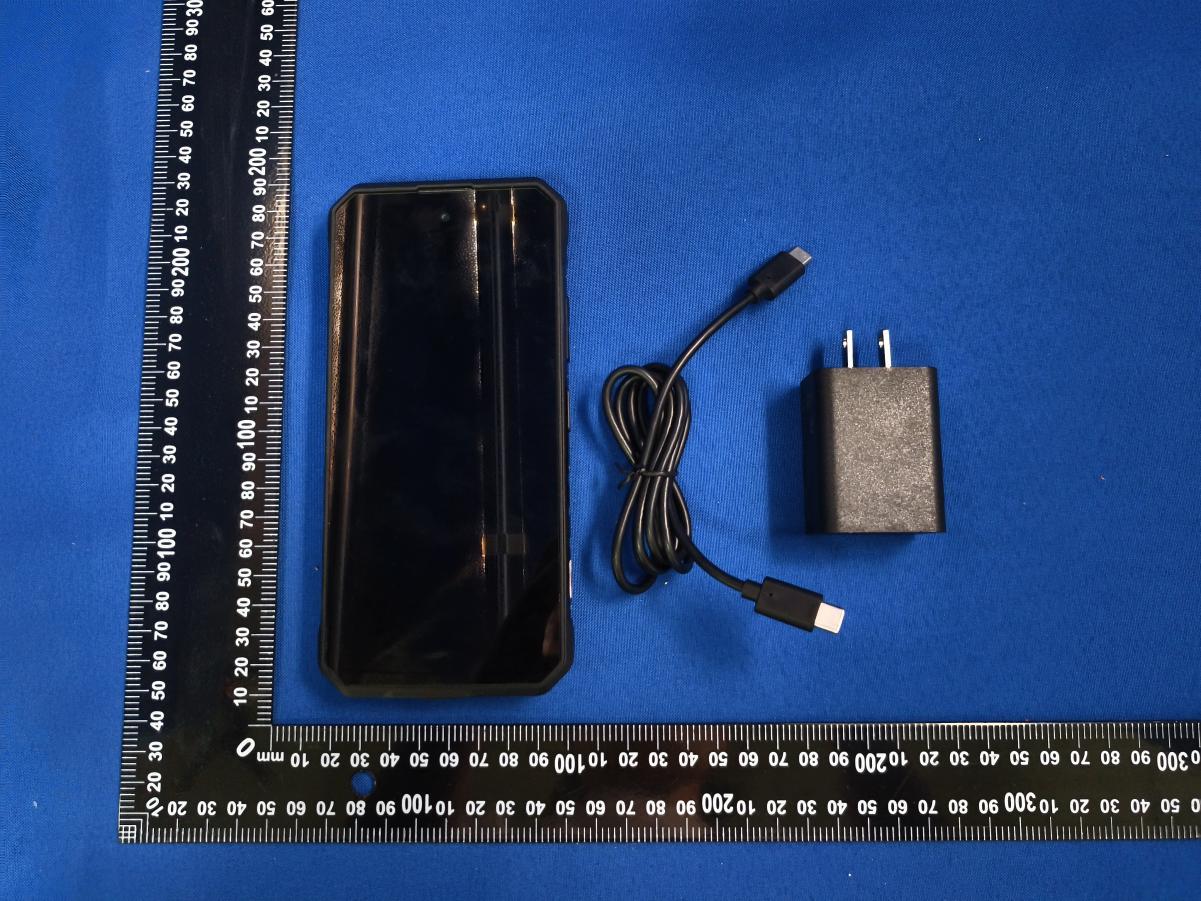

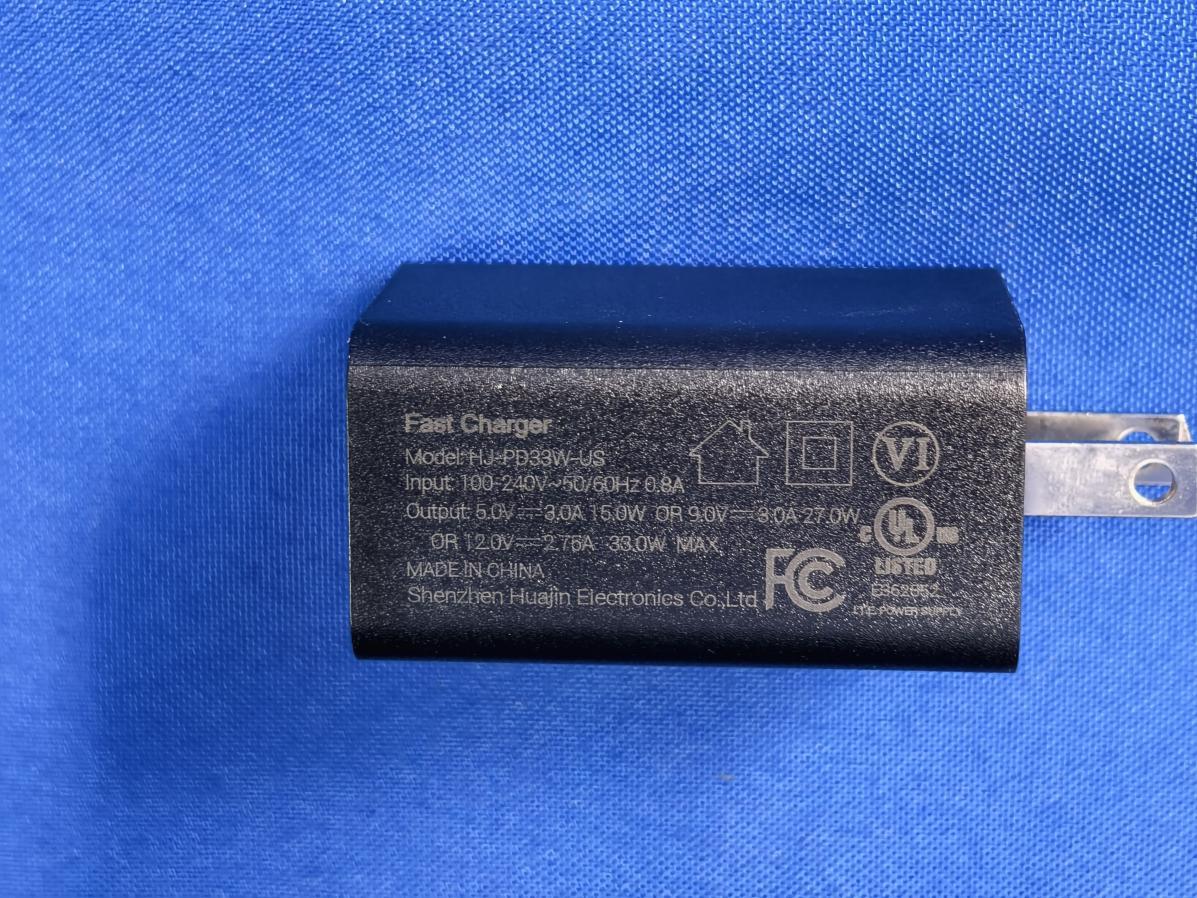

2ANMU-WP58Rugged Smart Phone

Page 134 of 200 Report No.: STS2508006H02 Plot 8: DUT: Rugged Smart Phone; EUT Model: WP58 Pro Test Date 2025-09-27 ConvF 1.58 Probe SN 08/21 EPGO352 Area Scan dx=8mm, dy=8mm, h= 5.00 mm Zoom Scan 5x5x7, dx=8mm, dy=8mm, dz=5mm Phantom Validation plane Device Position Back Side Band WCDMA lV Signal WCDMA (Crest factor: 1.0) Frequency (MHz) 1712.6 Relative permittivity (real part) 40.13 Conductivity (S/m) 1.34 SURFACE SAR VOLUME SAR Maximum location: X=-8.00, Y=0.00 ; SAR Peak: 0.76 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.287 SAR 1g (W/Kg) 0.493 Horizontal validation criteria: minimum distance (mm) 17.888544 Vertical validation criteria: SAR ratio M2/M1 (%) 62.485795 Page 135 of 200 Report No.: STS2508006H02 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.759 0.523 0.327 0.209 0.133 0.084 0.054 F. 3D Image 3D screen shot Hot spot position Page 136 of 200 Report No.: STS2508006H02 Plot 9: DUT: Rugged Smart Phone; EUT Model: WP58 Pro Test Date 2025-09-24 ConvF 1.44 Probe SN 08/21 EPGO352 Area Scan dx=8mm, dy=8mm, h= 5.00 mm Zoom Scan 5x5x7, dx=8mm, dy=8mm, dz=5mm Phantom Right Cheek Device Position Cheek Band WCDMA V Signal WCDMA (Crest factor: 1.0) Frequency (MHz) 836.6 Relative permittivity (real part) 42.34 Conductivity (S/m) 0.91 SURFACE SAR VOLUME SAR Maximum location: X=-50.00, Y=-48.00 ; SAR Peak: 0.15 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.084 SAR 1g (W/Kg) 0.113 Horizontal validation criteria: minimum distance (mm) 8.169768 Vertical validation criteria: SAR ratio M2/M1 (%) 78.260869 Page 137 of 200 Report No.: STS2508006H02 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.141 0.115 0.092 0.072 0.059 0.046 0.036 F. 3D Image 3D screen shot Hot spot position Page 138 of 200 Report No.: STS2508006H02 Plot 10: DUT: Rugged Smart Phone; EUT Model: WP58 Pro Test Date 2025-09-24 ConvF 1.44 Probe SN 08/21 EPGO352 Area Scan dx=8mm, dy=8mm, h= 5.00 mm Zoom Scan 5x5x7, dx=8mm, dy=8mm, dz=5mm Phantom Validation plane Device Position Back Side Band WCDMA V Signal WCDMA (Crest factor: 1.0) Frequency (MHz) 836.6 Relative permittivity (real part) 42.34 Conductivity (S/m) 0.91 SURFACE SAR VOLUME SAR Maximum location: X=-23.00, Y=-8.00 ; SAR Peak: 0.40 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.146 SAR 1g (W/Kg) 0.258 Horizontal validation criteria: minimum distance (mm) 22.627417 Vertical validation criteria: SAR ratio M2/M1 (%) 62.242020 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.393 0.268 0.167 0.104 0.069 0.044 0.028 Page 139 of 200 Report No.: STS2508006H02 F. 3D Image 3D screen shot Hot spot position Page 140 of 200 Report No.: STS2508006H02 Plot 11: DUT: Rugged Smart Phone; EUT Model: WP58 Pro Test Date 2025-09-30 ConvF 1.72 Probe SN 08/21 EPGO352 Area Scan dx=8mm, dy=8mm, h= 5.00 mm Zoom Scan 5x5x7, dx=8mm, dy=8mm, dz=5mm Phantom Right head Device Position Cheek Band LTE Band 2 (RB 1) Signal LTE (Crest factor: 1.0) Frequency (MHz) 1880 Relative permittivity (real part) 40.21 Conductivity (S/m) 1.40 SURFACE SAR VOLUME SAR Maximum location: X=-22.00, Y=16.00 ; SAR Peak: 0.66 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.262 SAR 1g (W/Kg) 0.442 Horizontal validation criteria: minimum distance (mm) 16.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 65.683811 Page 141 of 200 Report No.: STS2508006H02 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.648 0.471 0.309 0.203 0.129 0.084 0.054 F. 3D Image 3D screen shot Hot spot position Page 142 of 200 Report No.: STS2508006H02 Plot 12: DUT: Rugged Smart Phone; EUT Model: WP58 Pro Test Date 2025-09-30 ConvF 1.72 Probe SN 08/21 EPGO352 Area Scan dx=8mm, dy=8mm, h= 5.00 mm Zoom Scan 5x5x7, dx=8mm, dy=8mm, dz=5mm Phantom Validation plane Device Position Back Side Band LTE Band 2(RB 1) Signal LTE (Crest factor: 1.0) Frequency (MHz) 1880 Relative permittivity (real part) 40.21 Conductivity (S/m) 1.40 SURFACE SAR VOLUME SAR Maximum location: X=-15.00, Y=-7.00 ; SAR Peak: 1.16 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.394 SAR 1g (W/Kg) 0.721 Horizontal validation criteria: minimum distance (mm) 16.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 58.777412 Page 143 of 200 Report No.: STS2508006H02 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.152 0.766 0.450 0.266 0.157 0.093 0.055 F. 3D Image 3D screen shot Hot spot position Page 144 of 200 Report No.: STS2508006H02 Plot 13: DUT: Rugged Smart Phone; EUT Model: WP58 Pro Test Date 2025-09-27 ConvF 1.58 Probe SN 08/21 EPGO352 Area Scan dx=8mm, dy=8mm, h= 5.00 mm Zoom Scan 5x5x7, dx=8mm, dy=8mm, dz=5mm Phantom Right head Band LTE Band 4 (RB 1) Signal LTE (Crest factor: 1.0) Frequency (MHz) 1745 Relative permittivity (real part) 40.18 Conductivity (S/m) 1.36 SURFACE SAR VOLUME SAR Maximum location: X=-17.00, Y=17.00 ; SAR Peak: 0.33 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.128 SAR 1g (W/Kg) 0.215 Horizontal validation criteria: minimum distance (mm) 17.888544 Vertical validation criteria: SAR ratio M2/M1 (%) 64.518807 Page 145 of 200 Report No.: STS2508006H02 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.320 0.225 0.145 0.093 0.062 0.041 0.027 F. 3D Image 3D screen shot Hot spot position Page 146 of 200 Report No.: STS2508006H02 Plot 14: DUT: Rugged Smart Phone; EUT Model: WP58 Pro Test Date 2025-09-27 ConvF 1.58 Probe SN 08/21 EPGO352 Area Scan dx=8mm, dy=8mm, h= 5.00 mm Zoom Scan 5x5x7, dx=8mm, dy=8mm, dz=5mm Phantom Validation plane Device Position Back Side Band LTE Band 4 (RB 1) Signal LTE (Crest factor: 1.0) Frequency (MHz) 1745 Relative permittivity (real part) 40.18 Conductivity (S/m) 1.36 SURFACE SAR VOLUME SAR Maximum location: X=-15.00, Y=-7.00 ; SAR Peak: 1.12 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.385 SAR 1g (W/Kg) 0.696 Horizontal validation criteria: minimum distance (mm) 16.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 58.660994 Page 147 of 200 Report No.: STS2508006H02 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W…

Text truncated - open the document above for the full version.

2ANMU-WP58_SARSetupphotos RightTouch RightTilt LeftTouch LeftTilt Frontside(separationdistanceis10mm) BackSide(separationdistanceis10mm) Leftside(separationdistanceis10mm) Rightside(separationdistanceis10mm) Topside(separationdistanceis10mm) Bottomside(separationdistanceis10mm)

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2508006W09 Issued for SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, China Product Name: Rugged Smart Phone Brand Name: OUKITEL Model Name: WP58 Pro Series Model(s): WP58, WP58 S, WP58 Plus, WP58 Ultra, WP58 TITAN, WP58 GT FCC ID: 2ANMU-WP58 Test Standards: FCC Part15.247 Page 2 of 93 Report No.: STS2508006W09 TEST REPORT Applicant’s Name ................. : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address .................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, China Manufacturer's Name ........... : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address .................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, China Product Description Product Name ........................ : Rugged Smart Phone Brand Name ........................... : OUKITEL Model Name ........................... : WP58 Pro Series Model(s) .................... : WP58, WP58 S, WP58 Plus, WP58 Ultra, WP58 TITAN, WP58 GT Standards ............................. : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ............................... : Date of receipt of test item ......... : 04 Aug. 2025 Date (s) of performance of tests : 04 Aug. 2025 ~ 19 Aug. 2025 Date of Issue ............................. : 19 Aug. 2025 Test Result ................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 93 Report No.: STS2508006W09 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13 2.7 EQUIPMENTS LIST 14 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 TEST SETUP 31 4.4 EUT OPERATION CONDITIONS 31 4.5 TEST RESULTS 31 5. NUMBER OF HOPPING CHANNEL 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 32 6. AVERAGE TIME OF OCCUPANCY 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 33 7. HOPPING CHANNEL SEPARATION MEASUREMEN 34 7.1 LIMIT 34 Page 4 of 93 Report No.: STS2508006W09 Table of Contents Page 7.2 TEST PROCEDURE 34 7.3 TEST SETUP 34 7.4 EUT OPERATION CONDITIONS 34 7.5 TEST RESULTS 34 8. BANDWIDTH TEST 35 8.1 LIMIT 35 8.2 TEST PROCEDURE 35 8.3 TEST SETUP 35 8.4 EUT OPERATION CONDITIONS 35 8.5 TEST RESULTS 35 9. OUTPUT POWER TEST 36 9.1 LIMIT 36 9.2 TEST PROCEDURE 36 9.3 TEST SETUP 36 9.4 EUT OPERATION CONDITIONS 36 9.5 TEST RESULTS 36 10. ANTENNA REQUIREMENT 37 10.1 STANDARD REQUIREMENT 37 10.2 EUT ANTENNA 37 APPENDIX 1-TEST DATA 38 DWELL TIME 38 MAXIMUM PEAK CONDUCTED OUTPUT POWER 48 -20DB BANDWIDTH 54 CARRIER FREQUENCIES SEPARATION 60 NUMBER OF HOPPING CHANNEL 66 BAND EDGE 69 BAND EDGE(HOPPING) 76 CONDUCTED RF SPURIOUS EMISSION 83 APPENDIX 2-PHOTOS OF TEST SETUP 93 Page 5 of 93 Report No.: STS2508006W09 Revision History Rev. Issue Date Report No. Effect Page Contents 00 19 Aug. 2025 STS2508006W09 ALL Initial Issue Page 6 of 93 Report No.: STS2508006W09 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- Note: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 93 Report No.: STS2508006W09 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.755dB 2 Unwanted Emissions, conducted ±2.874dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.18dB 5 All emissions, radiated 1G-6GHz ±4.90dB 6 All emissions, radiated>6G ±5.24dB 7 Conducted Emission (9KHz-150KHz) ±2.19dB 8 Conducted Emission (150KHz-30MHz) ±2.53dB 9 Occupied Chann…

Text truncated - open the document above for the full version.

WP58 Pro antenna report ●Customer: Yunji ●Anwei RF: Wu Xi ●Mobile number: 13751118278 ●Report Version: 2025.8.26 Introduction to Project Debugging Plate type complete machine Antenna Overview main antenna frequency band Antenn a status Antenna form 2GGSM:(B2/B3/B5/B8) WCDMA:(B1/B2/B4/B5/B8) LTE-TDD:(38.40.41) FDD:(1.2.3.4.5.7.8.12.17. 20.25.26.28.66. ) N1/N3/N5/N7/N8/N20/N26/N28/N6 6/N38/N41/N77/N78 FPCPIFA 3G 4G Other antennas 5G FPCPIFA BT/WIFI2.4G+5g GPS1575.42MHzFPCPIFA Prototype status DVT trial production machine environmental treatment Introduction to Project Debugging Switch logic and matching ） The RF switch frequency band splitting of the lower antenna is as follows()： frequency bandSwitch channel matchRemarks TRX GSM:8 WCDMA:B8 LTE:8 NR:8 DRX:GSMB2/3 WCDMA:B1/B2/B4 LTE:1/2/3/4/7/25/66/ 38/40/41 NR：1/3/7/25/66 RF1L100:0Europe L101:5.6NH inductance L103:18NH inductance L102:NC TRX GSMB5 WCDMA:B5 LTE:B5/B20/B26 NR：5/20 RF2 TRX LTE:12/17/28 NR:28 RF3 DPDTLogic and matching (motherboard)ANT2 The frequency band splitting of the upper antenna RF switch is as follows()： frequency bandSwitch channel matchRemarks DRX GSM:8 WCDMA:B8 LTE:B8 NR:8 TRX:GSMB2/3 WCDMA:B1/B2/B4 LTE:1/2/3/4/7/25/66/ 38/40/41 NR：1/3/7/25/66 RF1C2329:1PFcapacitance R3028:3.3NHinductance C2330:NC DRX GSMB5 WCDMA:B5 LTE:B5/B20/B26 NR：5/20 RF2 DRX LTE:12/17/28 NR:28 RF3 C2910:NC R2905:0Europe C2911:NC R2906:0Europe C2917：NC ANT7Motherboard matching modification TVS122:NC L109:0.5PF R100:0Europe L110:NC T V S 1 2 1 R 1 2 2 1 : 0 E u r o p e ANT4Small board matching modification Motherboard conduction (wireless loss point measurement) Channel EVTspot measuremen t Channel EVTspot measuremen t FDD B1 LOW 22.01 FDD B17 LOW 22.06 medium 22.1 medium 22.15 high 22.1 high 22.11 FDD B2 LOW 22.05 FDD B18 LOW 22.82 medium 21.87 medium 22.83 high 22.1 high 22.7 FDD B3 LOW 21.8 FDD B19 LOW 21.9 medium 21.95 medium 21.91 high 22.1 high 21.89 FDD B4 LOW 22.5 FDD B20 LOW 22.14 medium 22.46 medium 22.08 high 22.34 high 21.93 FDD B5 LOW 22.6 FDD B25 LOW 22.14 medium 22.43 medium 21.86 high 22.33 high21.95 FDD B7 LOW 21.52 FDD B26 LOW 22.04 medium 21.34 medium 22.14 high 21.75 high 21.94 FDD B8 LOW 22.08 FDD B28 LOW 21.84 medium 22.29 medium 21.96 high 22.13 high 21.38 FDD B12 LOW 21.61 FDD B66 LOW 21.51 medium 22.09 medium 21.6 high 22.08 high 21.44 Channel EVTspot measurement TDD B34 LOW 22.3 medium 21.89 high 21.54 TDD B38 LOW 21.34 medium 21.32 high 21.47 TDDB39 LOW 22.34 medium 22.12 high 22.22 TDD B40 LOW 21.3 medium 21.14 high 21.31 TDD B41 LOW 21.24 medium 21.56 high 21.34 Channel EVTspot measurement Channel EVTspot measuremen t GSM 850 128 31.88 W 1 LOW 21.75 190 31.58 medium 21.64 251 31.39 high 21.58 GSM 900 1 31.18 W 2 LOW 22.1 62 31.05 medium 22.24 124 31.07 high 22.34 DCS 1800 512 28.57 W 4 LOW 21.34 698 28.63 medium 21.57 885 28.75 high 21.64 PCS 1900 512 28.56 W 5 LOW 22.12 661 28.49 medium 21.96 810 28.50 high 22.02 W 8 LOW 21.57 medium 21.52 high 21.04 Motherboard conducted data (wireless loss point measurement) ChannelTRP（dBm）Channel TRP（dBm ） 5G SA N1 LOW 22.24 5G SA N28 LOW 21.75 medium 22.04 medium 21.64 high 22.14 high 21.81 5G SA N3 LOW 22.03 5G SA N66 LOW 22.07 medium 22.3 medium 21.89 high 22.14 high 21.98 5G SA N5 LOW 22.01 5G SA N38 LOW 22.24 medium 22.24 medium 22.01 high 21.97 high 22.31 5G SA N7 LOW 22.34 5G SA N40 LOW 22.79 medium 22.14 medium 22.68 high 22.04 high 22.60 5G SA N8 LOW 21.89 5G SA N41 LOW 25.04 medium 21.96 medium 24.98 high 21.88 high 25.21 5G SA N12 LOW 21.75 5G SA N77 LOW 25.11 medium 22.04 medium 24.86 high 22.64 high 24.79 5G SA N20 LOW 21.86 5G SA N78 LOW 24.57 medium 21.93 medium 24.67 high 22.04 high 24.59 5G SA N25 LOW 21.76 medium 21.59 high 21.68 Main antenna darkroom data ChannelTRP（dBm）TIS（dBm） Aging bright screen -100.28 -99.64 -101.5 -101 ChannelTRP（dBm）TIS（dBm） Aging bright screen -102.2 -102.4 -101.5 -99.56 -99.5 GSM 850 128 25.51 W 1 LOW 17.54 190 25.49 medium 17.34 251 26.05 -102.0high 17.42 -104.0 GSM 900 1 26.02 W 2 LOW 17.64 62 25.41 medium 17.24 124 25.61 -101.5high 17.04 -103.2 DCS 1800 512 24.23 W 4 LOW 16.76 698 24.38 medium 17.04 885 25.45 -103.0high 17.35 -103.2 PCS 1900 512 24.94 W 5 LOW 15.34 661 24.83 medium 15.53 810 24.53 -102.5high 16.16 -101.5 W 8 LOW 16.21 medium 16.30 high 16.2 -101.5 Main antenna darkroom data ChannelTRP（dBm） TIS（dBm ） Aging bright screen -89.5 -90.1 -90.0 -89.3 -87.0 -89.4 -87.2 ChannelTRP（dBm） TIS（dBm ） Aging bright screen -85.2 -86.78 -86.2 -86.5 -88.6 -87.0 -85.37 FDD B1 LOW 17.58 FDD B17 LOW 15.12 medium 17.55 medium 15.29 high 17.65 -91.5high 15.23 -89.4 FDD B2 LOW 18.15 FDD B18 LOW 15.12 medium 18.2 medium 15.20 high 17.75 -91.3high 15.19 -90.3 FDD B3 LOW 17.44 FDD B19 LOW 15.61 medium 18.22 medium 15.87 high 18.3 -91.0high 15.92 -89.0 FDD B4 LOW 17.57 FDD B20 LOW 15.81 medium 17.16 medium 15.91 high 17.99 -91.2high 15.37 -89.5 FDD B5 LOW 15.21 FDD B25 LOW 17.52 medium 15.25 medium 17.26 high 15.54 -90.0high 17.54 -90.1 FDD B7 LOW 17.04 FDD B26 LOW 15.41 medium 17.11 medium 15.25 high 17.06 -90.4high 15.51 -90.3 FDD B8 LOW 16.05 FDD B28A LOW 15.44 medium 16.06 medium 15.32 high 16.18 -89.0high 15.25 -89.2 FDD B12 LOW 15.08 FDD B28B LOW 15.25 medium 15.18 medium 15.33 ChannelTRP（dBm）TIS（dBm） Aging bright screen -89.4 -88.0 -90.2 -89.3 FDD B66 LOW 16.76 medium 17.04 high 17.24 -90.25 TDD B38 LOW 17.09 medium 17.14 high 17.22 -89.3 TDDB40 LOW 18.15 medium 18.38 high 18.18 -91.0 TDD B41 LOW 17.13 medium 16.77 high 17.34 -90.4 Main antenna darkroom data ChannelTRP（dBm）TIS（dBm） Aging bright screen -90.34 -89.4 -86.52 -88.5 -86.43 -85.64 -87.3 -87.64 ChannelTRP（dBm） TIS（dBm ） Aging bright screen -86.59 -86.28 NR N1 LOW 17.41 NR N28 LOW 15.54 medium 17.55 medium 15.06 high 16.35 -91.6high 15.16 -90.1 NR N3 LOW 17.12 NR N66 LOW 17.29 medium 16.79 medium 17.19 high 16.29 -91.5high 16.37 -89.42 NR N5 LOW 15.53 medium 15.64 high 15.42 -89.0 NR N7 LOW 17.45 medium 17.22 high 17.16 -90.0 NR N8 LOW 16.08 medium 16.17 high 15.77 -89.0 NR N12 LOW…

Text truncated - open the document above for the full version.

Page: 2/13 ACR.14.22.24.BES.A Ref: SAR REFERENCE DIPOLE CALIBRATION REPORT Page: 3/13 Template_ACR.DDD.N.YY.MVGB.ISSUE_SAR Reference Dipole vG This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Introduction ................................................................................................................ 4 2 Device Under Test ..................................................................................................... 4 3 Product Description ................................................................................................... 4 3.1 General Information _______________________________________________________ 4 4 Measurement Method ................................................................................................ 4 4.1 Return Loss Requirements __________________________________________________ 5 4.2 Mechanical Requirements ___________________________________________________ 5 5 Measurement Uncertainty .......................................................................................... 5 5.1 Return Loss ______________________________________________________________ 5 5.2 Dimension Measurement ___________________________________________________ 5 5.3 Validation Measurement ____________________________________________________ 5 6 Calibration Measurement Results .............................................................................. 6 6.1 Return Loss and Impedance In Head Liquid ____________________________________ 6 6.2 Return Loss and Impedance In Body Liquid ____________________________________ 6 6.3 Mechanical Dimensions ____________________________________________________ 7 7 Validation measurement ............................................................................................ 7 7.1 Head Liquid Measurement __________________________________________________ 8 7.2 SAR Measurement Result With Head Liquid ____________________________________ 8 7.3 Body Liquid Measurement _________________________________________________ 11 7.4 SAR Measurement Result With Body Liquid __________________________________ 12 8 List of Equipment .................................................................................................... 13 Ref: ACR.14.22.24.BES.A SAR REFERENCE DIPOLE CALIBRATION REPORT Page: 4/13 Template_ACR.DDD.N.YY.MVGB.ISSUE_SAR Reference Dipole vG This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 INTRODUCTION This document contains a summary of the requirements set forth by the IEEE 1528, FCC KDBs and CEI/IEC 62209 standards for reference dipoles used for SAR measurement system validations and the measurements that were performed to verify that the product complies with the fore mentioned standards. 2 DEVICE UNDER TEST Device Under Test Device Type COMOSAR 3300 MHz REFERENCE DIPOLE Manufacturer MVG Model SID3300 Serial Number SN 08/21 DIP3G300-552 Product Condition (new / used) 3 PRODUCT DESCRIPTION 3.1 GENERAL INFORMATION MVG’s COMOSAR Validation Dipoles are built in accordance to the IEEE 1528, FCC KDBs and CEI/IEC 62209 standards. The product is designed for use with the COMOSAR test bench only. Figure 1 – MVG COMOSAR Validation Dipole 4 MEASUREMENT METHOD The IEEE 1528, FCC KDBs and CEI/IEC 62209 standards provide requirements for reference dipoles used for system validation measurements. The following measurements were performed to verify that the product complies with the fore mentioned standards. Ref: ACR.14.22.24.BES.A Used SAR REFERENCE DIPOLE CALIBRATION REPORT Page: 5/13 Template_ACR.DDD.N.YY.MVGB.ISSUE_SAR Reference Dipole vG This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 4.1 RETURN LOSS REQUIREMENTS The dipole used for SAR system validation measurements and checks must have a return loss of -20 dB or better. The return loss measurement shall be performed against a liquid filled flat phantom, with the phantom constructed as outlined in the fore mentioned standards. A direct method is used with a network analyser and its calibration kit, both with a valid ISO17025 calibration. 4.2 MECHANICAL REQUIREMENTS The IEEE Std. 1528 and CEI/IEC 62209 standards specify the mechanical components and dimensions of the validation dipoles, with the dimension’s frequency and phantom shell thickness dependent. The COMOSAR test bench employs a 2 mm phantom shell thickness therefore the dipoles sold for use with the COMOSAR test bench comply with the requirements set forth for a 2 mm phantom shell thickness. A direct method is used with a ISO17025 calibrated caliper. 5 MEASUREMENT UNCERTAINTY All uncertainties listed below represent an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2, traceable to the Internationally Accepted Guides to Measurement Uncertainty. 5.1 RETURN LOSS The following uncertainties apply to the return loss measurement: Frequency band Expanded Uncertainty on Return Loss 400-6000MHz 0.08 LIN 5.2 DIMENSION MEASUREMENT The following uncertainties apply to the dimension measurements: Length (mm) Expanded Uncertainty on Length 0 - 300 0.20 mm 300 - 450 0.44 mm 5.3 VALIDATION MEASUREMENT The guidelines outlined in the IEEE 1528, FCC KDBs, CENELEC EN50361 and CEI/IEC 62209 standards were followed to generate the measurement uncertainty for validation measurements. Scan Vol…

Text truncated - open the document above for the full version.

       !"#$"# %&'()*+&,-./011102033045670899:;,9-//&<&=&>?&1@(A)&BC DEFGHIJKL MNGEOOMINP Q RQIHKJ HS TJ RNFMUKOOIQFMRQNSVFNEIKNNE VQFNN MRRQIWOIUXYZ[DE FMUIQLNFIMJIMNFM HE Q FMFGNIP KG H IMO\UIQNE RKQRIG UIQVEFJEFNFGGKPLFNN HMHFGMINNIP Q O G HFMVEIO IQRQNVFNEIKNVQFNN MRRQIWOIUXYZ[ ]  ^_ ` abcdefghijcffklmjnggi opqrstuv twxyqrvqzu `{up|{xvpyty} `z~t ~tuvq|qx{vqzuz€ pyytuv {qy{vqzu {vt t‚v{qy{vqzu {vt jƒ„…nkhi†f „‡ˆ j‰Š‹ŒŽjƒ„ ‡k‘d’kig’“‰†”k‘ lgbcdlg’“ ‡k‘d’kig’“ ‰†”k‘ lgbcdlg’“ •–„ –jƒ—˜g™išgh”n‡gl™d†h‹‰ƒ ‡k‘d’kig’“‰†”k‘ lgbcdlg’“ ‡k‘d’kig’“ ‰†”k ‘ lgbcdlg’“ ‰gi›†lœƒhk‘mgl —†n’gžj”n›kl Ÿ‡„ Š ‹Œ  ŠŒ  ¡ ‰gi›†lœƒhk‘mglƒ¢d‘ghi£¤‹aj„¥¡‹ ŠŠŒ  ‰gi›†lœƒhk‘mgl¦ •k‘d§lkid†hœdi —†n’gžj”n›kl Ÿ‡ ̈Ÿ ‹¤ ŠŠ ‹¤Œ  ‰gi›†lœƒhk‘mgl¦ •k‘d§lkid†hœdi ©…¤‹‹ª‹¡ ‹ƒŠŒ  ŠŒ  £ •k‘degl™„dici†m†j‰Ž£‹ —g«glgh”g…l†§g„‡ˆ j‰¡ŠŒŠa…ˆ–‹‹‹ŠŒ  „c‘idfgigl¬gdin‘gm ŠŠ £Š Œ  jd¢hk‘ˆghglki†l —†n’gžj”n›kl j„š Š¤Ž¡Œ  ƒfe‘d«dgl„‡ˆ „ –ª­ ̈ ‹ ̈• ̈ •nklk”igldg’eld†li† ig™i“‰†”k‘lgbcdlg’“ •nklk”igldg’eld†li† ig™i“‰†”k‘lgbcdlg’“ …†›gl„gigl‰® ̈­jš¤Š£ŠŠ‹Œ  ŠŒ  ¡ …†›gl„gigl —†n’gžj”n›kl ‰—‡ª ‹ ‹Ž ̈¤ŠŠŒ  ªdlg”id†hk‘•†ce‘gl¬lmiklŠ¤ Š‹Š¡£ •nklk”igldg’eld†li† ig™i“‰†”k‘lgbcdlg’“ •nklk”igld g’eld†li† ig™i“‰†”k‘lgbcdlg’“ ˜gfeglkiclgŒ©cfd’dim jgh™†l ˜g™i†Š¡©Š¡¡ ¤‹ Œ  ŠŒ  ¡ ŠŒ  ¤ ¤Œ  ¤ ŠŒ  Œ  ¤ Š Œ  Š ‹ ¡Œ    Œ  ‹  ŠŠŒ  ¤ 3 9 Ref : ACR.262.10..MVGB.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING B, ZHUOKE SCIENCE PARK,No.190, CHONGQING ROAD,FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONG,CHINA MVG COMOSAR REFERENCE DIPOLE FREQUENCY: 2450 MHZ SERIAL NO.: SN 30/14 DIP2G450-335 SAR Reference Dipole Calibration Report Summary: Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise - 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: Page: 1/11 2 3 07/04/2023 Accreditations #2-6789 and #2-6814 Scope available on www.cofrac.fr This document presents the method and results from an accredited SAR reference dipole calibration performed in MVG using the COMOSAR test bench. All calibration results are traceable to national metrology institutions. SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262..2.MVGB.A Name Function Date Signature Prepared by : Jérôme LUC Technical Manager Checked by : Jérôme LUC Technical Manager Approved by : Yann Toutain Laboratory Director Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A Initial release Name Jérôme LUC Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 0 1 7/0/202 3 4 7/0/202 3 4 7/0/202 3 4 7/0/202 3 4 3 SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262. TABLE OF CONTENTS 1 Introduction ................................................................................................................ 4 2 Device Under Test ..................................................................................................... 4 3 Product Description ................................................................................................... 4 3.1 General Information _______________________________________________________ 4 4 Measurement Method ................................................................................................ 5 4.1 Return Loss Requirements __________________________________________________ 5 4.2 Mechanical Requirements ___________________________________________________ 5 5 Measurement Uncertainty .......................................................................................... 5 5.1 Return Loss ______________________________________________________________ 5 5.2 Dimension Measurement ___________________________________________________ 5 5.3 Validation Measurement ____________________________________________________ 5 6 Calibration Measurement Results .............................................................................. 6 6.1 Return Loss and Impedance In Head Liquid ____________________________________ 6 6.2 Return Loss and Impedance In Body Liquid ____________________________________ 6 6.3 Mechanical Dimensions ____________________________________________________ 6 7 Validation measurement ............................................................................................ 7 7.1 Head Liquid Measurement __________________________________________________ 7 7.2 SAR Measurement Result With Head Liquid ____________________________________ 8 7.3 Body Liquid Measurement __________________________________________________ 9 7.4 SAR Measurement Result With Body Liquid __________________________________ 10 8 List of Equipment .................................................................................................... 11 Page: 3/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. ..MVGB.A 0 1 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR…
